Model Whirlpool SU110 ELECTRIC RANGE – Common Parts & Diagrams
05 - DRAWER ASSEMBLY

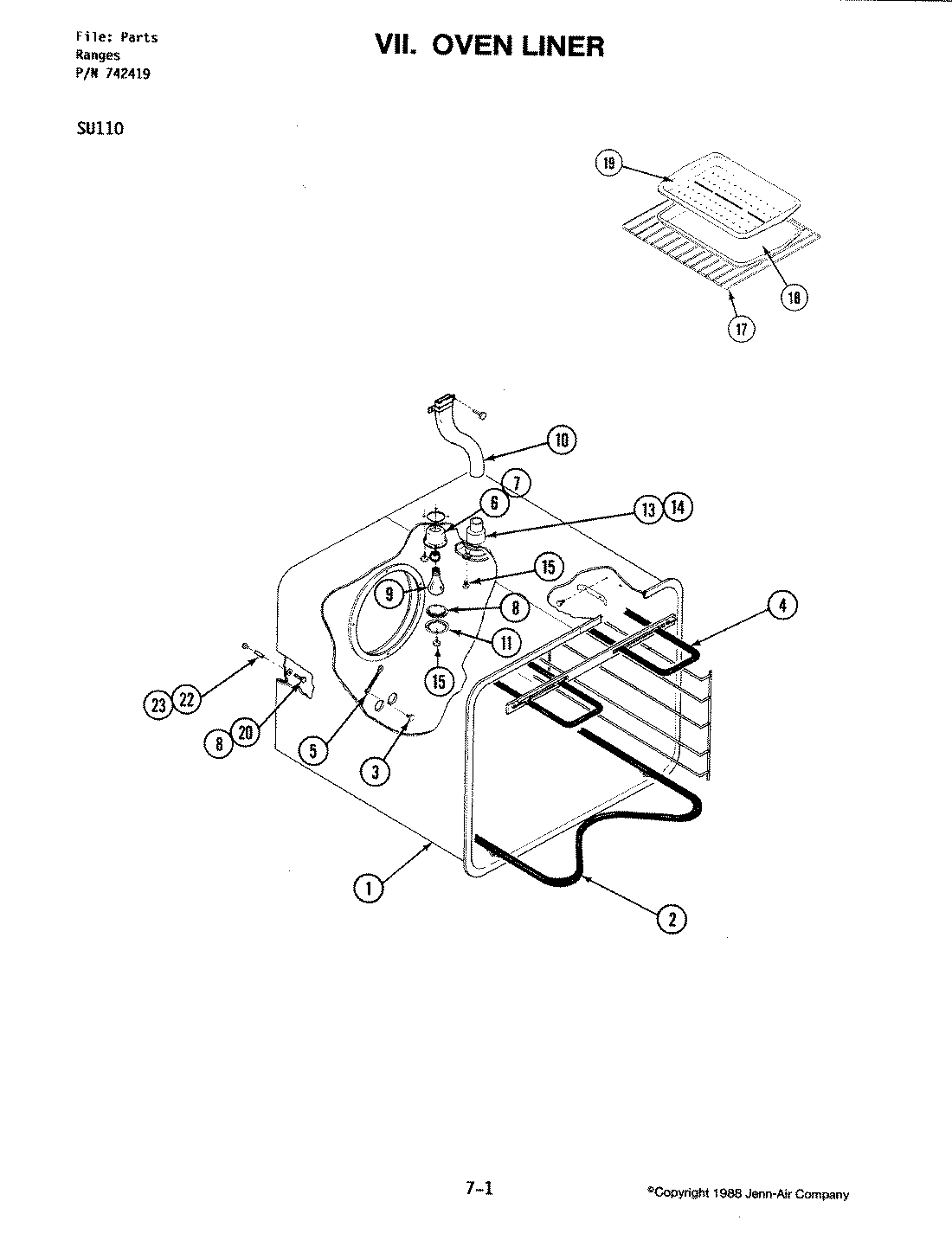

06 - OVEN

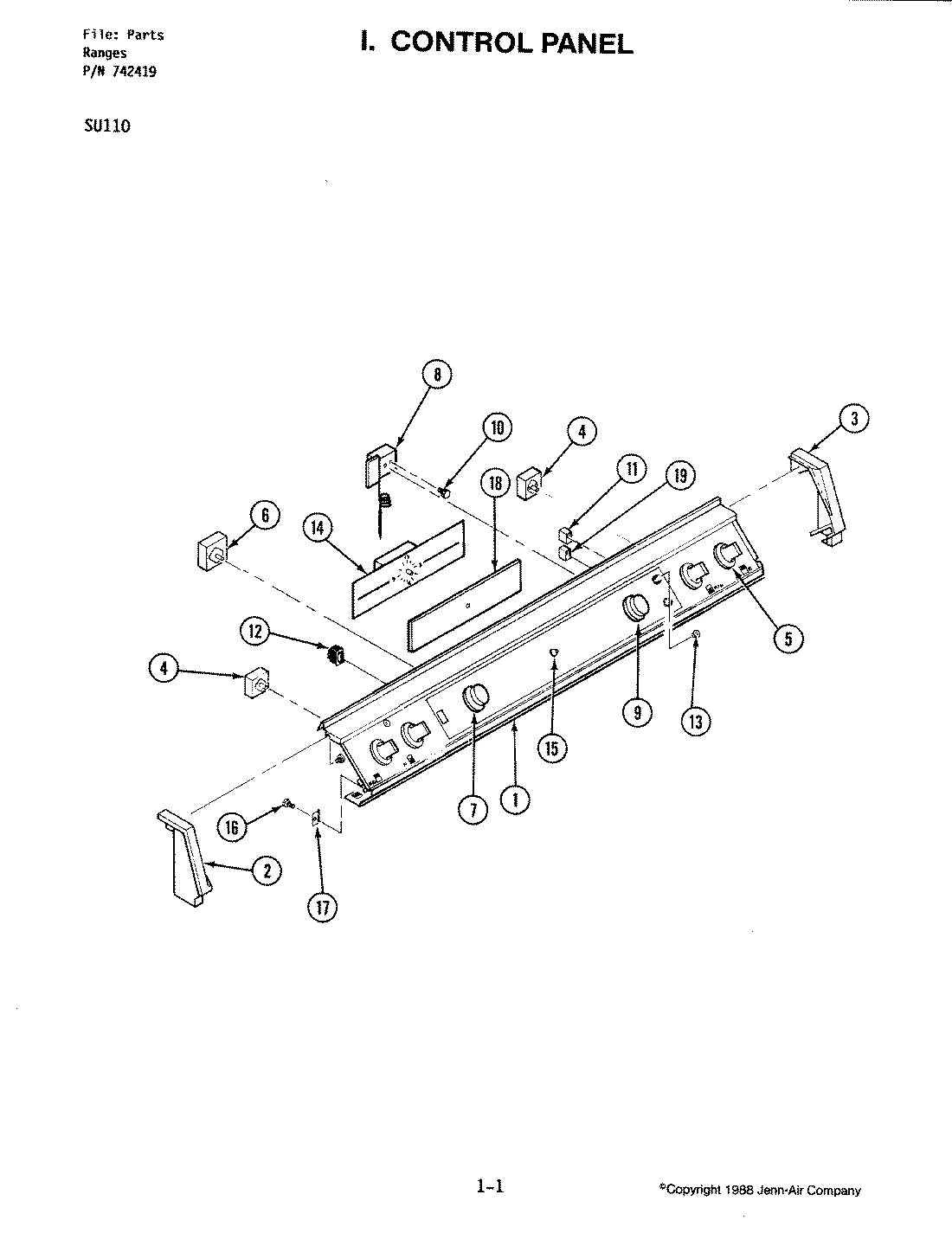

03 - CONTROL PANEL

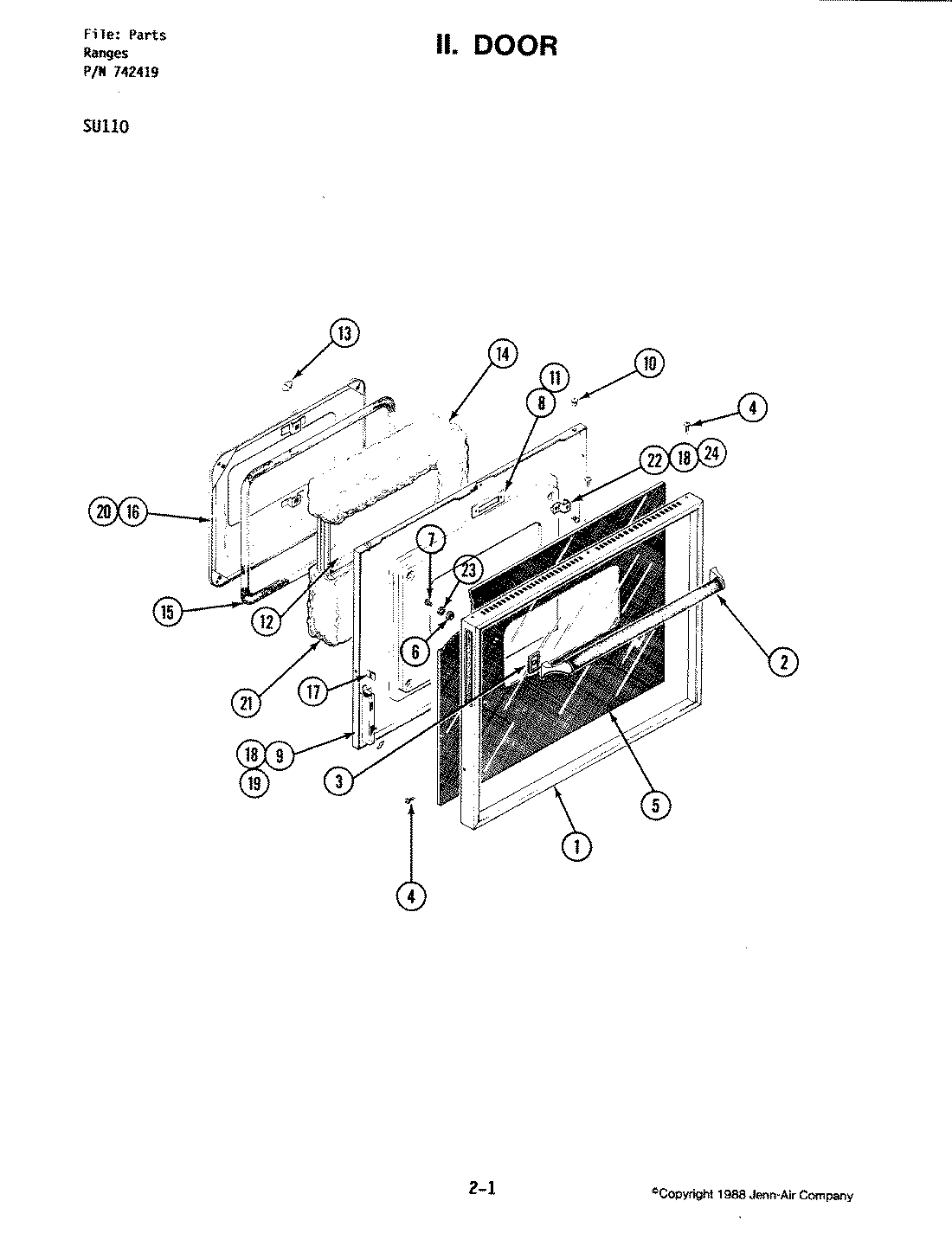

04 - DOOR

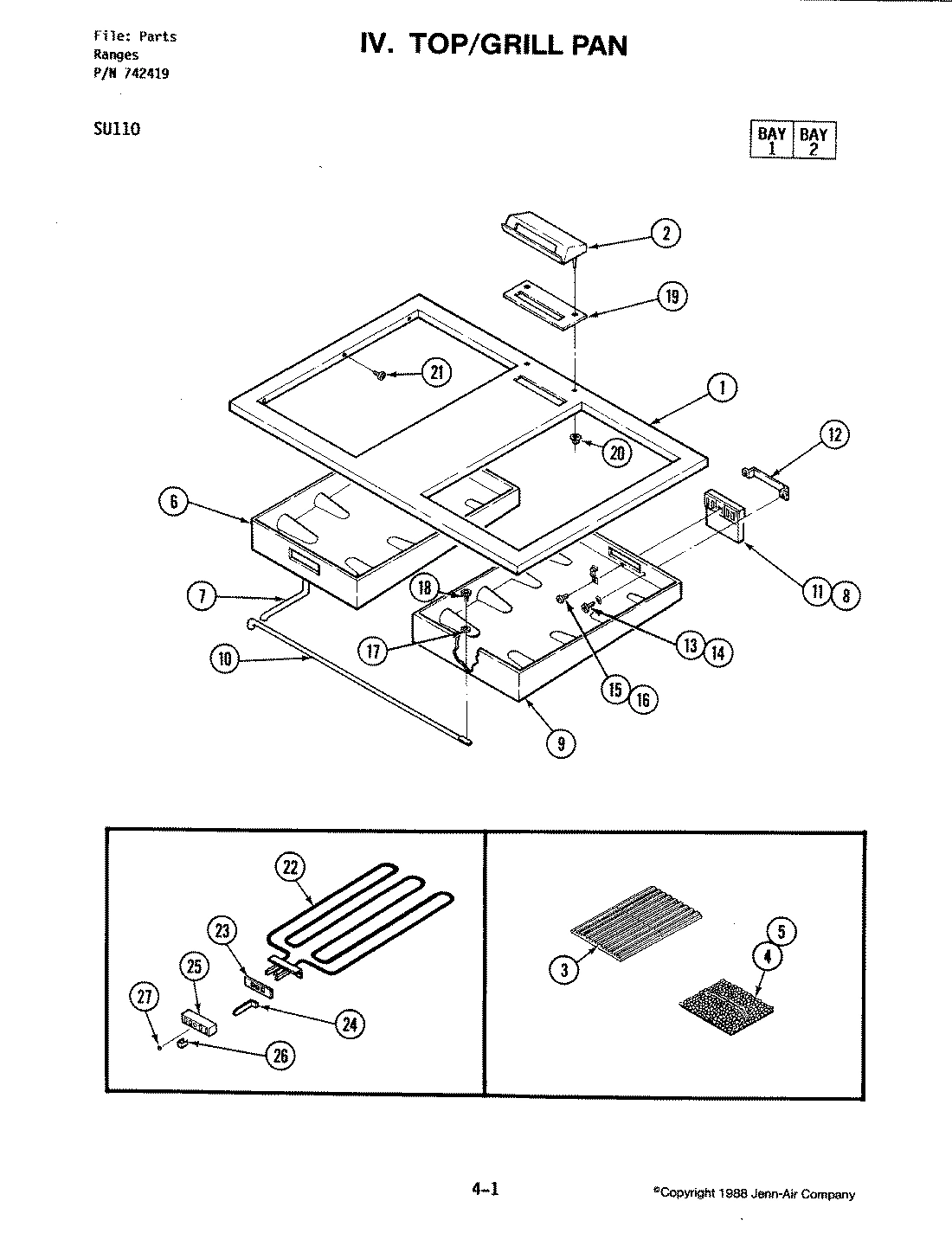

07 - TOP

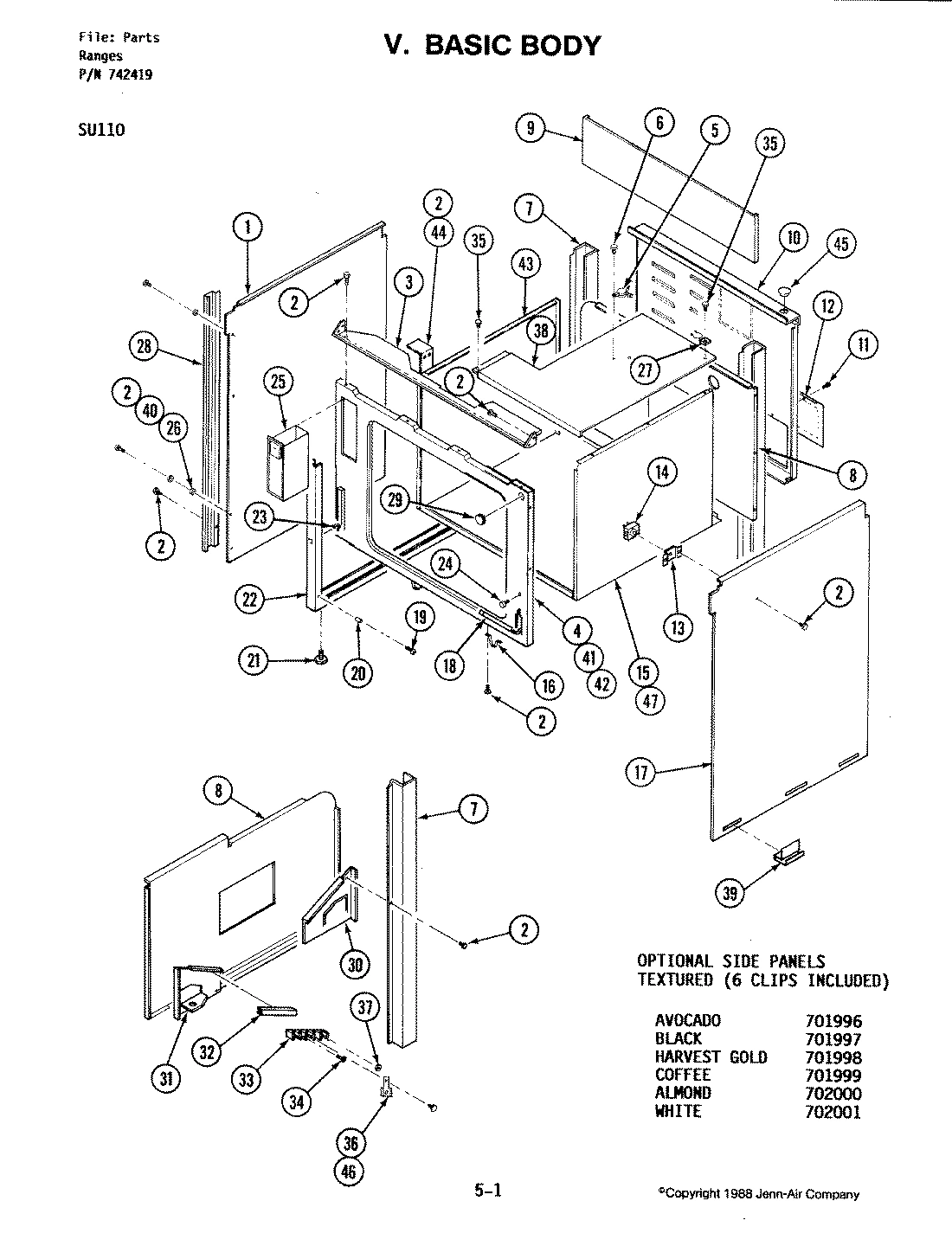

02 - BODY

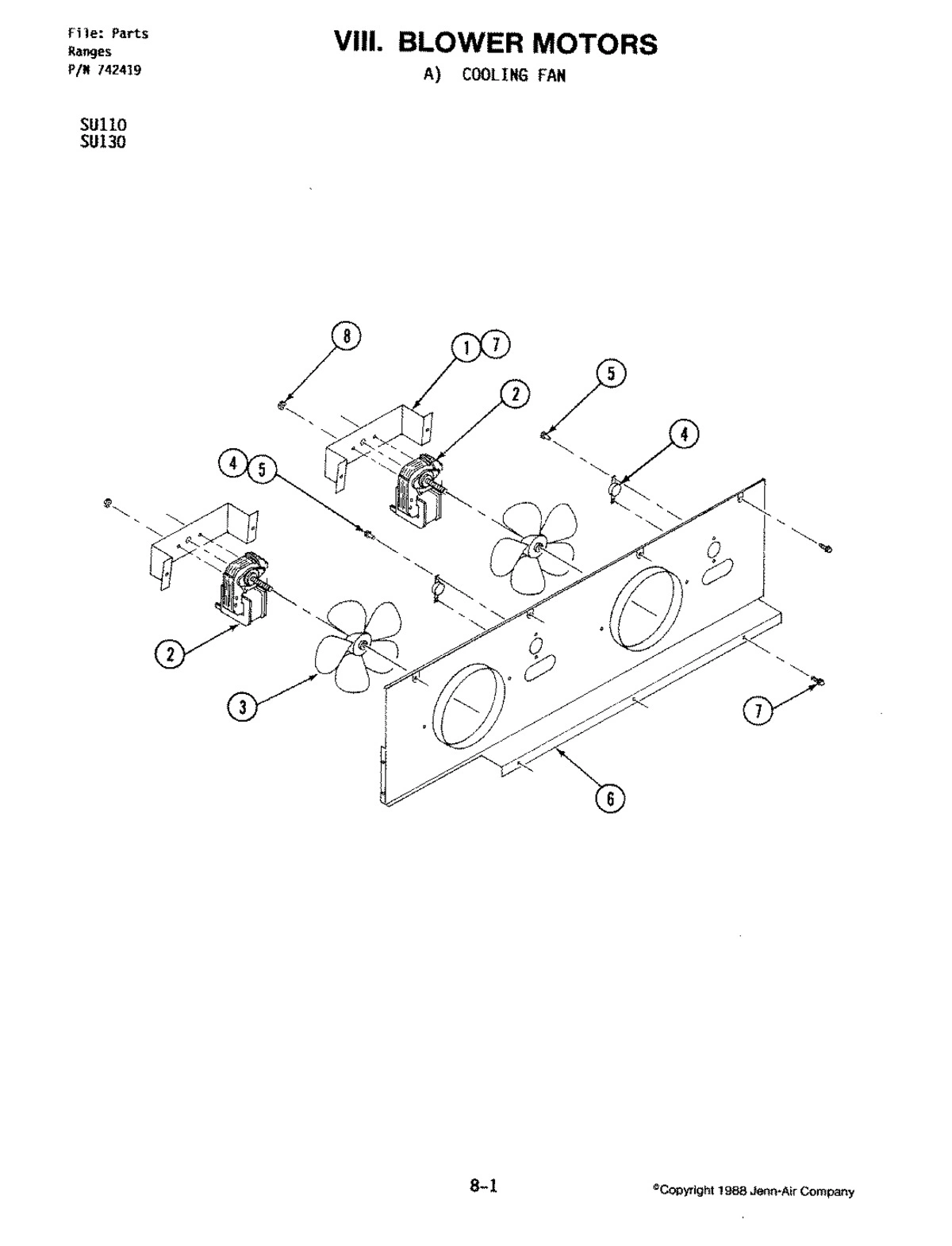

01 - BLOWER MOTOR (COOLING FAN)
Common parts from model Whirlpool SU110 ELECTRIC RANGE
1
WELD, OVEN ASSEMBLY WPL 712374 Contact Us For Availability
1
PANEL, CONTROL WPL 704314 Contact Us For Availability
1
FRAME, OVEN DOOR WPL 703427 Contact Us For Availability
1
TOP, RANGE WPL 704291 Contact Us For Availability
1
PANEL, SIDE (LT) WPL Y702301 Contact Us For Availability
1
BRACKET, MOUNTING MOTOR WPL Y702542 Contact Us For Availability
2
ELEMENT, BAKE (208V) WPL 712247 Contact Us For Availability
2
CAP, END (LT) WPL 702388 Contact Us For Availability
2
HANDLE, DOOR WPL Y703429 Contact Us For Availability
2
TRIM, VENT WPL 704320 Contact Us For Availability
2
MOTOR, FAN WPL Y702549 Contact Us For Availability
3
SPACER, BASE DOOR WPL Y702896 Contact Us For Availability
3
CAP, END (RT) WPL Y702387 Contact Us For Availability
3
PAD, MOUNTING WPL Y703430 Contact Us For Availability
3
GRATE, GRILL WPL 703905 Contact Us For Availability
3
ANGLE, MOUNT WPL 712002 Contact Us For Availability
3
BLADE, FAN WPL Y702525 Contact Us For Availability
4
LINER, DOOR WPL Y703965 Contact Us For Availability
4
ELEMENT, BROIL 208V WPL 712125 Contact Us For Availability
4
WIRE, ORANGE WPL 703646 Contact Us For Availability
4
PLATE, ROCK WPL 708929 Contact Us For Availability
4
CLOSURE, FRONT WPL 702329 Contact Us For Availability
4
LIMIT, THERMAL WPL 704317 Contact Us For Availability
5
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
5
PANEL, KICK WPL 703966 Contact Us For Availability
5
WIRE, GROUND WPL 702643 Contact Us For Availability
5
GLASS, SCREENED WPL 703428 Contact Us For Availability
6
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
6
SWITCH, SELECTOR WPL 703451 Contact Us For Availability
6
WIRE, ORANGE WPL 703644 Contact Us For Availability
6
BUSHING WPL Y703433 Contact Us For Availability
6
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
6
WIRE KIT WPL 712356 Contact Us For Availability
6
WIRE, BROWN WPL Y712197 Contact Us For Availability
6
WIRE, YELLOW WPL Y712200 Contact Us For Availability
6
WIRE, VIOLET WPL Y712203 Contact Us For Availability
6
BACK, UNIT WPL 704293 Contact Us For Availability
7
SLIDE, DRAWER WPL 703963 Contact Us For Availability
7
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
7
KNOB, SELECTOR WPL 703500 Contact Us For Availability
7
PALNUT WPL Y703431 Contact Us For Availability
7
TUBE, DRAIN (LEFT) WPL Y702463 Contact Us For Availability
7
SUPPORT,TUBE WPL 704296 Contact Us For Availability
8
SCREW WPL 712066 Contact Us For Availability
8
LENS, LIGHT WPL Y704143 Contact Us For Availability
8
THERMOSTAT WPL 703450 Contact Us For Availability
8
PLATE, LATCH (LOWER) WPL 703275 Contact Us For Availability
8
RECEPTACLE, CERAMIC WPL 704168 Contact Us For Availability
8
BACK, INNER WPL Y702306 Contact Us For Availability
9
KNOB, THERMOSTAT WPL 703498 Contact Us For Availability
9
LINER, OVEN DOOR WELD WPL 712189 Contact Us For Availability
9
WIRE, BLUE WPL 712354 Contact Us For Availability
9
PAN, GRILL (RT) WPL Y701956 Contact Us For Availability
9
WIRE, BROWN WPL Y712199 Contact Us For Availability
9
WIRE KIT WPL Y712357 Contact Us For Availability
10
CHANEL, DRAWER (LT) WPL 703967 Contact Us For Availability
10
TUBE, VENT WPL 704316 Contact Us For Availability
10
NUT, PUSH-IN WPL 702657 Contact Us For Availability
10
TUBE, DRAIN (RIGHT) WPL Y702327 Contact Us For Availability
10
COVER, REAR WPL 704294 Contact Us For Availability
11
CHANEL, DRAWER (RT) WPL 703968 Contact Us For Availability
11
RETAINER, LENS WPL Y704144 Contact Us For Availability
11
SCREW WPL 703958 Contact Us For Availability
12
GUIDE, DRAWER WPL Y703962 Contact Us For Availability
12
SWITCH, OVEN LIGHT (BLK) WPL Y704311 Contact Us For Availability
12
WINDOW PACK (LOWER) WPL 703258 Contact Us For Availability
12
BRACKET WPL Y702698 Contact Us For Availability
12
COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability
13
ELIMINATOR, HOUSING WPL 704259 Contact Us For Availability
13
LENS, PILOT LIGHT WPL Y702615 Contact Us For Availability
13
CLIP, RETAINER WPL Y700503 Contact Us For Availability
13
BRACKET WPL 702729 Contact Us For Availability
13
BRACKET WPL 704337 Contact Us For Availability
14
SHIELD, VENT WPL Y702632 Contact Us For Availability
14
CLOCK----NA WPL Y703638 Contact Us For Availability
14
INSULATION WPL 702293 Contact Us For Availability
14
WASHER WPL Y707664 Contact Us For Availability
14
SWITCH, BROIL CYCLE WPL 701698 Contact Us For Availability
14
SCREW WPL 704335 Contact Us For Availability
14
SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability
15
DRAWER WPL 712608 Contact Us For Availability
15
KNOB, CLOCK WPL Y712230 Contact Us For Availability
15
ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability
15
PANEL, BOTTOM & SIDE (RT) WPL Y702319 Contact Us For Availability
16
SUPPORT, RACK WPL Y701728 Contact Us For Availability
16
SCREW, HEX WPL Y702976 Contact Us For Availability
16
PLUG WLD ASSM WPL 712232 Contact Us For Availability
16
BRACKET, HAT WPL 702658 Contact Us For Availability
17
RACK, OVEN WPL Y702339 Contact Us For Availability
17
BRACKET, RETAINING WPL 702616 Contact Us For Availability
17
CLIP WPL Y700834 Contact Us For Availability
17
WASHER, TEFLON WPL 702747 Contact Us For Availability
17
PANEL, SIDE (RT) WPL 702300 Contact Us For Availability
18
LENS-CLOCK WPL 712257 Contact Us For Availability
18
BEZEL WPL 712258 Contact Us For Availability
18
NUT, DRAIN TUBE WPL 702748 Contact Us For Availability
18
HINGE WPL Y703419 Contact Us For Availability
19
LIGHT, OVEN PILOT (240V) WPL Y704222 Contact Us For Availability
19
SPACER, CORNER (LWR) WPL 703613 Contact Us For Availability
19
GASKET, VENT TRIM WPL 704443 Contact Us For Availability
19
SCREW WPL 703001 Contact Us For Availability
20
SCREW WPL 701744 Contact Us For Availability
20
INSULATION, TOP WPL 701660 Contact Us For Availability
20
SPACER WPL 702745 Contact Us For Availability
21
CLIP, BULB WPL Y701541 Contact Us For Availability
21
INSULATION, BOTTOM WPL 702292 Contact Us For Availability
22
RAIL, SUPPORT ASSEMBLY WPL 712000 Contact Us For Availability
22
SPACER, OVEN WPL 701741 Contact Us For Availability
22
STAND-OFF BRACKET (LOWER) WPL 703289 Contact Us For Availability
22
ELEMENT, COMPLETE, 240V WPL 703943 Contact Us For Availability
23
INSULATION-SIDES,TOP,BOTTOM WPL 702282 Contact Us For Availability
23
INSULATION-BACK WPL 702283 Contact Us For Availability
23
NUT, TEE WPL 715294 Contact Us For Availability
23
WASHER WPL Y703449 Contact Us For Availability
23
INSULATOR WPL Y700449 Contact Us For Availability
23
CLIP----S WPL 708763 Contact Us For Availability
24
SCREW WPL 715870 Contact Us For Availability
24
SPADE, CONTACT (WHT) WPL Y704166 Contact Us For Availability
25
CONTAINER,GREASE ASSEMBLY WPL Y712001 Contact Us For Availability
26
CLIP, SHUNT WPL Y700450 Contact Us For Availability
26
WASHER, CONICAL WPL 702462 Contact Us For Availability
27
TIE, MOUNT CABLE WPL 702746 Contact Us For Availability
28
TRIM, SIDE WPL 702337 Contact Us For Availability
29
BUTTON, PLUG WPL 703688 Contact Us For Availability
30
GUSSETT (LT) WPL 702557 Contact Us For Availability
31
GUSSETT (RT) WPL 702556 Contact Us For Availability
32
INSULATOR WPL 702898 Contact Us For Availability
36
STRAP, GROUND WPL Y702335 Contact Us For Availability
37
NUT, HEX WPL 712081 Contact Us For Availability
38
PANEL, TOP WPL 704285 Contact Us For Availability
38
KIT,BACKSPLASH ADAPTOR WPL 712239 Contact Us For Availability
39
CLIP, SPRING WPL Y702476 Contact Us For Availability
40
WASHER, FLAT WPL 712005 Contact Us For Availability
41
PLATE, FRONT CLOSURE WPL 703677 Contact Us For Availability
43
PANEL, INNER (LT) WPL 704302 Contact Us For Availability
44
BRACKET, DRAIN TUBE WPL 704312 Contact Us For Availability
45
STRAIN, RELIEF WPL Y702696 Contact Us For Availability
47
HARNESS, SUPPLY WPL 704307 Contact Us For Availability
47
HARNESS, CONTROL WPL 704309 Contact Us For Availability
47
BAFFLE, INNER WPL 704466 Contact Us For Availability
× ![]()
