Model Whirlpool SF0140SRW0 – Common Parts & Diagrams

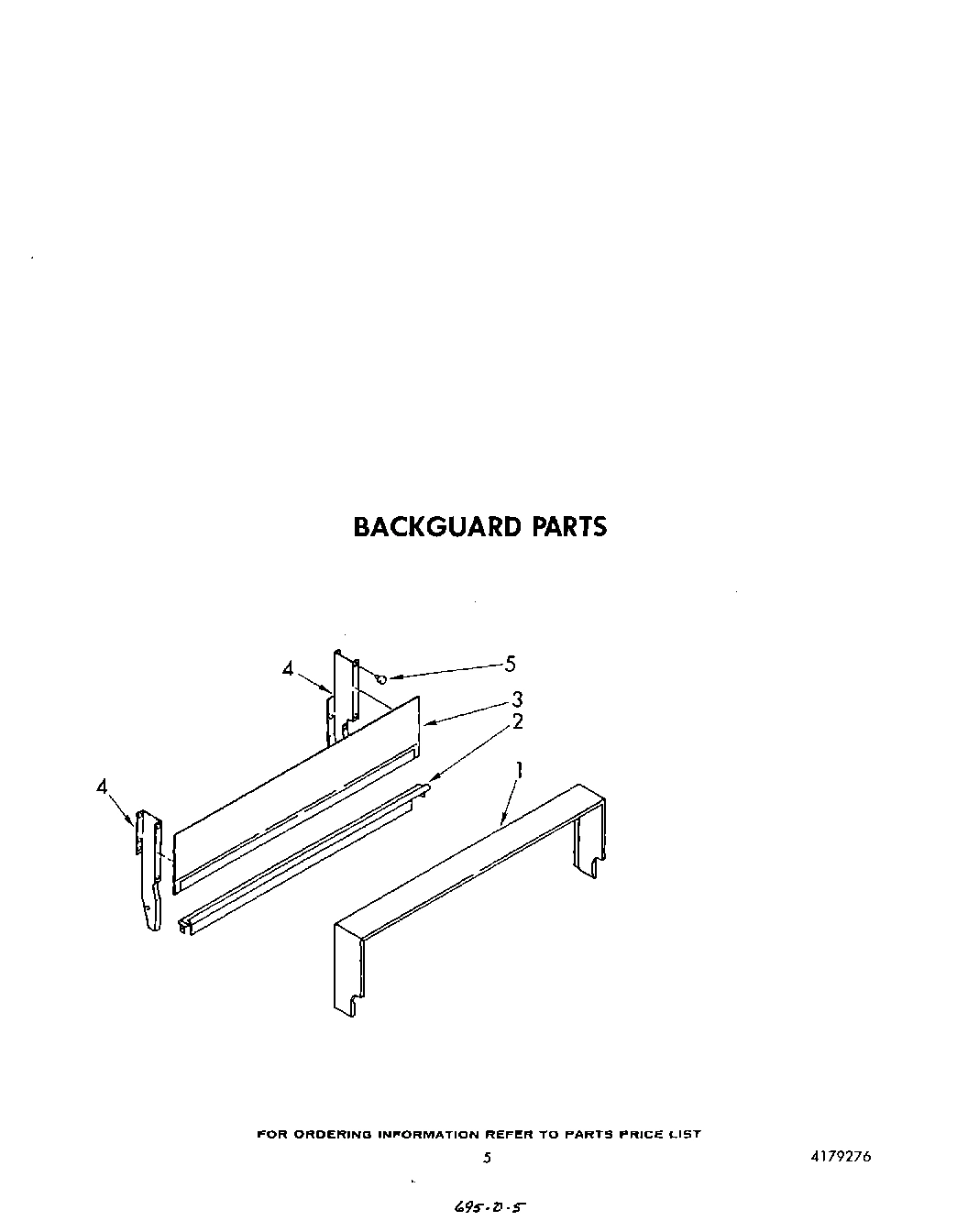

04 - BACKGUARD

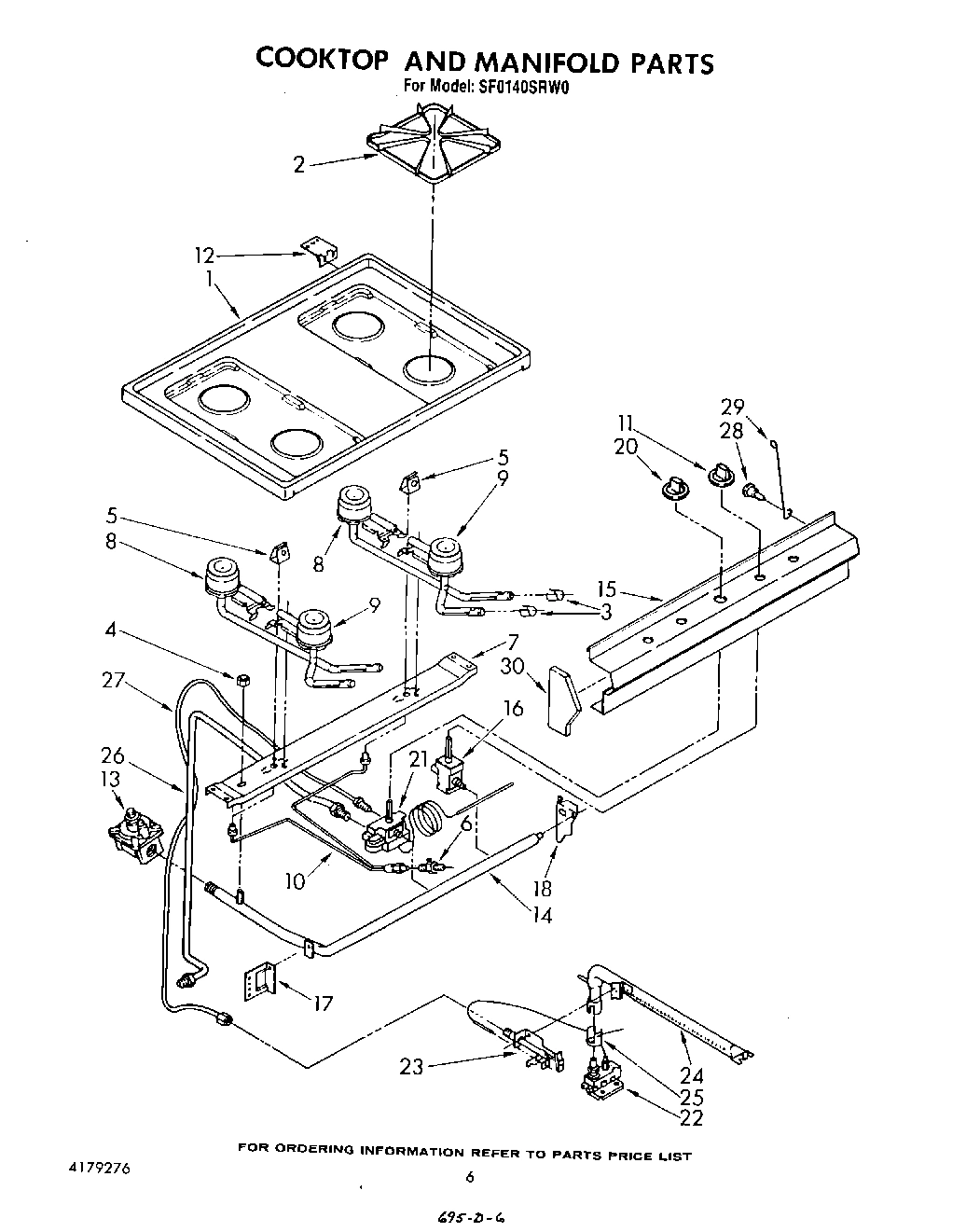

05 - COOK TOP AND MANIFOLD , LITERATURE

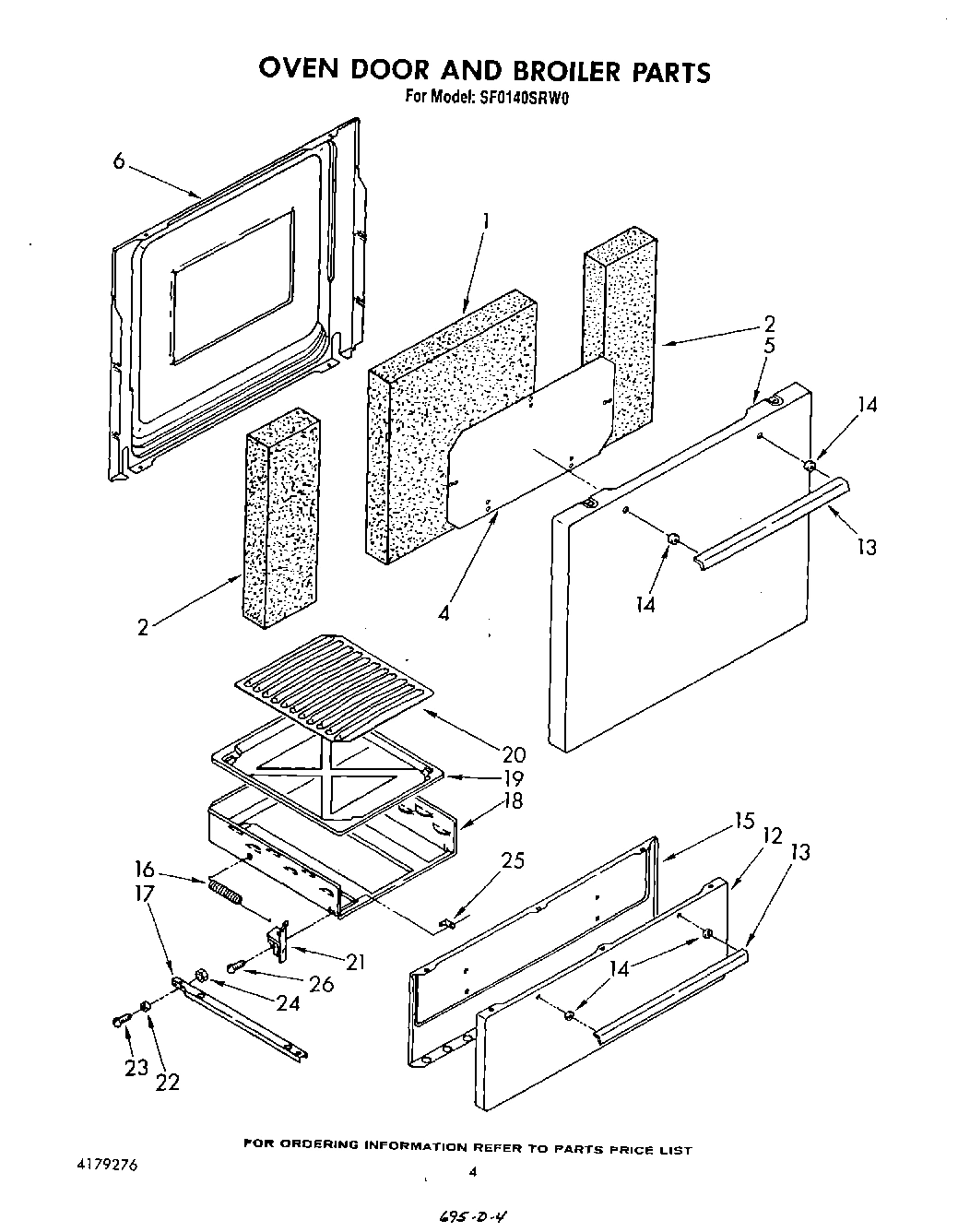

03 - OVEN DOOR AND BROILER

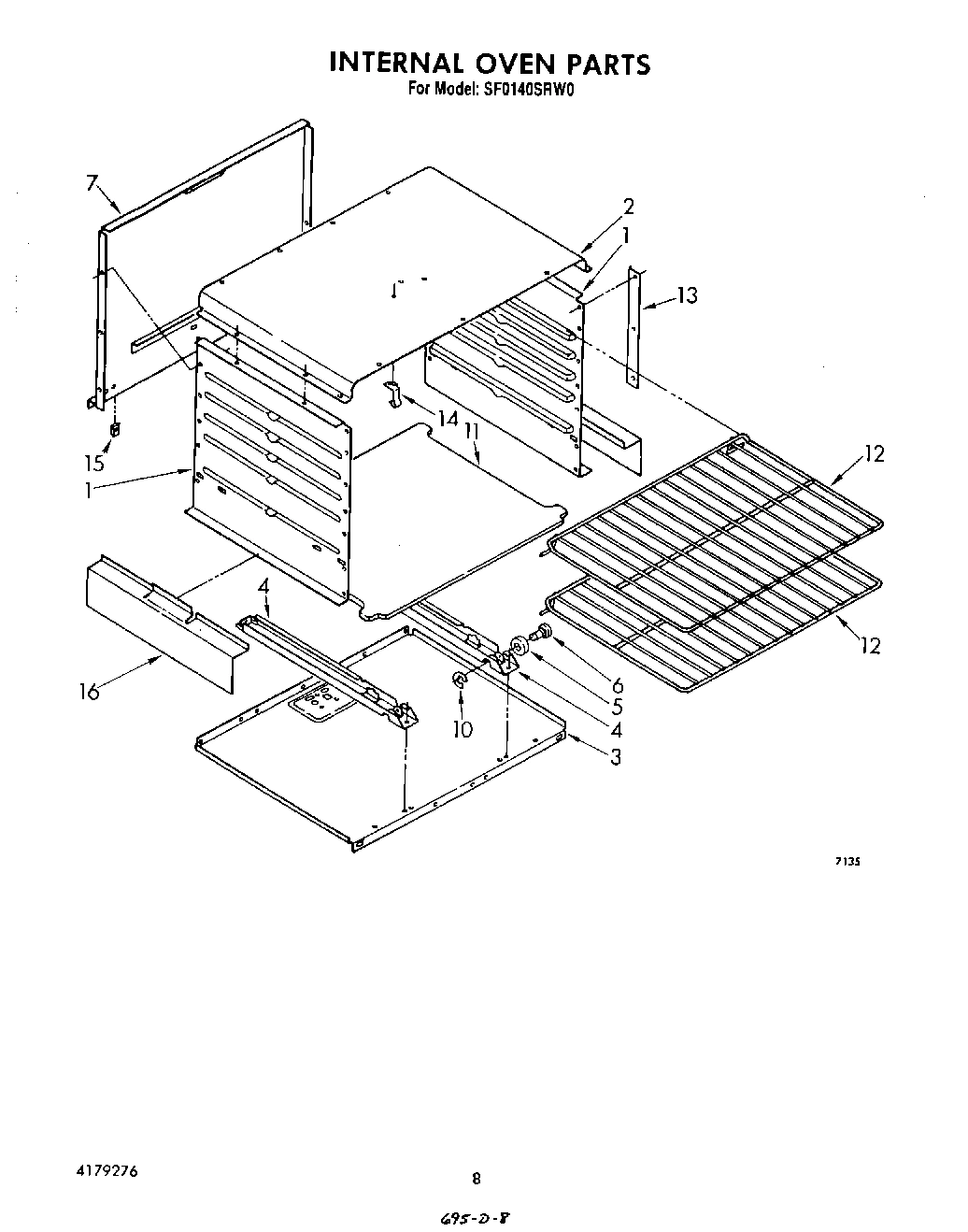

06 - INTERNAL OVEN

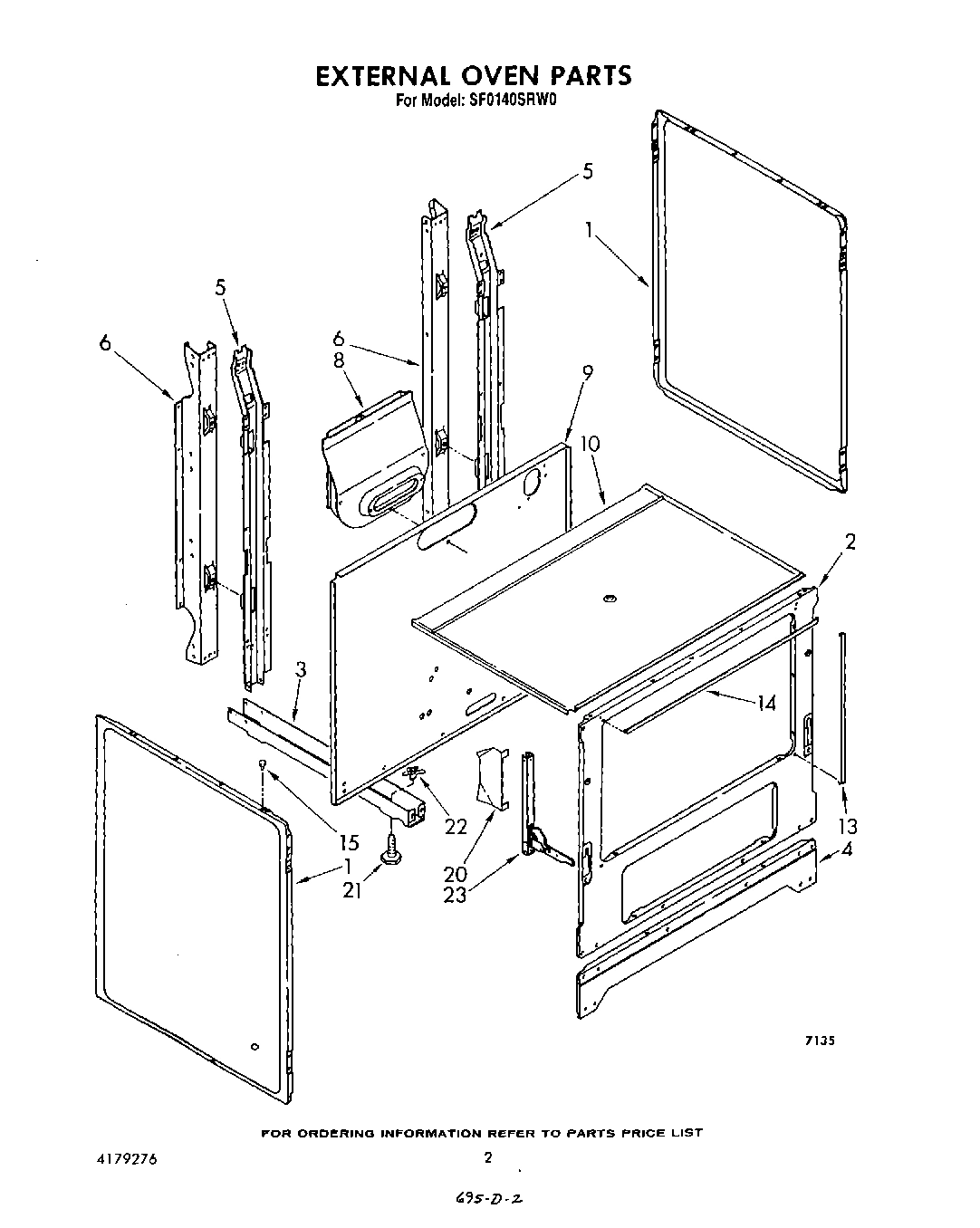

02 - EXTERNAL OVEN
Common parts from model Whirlpool SF0140SRW0
Sheet, Conversion WPL LIT4179269 Contact Us For Availability
List, Repair Parts WPL LIT4179276 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
Instuctions, Installation WPL LIT786731 Contact Us For Availability
Guide, Use & Care WPL LIT786771 Contact Us For Availability
1
Cooktop (White) WPL 4157878 Contact Us For Availability
1
Cooktop (Almond) WPL 4157879 Contact Us For Availability
1
Cooktop (Harvest Gold) WPL 4179280 Contact Us For Availability
1
Insulation WPL 4179320 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4157001 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4157000 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Panel, Side (2) (Harvest Gold) WPL 4179277 Contact Us For Availability
2
Bottom, Backguard WPL 4157857 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Insulation WPL 4179321 Contact Us For Availability
2
Liner, Oven Top WPL 4157933 Contact Us For Availability
2
Frame, Front WPL 4179270 Contact Us For Availability
3
Glass WPL 4157854 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Baffle, Bottom WPL 4157924 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Baffle WPL 4157931 Contact Us For Availability
4
Track, Broiler (2) WPL 4157007 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Base, Front WPL 4157945 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Bumper (4) WPL 4157128 Contact Us For Availability
5
Cover, Pilot (2) WPL 4157076 Contact Us For Availability
5
Panel, Door (White) WPL 4179271 Contact Us For Availability
5
Panel, Door (Almond) WPL 4179272 Contact Us For Availability
5
Panel, Door (Harvest Gold) WPL 4179281 Contact Us For Availability
5
Roller (2) WPL 4157008 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
6
Filter, Pilot WPL 4157077 Contact Us For Availability
6
Liner, Door WPL 4179275 Contact Us For Availability
6
Pin, Roller (2) WPL 4157009 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
7
Support, Burner WPL 4157946 Contact Us For Availability
7
Liner, Oven Back WPL 4157935 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
9
Panel, Rear WPL 4157923 Contact Us For Availability
10
Tubing, Pilot WPL 4157926 Contact Us For Availability
10
Retainer, Roller (2) WPL 4157026 Contact Us For Availability
10
Burner Box WPL 4157925 Contact Us For Availability
11
Bottom, Oven WPL 4157934 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
12
Panel, Broiler (White) WPL 4179284 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4179285 Contact Us For Availability
12
Panel, Broiler (Harvest Gold) WPL 4179288 Contact Us For Availability
12
Rack, Oven (2) WPL 4157927 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Handle, Door (2) WPL 4157794 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157948 Contact Us For Availability
14
Manifold WPL 4157951 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
14
Seal, Door (Top) WPL 4157947 Contact Us For Availability
15
Panel, Manifold WPL 4157561 Contact Us For Availability
15
Liner, Broiler Door WPL 4157939 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
16
Valve, 90~ (4) WPL 4157212 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157944 Contact Us For Availability
17
Track, Upper (2) WPL 4157044 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4157177 Contact Us For Availability
18
Liner, Brolier WPL 4157172 Contact Us For Availability
20
Grid WPL 4157047 Contact Us For Availability
20
Shield WPL 4157876 Contact Us For Availability
21
Thermostat WPL 4157218 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Roller (2) WPL 4157050 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Pilot WPL 4157095 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
23
Pin, Roller (2) WPL 4157051 Contact Us For Availability
23
Hinge, Door (2) WPL 4179315 Contact Us For Availability
24
Burner, Oven WPL 4179289 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
27
Tubing 3/8`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Screw WPL 4157018 Contact Us For Availability
29
Rod, Support WPL 4157010 Contact Us For Availability
30
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
30
Endcap (L.H.) WPL 4157186 Contact Us For Availability
30
Endcap (R.H.) WPL 4157187 Contact Us For Availability
× ![]()
