Model Whirlpool SCE4320W ELECTRIC RANGE – Common Parts & Diagrams
03 - BODY

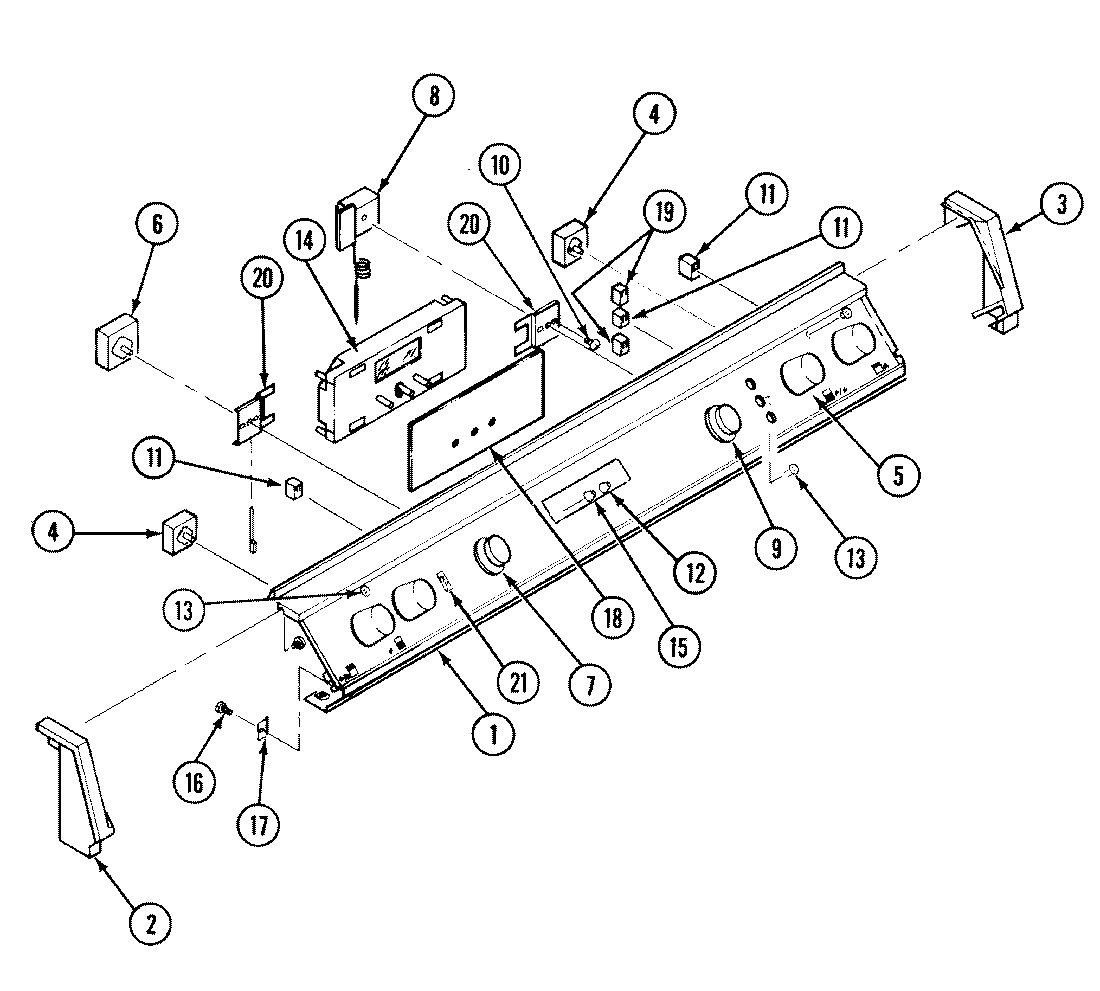

04 - CONTROL PANEL

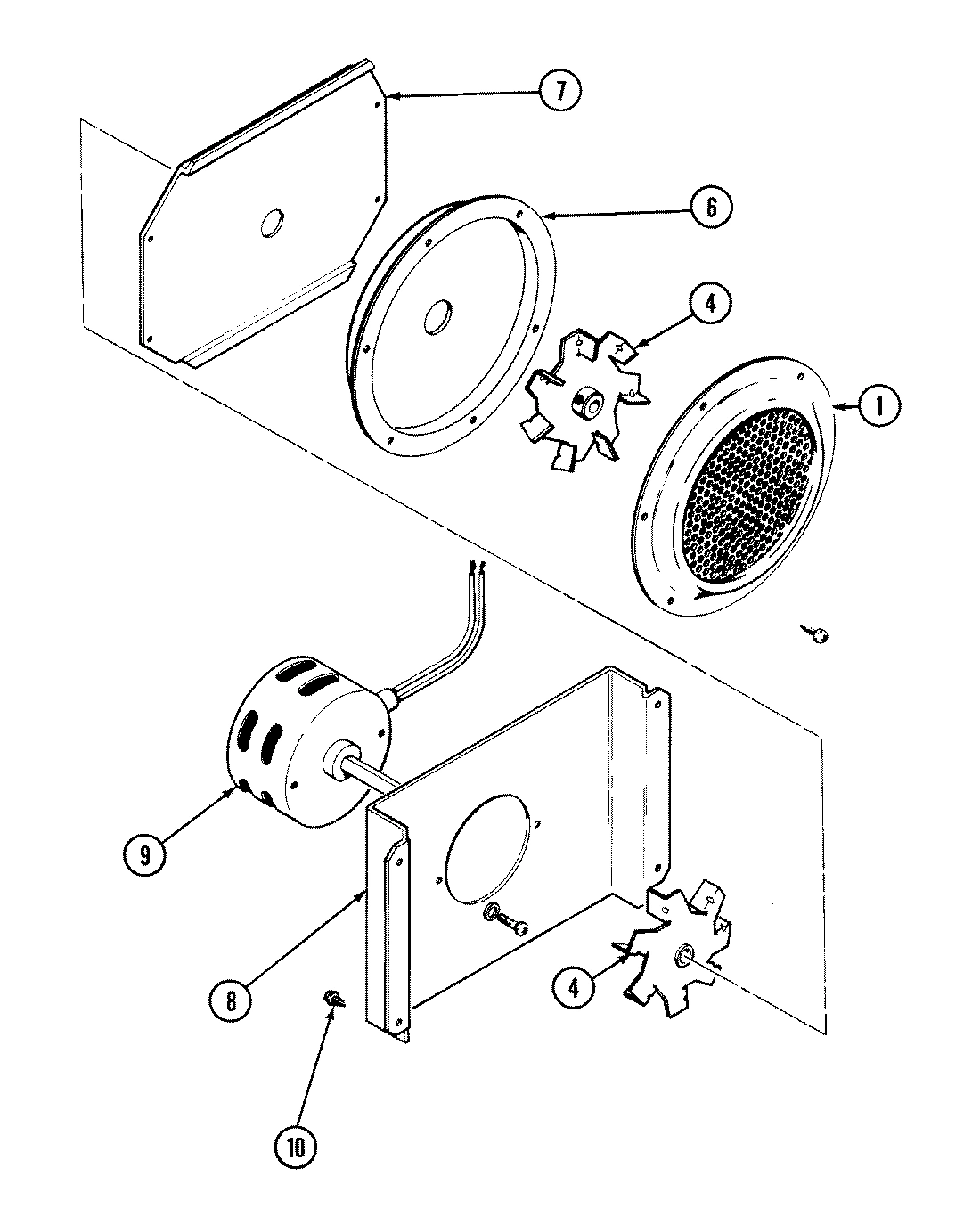

01 - BLOWER MOTOR (CONVECTION)

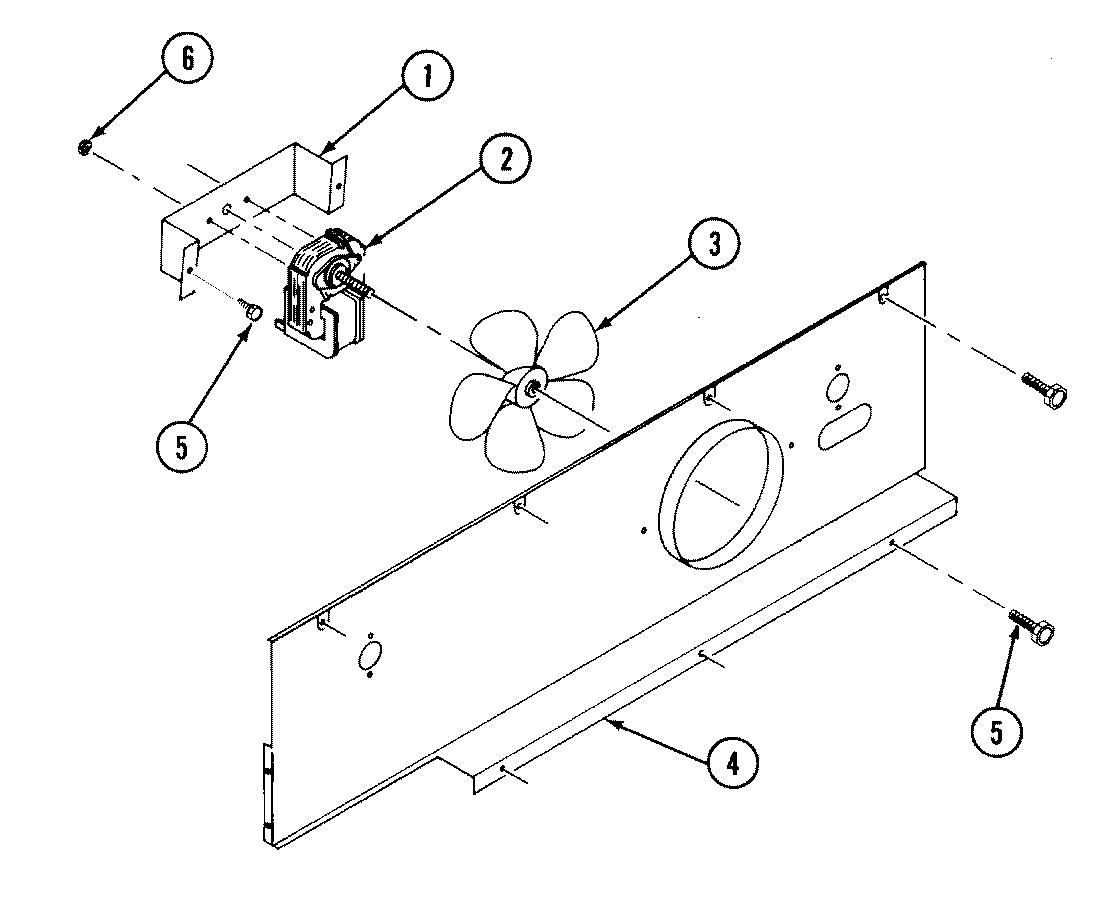

02 - BLOWER MOTOR (COOLING)

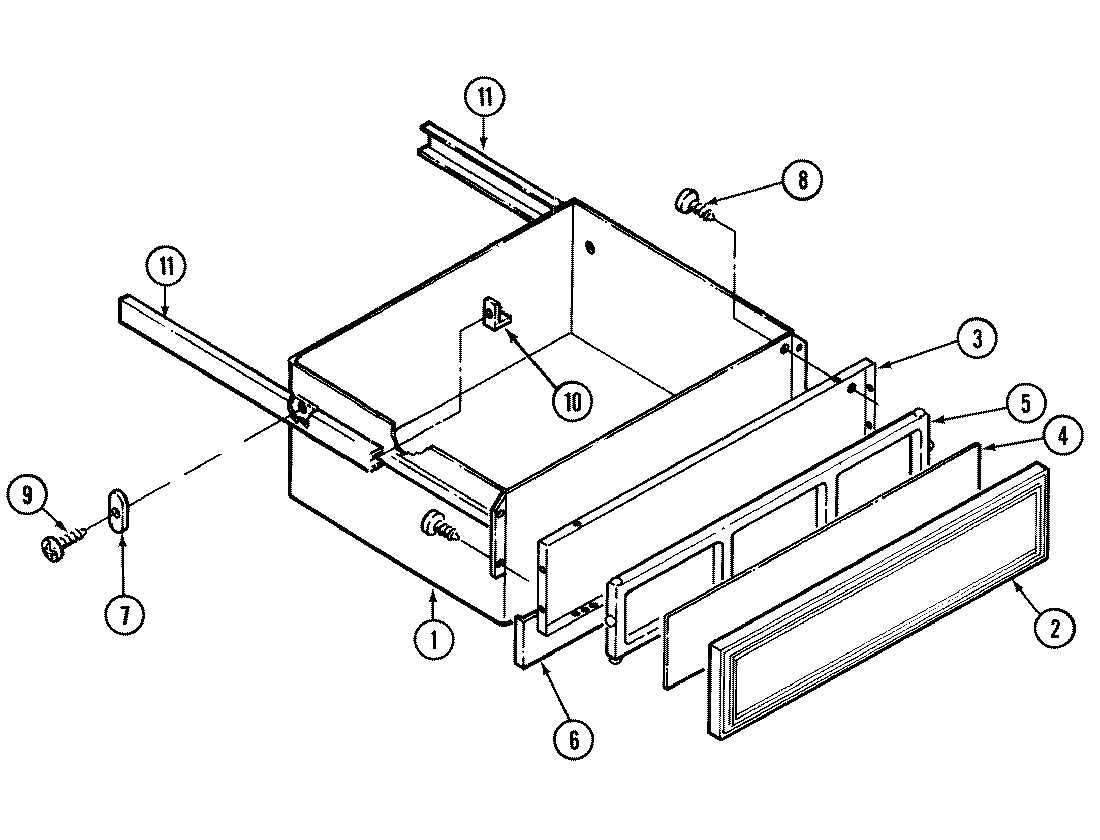

06 - DRAWER ASSEMBLY

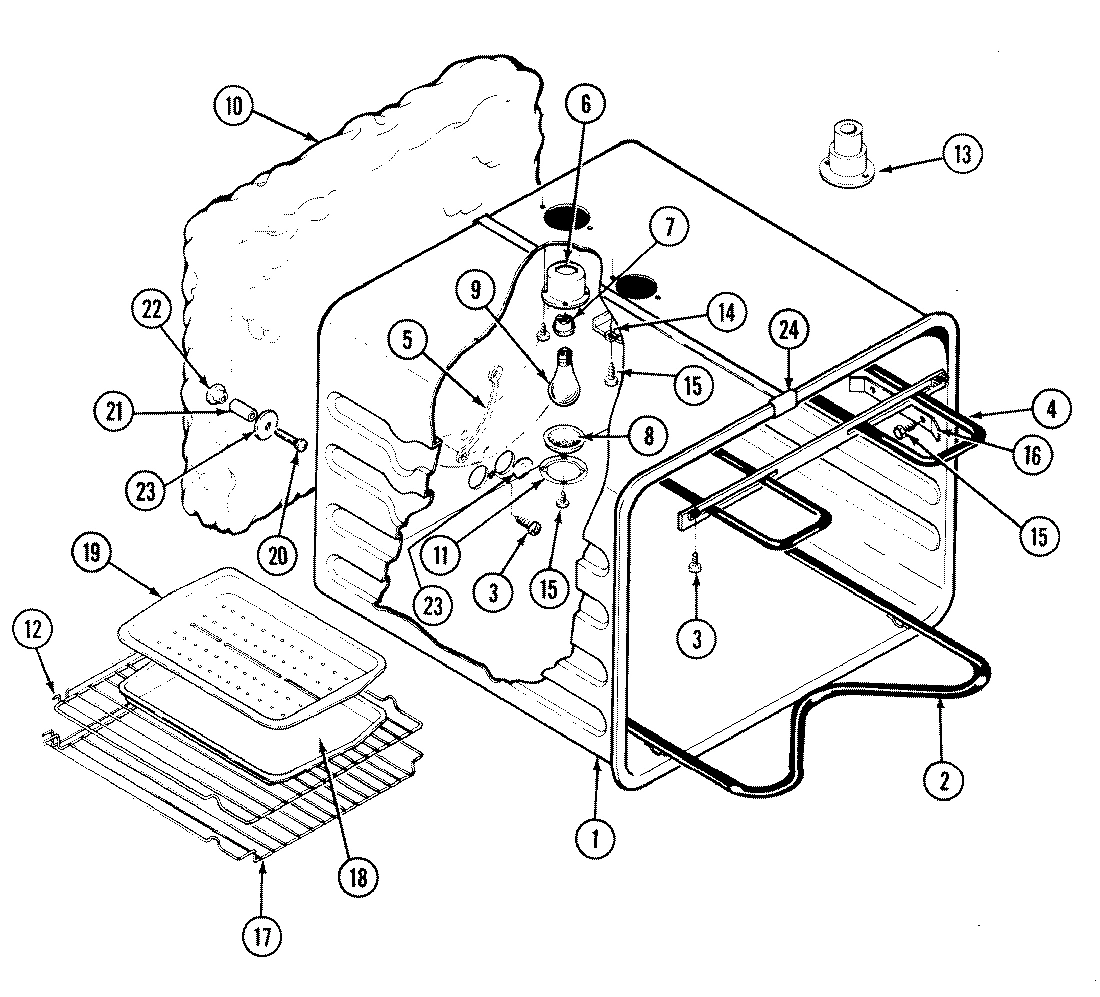

08 - OVEN LINER

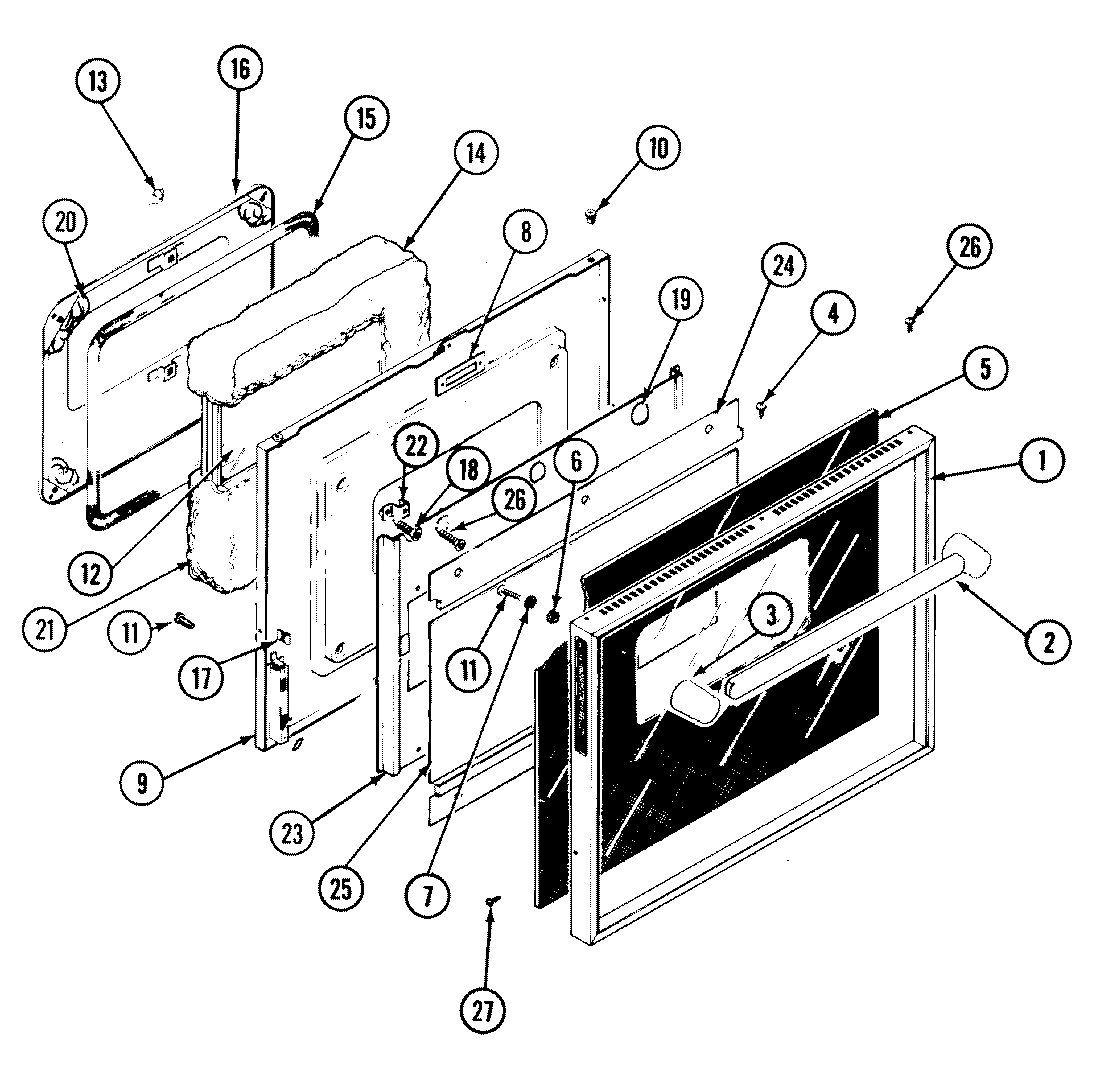

05 - DOOR
09 - TOP ASSEMBLY

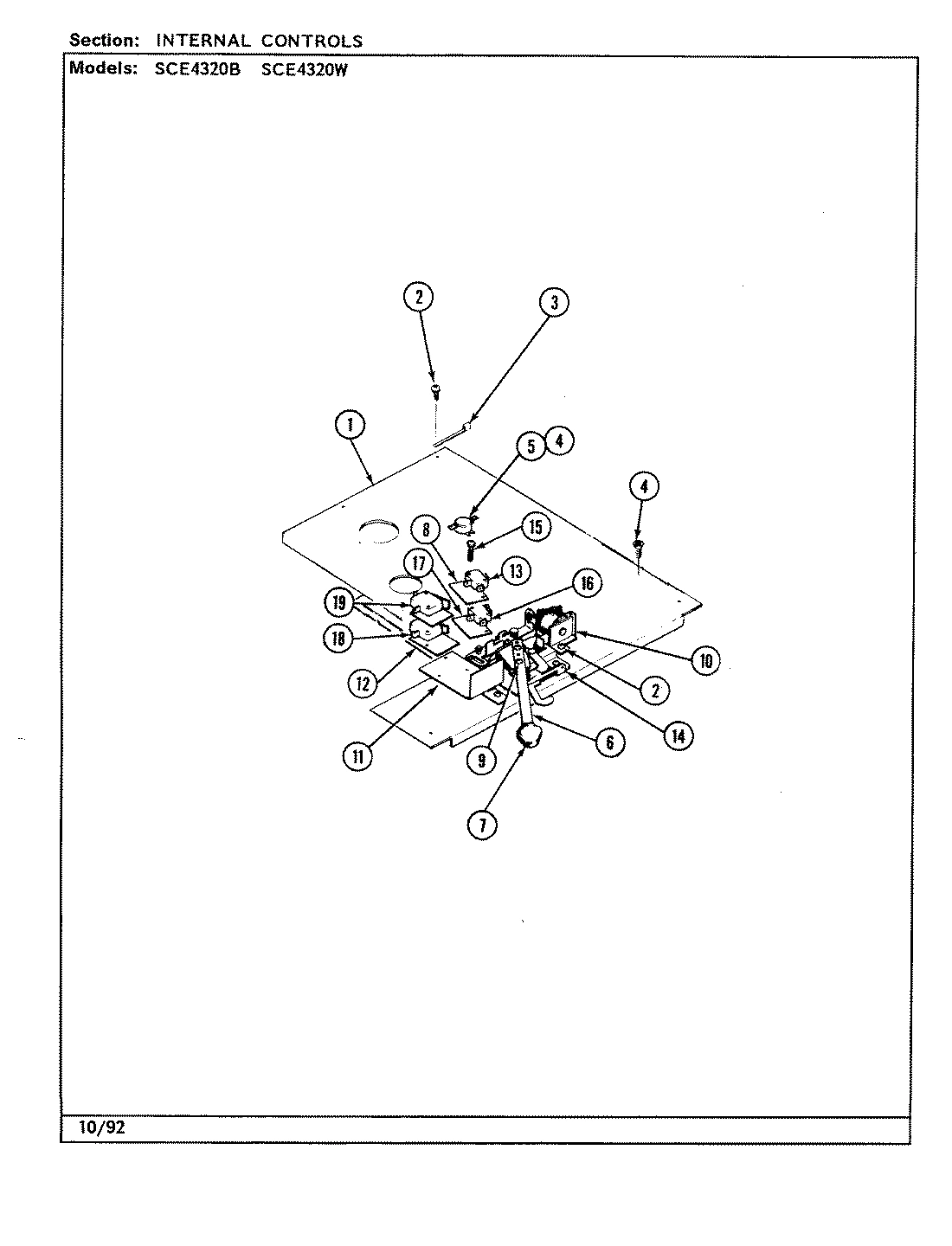

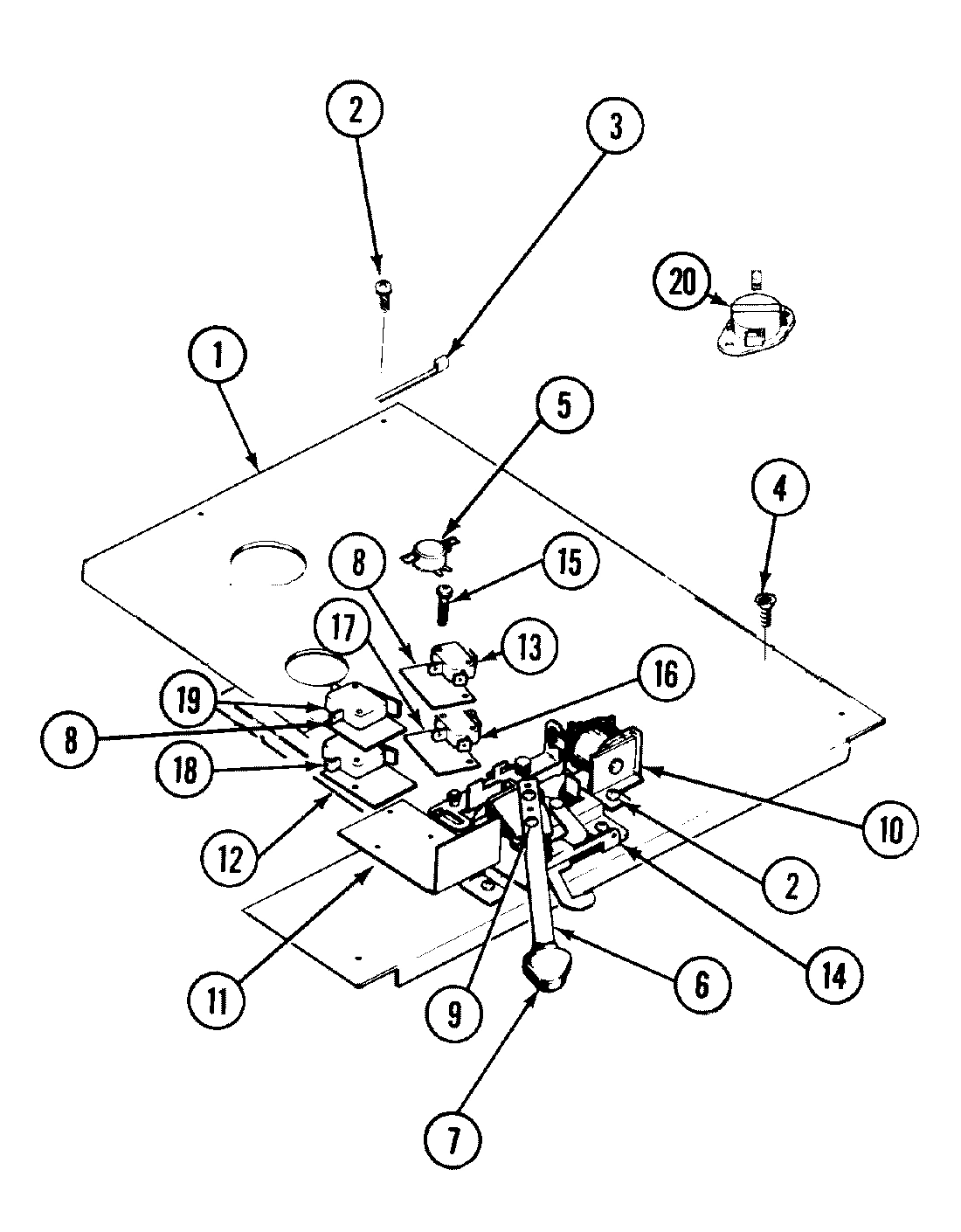

07 - INTERNAL CONTROLS
Common parts from model Whirlpool SCE4320W ELECTRIC RANGE
1
CONTROL PANEL (WHITE) WPL 04100455 Contact Us For Availability
1
PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability
1
BRACKET, MOUNTING MOTOR WPL Y702542 Contact Us For Availability
1
DRAWER WPL 712608 Contact Us For Availability
1
LINER WPL 712584 Contact Us For Availability
1
FRAME, OVEN DOOR (SS) WPL 705002 Contact Us For Availability
1
BACKING PANEL WPL 04100460 Contact Us For Availability
1
PANEL, TOP WPL 704668 Contact Us For Availability
2
CAP, END (LT) WPL 701635 Contact Us For Availability
2
MOTOR, FAN WPL Y702549 Contact Us For Availability
2
FRAME, DRAWER (STLS) WPL Y04100471 Contact Us For Availability
2
HANDLE (WHT) WPL 704475 Contact Us For Availability
2
TOP FRAME (WHT) WPL 04100290 Contact Us For Availability
2
TOP ASSY (WHITE) WPL 04100833 Contact Us For Availability
3
ANGLE, MOUNT WPL 712002 Contact Us For Availability
3
CAP, END (RT) WPL 701619 Contact Us For Availability
3
BLADE, FAN WPL Y702525 Contact Us For Availability
3
LINER, DOOR WPL Y702341 Contact Us For Availability
3
END CAP (WHT) WPL Y704454 Contact Us For Availability
3
ELEMENT, SURFACE 220MM (3200W) WPL Y04100347 Contact Us For Availability
4
CLOSURE, FRONT WPL 04100473 Contact Us For Availability
4
PLATE, BACK WPL Y702345 Contact Us For Availability
4
WHEEL, CONVECTION WPL 701711 Contact Us For Availability
4
PANEL, BASE WPL 703435 Contact Us For Availability
4
PANEL, BASE (WHT) WPL 704480 Contact Us For Availability
4
ELEMENT, SURFACE 145MM (2000W) WPL 04100345 Contact Us For Availability
5
NUT WPL 707161 Contact Us For Availability
5
KNOB, INFINITE (WHT) WPL 704481 Contact Us For Availability
5
SCREW, SET WPL 701709 Contact Us For Availability
5
SPACER, BASE DOOR WPL Y702896 Contact Us For Availability
5
WIRE, GROUND WPL 702643 Contact Us For Availability
5
GLASS, SCREENED (WHT) WPL 705078K Contact Us For Availability
5
ELEMENT W/RING (SMALL) WPL Y04100362 Contact Us For Availability
6
SCREW WPL 702731 Contact Us For Availability
6
SWITCH, SELECTOR WPL Y703673 Contact Us For Availability
6
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
6
PANEL, KICK WPL 703966 Contact Us For Availability
6
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
6
WASHER WPL Y704230 Contact Us For Availability
6
ELEMENT, SURFACE 180MM (2000W) WPL 04100346 Contact Us For Availability
6
LEVER, LATCH (WHT) WPL Y703848 Contact Us For Availability
7
SUPPORT,TUBE WPL 704296 Contact Us For Availability
7
KNOB, SELECT SWITCH (GRY)-NA WPL 704483 Contact Us For Availability
7
COVER, MOTOR FRONT WPL 701713 Contact Us For Availability
7
SLIDE, DRAWER WPL 703963 Contact Us For Availability
7
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
7
WASHER WPL Y700446 Contact Us For Availability
7
COLLAR, 220MM WPL 04100351 Contact Us For Availability
7
SPRING, KNOB WPL 701671 Contact Us For Availability
7
KNOB (WHT) WPL 704460 Contact Us For Availability
8
BACK, INNER WPL Y704735 Contact Us For Availability
8
THERMOSTAT WPL Y703674 Contact Us For Availability
8
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
8
LENS, LIGHT WPL Y704143 Contact Us For Availability
8
PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability
8
GASKET, 220MM WPL Y04100350 Contact Us For Availability
8
INSULATOR WPL 703264 Contact Us For Availability
9
KNOB, THERMOSTAT (WHT) WPL Y704482 Contact Us For Availability
9
MOTOR, CONVECT WPL Y704972 Contact Us For Availability
9
SCREW WPL 712066 Contact Us For Availability
9
LINER WPL 712567 Contact Us For Availability
9
COLLAR, SMALL (145MM) WPL 04000006 Contact Us For Availability
9
SCREW WPL 707407 Contact Us For Availability
10
COVER, REAR WPL 704294 Contact Us For Availability
10
GUIDE, DRAWER WPL Y703962 Contact Us For Availability
10
INSULATION-SIDES,TOP,BOTTOM WPL 702282 Contact Us For Availability
10
INSULATION-BACK WPL 702283 Contact Us For Availability
10
NUT, PUSH IN WPL 701643 Contact Us For Availability
10
GASKET (SMALL) WPL 04100348 Contact Us For Availability
10
SOLENOID WPL Y702526 Contact Us For Availability
11
CHANEL, DRAWER (LT) WPL 703967 Contact Us For Availability
11
CHANEL, DRAWER (RT) WPL 703968 Contact Us For Availability
11
RETAINER, LENS WPL Y704144 Contact Us For Availability
11
NUT, DISC ELEMENT WPL 04000003 Contact Us For Availability
11
SHIELD, SWITCH WPL 701706 Contact Us For Availability
12
RACK, OVEN WPL Y704660 Contact Us For Availability
12
COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability
12
WASHER, No.8 WPL 04100364 Contact Us For Availability
12
BRACKET,STIFFENER WPL 702697 Contact Us For Availability
12
PIN, COTTER WPL Y701686 Contact Us For Availability
13
BRACKET WPL 704337 Contact Us For Availability
13
LENS, PILOT LIGHT WPL Y702615 Contact Us For Availability
13
TUBE, VENT WPL 701738 Contact Us For Availability
13
CLIP WPL 705404 Contact Us For Availability
13
COLLAR, 180MM (LARGE) WPL 04000007 Contact Us For Availability
13
SWITCH, LATCH WPL Y703732 Contact Us For Availability
14
SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability
14
CLOCK WPL Y04100133 Contact Us For Availability
14
SHIELD, VENT WPL Y702632 Contact Us For Availability
14
INSULATION WPL 702293 Contact Us For Availability
14
SEAL, LARGE WPL 04100349 Contact Us For Availability
14
LATCH ASSY. WPL Y703357 Contact Us For Availability
15
ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability
15
PANEL, BOTTOM & SIDE (RT) WPL Y702319 Contact Us For Availability
15
VENT TUBE WPL 04100461 Contact Us For Availability
15
SCREW WPL 702807 Contact Us For Availability
16
BRACKET, HAT WPL 702658 Contact Us For Availability
16
SCREW, HEX WPL Y705393 Contact Us For Availability
16
CLIP, BULB WPL Y701541 Contact Us For Availability
16
PLUG, OVEN DOOR WELD WPL 712011 Contact Us For Availability
16
SWITCH, SOLENOID WPL Y702360 Contact Us For Availability
17
PANEL, SIDE (RT) WPL 702300 Contact Us For Availability
17
BRACKET, RETAINING WPL 702616 Contact Us For Availability
17
RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability
17
CLIP WPL 704487 Contact Us For Availability
17
GASKET WPL Y04100462 Contact Us For Availability
17
WIRE, GREY WPL 703750 Contact Us For Availability
17
INSULATOR WPL Y702350 Contact Us For Availability
18
HINGE WPL Y703419 Contact Us For Availability
18
LENS, TIMER----NA WPL 04100132 Contact Us For Availability
18
TRIM, VENT (WHT) WPL Y04100311 Contact Us For Availability
18
SWITCH, REAR (BOTTOM) WPL Y704752 Contact Us For Availability
19
STRAIN, RELIEF WPL Y702696 Contact Us For Availability
19
LIGHT, OVEN PILOT (240V) WPL Y704222 Contact Us For Availability
19
BUMPER, BUTTON WPL Y704223 Contact Us For Availability
19
SIDE RAIL WPL 04100463 Contact Us For Availability
19
SWITCH, DOOR WPL 702806 Contact Us For Availability
20
BRACKET, CLOCK WPL 703667 Contact Us For Availability
20
SCREW WPL 705341 Contact Us For Availability
20
INSULATION, TOP WPL 701660 Contact Us For Availability
20
RAIL, FRONT & BACK WPL 04100464 Contact Us For Availability
21
LEVELER, LEG WPL Y04100573 Contact Us For Availability
21
HARNESS (CONT) WPL 04100456 Contact Us For Availability
21
HARNESS, SUPPLY WPL 04100457 Contact Us For Availability
21
WIRE, ORANGE (RIGHT) WPL 703523 Contact Us For Availability
21
WIRE, ORANGE WPL 703749 Contact Us For Availability
21
WIRE, RESISTOR THERM. WPL 703752 Contact Us For Availability
21
WIRE, BROWN WPL 704243 Contact Us For Availability
21
WIRE, BLUE WPL 704244 Contact Us For Availability
21
SPACER WPL 702745 Contact Us For Availability
21
INSULATION, BOTTOM WPL 702292 Contact Us For Availability
21
COOKTOP, GLASS (WHITE) WPL 04100466 Contact Us For Availability
21
CLIP, RETAINER WPL 04100520 Contact Us For Availability
22
RAIL, SUPPORT ASSEMBLY WPL 712000 Contact Us For Availability
22
NUT, TEE WPL 715294 Contact Us For Availability
22
BRACKET, STAND-OFF WPL 701652 Contact Us For Availability
22
SENSOR, GLASS PROTECTOR WPL Y04100080 Contact Us For Availability
23
BAFFLE, INNER WPL 704466 Contact Us For Availability
23
WASHER, FLAT WPL 801736 Contact Us For Availability
23
COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability
23
BAFFLE WPL 703782 Contact Us For Availability
23
NUT, HEX----NA WPL 04100354 Contact Us For Availability
24
SCREW WPL 715870 Contact Us For Availability
24
WASHER, LOCK WPL 715910 Contact Us For Availability
24
RETAINER, GLASS WPL Y704819 Contact Us For Availability
25
CLIP----S WPL 708763 Contact Us For Availability
25
SCREW WPL Y704231 Contact Us For Availability
25
WIRE, BROWN WPL 04100357 Contact Us For Availability
25
WIRE, VIOLET WPL 04100467 Contact Us For Availability
25
WIRE, YELLOW WPL 04100468 Contact Us For Availability
25
WIRE, VIOLET WPL 04100469 Contact Us For Availability
25
WIRE, YELLOW WPL 04100470 Contact Us For Availability
25
TIE, MOUNT CABLE WPL 702746 Contact Us For Availability
26
WASHER, CONICAL WPL 702462 Contact Us For Availability
26
GLASS, BAFFLE WPL Y704820 Contact Us For Availability
27
WASHER, FLAT WPL 712005 Contact Us For Availability
28
TRIM, SIDE WPL 702337 Contact Us For Availability
28
SCREW, FLAT WPL 704745 Contact Us For Availability
29
SWITCH, DOOR WPL 701666 Contact Us For Availability
30
GUSSETT (LT) WPL 702557 Contact Us For Availability
31
GUSSETT (RT) WPL 702556 Contact Us For Availability
32
SCREW WPL 704335 Contact Us For Availability
35
STRAP, GROUND WPL Y702335 Contact Us For Availability
35
BRACKET, ANTI-TIP WPL Y705344 Contact Us For Availability
36
AIR DEFLECTOR WPL 04100481 Contact Us For Availability
× ![]()
