Model Whirlpool SBE22GP ELECTRIC RANGE – Common Parts & Diagrams
04 - Page 2

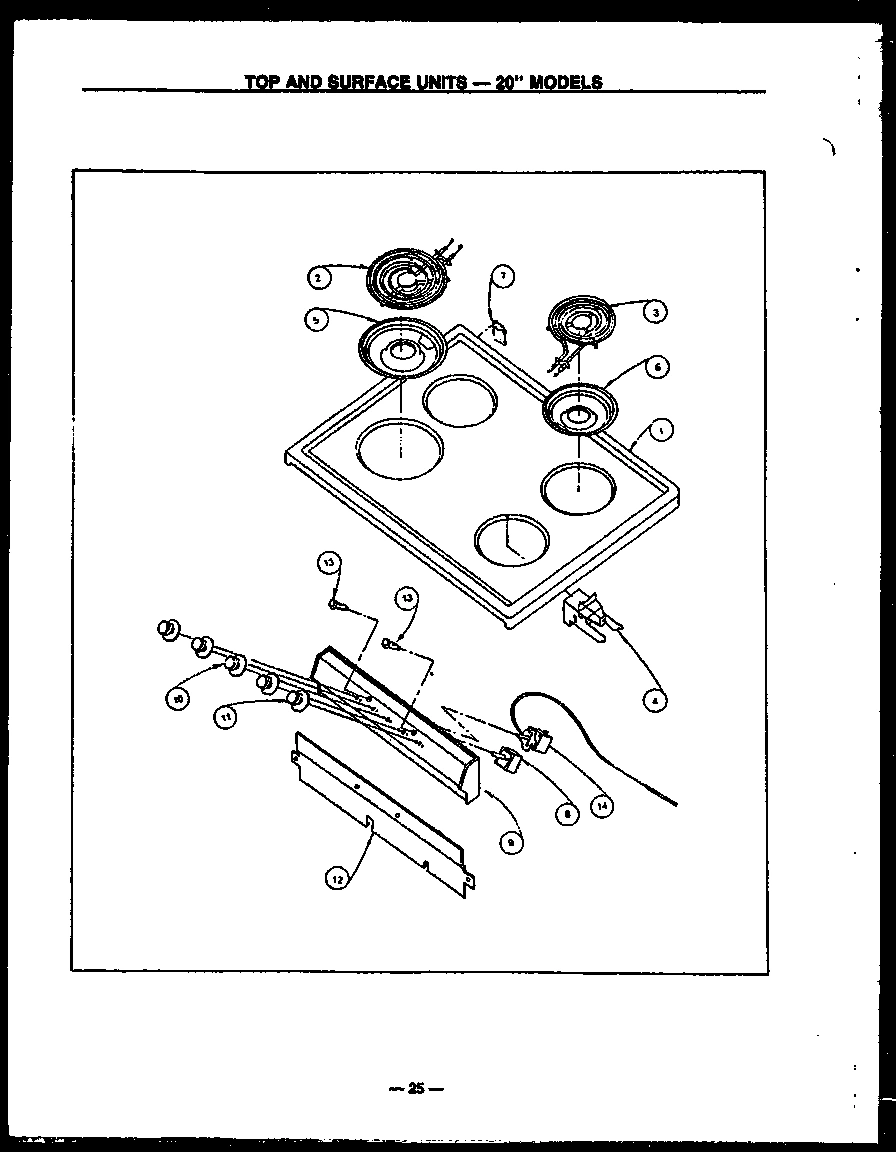

06 - TOP AND SURFACE UNITS-20`` MODELS

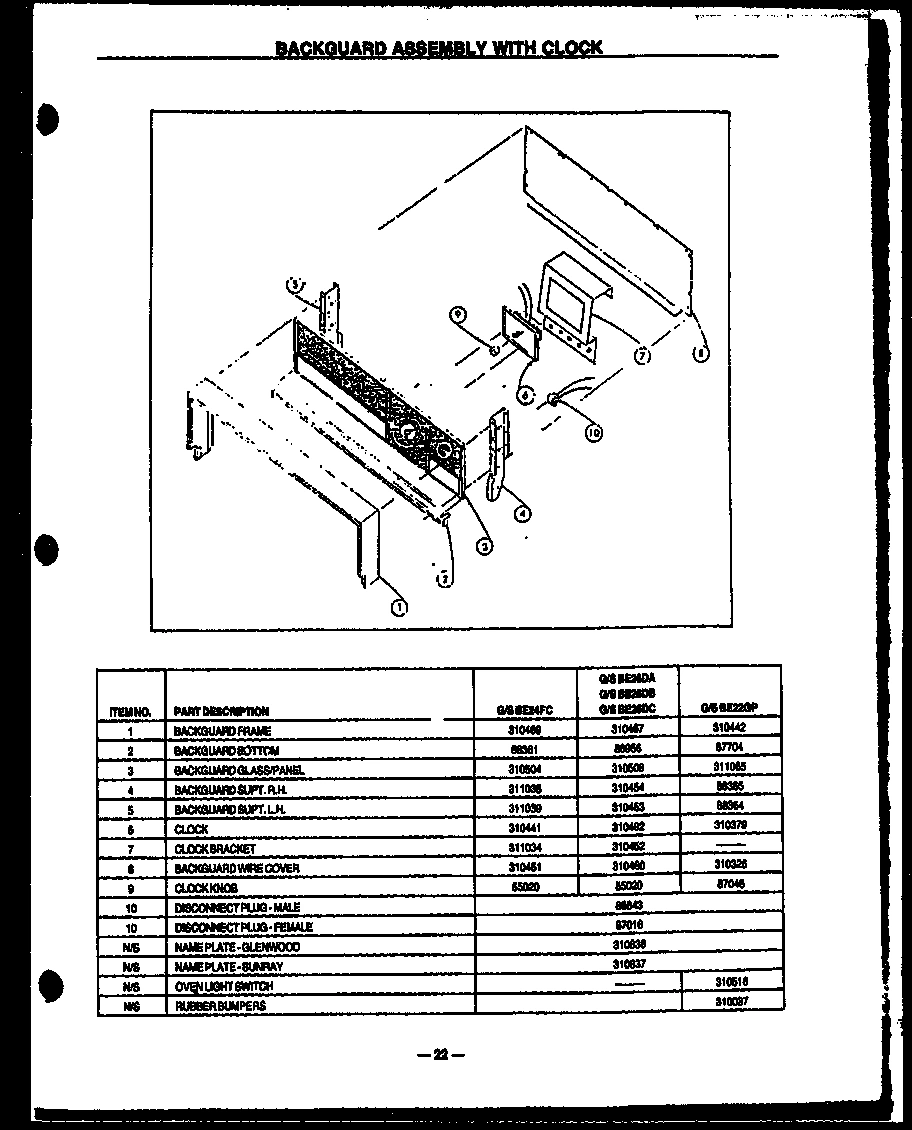

01 - BACKGUARD ASSY WITH CLOCK

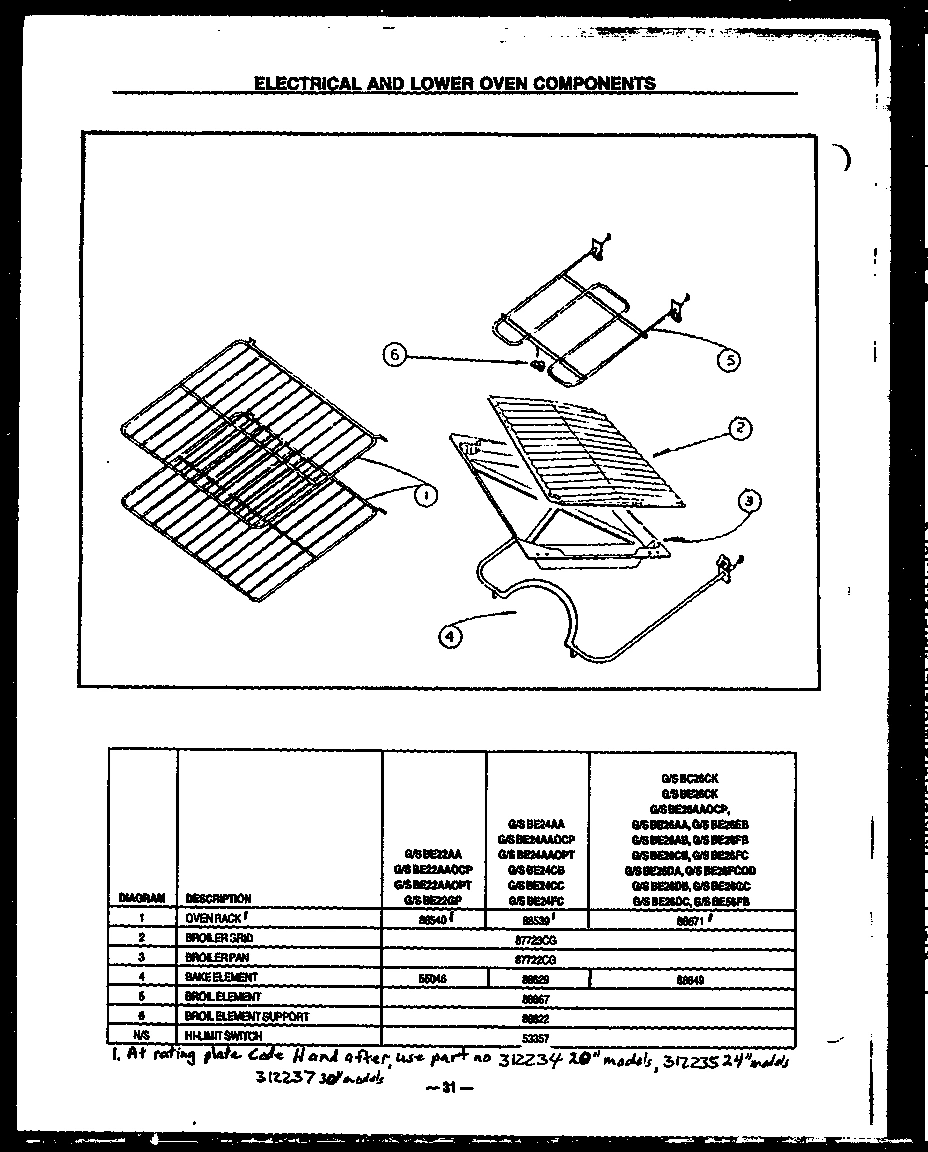

02 - ELECTRICAL AND LOWER OVEN COMPONENTS

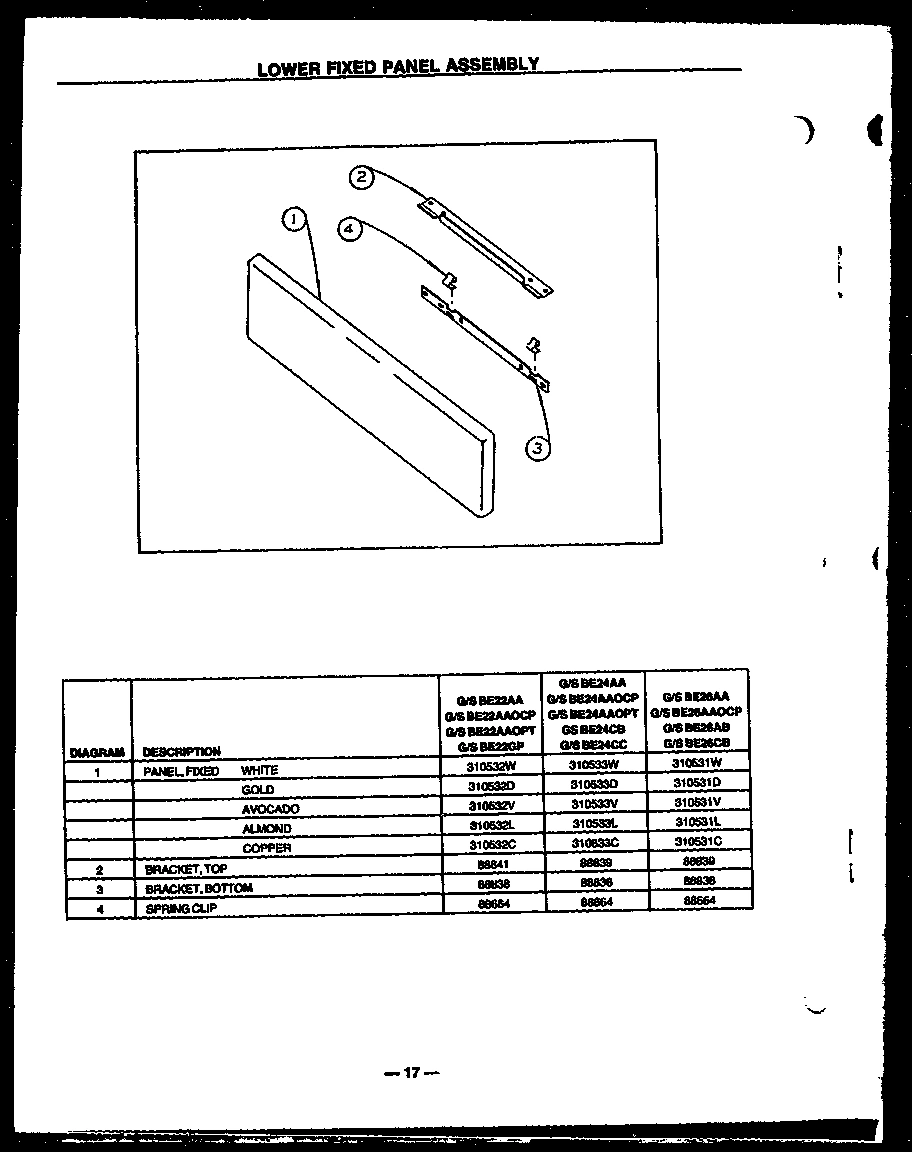

03 - LOWER FIXED PANEL ASSY

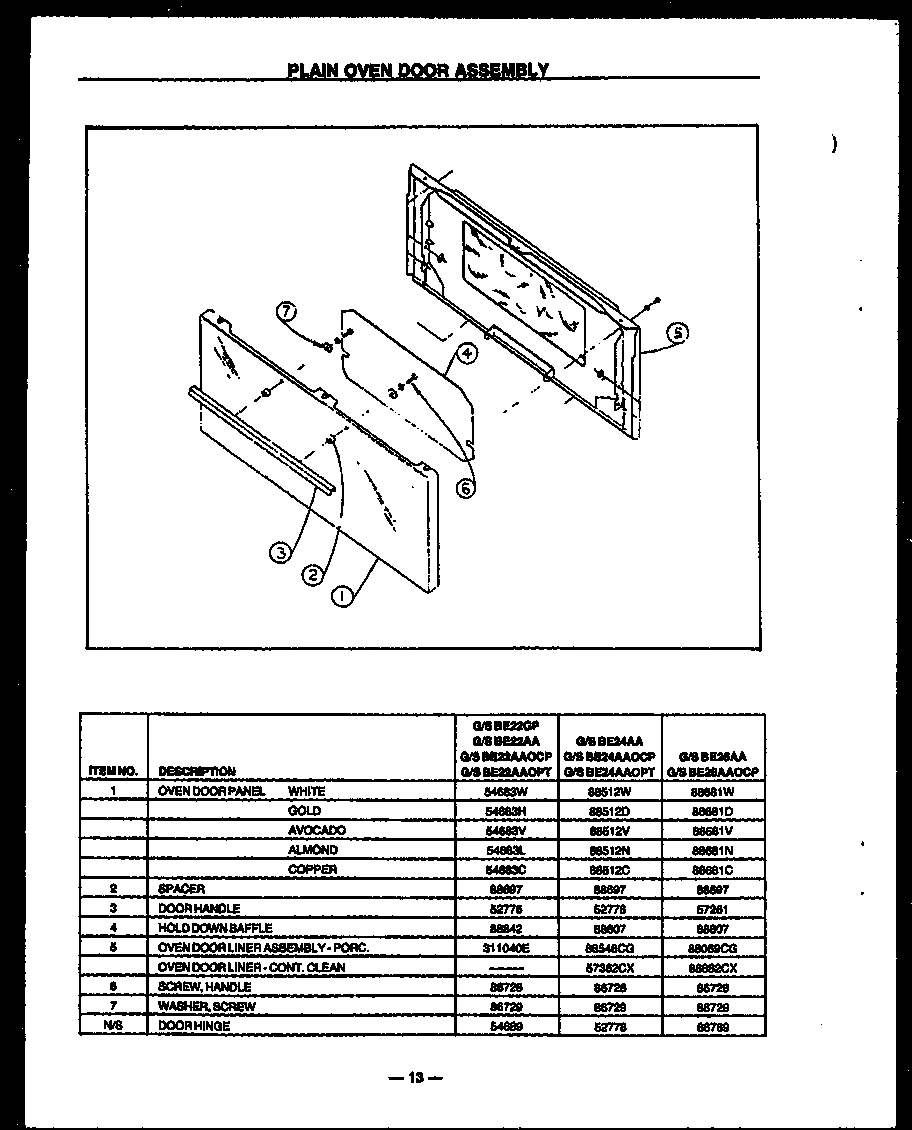

05 - PLAIN DOOR ASSY
Common parts from model Whirlpool SBE22GP ELECTRIC RANGE
1
COPPER WPL 310079C Contact Us For Availability
1
MAINTOP GOLD WPL 310079D Contact Us For Availability
1
TOP, 20`` MAIN ELECTRIC (ALMOND WPL 310079L Contact Us For Availability
1
MAINTOP AVOCADO WPL 310079V Contact Us For Availability
1
TOP, 20`` MAIN ELECTRIC (WHITE) WPL 310079W Contact Us For Availability
1
BACKGUARD FRAME WPL 0310442 Contact Us For Availability
1
OVEN RACK WPL Y0088540 Contact Us For Availability
1
PANEL, FIXED COPPER WPL 310532C Contact Us For Availability
1
PANEL, FIXED, GOLD WPL 310532D Contact Us For Availability
1
PANEL, FIXED, ALMOND WPL 310532L Contact Us For Availability
1
PANEL FIXED AVOCADO WPL 310532V Contact Us For Availability
1
PANEL, FIXED, WHITE WPL 310532W Contact Us For Availability
1
OVEN DOOR PANEL COPPER WPL 54683C Contact Us For Availability
1
OVEN DOOR PANEL GOLD WPL 54683H Contact Us For Availability
1
OVEN DOOR PANEL ALMOND WPL 54683L Contact Us For Availability
1
OVEN DOOR PANEL AVOCADO WPL 54683V Contact Us For Availability
1
OVEN DOOR PANEL WHITE WPL 54683W Contact Us For Availability
2
BASE, BKGD (20``) WPL Y0087704 Contact Us For Availability
2
BRACKET, TOP WPL 88841 Contact Us For Availability
2
HANDLE SPACER, PLASTIC (J) WPL Y0088697 Contact Us For Availability
3
BACKGUARD PANEL WPL Y0311065 Contact Us For Availability
3
PAN, BROILER WPL 87722CG Contact Us For Availability
3
BRACKET, BOTTOM WPL 88838 Contact Us For Availability
3
HANDLE, OVEN DOOR (J) WPL Y0052776 Contact Us For Availability
4
SUPPORT, BACKGUARD, R.H. WPL 0088365 Contact Us For Availability
4
SPRING CLIP WPL Y0088664 Contact Us For Availability
4
BAFFLE, HOLD DOWN WPL 0088842 Contact Us For Availability
5
BOWL, BURNER 8`` (CHROME) WPL Y0088810 Contact Us For Availability
5
SUPPORT, BACKGUARD, L.H. WPL 0088364 Contact Us For Availability
5
BACKER, OVEN DOOR WPL 311040E Contact Us For Availability
6
TIMER W/KNOB WPL Y0310379 Contact Us For Availability
6
SCREW, No.10-24X1/2 (PH TRUS HD) WPL Y0086728 Contact Us For Availability
7
HINGE, MAIN TOP WPL 0088782 Contact Us For Availability
7
WASHER, STEEL (1/4 X 9/16) WPL Y0086729 Contact Us For Availability
8
SWITCH, INFINITE WPL 0057312 Contact Us For Availability
8
20`` BACKGUARD WIRE COVER WPL Y0310326 Contact Us For Availability
9
MANIFOLD PANEL, 20`` WPL Y0310479 Contact Us For Availability
9
KNOB, CLOCK WPL Y0087046 Contact Us For Availability
10
PIN, CONNECTOR WPL Y0087016 Contact Us For Availability
10
CONNECTOR WPL Y0088643 Contact Us For Availability
11
KNOB, THERMOSTAT WPL Y0310527 Contact Us For Availability
12
SWITCH COVER WPL 86933CG Contact Us For Availability
13
LIGHT, PILOT WPL 0088640 Contact Us For Availability
13
LIGHT, INDICATOR WPL Y0088777 Contact Us For Availability
14
THERMO-ELECT. WPL 0088758 Contact Us For Availability
18
WIRE CHANNEL WPL Y0311062 Contact Us For Availability
28
SOCKET, OVEN LIGHT WPL Y0088674 Contact Us For Availability
NI
WIRE CAGE, OVEN LITE WPL Y0310365 Contact Us For Availability
NI
SCREW WPL 0055047 Contact Us For Availability
NI
BUMPER WPL 0310037 Contact Us For Availability
NI
SUNRAY LABEL WPL 0310837 Contact Us For Availability
NI
NAMEPLATE, GLENWOOD WPL 0310838 Contact Us For Availability
NI
SWITCH, OVEN LIGHT WPL Y0310516 Contact Us For Availability
NI
DOOR HINGE WPL Y54689 Contact Us For Availability
× ![]()
