Model Whirlpool RTSA174AAM REFRIGERATOR – Common Parts &amp; Diagrams

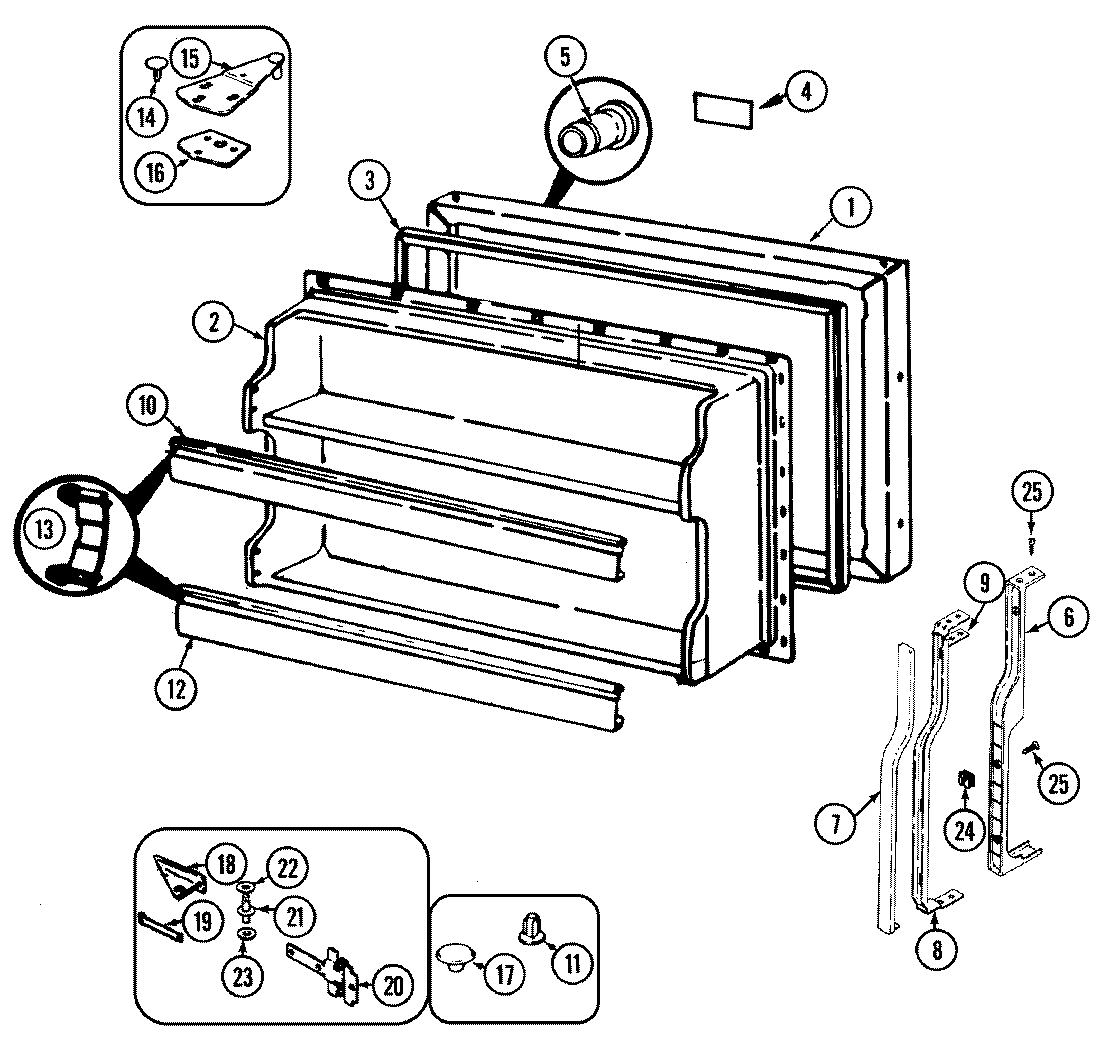

1

PANEL, FRZ. DOOR (ALM) WPL 72342102AM Contact Us For Availability

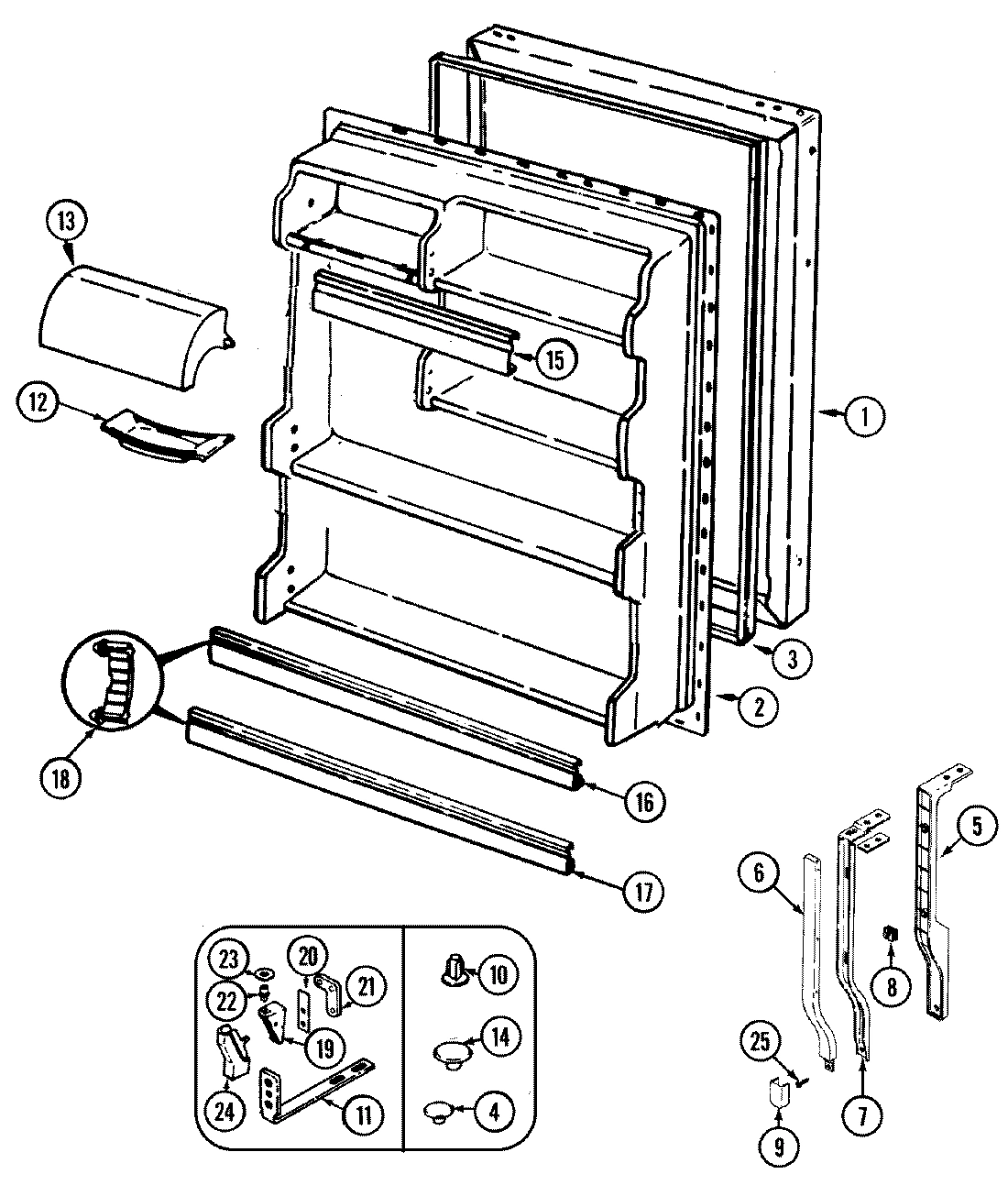

1

PANEL, F.F. DOOR (ALM) WPL 723423AM Contact Us For Availability

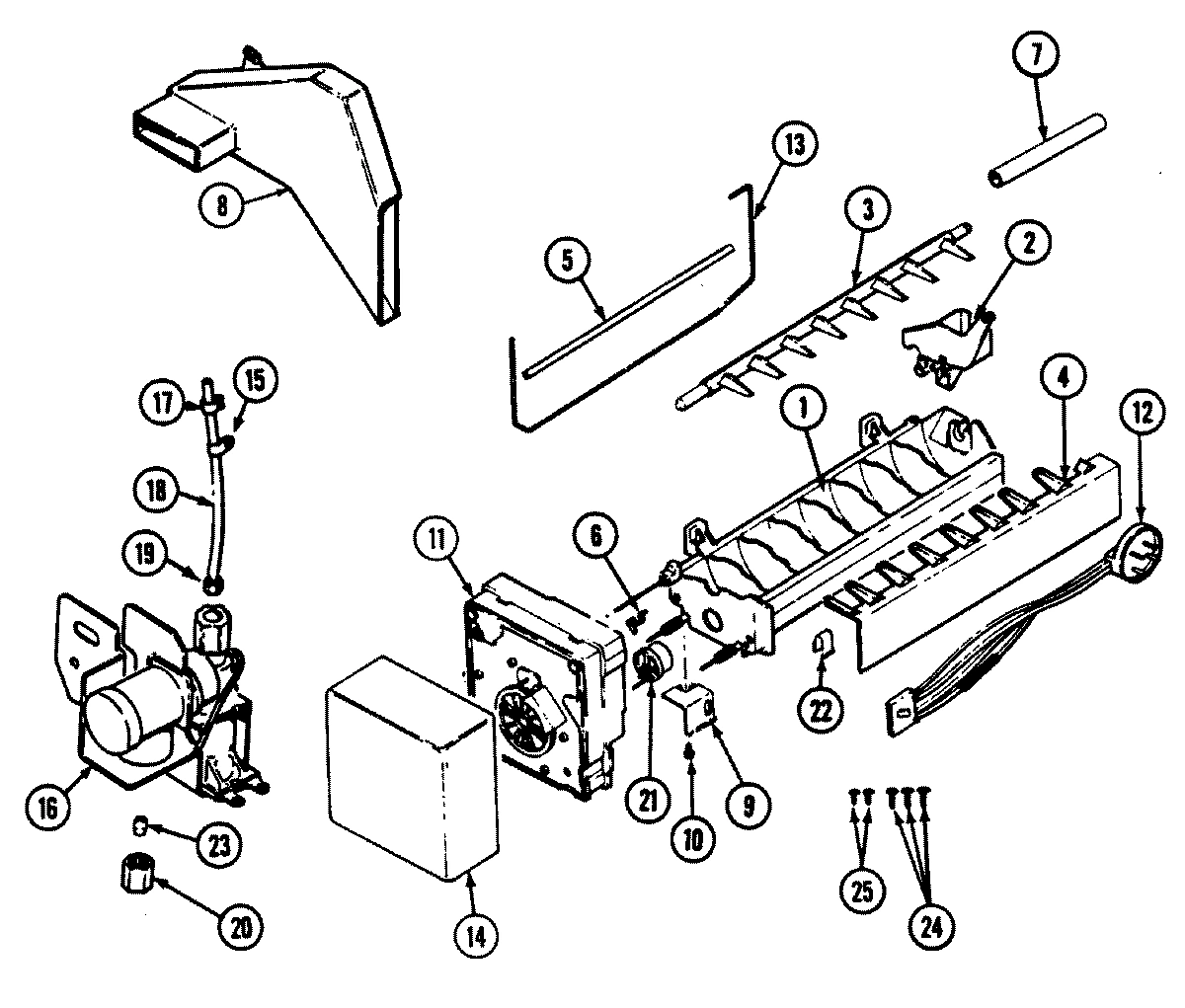

1

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

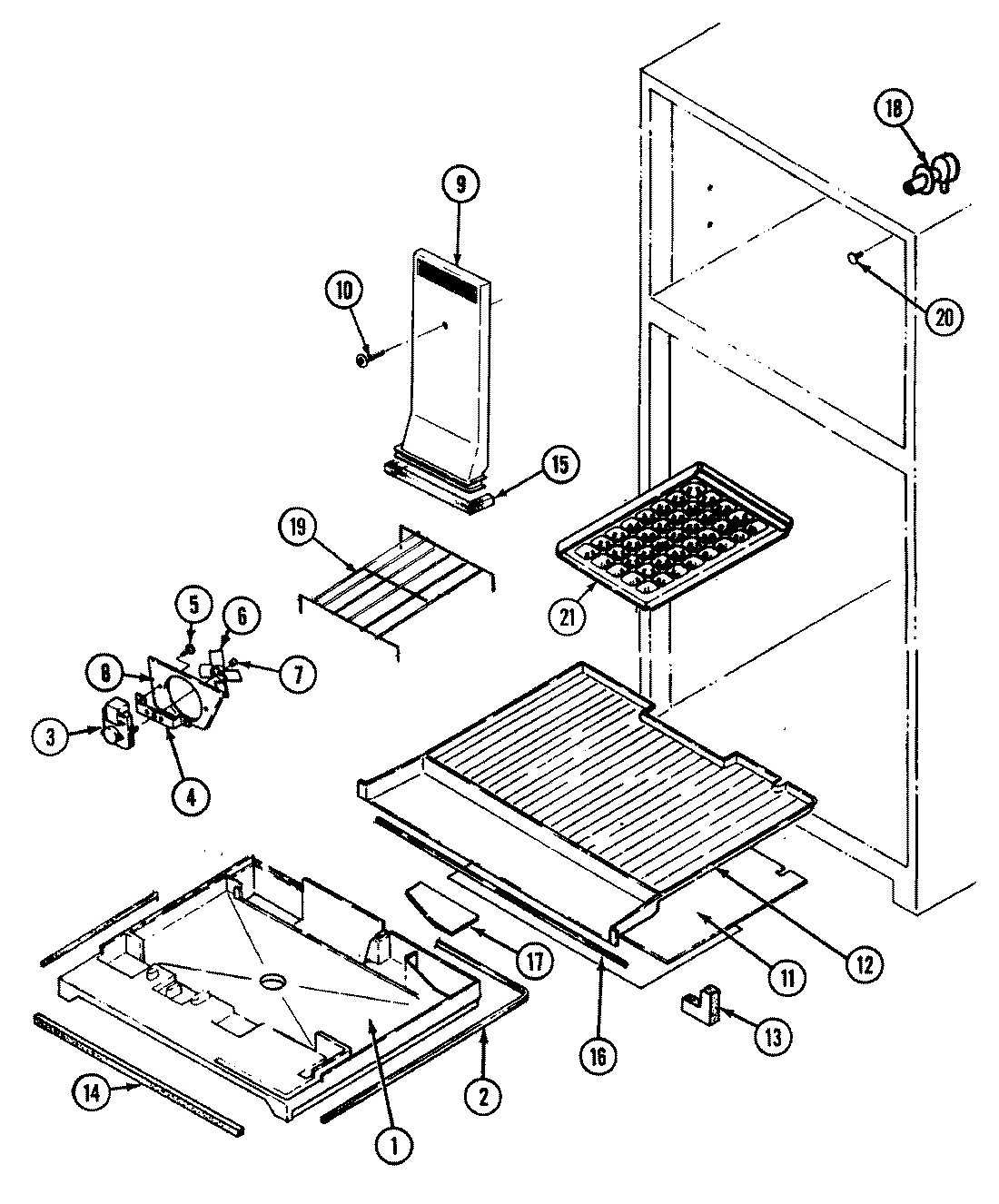

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

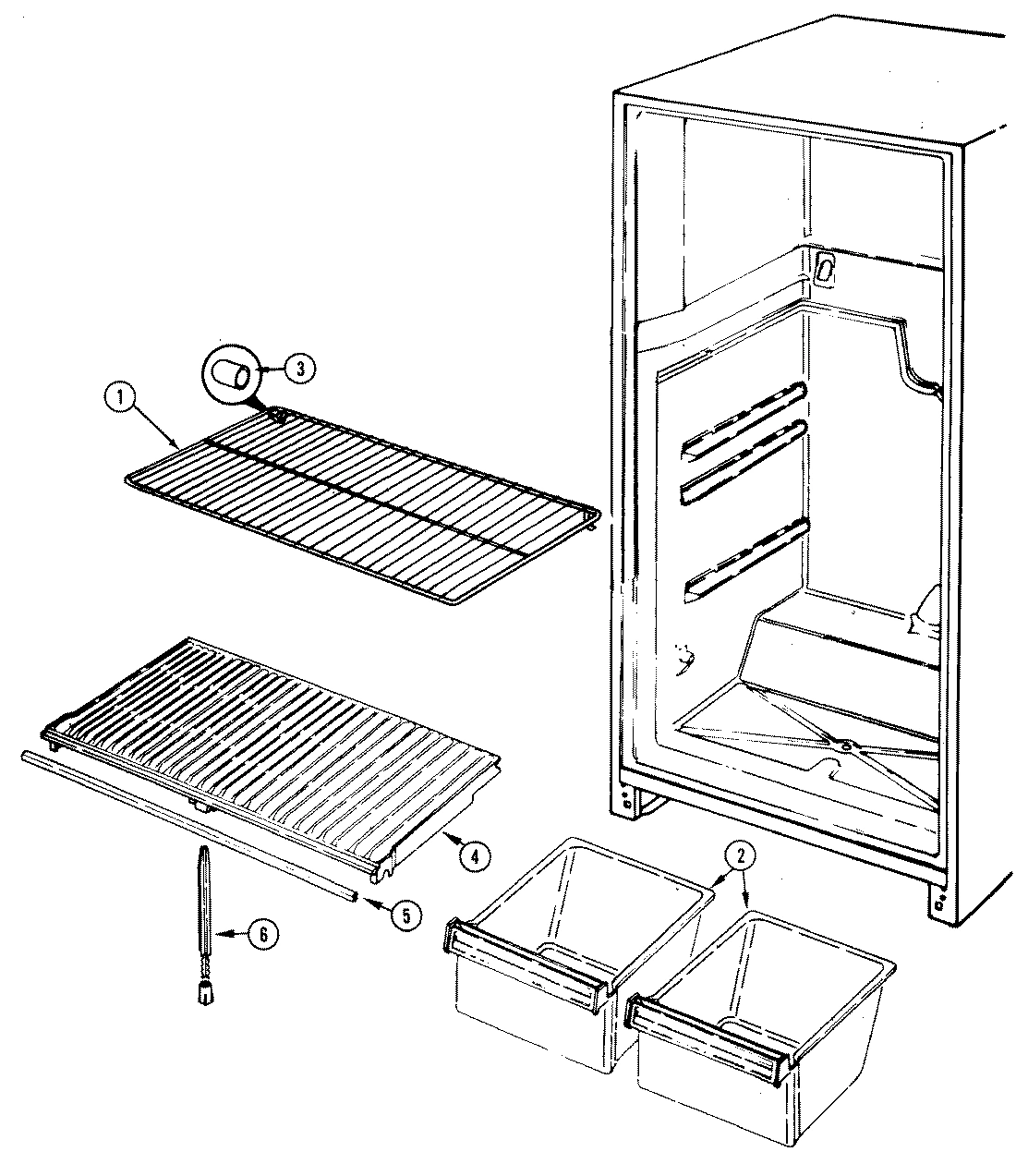

1

SHELF, SLIDE-OUT----NA WPL 700955 Contact Us For Availability

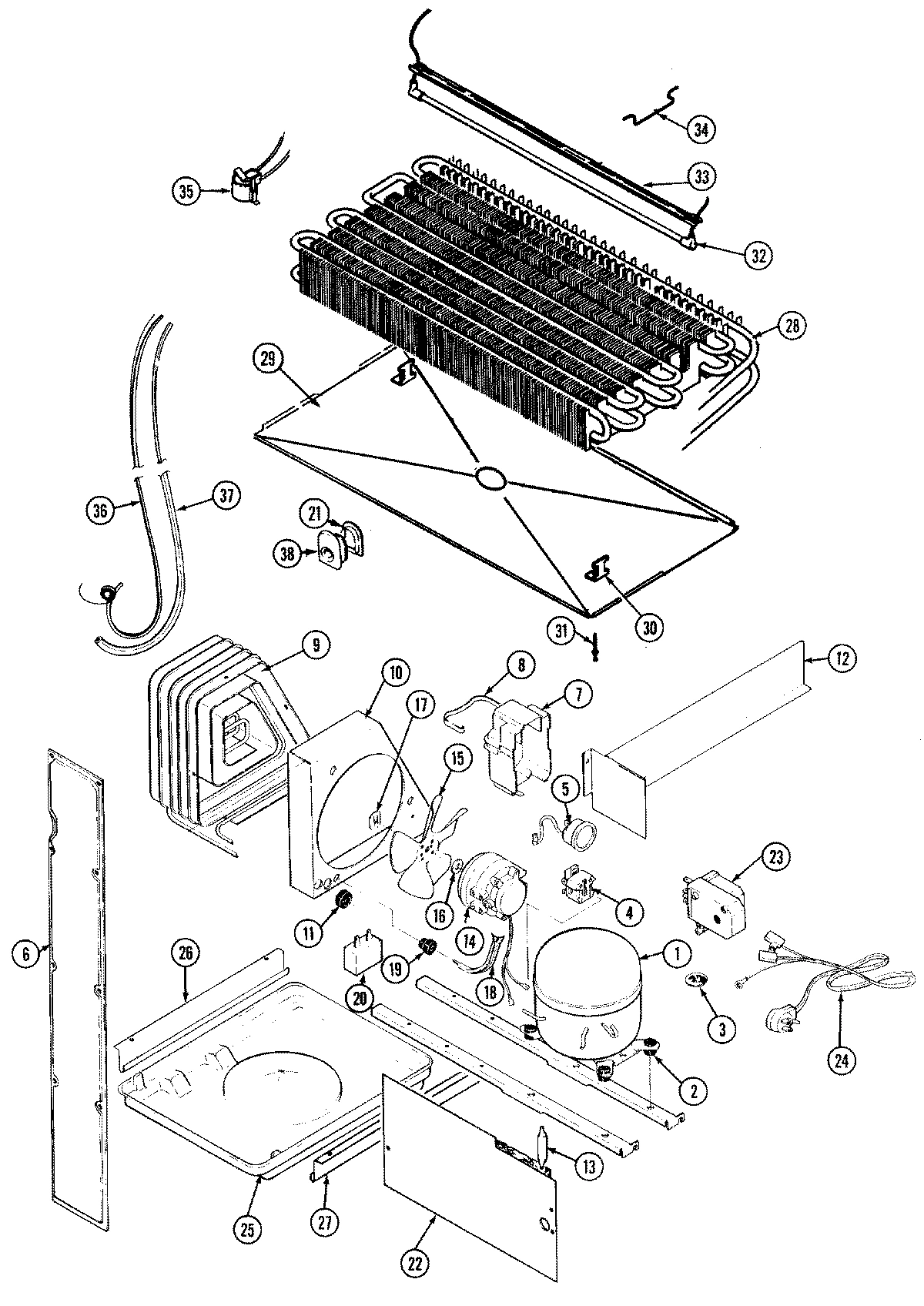

1

COMPRESSOR WPL RA10111 Contact Us For Availability

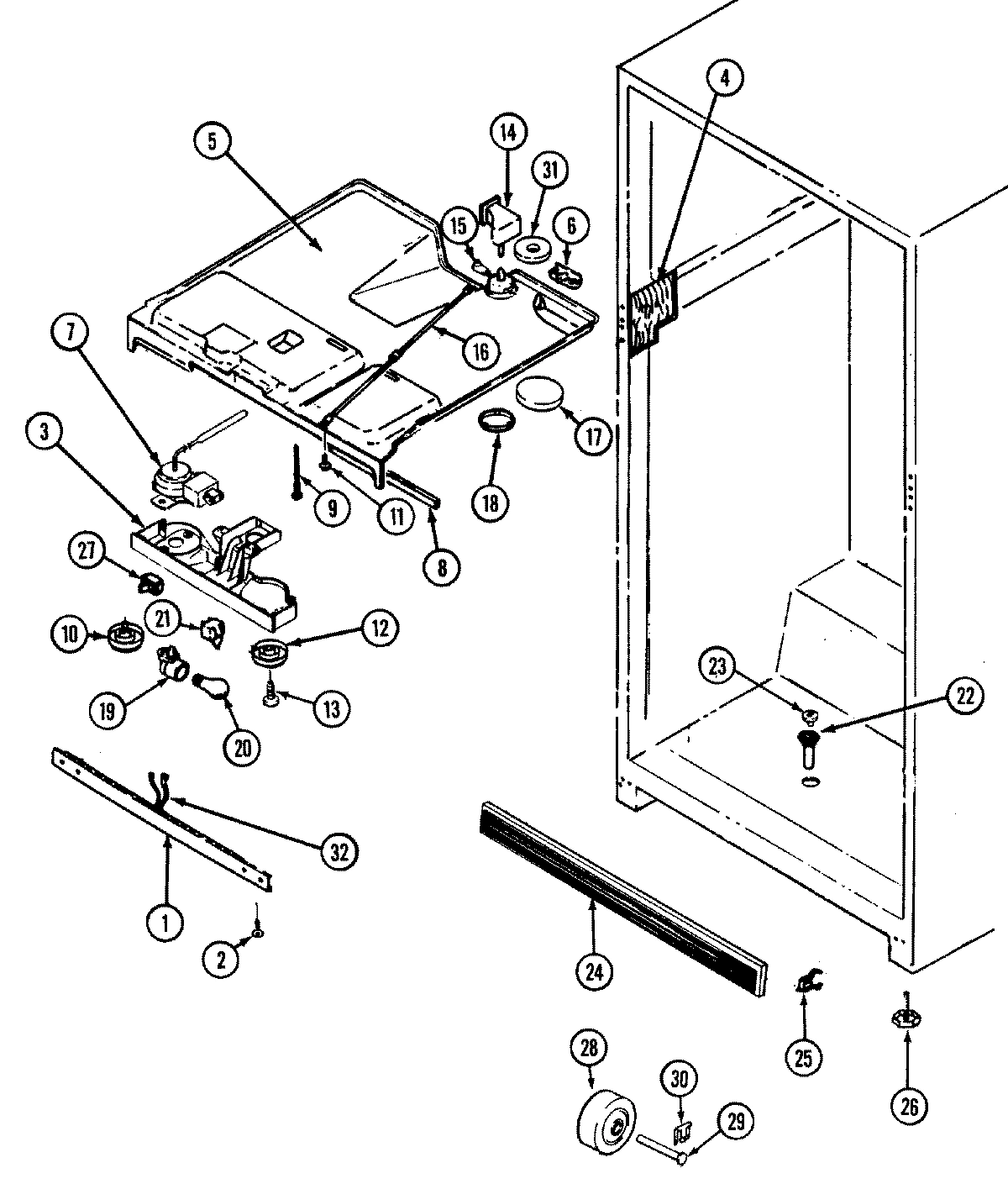

1

CHANNEL, MULLION DIVIDER WPL 694201AM Contact Us For Availability

2

SEAL, MULLION TRAY WPL 694141 Contact Us For Availability

2

SCREW WPL 652755 Contact Us For Availability

2

LINER WPL 694661 Contact Us For Availability

2

LINER, F.F. DOOR WPL 703431 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

PAN, CRISPER WPL 68221149 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

SCREW WPL 6527567 Contact Us For Availability

3

SCREW WPL 4060621 Contact Us For Availability

3

MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability

3

GASKET WPL 700253 Contact Us For Availability

3

GASKET WPL 700254 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

TIP WPL 245803 Contact Us For Availability

3

SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61002970 Contact Us For Availability

3

CLIP WPL 621651 Contact Us For Availability

3

COVER, TEMPERATURE CONTROL WPL 694215 Contact Us For Availability

4

WP10097204 Whirlpool Start Relay Backorder WPL WP10097204 $90.53

4

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $74.56

4

BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability

4

NAMEPLATE (ALM) WPL 6698230 Contact Us For Availability

4

PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

SHELF, CRISPER (W/TRIM) WPL 61001583 Contact Us For Availability

4

RELAY, START WPL 665881 Contact Us For Availability

4

SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability

4

SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability

4

WIRE HARNESS, MULLION WPL 701171 Contact Us For Availability

5

2176790 Whirlpool Refrigerator Overload Backorder WPL 2176790 $88.39

5

4388953 Whirlpool Overload Relay Backorder WPL 4388953 $126.88

5

SCREW WPL 40001536 Contact Us For Availability

5

RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability

5

HANDLE, F.F. DOOR (ALM) WPL 700514 Contact Us For Availability

5

SLEEVE, SENSOR ARM WPL 675562 Contact Us For Availability

5

OVERLOAD WPL 6910510 Contact Us For Availability

5

TOP, F.F. COMPARTMENT WPL 694071 Contact Us For Availability

6

BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability

6

HANDLE, FRZ WPL 700508 Contact Us For Availability

6

INSERT, HANDLE (ALM)----NA WPL 7005317 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability

6

COVER, WIRE HARNESS WPL 601102 Contact Us For Availability

6

SCREW WPL 6527550 Contact Us For Availability

6

DEFLECTOR, AIR WPL 696231 Contact Us For Availability

7

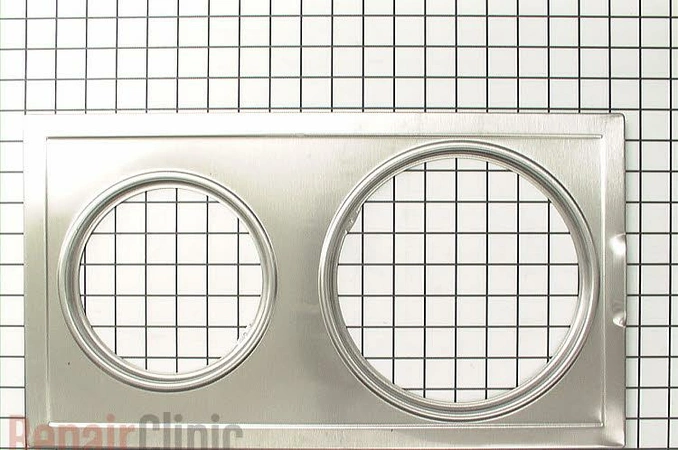

WP2002F208-50 Whirlpool Cartridge Backorder WPL WP2002F208-50 $131.03

7

WASHER, SPRING WPL 420092900 Contact Us For Availability

7

SHIM, HANDLE WPL 679341 Contact Us For Availability

7

FRAME, HANDLE WPL 700521 Contact Us For Availability

7

TUBE, WATER ENTRY WPL 676665 Contact Us For Availability

7

COVER, TERMINAL WPL 61002020 Contact Us For Availability

7

COVER, TERMINAL WPL 665892 Contact Us For Availability

7

COVER, TERMINAL WPL 697541 Contact Us For Availability

7

SCREW WPL 4060131 Contact Us For Availability

7

CONTROL, TEMPERATURE WPL 686014 Contact Us For Availability

8

ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability

8

MAGNET WPL 694131 Contact Us For Availability

8

FRAME, HANDLE WPL 700523 Contact Us For Availability

8

GROMMET WPL 697431 Contact Us For Availability

8

DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability

8

CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability

8

CLIP, TERMINAL COVER WPL 61002620 Contact Us For Availability

9

TUNNEL, AIR WPL 702082 Contact Us For Availability

9

END CAP, HANDLE (ALM) WPL 700581 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

U-NUT, CONDENSER WPL 604081 Contact Us For Availability

9

CONDENSER WPL 604343 Contact Us For Availability

9

SCREW WPL 4050121 Contact Us For Availability

9

SCREW WPL 6527578 Contact Us For Availability

SCREW WPL 40001531 Contact Us For Availability

PLUG BUTTON (ALM) WPL 694804 Contact Us For Availability

SCREW, BRACKET WPL 951081 Contact Us For Availability

SHROUD, CONDENSER WPL 662281 Contact Us For Availability

KNOB, TEMPERATURE CONTROL WPL 694179 Contact Us For Availability

COVER, EVAPORATOR WPL 664031 Contact Us For Availability

TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability

SCREW WPL 6527513 Contact Us For Availability

BOTTOM, FRZ. WPL 693951 Contact Us For Availability

TRIM, SHELF WPL 7011142 Contact Us For Availability

TRAY, BUTTER WPL 299362 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability

BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability

KNOB, FREEZER CONTROL WPL 6941710 Contact Us For Availability

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

SEAL WPL 689461 Contact Us For Availability

DOOR, DAIRY WPL 6905829 Contact Us For Availability

ARM, SENSOR WPL 681121 Contact Us For Availability

SCREW WPL 405016103 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

SEAL, MULLION TRAY (FRONT) WPL 695621 Contact Us For Availability

PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability

PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability

COVER, ICE MAKER WPL 683282 Contact Us For Availability

SCREW WPL 4080151 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 684453 Contact Us For Availability

ORIFICE ASSY., DAMPER WPL 698118 Contact Us For Availability

SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability

HINGE, UPPER WPL 5370920 Contact Us For Availability

SCREW WPL 6527552 Contact Us For Availability

TRIM, DOOR WPL 7011131 Contact Us For Availability

TRIM, SHELF WPL 7011132 Contact Us For Availability

CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability

CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability

TRIM, SHELF WPL 7011143 Contact Us For Availability

SHIM, UPPER HINGE WPL 650311 Contact Us For Availability

VALVE, WATER WPL 693641 Contact Us For Availability

WASHER, FAN BLADE WPL 690631 Contact Us For Availability

ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability

COVER, PLENUM WPL 61664804 Contact Us For Availability

TRIM, SHELF WPL 7011145 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

CLIP WPL 199140 Contact Us For Availability

WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability

TUBE WPL 675796 No Longer Available

GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability

RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability

SCREW WPL 6527562 Contact Us For Availability

HINGE WPL 695143 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

DISC, CRANK COVER WPL 690371 Contact Us For Availability

TRIVET WPL 682598 Contact Us For Availability

SHIM, CENTER HINGE WPL 695151 Contact Us For Availability

SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability

HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $47.85

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

PLUG BUTTON (ALM) WPL 701463 Contact Us For Availability

TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability

SHIM, LOWER HINGE WPL 695101 Contact Us For Availability

CAPACITOR, RUN WPL 658891 Contact Us For Availability

BULB, LIGHT WPL 681231 Contact Us For Availability

TRAY, ICE WPL 592812 Contact Us For Availability

CAP, CONNECTOR WPL 681871 Contact Us For Availability

PAN, ICE WPL 683461 Contact Us For Availability

CAP, GROMMET WPL 683871 Contact Us For Availability

PIN, CENTER HINGE WPL 695172 Contact Us For Availability

SCREW WPL 4031001 Contact Us For Availability

TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability

RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability

WIRE HARNESS, MAIN WPL 61001560 Contact Us For Availability

WIRE HARNESS, MAIN WPL 701621 Contact Us For Availability

SWITCH, LIGHT WPL 669871 Contact Us For Availability

WASHER WPL 674836 Contact Us For Availability

PIN, LOWER HINGE WPL 698451 Contact Us For Availability

CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability

COVER, UNIT COMPARTMENT WPL 663383 Contact Us For Availability

SCREW WPL 998645 Contact Us For Availability

TUBE, DRAIN WPL 545317 Contact Us For Availability

WASHER WPL 542332 Contact Us For Availability

WASHER, LOWER HINGE WPL 674832 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682331 Contact Us For Availability

CAP, DRAIN TUBE WPL 650391 Contact Us For Availability

STOP, DOOR WPL 692562 Contact Us For Availability

COVER, LOWER HINGE (ALM) WPL 689783 Contact Us For Availability

SCREW WPL 4000211 Contact Us For Availability

CORD, POWER WPL 528902 Contact Us For Availability

KICKPLATE ASSY. W/CLIPS (ALM) WPL 701283 Contact Us For Availability

SCREW WPL 4150331 Contact Us For Availability

SCREW WPL 4010171 Contact Us For Availability

PAN, DRAIN WPL 682361 Contact Us For Availability

HEATER, DIVIDER CHANNEL WPL 696171 Contact Us For Availability

26

RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability

26

LEG, LEVELING WPL 686641 Contact Us For Availability

27

SCREW WPL 4000171 Contact Us For Availability

27

RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability

27

SWITCH, HEATER WPL 692831 Contact Us For Availability

28

EVAPORATOR WPL 698221 Contact Us For Availability

28

WHEEL WPL 698121 Contact Us For Availability

29

TRAY, DRIP WPL 691181 Contact Us For Availability

29

PIN, WHEEL WPL 298352 Contact Us For Availability

30

BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability

30

CLIP WPL 602161 Contact Us For Availability

31

RIVET WPL 263979 Contact Us For Availability

31

SEAL, TOP TOWER WPL 689891 Contact Us For Availability

32

HEATER, DEFROST WPL 6010634 Contact Us For Availability

33

SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability

34

CLIP WPL 689351 Contact Us For Availability

35

THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability

36

HEAT EXCHANGER WPL 6501326 Contact Us For Availability

36

HEAT EXCHANGER WPL 650134 Contact Us For Availability

36

WIRE TIE WPL 662231 Contact Us For Availability

37

COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability

38

GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability

NI

MANUAL, USE & CARE WPL 1083403 Contact Us For Availability
