Model Electrolux RTG174GLD3C REFRIGERATOR – Common Parts & Diagrams

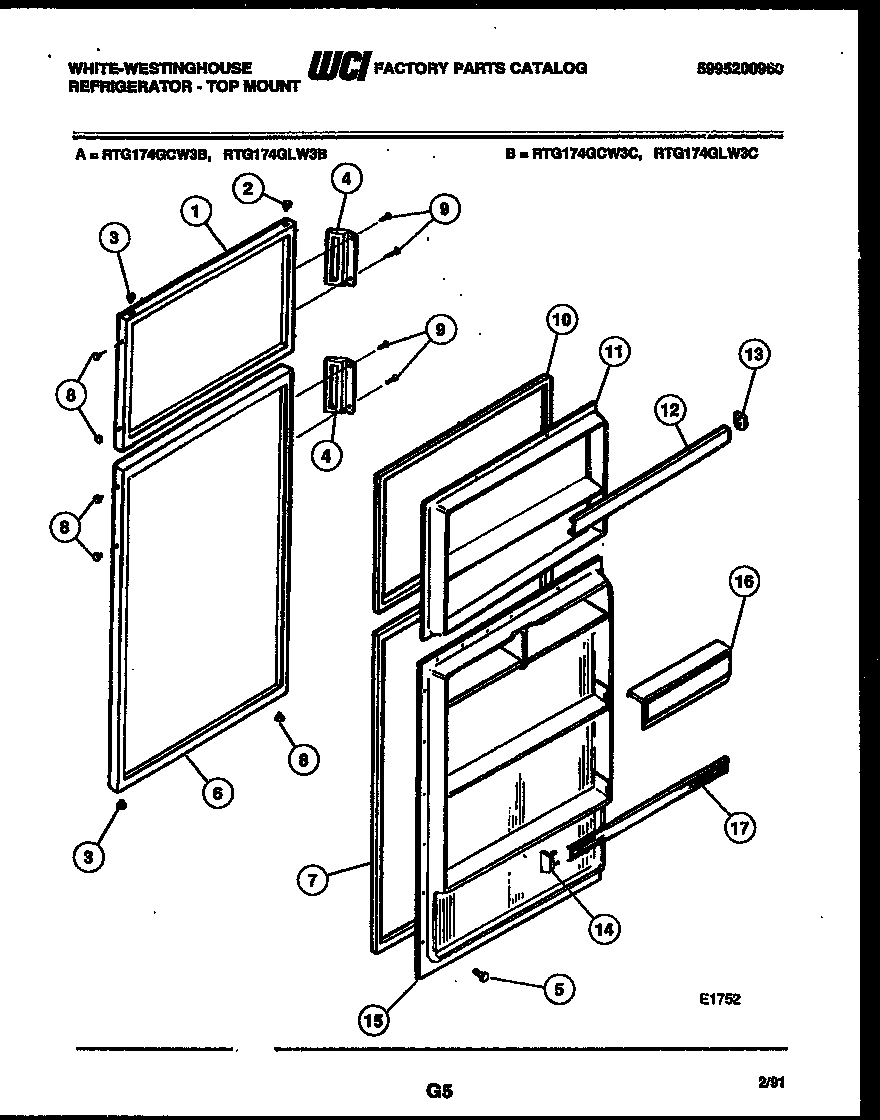

02 - DOOR PARTS

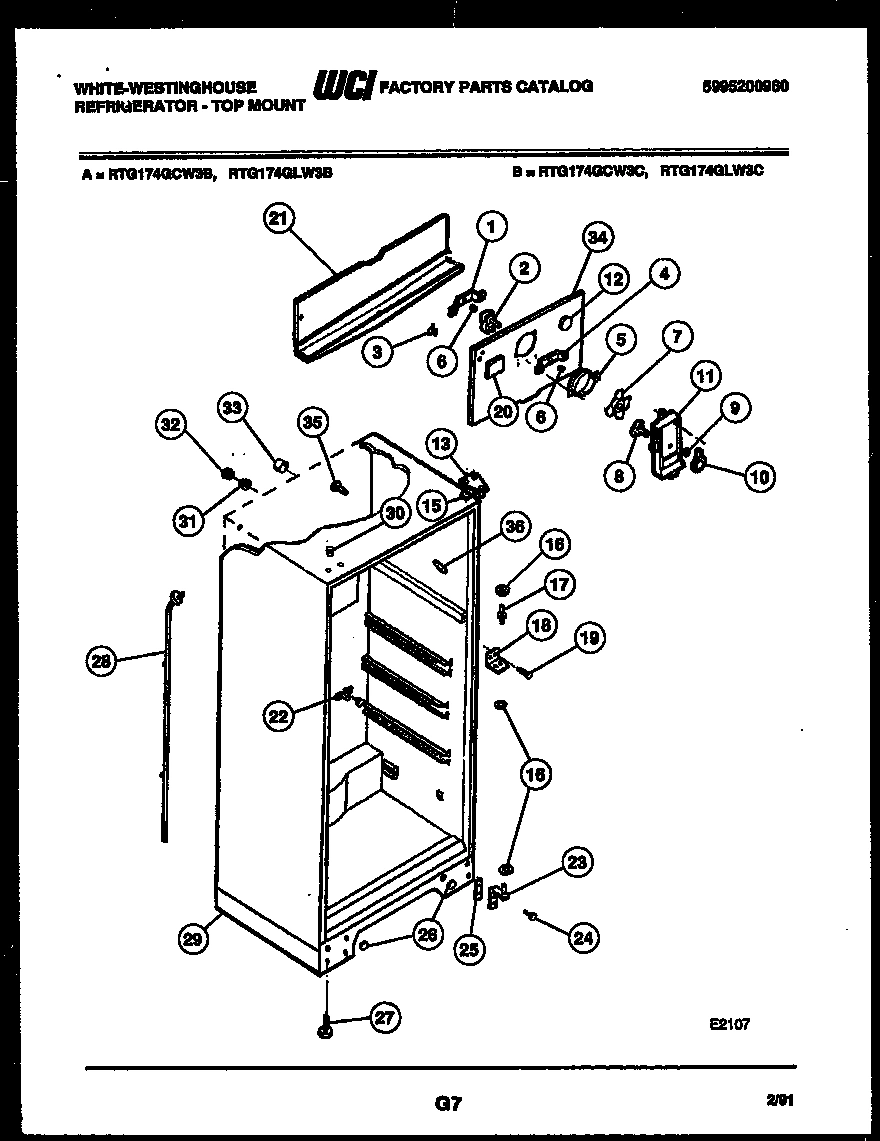

03 - CABINET PARTS

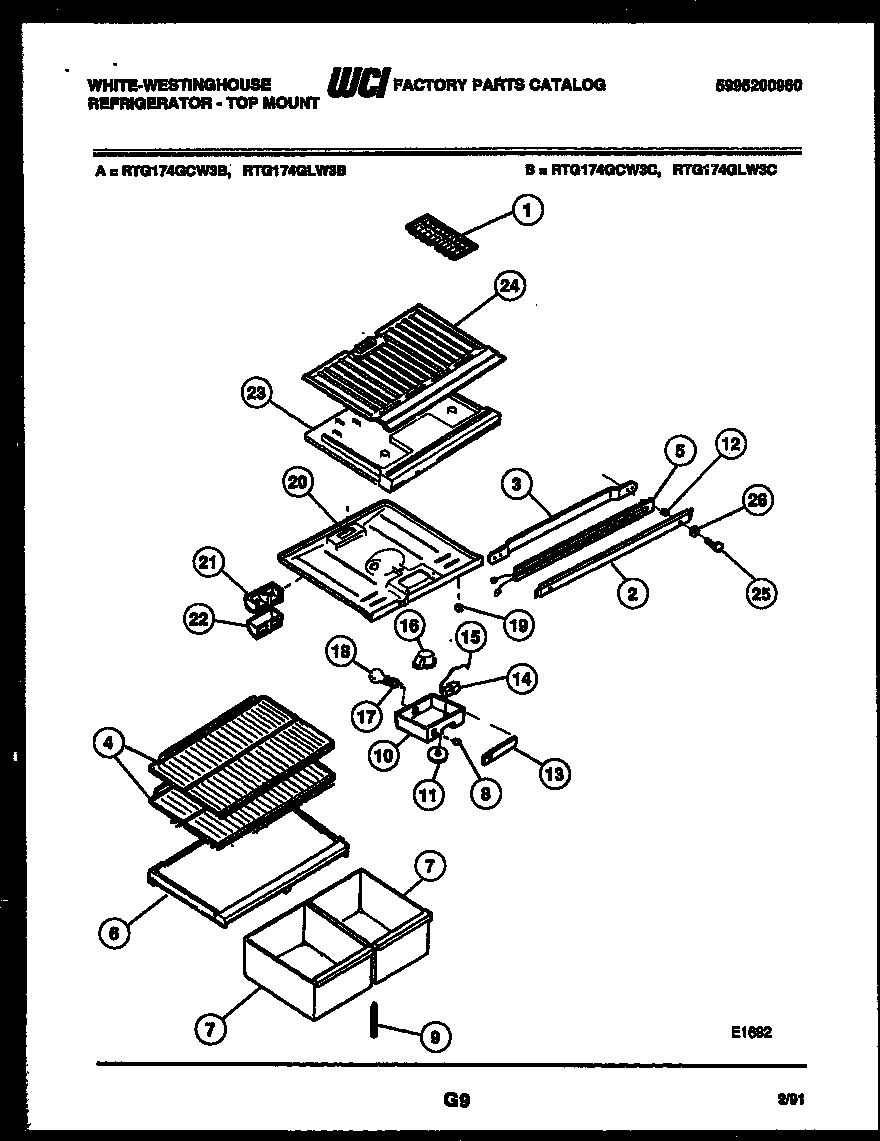

04 - SHELVES AND SUPPORTS

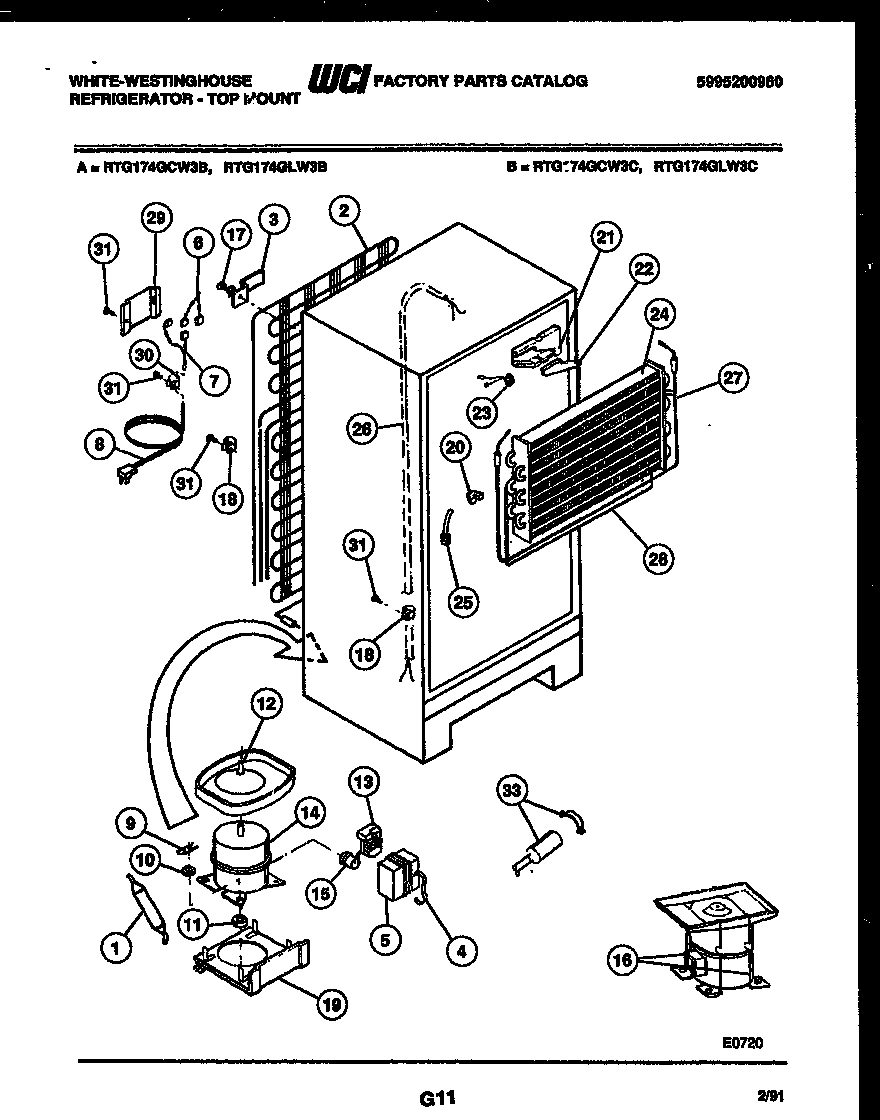

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RTG174GLD3C REFRIGERATOR
*42391
BUTTON-PLUG FRZR (6) WCI 5308016571 Contact Us For Availability
*42407
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
2
PLUG BUTTON, ALMD (2) WCI 5303001308 Contact Us For Availability
2
WCI 5303916134 WCI 5303916134 Contact Us For Availability
2
WCI 5303001341 WCI 5303001341 Contact Us For Availability
3
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
3
WCI 5308003604 WCI 5308003604 Contact Us For Availability
3
BRACKET-MTG (4) WCI 5303001342 Contact Us For Availability
3A
WASHER - NO. 10 EXT TOOTH LOCK (2) (NON-ILLUS WCI 5308009617 Contact Us For Availability
4
SHELF - REFRIGERATOR (2) WCI 5317941501 Contact Us For Availability
4
WCI 5303211232 WCI 5303211232 Contact Us For Availability
5
WCI 5308000124 WCI 5308000124 Contact Us For Availability
5
WCI 5308017408 WCI 5308017408 Contact Us For Availability
5
WCI 5303209254 WCI 5303209254 Contact Us For Availability
6
COVER-PAN WCI 5349001603 Contact Us For Availability
6
WIRING HARNESS-CONT WCI 3001383 Contact Us For Availability
7
WCI 5349001501 WCI 5349001501 Contact Us For Availability
7
WCI 5303001347 WCI 5303001347 Contact Us For Availability
8
WCI 5303001670 WCI 5303001670 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
SUPPORT-PAN COVER WCI 5303206507 Contact Us For Availability
9
CLIP (4) WCI 5308003596 Contact Us For Availability
10
WCI 5308009730 WCI 5308009730 Contact Us For Availability
10
WASHER (4) WCI 5308003633 Contact Us For Availability
11
KNOB-TEMP CONTROL WCI 08006978 Contact Us For Availability
12
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
12
DEFROST PAN-SVC COMP WCI 5300184715 Contact Us For Availability
12A
DEF PAN-ORIG COMP (NON-ILLUSTRATED) WCI 5300171129 Contact Us For Availability
12B
LOCK NUT-PAN (NON-ILLUSTRATED) WCI 5303001348 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WCI 5308012843 WCI 5308012843 Contact Us For Availability
13
LABEL-CONTROL BOX WCI 3205689 Contact Us For Availability
13B
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
14
WCI 5303200810 WCI 5303200810 Contact Us For Availability
14
SUPPORT-RACK LH (4) WCI 5303007297 Contact Us For Availability
14
COMPRESSOR W/ ELECTRICALS WCI 5303916004 Contact Us For Availability
14A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
15
WCI 5303001037 WCI 5303001037 Contact Us For Availability
15
WCI 5303270294 WCI 5303270294 Contact Us For Availability
16
WASHER-HINGE (3) WCI 5308000186 No Longer Available
16
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
17
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
17
WCI 5308000184 WCI 5308000184 Contact Us For Availability
18
WCI 5303001369 WCI 5303001369 Contact Us For Availability
19
PLATE-COMPRESSOR MTG WCI 5308013663 Contact Us For Availability
20
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
20
TOP-REFRIGERATOR W/ SNAP BUSHING WCI 5303016378 Contact Us For Availability
20
INSULATION-LH WCI 5308017227 Contact Us For Availability
20A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
20B
SNAP BUSHING (NON-ILLUSTRATED) WCI 5303212518 Contact Us For Availability
21
WCI 5308000071 WCI 5308000071 Contact Us For Availability
21
WCI 08010005 WCI 08010005 Contact Us For Availability
21
INSULATION-RH WCI 5308013648 Contact Us For Availability
22
WCI 5308000056 WCI 5308000056 Contact Us For Availability
22
WCI 5303001546 WCI 5303001546 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
22A
PUSH PIN (2) (NON-ILLUSTRATED) WCI 5303001361 Contact Us For Availability
23
BRACKET-BOTTOM HINGE W/ PIN WCI 5303212489 Contact Us For Availability
23
WCI 5308009750 WCI 5308009750 Contact Us For Availability
23A
WCI 5303212597 WCI 5303212597 Contact Us For Availability
23B
WCI 5303212596 WCI 5303212596 Contact Us For Availability
24
BOTTOM-FREEZER WCI 5303001537 Contact Us For Availability
24
WCI 5308009756 WCI 5308009756 Contact Us For Availability
25
WCI 5308012258 WCI 5308012258 Contact Us For Availability
25
SHIM, BOTTOM HINGE WCI 5303212488 Contact Us For Availability
26
PLUG-BASE (2) WCI 5303212923 Contact Us For Availability
26
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
WCI 5308009754 WCI 5308009754 Contact Us For Availability
27
WCI 5303212922 WCI 5303212922 Contact Us For Availability
28
INSULATION-EVAP WCI 5316651102 Contact Us For Availability
28
DRAIN TUBE W/ RING SEAL WCI 5303210377 Contact Us For Availability
28A
RING-SEAL DRAIN TUBE (NON-ILLUSTRATED) WCI 5303207353 Contact Us For Availability
29
WCI 5303269889 WCI 5303269889 Contact Us For Availability
29
WCI 5303001197 WCI 5303001197 Contact Us For Availability
30
PLUG-HINGE-ALMD (2) WCI 5303001389 Contact Us For Availability
31
WCI 5303001286 WCI 5303001286 Contact Us For Availability
32
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
WCI 5303001198 WCI 5303001198 Contact Us For Availability
33
CAPACITOR-RUN KIT WCI 5303916391 Contact Us For Availability
34
COVER - EVAPORATOR COIL WCI 3001527 Contact Us For Availability
34B
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
35
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
36
CORNER TRIM-ALMOND WCI 5303202340 Contact Us For Availability
× ![]()
