Model Electrolux RTG153HCF2A REFRIGERATOR – Common Parts & Diagrams

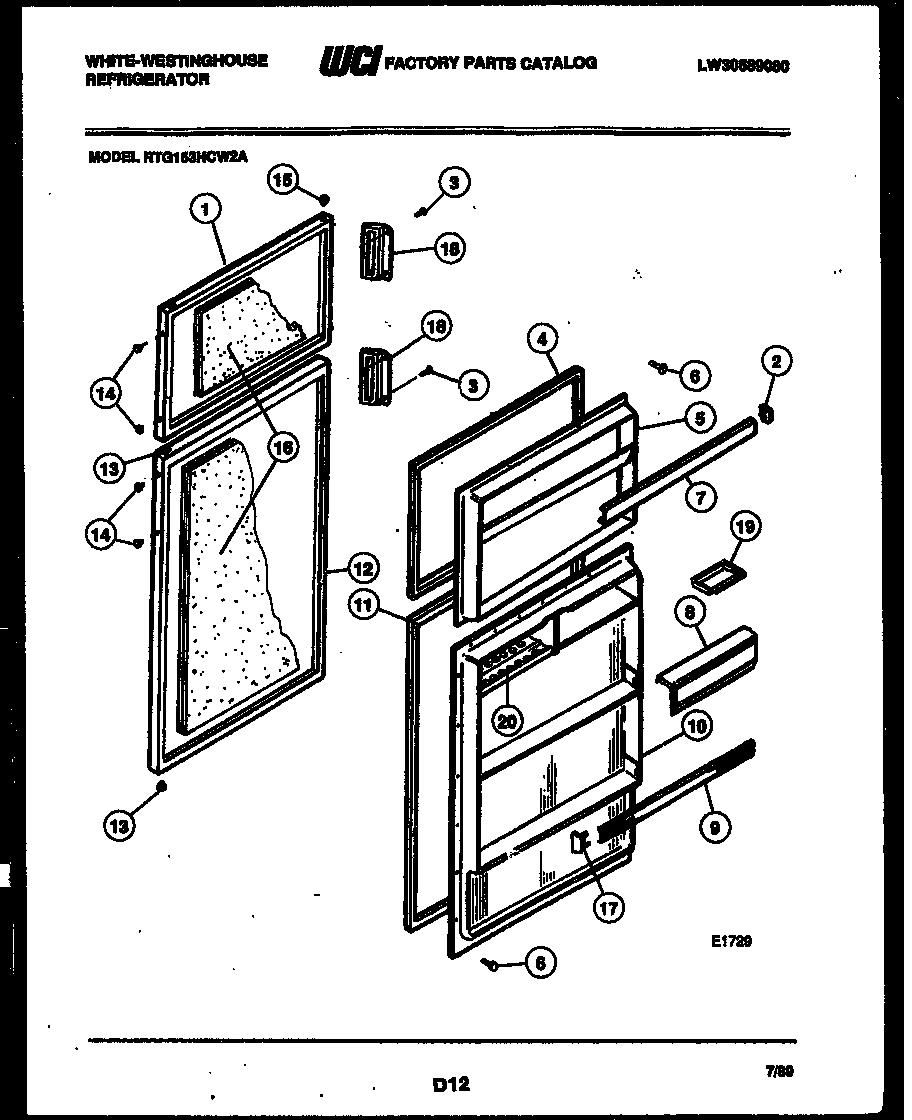

02 - DOOR PARTS

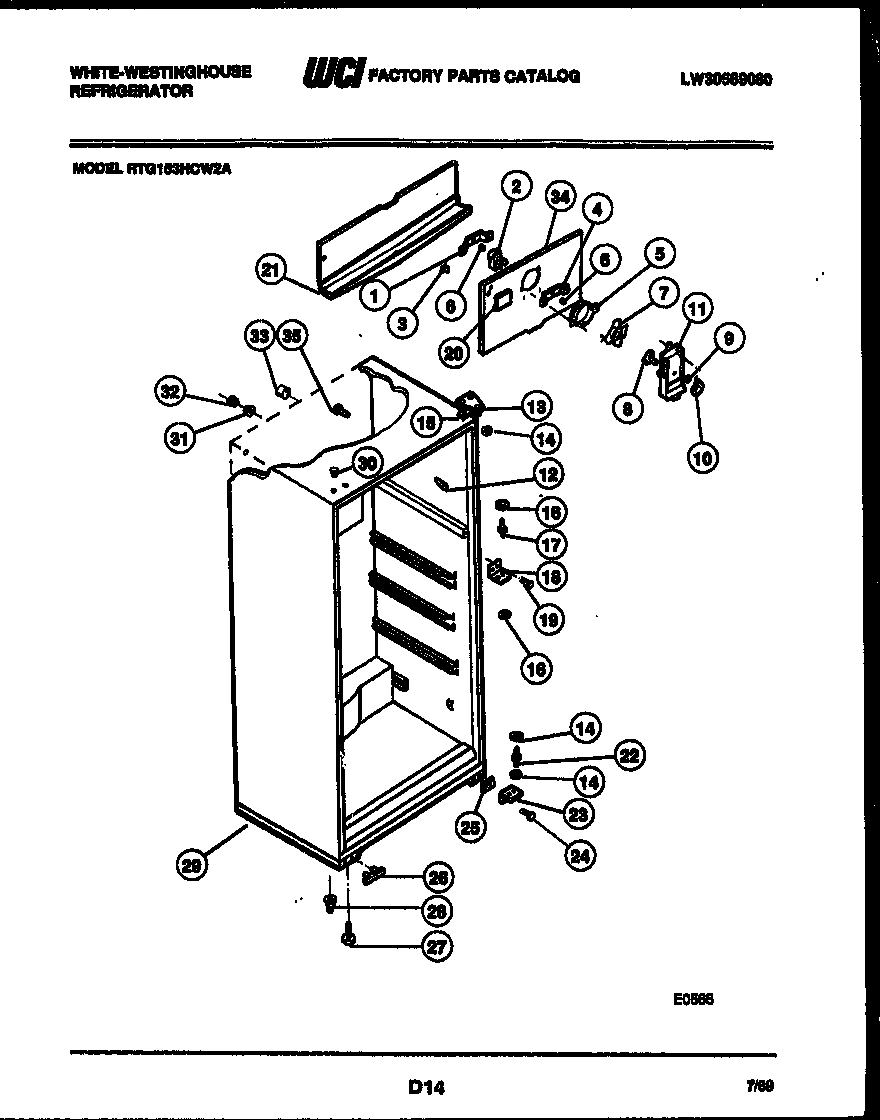

03 - CABINET PARTS

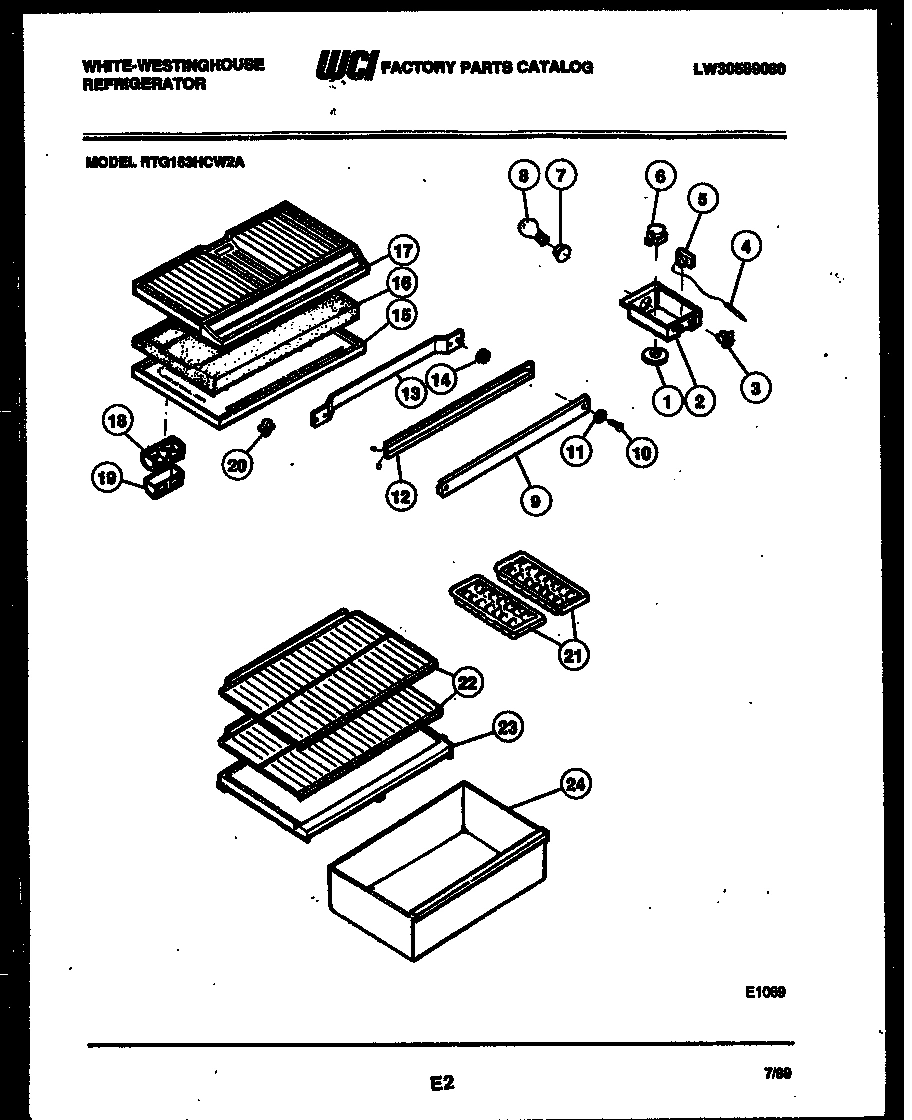

04 - SHELVES AND SUPPORTS

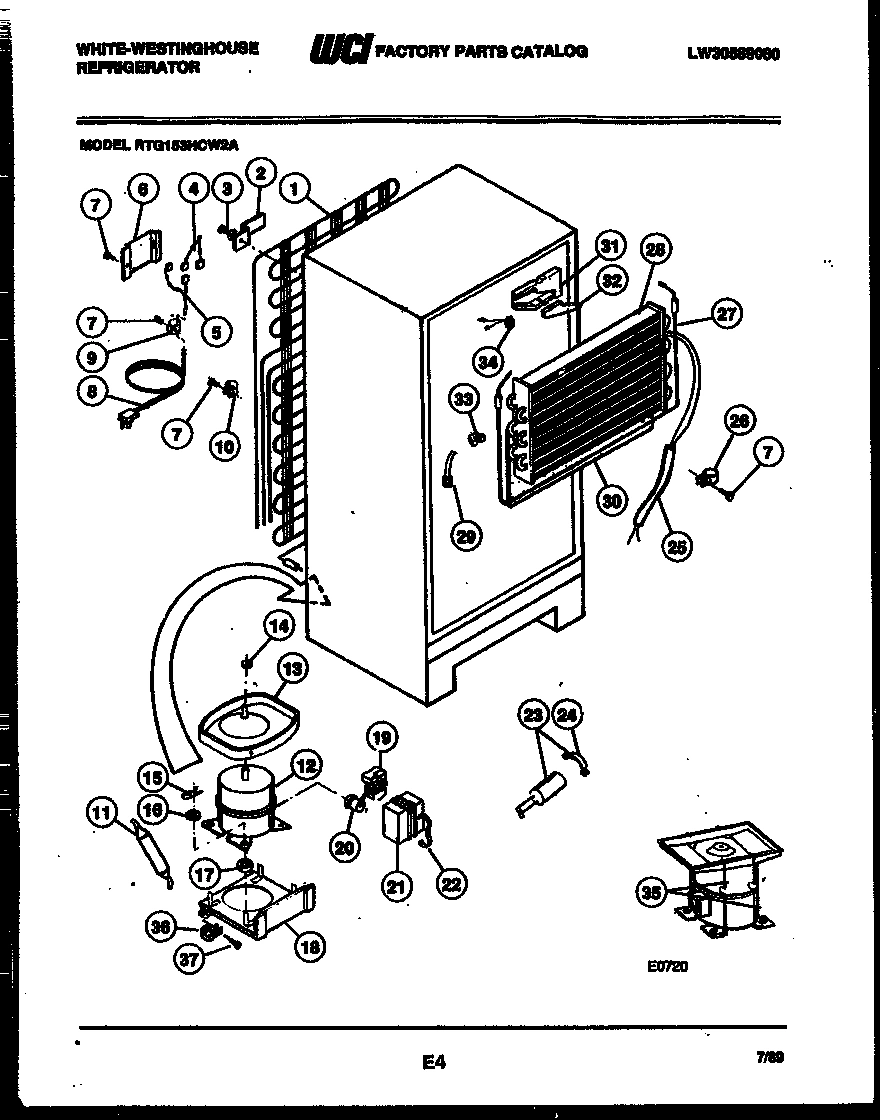

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RTG153HCF2A REFRIGERATOR
*20954
PLUG-LINER (8) WCI G187599 Contact Us For Availability
1
WCI 3205119 WCI 3205119 Contact Us For Availability
1
KNOB-TEMP CONTROL WCI G174759-01 Contact Us For Availability
1
WCI G178225 WCI G178225 Contact Us For Availability
2
WCI G174765-03 WCI G174765-03 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING (4) WCI G164637 Contact Us For Availability
2A
WCI 3205689 WCI 3205689 Contact Us For Availability
2A
WASHER-NO. 10 EXT TOOTH LOCK (NON-ILLUSTRATED WCI G164820 Contact Us For Availability
2B
PLUG-BUTTON CONT BOX (NON-ILLUSTRATED) WCI 3202734 Contact Us For Availability
3
SCREW-HANDLE MTG (4) WCI G184795 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
SWITCH-ENERGY SAVER WCI G178402-02 Contact Us For Availability
4
GASKET-FREEZER WCI G186932-03 Contact Us For Availability
4
WCI 3205118 WCI 3205118 Contact Us For Availability
4
WCI G174818 WCI G174818 Contact Us For Availability
5
INNER PANEL-FREEZER WCI G186463-01 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
WCI G162205-12 WCI G162205-12 Contact Us For Availability
5
WCI G166062-01 WCI G166062-01 Contact Us For Availability
5A
WCI G107080 WCI G107080 Contact Us For Availability
6
BUSHING (2) WCI G187559 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
WCI G168302 WCI G168302 Contact Us For Availability
8
WCI R186414-02 WCI R186414-02 Contact Us For Availability
8
DAMPER WCI G162661 Contact Us For Availability
8
WCI G162549-01 WCI G162549-01 Contact Us For Availability
9
DOOR RACK-REFR (2) WCI 3201072 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
WCI 3916133 WCI 3916133 Contact Us For Availability
10
INNER PANEL-REFR WCI R186469-02 Contact Us For Availability
10
KNOB-DAMPER CNTRL WCI G162663-06 Contact Us For Availability
10
SCREW-MULLION (4) WCI G183103 Contact Us For Availability
11
GASKET-REFRIGERATOR WCI G186932-02 Contact Us For Availability
11
WCI 3205688 WCI 3205688 Contact Us For Availability
11
WCI G166847 WCI G166847 Contact Us For Availability
11A
LABEL-FAN COVER (NON-ILLUSTRATED) WCI G180179 Contact Us For Availability
12
REFRIGERATOR DOOR-COFFEE WCI G187529-10 Contact Us For Availability
12
WCI G162364-10 WCI G162364-10 Contact Us For Availability
12
WCI G187921 WCI G187921 Contact Us For Availability
12
COMPRESSOR WITH ELECTRICALS WCI 3916004 Contact Us For Availability
13
BEARING HINGE (8) WCI G183138 Contact Us For Availability
13
WCI G183714 WCI G183714 Contact Us For Availability
13
WCI G166709 WCI G166709 Contact Us For Availability
13
PAN, DEFROST WCI G184715 Contact Us For Availability
13B
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI G157591 Contact Us For Availability
14
WCI G103903 No Longer Available
14
WCI G162977-10 WCI G162977-10 Contact Us For Availability
14
SPACER-MULLION MTG (2) WCI G166848 Contact Us For Availability
14
WCI G164958 WCI G164958 Contact Us For Availability
15
WCI G169332-10 WCI G169332-10 Contact Us For Availability
15
WCI G183861 WCI G183861 Contact Us For Availability
15
TOP PANEL-REFRIG WCI 3015448 Contact Us For Availability
15
WCI G163204 WCI G163204 Contact Us For Availability
15A
WCI G162673 WCI G162673 Contact Us For Availability
16
WCI G89643 WCI G89643 Contact Us For Availability
16
WASHER-CNTR HNGE (2) WCI G164355 Contact Us For Availability
16
WCI G163219 WCI G163219 Contact Us For Availability
16
WCI G164634 WCI G164634 Contact Us For Availability
17
END CAP-LH (3) WCI G176892-01 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
BOTTOM PANEL-FRZR WCI G162857 Contact Us For Availability
18
WCI 3016495 WCI 3016495 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
18
WCI G162675 WCI G162675 Contact Us For Availability
18
WCI G162822 WCI G162822 Contact Us For Availability
19
WCI G162178 WCI G162178 Contact Us For Availability
19
WCI G182225-18 WCI G182225-18 Contact Us For Availability
20
WCI G182885-04 WCI G182885-04 Contact Us For Availability
20
PLUG, DECORATIVE WCI G162827-13 Contact Us For Availability
20
WCI 3001713 WCI 3001713 Contact Us For Availability
21
WCI G163292 WCI G163292 Contact Us For Availability
22
SHELF-SLIDING (2) WCI G172173-01 Contact Us For Availability
23
BRACKET-BTTM HINGE WCI G181019 Contact Us For Availability
23
COVER-PAN WCI G162957-02 Contact Us For Availability
23
CAPACITOR-COMPRESSOR RUN-KIT WCI 3916391 Contact Us For Availability
24
PAN-STORAGE WCI G162973-34 Contact Us For Availability
24
STRAP-CAPACITOR MOUNTING WCI 3001391 Contact Us For Availability
24A
WCI G179797 WCI G179797 Contact Us For Availability
25
WCI G163203 WCI G163203 Contact Us For Availability
25
WCI 3201079 WCI 3201079 Contact Us For Availability
26
WCI G166912 WCI G166912 Contact Us For Availability
27
WCI G185713 WCI G185713 Contact Us For Availability
27
WCI G162432-02 WCI G162432-02 Contact Us For Availability
27A
ANCHOR NUT-SCREW (2) (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
28
WCI G163205 WCI G163205 Contact Us For Availability
28
EVAPORATOR WCI 3201078 Contact Us For Availability
29
WCI G161998-01 WCI G161998-01 Contact Us For Availability
30
WCI G174747-10 WCI G174747-10 Contact Us For Availability
30
INSULATOR-EVAPORATOR WCI G169024-02 Contact Us For Availability
31
WCI G174733 WCI G174733 Contact Us For Availability
31
WCI G185299 WCI G185299 Contact Us For Availability
32
WCI G174734 WCI G174734 Contact Us For Availability
32
WCI G185276 WCI G185276 Contact Us For Availability
33
WCI G85642 WCI G85642 Contact Us For Availability
33
WCI G188375 WCI G188375 Contact Us For Availability
34
COVER-EVAP COIL WCI G163290 Contact Us For Availability
34B
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
34C
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 3203044 Contact Us For Availability
35
WCI G163669 WCI G163669 Contact Us For Availability
35
PAN RETAINER KIT WCI 3916001 Contact Us For Availability
35B
HOT TUBE REPAIR KIT (NON-ILLUSTRATED) WCI G189377 Contact Us For Availability
36
CLAMP-DRIER WCI 3201679 Contact Us For Availability
× ![]()
