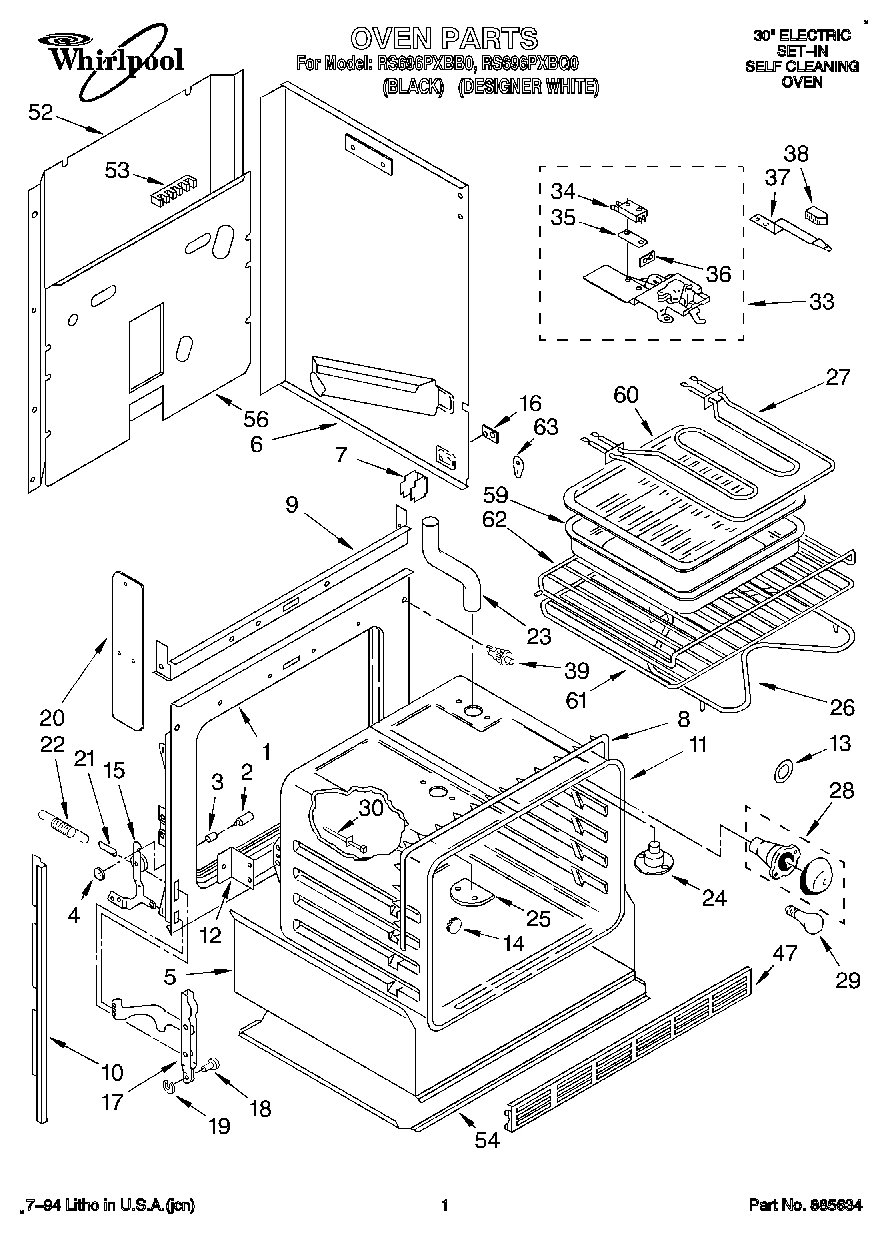

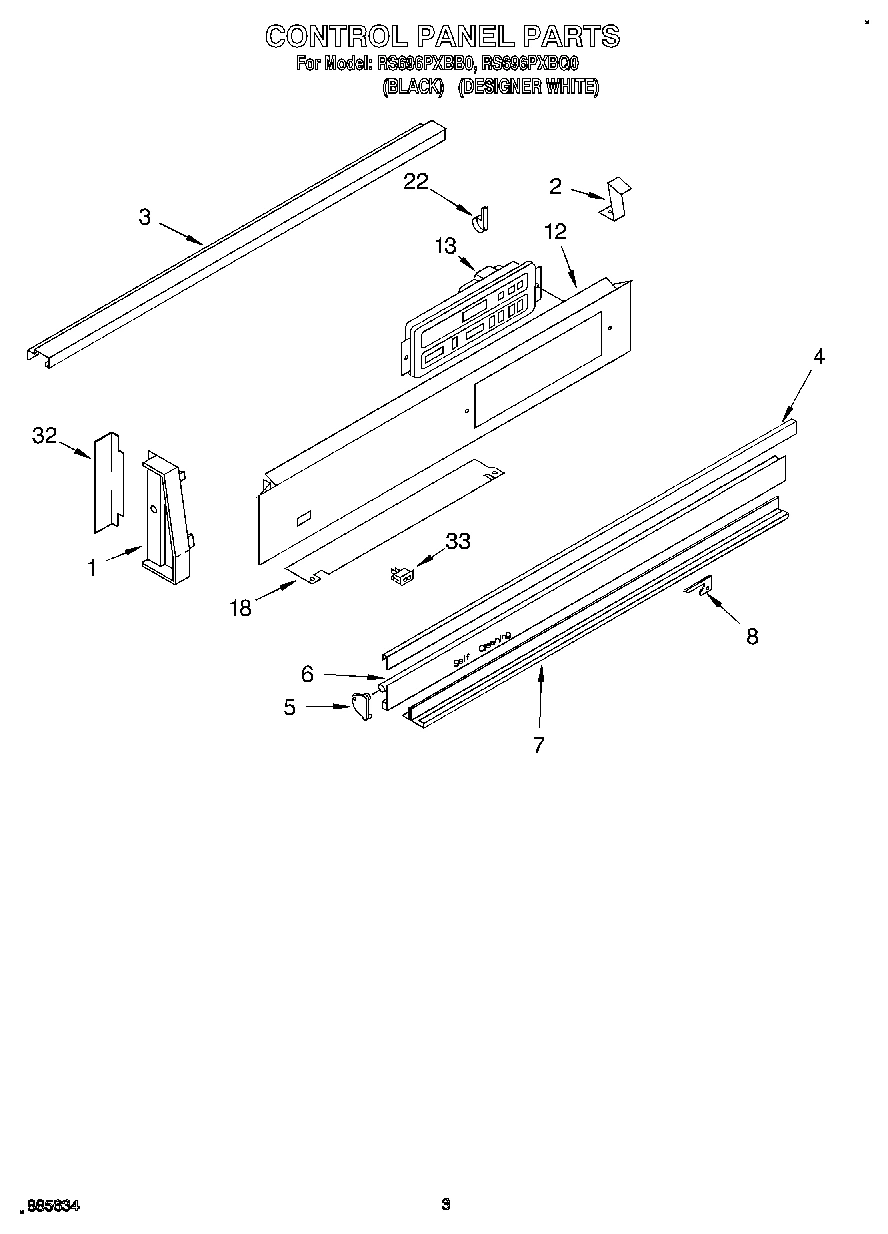

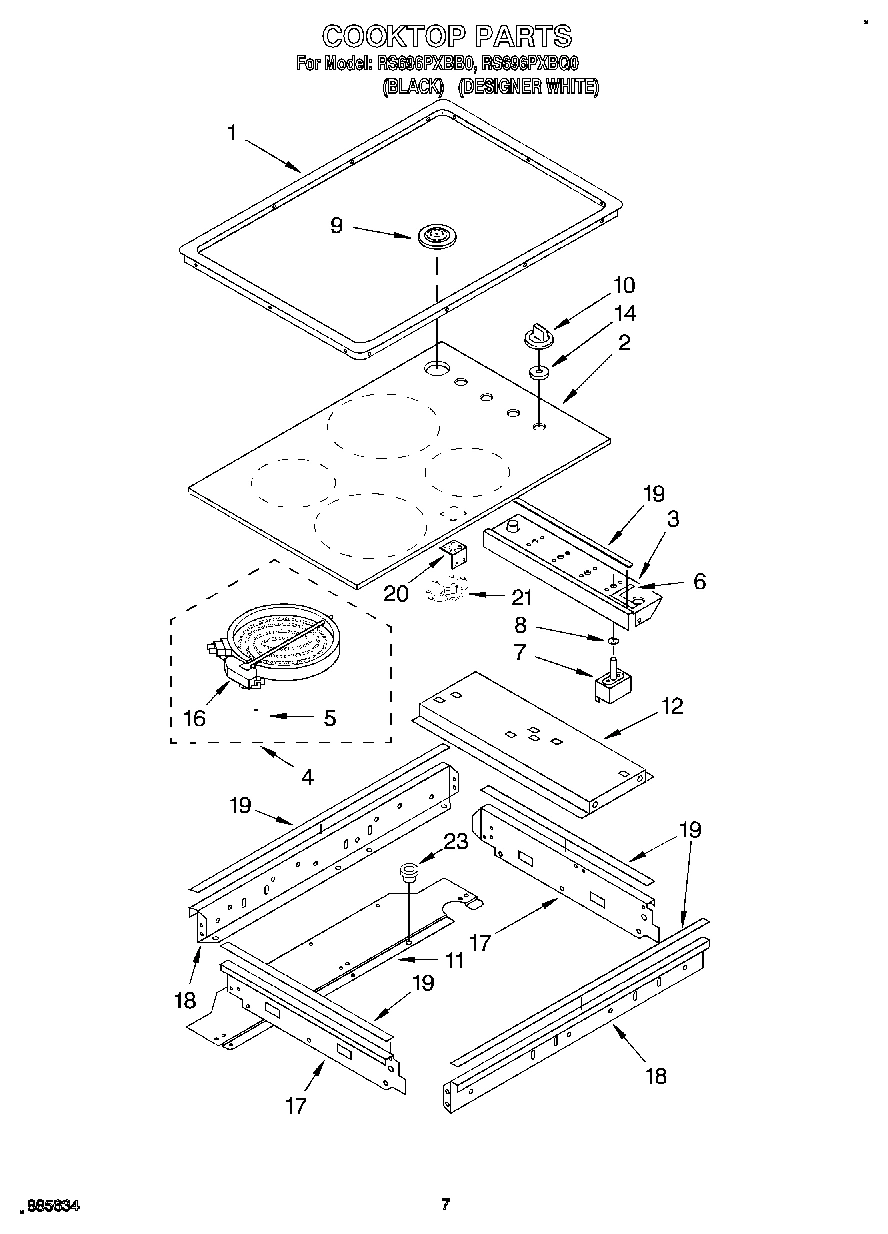

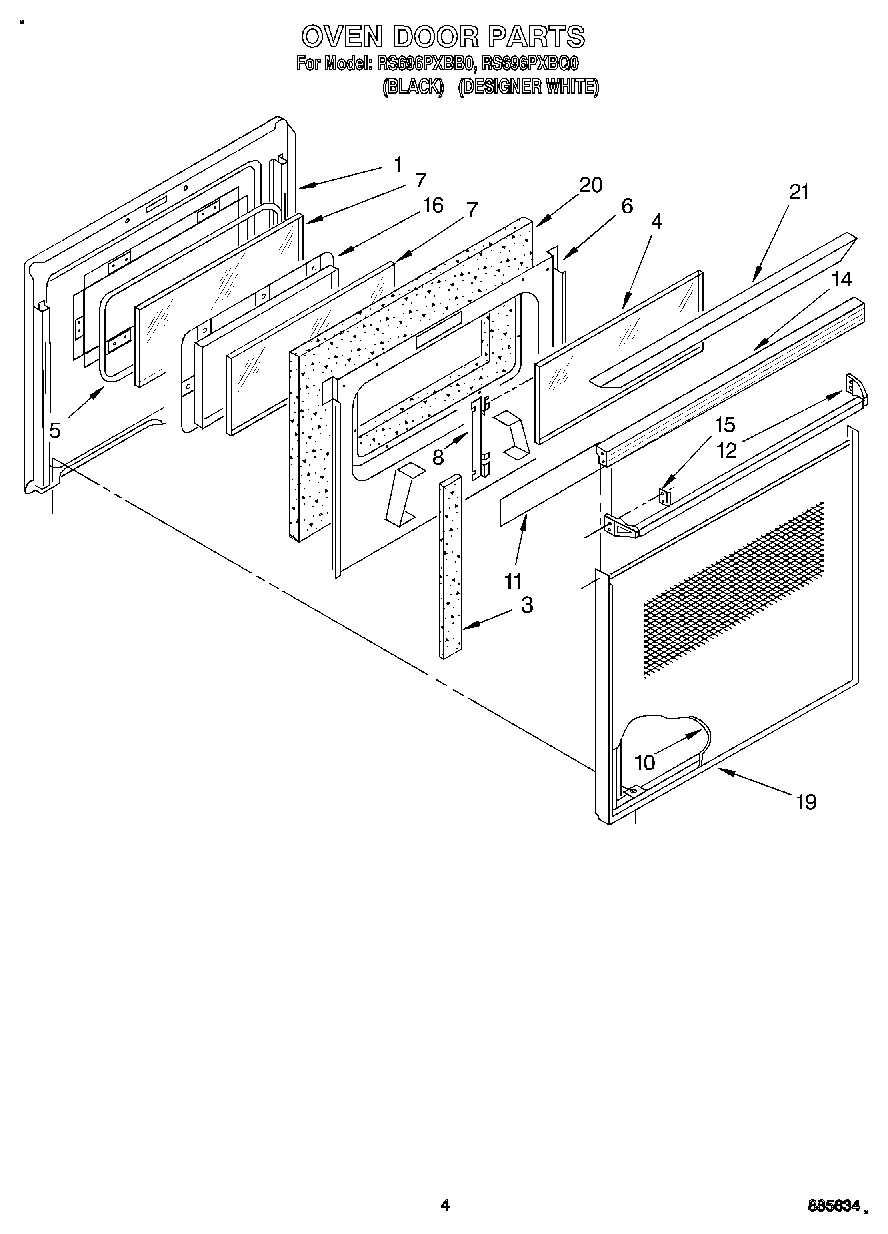

Model Whirlpool RS696PXBQ0 – Common Parts &amp; Diagrams

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $46.71

Cleaner, Glass WPL W10355051 No Longer Available

WA906B Whirlpool Cooktop Glass Scraper In Stock WPL WA906B $4.99

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Hardware WPL 3171507 Contact Us For Availability

Installation Instructions WPL LIT3147397 Contact Us For Availability

Video WPL LIT3182687 Contact Us For Availability

Tech Sheet WPL LIT3182743 Contact Us For Availability

Use & Care Guide WPL LIT3188561 Contact Us For Availability

1

End Cap (Right Hand (Black)) WPL 3148444 Contact Us For Availability

1

End Cap (Left Hand (Black)) WPL 3148445 Contact Us For Availability

1

End Cap (Left Hand (White)) WPL 3150013 Contact Us For Availability

1

End Cap (Right Hand (White)) WPL 3150014 Contact Us For Availability

1

Frame, Front WPL 3176705 Contact Us For Availability

1

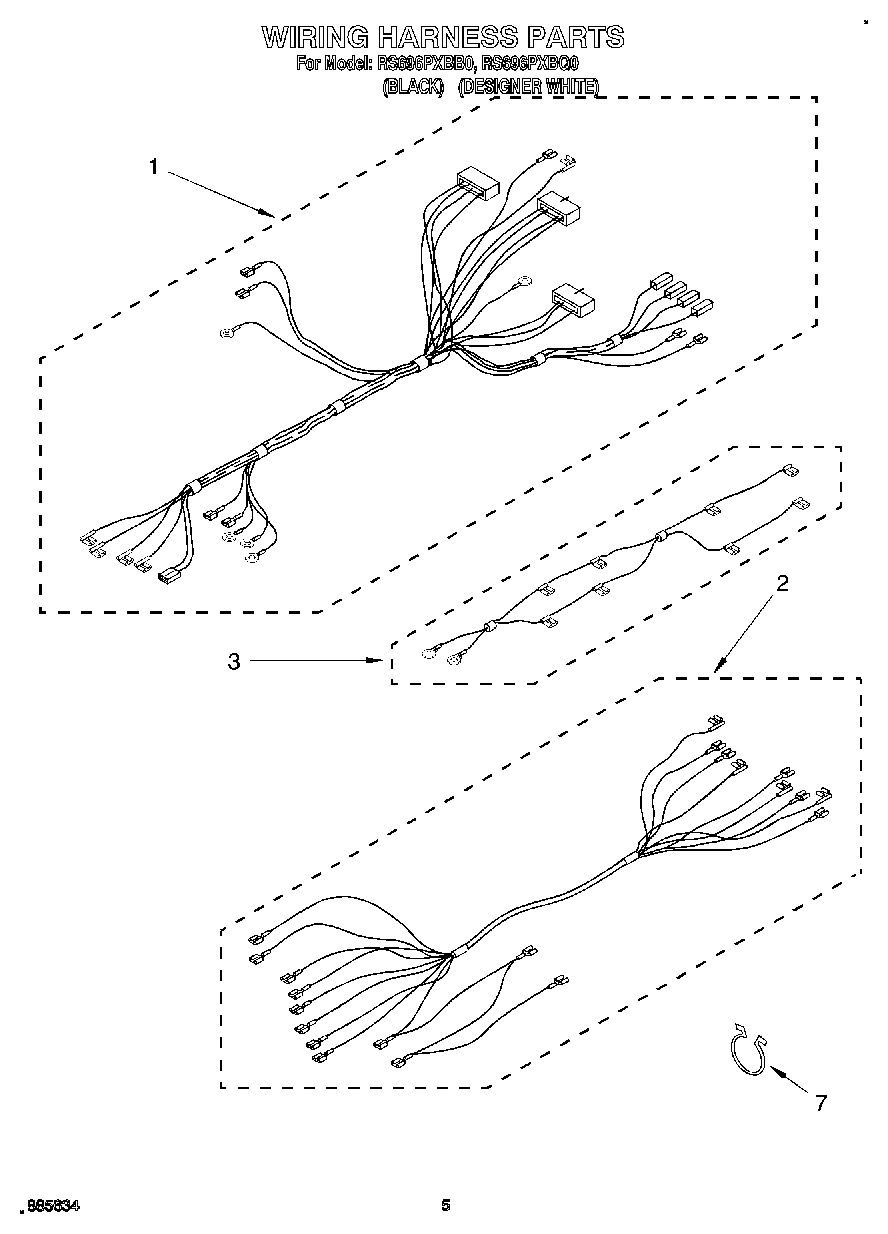

Harness, Wire (Main) WPL 3183289 Contact Us For Availability

2

Bracket, Control WPL 3184395 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

2

Harness, Wire (Surface Elements) WPL 3185855 Contact Us For Availability

3

Rail, Top WPL 3148616 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Harness, Wire (Infinite Switch) WPL 3149966 Contact Us For Availability

4

Element, Surface (1400W Left Rear) WPL 3183646 Contact Us For Availability

4

Element, Surface (1700W Right Front) WPL 3183647 Contact Us For Availability

4

Element, Surface (2100W Right Rear) WPL 3183648 Contact Us For Availability

4

Element, Surface (2400W Left Front) WPL 3183649 Contact Us For Availability

4

Trim, Center (Black) WPL 3148620 Contact Us For Availability

4

Trim, Center (White) WPL 3149350 Contact Us For Availability

4

Pushnut (2) WPL 308306 Contact Us For Availability

5

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $4.82

5

Seal, Window WPL 3148183 Contact Us For Availability

5

Spring Locator (8) WPL 3149191 Contact Us For Availability

5

Trim, Vent Door (Left Hand (Rosemont Grey)) WPL 3148471 Contact Us For Availability

5

Trim, Vent Door (Right Hand (Rosemont Grey)) WPL 3148472 Contact Us For Availability

5

Trim, Vent Door Left Hand (Black) WPL 3148697 Contact Us For Availability

5

Trim, Vent Door (Right Hand (Black)) WPL 3148698 Contact Us For Availability

5

Insulation Tray WPL 3185944 Contact Us For Availability

6

Seal, Cooktop (2) WPL 3185617 Contact Us For Availability

6

Door, Vent (Black) WPL 3183505 Contact Us For Availability

6

Door, Vent (Brushed Aluminum) WPL 3183506 Contact Us For Availability

6

Side Wrapper R.H. WPL 3185954 Contact Us For Availability

6

Side Wrapper L.H. WPL 3185957 Contact Us For Availability

7

16515 Whirlpool Clip Backorder WPL 16515 $12.46

7

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $35.69

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $91.63

7

Switch, Infinite (Use W/1700W Right Front Bur WPL 3148949 Contact Us For Availability

7

Switch, Infinite (Use W/2100W Right Rear Burn WPL 3148950 Contact Us For Availability

7

Switch, Infinite (Use W/2400W Left Front Burn WPL 3148958 Contact Us For Availability

7

Screw (4) WPL 342043 Contact Us For Availability

7

Trim, Bottom WPL 3148618 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

7

Screw WPL 307748 Contact Us For Availability

7

Screw WPL 309133 Contact Us For Availability

8

Screw WPL 308119 Contact Us For Availability

8

Seal, Switch Cover WPL 309839 Contact Us For Availability

8

Shield, Air WPL 3149142 Contact Us For Availability

8

Gasket, Door WPL 3185197 Contact Us For Availability

9

Cover, Vent (Black) WPL 3182496 Contact Us For Availability

9

Cover, Vent (White) WPL 3182497 Contact Us For Availability

9

Baffle, Top WPL 3183796 Contact Us For Availability

Knob, Control (4) (Black) WPL 3183120 Contact Us For Availability

Knob, Control (4) (White) WPL 3183119 Contact Us For Availability

Side Trim (Left Hand) WPL 310685 Contact Us For Availability

Side Trim (Right Hand) WPL 310689 Contact Us For Availability

11

Cover, Top Rear WPL 3147566 Contact Us For Availability

11

Oven (30`` Pyro) WPL 3182032 Contact Us For Availability

Handle, Door (White) WPL 3187941 Contact Us For Availability

Handle, Door (Black) WPL 3187940 Contact Us For Availability

Support, Element WPL 3150316 Contact Us For Availability

Panel, Control (Black) WPL 3182301 Contact Us For Availability

Panel, Control (White) WPL 3182302 Contact Us For Availability

Bracket, Oven WPL 310713 Contact Us For Availability

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $5.99

Control, Electronic (Screw (2)) WPL 98520 Contact Us For Availability

Control, Electronic (Black) WPL 3169256 Contact Us For Availability

Control, Electronic (White) WPL 3169257 Contact Us For Availability

14

Seal, Switch (4) WPL 3182435 Contact Us For Availability

14

Button, Plug WPL 3182814 Contact Us For Availability

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

Screw WPL 3149333 Contact Us For Availability

Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability

Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

Limiter, Temperature (Use W/3183646 Element) WPL 3169338 Contact Us For Availability

Limiter, Temperature (Use W/3183647 Element) WPL 3169339 Contact Us For Availability

Limiter, Temperature (Use W/3183648 Element) WPL 3169340 Contact Us For Availability

Limiter, Temperature (Use W/3183649 Element) WPL 3169341 Contact Us For Availability

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

17

Channel Arm (2) WPL 3185664 Contact Us For Availability

17

Rail, Side (Right Hand) WPL 3150323 Contact Us For Availability

17

Rail, Side (Left Hand) WPL 3150324 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $7.82

Clip, ``U Nut`` WPL 3181646 Contact Us For Availability

Rail, Front & Rear WPL 3183380 Contact Us For Availability

Shield, Control WPL 3183992 Contact Us For Availability

19

Seal, Silicone (Small WPL 3185589 Contact Us For Availability

19

WPL 3185590 WPL 3185590 Contact Us For Availability

19

Ring, Retainer (2) WPL 307594 Contact Us For Availability

20

WPL 3150321 WPL 3150321 Contact Us For Availability

20

Baffle, Insulation WPL 311256 Contact Us For Availability

20

Screw (2) WPL 3148442 Contact Us For Availability

21

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $7.91

21

WPL 3150304 WPL 3150304 Contact Us For Availability

22

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $13.22

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $17.80

23

WPL 258109 WPL 258109 Contact Us For Availability

23

Tube, Vent WPL 3184323 Contact Us For Availability

24

Eliminator, Smoke WPL 310839 Contact Us For Availability

25

Plate, Cover WPL 310662 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $26.99

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $110.99

27

Screw (4) WPL 3150532 Contact Us For Availability

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $57.87

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

30

Sensor, Heat WPL 3148440 Contact Us For Availability

32

Trim, End Cap (Black) WPL 3149900 Contact Us For Availability

32

Trim, End Cap (White) WPL 3149901 Contact Us For Availability

Switch, Rocker (Black) WPL 3182717 Contact Us For Availability

Switch, Rocker (White) WPL 3182718 Contact Us For Availability

Screw (2) WPL 311056 Contact Us For Availability

Latch Assembly WPL 3183801 Contact Us For Availability

34

Safety Switch WPL 3178671 Contact Us For Availability

34

Screw (2) WPL 98106 Contact Us For Availability

35

Insulator, Switch WPL 309245 Contact Us For Availability

36

Screw (2) WPL 309258 Contact Us For Availability

36

Terminal, Shield WPL 313035 Contact Us For Availability

37

Screw (4) WPL 308422 Contact Us For Availability

37

Latch, Handle WPL 310825 Contact Us For Availability

38

Screw WPL 3183294 Contact Us For Availability

38

Knob, Latch WPL 3184039 Contact Us For Availability

39

Switch, Door WPL 310345 Contact Us For Availability

47

WP313808 Whirlpool Screw Backorder WPL WP313808 $4.82

47

Bottom Grill (Black) WPL 310668 Contact Us For Availability

47

Bottom Grill (White) WPL 3149359 Contact Us For Availability

52

Cover, Rear WPL 3185960 Contact Us For Availability

53

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

53

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

53

Screw (2) WPL 308043 Contact Us For Availability

54

Cover, Plate WPL 3185945 Contact Us For Availability

56

WPL 3182052 WPL 3182052 Contact Us For Availability

60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

61

WPL 3185641 WPL 3185641 Contact Us For Availability

62

WPL 3185640 WPL 3185640 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

WPL 310433 WPL 310433 Contact Us For Availability

WPL 310435 WPL 310435 Contact Us For Availability

WPL 3149328 WPL 3149328 Contact Us For Availability

WPL 3183005 WPL 3183005 Contact Us For Availability
