Model Whirlpool RGE4900W1 – Common Parts &amp; Diagrams

WPL 799344 WPL 799344 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

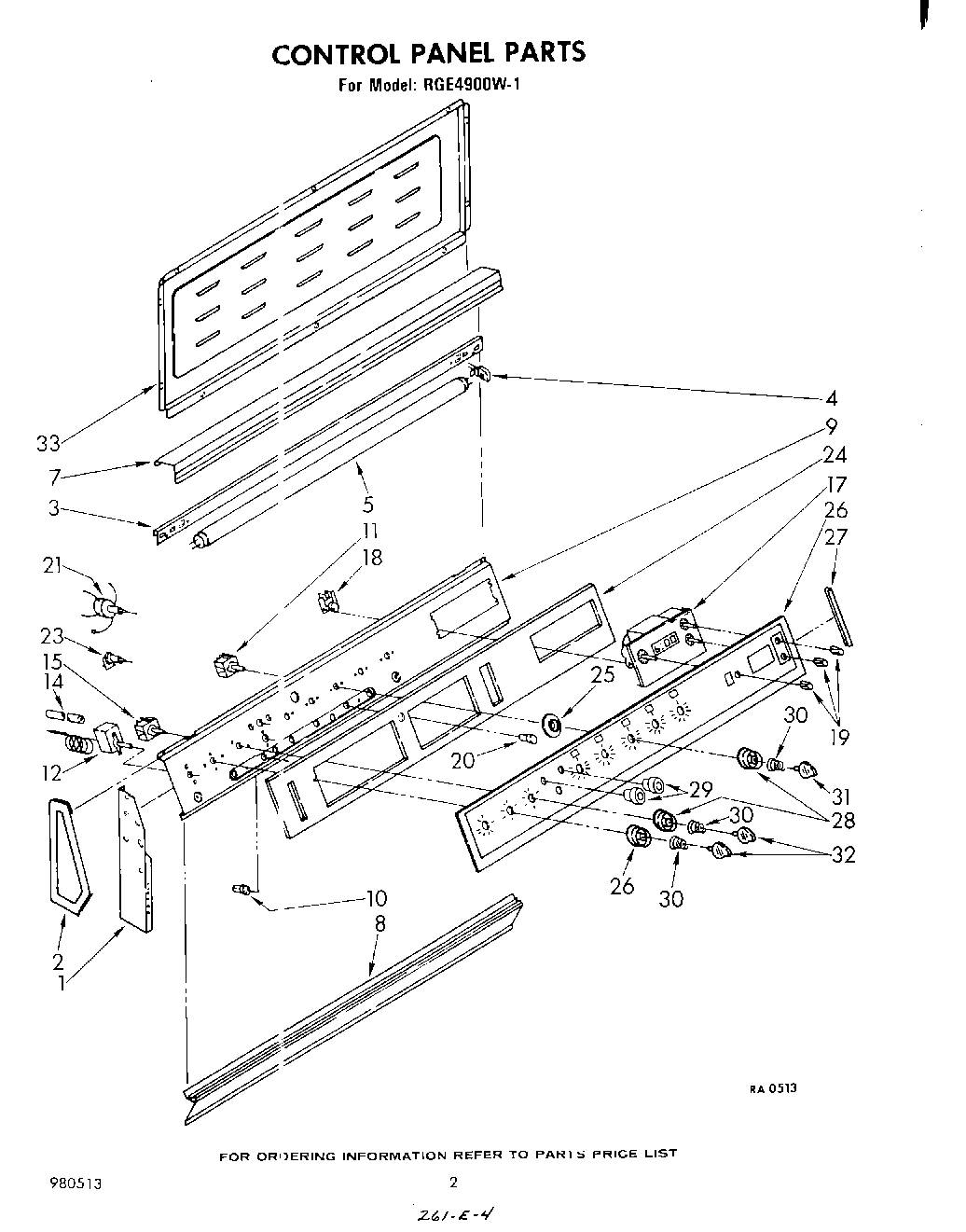

Support, Backguard (R.H.) WPL 868858 Contact Us For Availability

1

Support, Backguard (L.H.) WPL 868859 Contact Us For Availability

1

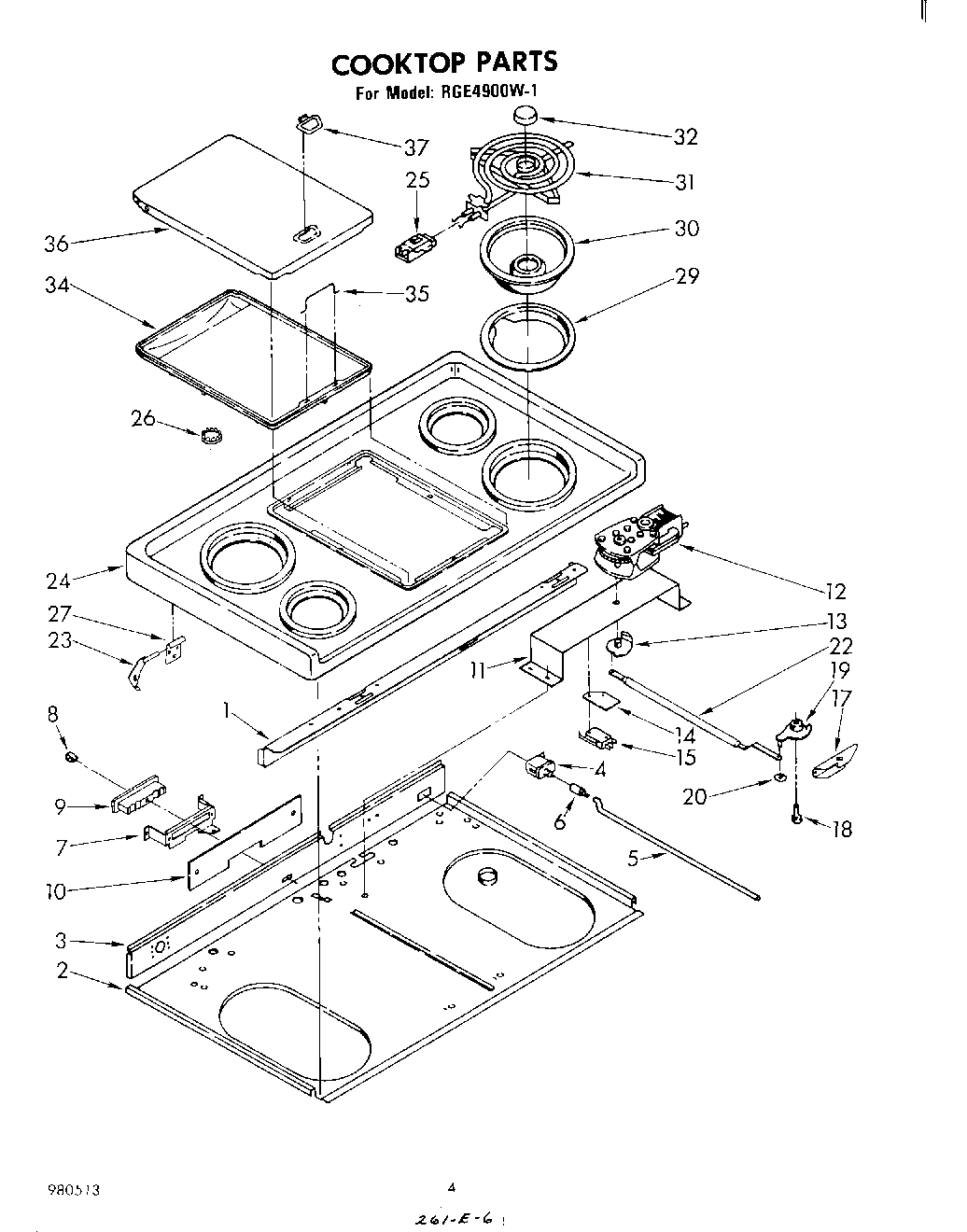

Bracket, Cooktop WPL 877576 Contact Us For Availability

1

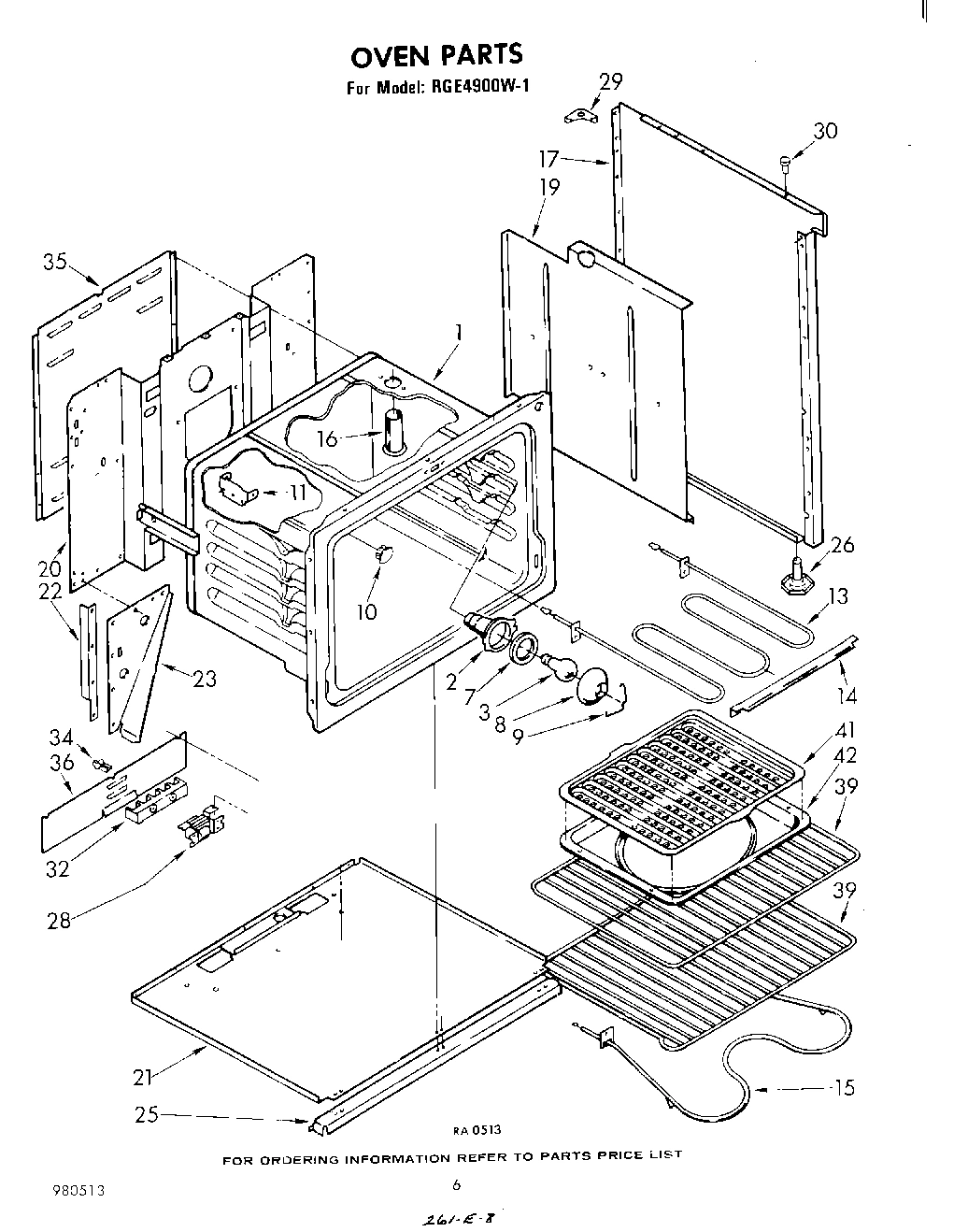

oven WPL 868608 Contact Us For Availability

1

Panel, Bottom WPL 868271 Contact Us For Availability

2

Screw, 10-24 x 1/2 (2) WPL 681151 Contact Us For Availability

2

End Cap (R.H.) WPL 865914 Contact Us For Availability

2

End Cap (L.H.) WPL 865915 Contact Us For Availability

2

End Cap (Nut (4)) WPL 98788 Contact Us For Availability

2

Panel, Sub Top WPL 868611 Contact Us For Availability

2

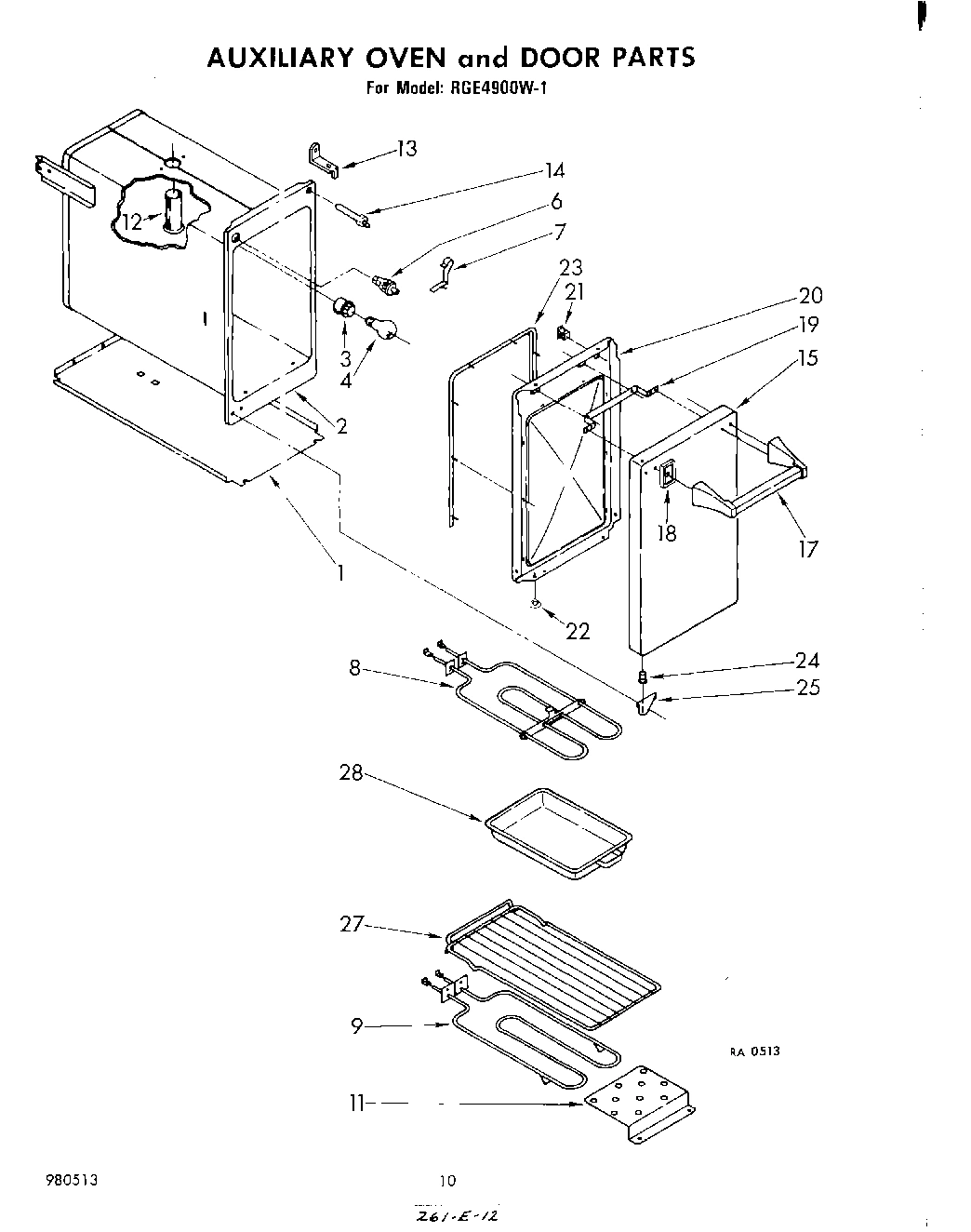

oven, auxiliary WPL 868272 Contact Us For Availability

3

Channel, Light Mounting WPL 868287 Contact Us For Availability

3

Shield, Wiring WPL 868229 Contact Us For Availability

3

Socket, Light WPL 866133 Contact Us For Availability

4

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

4

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $83.88

4

Lampholder (L.H.) WPL 866081 Contact Us For Availability

4

Lampholder (R.H.) WPL 866082 Contact Us For Availability

4

Screw, 10-24 x 7/8 (2) WPL 834649 Contact Us For Availability

5

Light, Fluorescent 33`` WPL 674590 Contact Us For Availability

5

Push Rod, Switch WPL 877591 Contact Us For Availability

6

Switch, Oven Light WPL 866294 Contact Us For Availability

6

Rod End WPL 877562 Contact Us For Availability

7

98005642 Whirlpool Clip Backorder WPL 98005642 $56.92

7

Shade, Lamp WPL 868288 Contact Us For Availability

7

Bracket, Receptacle WPL 868275 Contact Us For Availability

7

Washer, Fiber (2) WPL 868336 Contact Us For Availability

7

Gasket, Oven Light WPL 241609 Contact Us For Availability

8

Retainer, Glass (2) WPL 868013 Contact Us For Availability

8

Base, Backguard WPL 865993 Contact Us For Availability

8

Terminal, Female (3) WPL 868277 Contact Us For Availability

8

Cover, Oven Light WPL 241592 Contact Us For Availability

8

unit, broil (alternate) WPL 834965 Contact Us For Availability

8

unit, broil (alternate) WPL 877570 Contact Us For Availability

9

handle, door (main) WPL 868324 Contact Us For Availability

9

Bracket, Control WPL 868873 Contact Us For Availability

9

Receptacle, Female WPL 877627 Contact Us For Availability

9

retainer, oven light WPL 866134 Contact Us For Availability

9

unit, bake (alternate) WPL 865971 Contact Us For Availability

9

Unit, Bake (Alternate) WPL 877571 Contact Us For Availability

light, indicator (3) surface unit, griddle, c WPL 834409 Contact Us For Availability

light indicator (3) main oven, auxiliary oven WPL 868290 Contact Us For Availability

light, indicator (3) surface unit, griddle, c WPL 877580 Contact Us For Availability

(light indicator (3) main oven, auxiliary ove WPL 877581 Contact Us For Availability

Insulator, Wire Shield WPL 868612 Contact Us For Availability

Button, Plug 1/2 WPL 142017 Contact Us For Availability

Button, Plug 3/4`` (2) WPL 251379 Contact Us For Availability

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $35.69

Panel, Air Wash WPL 877587 Contact Us For Availability

(switch infinite 8`` (2)) (alternate) WPL 866289 Contact Us For Availability

switch, infinite 6`` & griddle (3) (alternate WPL 866290 Contact Us For Availability

switch, infinite 6`` & griddle (3) (alternate WPL 866464 Contact Us For Availability

Support Latch Motor WPL 877524 Contact Us For Availability

Bracket, Thermbulb WPL 865959 Contact Us For Availability

Shield, Bake Unit WPL 866302 Contact Us For Availability

Glass, Inner WPL 868502 Contact Us For Availability

Screw, 6-32 x 3/16 (2) WPL 487428 Contact Us For Availability

thermostat, oven (auxiliary) WPL 866058 Contact Us For Availability

thermostat, oven (main) WPL 868808 Contact Us For Availability

Motor, Door Latch (Screw, 8-32 x 5/16 (2)) WPL 273225 Contact Us For Availability

motor, door latch (alternate) WPL 834849 Contact Us For Availability

Motor, Door Latch (Alternate) WPL 868983 Contact Us For Availability

motor, door latch (alternate) WPL 877619 Contact Us For Availability

Screw, 10-24 x 3/8 (2) WPL 241428 Contact Us For Availability

Vent Tube WPL 241978 Contact Us For Availability

Retainer, Glass Inner (2) WPL 868503 Contact Us For Availability

Cam, Door Latch (Pin, Spring) WPL 455105 Contact Us For Availability

cam, door latch (alternate) WPL 834483 Contact Us For Availability

Cam, Door Latch (Alternate) WPL 868984 Contact Us For Availability

Unit, Broil WPL 865934 Contact Us For Availability

Bracket, Strike WPL 877572 Contact Us For Availability

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

liner, oven door WPL 868960 Contact Us For Availability

Sleeving Insulation WPL 865730 Contact Us For Availability

Insulator, Limit Switch (2) WPL 834905 Contact Us For Availability

Hanger, Broil Unit WPL 866429 Contact Us For Availability

strike, door WPL 865807 Contact Us For Availability

WP865940 Whirlpool Bake Element Backorder WPL WP865940 $104.87

Unit Bake (Screw, 10-24 x 1/2 (2)) WPL 486146 Contact Us For Availability

baffle weldment WPL 868875 Contact Us For Availability

Screw, 8-32 x WPL 486525 Contact Us For Availability

WPL 866291 WPL 866291 Contact Us For Availability

WPL 868292 WPL 868292 Contact Us For Availability

switch limit, lower (screw, 4-40 x 1-1/4 (2)) WPL 834903 Contact Us For Availability

Switch Limit (Lower) (Alternate) WPL 834906 Contact Us For Availability

Switch Limit, Lower (Alternate) WPL 868280 Contact Us For Availability

switch limit, lower (alternate switch limit, WPL 868985 Contact Us For Availability

switch limit, lower (alternate) WPL 868986 Contact Us For Availability

Switch Limit, Lower (Alternate) WPL 868987 Contact Us For Availability

Switch Limit, Lower (Alternate) WPL 868988 Contact Us For Availability

panel, oven door (auxiliary) (white) WPL 868614 Contact Us For Availability

Panel, Oven Door (Auxiliary) (New Avocado) WPL 868615 Contact Us For Availability

Panel, Oven Door (Auxiliary) (Harvest Gold) WPL 868616 Contact Us For Availability

panel, oven door (auxiliary) (almond) WPL 868617 Contact Us For Availability

Panel, Oven Door (Auxiliary) (Coffee) WPL 868618 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

Plug Button 3/16`` (2) WPL 142001 Contact Us For Availability

vent tube (alternate) WPL 865939 Contact Us For Availability

vent tube (alternate) WPL 868973 Contact Us For Availability

Seal, Oven Door WPL 877590 Contact Us For Availability

WPL 868291 WPL 868291 Contact Us For Availability

Housing, Latch WPL 868281 Contact Us For Availability

panel, end R.H. (white) WPL 868563 Contact Us For Availability

Panel, End R.H. (New Avocado) WPL 868564 Contact Us For Availability

panel, end R.H. (harvest gold) WPL 868565 Contact Us For Availability

End Panel, Almond (R.H.) WPL 868566 Contact Us For Availability

panel, end R.H. (coffee) WPL 868567 Contact Us For Availability

(panel, end L.H.) (white) WPL 877567 Contact Us For Availability

(panel, end L.H.) (new avocado) WPL 877592 Contact Us For Availability

(panel, end L.H.) (harvest gold) WPL 877593 Contact Us For Availability

(panel, end L.H.) (almond) WPL 877594 Contact Us For Availability

(panel, end L.H.) (coffee) WPL 877595 Contact Us For Availability

handle, door WPL 868334 Contact Us For Availability

Screw, 10-24 x 5/8 (2) WPL 487392 Contact Us For Availability

Spacer, Handle WPL 868619 Contact Us For Availability

window assembly WPL 868797 Contact Us For Availability

WPL 308594 WPL 308594 Contact Us For Availability

Axle, Latch WPL 241564 Contact Us For Availability

``J`` molding inner glass WPL 868796 Contact Us For Availability

WPL 255853 WPL 255853 Contact Us For Availability

Latch, Door WPL 834484 Contact Us For Availability

Retainer, Insulation (R.H.) WPL 834755 Contact Us For Availability

retainer, insulation (L.H.) WPL 866215 Contact Us For Availability

Spacer, Door WPL 868629 Contact Us For Availability

Strike Assembly WPL 877507 Contact Us For Availability

washer WPL 241422 Contact Us For Availability

WPL 834956 WPL 834956 Contact Us For Availability

Pushnut, 1/4 WPL 256158 Contact Us For Availability

Back, Range WPL 868225 Contact Us For Availability

washer, rubber WPL 486847 Contact Us For Availability

liner, door WPL 865968 Contact Us For Availability

21

WPL 866085 WPL 866085 Contact Us For Availability

21

Panel, Bottom WPL 868574 Contact Us For Availability

21

Catch, Door Panel WPL 865808 Contact Us For Availability

screw, 10-24 x 1/2 (2) WPL 274326 Contact Us For Availability

Channel R.H. WPL 865972 Contact Us For Availability

Channel, L.H. WPL 865973 Contact Us For Availability

Pushnut (3/16``) (2) WPL 241547 Contact Us For Availability

Bar, Tie WPL 868323 Contact Us For Availability

Support, Gusset WPL 877568 Contact Us For Availability

Button, Plug WPL 868254 Contact Us For Availability

Roller, Door Stop WPL 834471 Contact Us For Availability

WPL 98754 WPL 98754 Contact Us For Availability

WPL 866138 WPL 866138 Contact Us For Availability

WPL 868129 WPL 868129 Contact Us For Availability

WPL 868130 WPL 868130 Contact Us For Availability

Gusset WPL 868118 Contact Us For Availability

WPL 868119 WPL 868119 Contact Us For Availability

gasket, door (w/clips) (alternate) WPL 865966 Contact Us For Availability

Gasket, Door (W/Clips) (Alternate) WPL 868310 Contact Us For Availability

Rivet WPL 241423 Contact Us For Availability

WPL 868293 WPL 868293 Contact Us For Availability

WPL 868282 WPL 868282 Contact Us For Availability

WPL 868283 WPL 868283 Contact Us For Availability

WPL 868284 WPL 868284 Contact Us For Availability

WPL 868285 WPL 868285 Contact Us For Availability

WPL 868286 WPL 868286 Contact Us For Availability

Spacer, Hinge Pin (2) WPL 834549 Contact Us For Availability

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $13.76

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $4.82

WPL 868430 WPL 868430 Contact Us For Availability

Arm, Hinge (2) WPL 865640 Contact Us For Availability

WPL 868294 WPL 868294 Contact Us For Availability

WPL 868226 WPL 868226 Contact Us For Availability

Hinge, Oven Door (Auxiliary) (Bottom) WPL 865922 Contact Us For Availability

hinge, oven WPL 865930 Contact Us For Availability

WPL 868382 WPL 868382 Contact Us For Availability

Pin, Hinge (2) WPL 241334 Contact Us For Availability

WPL 868874 WPL 868874 Contact Us For Availability

WPL 241283 WPL 241283 Contact Us For Availability

WPL 868880 WPL 868880 Contact Us For Availability

Spring, Door (2) WPL 241312 Contact Us For Availability

WPL 866086 WPL 866086 Contact Us For Availability

WPL 868137 WPL 868137 Contact Us For Availability

WPL 868329 WPL 868329 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $56.69

WPL 241430 WPL 241430 Contact Us For Availability

Plug Button (4) WPL 834558 Contact Us For Availability

WPL 868296 WPL 868296 Contact Us For Availability

WPL 865909 WPL 865909 Contact Us For Availability

WPL 868959 WPL 868959 Contact Us For Availability

WPL 877574 WPL 877574 Contact Us For Availability

WPL 877575 WPL 877575 Contact Us For Availability

WPL 206925 WPL 206925 Contact Us For Availability

WPL 242820 WPL 242820 Contact Us For Availability

WPL 242821 WPL 242821 Contact Us For Availability

WPL 242822 WPL 242822 Contact Us For Availability

WPL 242823 WPL 242823 Contact Us For Availability

WPL 242824 WPL 242824 Contact Us For Availability

WPL 242825 WPL 242825 Contact Us For Availability

WPL 242826 WPL 242826 Contact Us For Availability

WPL 242827 WPL 242827 Contact Us For Availability

WPL 242828 WPL 242828 Contact Us For Availability

WPL 242829 WPL 242829 Contact Us For Availability

WPL 242830 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261810 WPL 261810 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 308500 WPL 308500 Contact Us For Availability

WPL 72019 WPL 72019 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 834616 WPL 834616 Contact Us For Availability

WPL 865621 WPL 865621 Contact Us For Availability

WPL 865885 WPL 865885 Contact Us For Availability

WPL 868849 WPL 868849 Contact Us For Availability

WPL 980513 WPL 980513 Contact Us For Availability

WPL 866053 WPL 866053 Contact Us For Availability

WPL 834729 WPL 834729 Contact Us For Availability

WPL 834730 WPL 834730 Contact Us For Availability

WPL 868128 WPL 868128 Contact Us For Availability

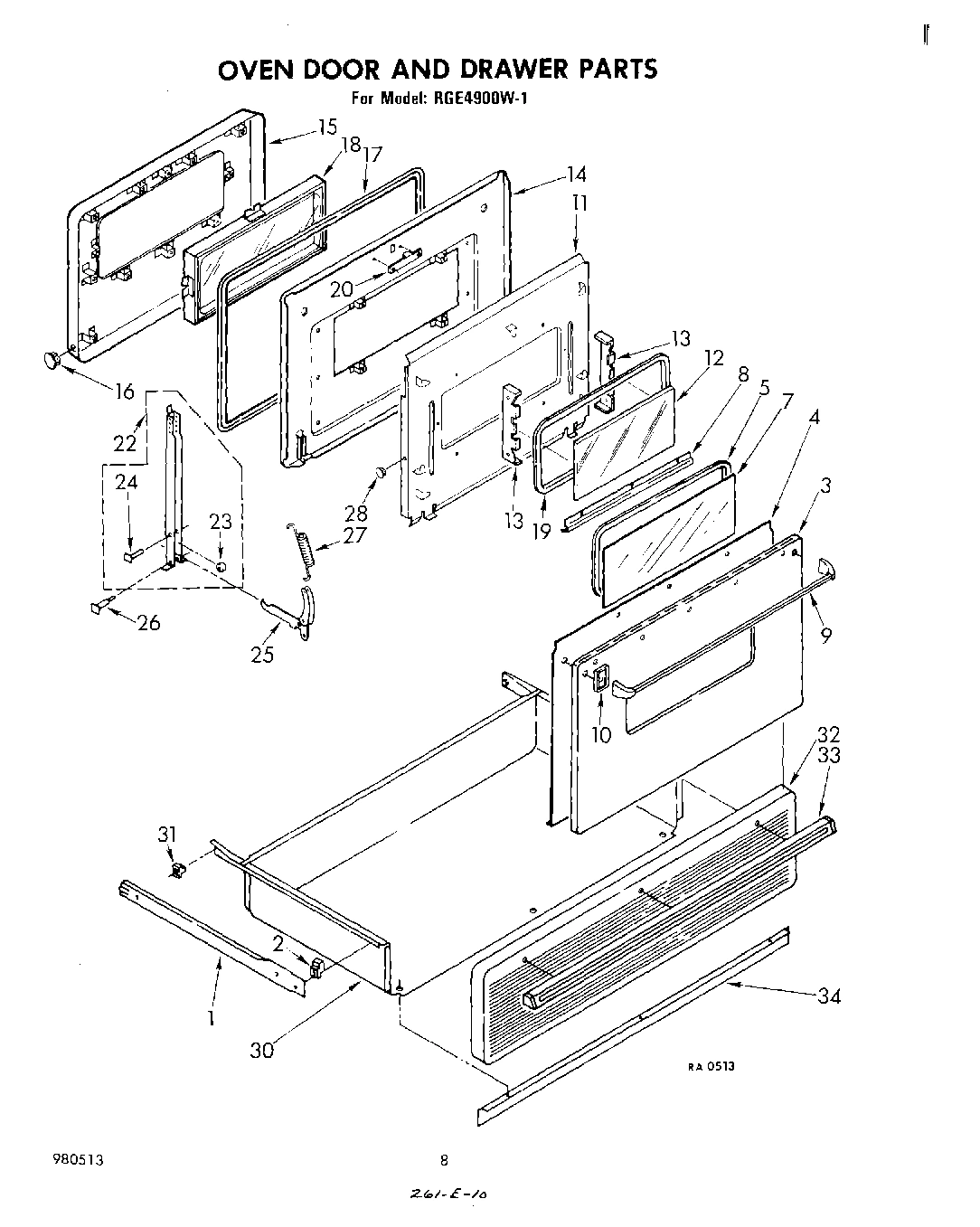

Drawer WPL 868242 Contact Us For Availability

WPL 868297 WPL 868297 Contact Us For Availability

WPL 868490 WPL 868490 Contact Us For Availability

WPL 868491 WPL 868491 Contact Us For Availability

WPL 834667 WPL 834667 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $45.62

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $54.56

Guide, Rear (2) WPL 868152 Contact Us For Availability

WPL 868298 WPL 868298 Contact Us For Availability

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

Panel, Drawer (White) WPL 865865 Contact Us For Availability

panel, drawer (ne WPL 868247 Contact Us For Availability

WPL 868248 WPL 868248 Contact Us For Availability

WPL 868249 WPL 868249 Contact Us For Availability

WPL 868250 WPL 868250 Contact Us For Availability

WPL 487836 WPL 487836 Contact Us For Availability

WPL 868299 WPL 868299 Contact Us For Availability

WPL 868522 WPL 868522 Contact Us For Availability

33

WPL 868585 WPL 868585 Contact Us For Availability

33

WPL 868628 WPL 868628 Contact Us For Availability

33

WPL 866233 WPL 866233 Contact Us For Availability

WPL 866136 WPL 866136 Contact Us For Availability

WPL 868432 WPL 868432 Contact Us For Availability

WPL 834760 WPL 834760 Contact Us For Availability

WPL 877584 WPL 877584 Contact Us For Availability

35

WPL 248568 WPL 248568 Contact Us For Availability

35

WPL 868159 WPL 868159 Contact Us For Availability

WPL 244085 WPL 244085 Contact Us For Availability

WPL 868330 WPL 868330 Contact Us For Availability

WPL 868331 WPL 868331 Contact Us For Availability

WPL 868332 WPL 868332 Contact Us For Availability

WPL 868333 WPL 868333 Contact Us For Availability

WPL 251459 WPL 251459 Contact Us For Availability

37

WPL 866222 WPL 866222 Contact Us For Availability

39

WPL 865983 WPL 865983 Contact Us For Availability

39

WPL 865984 WPL 865984 Contact Us For Availability

41

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

42

WPL 868505 WPL 868505 Contact Us For Availability
