Model Whirlpool RF4700XBW1 – Common Parts & Diagrams
01 - COOKTOP
03 - OVEN DOOR AND DRAWER

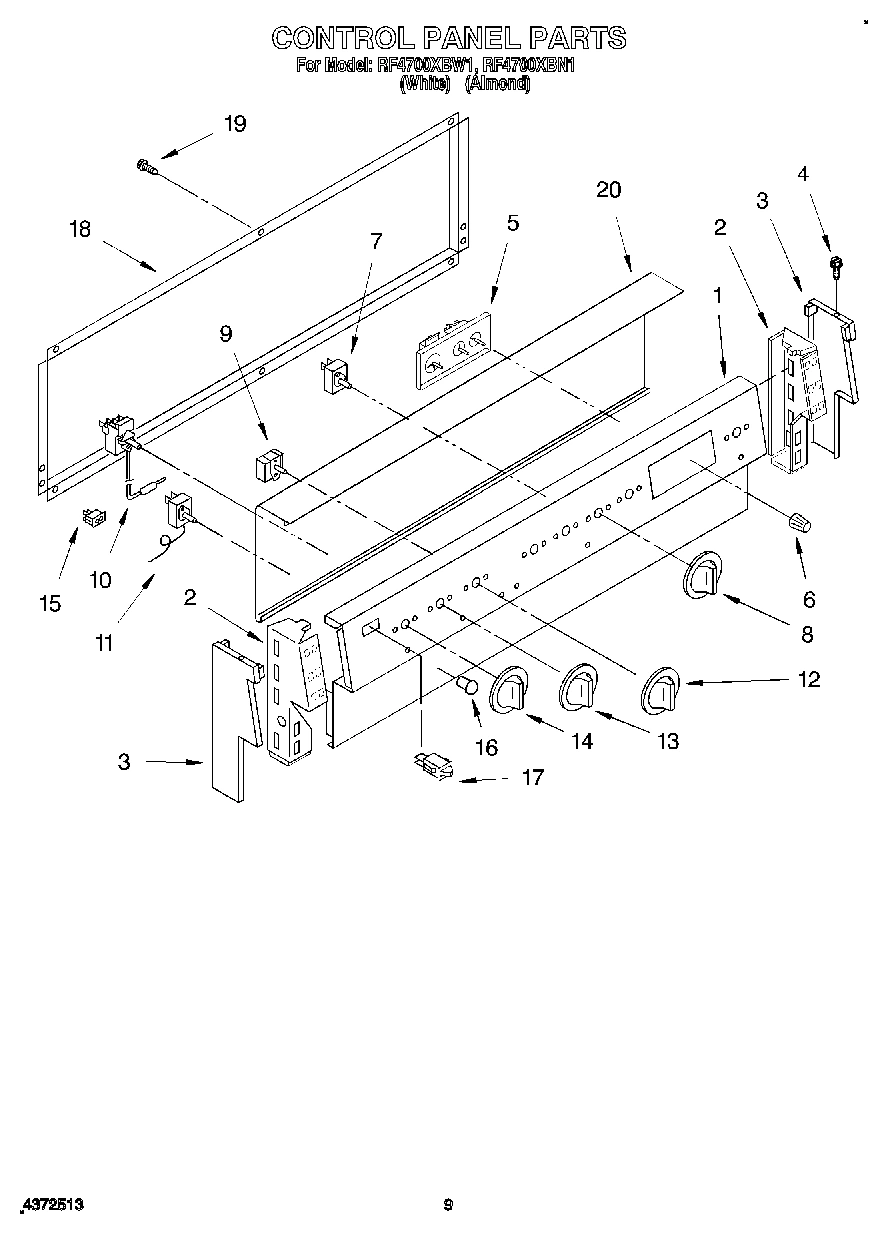

05 - CONTROL PANEL, LIT/OPTIONAL
02 - OVEN

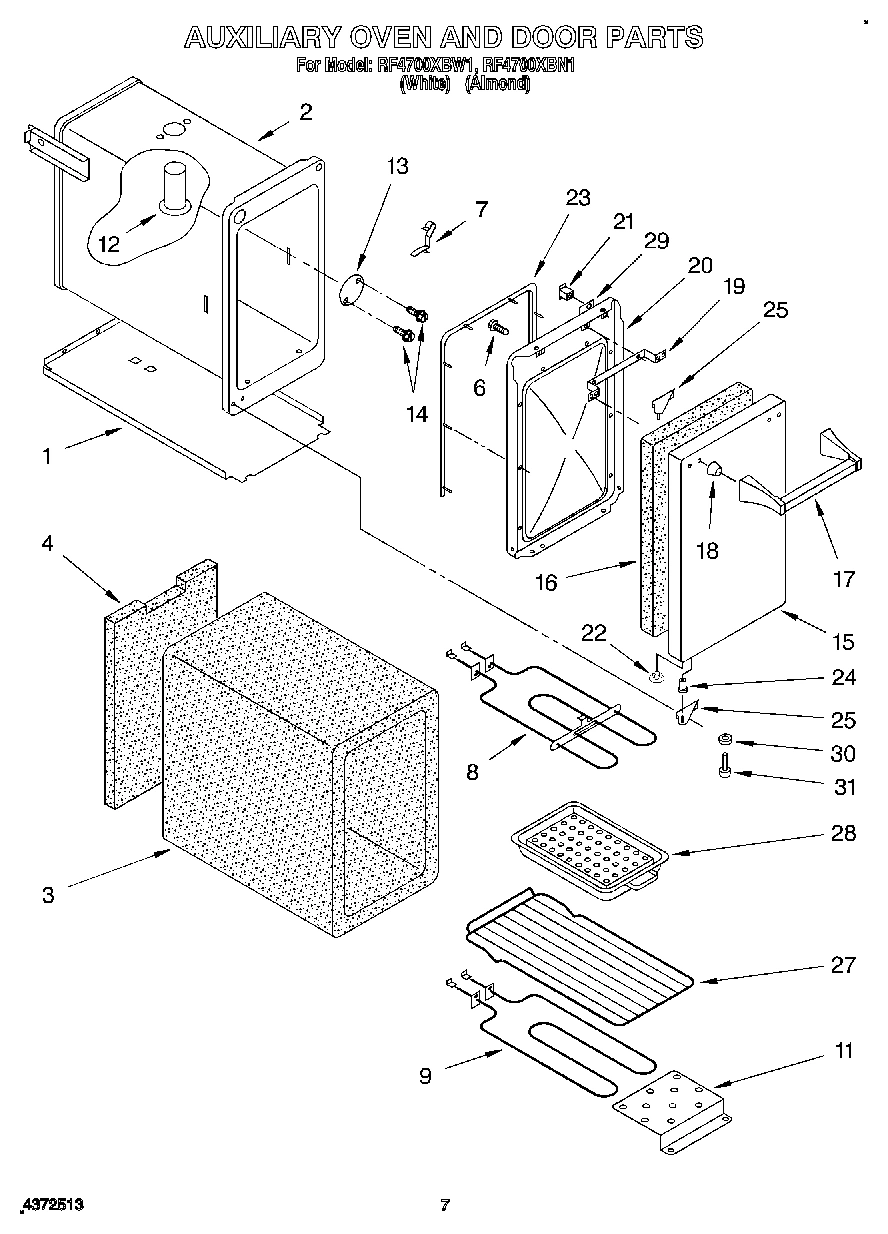

04 - AUXILIARY OVEN AND DOOR
Common parts from model Whirlpool RF4700XBW1
WPL LIT3149507 WPL LIT3149507 Contact Us For Availability
WPL LIT4372274 WPL LIT4372274 Contact Us For Availability
WPL LIT4372280 WPL LIT4372280 Contact Us For Availability
WPL LIT4372281 WPL LIT4372281 Contact Us For Availability
1
Rail, Drawer (R.H.) WPL 4372018 Contact Us For Availability
1
Rail, Drawer (L.H.) WPL 4372019 Contact Us For Availability
1
screw, 10-24 x 7/8 WPL 834649 Contact Us For Availability
1
Panel, Backguard (White) WPL 4372347 Contact Us For Availability
1
Panel, Backguard (Almond) WPL 4372348 Contact Us For Availability
1
Oven WPL 4372055 Contact Us For Availability
1
Panel, Bottom WPL 816472 Contact Us For Availability
2
Screw, 10-24 x 1/2 (2) WPL 681151 Contact Us For Availability
2
Guide, Front (2) WPL 4371429 Contact Us For Availability
2
Bracket, Endcap (R.H.) WPL 4372349 Contact Us For Availability
2
Bracket, Endcap (L.H.) WPL 4372350 Contact Us For Availability
2
Housing, Oven Light WPL 4371293 Contact Us For Availability
2
Liner, Auxiliary Oven WPL 4372398 Contact Us For Availability
3
panel, oven door (main) (white) WPL 877620 Contact Us For Availability
3
Panel, Oven Door (Main) (Almond) WPL 877624 Contact Us For Availability
3
End Cap (R.H. White) WPL 4372351 Contact Us For Availability
3
End Cap (L.H. White) WPL 4372352 Contact Us For Availability
3
End Cap (R.H. Almond) WPL 4372353 Contact Us For Availability
3
End Cap (L.H. Almond) WPL 4372354 Contact Us For Availability
3
Insulation, Oven Wrap WPL 4372034 Contact Us For Availability
4
Panel, Insulator WPL 868317 Contact Us For Availability
4
Screw, Endcap 8-18 x 1/2 (4) WPL 4372223 Contact Us For Availability
4
Insulation, Oven Back WPL 4372035 Contact Us For Availability
5
``J`` Molding Outer Glass WPL 4372369 Contact Us For Availability
5
Clock, Timer WPL 816475 Contact Us For Availability
5
Insulation, Oven Back WPL 4371362 Contact Us For Availability
6
Knob, Clock (3) WPL 816480 Contact Us For Availability
6
Foil, Aluminum WPL 4372029 Contact Us For Availability
6
Insulation, Oven Wrap WPL 4371431 Contact Us For Availability
6
Screw, 10 x 3/8 (2) WPL 4372044 Contact Us For Availability
7
Glass, Outer WPL 816491 Contact Us For Availability
7
Kit, Anti-Tip WPL 814121 Contact Us For Availability
8
Retainer, Glass (2) WPL 4372371 Contact Us For Availability
8
Knob, Control (4) WPL 816481 Contact Us For Availability
8
Lens, Light WPL 4372021 Contact Us For Availability
8
Element, Broil WPL 877570 Contact Us For Availability
9
Handle, Door (Main) WPL 4372370 Contact Us For Availability
9
Switch, Selector (Main Oven) WPL 4372361 Contact Us For Availability
9
Retainer, Lens WPL 4371394 Contact Us For Availability
9
Element, Bake WPL 877571 Contact Us For Availability
10
Washer, Padded (2) WPL 4372373 Contact Us For Availability
10
Thermostat, Oven (Main Oven) WPL 4372360 Contact Us For Availability
10
Button, Plug 1/2 WPL 142017 Contact Us For Availability
10
Button, Plug 3/4`` (2) WPL 4371390 Contact Us For Availability
11
Screw, 10-24 x1/2 (2) WPL 486146 Contact Us For Availability
11
Panel, Air Wash WPL 816493 Contact Us For Availability
11
Screw, 8-32 x 3/16 (2) WPL 877919 Contact Us For Availability
11
Thermostat, Oven (Auxiliary Oven) WPL 816488 Contact Us For Availability
11
Bracket, Thermobulb WPL 4371423 Contact Us For Availability
11
Shield, Bake Unit WPL 4372401 Contact Us For Availability
12
Glass, Inner WPL 816794 Contact Us For Availability
12
Knob, Selector WPL 816482 Contact Us For Availability
12
Vent Tube WPL 241978 Contact Us For Availability
13
Retainer, Glass Inner (2) WPL 868503 Contact Us For Availability
13
Knob, Control Main Oven WPL 816494 Contact Us For Availability
13
Element, Broil WPL 4371351 Contact Us For Availability
13
Plate, Cover WPL 816495 Contact Us For Availability
14
Liner, Oven Door WPL 4372372 Contact Us For Availability
14
Knob, Control Auxiliary Oven WPL 816483 Contact Us For Availability
14
Support, Broiler Element WPL 4372380 Contact Us For Availability
14
Screw, 10 - 24 x 1/2 (2) WPL 241428 Contact Us For Availability
15
Baffle Weldment WPL 4372375 Contact Us For Availability
15
Light, Indicator (Indicator, Surface) WPL 4371380 Contact Us For Availability
15
Light, Indicator (Indicator, Oven (2)) WPL 4371439 Contact Us For Availability
15
Light, Indicator (Indicator, Lock) WPL 4372359 Contact Us For Availability
15
panel, oven door (auxiliary) (white) WPL 868614 Contact Us For Availability
15
panel, oven door (auxiliary) (almond) WPL 868617 Contact Us For Availability
16
Motor, Door Latch (Complete) WPL 816159 Contact Us For Availability
16
Screw, 4-40 x 1-1/4 (2) WPL 834903 Contact Us For Availability
16
Plug Button 3/16`` (2) WPL 4371345 Contact Us For Availability
16
Lens, Indicator (4) WPL 4371440 Contact Us For Availability
16
Vent Tube WPL 877880 Contact Us For Availability
16
Insulation, Aux. Oven Door WPL 4372033 Contact Us For Availability
17
Bracket, Latch WPL 816857 Contact Us For Availability
17
Screw, 10-24 x 1 1/4 (2) WPL 4372368 Contact Us For Availability
17
Seal, Oven Door WPL 4371348 Contact Us For Availability
17
Switch, Oven Light WPL 4372355 Contact Us For Availability
17
Panel, Body-Side (Almond R.H.) WPL 4372382 Contact Us For Availability
17
Panel, Body-Side (Almond L.H.) WPL 4372383 Contact Us For Availability
17
Panel, Body-Side (White R.H.) WPL 816147 Contact Us For Availability
17
Panel, Body-Side (White L.H.) WPL 816149 Contact Us For Availability
17
Handle, Door WPL 4372367 Contact Us For Availability
18
Axle, Latch WPL 4371168 Contact Us For Availability
18
Spacer, Handle (2) WPL 4371405 Contact Us For Availability
18
Window Assembly WPL 816490 Contact Us For Availability
18
Cover, Backguard WPL 4372356 Contact Us For Availability
18
Screw, 10-24 x 5/8 (2) WPL 487392 Contact Us For Availability
19
Latch, Door WPL 4371167 Contact Us For Availability
19
Seal, Window WPL 4372376 Contact Us For Availability
19
Retainer, Insulation WPL 4372036 Contact Us For Availability
19
Spacer, Door WPL 868629 Contact Us For Availability
20
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
20
WPL 799344 WPL 799344 Contact Us For Availability
20
washer WPL 241422 Contact Us For Availability
20
Pushnut, 1/4 WPL 256158 Contact Us For Availability
20
Washer (2) WPL 816058 Contact Us For Availability
20
Strike Assembly WPL 816839 Contact Us For Availability
20
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
WPL 242824 WPL 242824 Contact Us For Availability
20
WPL 242825 WPL 242825 Contact Us For Availability
20
WPL 242826 WPL 242826 Contact Us For Availability
20
WPL 242827 WPL 242827 Contact Us For Availability
20
WPL 242828 WPL 242828 Contact Us For Availability
20
WPL 242829 WPL 242829 Contact Us For Availability
20
WPL 242830 WPL 242830 Contact Us For Availability
20
WPL 242832 WPL 242832 Contact Us For Availability
20
WPL 261582 WPL 261582 Contact Us For Availability
20
WPL 261810 WPL 261810 Contact Us For Availability
20
WPL 261832 WPL 261832 Contact Us For Availability
20
WPL 261886 WPL 261886 Contact Us For Availability
20
WPL 261887 WPL 261887 Contact Us For Availability
20
WPL 261888 WPL 261888 Contact Us For Availability
20
WPL 261889 WPL 261889 Contact Us For Availability
20
WPL 261890 WPL 261890 Contact Us For Availability
20
WPL 261891 WPL 261891 Contact Us For Availability
20
WPL 4372357 WPL 4372357 Contact Us For Availability
20
WPL 4372358 WPL 4372358 Contact Us For Availability
20
WPL 72108 WPL 72108 Contact Us For Availability
20
WPL 799351 WPL 799351 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 978883 WPL 978883 Contact Us For Availability
20
Back, Range WPL 816151 Contact Us For Availability
20
Liner, Door WPL 4372046 Contact Us For Availability
20
washer, rubber WPL 486847 Contact Us For Availability
21
Relief, Strain WPL 868136 Contact Us For Availability
21
Retainer, Door WPL 816474 Contact Us For Availability
21
Panel, Bottom WPL 816153 Contact Us For Availability
21
Latch, Door Magnetic WPL 816461 Contact Us For Availability
22
Assy, Door Hinge (Screw, 10-24 x 1/2 (2)) WPL 247326 Contact Us For Availability
22
Assy, Door Hinge (R.H.) WPL 816496 Contact Us For Availability
22
Assy, Door Hinge (L.H.) WPL 816497 Contact Us For Availability
22
Support, Gusset WPL 877568 Contact Us For Availability
22
Button, Plug WPL 868254 Contact Us For Availability
23
Pin, Hinge (R.H.) WPL 868129 Contact Us For Availability
23
Pin, Hinge (L.H.) WPL 868130 Contact Us For Availability
23
Insulation, Baffle WPL 4372374 Contact Us For Availability
23
Gusset, Rear (R.H.) WPL 877826 Contact Us For Availability
23
Gusset, Rear (L.H.) WPL 877827 Contact Us For Availability
23
Gasket, Door WPL 4372045 Contact Us For Availability
24
Cooktop (White) WPL 868230 Contact Us For Availability
24
Cooktop (Almond) WPL 868233 Contact Us For Availability
24
Insulation, Liner WPL 4372030 Contact Us For Availability
24
Spacer, Hinge (2) Pin WPL 834549 Contact Us For Availability
25
hinge, oven door (auxiliary) (screw, 10-24 x WPL 868430 Contact Us For Availability
25
Insulation, Airwash WPL 4372031 Contact Us For Availability
25
Channel, Support WPL 868226 Contact Us For Availability
25
Hinge, Oven Door (Auxiliary) (Top) WPL 4372042 Contact Us For Availability
25
Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3 WPL 868382 Contact Us For Availability
25
hinge, oven door (auxiliary) (bottom) WPL 877921 Contact Us For Availability
26
Pin, Hinge (2) WPL 877884 Contact Us For Availability
26
Screw, Leveling (4) WPL 4371398 Contact Us For Availability
27
Retainer, Hinge Pin (2) WPL 4372379 Contact Us For Availability
27
Spring, Door (2) WPL 4371456 Contact Us For Availability
27
Rack, Oven Regular WPL 868329 Contact Us For Availability
28
Plug Button (4) WPL 834558 Contact Us For Availability
28
Kit, Broiler Pan And Grid WPL 834616 Contact Us For Availability
29
Ring, Trim (8`` (2)) WPL 834729 Contact Us For Availability
29
Ring, Trim (6`` (2)) WPL 834730 Contact Us For Availability
29
Gusset, Backguard (2) WPL 4372395 Contact Us For Availability
29
Plate, Catch WPL 816463 Contact Us For Availability
30
Pan, Surface (8`` (2)) WPL 4372052 Contact Us For Availability
30
Pan, Surface (6`` (2)) WPL 4372053 Contact Us For Availability
30
Drawer WPL 868242 Contact Us For Availability
30
Bumper, Cooktop (5) WPL 877947 Contact Us For Availability
30
Washer, Rubber WPL 4372047 Contact Us For Availability
31
Guide, Rear (2) WPL 868152 Contact Us For Availability
31
Rivet (2) WPL 4372048 Contact Us For Availability
32
Medallion WPL 4372378 Contact Us For Availability
32
Panel, Drawer (White) WPL 865865 Contact Us For Availability
32
Panel, Drawe WPL 868249 Contact Us For Availability
32
Nut, 10-32 (6) WPL 487836 Contact Us For Availability
33
WPL 4372366 WPL 4372366 Contact Us For Availability
33
WPL 877903 WPL 877903 Contact Us For Availability
34
WPL 866136 WPL 866136 Contact Us For Availability
35
Cover, Back WPL 4372017 Contact Us For Availability
37
WPL 4372061 WPL 4372061 Contact Us For Availability
38
WPL 4372032 WPL 4372032 Contact Us For Availability
39
Rack, Oven (Regular) WPL 4372399 Contact Us For Availability
39
Rack, Oven (Offset) WPL 4372400 Contact Us For Availability
41
Grille, Br WPL 4372059 Contact Us For Availability
42
WPL 4372060 WPL 4372060 Contact Us For Availability
43
WPL 680363 WPL 680363 Contact Us For Availability
43
WPL 816169 WPL 816169 Contact Us For Availability
44
WPL 4371333 WPL 4371333 Contact Us For Availability
× ![]()
