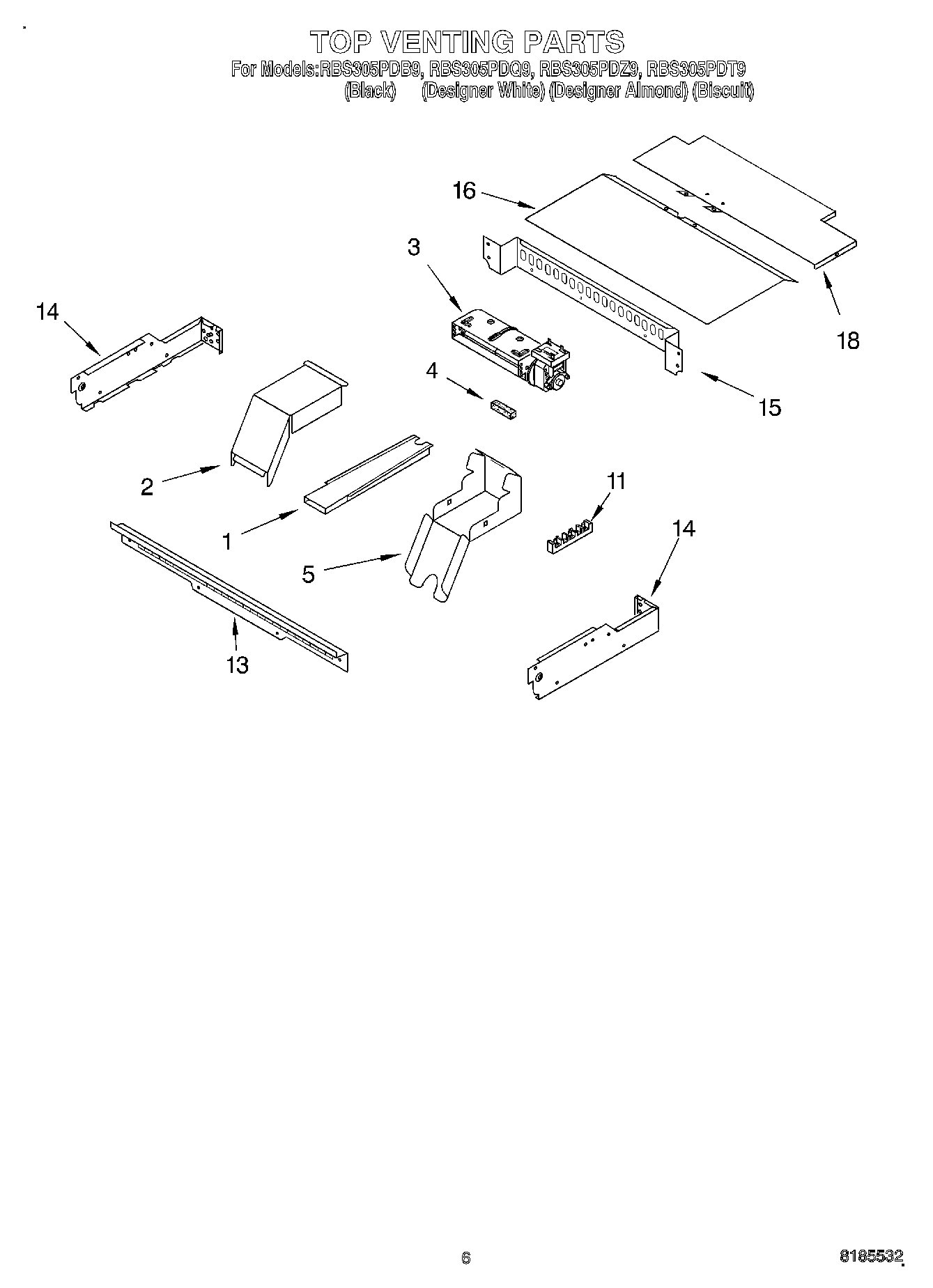

Model Whirlpool RBS305PDB9 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

Control Panel Assy. W/Membrane Switch (Black WPL 8300450 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (White WPL 8300449 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation/ Undercounter) WPL LIT3192225 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4450411 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Oven)) WPL LIT4450568 Contact Us For Availability

1

Literature Parts (Instructions Microwave Trim WPL LIT4450841 Contact Us For Availability

1

Literature Parts (Tech Sheet (Oven)) WPL LIT4451884 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $4.82

2

Trim, Side (Left Hand) (Screw) WPL 4449041 Contact Us For Availability

2

Trim, Side (Right Hand) (Black Model) WPL 4450844 Contact Us For Availability

2

Trim, Side (White, Right) WPL 4450845 Contact Us For Availability

2

Trim, Side (Right Hand) (Almond Model) WPL 4450846 Contact Us For Availability

2

Trim, Side (Left Hand) (Black Model) WPL 4450847 Contact Us For Availability

2

Trim, Side (Left Hand) (White Model) WPL 4450848 Contact Us For Availability

2

(Trim, Side (Left Hand)) (Almond Model) WPL 4450849 Contact Us For Availability

2

Trim, Side (Right Hand) (Biscuit Model) WPL 4452120 Contact Us For Availability

2

Trim, Side (Left Hand) (Biscuit Model) WPL 4452121 Contact Us For Availability

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $139.99

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

3

Blower WPL 4455334 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455594 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455595 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $117.06

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

5

WP4455509 Whirlpool Support Bracket Backorder WPL WP4455509 $60.74

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $142.57

7

Top, Chassis WPL 4455286 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $78.42

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $4.82

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $66.70

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $58.99

13

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

13

Door Handle (Black Model) WPL 4448854 Contact Us For Availability

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $4.82

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4451740 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $42.99

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $8.89

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.46

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $4.82

WP4450952 Whirlpool Conduit Backorder WPL WP4450952 $158.38

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $48.97

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (Main) WPL 4455626 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

19

Support, Insulation WPL 4451478 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

21

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $74.47

21

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $74.29

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $4.82

22

Latch Assembly WPL 4451896 Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

23

Solenoid WPL 4452224 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

WPL 4454691 WPL 4454691 Contact Us For Availability

26

WPL 4452234 WPL 4452234 Contact Us For Availability

27

WPL ARI121007A WPL ARI121007A Contact Us For Availability

28

WPL 4451426 WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $67.99

30

WPL 4451537 WPL 4451537 Contact Us For Availability

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $40.99

43

WPL 4455530 WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $90.20

53

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

53

WPL 4449845 WPL 4449845 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $76.41

WPL 4448477 WPL 4448477 Contact Us For Availability

WPL 4448478 WPL 4448478 Contact Us For Availability

WPL 4448862 WPL 4448862 Contact Us For Availability

WPL 4450365 WPL 4450365 Contact Us For Availability

WPL 4452415 WPL 4452415 Contact Us For Availability
