Model Whirlpool RB760PXYQ5 – Common Parts & Diagrams

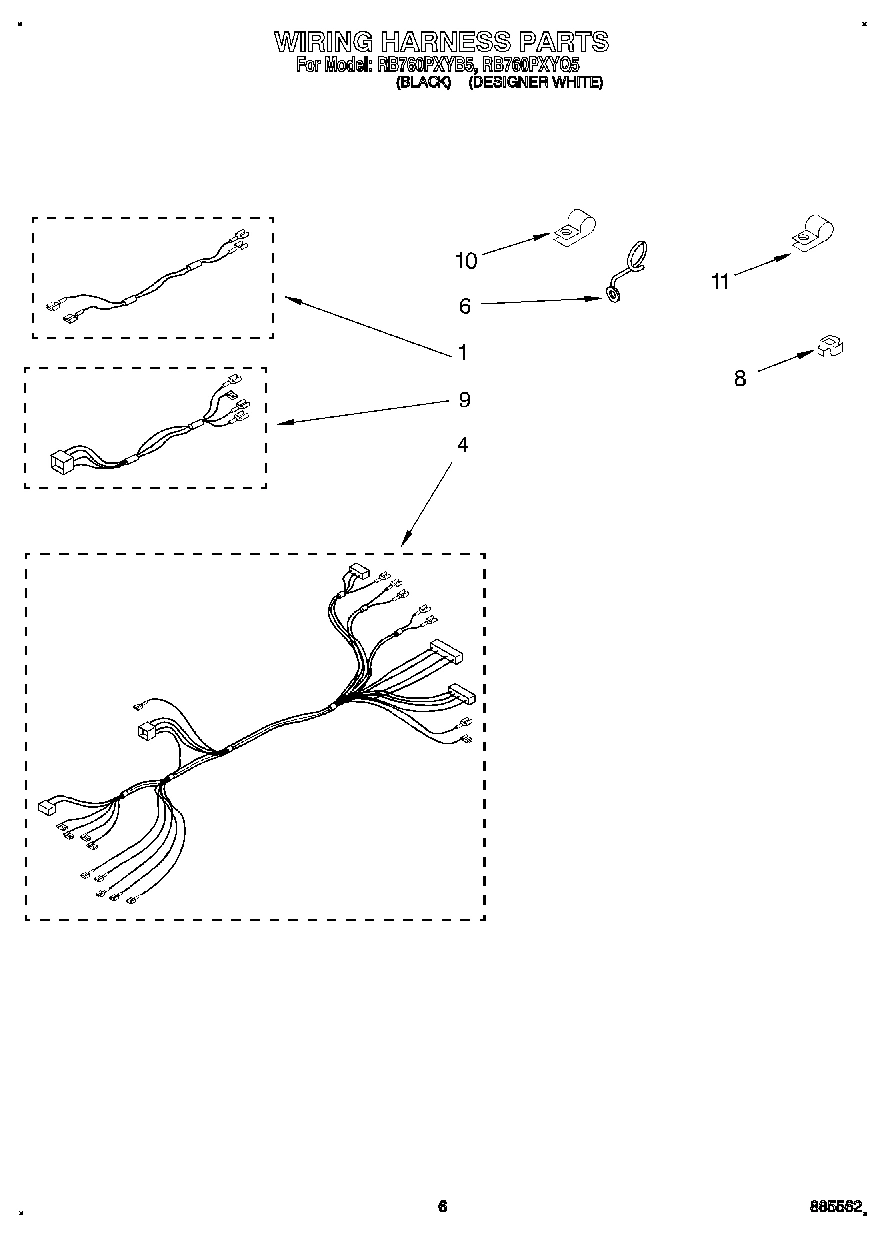

06 - WIRING HARNESS, LIT/OPTIONAL

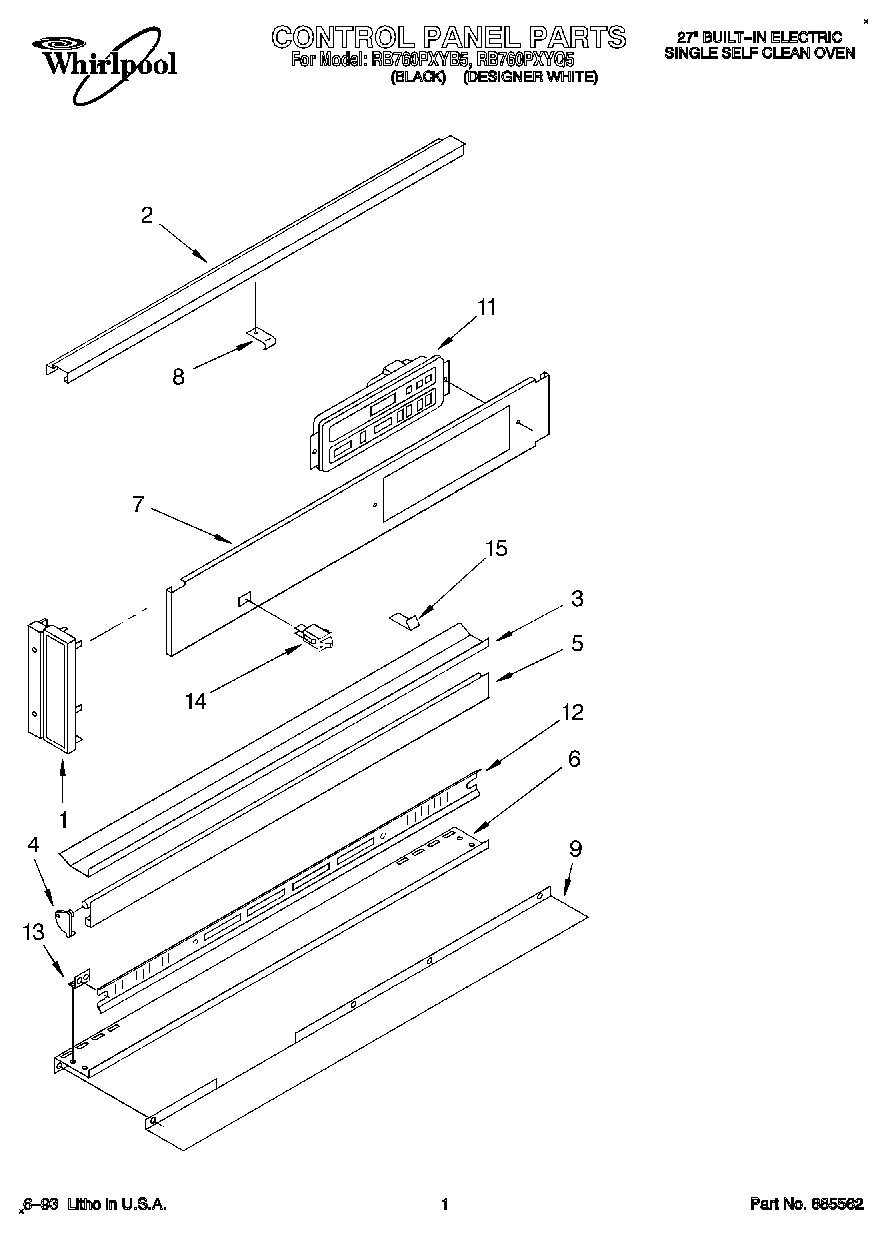

01 - CONTROL PANEL

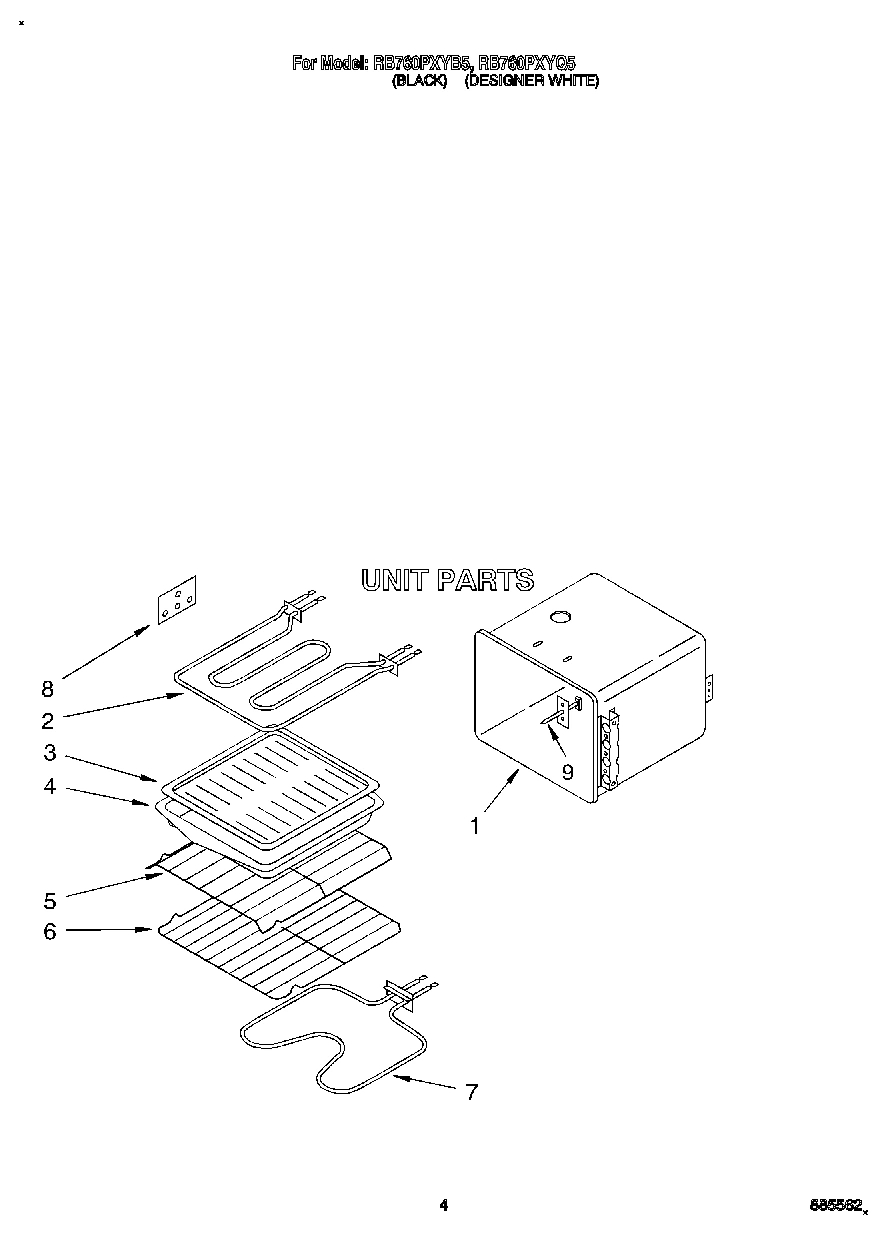

04 - UNIT

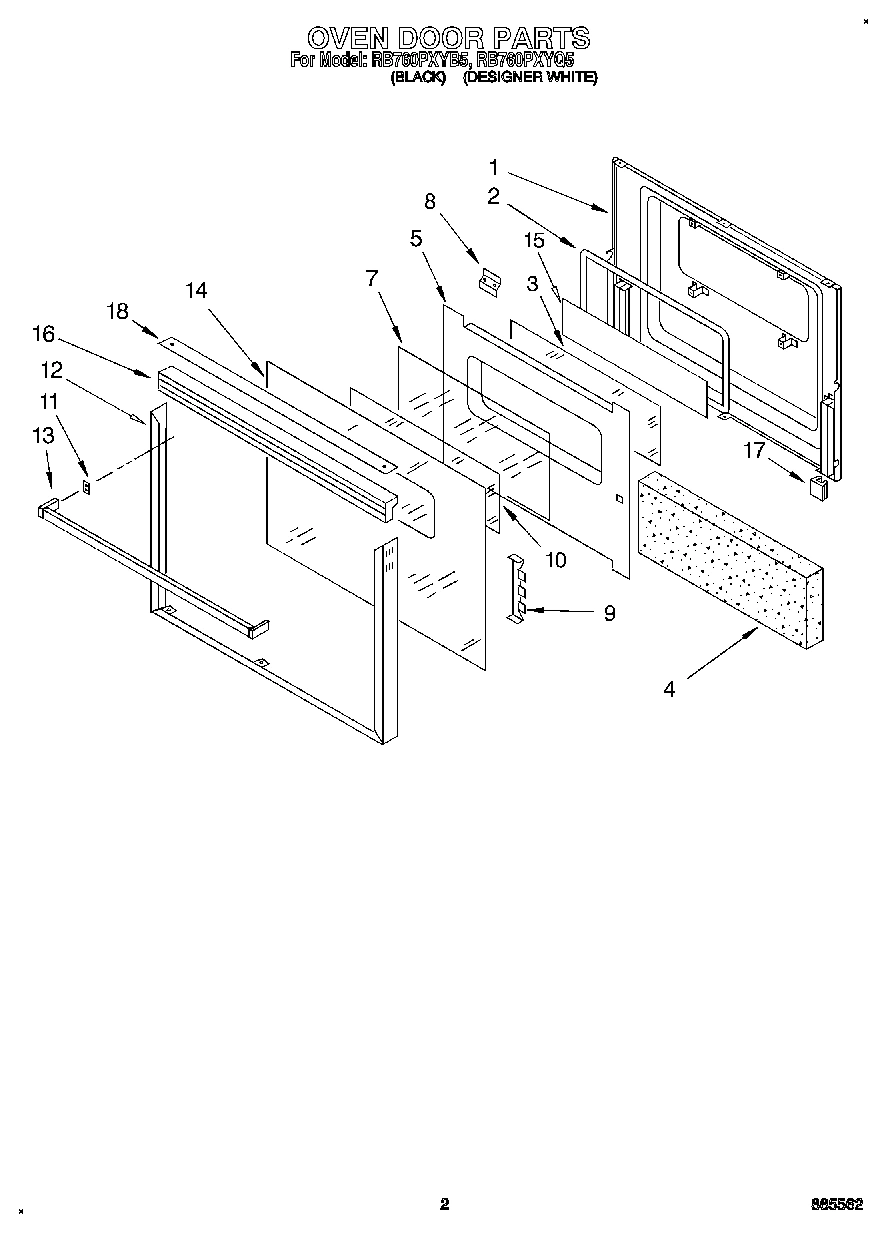

02 - OVEN DOOR

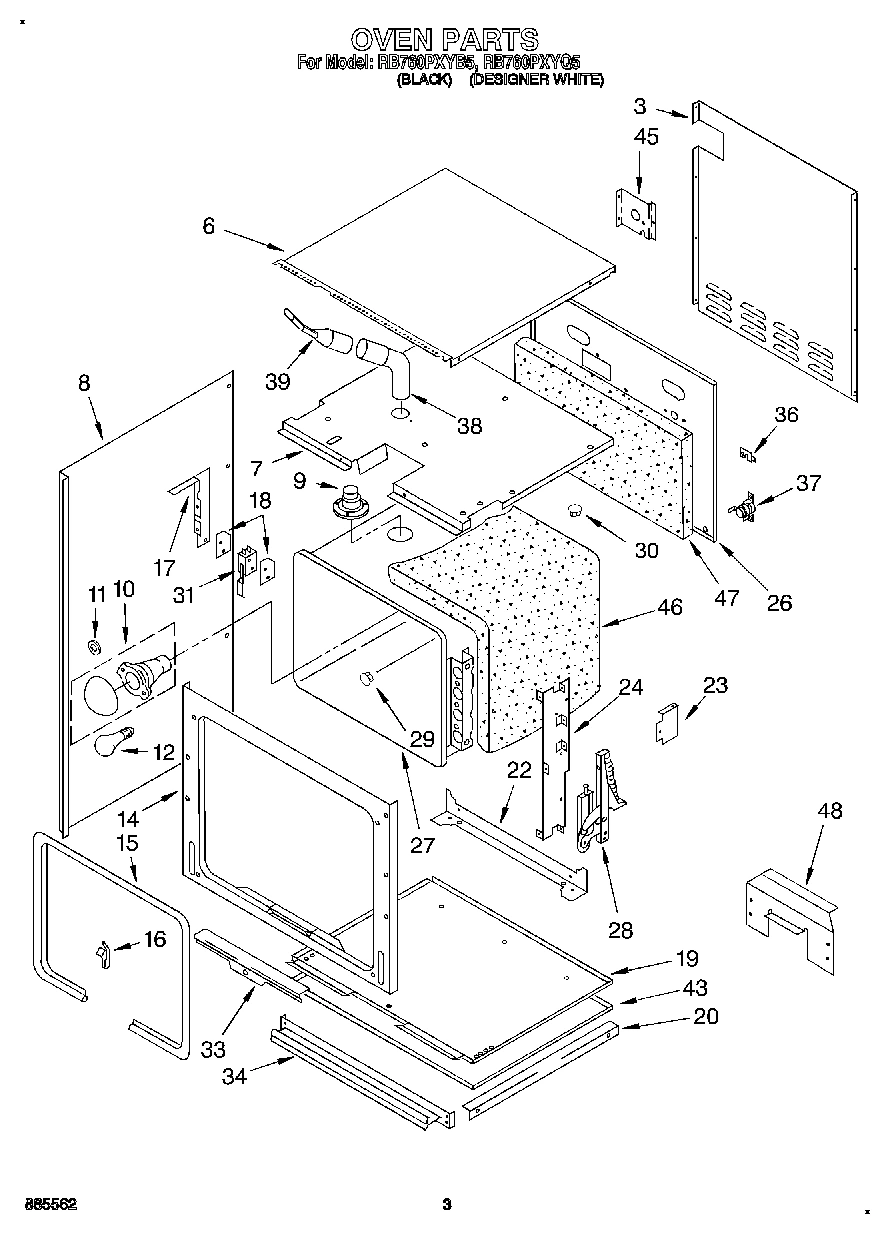

03 - OVEN

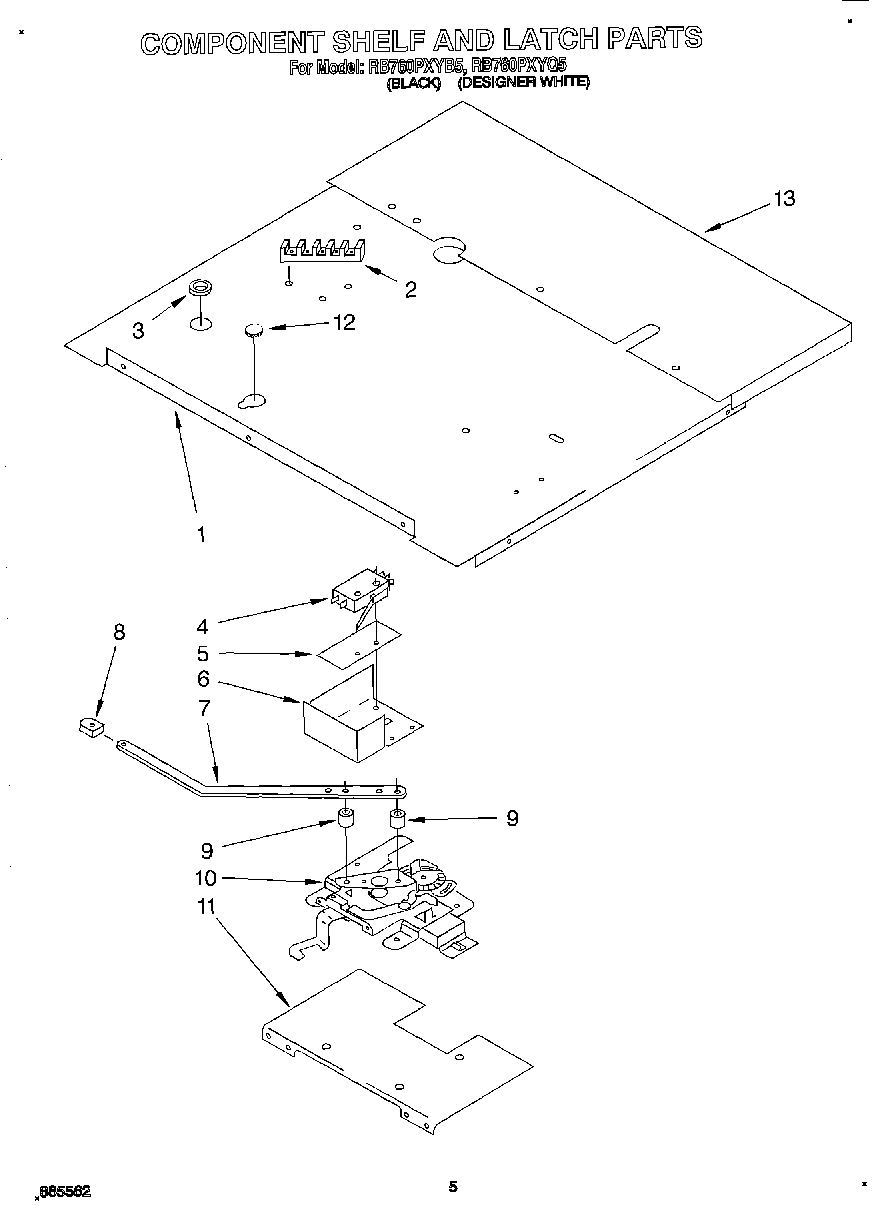

05 - COMPONENT SHELF AND LATCH
Common parts from model Whirlpool RB760PXYQ5
1
End Cap, Left (Black Model) WPL 3183630 Contact Us For Availability
1
End Cap, Left (Black Model) WPL 3183631 Contact Us For Availability
1
End Cap, Left (White Model) WPL 3185761 Contact Us For Availability
1
End Cap, Left (White Model End Cap, Right) WPL 3185762 Contact Us For Availability
1
Screw WPL 3148443 Contact Us For Availability
1
Liner, Door WPL 3185497 Contact Us For Availability
1
Shelf, Component WPL 3184592 Contact Us For Availability
2
Trim, Top WPL 3184641 Contact Us For Availability
2
Gasket, Window WPL 3185462 Contact Us For Availability
2
Screw WPL 308043 Contact Us For Availability
3
Glass, Clear WPL 3185457 Contact Us For Availability
3
Trim, Center (Black Model) WPL 3183573 Contact Us For Availability
3
Trim, Center (White Model) WPL 3183575 Contact Us For Availability
3
Cabinet, Back WPL 3177625 Contact Us For Availability
3
Bushing WPL 4159035 Contact Us For Availability
4
Door, Vent (Black Model) WPL 3183501 Contact Us For Availability
4
Door, Vent (White Model) WPL 3183503 Contact Us For Availability
4
Insulation, Door WPL 3185460 Contact Us For Availability
4
Switch, Latch WPL 3178671 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (White Model R WPL 3148471 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (White Model) WPL 3148472 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (Black Model) WPL 3148697 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (Black Model) WPL 3148698 Contact Us For Availability
5
Rack, Offset WPL 3185307 Contact Us For Availability
5
Retainer, Insulation WPL 3185437 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
6
Trim, Bottom (Black Model) WPL 3184408 Contact Us For Availability
6
Trim, Bottom (White Model) WPL 3184409 Contact Us For Availability
6
Trim, Bottom (Screw (2)) WPL 342043 Contact Us For Availability
6
Rack, Oven WPL 3185308 Contact Us For Availability
6
Cabinet, Top WPL 3178142 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
7
Control Panel (Black Model) WPL 3184648 Contact Us For Availability
7
Control Panel (White Model) WPL 3184649 Contact Us For Availability
7
Glass, Reflective WPL 3185458 Contact Us For Availability
7
Module, Top WPL 3183748 Contact Us For Availability
7
Handle, Latch WPL 3177969 Contact Us For Availability
8
Screw WPL 254217 Contact Us For Availability
8
Stiffener, Bracket WPL 3183492 Contact Us For Availability
8
Screw WPL 3179117 Contact Us For Availability
8
Bracket, Element (2) WPL 3182950 Contact Us For Availability
8
Latch, Strike WPL 3185438 Contact Us For Availability
8
Side, Cabinet Left & Right Side WPL 3177442 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
9
Screw (3) WPL 3185383 Contact Us For Availability
9
Trim, Vent Upper (White Model) WPL 3184588 Contact Us For Availability
9
Trim, Vent Upper (Black Model) WPL 3184589 Contact Us For Availability
9
Sensor, Oven WPL 3148440 Contact Us For Availability
9
Retainer, Glass WPL 3185439 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Spacer, Latch Handle (2) WPL 3184041 Contact Us For Availability
9
Screw (2) WPL 3184042 Contact Us For Availability
10
Glass, Clear WPL 3185459 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
11
Clip, Mounting WPL 3148282 Contact Us For Availability
11
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
11
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
11
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
11
white WPL 242826 Contact Us For Availability
11
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
11
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
11
Blue 14 Ga. 150~c Rating WPL 242829 Contact Us For Availability
11
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
11
Yellow 12 Ga. 150~c Rating WPL 242832 Contact Us For Availability
11
Harvest Gold WPL 261890 Contact Us For Availability
11
Harvest Gold WPL 261891 Contact Us For Availability
11
Toast WPL 285365 Contact Us For Availability
11
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
11
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
11
Platinum WPL 285368 Contact Us For Availability
11
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
11
Leveler (Primer) WPL 350941 Contact Us For Availability
11
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
11
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
11
WPL 978883 WPL 978883 Contact Us For Availability
11
Electronic Timer (Black Model) WPL 3169256 Contact Us For Availability
11
Electronic Timer (White Model) WPL 3169257 Contact Us For Availability
11
Screw, Black (2) WPL 3178001 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
12
Insert, Vent WPL 3179916 Contact Us For Availability
12
Frame, Door WPL 3180607 Contact Us For Availability
12
Plug, Button WPL 3179777 Contact Us For Availability
13
Bracket, Vent Insert WPL 3181279 Contact Us For Availability
13
Handle, Door (Screw, Black) WPL 4173601 Contact Us For Availability
13
Handle, Door (Black Model) WPL 3179481 Contact Us For Availability
13
Handle, Door (White Model) WPL 3179483 Contact Us For Availability
13
Handle, Door (Screw, Chrome) WPL 4170323 Contact Us For Availability
13
Extension, Shelf WPL 3178132 Contact Us For Availability
14
Switch, Rocker (Black Model) WPL 3182717 Contact Us For Availability
14
Switch, Rocker (White Model) WPL 3182718 Contact Us For Availability
14
Glass, Door (Black) WPL 3179498 Contact Us For Availability
14
Glass, Door (White) WPL 3179500 Contact Us For Availability
14
Frame, Front (White Model) WPL 3185860 Contact Us For Availability
14
Frame, Front (Black Model) WPL 3185861 Contact Us For Availability
15
Stiffner, Bracket WPL 3183493 Contact Us For Availability
15
Screw WPL 4159465 Contact Us For Availability
15
Foil, Adhesive WPL 3185472 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
16
Trim, Door (Black Model) WPL 3185525 Contact Us For Availability
16
Trim, Door (White Model) WPL 3185527 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
17
Bumper, Door Glass WPL 3181701 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
18
Cap, Top (White Model Only) WPL 3181364 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
19
Bottom, Module WPL 3177621 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
26
Back, Module WPL 3177560 Contact Us For Availability
27
Liner, Oven WPL 3185562 Contact Us For Availability
28
Screw (4) WPL 3179795 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Button, Plug WPL 3185085 Contact Us For Availability
30
Button, Plug WPL 3182814 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Screw (2) WPL 3179776 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Vent, Lower Trim (Black Model) WPL 3177783 Contact Us For Availability
34
Vent, Lower Trim (Brushed Chrome) WPL 3177789 Contact Us For Availability
34
Vent, Lower Trim (Screw, Zinc) WPL 3179847 Contact Us For Availability
34
Vent, Lower Trim (Screw, Black) WPL 3180022 Contact Us For Availability
36
Thermostat WPL 3149653 Contact Us For Availability
37
Screw WPL 4159445 Contact Us For Availability
37
Cover, Cap Tube WPL 4168203 Contact Us For Availability
38
Tube, Vent (Female) WPL 3179922 Contact Us For Availability
38
Screw WPL 4173231 Contact Us For Availability
39
Tube, Vent (Male) WPL 3184652 Contact Us For Availability
43
Bottom, Oven WPL 3177551 Contact Us For Availability
45
Bracket, Conduit Mounting WPL 3177545 Contact Us For Availability
46
Insulation, Oven WPL 3185551 Contact Us For Availability
47
Insulation, Back WPL 3177872 Contact Us For Availability
48
Bracket, Mounting Control Panel WPL 3183752 Contact Us For Availability
× ![]()
