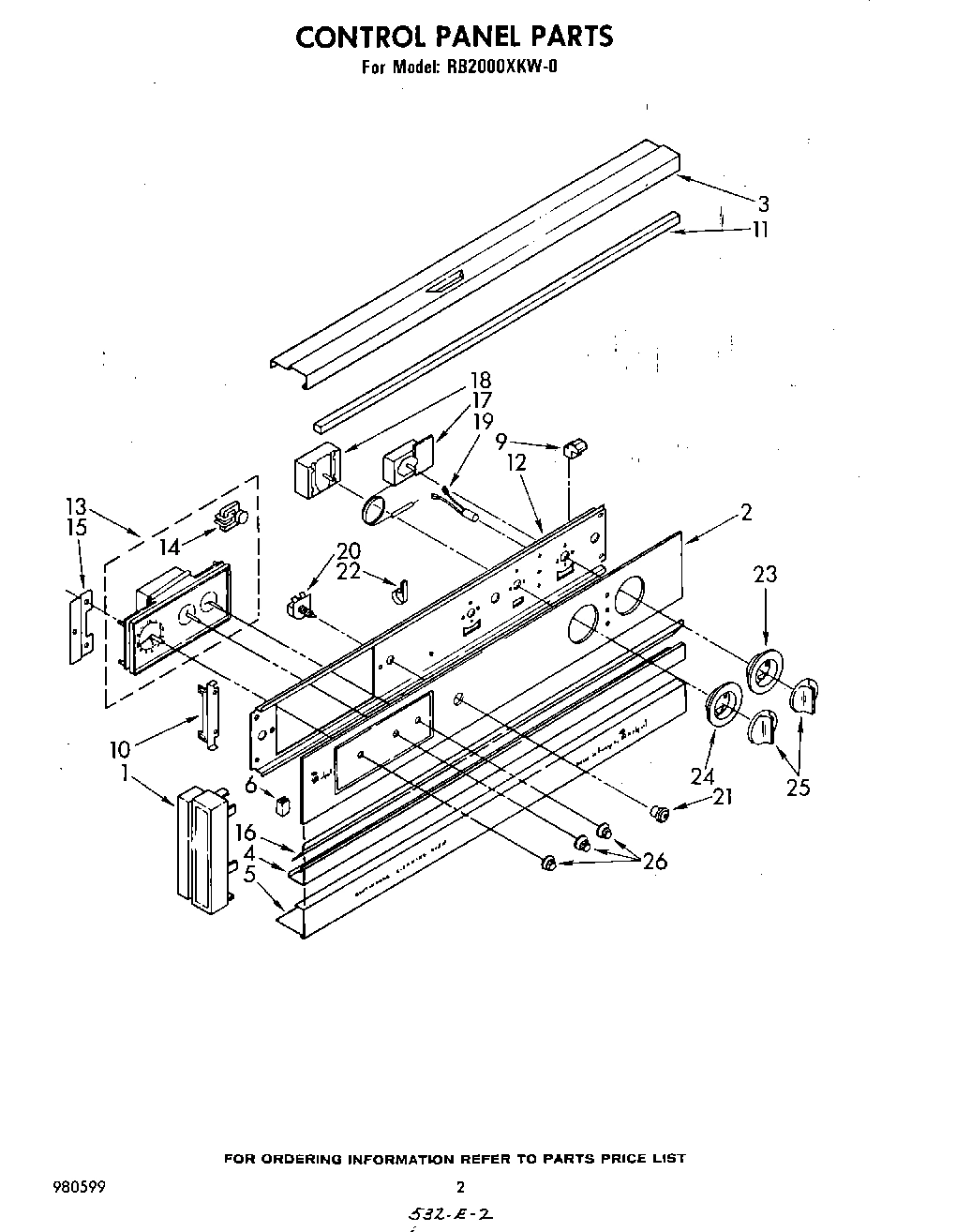

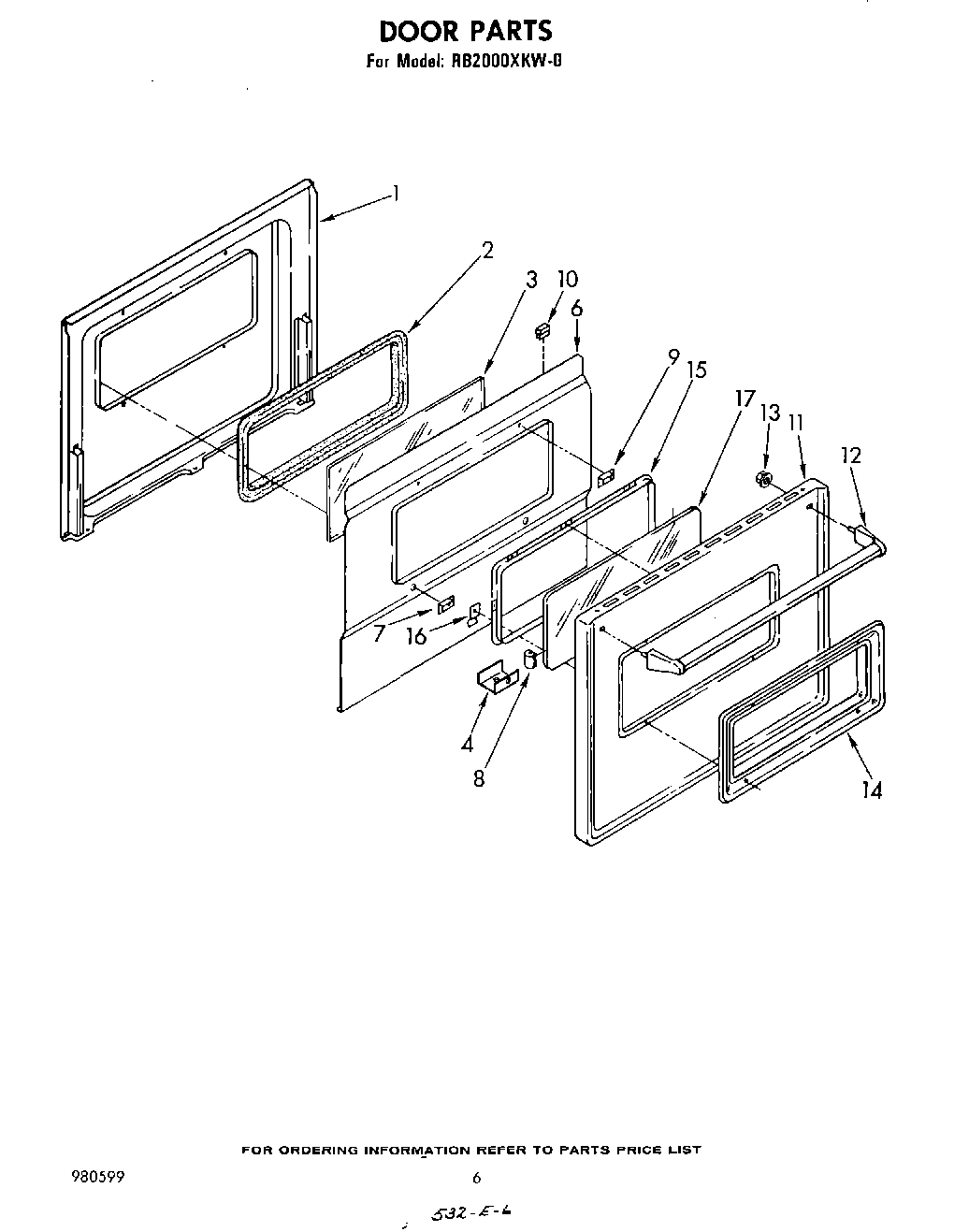

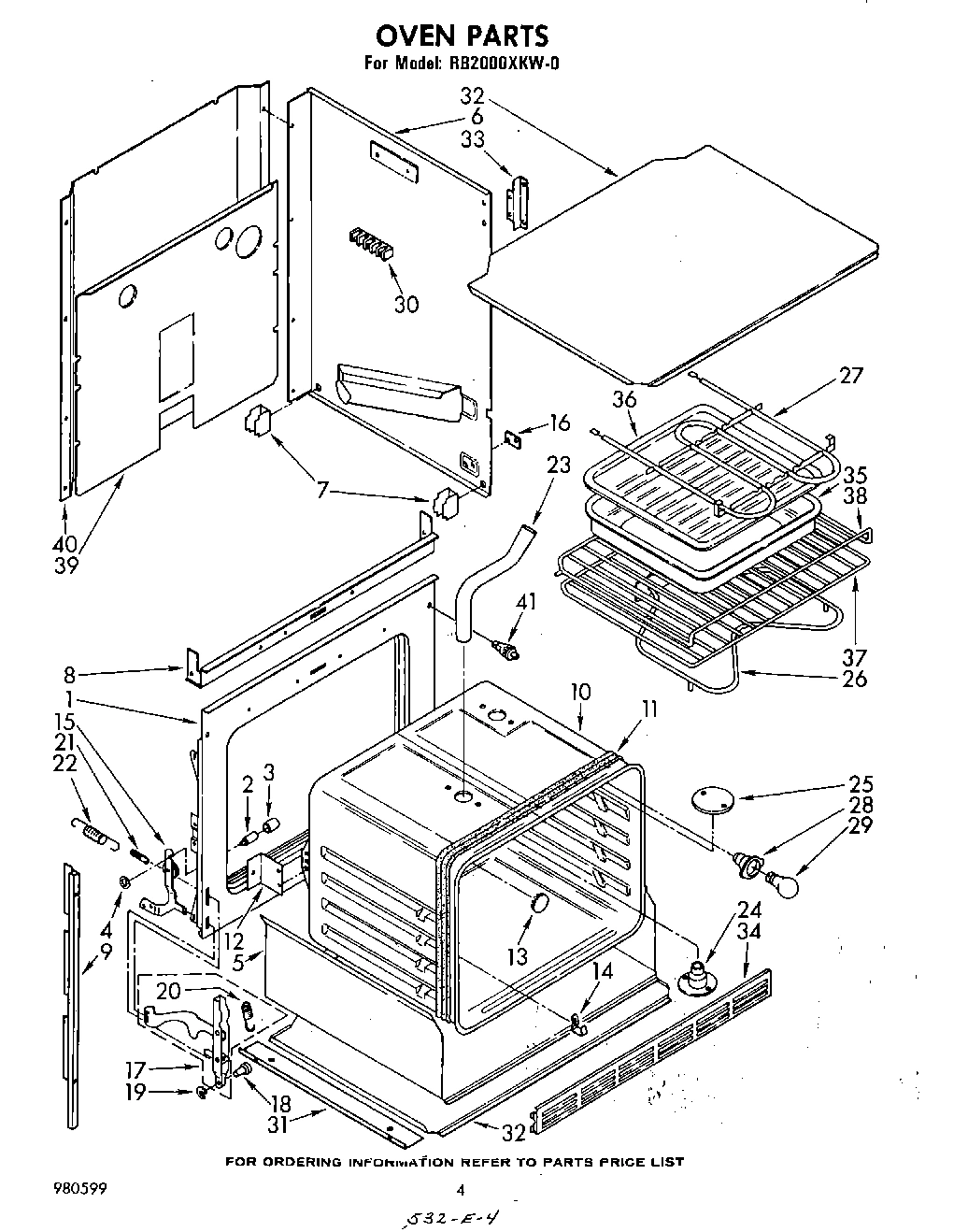

Model Whirlpool RB2000XKW0 – Common Parts &amp; Diagrams

1

End Cap (L.H.) WPL 310828 Contact Us For Availability

1

End Cap (R.H.) WPL 310829 Contact Us For Availability

1

Screw, 10A x 3/8 (3) WPL 254217 Contact Us For Availability

1

screw, (4) WPL 311056 Contact Us For Availability

1

Liner, Door WPL 327862 Contact Us For Availability

1

``j`` clip (2) WPL 338177 Contact Us For Availability

2

Control Panel, Glass WPL 311094 Contact Us For Availability

2

Seal, Glass WPL 258711 Contact Us For Availability

3

Rail, Top WPL 310824 Contact Us For Availability

3

Glass, Inner WPL 258988 Contact Us For Availability

4

Trim, Center WPL 311194 Contact Us For Availability

4

Spacer, Door (2) WPL 309137 Contact Us For Availability

5

screw (2) WPL 342043 Contact Us For Availability

5

Rail, Bottom WPL 311197 Contact Us For Availability

6

Channel, Rubber (2) WPL 310842 Contact Us For Availability

6

baffle, insulation WPL 307924 Contact Us For Availability

7

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

8

Cushion, Door (2) WPL 309152 Contact Us For Availability

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

9

Retainer, Glass (4) WPL 310823 Contact Us For Availability

9

Spacer, Baffle (2) WPL 258990 Contact Us For Availability

10

Bracket, Control Panel (2) WPL 310720 Contact Us For Availability

10

Screw WPL 98520 Contact Us For Availability

10

channel, rubber (4) WPL 255859 Contact Us For Availability

Heat Seal WPL 309107 Contact Us For Availability

Seal, Backguard WPL 311263 Contact Us For Availability

Panel, Oven Door (White) WPL 307888 Contact Us For Availability

Panel, Oven Door (New Avocado) WPL 307890 Contact Us For Availability

Panel, Oven Door (Coffee) WPL 307892 Contact Us For Availability

Panel, Oven Door (Harvest Gold) WPL 307894 Contact Us For Availability

Panel, Oven Door (Almond) WPL 307896 Contact Us For Availability

Panel, Oven Door (Screw, 8A x 5/8 (2)) WPL 309133 Contact Us For Availability

Panel, Oven Door (Toast) WPL 313175 Contact Us For Availability

Panel, Oven Door (Platinum) WPL 313176 Contact Us For Availability

12

Bracket, Control WPL 310727 Contact Us For Availability

12

Handle, Oven Door WPL 311564 Contact Us For Availability

WP308499 Whirlpool Nut Backorder WPL WP308499 $4.82

Plug Button WPL 257314 Contact Us For Availability

Timer, Automatic (Palnut, Timer 10-32) WPL 308846 Contact Us For Availability

Timer, Automatic (Alternate (Includes Illus. WPL 310940 Contact Us For Availability

Timer, Automatic (Alternate) WPL 311262 Contact Us For Availability

14

98005642 Whirlpool Clip Backorder WPL 98005642 $56.92

14

Motor, Timer WPL 309822 Contact Us For Availability

14

Window, Frame 30`` Small WPL 309173 Contact Us For Availability

Glass Retainer WPL 307792 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

Bracket, Timer (2) WPL 310943 Contact Us For Availability

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

Seal WPL 255893 Contact Us For Availability

Clip, Frame WPL 307731 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $56.69

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Channel, Arm (2) WPL 328804 Contact Us For Availability

Thermostat, Oven (Alternate) WPL 310861 Contact Us For Availability

Thermostat, Oven (Alternate) WPL 311495 Contact Us For Availability

Thermostat, Oven (Screw, 6-32 x 1/4 (2)) WPL 487384 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotiss WPL 242985 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261810 WPL 261810 Contact Us For Availability

WPL 307732 WPL 307732 Contact Us For Availability

WPL 308500 WPL 308500 Contact Us For Availability

WPL 311413 WPL 311413 Contact Us For Availability

WPL 311434 WPL 311434 Contact Us For Availability

WPL 313045 WPL 313045 Contact Us For Availability

WPL 980599 WPL 980599 Contact Us For Availability

18

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $7.82

18

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $4.70

18

Selector Switch WPL 310866 Contact Us For Availability

19

Ring, Retainer (2) WPL 307594 Contact Us For Availability

19

Light, Indicator Oven WPL 308753 Contact Us For Availability

20

Spring, Door Stop (2) WPL 311092 Contact Us For Availability

20

Nut, Hex 3/8 WPL 255912 Contact Us For Availability

20

Switch, Oven Light WPL 308829 Contact Us For Availability

21

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $7.91

21

Bezel Switch WPL 313030 Contact Us For Availability

22

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $7.20

22

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

23

Escutcheon, Thermostat WPL 311065 Contact Us For Availability

23

Vent Extension WPL 310836 Contact Us For Availability

WP311069 Whirlpool Oven Dial Backorder WPL WP311069 $36.47

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

Eliminator, Smoke WPL 310840 Contact Us For Availability

Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability

25

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $12.75

25

Plate, Cover WPL 310662 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $26.99

26

Knob, Timer (3) WPL 309553 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $110.99

27

Unit, Broil (Screw, 10-32 x 5/8 (4)) WPL 246127 Contact Us For Availability

28

Socket, Oven Light (Alternate) WPL 307856 Contact Us For Availability

28

Socket, Oven Light (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability

28

Socket, Oven Light (Alternate) WPL 310208 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

30

W10841059 Whirlpool Screw Backorder WPL W10841059 $1.83

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

31

A WPL 311592 Contact Us For Availability

32

WPL 310458 WPL 310458 Contact Us For Availability

33

WPL 310719 WPL 310719 Contact Us For Availability

34

WPL 309029 WPL 309029 Contact Us For Availability

34

WPL 310668 WPL 310668 Contact Us For Availability

36

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

37

WPL 308173 WPL 308173 Contact Us For Availability

38

WPL 308172 WPL 308172 Contact Us For Availability

39

WPL 310459 WPL 310459 Contact Us For Availability

40

WPL 311011 WPL 311011 Contact Us For Availability

41

WPL 310345 WPL 310345 Contact Us For Availability
