Model Whirlpool PVBN600LW0 PERSONAL VALET – Common Parts & Diagrams
02 - LINER
04 - TOP BOX

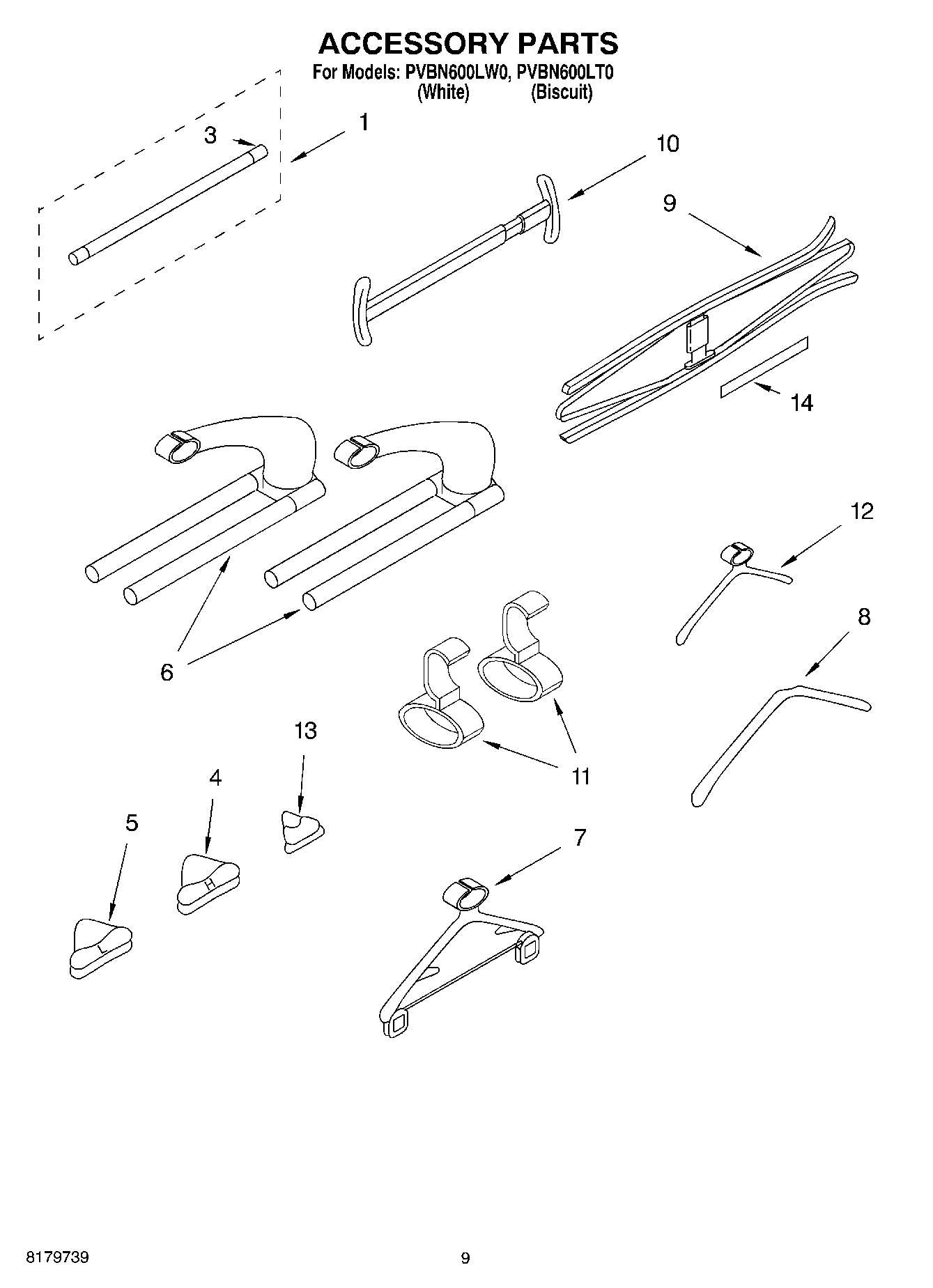

05 - ACCESSORY

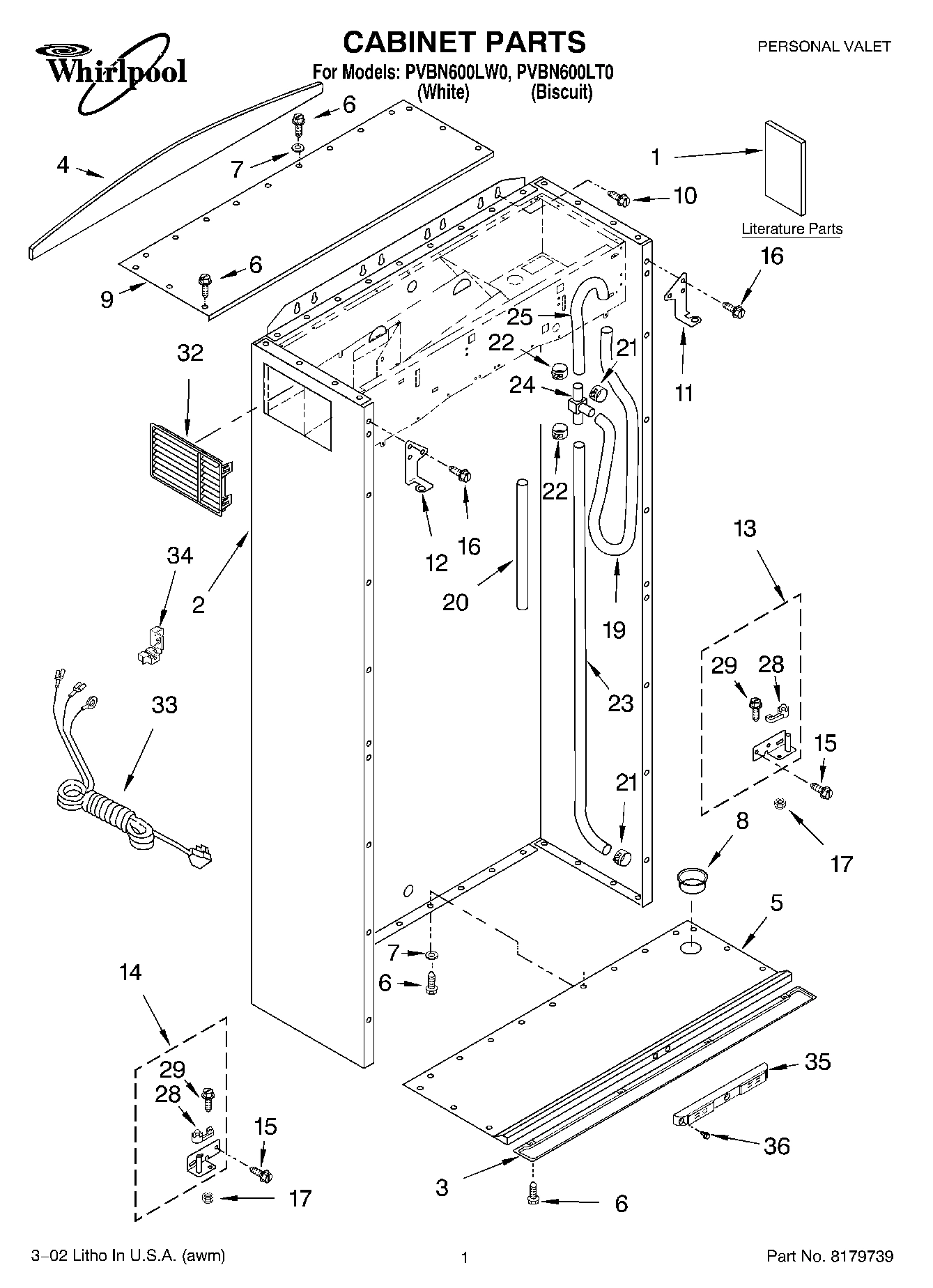

01 - CABINET, LITERATURE

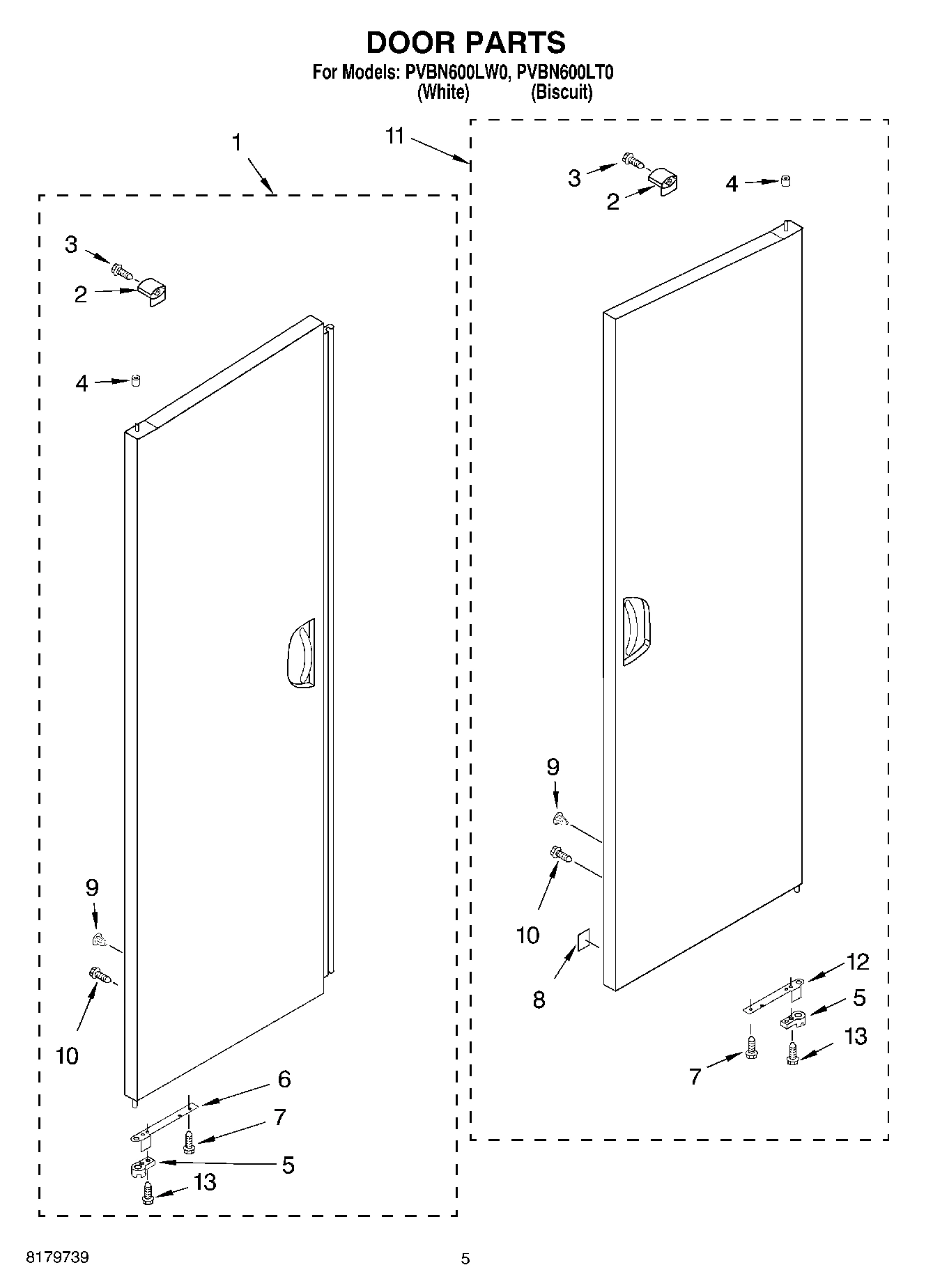

03 - DOOR
Common parts from model Whirlpool PVBN600LW0 PERSONAL VALET
1
Top Box (Not Serviced) WPL ARI119571A Contact Us For Availability
1
Utility Bar Assembly WPL 8527316 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8527278 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8527279 Contact Us For Availability
1
Literature Parts (Use & Care Video) WPL LIT8527280 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8527321 Contact Us For Availability
1
Left Door Assembly (White) WPL 8527115 Contact Us For Availability
1
Left Door Assembly (Biscuit) WPL 8527188 Contact Us For Availability
2
Cabinet (Not Serviced) WPL ARI119570A Contact Us For Availability
2
Garment Hook WPL 8526347 Contact Us For Availability
3
Heater Assembly WPL 8526359 Contact Us For Availability
3
End Cap WPL 8526340 Contact Us For Availability
3
Drip Tray WPL 8527174 Contact Us For Availability
3
Screw, 8-18 x 3/4 WPL 3400876 Contact Us For Availability
4
Wire Tie WPL 8526408 Contact Us For Availability
4
Clip, Heavy WPL 8526360 Contact Us For Availability
4
Cover, Bracket WPL 8526672 Contact Us For Availability
4
Bumper, Top Pin WPL 8527330 Contact Us For Availability
5
Clip, Fan Blade WPL 8526654 Contact Us For Availability
5
Clip, Light WPL 8526371 Contact Us For Availability
5
Cabinet, Bottom WPL 8527204 Contact Us For Availability
5
Door Cam WPL 8527167 Contact Us For Availability
6
Compressor (Includes Foam Baffle) WPL 8526328 Contact Us For Availability
6
Pant Hanger WPL 8526378 Contact Us For Availability
6
SCREW WPL 8526391 Contact Us For Availability
6
Hinge, Bottom Left WPL 8527161 Contact Us For Availability
7
Fan Blade (Includes No. 5) WPL 8526434 Contact Us For Availability
7
Garment Hanger WPL 8526641 Contact Us For Availability
7
Washer WPL 8526294 Contact Us For Availability
8
Extender, Hanger WPL 8526358 Contact Us For Availability
8
Grommet, Power Cord WPL 8526352 Contact Us For Availability
8
Strike Plate WPL 8527339 Contact Us For Availability
9
Compressor Mount WPL 8526327 Contact Us For Availability
9
Stretcher, Sleeve WPL 8526398 Contact Us For Availability
9
Top, Cabinet (White) WPL 8527251 Contact Us For Availability
9
Top, Cabinet (Biscuit) WPL 8527253 Contact Us For Availability
9
Plug, Door Liner WPL 8527259 Contact Us For Availability
10
Isolator WPL 8283536 Contact Us For Availability
10
Body Shaper WPL 8526301 Contact Us For Availability
10
Bolt, 1/4 x 2 WPL 8526293 Contact Us For Availability
11
Closet Adapter WPL 8526326 Contact Us For Availability
11
Hinge, Top Right WPL 8527127 Contact Us For Availability
11
Right Door Assembly (White) WPL 8527106 Contact Us For Availability
11
Right Door Assembly (Biscuit) WPL 8527183 Contact Us For Availability
12
Grill, Sump WPL 8526403 Contact Us For Availability
12
Band, EDPM WPL 8526554 Contact Us For Availability
12
Childrens Hanger WPL 8526322 Contact Us For Availability
12
Hinge, Top Left WPL 8527128 Contact Us For Availability
12
Hinge, Bottom Right WPL 8527160 Contact Us For Availability
13
Base, Circulation Nozzle WPL 8526300 Contact Us For Availability
13
Control Board WPL 8526329 Contact Us For Availability
13
Placket Clip Assembly WPL 8526379 Contact Us For Availability
13
Hinge Assembly, Bottom Right WPL 8527129 Contact Us For Availability
14
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
14
Insert, End Cap WPL 8527269 Contact Us For Availability
14
Clip, Control Board (2) WPL 8526330 Contact Us For Availability
14
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
14
Weight Pack WPL 4396215 Contact Us For Availability
14
Filter Pack Storage Drawer WPL 4396216 Contact Us For Availability
14
Versa-Pak WPL 4396280 Contact Us For Availability
14
Combo-Pak WPL 4396281 Contact Us For Availability
14
Performa-Pak WPL 8171480 Contact Us For Availability
14
Presiva-Crisp WPL 8171634 Contact Us For Availability
14
Presiva-Soft WPL 8171635 Contact Us For Availability
14
Strap, Sleeve Stretcher WPL 8526627 Contact Us For Availability
14
White WPL 8527309 Contact Us For Availability
14
Biscuit WPL 8527310 Contact Us For Availability
14
Hinge Assembly, Bottom Left WPL 8527130 Contact Us For Availability
15
SCREW WPL 8526582 Contact Us For Availability
16
Plug, Vent (2) WPL 8527343 Contact Us For Availability
16
Wax Motor WPL 8526418 Contact Us For Availability
17
Link, Wax Motor WPL 8526420 Contact Us For Availability
17
Nut, Nylon WPL 8527275 Contact Us For Availability
18
COVER WPL 8526332 Contact Us For Availability
19
Fluid Nozzle WPL 8526624 Contact Us For Availability
19
Mount, Wax Motor WPL 8526419 Contact Us For Availability
19
Hose, Compressor To Tee Fitting WPL 8526362 Contact Us For Availability
20
Airdock Assembly WPL 8526298 Contact Us For Availability
20
Grommet WPL 8526351 Contact Us For Availability
20
Hose, Compressor to Inlet WPL 8526361 Contact Us For Availability
21
Siphon Tube WPL 8526397 Contact Us For Availability
21
Grommet (2 Inches) WPL 8526350 Contact Us For Availability
22
Fluid Filter WPL 8526344 Contact Us For Availability
22
Fan Motor WPL 8526342 Contact Us For Availability
23
Base, Airdock WPL 8526296 Contact Us For Availability
23
SCREW WPL 8526384 Contact Us For Availability
23
Hose, To Circulation Nozzle WPL 8526363 Contact Us For Availability
24
AIRDOCK WPL 8526295 Contact Us For Availability
24
Ground Screw WPL 8526396 Contact Us For Availability
24
Tee Fitting WPL 8526405 Contact Us For Availability
25
Spring WPL 8526399 Contact Us For Availability
25
Interlock Switch WPL 8527196 Contact Us For Availability
25
Hose, Tee Fitting To Airdock WPL 8526558 Contact Us For Availability
26
Air Fitting WPL 8526299 Contact Us For Availability
26
BUZZER WPL 8526302 Contact Us For Availability
27
SCREW WPL 8526387 Contact Us For Availability
27
THERMISTOR WPL 8526406 Contact Us For Availability
28
Gasket WPL 8526297 Contact Us For Availability
28
Control Panel (White) WPL 8527249 Contact Us For Availability
28
Control Panel (Biscuit) WPL 8527250 Contact Us For Availability
28
Cam, Hinge WPL 8527145 Contact Us For Availability
29
Cartridge WPL 8526317 Contact Us For Availability
29
Wire Harness WPL 8318160 Contact Us For Availability
29
Screw, 8-32 x 3/4 WPL 8281268 Contact Us For Availability
30
O-Ring WPL 8526377 Contact Us For Availability
30
SCREW WPL 8526386 Contact Us For Availability
31
Fill Cap WPL 8526343 Contact Us For Availability
32
Cartridge Insert WPL 8526319 Contact Us For Availability
32
Tubing, Grommet WPL 8526412 Contact Us For Availability
32
Grille (White) WPL 8527263 Contact Us For Availability
32
Grille (Biscuit) WPL 8527264 Contact Us For Availability
33
Cartridge Assembly WPL 8526318 Contact Us For Availability
33
Horizontal (2) WPL 8527152 Contact Us For Availability
33
Vertical (2) WPL 8527153 Contact Us For Availability
33
Grommet, Wire WPL 8526353 Contact Us For Availability
33
Power Cord WPL 8526421 Contact Us For Availability
34
Badge, Assembly WPL 8529540 Contact Us For Availability
34
Strain Relief WPL 8526401 Contact Us For Availability
35
Gasket, Switch WPL 8527346 Contact Us For Availability
35
Magnet Assembly WPL 8527202 Contact Us For Availability
36
Wiper, Switch WPL 8527347 Contact Us For Availability
36
Pad, Cabinet Leveling WPL 8527268 Contact Us For Availability
36
Bracket, Wall Mount WPL 8527300 Contact Us For Availability
× ![]()
