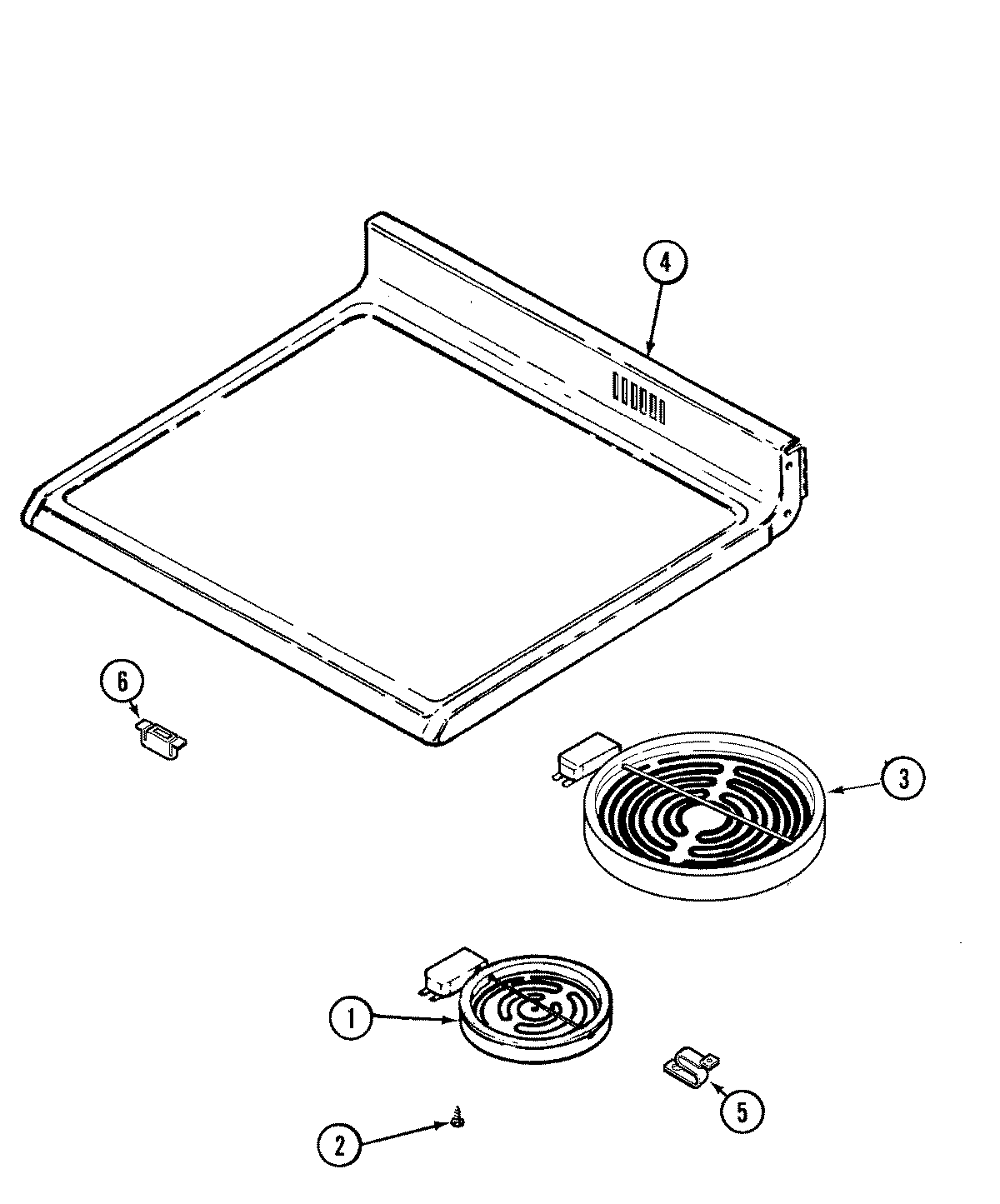

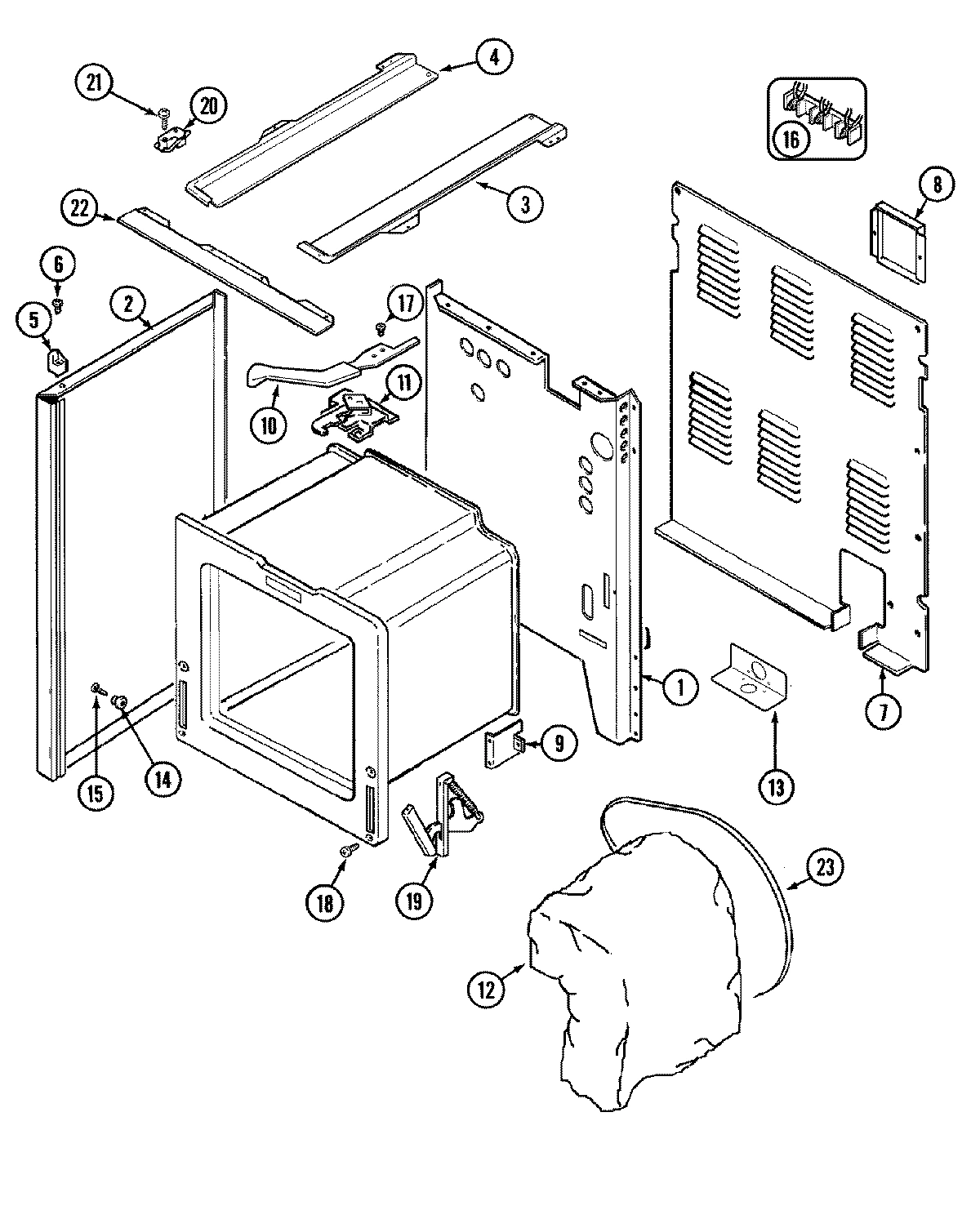

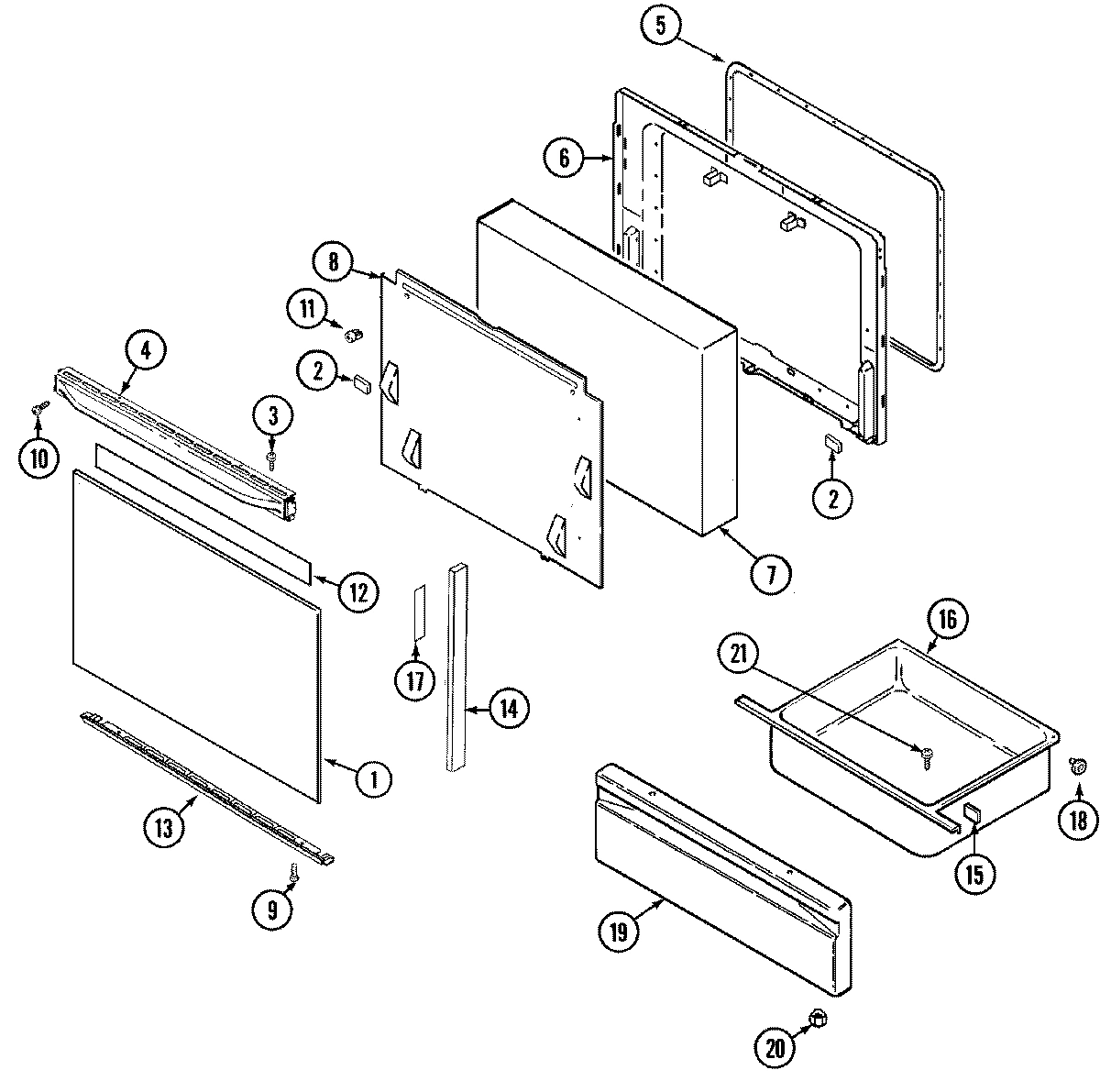

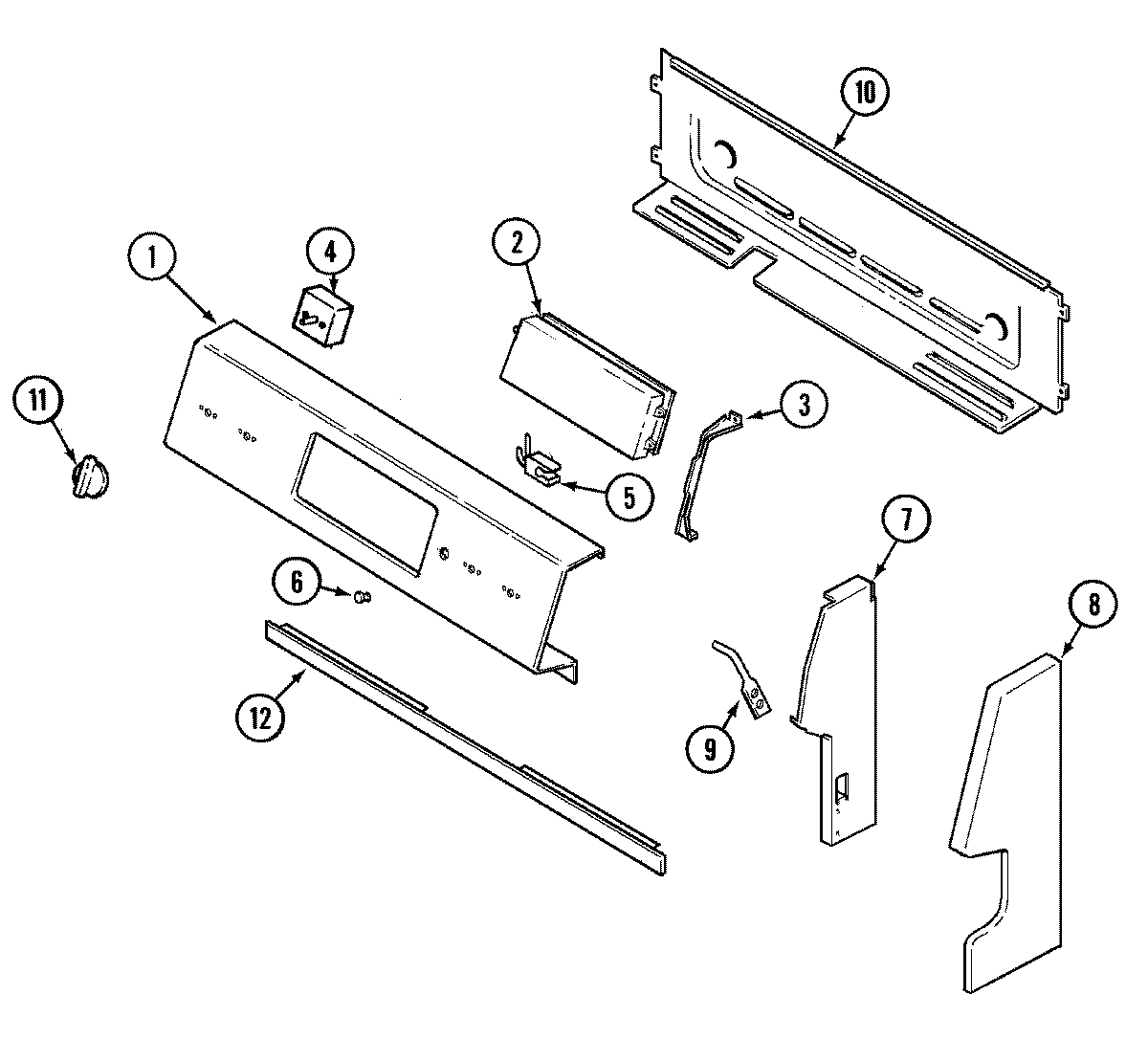

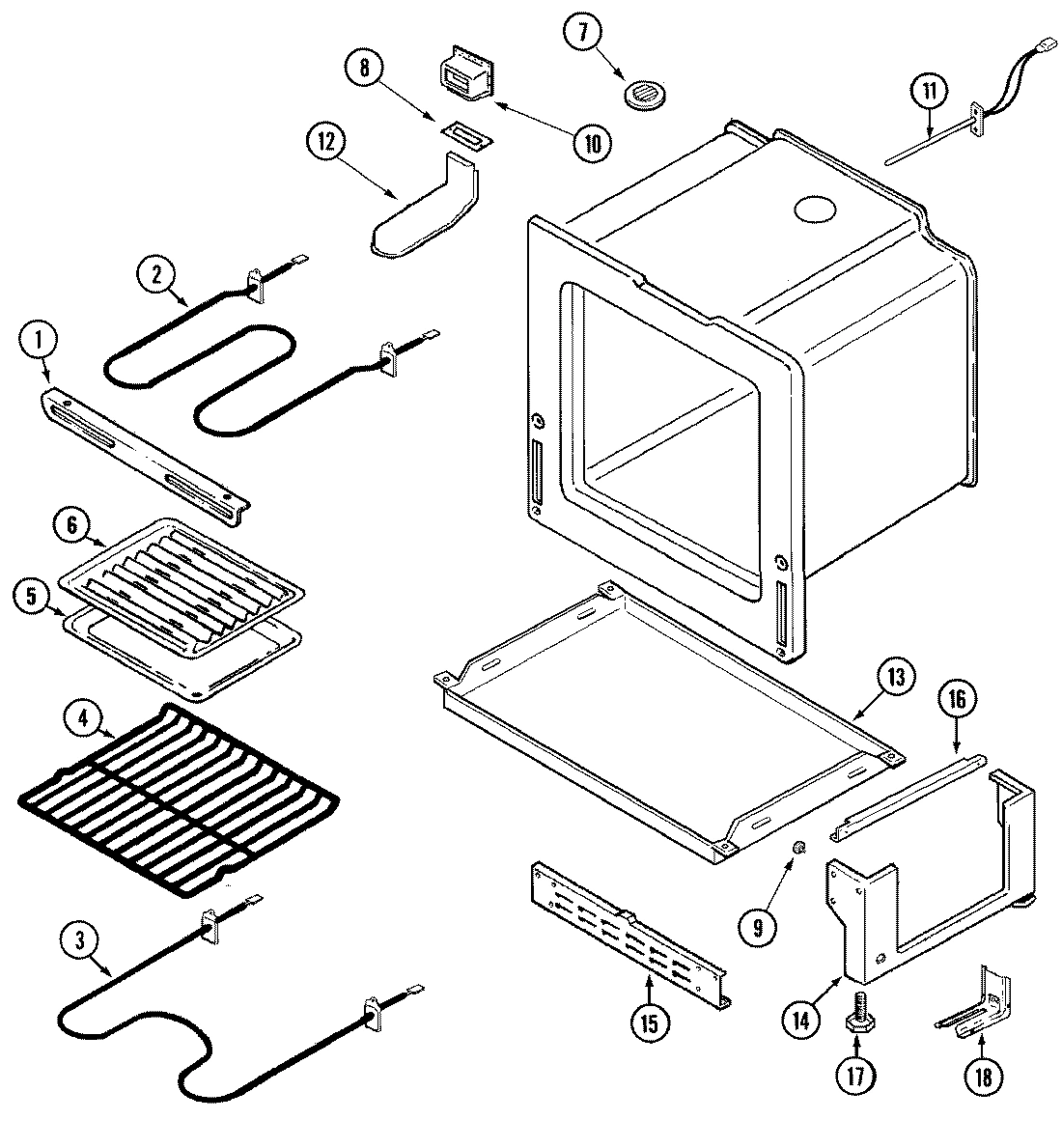

Model Whirlpool PER5702BAH ELECTRIC RANGE – Common Parts &amp; Diagrams

1

GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability

1

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

1

PANEL, CONTROL (BLK) WPL 74006365 Contact Us For Availability

2

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

2

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

2

CLOCK W/OVERLAY (BLK) WPL 74006235 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

3

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

3

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

3

BRACKET, CLOCK WPL 74004913 Contact Us For Availability

4

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

4

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

4

HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability

4

PAD, SPONGE (NON ABRASIVE) WPL 20001100 Contact Us For Availability

4

TOP, MAIN (WHT) WPL 74006485 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

5

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

5

LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability

6

LINING, DOOR WPL 74003245 Contact Us For Availability

6

INDICATOR, LIGHT WPL 74006388 Contact Us For Availability

6

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

6

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

7

INSULATION, DOOR WPL 74001842 Contact Us For Availability

7

SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability

7

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

7

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

8

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

8

BAFFLE, DOOR SOLID WPL 3601F21851 Contact Us For Availability

8

GASKET, VENT WPL 74003285 Contact Us For Availability

8

SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability

8

END CAP, CONTROL PNL (RT-BLK) WPL 74003367 Contact Us For Availability

8

END CAP, CONTROL PNL (LT-BLK) WPL 74003368 Contact Us For Availability

9

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

9

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

9

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

9

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

9

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

10

LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability

10

EXTENSION, VENT WPL 3826W01445 Contact Us For Availability

10

HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

DOOR LATCH KIT WPL 12001944 Contact Us For Availability

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability

LATCH, DOOR WPL 74003380 Contact Us For Availability

NUT, NYLON WPL 7103P04560 Contact Us For Availability

KNOB, INFINITE SWITCH (BLK) WPL 74003427 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74005771 Contact Us For Availability

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability

HARNESS, SENSOR/LOCK WPL 74003468 Contact Us For Availability

HARNESS, BCKGRD/TOP WPL 74004914 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

MANUAL, USE & CARE WPL 74005905 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

17

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

17

TAPE WPL 74004075 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

SCREW WPL 7101P11260 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

19

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $91.57

19

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

20

SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability

20

INSULATOR, SWITCH WPL 74003630 Contact Us For Availability

20

NUT, SNAP WPL 790309 Contact Us For Availability

21

SCREW WPL 912012 Contact Us For Availability

21

SCREW WPL 7101P07260 Contact Us For Availability

22

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

23

STRAP, INSULATION WPL 74003385 Contact Us For Availability

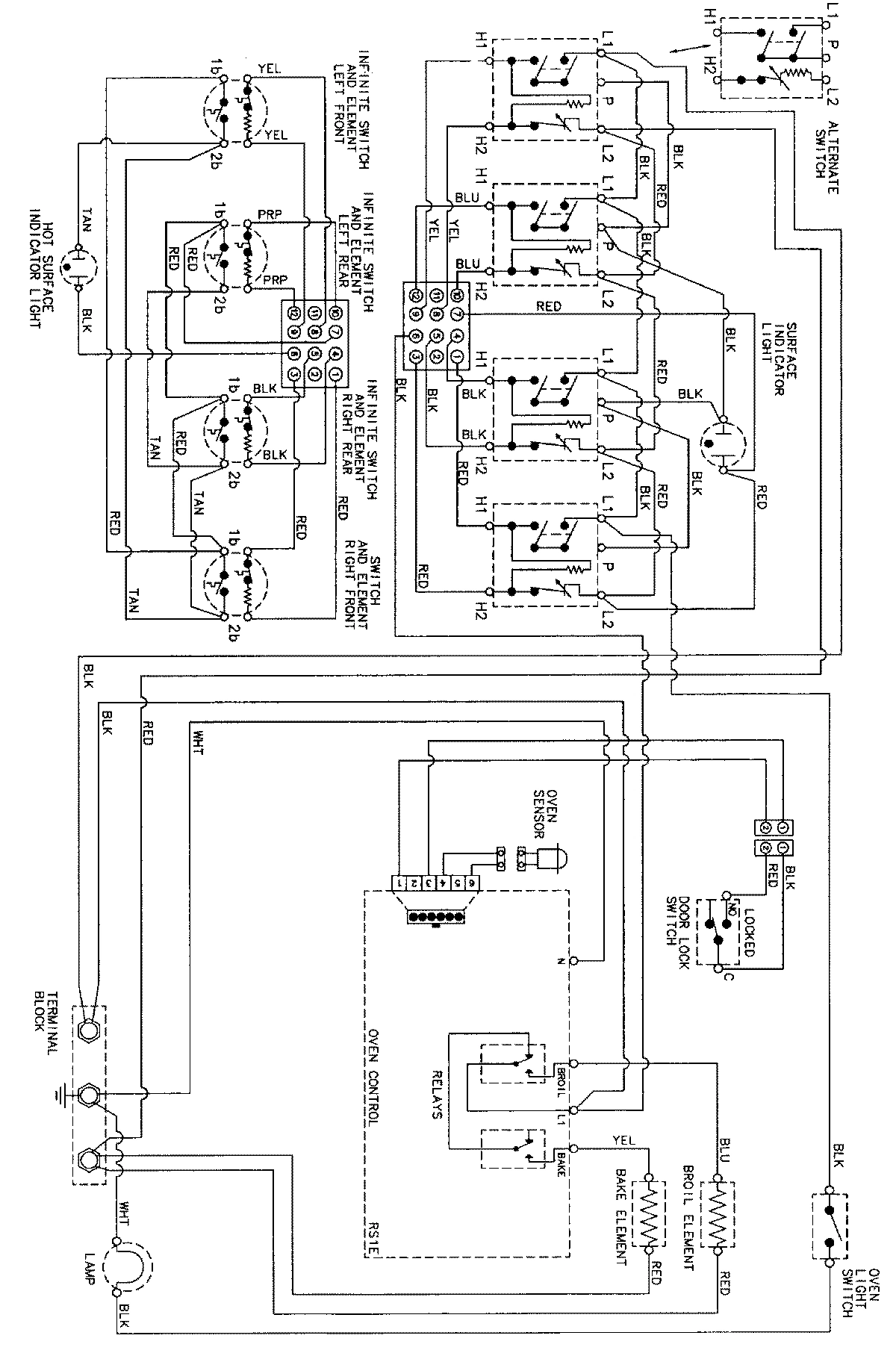

NI

WIRING INFORMATION WPL 15002273 Contact Us For Availability
