Model Whirlpool PBF1951KEW REFRIGERATOR – Common Parts &amp; Diagrams

1

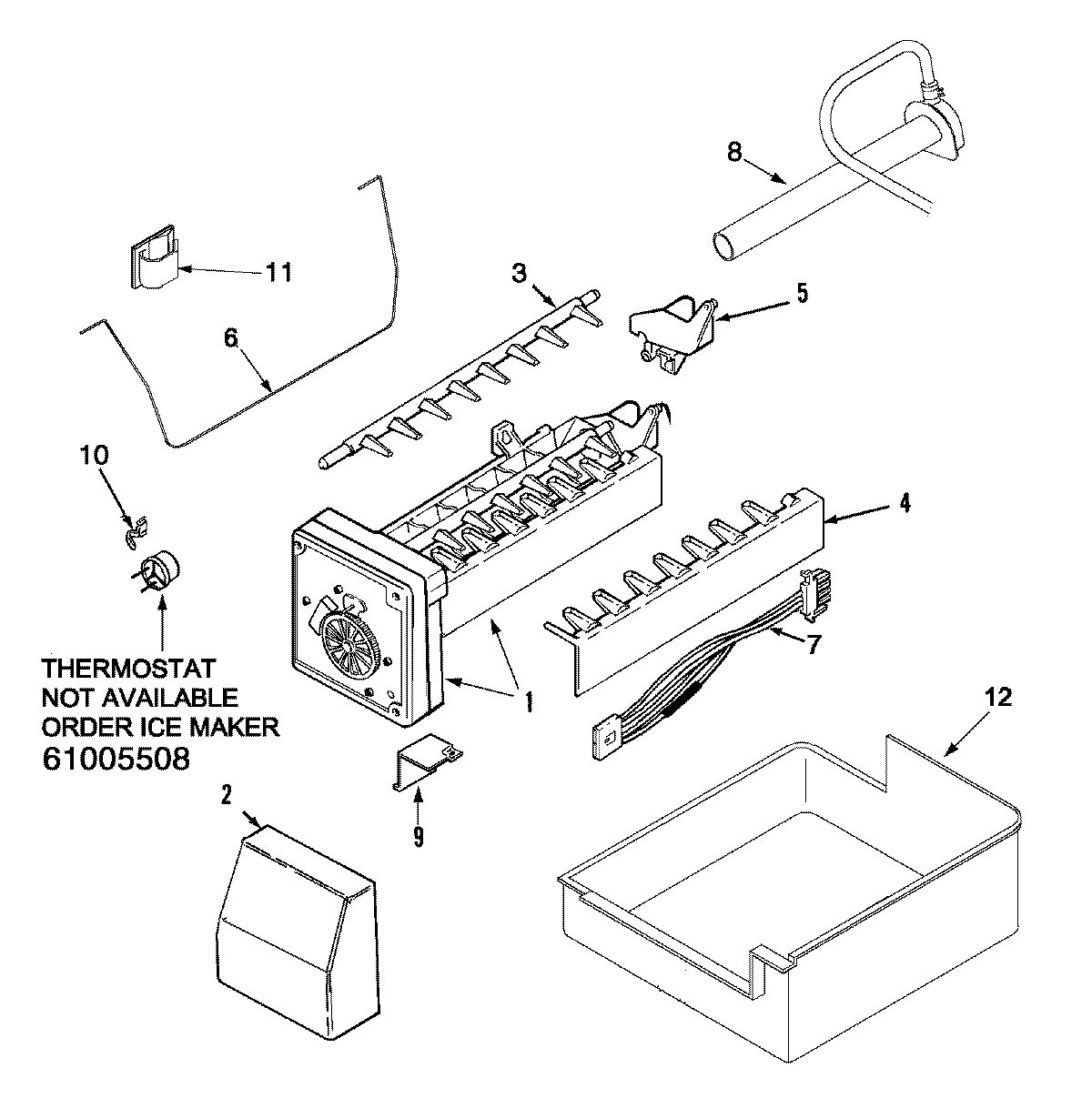

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

1

W10840992 Whirlpool Refrigerator Shelf Frame Backorder WPL W10840992 $154.26

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $67.88

1

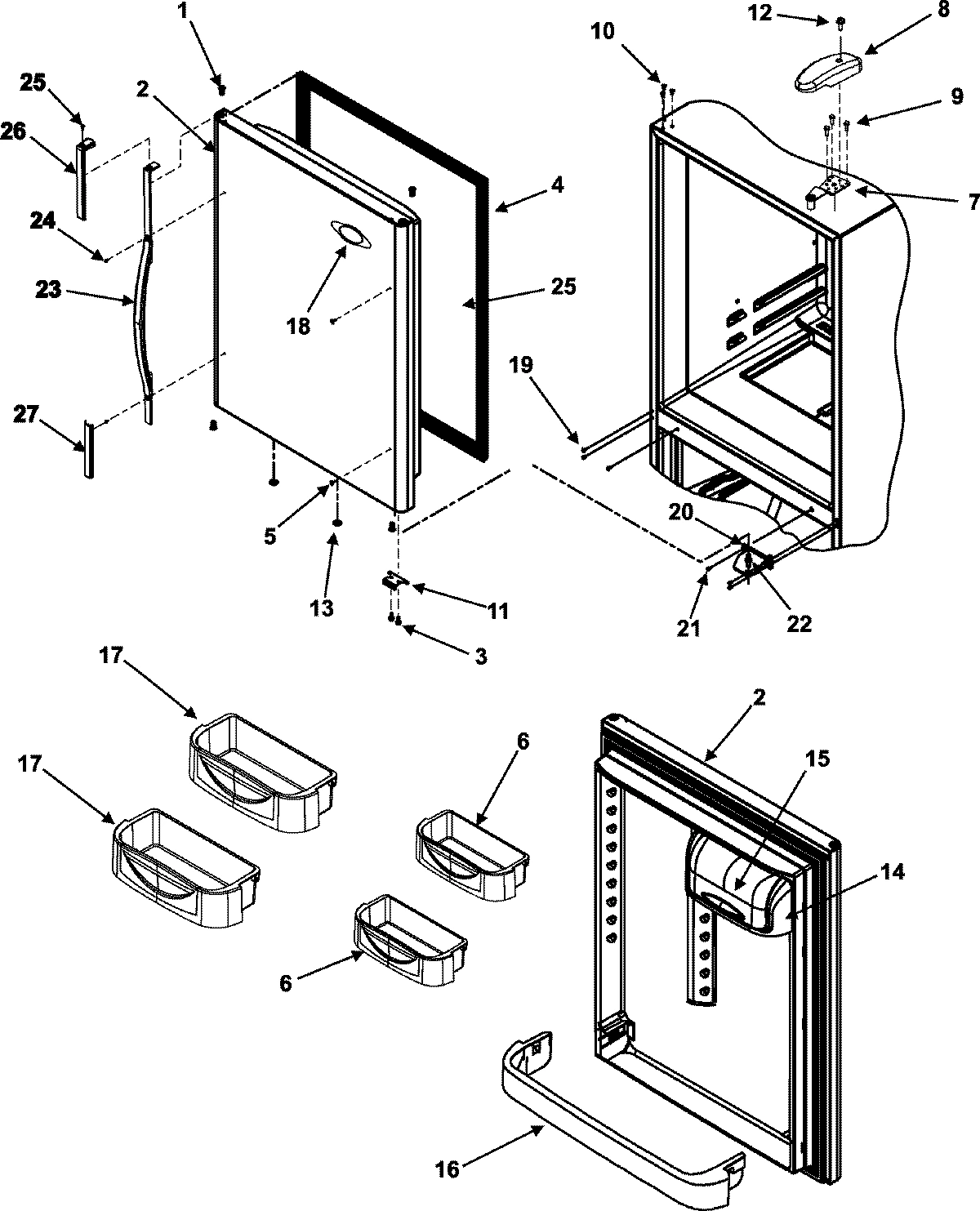

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.82

1

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $39.08

1

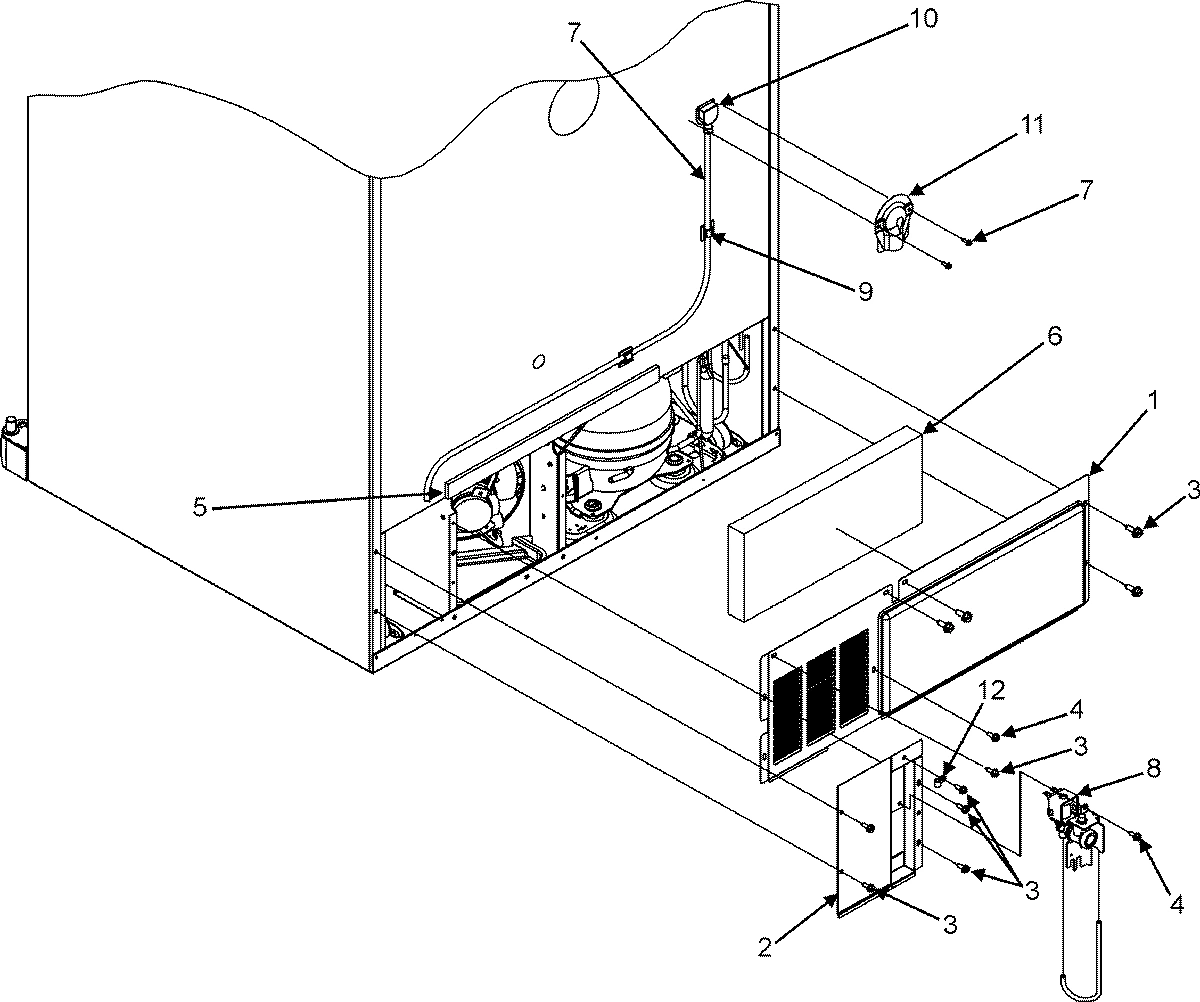

COVER, MC BACK WPL 67006101 Contact Us For Availability

1

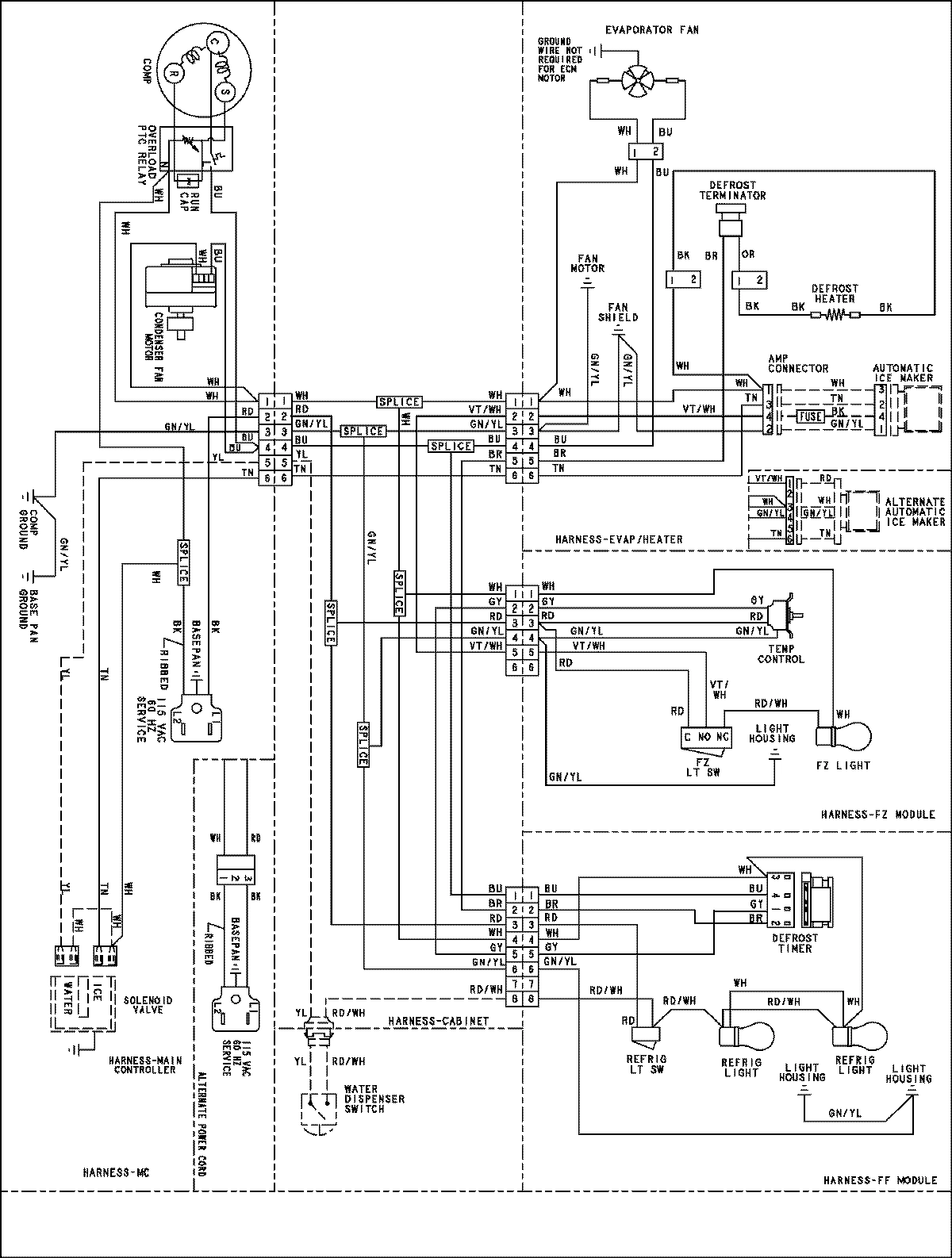

WIRE DIAGRAM WPL 15003953 Contact Us For Availability

2

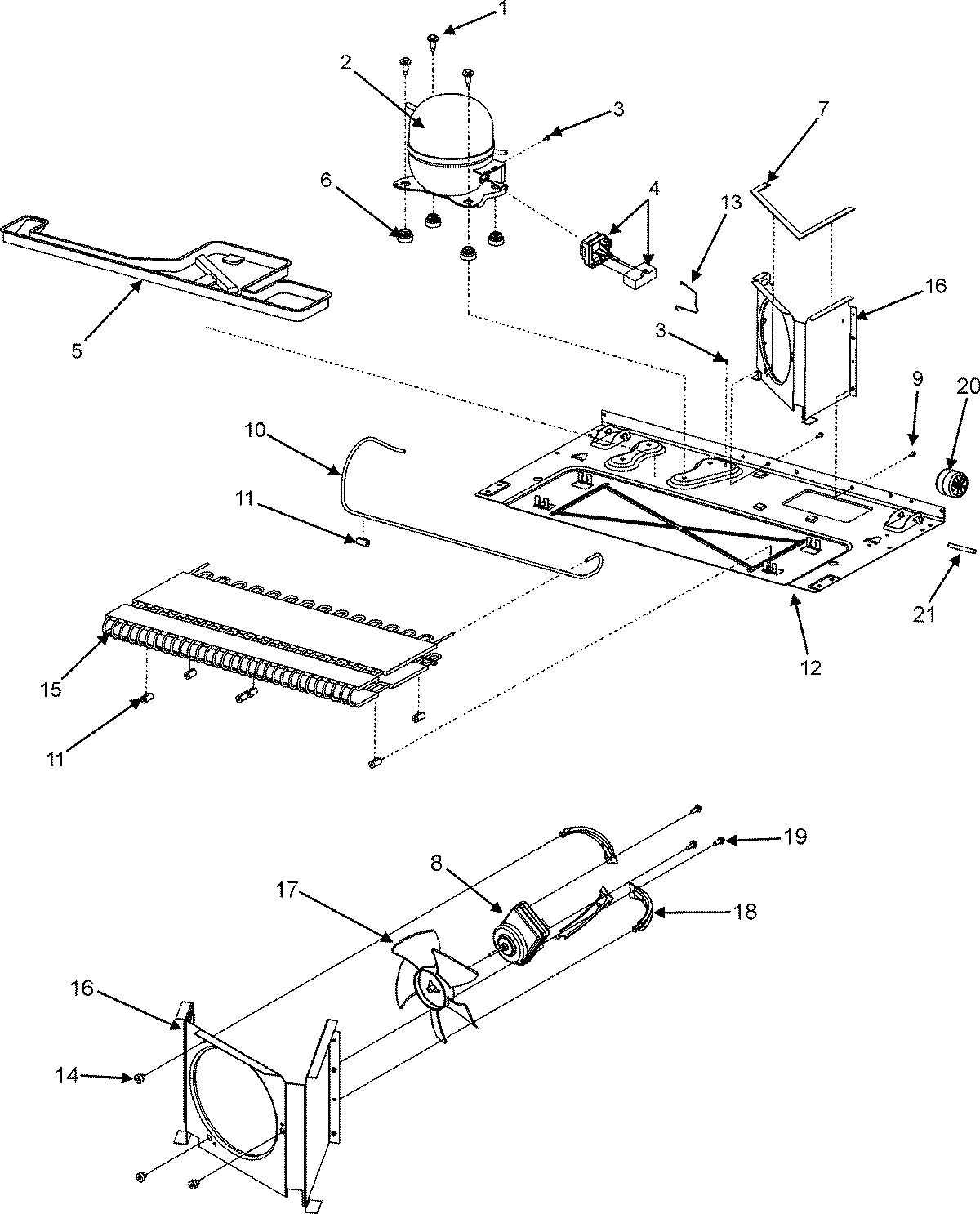

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $428.79

2

W11337775 Whirlpool Drip Tray Backorder WPL W11337775 $68.10

2

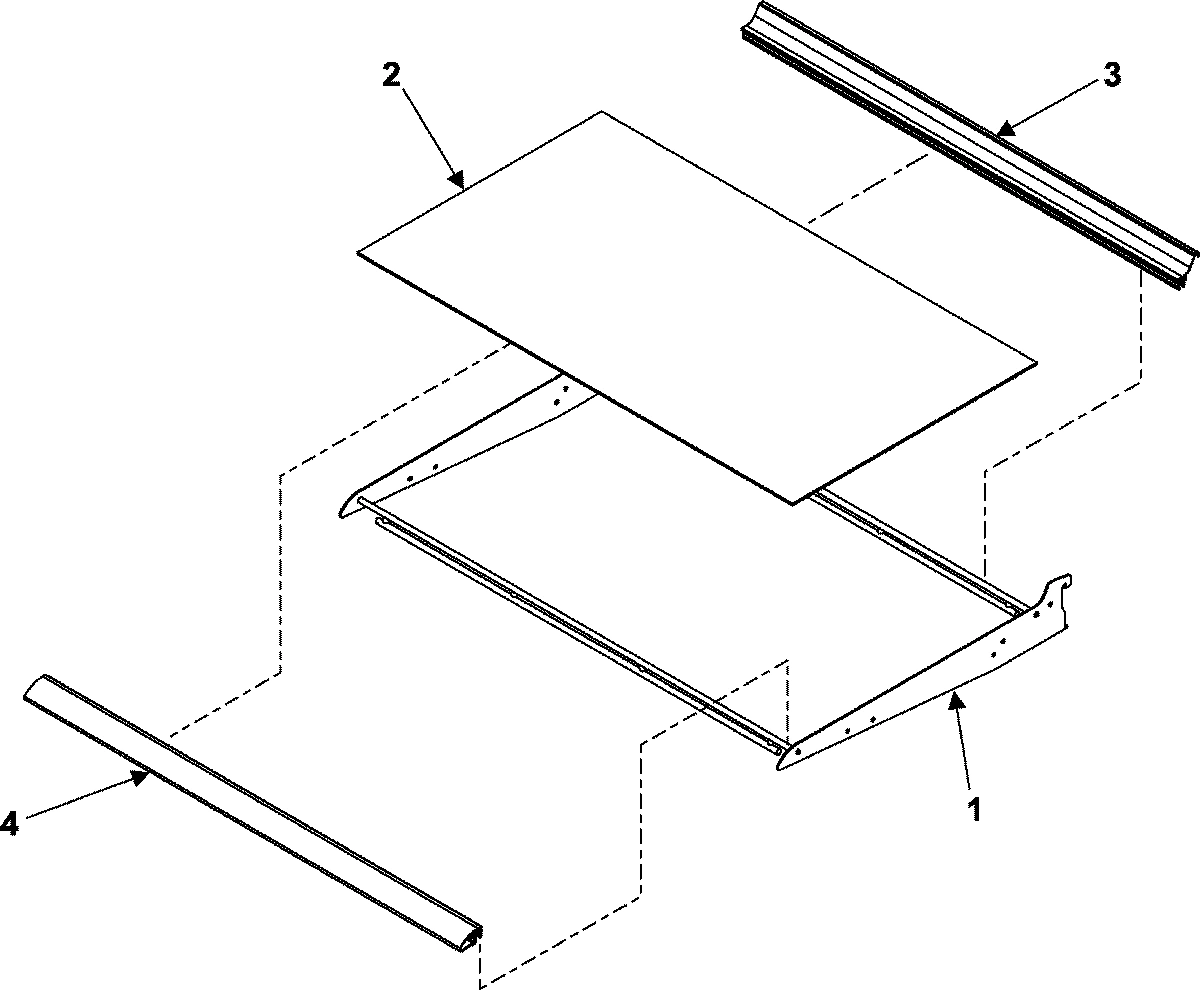

WP12204809 Whirlpool Refrigerator Glass Shelf Backorder WPL WP12204809 $167.04

2

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

2

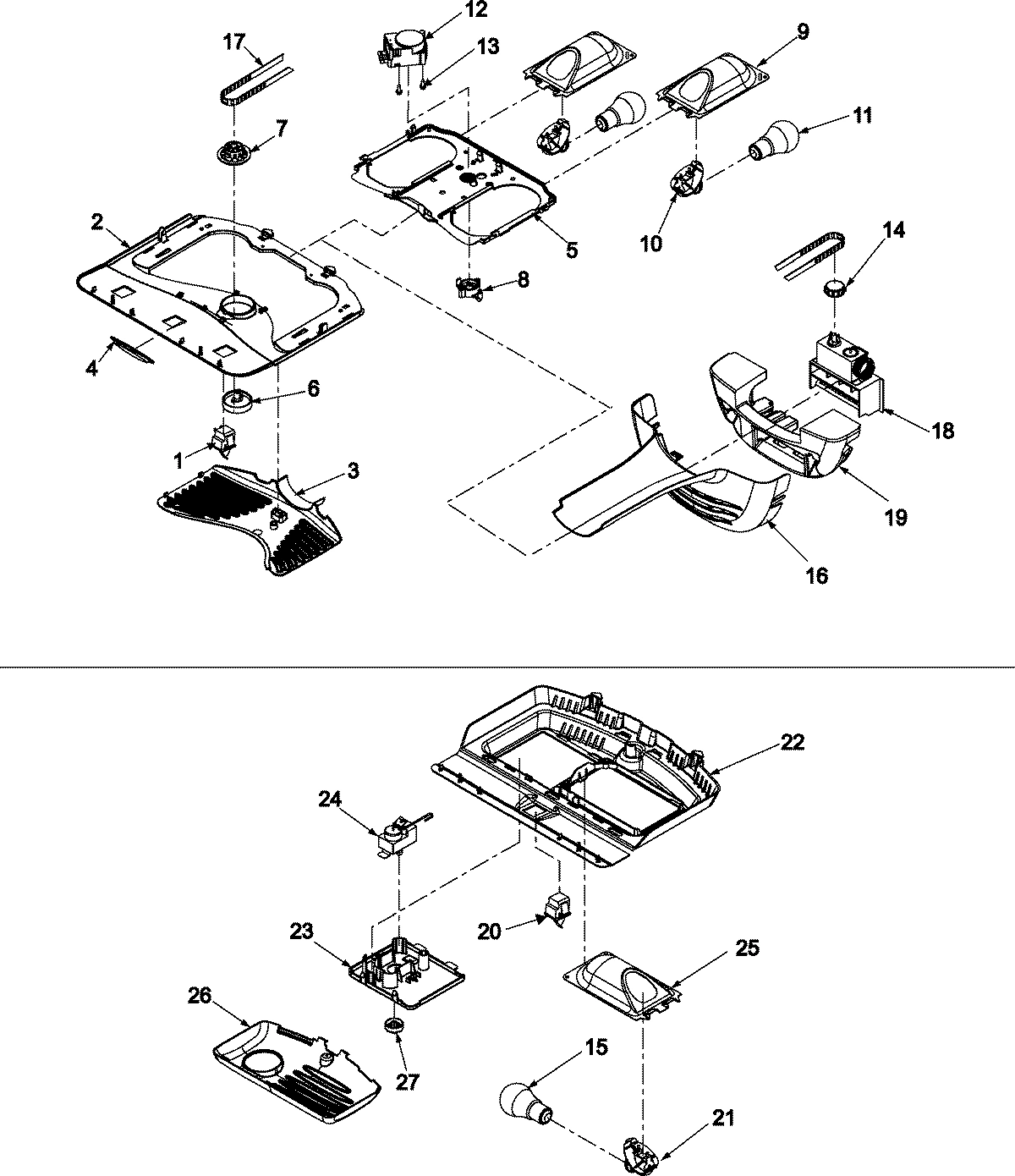

MODULE, LIGHT WPL 67002083 Contact Us For Availability

2

COVER, WATER VALVE WPL 67001173 Contact Us For Availability

2

REF DR FOAM ASSY (WHT) WPL 67001138 Contact Us For Availability

3

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

3

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

3

WP10946013 Whirlpool Refrigerator Shelf Trim Backorder WPL WP10946013 $87.64

3

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

3

COVER, REF LIGHT WPL 67002301 Contact Us For Availability

3

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

4

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $57.90

4

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

4

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

4

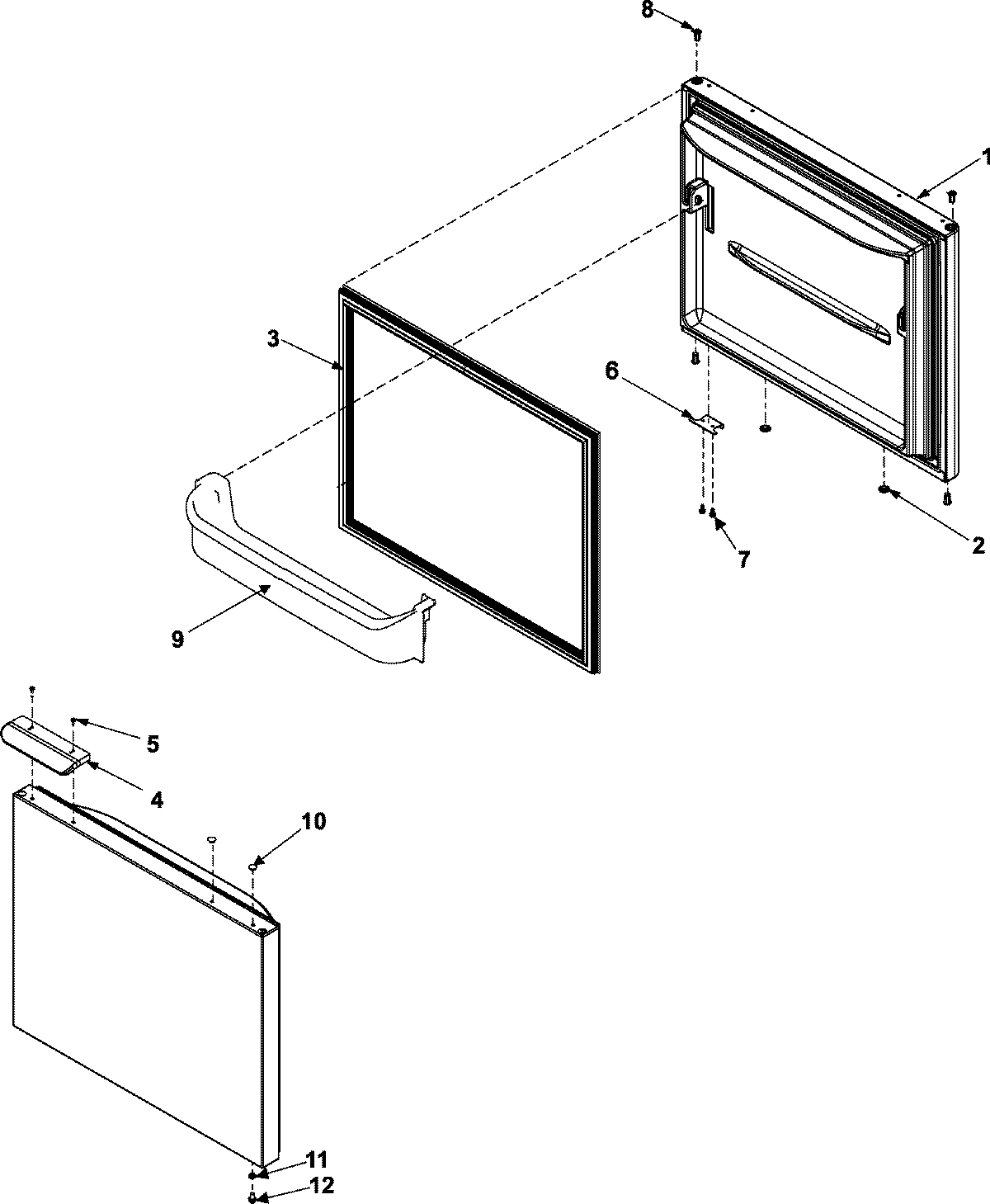

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $154.86

4

COVER, LWR HINGE (WHT) WPL 12561901W Contact Us For Availability

4

EXTR, FULL SHELF (FRT) WPL 10459931 Contact Us For Availability

4

LOGO-MAYTAG LIGHT WPL 12694308 Contact Us For Availability

4

COVER, EVAP 30`` WPL 67005868 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

5

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $13.22

5

A3189394 Whirlpool Refrigerator Gasket Backorder WPL A3189394 $17.61

5

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $4.82

5

INLET, WATER WPL 951001 Contact Us For Availability

5

GASKET, MC BACK WPL B5759649 Contact Us For Availability

5

PAN, DRAIN WPL 67004713 Contact Us For Availability

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $40.55

6

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

6

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

6

KNOB, FRONT DAMPER WPL 67002512 Contact Us For Availability

6

TUBE, DRAIN WPL 67001066 Contact Us For Availability

6

BUCKET, REF DR (SMALL) WPL 67001140 Contact Us For Availability

7

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $6.54

7

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

7

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

7

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $37.15

7

KNOB, GEAR WPL 67001033 Contact Us For Availability

7

ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability

8

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $14.02

8

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

8

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $76.87

8

TENSIONER, BELT WPL 67001034 Contact Us For Availability

8

MOTOR, CONDENSER FAN WPL 67004432 Contact Us For Availability

9

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

9

SCREW WPL 67006491 Contact Us For Availability

9

SCREW WPL 67006573 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $59.65

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

SCREW WPL 67006608 Contact Us For Availability

CLIP, DRIER WPL 10547002 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

TUBE, DISCHARGE WPL 67004203 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $12.01

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.61

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

DIVIDER, BASKET (UPPER) WPL 67004127 Contact Us For Availability

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $7.06

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.78

WP67001036 Whirlpool Refrigerator Defrost Tim In Stock WPL WP67001036 $109.98

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

KIT, EVAPORATOR WPL 12002051 Contact Us For Availability

BASEPAN WPL 67006914 Contact Us For Availability

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $26.20

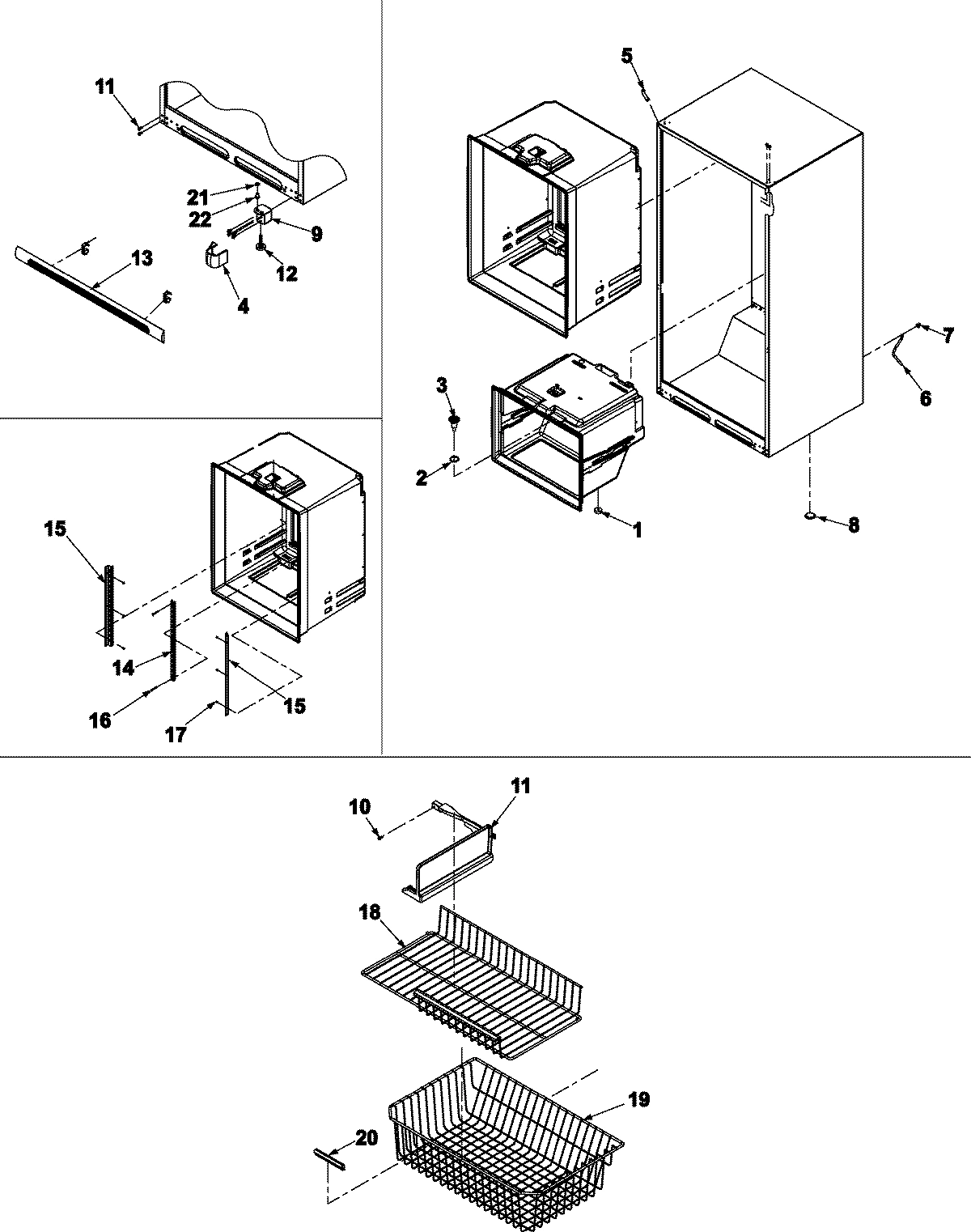

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

TOE GRILLE ASSY (WHT) WPL 67003849 Contact Us For Availability

SCREW, SM WPL 12990514 Contact Us For Availability

DAM, LEFT RETURN WPL 67001083 Contact Us For Availability

STRAP, BALE WPL 12576801 Contact Us For Availability

PLUG, VENT (WHT) WPL 10712401 Contact Us For Availability

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $37.25

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $36.01

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

GEAR, DAMPER WPL 67001037 Contact Us For Availability

DAM, RIGHT RETURN WPL 67001084 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

WP67002135 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67002135 $112.64

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $54.67

LADDER, SIDES WPL 67001302 Contact Us For Availability

CONDENSER WPL 67006133 Contact Us For Availability

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

COVER, DAMPER WPL 67003878 Contact Us For Availability

SHROUD, CONDENSER FAN WPL 67001090 Contact Us For Availability

RETAINER, DOOR WPL 67002505 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $51.80

SHROUD, EVAP FAN WPL 67002777 Contact Us For Availability

BELT, DAMPER WPL 67001040 Contact Us For Availability

BUCKET, REF DR (MED) WPL 67001020 Contact Us For Availability

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $49.60

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $56.72

SHELF, FZ GLIDE 30 BTM WPL 67006231 Contact Us For Availability

CONTROL, DAMPER WPL 67001041 Contact Us For Availability

NAMEPLATE WPL 12759505 Contact Us For Availability

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $5.02

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.82

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $4.82

HANDLE, BASKET/SHELF WPL 10508506 Contact Us For Availability

INSULATION, DAMPER WPL 67003803 Contact Us For Availability

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

WP12754803 Whirlpool Refrigerator Freezer Bas Backorder WPL WP12754803 $172.74

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $4.82

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $14.02

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $4.82

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $8.33

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

67007018 Whirlpool Refrigerator Bottom Hinge Backorder WPL 67007018 $4.82

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.82

WP67006744 Whirlpool Refrigerator Center Pin Backorder WPL WP67006744 $4.82

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $5.02

HARNESS, MC WPL 67005251 Contact Us For Availability

23

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $36.93

23

PANEL, FZ CONTROL MOUNTING WPL 67001045 Contact Us For Availability

23

HANDLE, REF DR (WHT) WPL 67003129 Contact Us For Availability

24

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $33.41

24

WP67003000 Whirlpool Refrigerator Control In Stock WPL WP67003000 $132.35

24

SCREW WPL 67006682 Contact Us For Availability

25

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $6.52

25

HOUSING, LIGHT WPL 67001035 Contact Us For Availability

25

SCREW, HNDL CONE WPL 12248201 Contact Us For Availability

26

COVER, FZ LIGHT WPL 67001285 Contact Us For Availability

26

RIVET WPL M1205302 Contact Us For Availability

26

TRIM, TOP HANDLE (WHT) WPL 67005131 Contact Us For Availability

27

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

27

KNOB, FZ CONTROL WPL 67003420 Contact Us For Availability

27

TRIM, BTM HANDLE (WHT) WPL 67005137 Contact Us For Availability

28

HARNESS, FZ MODULE WPL 12966301 Contact Us For Availability

28

HARNESS, FF MODULE WPL 67001043 Contact Us For Availability

31

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $48.27

32

HARNESS, EVAP HEATER WPL 67003384 Contact Us For Availability
