Model GE NG4819 General Electric Model NG4819 – Common Parts & Diagrams

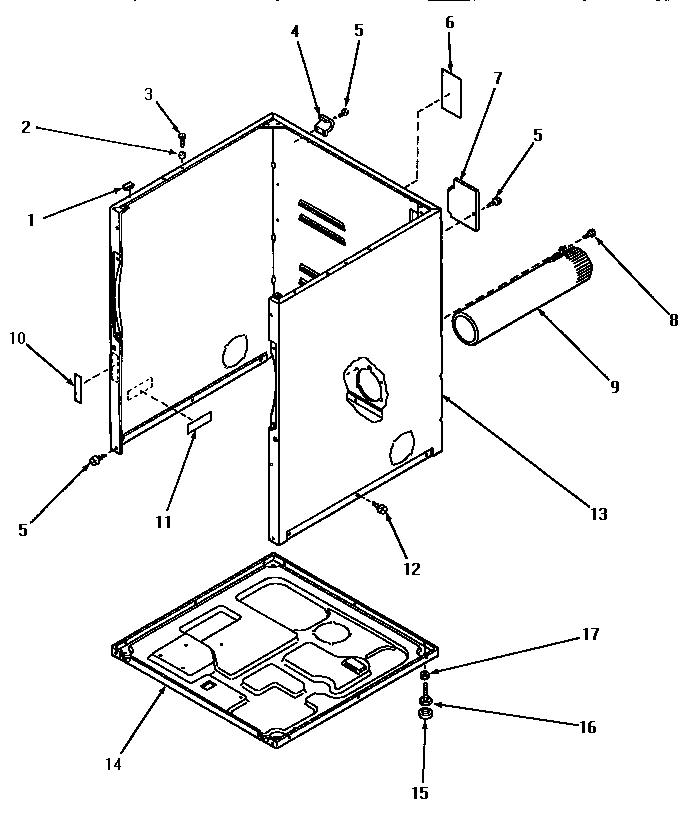

Cabinet, Exhaust Duct and Base

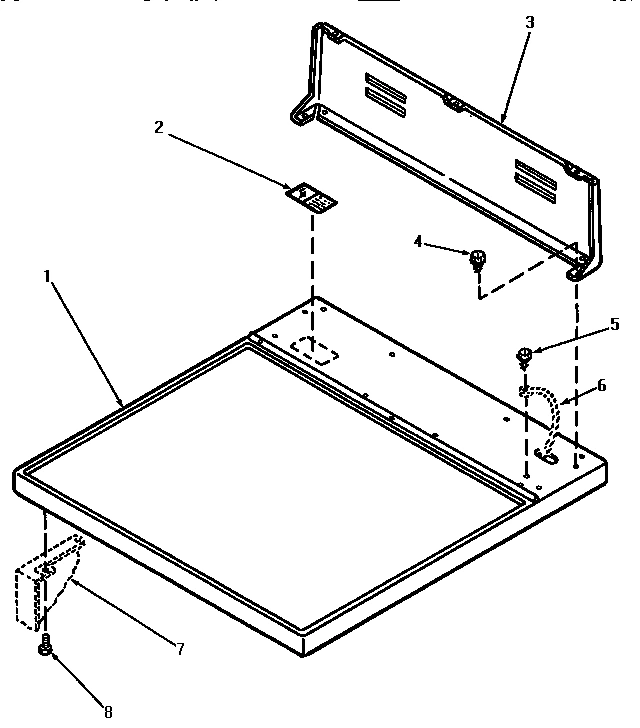

Cabinet Top and Control Hood Rear Panel

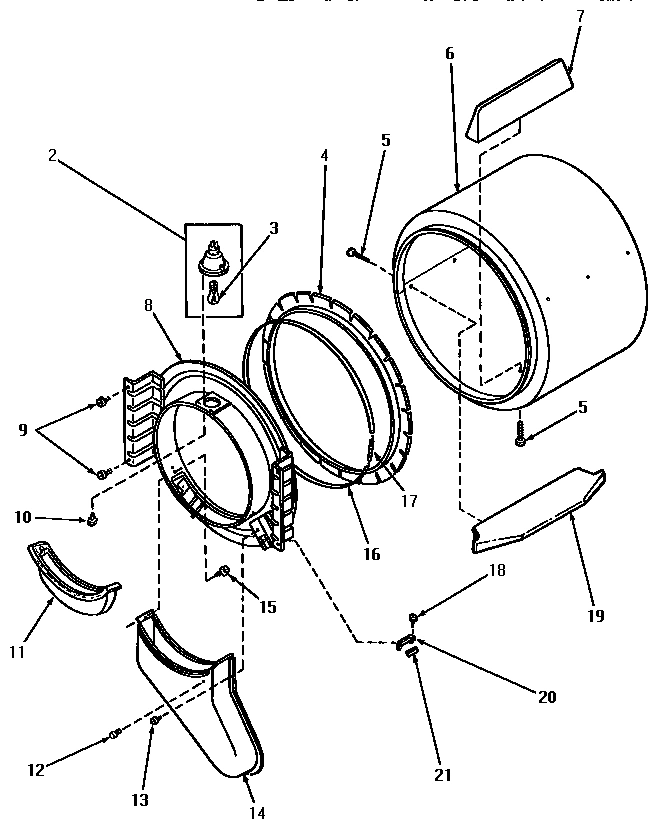

Front Bulkhead, Air Duct, Felt Seal and Cylinder

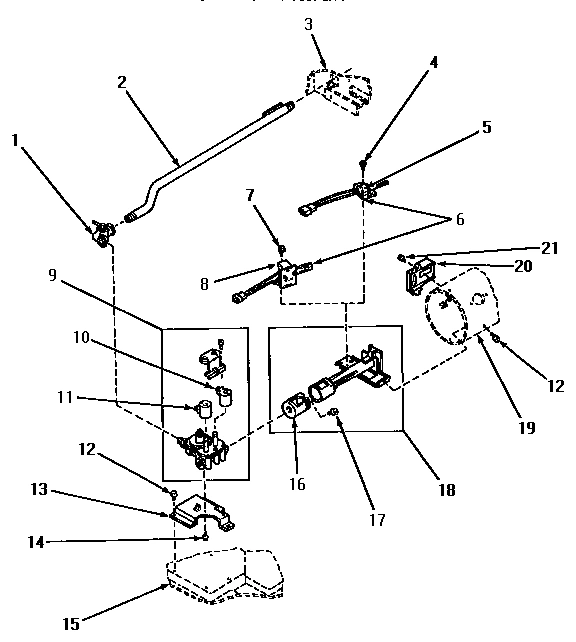

Gas Valve and Igniter

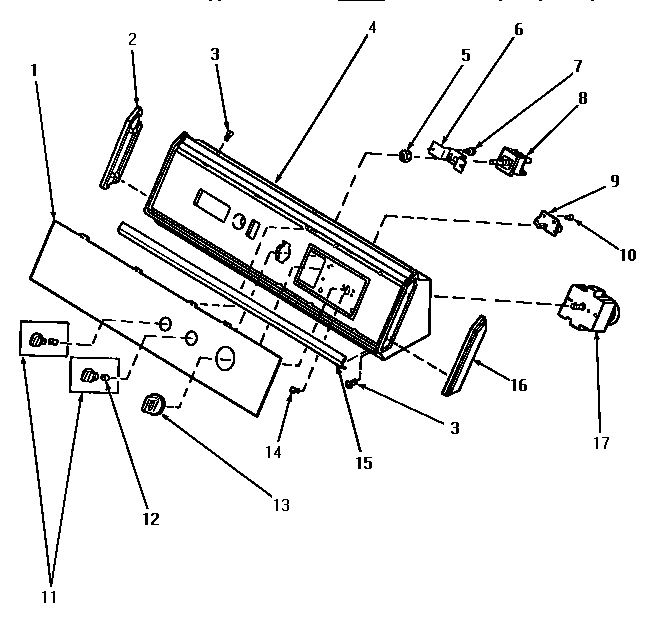

Graphic Panel, Control Hood and Controls (Drawing 4 of 5)

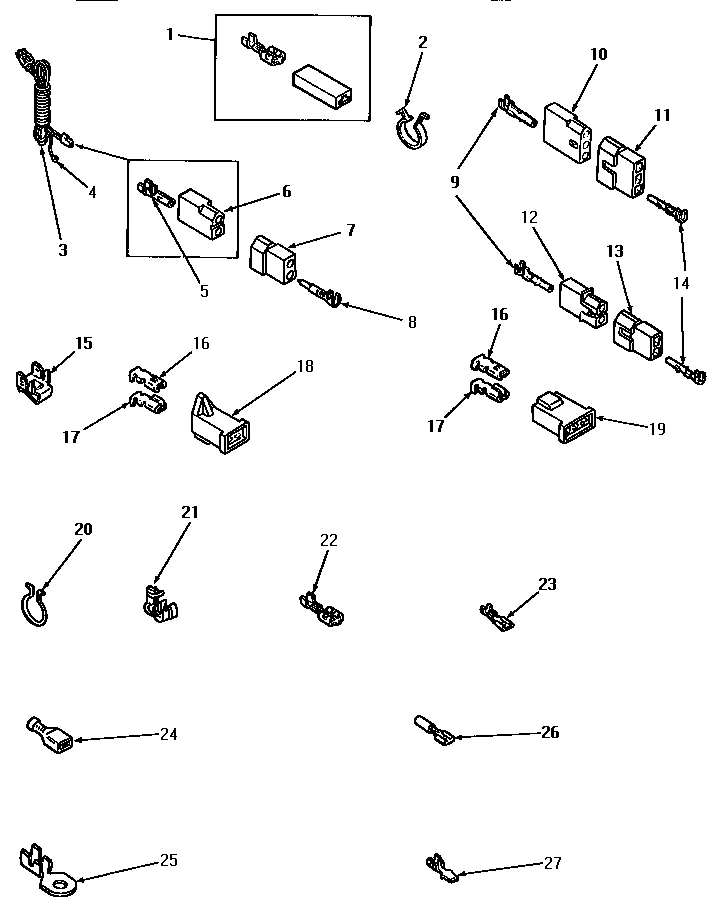

Lead-In Cord and Terminals

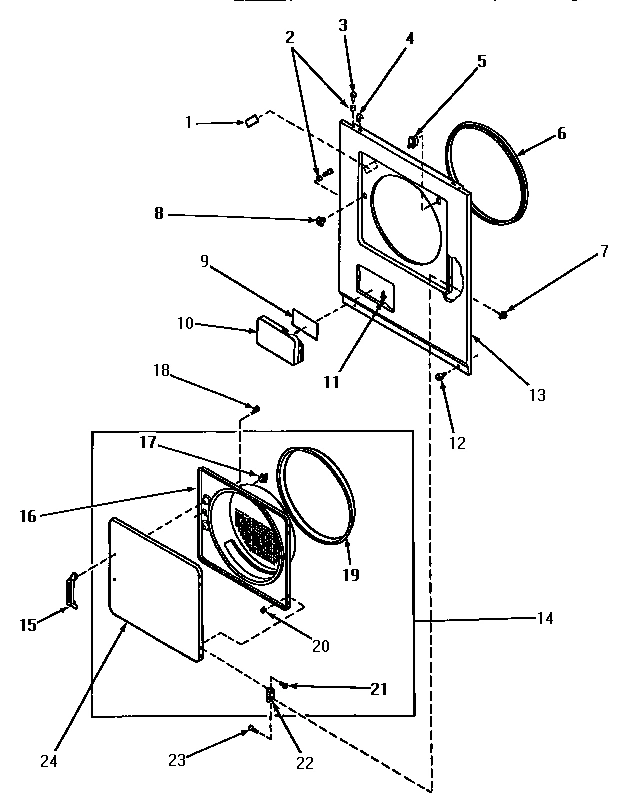

Loading Door, Front Panel and Seals

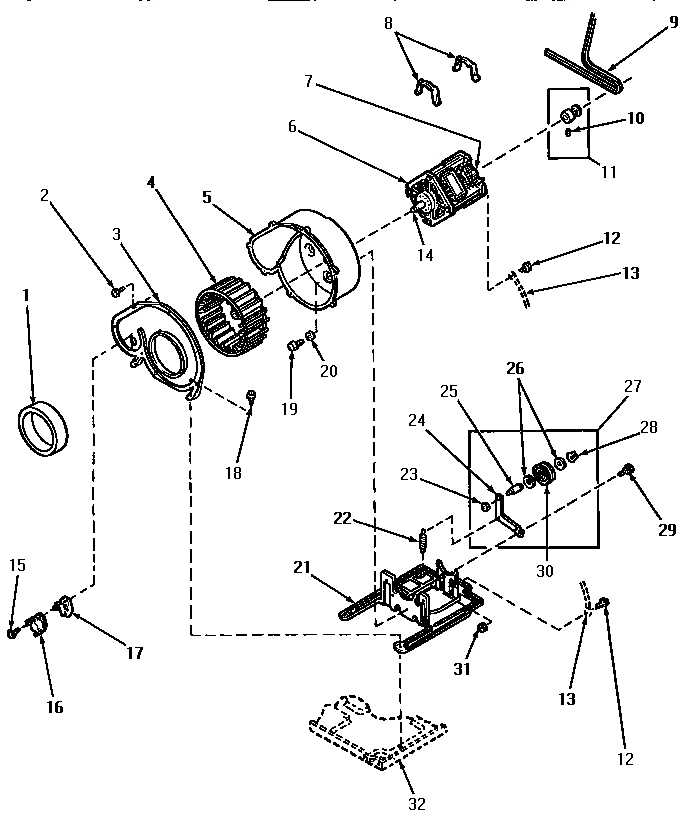

Motor, Exhaust Fan and Belt

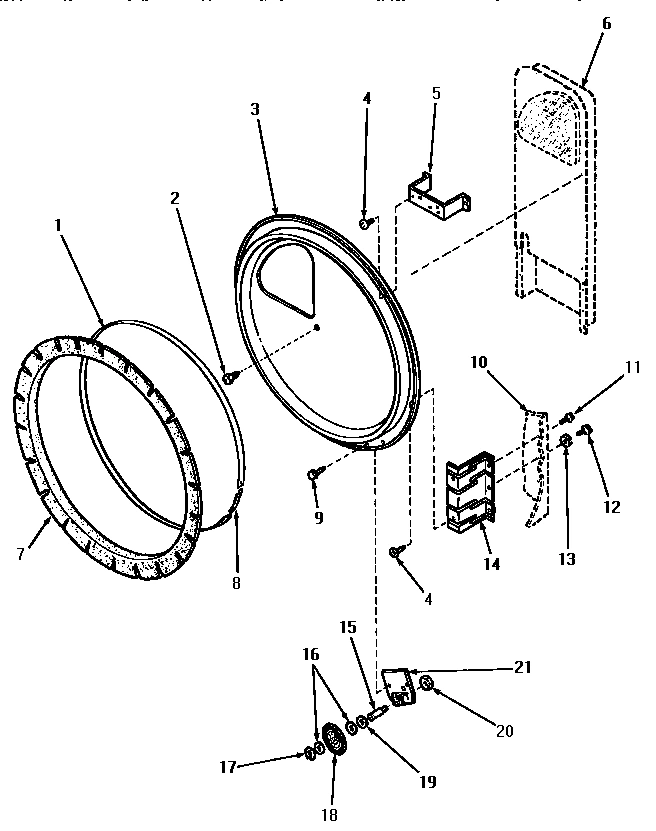

Rear Bulkhead, Felt Seal and Cylinder Roller

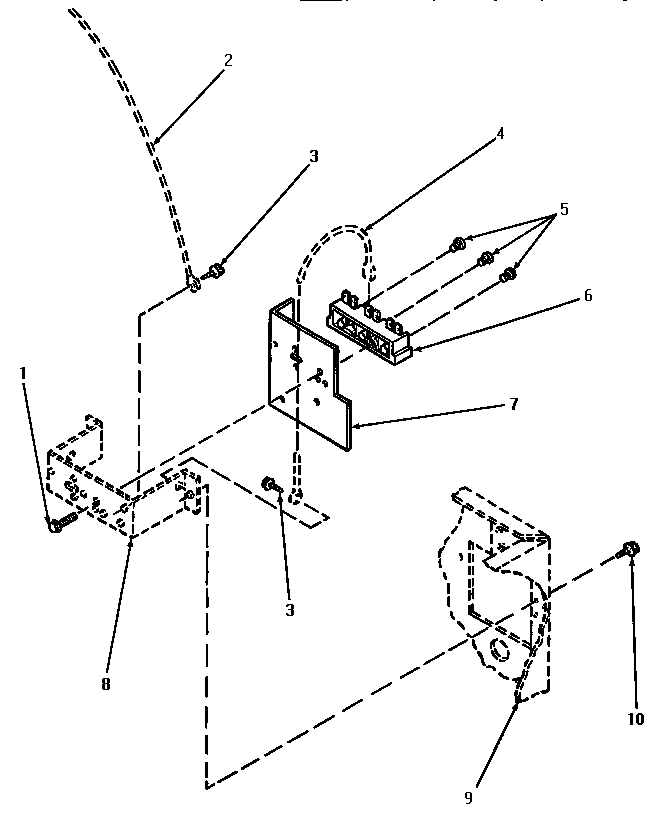

Terminal Block
Common parts from model GE NG4819 General Electric Model NG4819
1
Bumper Pad GEN 56128 Contact Us For Availability
1
Top Panel Kit (Comment: Almond) GEN D510029LP Contact Us For Availability
1
Top Panel Kit (Comment: White) GEN D510029WP Contact Us For Availability
1
Seal Strap GEN 56090 Contact Us For Availability
1
Elbow Shut-Off Valve GEN D510205 Contact Us For Availability
1
Access Door (Comment: White) GEN 60795W Contact Us For Availability
1
Seal GEN 56065 Contact Us For Availability
1
Screw GEN D501285 Contact Us For Availability
2
Gas Clearance Label GEN D511004 Contact Us For Availability
2
Screw GEN 23962 Contact Us For Availability
2
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
2
Screw GEN 20530 Contact Us For Availability
2
Screw GEN 33561 Contact Us For Availability
2
End Cap (Comment: Left) GEN 31249 Contact Us For Availability
3
Hood Back Panel GEN D510099 Contact Us For Availability
3
Drum Light Lamp GEN 60954 Contact Us For Availability
3
Screw GEN 56693 Contact Us For Availability
3
Screw GEN 31752 Contact Us For Availability
3
Door Catch Assembly GEN D510177 Contact Us For Availability
3
Blower Housing and Cover Kit GEN D511969WP Contact Us For Availability
3
Screw GEN 61199 Contact Us For Availability
4
Igniter and Bracket Assembly GEN D510184P Contact Us For Availability
4
Warning/Caution Label GEN D500281 Contact Us For Availability
4
Motor (Comment: Includes motor switch) GEN 58044 Contact Us For Availability
4
Screw GEN M400664 Contact Us For Availability
4
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
5
Panel Locator GEN 56079 Contact Us For Availability
5
Screw GEN 62588 Contact Us For Availability
5
Nut GEN 57584 Contact Us For Availability
5
Motor Mount Clamp GEN D510180 Contact Us For Availability
5
Terminal Block Shield GEN 56087 Contact Us For Availability
6
Screw GEN 39733 Contact Us For Availability
6
Screw GEN D503661 Contact Us For Availability
6
Cylinder Assembly (Comment: Includes items 7 GEN 60645P Contact Us For Availability
6
Sensor GEN D510213 Contact Us For Availability
6
Cylinder Belt GEN D511255 Contact Us For Availability
7
Access Cover Plate GEN 60821 Contact Us For Availability
7
Cylinder Baffle (Comment: Short, 2 required, GEN 61399 Contact Us For Availability
7
Screw GEN 31260 Contact Us For Availability
7
Speed Clip GEN 28835 Contact Us For Availability
7
Screw GEN 62541 Contact Us For Availability
7
Screw (Comment: Green) GEN 52909 Contact Us For Availability
8
Cylinder Baffle (Comment: Extended, 1 require GEN 61027 Contact Us For Availability
8
Burner Assembly GEN D510149P Contact Us For Availability
8
Fabric Selector Switch GEN 61511 Contact Us For Availability
8
2 Circuit Receptacle GEN 56451 Contact Us For Availability
8
Switch GEN D512973 Contact Us For Availability
8
Washer GEN 51474 Contact Us For Availability
9
Screw GEN 23222 Contact Us For Availability
9
Rotate-to-Start Switch GEN 59450 Contact Us For Availability
9
Male Pin Terminal GEN 00127 Contact Us For Availability
9
Front Panel Seal GEN 61380 Contact Us For Availability
10
Cylinder Roller Bracket GEN N/A Contact Us For Availability
10
Cylinder Glide GEN 61448 Contact Us For Availability
10
Nut GEN 51236 Contact Us For Availability
10
Washer GEN 20492 Contact Us For Availability
11
Thin Pad GEN 58049 Contact Us For Availability
11
Screw GEN 56124 Contact Us For Availability
11
Timer GEN 59497 Contact Us For Availability
11
Nut GEN 56156 Contact Us For Availability
12
Nut GEN 20274 Contact Us For Availability
12
Gas Valve Mounting Bracket GEN D510128 Contact Us For Availability
12
End Cap (Comment: Right) GEN 31248 Contact Us For Availability
12
Blower Fan Assembly GEN D510139 Contact Us For Availability
12
Washer (Comment: Use with old style cylinder GEN 23886 Contact Us For Availability
13
NOT ON YOUR MODEL GEN - Contact Us For Availability
13
Screw GEN 52696 Contact Us For Availability
13
Booster and Holding Coil GEN 58804A Contact Us For Availability
13
Support Barrel GEN 56534 Contact Us For Availability
13
Cylinder Roller (Comment: New style) GEN 62649 Contact Us For Availability
14
Rubber Foot GEN 70282 Contact Us For Availability
14
Secondary Coil GEN 58804B Contact Us For Availability
14
Screw GEN D501086 Contact Us For Availability
14
Motor Mount GEN D510060 Contact Us For Availability
14
Retaining Ring GEN 23748 Contact Us For Availability
15
Air Duct Assembly (Comment: Front) GEN 60786 Contact Us For Availability
15
Gas Valve Assembly GEN 58804 Contact Us For Availability
15
Timer Knob Assembly GEN 59791 Contact Us For Availability
15
Door Seal GEN 61379 Contact Us For Availability
15
Idler Spring GEN D510185 Contact Us For Availability
15
Washer GEN 52549 Contact Us For Availability
16
Fuse Notice Label GEN 61294 Contact Us For Availability
16
Nut GEN 23407 Contact Us For Availability
16
Shaft GEN 56461 Contact Us For Availability
17
Lint Filter GEN 61376P Contact Us For Availability
17
Rotary Knob Assembly (Comment: Black) GEN 31286 Contact Us For Availability
17
Screw GEN 52864 Contact Us For Availability
17
Screw GEN 51780 Contact Us For Availability
18
Spring GEN 52310 Contact Us For Availability
18
Hinge GEN 56045 Contact Us For Availability
19
Seal Assembly GEN 56088 Contact Us For Availability
19
Screw GEN 22649 Contact Us For Availability
20
Motor Mount and Idler Assembly (Comment: Incl GEN D511227 Contact Us For Availability
21
Door Pull GEN 61925 Contact Us For Availability
23
Door Strike GEN D510181 Contact Us For Availability
23
Idler Wheel and Bearing Assembly GEN D510142 Contact Us For Availability
24
Nut GEN 52566 Contact Us For Availability
25
Thermostat Heater (Comment: Use with 61372 Th GEN 61401 Contact Us For Availability
26
Thermostat GEN 61372 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
× ![]()
