Model LG MV1604ST OTR – Common Parts & Diagrams
Diagram 0

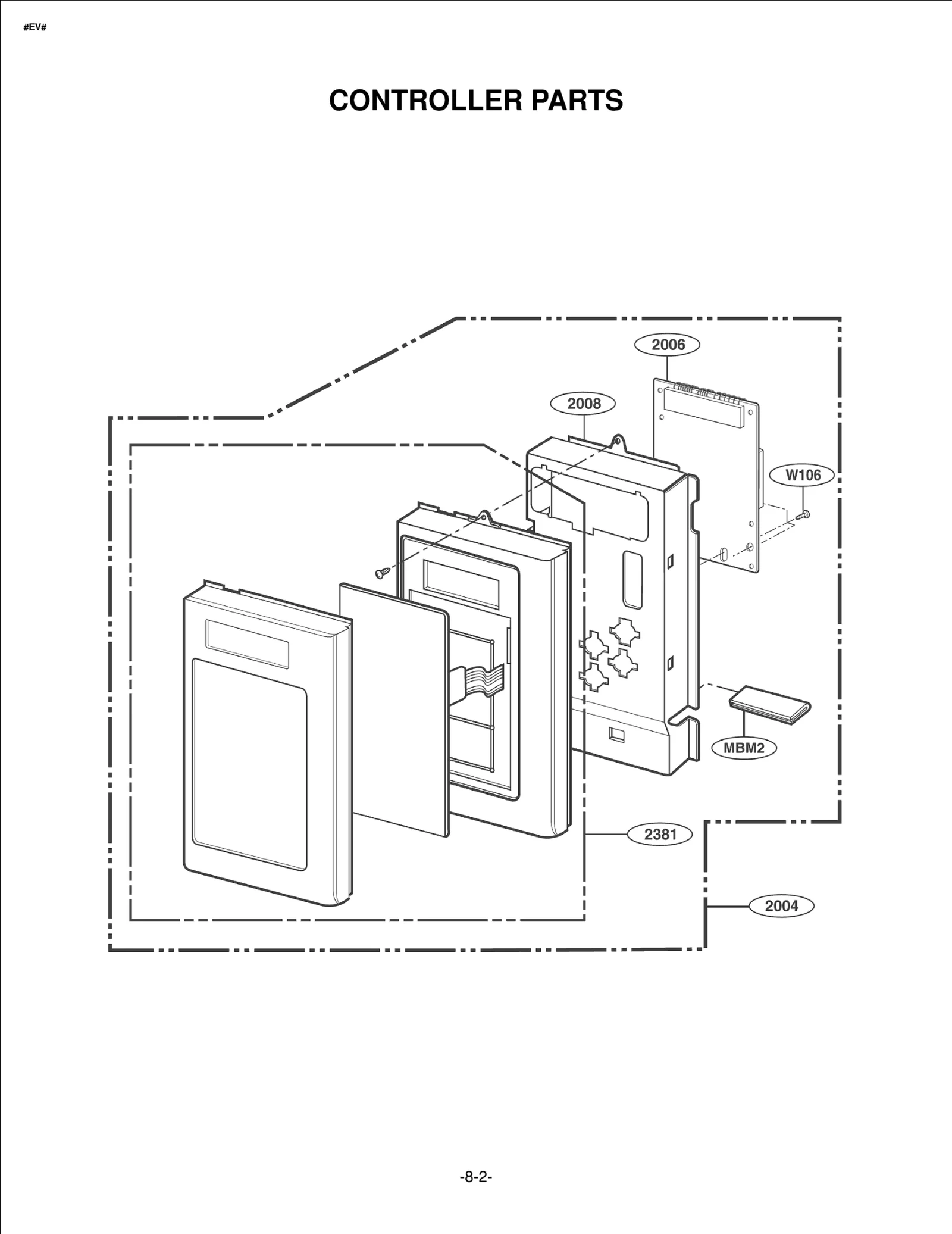

Diagram 1

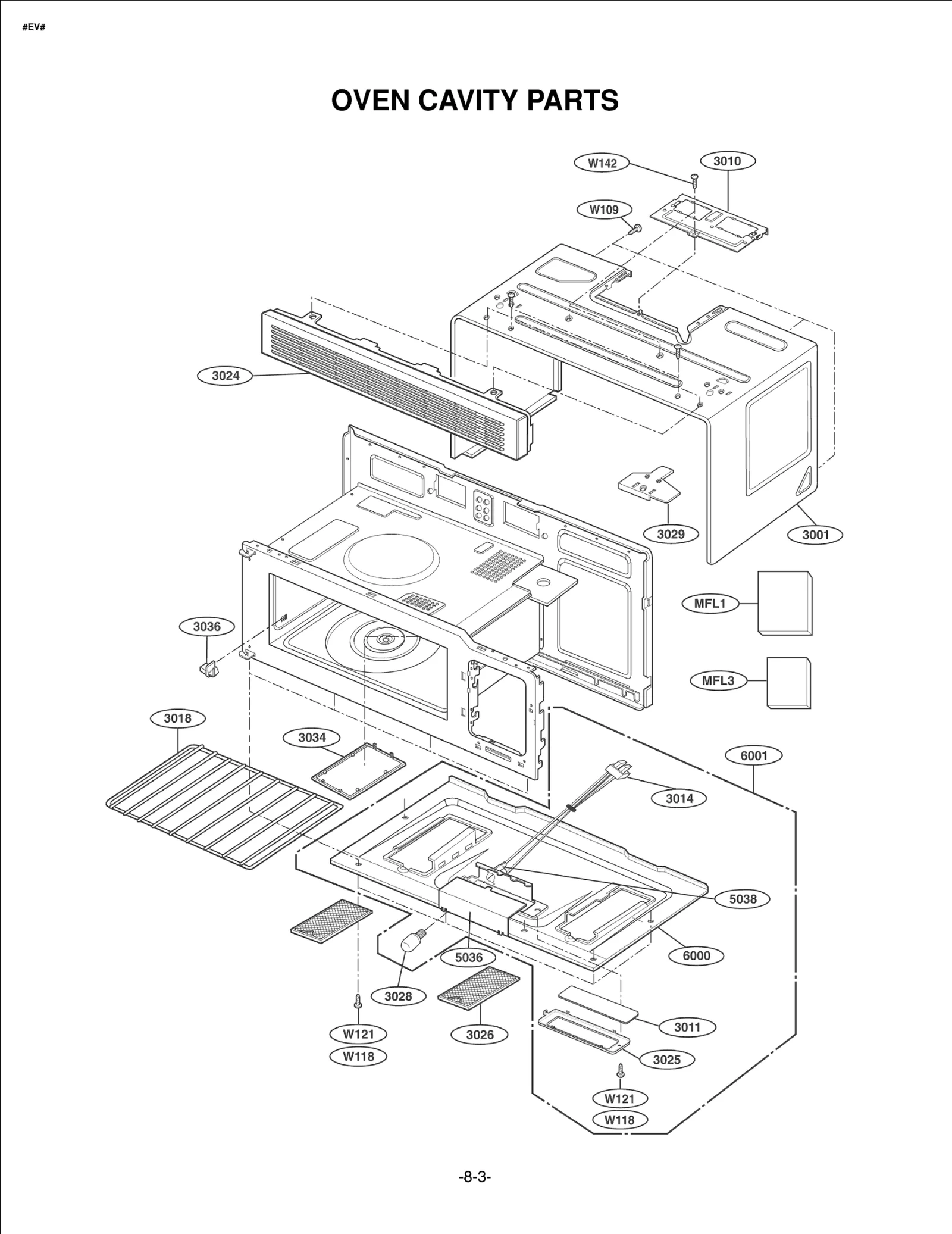

Diagram 2

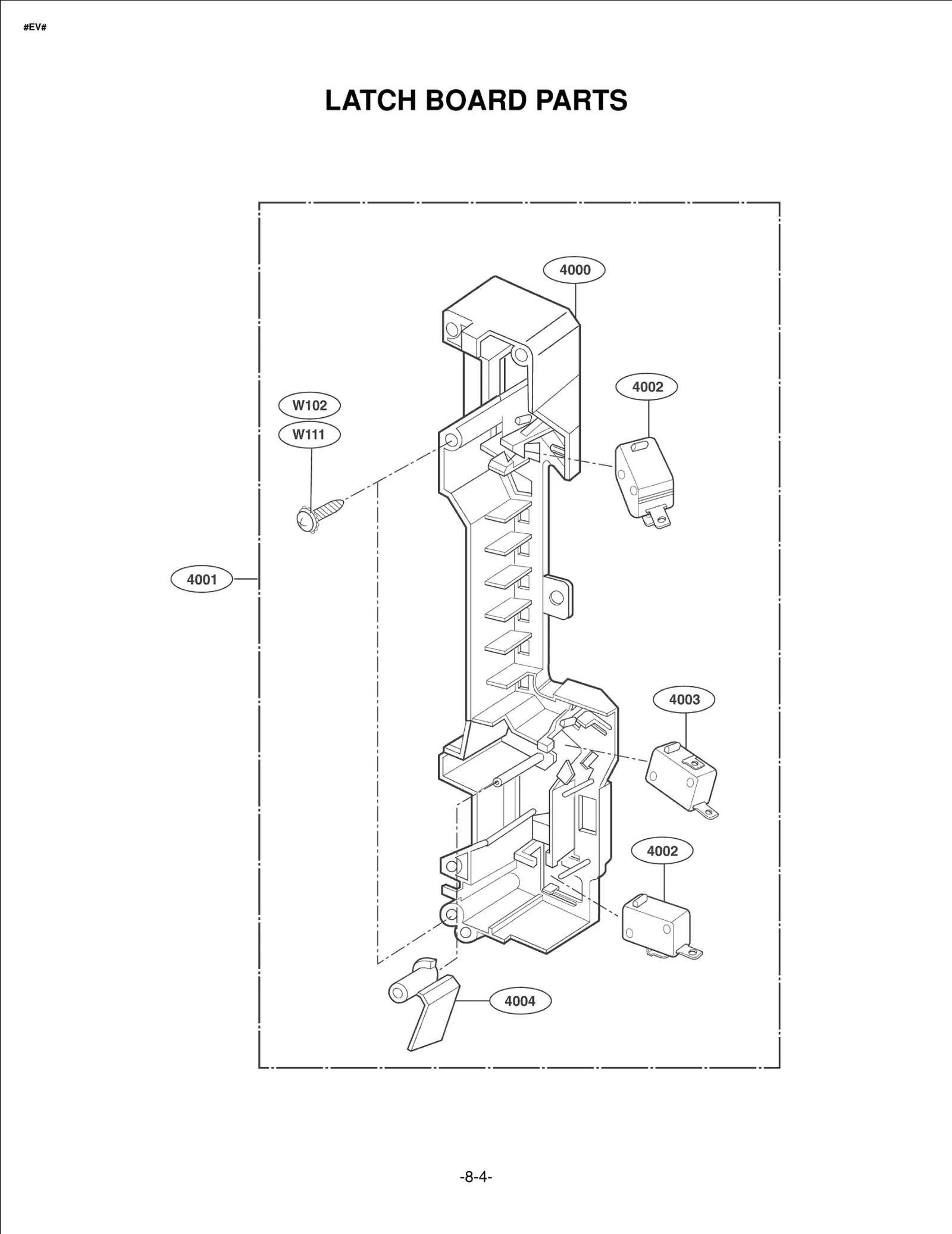

Diagram 3

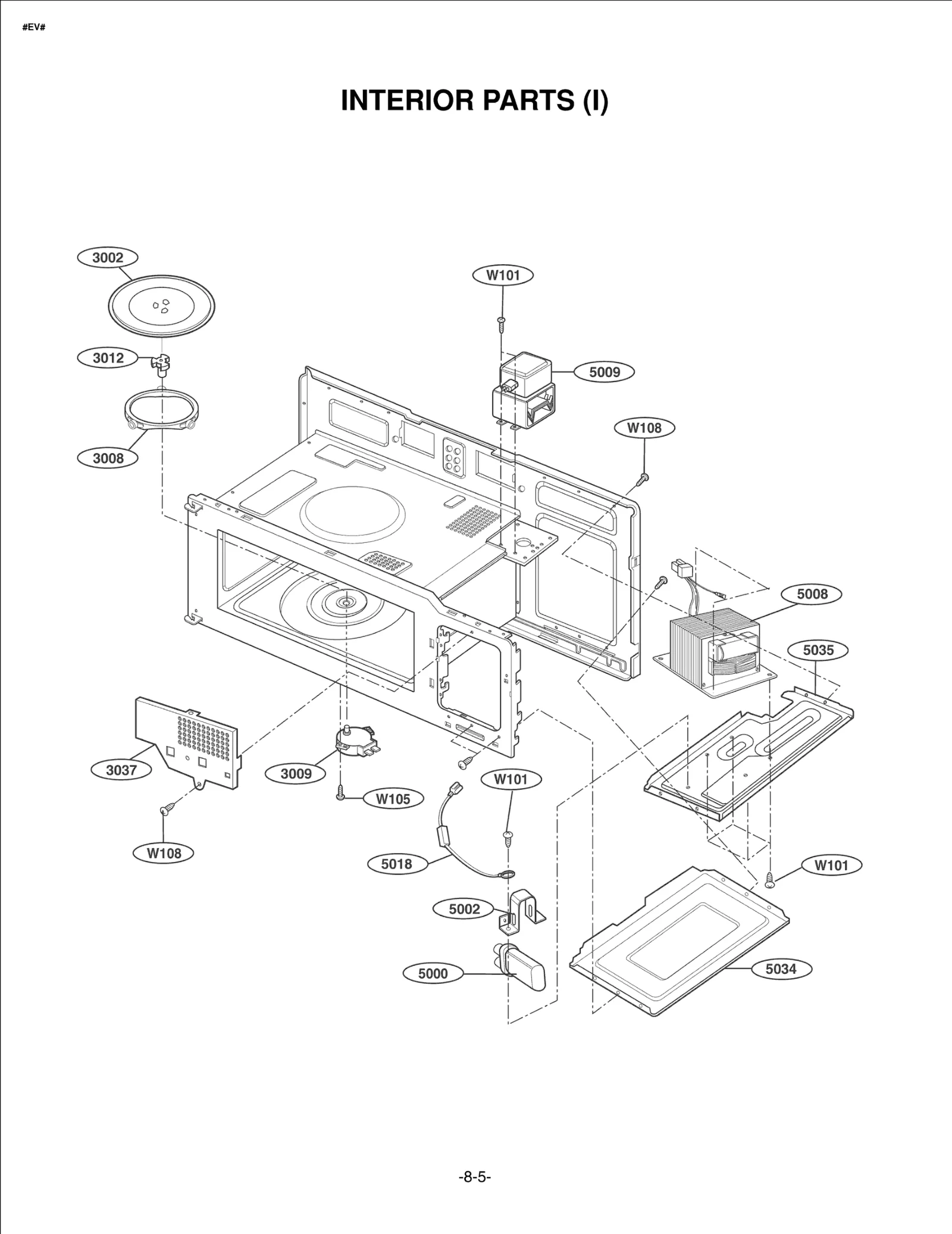

Diagram 4

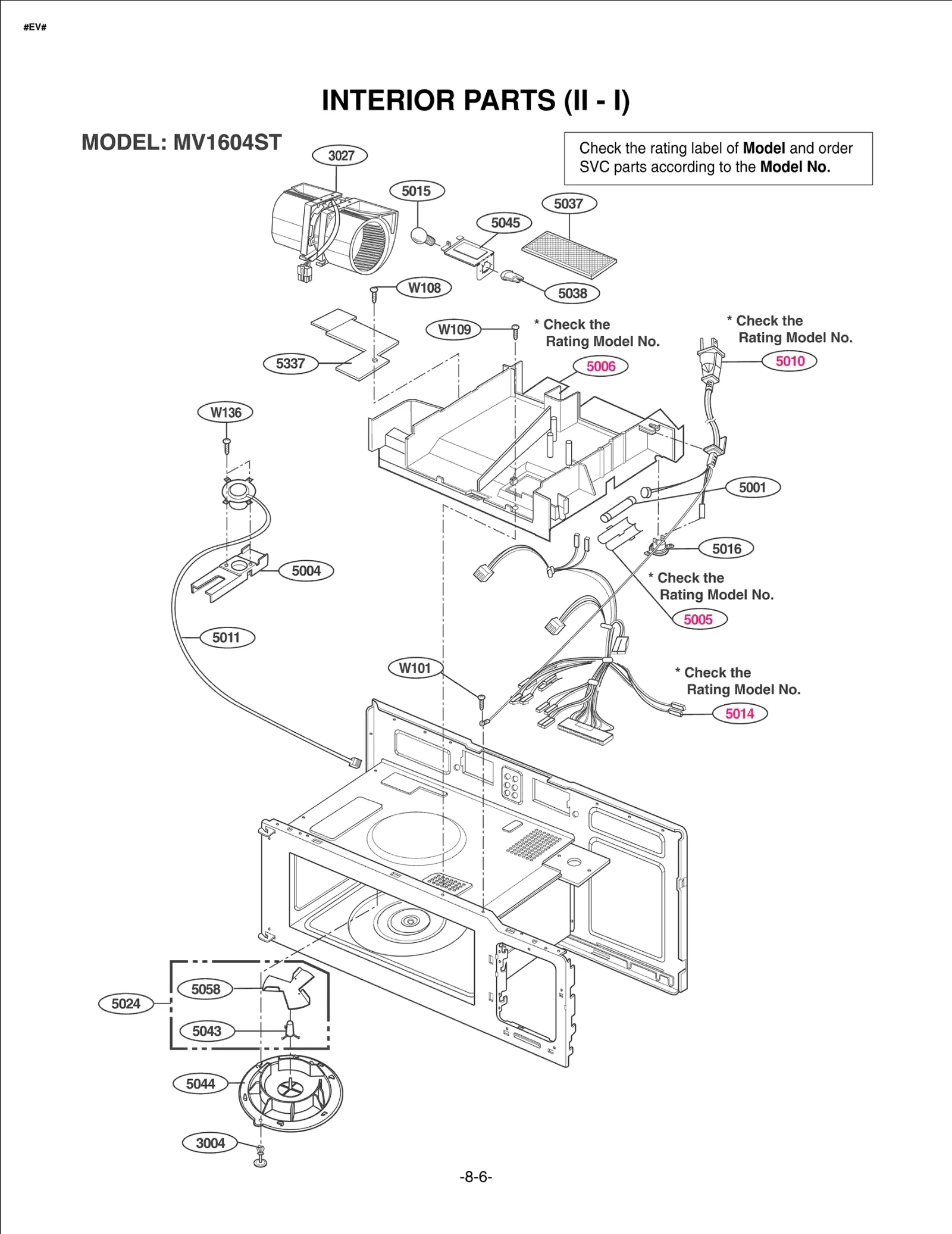

Diagram 5

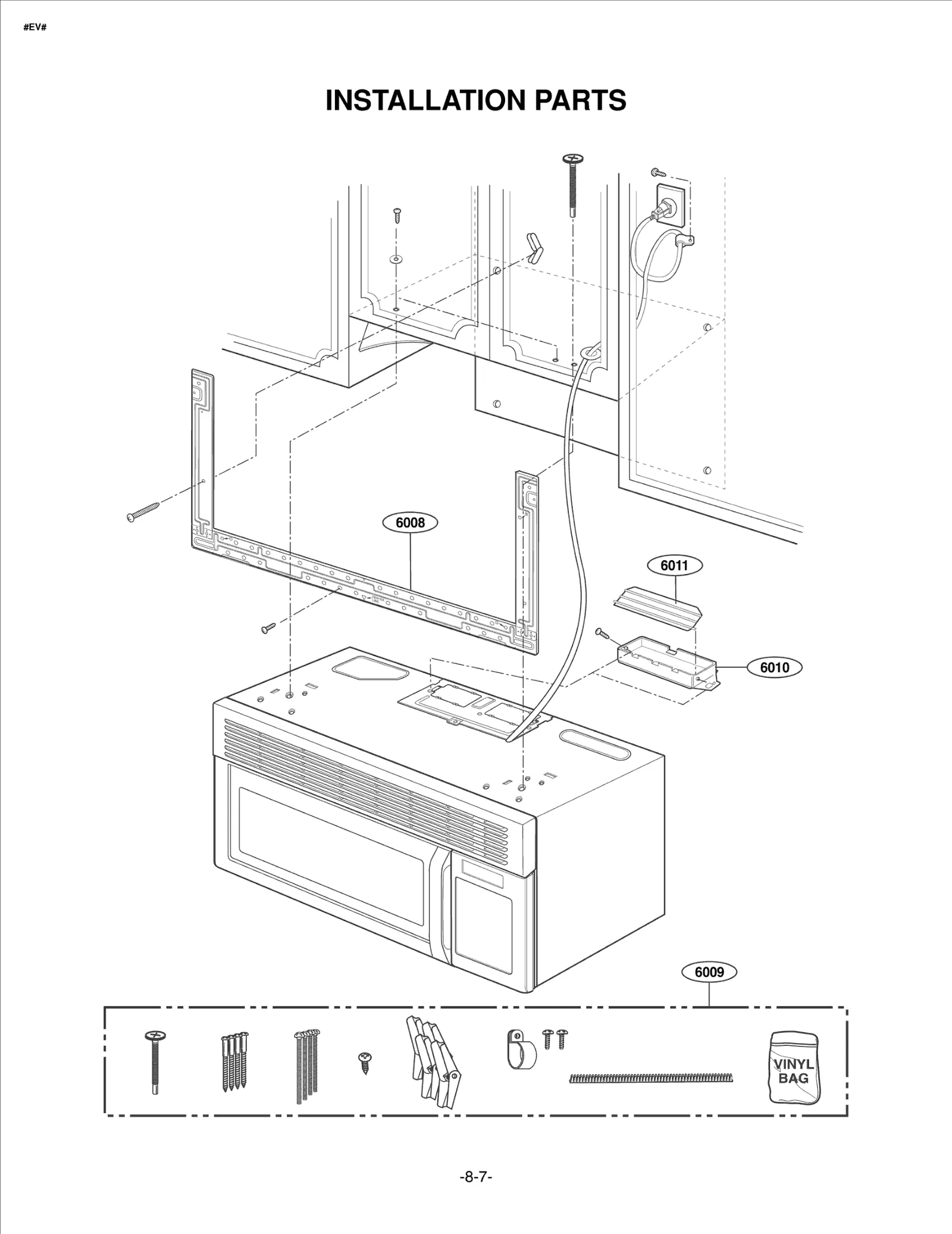

Diagram 6
Diagram 7
Common parts from model LG MV1604ST OTR
3008
ROTATING RING ASSEMBLY LGE 5889W2A012D Contact Us For Availability
3011
GLASS ALL MV-1320M MV-1325S W/ LGE 4890W4A001B Contact Us For Availability
3027
MOTOR(CIRC),VENTILATION LGE 6549W1V006C Contact Us For Availability
3027
MOTOR(CIRC),VENTILATION LGE 6549W1V008A Contact Us For Availability
3028
LAMP[OVEN/BASELESS] LGE 6912W3Q001D Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3034
CANOPY WAVE GUIDE MA-880M/680M LGE 3052WRA002A Contact Us For Availability
3036
HOLDER,COOK AUXILIARY LGE 4930W1A026A Contact Us For Availability
3037
PROTECTOR (MECH) LGE 3740W1A005A Contact Us For Availability
4001
BOARD ASSY,[LATCH] LGE 3501W1A019A Contact Us For Availability
4002
SWITCH,MICRO LGE 6600W1K004C Contact Us For Availability
4002
MICRO SWITCH(PRIMARY) VP-533A LGE 3B73362E Contact Us For Availability
4003
SWITCH,MICRO LGE 6600W1K004B Contact Us For Availability
4003
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5002
BRACKET HVC MV-1320,SECC 0.5T LGE 4810W3C002A Contact Us For Availability
5004
BRACKET,SENSOR LGE 4810W1A314A Contact Us For Availability
5005
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
5006
DUCT LGE 5208W0A006A Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D052B Contact Us For Availability
5008
Transformer,high voltage LGE 6170W1D060A Contact Us For Availability
5010
Power Cord Assembly LGE 6411W1A010F Contact Us For Availability
5010
POWER CORD ASSY LGE 6411W1A010H Contact Us For Availability
5014
HARNESS LGE 6877W1A401D Contact Us For Availability
5015
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
5034
PLATE,[BOTTOM PLATE] LGE 3300W1A003A Contact Us For Availability
5035
PLATE,BOTTOM LGE 3300W1A052A Contact Us For Availability
5036
COVER,MWO LGE 3550W3A095A Contact Us For Availability
5038
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
5044
COVER,STIRRER FAN LGE 3550W1A126A Contact Us For Availability
5045
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
5337
PROTECTOR (MECH) LGE 3740W1A011A Contact Us For Availability
6000
BASE PLATE LGE 3302W0A013H Contact Us For Availability
6001
BASE PLATE ASSY LGE 3303W1A041N Contact Us For Availability
6008
Plate,Mount LGE 3300W0A030C Contact Us For Availability
6008
PLATE ASSEMBLY LGE 3301W0A003A Contact Us For Availability
6009
KIT ASSEMBLY LGE 2B72771G Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
MAY1
Box LGE 3890W3Y655E Contact Us For Availability
MBM4
TEMPLATE LGE 4922W5A057A Contact Us For Availability
MBM5
TEMPLATE LGE 4922W5A060A Contact Us For Availability
MEZ1
Label,Cooking Guide LGE 3850W1D145A Contact Us For Availability
MFL1
Manual,Owners LGE 3828W5A4164 Contact Us For Availability
MFL3
Manual,Installation LGE 3828W5U0378 Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
× ![]()
