Model LG MV-1515W – Common Parts & Diagrams

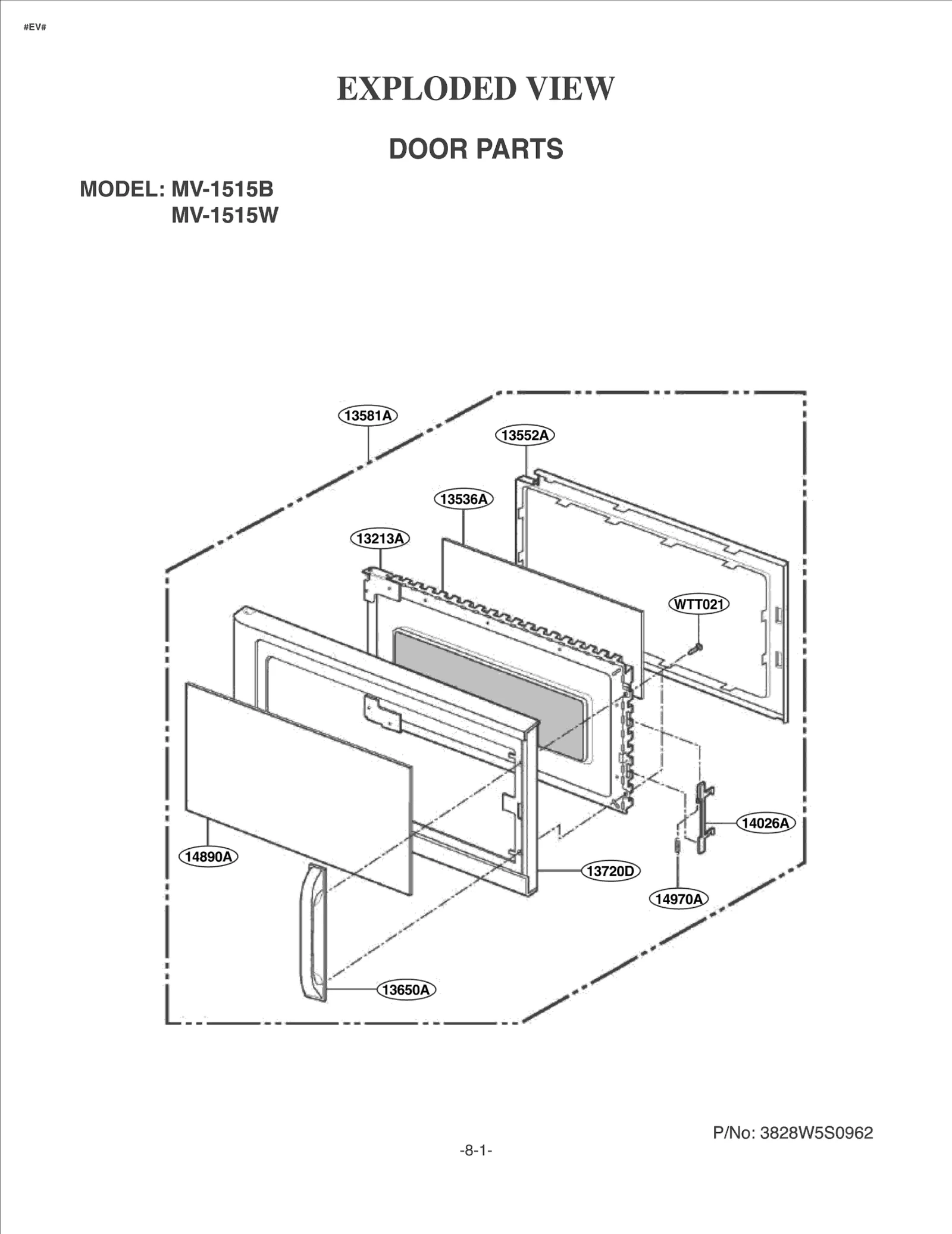

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG MV-1515W
30RMZZ
RESISTOR,CEMENT LGE 3B72552D Contact Us For Availability
50CZZH
CAPACITOR [HIGH VOLTAGE] LGE 0CZZW1H001E Contact Us For Availability
50CZZH
Capacitor,High Voltage LGE 6120WRH001G Contact Us For Availability
50CZZM
CAPACITOR,DRAWING[MOTOR CONDEN LGE 3B72440D Contact Us For Availability
50CZZM
Capacitor,Film,Box LGE 3B72440C Contact Us For Availability
33390G
GLASS TRAY LGE 1B71961A Contact Us For Availability
34810Q
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
34810T
BRACKET ALL MV-1320,C/TOP LAMP LGE 4810W3G100A Contact Us For Availability
34890C
GLASS ALL MV-1320M MV-1325S W/ LGE 4890W4A001B Contact Us For Availability
34960A
MOUNT,ALL LGE 4960W2G022B Contact Us For Availability
35889A
ROTATING RING ASSEMBLY LGE 5889W2A012A Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V,60HZ LGE 2B72754K Contact Us For Availability
36549S
MOTOR SYNCHRONOUS AC120V,60HZ, LGE 6549W2S002H Contact Us For Availability
36549S
MOTOR SYNCHRONOUS HYUP JIN 120 LGE 6549WRS001N Contact Us For Availability
36549V
MOTOR(CIRC) VENTILAT LGE 6549W1V001J Contact Us For Availability
36549V
MOTOR(CIRC) VENTILAT LGE 6549W1V001H Contact Us For Availability
44510A
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
53300B
PLATE,ALL LGE 3300W1G081A Contact Us For Availability
53550L
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
53550S
COVER,MWO LGE 3550W1A077A Contact Us For Availability
54810C
BRACKET HVC MV-1320,SECC 0.5T LGE 4810W3C002A Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55231C
CHARCOAL FILTER ASSY 10.0*4.84 LGE 2B72706C Contact Us For Availability
55238A
GUIDE,ALL LGE 4974W1G038A Contact Us For Availability
55262A
AIR DUCT,MWO LGE 5262W0A008A Contact Us For Availability
55892A
STIRRER FAN,ALL LGE 5892W3A004A Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56411A
POWER CORD ASSEMBLY LGE 6411W1A014N Contact Us For Availability
56411A
POWER CORD ASSY A-Z SJT,AWG16/ LGE 6411W2A002E Contact Us For Availability
56549B
MOTOR SYNCHRONOUS 120V,60HZ,F, LGE 6549WRS001K Contact Us For Availability
56549B
Motor,AC LGE 2B72754L Contact Us For Availability
56804A
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
56901A
FUSE ASSY THERMAL T109 MOLDI LGE 3B72974C Contact Us For Availability
56912B
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
56930G
THERMOSTAT,BIMETAL LGE 6930W1A002D Contact Us For Availability
56930G
THERMOSTAT (110/0 PW-2N VERT) LGE 6930WRT003C Contact Us For Availability
56930V
BASE THERMOSTAT LGE 3B70068V Contact Us For Availability
56930V
Thermostat LGE 6930W1A003M Contact Us For Availability
63300M
MOUNTING PLATE MV-1130SC W/POO LGE 3300W0G039A Contact Us For Availability
63302A
Plate,Base LGE 3302W0A013A Contact Us For Availability
63303A
Plate Assembly,Base LGE 3303W1A041C Contact Us For Availability
63861A
MOUNTING KIT (OTR) LGE 2B72771A Contact Us For Availability
65862D
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
466001
SWITCH,MICRO LGE 6600W1K004C Contact Us For Availability
466001
MICRO SWITCH(PRIMARY) VP-533A LGE 3B73362E Contact Us For Availability
466003
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
466003
SWITCH,MICRO LGE 6600W1K004B Contact Us For Availability
568771
LEAD WIRE ASSY LGE 6877W1A129A Contact Us For Availability
568772
LEAD WIRE ASSY-B L/WIRE-B MV-1 LGE 6877W2S002C Contact Us For Availability
MAY000
Box LGE 3890W2Y179C Contact Us For Availability
MEZ173
LABEL,ALL LGE 3850W3A372A Contact Us For Availability
MFL409
Manual,Installation LGE 3828W5U0036 Contact Us For Availability
MFL552
MANUAL,OWNERS(MWO) LGE 3828W5A1041 Contact Us For Availability
WTT022
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
× ![]()
