Model LG MV-1340T – Common Parts & Diagrams
Diagram 0

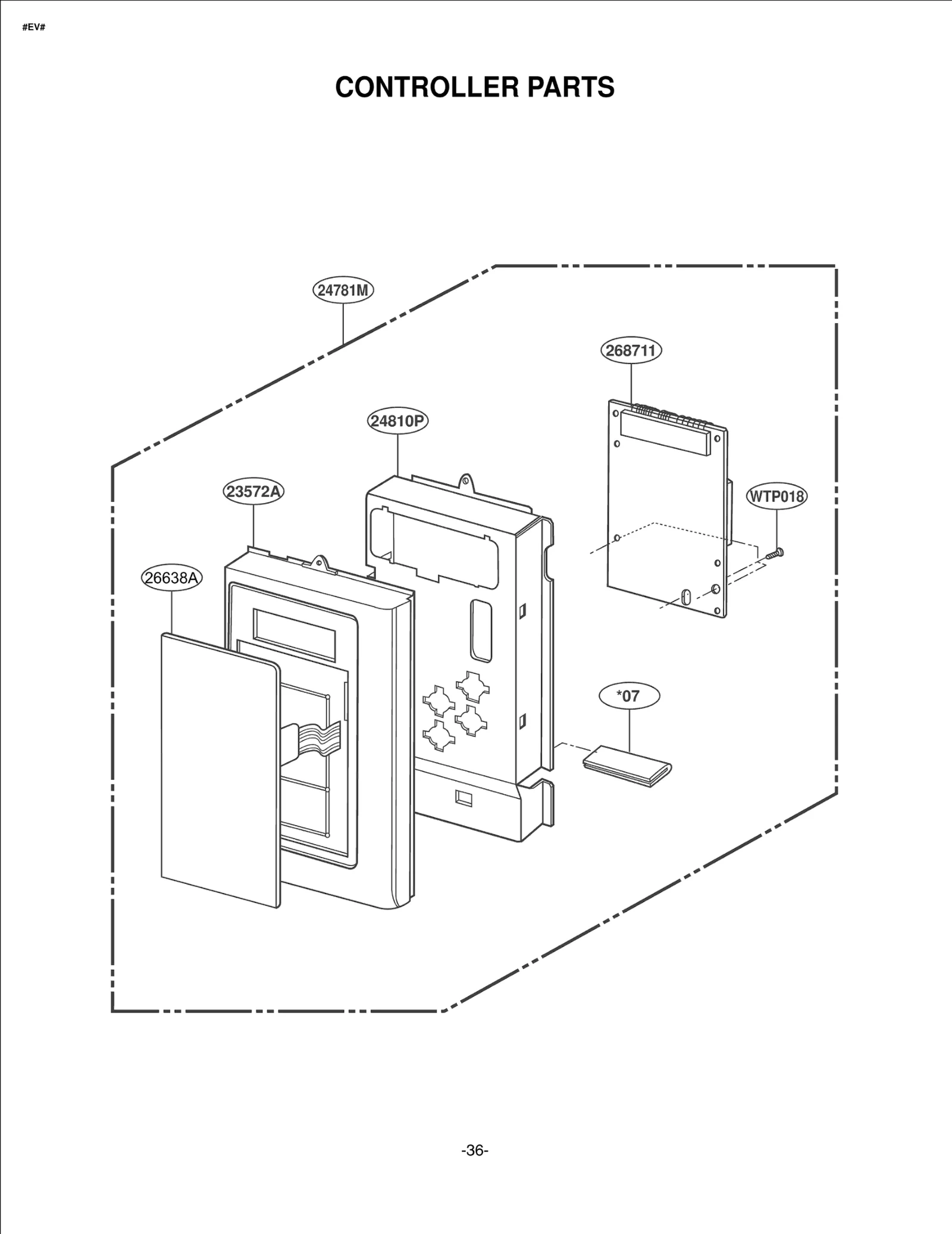

Diagram 1

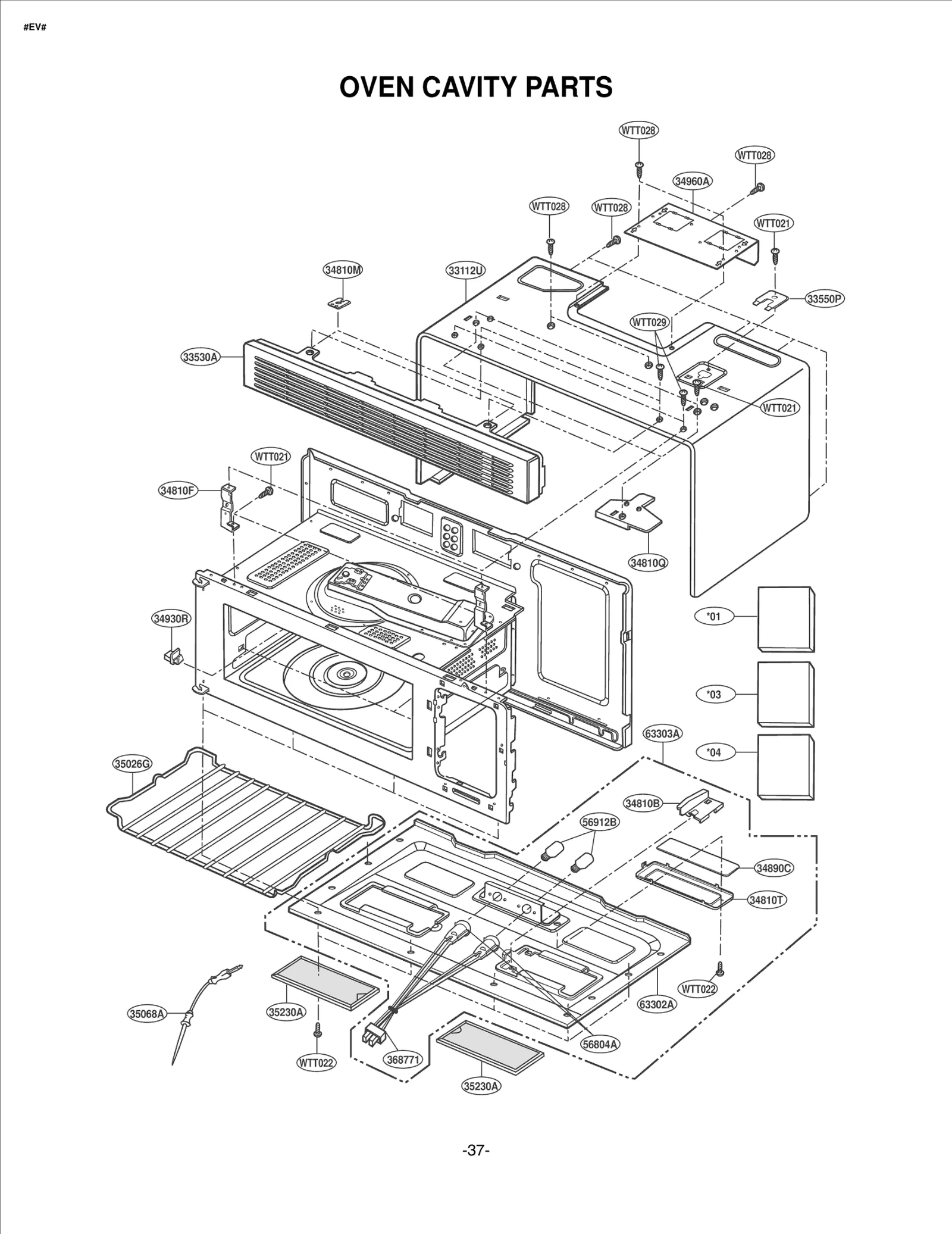

Diagram 2
Diagram 3

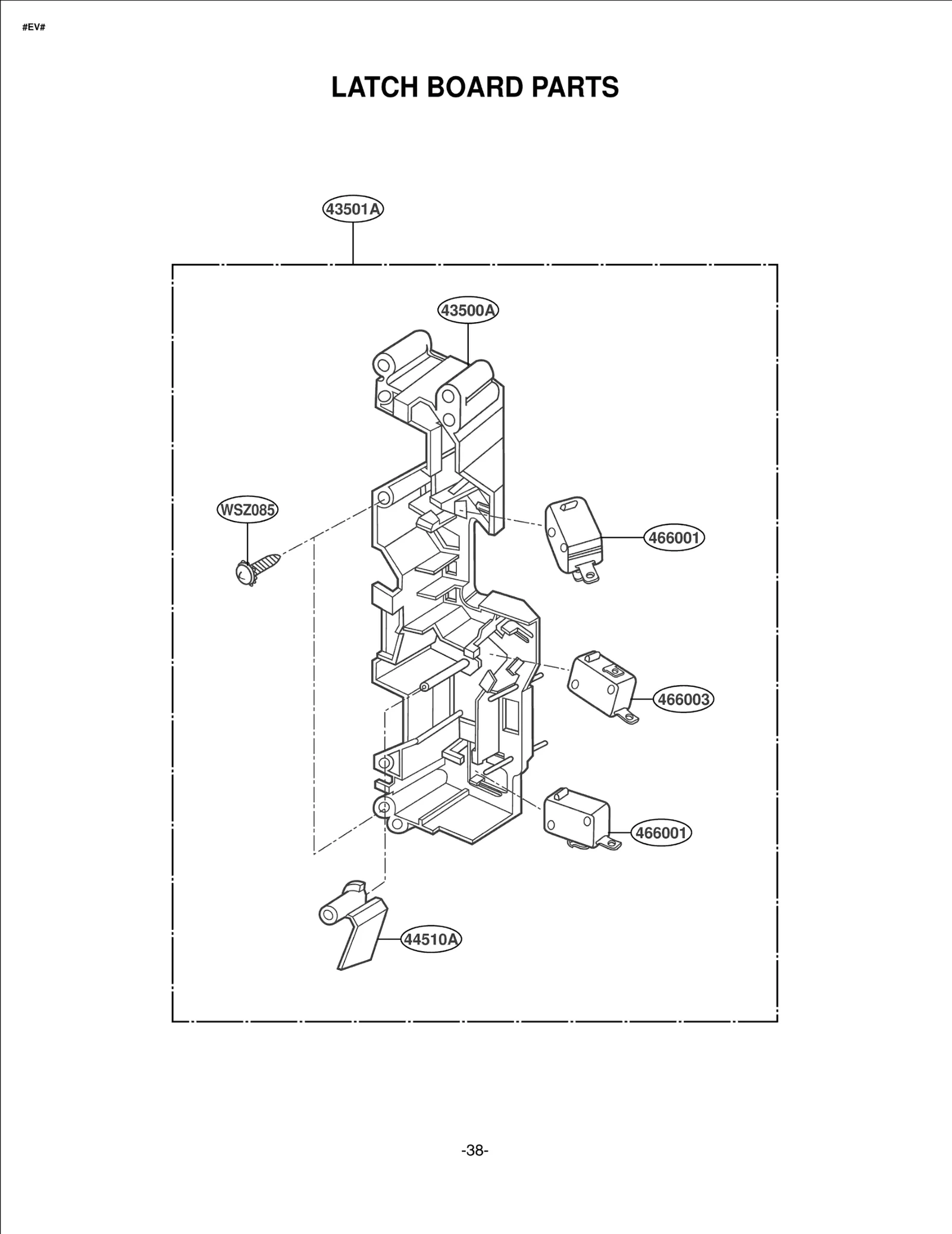

Diagram 4

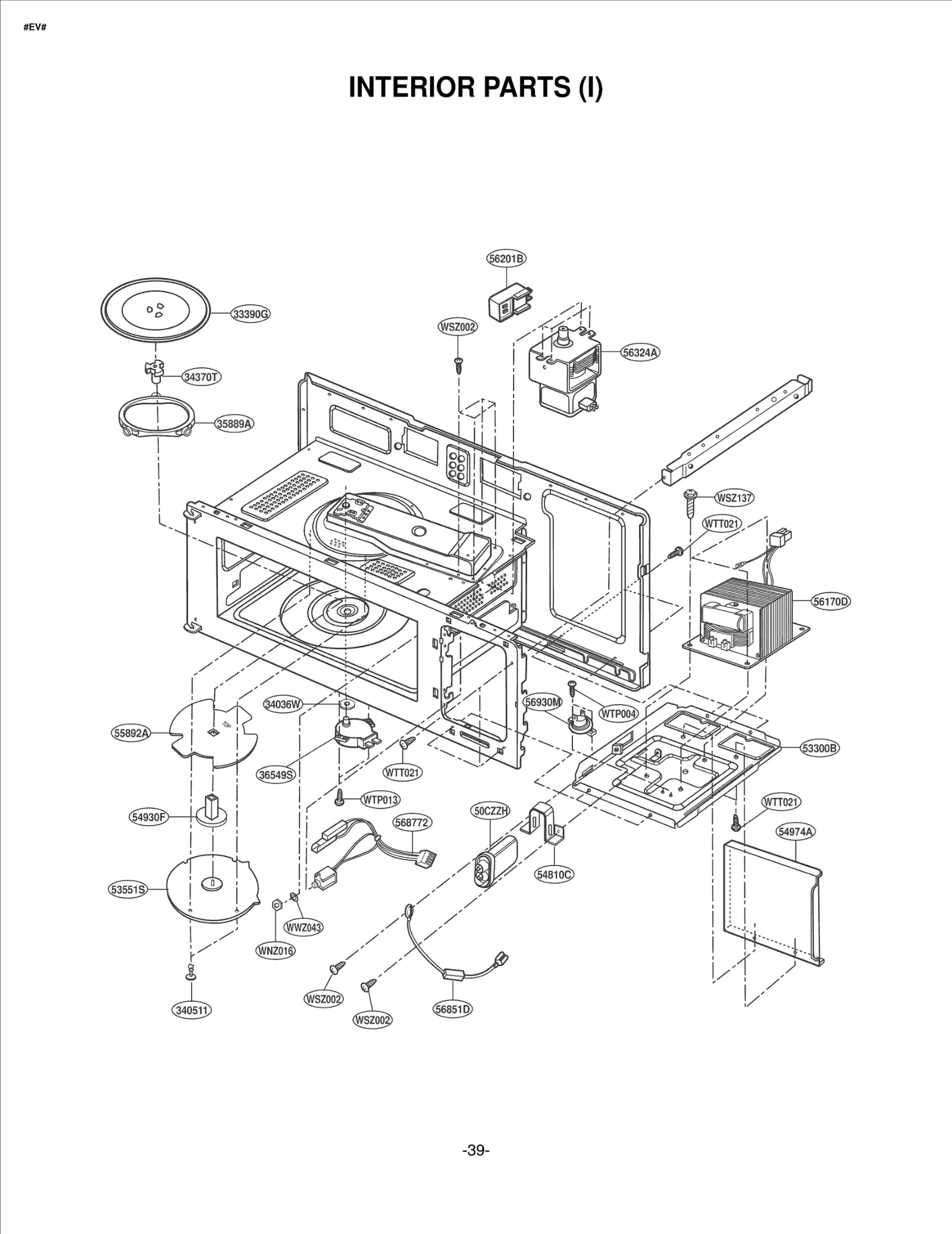

Diagram 5

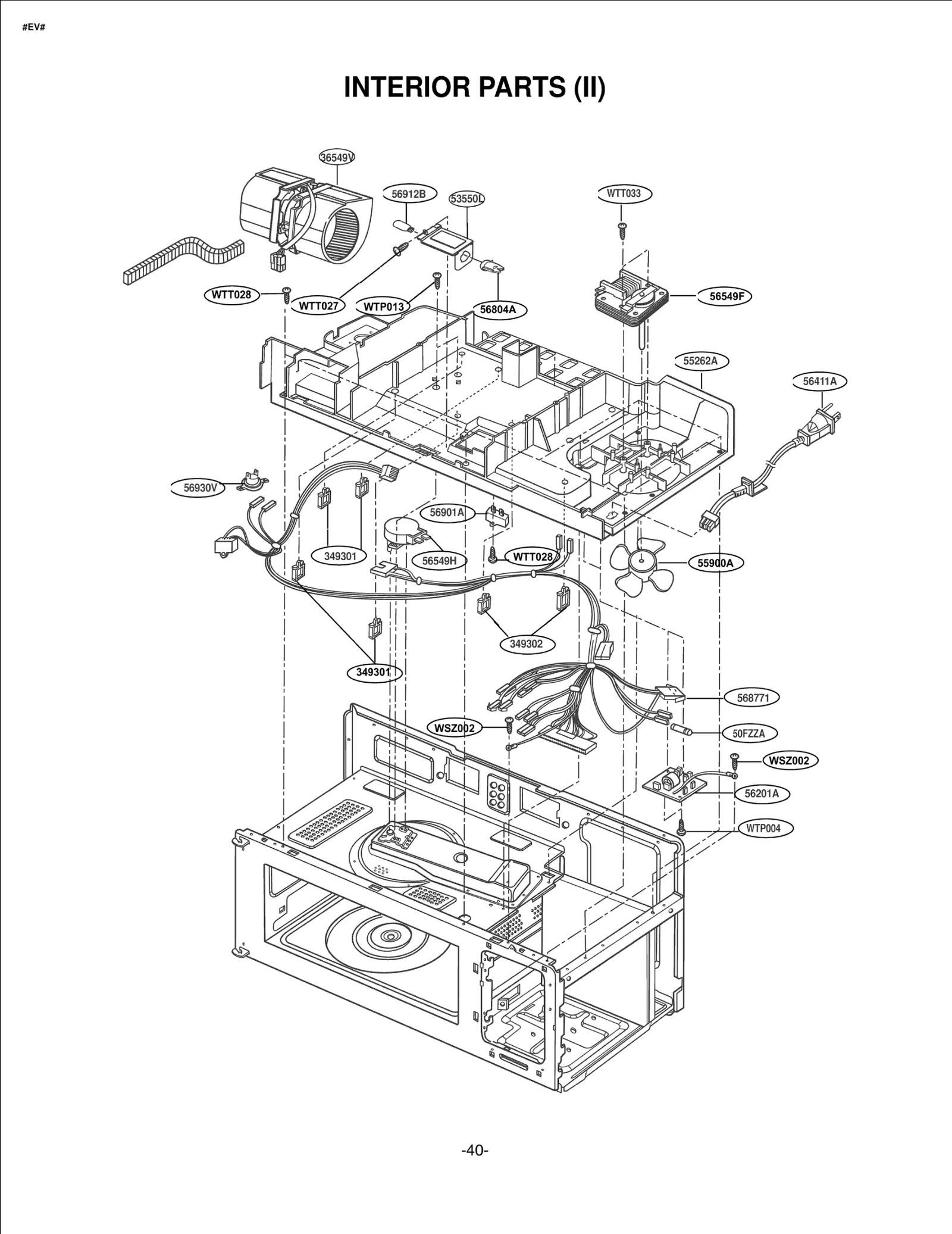

Diagram 6

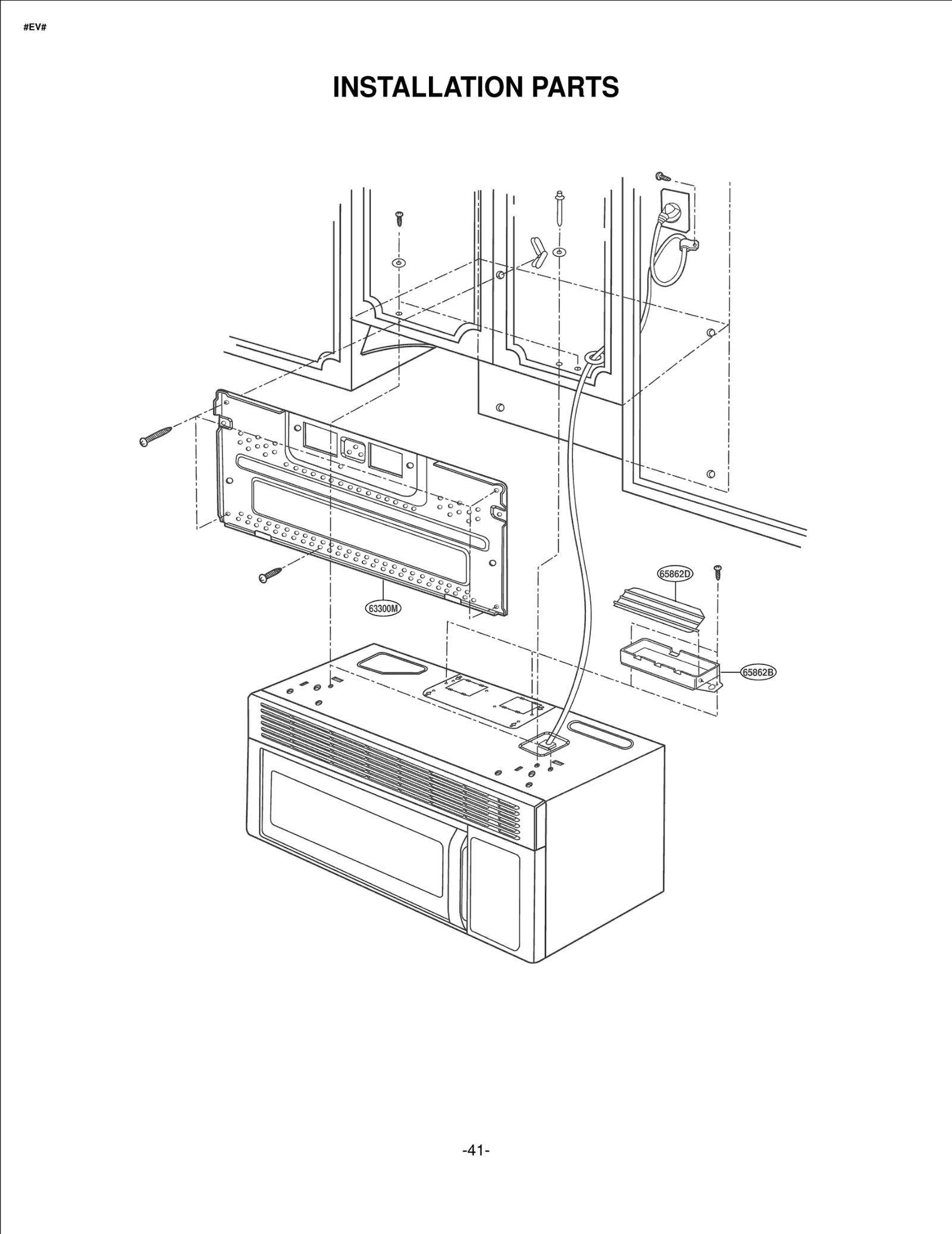

Diagram 7
Common parts from model LG MV-1340T
*01
LGE 3828W5A0468 LGE 3828W5A0468 Contact Us For Availability
*02
LGE 3828W5S0438 LGE 3828W5S0438 Contact Us For Availability
*04
LGE 3828W5U0010 LGE 3828W5U0010 Contact Us For Availability
*07
LGE 3858W3T002Z LGE 3858W3T002Z Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W2Y109A Contact Us For Availability
50CZZH
CAPACITOR[HIGH VOLTAGE] LGE 0CZZW1H002F Contact Us For Availability
33531A
GRILLE ASSY,ALL LGE 3531W1A002A Contact Us For Availability
34036W
SEAL,WATER LGE 4036W3W001A Contact Us For Availability
34370T
SHAFT TURN TABLE TEFLON 7.5*13 LGE 3B72373D Contact Us For Availability
34810M
BRACKET GRILLE - BLACK LGE 4810W4G044A Contact Us For Availability
34810Q
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
34810T
BRACKET ALL MV-1320,C/TOP LAMP LGE 4810W3G100A Contact Us For Availability
34890C
GLASS LGE 4890W4A001G Contact Us For Availability
34930R
SHELF HOLDER LGE 3B71271E Contact Us For Availability
34960A
MOUNT,ALL LGE 4960W2G023B Contact Us For Availability
35026G
RACK GRILL MV-1320 MV-1325S W/ LGE 3750W1A002B Contact Us For Availability
35889A
ROTATING RING ASSEMBLY LGE 5889W2A012A Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V,60HZ LGE 2B72754K Contact Us For Availability
36549V
MOTOR VENTILATION MV-1320 MV-1 LGE 6549W1V001D Contact Us For Availability
43500A
BOARD,[LATCH BOARD] LGE 3500W1A002A Contact Us For Availability
43501A
BOARD ASSY,LATCH LGE 3501W2A002G Contact Us For Availability
44360A
LOCKING PIN LGE 4360W4A001A Contact Us For Availability
44510A
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
53300B
PLATE ALL BOTTOM-R,SECC 0.8T W LGE 3300W1G077A Contact Us For Availability
53550L
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
53551S
COVER ASSY ALL MV-1320,STIRR F LGE 3551W2A013A Contact Us For Availability
54810C
BRACKET HVC MV-1320,SECC 0.5T LGE 4810W3C002A Contact Us For Availability
54930F
HOLDER ALL MV-1320,TEFRON,DISK LGE 4930W3B026A Contact Us For Availability
54974A
Guide,Air LGE 4974W1G036A Contact Us For Availability
55231C
CHARCOAL FILTER ASSY 10.0*4.84 LGE 2B72706C Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
TRANSFORMER HIGH VOL 120V 60HZ LGE 6010W2H030D Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56201B
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability
56324A
MAGNETRON ALL LGE 2B71165K Contact Us For Availability
56411A
POWER CORD ASSY A-Z SJT,AWG16/ LGE 6411W2A002E Contact Us For Availability
56549H
Motor,AC LGE 2B72754L Contact Us For Availability
56804A
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
56901A
FUSE ASSY THERMAL T109 MOLDI LGE 3B72974C Contact Us For Availability
56912B
BULB, LIGHT LGE 3B70067E Contact Us For Availability
56930M
BASE THERMOSTAT LGE 3B70068V Contact Us For Availability
56930V
THERMOSTAT (110/0 PW-2N VERT) LGE 6930WRT003C Contact Us For Availability
63300M
MOUNTING PLATE MV-1130SC W/POO LGE 3300W0G039A Contact Us For Availability
63302A
BASE PLATE ALL MV-1320,SECC 0. LGE 3302W0A011A Contact Us For Availability
63303A
LGE 3303W1A024D LGE 3303W1A024D Contact Us For Availability
65862D
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
349302
WIRE HOLDER (DAWS-3N) S 41583 LGE 4B72944C Contact Us For Availability
568771
LGE 6877W1A067A LGE 6877W1A067A Contact Us For Availability
AR1
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C05
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C06
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C07
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C09
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C32
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C64
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN1
LGE 6630W5V012A LGE 6630W5V012A Contact Us For Availability
CN2
LGE 6630W5YA10B LGE 6630W5YA10B Contact Us For Availability
CN3
LGE 6630W5YA19E LGE 6630W5YA19E Contact Us For Availability
D01
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D80
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D82
DIODE 1N4004TA(06220071)MV-100 LGE 0DD400409AA Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q81
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
R07
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R08
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R09
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R30
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R33
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R34
LGE 0RN1003F408 LGE 0RN1003F408 Contact Us For Availability
R35
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R46
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R50
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R53
RESISTOR FIXED CARBON FILM 39 LGE 0RD3900F608 Contact Us For Availability
R72
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R81
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R82
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R83
Resistor,Carbon Film LGE 0RD3302F608 Contact Us For Availability
R99
LGE 0RD0202F608 LGE 0RD0202F608 Contact Us For Availability
RY2
Relay,Contact LGE 6920W2D014A Contact Us For Availability
RY3
RELAY LGE 6920WRD014A Contact Us For Availability
RY4
RELAY LGE 6920W5A005A Contact Us For Availability
RY8
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
U01
IC,Unclassified LGE 0IHI404339T Contact Us For Availability
U06
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
UO3
LGE 0ITO200400A LGE 0ITO200400A Contact Us For Availability
VR1
VARISTOR LGE 6102W5V006A Contact Us For Availability
WNZ016
Electronic Part,Unclassified LGE 4B70181A Contact Us For Availability
WSZ098
SPECIAL SCREW LGE 4B70637B Contact Us For Availability
WSZ133
CABINET BOLT(UNIFIED-SCREW)MV- LGE 4B73234A Contact Us For Availability
WTT022
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
WTT033
TRUSS HEAD TP SCREW + 2 CUT LGE 1TTL0403318 Contact Us For Availability
WWZ043
WASHER PLAIN Z-A1000-903, MVH LGE 4B70182A Contact Us For Availability
WWZ068
PLAIN WASHER 08X2 (4158396)MV LGE 4B73055A Contact Us For Availability
ZD1
LGE 0DZ510009AB LGE 0DZ510009AB Contact Us For Availability
ZD2
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
