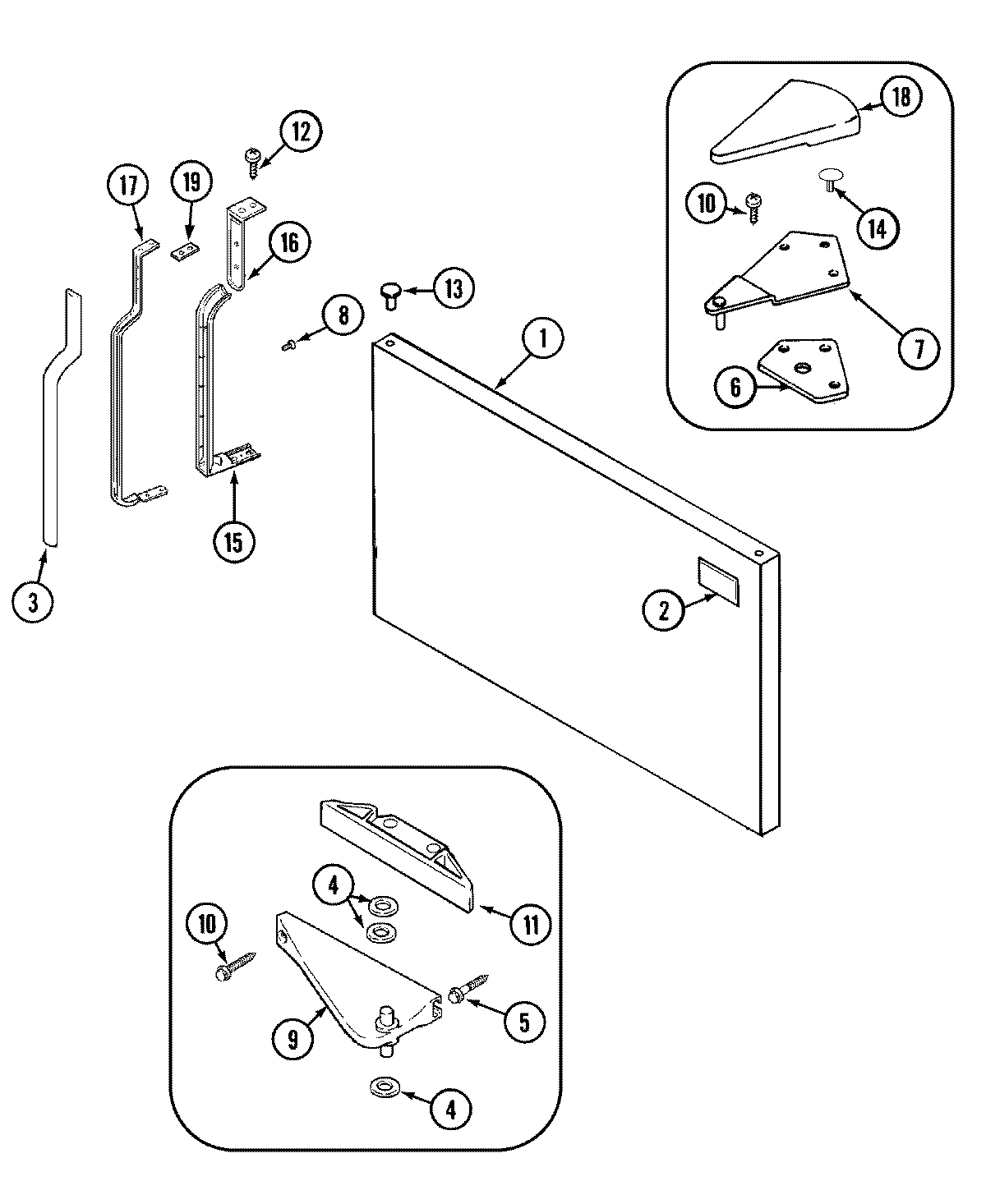

Model Whirlpool MTF1955ERW REFRIGERATOR – Common Parts &amp; Diagrams

1

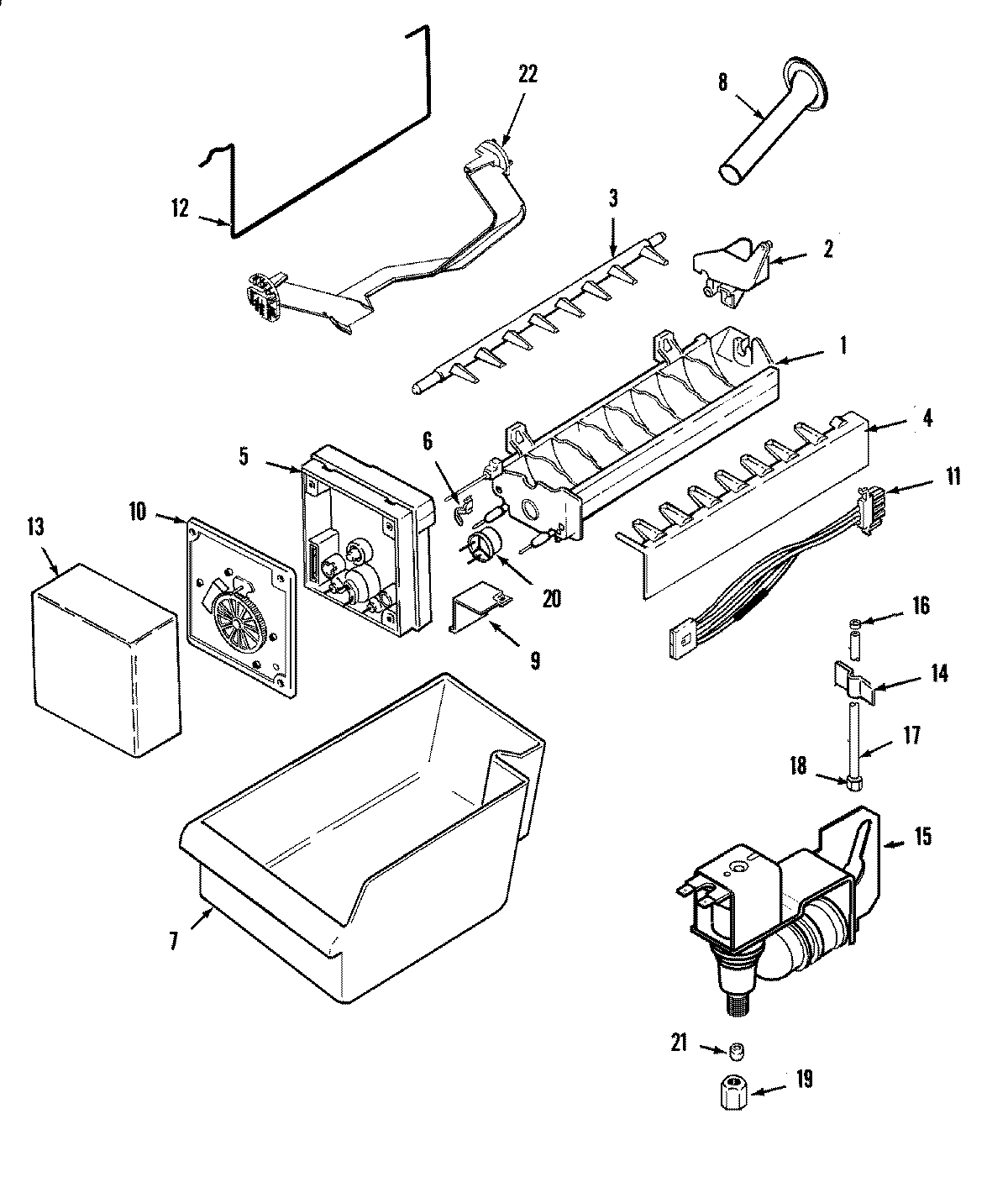

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

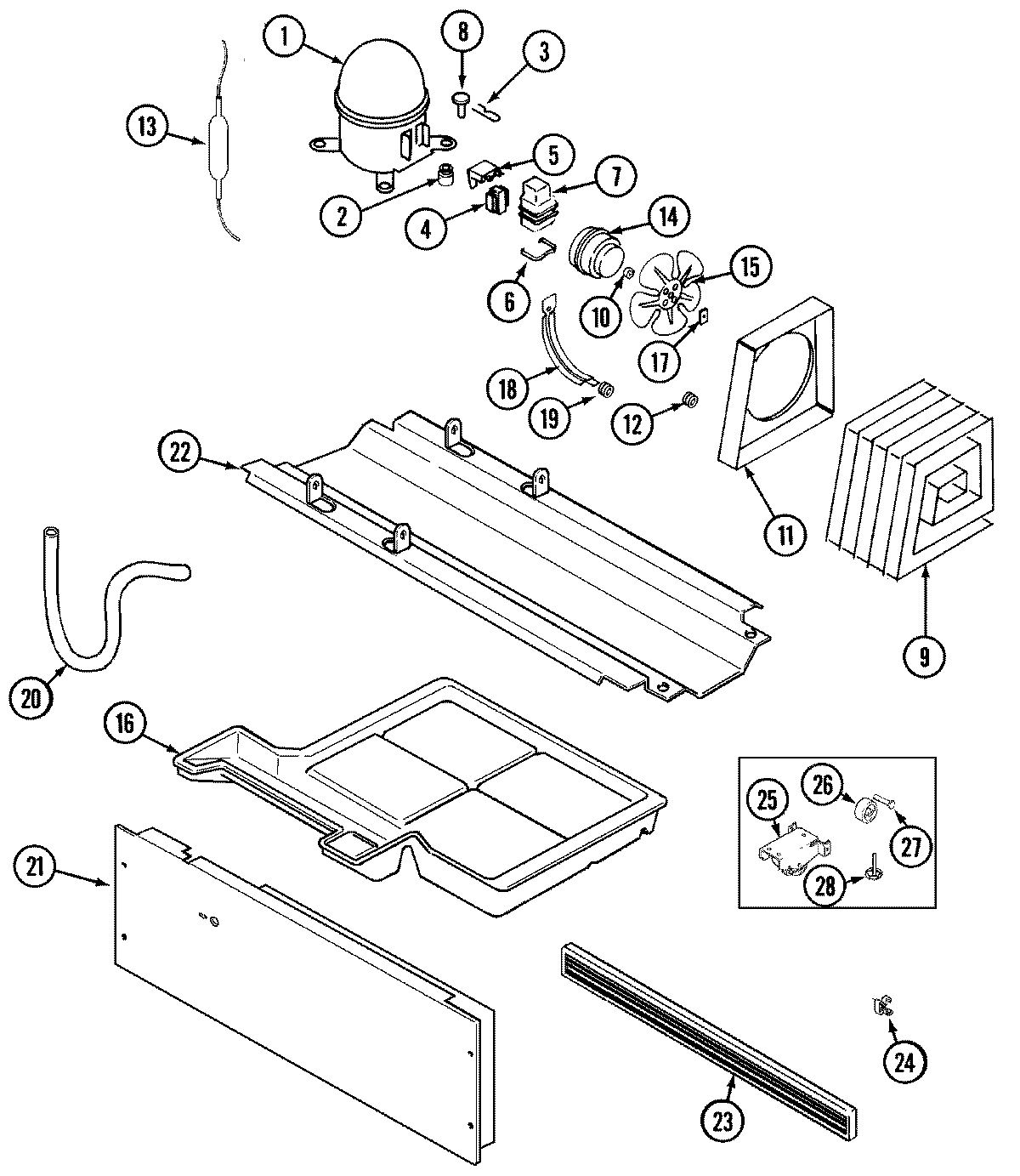

COMPRESSOR (R134A) 115V. WPL 12001374 Contact Us For Availability

1

KIT, COMPRESSOR (R134A) WPL 12001814 Contact Us For Availability

1

WIRE HARNESS, COMP(W/PWR.CORD) WPL 61002012 Contact Us For Availability

1

SCREW WPL 652755 Contact Us For Availability

1

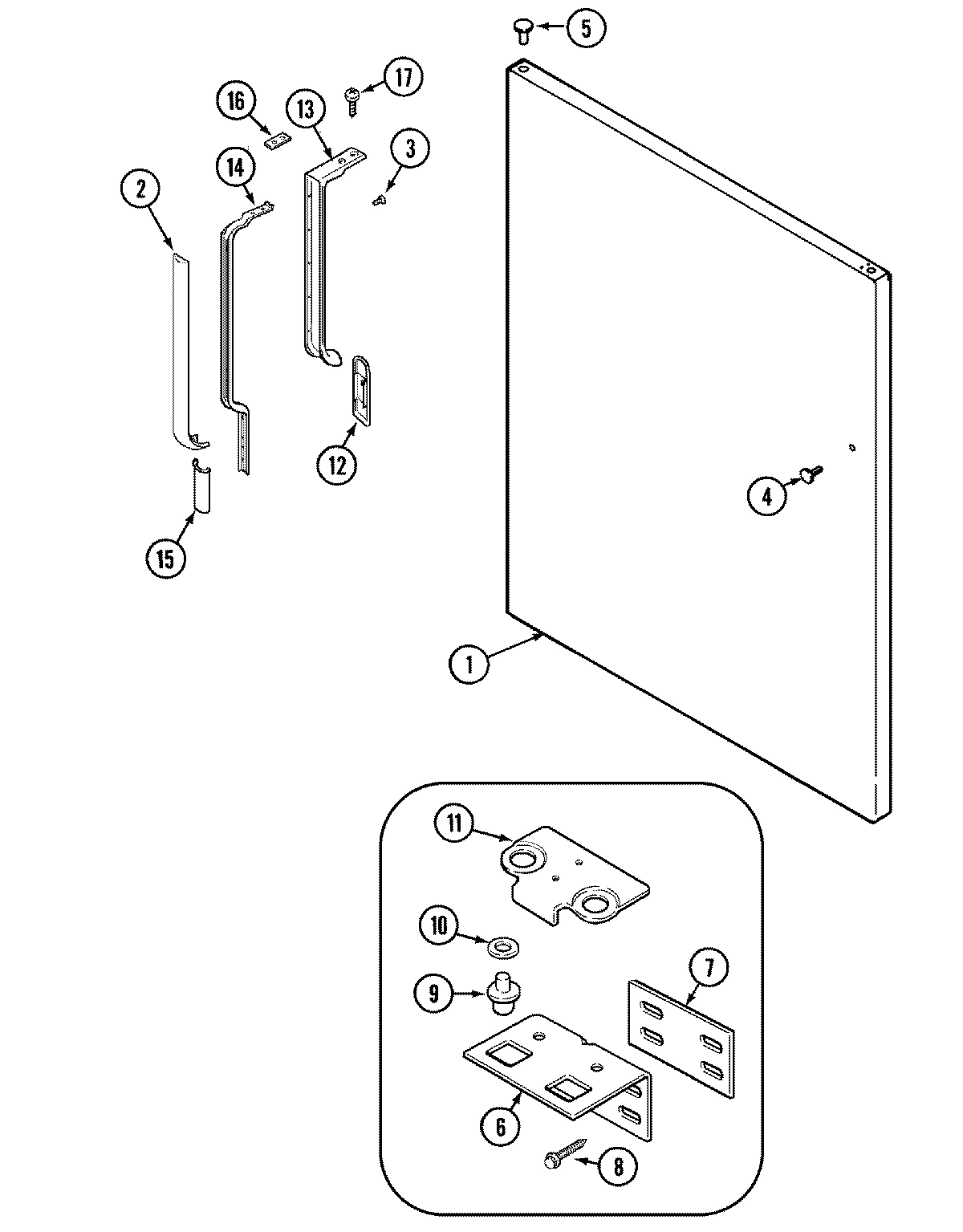

PANEL, F.F. DOOR (WHT) WPL 61002397 Contact Us For Availability

1

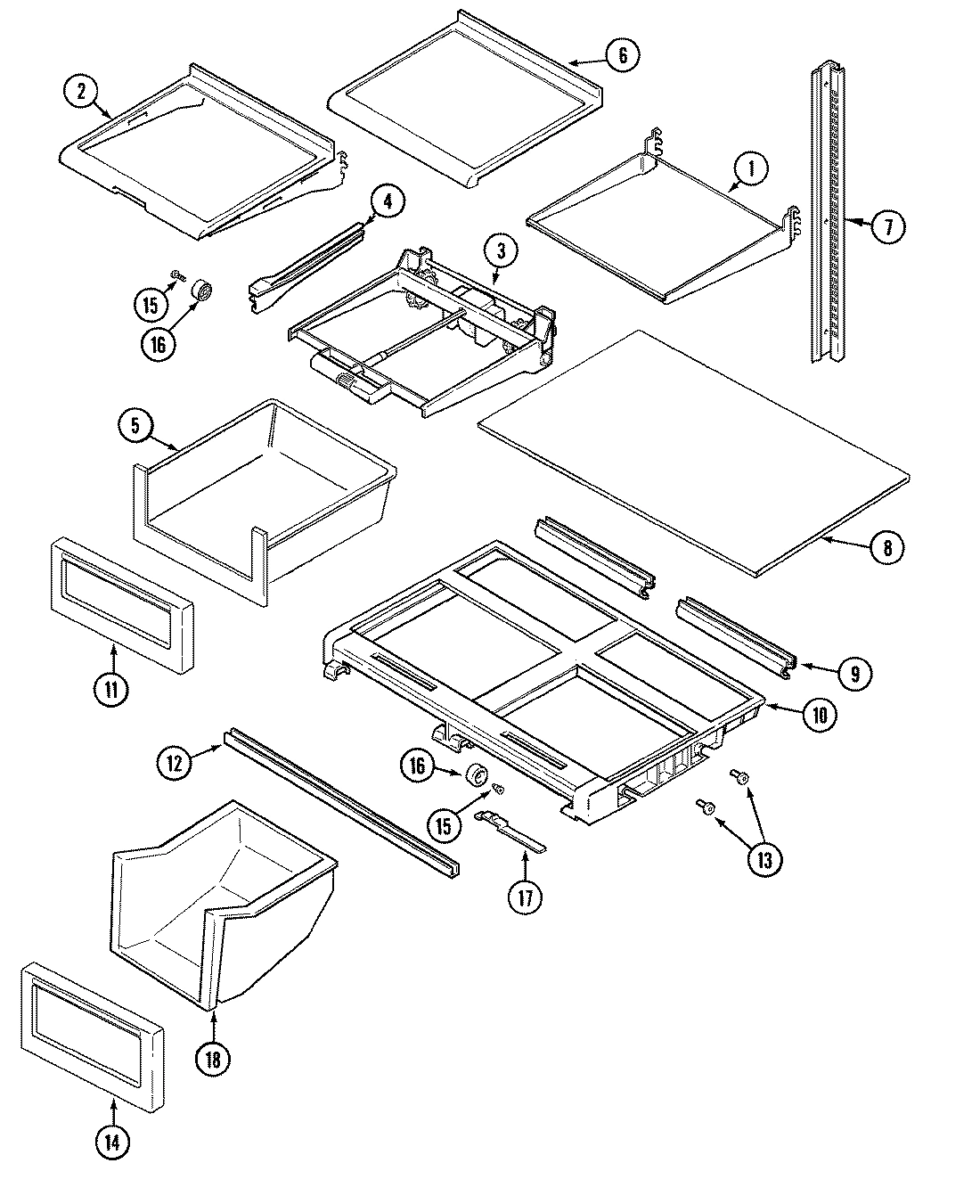

FRAME, SPILLPROOF SHELF WPL 61002759 Contact Us For Availability

1

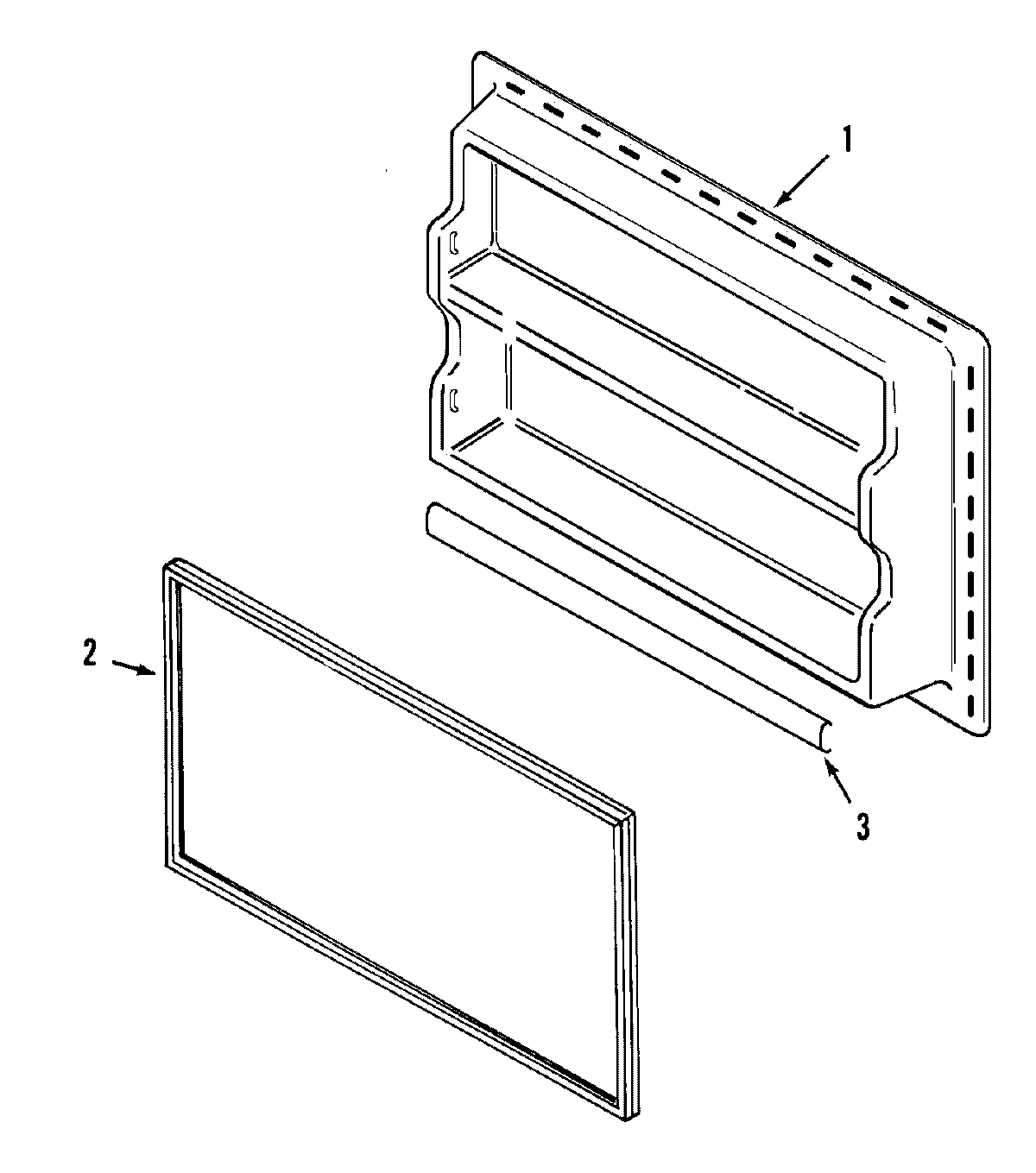

LINER, FRZ. DOOR WPL 61002403 Contact Us For Availability

1

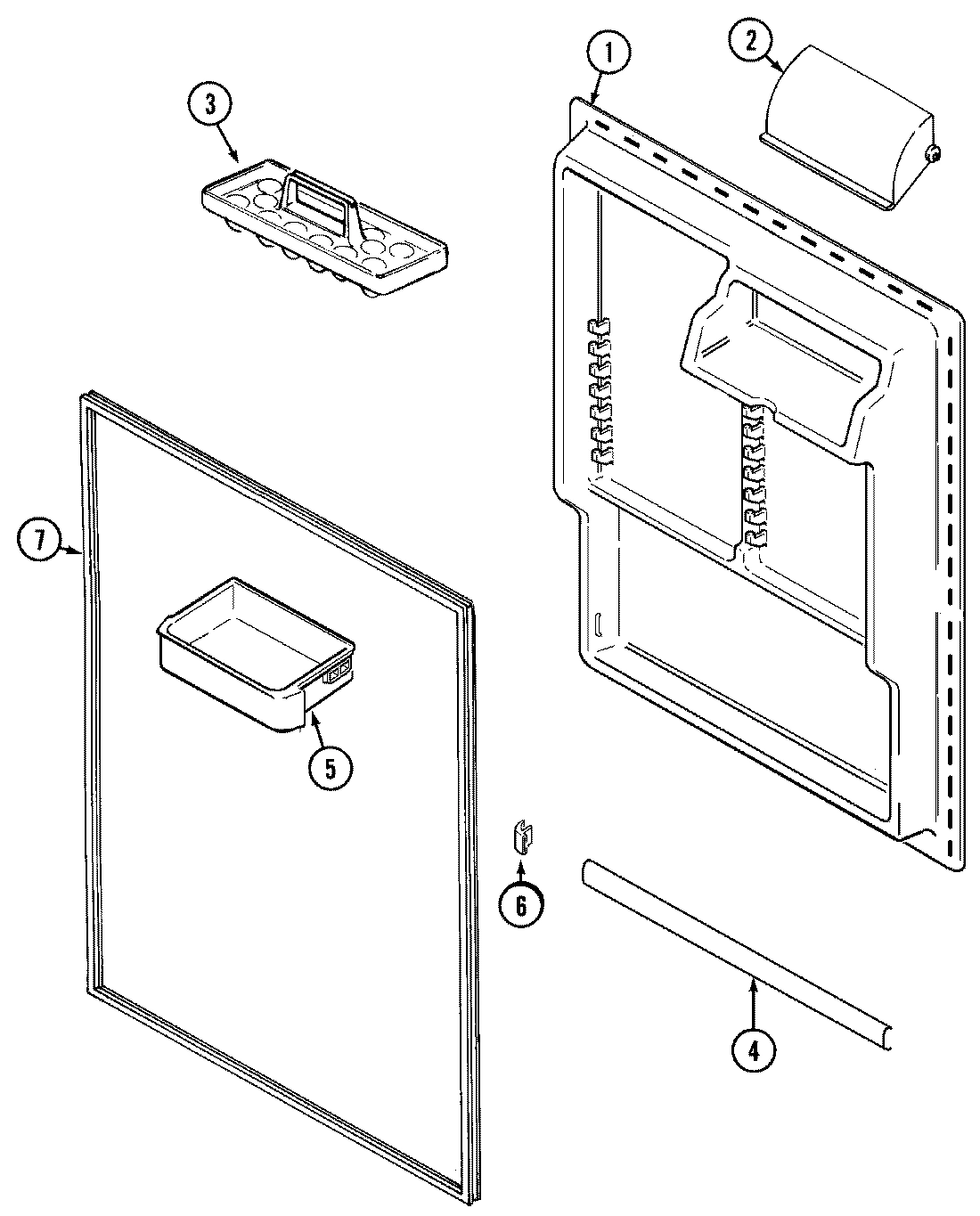

LINER, F.F. DOOR WPL 61002481 Contact Us For Availability

1

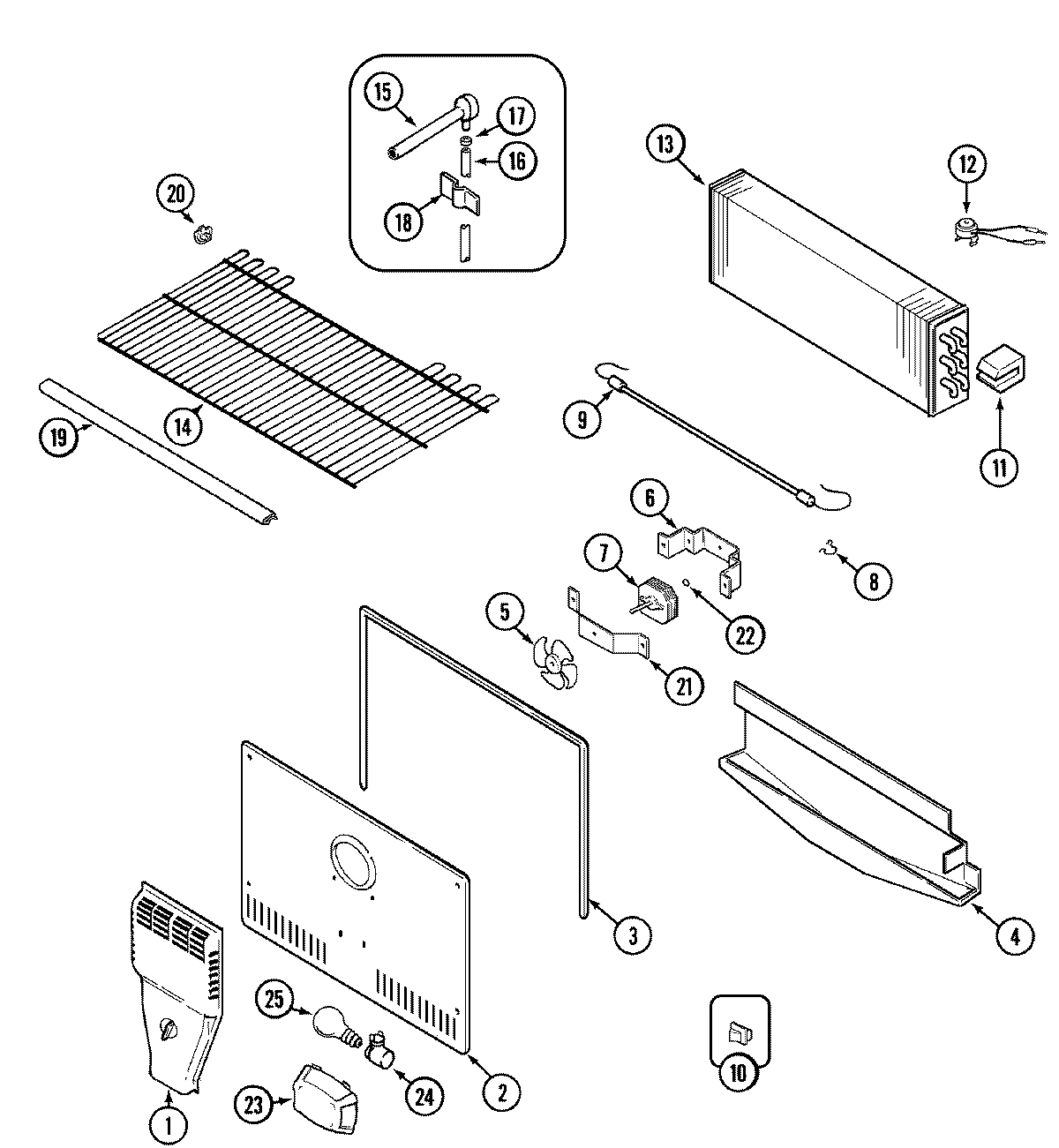

TUNNEL, AIR WPL 61004655 Contact Us For Availability

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

2

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

2

WP61004007 Whirlpool Refrigerator Seal Backorder WPL WP61004007 $173.49

2

DOOR, DAIRY WPL 61002469 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

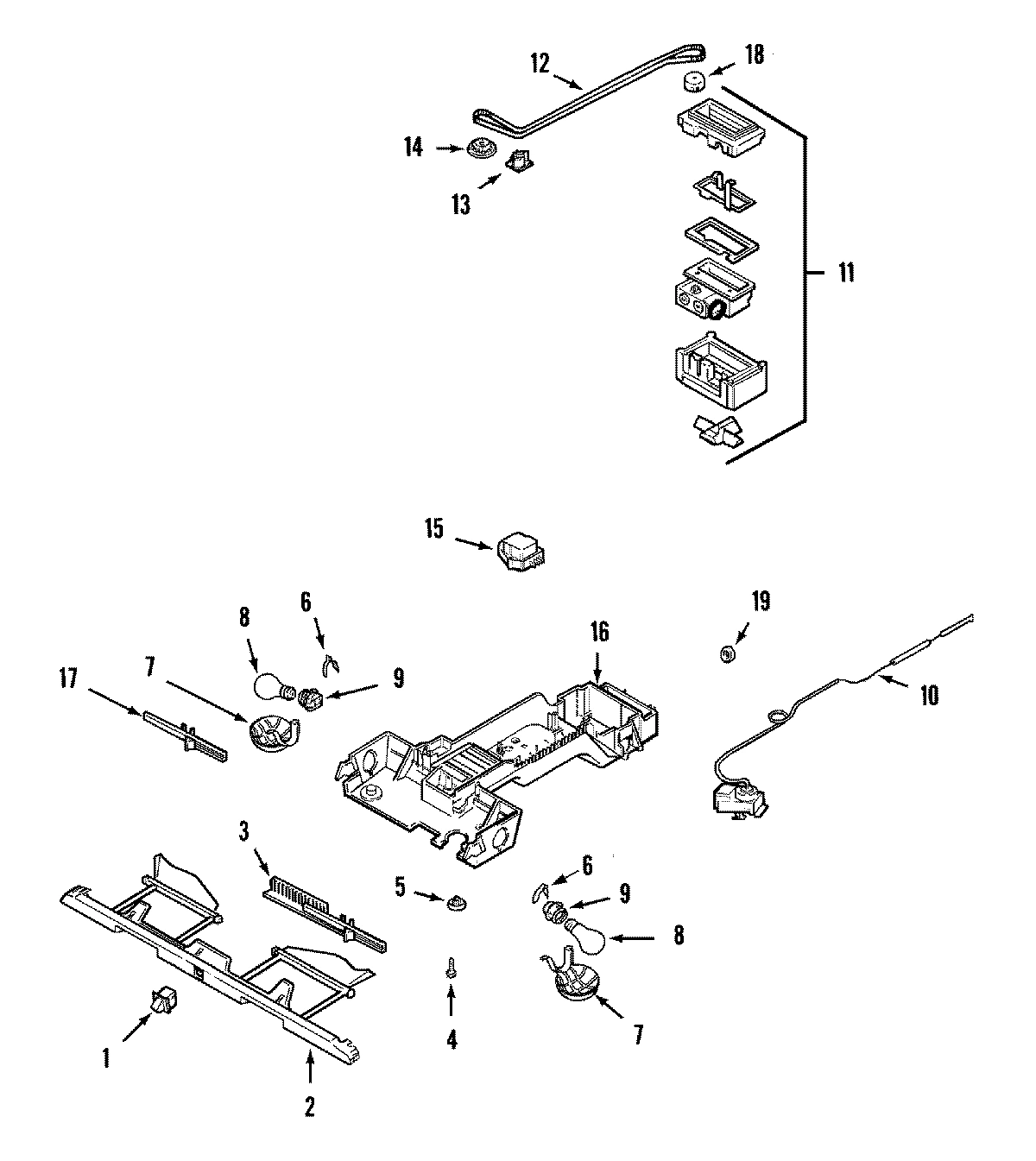

PANEL, CONTROL WPL 61002448 Contact Us For Availability

2

INSERT, HANDLE (WHT) WPL 61002146 Contact Us For Availability

2

SHELF, MEAT WPL 61002499 Contact Us For Availability

2

COVER, EVAPORATOR WPL 61002354 Contact Us For Availability

3

SCREW WPL 6527544 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

SLIDE, CONTROL (FRZ.) WPL 61002295 Contact Us For Availability

3

GLIDE, SHELF WPL 61004480 Contact Us For Availability

3

SHELF ASSY., ADJUSTABLE WPL 61004733 Contact Us For Availability

3

TRAY, EGG WPL 600661 Contact Us For Availability

3

SEAL, FOAM (CTR) WPL 61002276 Contact Us For Availability

3

SEAL, EVAPORATOR COVER WPL 61004625 Contact Us For Availability

4

W11045462 Whirlpool Door Trim In Stock WPL W11045462 $43.02

4

WP10097204 Whirlpool Start Relay Backorder WPL WP10097204 $90.53

4

WP67002191 Whirlpool Refrigerator Crisper Mea Backorder WPL WP67002191 $19.51

4

PLUG BUTTON (WHT) WPL 61001795 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

RELAY, START WPL 61005250 Contact Us For Availability

4

SCREW WPL 61004485 Contact Us For Availability

4

PLUG BUTTON (WHT) WPL 676782 Contact Us For Availability

4

RAIL, MEAT PAN (LT) WPL 61002304 Contact Us For Availability

4

BARRIER, FOIL WPL 61004832 Contact Us For Availability

4

TRAY, DRIP WPL 61004838 Contact Us For Availability

5

WP2183456 Whirlpool Refrigerator Overload Backorder WPL WP2183456 $98.21

5

SCREW WPL 61002025 Contact Us For Availability

5

PLUG BUTTON, HINGE CUP (WHT) WPL 61001908 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

SCREW WPL 951061 Contact Us For Availability

5

OVERLOAD WPL 61002037 Contact Us For Availability

5

GEAR, CONTROL (F.F.) WPL 61002288 Contact Us For Availability

5

PAN, MEAT WPL 61002313 Contact Us For Availability

5

SHELF, PICK-OFF WPL 61005217 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

6

WP61002112 Whirlpool Refrigerator Shelf Retai In Stock WPL WP61002112 $10.19

6

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability

6

CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability

6

HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability

6

SHELF, SPILLPROOF WPL 61002453 Contact Us For Availability

6

SHELF, ELEVATOR WPL 61004734 Contact Us For Availability

6

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

7

WP61002138 Whirlpool Refrigerator Terminal Co Backorder WPL WP61002138 $6.66

7

WP61003997 Whirlpool Refrigerator Seal Backorder WPL WP61003997 $248.22

7

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $93.05

7

HINGE, UPPER WPL 61004896 Contact Us For Availability

7

PAN, ICE WPL 61001886 Contact Us For Availability

7

COVER, TERMINAL WPL 665891 Contact Us For Availability

7

GUARD, LIGHT WPL 61002286 Contact Us For Availability

7

SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability

7

SCREW WPL 40003728 Contact Us For Availability

7

RAIL, SHELF SUPPORT (CTR) WPL 61004705 Contact Us For Availability

7

RAIL, SHELF SUPPORT (LT/RT) WPL 61004706 Contact Us For Availability

8

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

8

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $10.86

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

GLASS, CRISPER SHELF WPL 61002255 Contact Us For Availability

8

CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability

9

WP61001925 Whirlpool Refrigerator Lower Pin Backorder WPL WP61001925 $19.46

9

WP61002045 Whirlpool Refrigerator Defrost Hea In Stock WPL WP61002045 $93.78

9

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

9

HINGE, CENTER (WHT) WPL 61001920 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

CONDENSER WPL 61002811 Contact Us For Availability

9

SEAL, REAR WPL 61002311 Contact Us For Availability

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $4.82

WP61002043 Whirlpool Refrigerator Control Backorder WPL WP61002043 $159.23

WP61002231 Whirlpool Refrigerator Washer Hing Backorder WPL WP61002231 $7.55

SCREW WPL 4000311 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SCREW WPL 6527581 Contact Us For Availability

SHELF, CRISPER WPL 61002306 Contact Us For Availability

SWITCH, LIGHT WPL 669871 Contact Us For Availability

STOP, DOOR (WHT) WPL 61004481 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

DAMPER/INSULATION KIT WPL 61002092 Contact Us For Availability

SCREW WPL 61001876 Contact Us For Availability

STOP, DOOR WPL 61001969 Contact Us For Availability

FRONT, MEAT PAN WPL 61002500 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability

WP61005254 Whirlpool Refrigerator Thermostat In Stock WPL WP61005254 $78.61

ARM, SENSOR WPL 61005173 Contact Us For Availability

CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

BELT, DAMPER WPL 61002290 Contact Us For Availability

BASE, EXTENSION WPL 61002148 Contact Us For Availability

RAIL, CRISPER SUPPORT WPL 61005012 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

EVAP/HEAT EXCH. ASSY. 19` WPL 12001397 Contact Us For Availability

HANDLE (WHT) WPL 61002149 Contact Us For Availability

COVER, ICE MAKER WPL 61004594 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

TENSIONER, BELT WPL 61002289 Contact Us For Availability

SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

PLUG BUTTON, HINGE (WHT) WPL 61001923 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

GEAR, DAMPER BELT (FRT) WPL 61002291 Contact Us For Availability

FRAME, HANDLE WPL 61002151 Contact Us For Availability

FRONT, CRISPER PAN (RT) WPL 61002257 Contact Us For Availability

FRONT, CRISPER PAN (LT) WPL 61002258 Contact Us For Availability

SHELF, FRZ. WPL 61002420 Contact Us For Availability

WP61002308 Whirlpool Refrigerator Screw Backorder WPL WP61002308 $5.02

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $95.51

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682333 Contact Us For Availability

TRIM, HANDLE EXT. (WHT) WPL 61002152 Contact Us For Availability

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

BASE, EXTENSION WPL 61002325 Contact Us For Availability

SHIM, HANDLE WPL 679341 Contact Us For Availability

TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability

PAN, DRAIN WPL 61001955 Contact Us For Availability

SHIELD, HEAT (LT) WPL 61002296 Contact Us For Availability

SHIELD, HEAT (RT) WPL 61002297 Contact Us For Availability

HOUSING, CONTROL WPL 61004643 Contact Us For Availability

ROLLER WPL 61002307 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

SCREW WPL 61002924 Contact Us For Availability

FRAME, HANDLE WPL 61002326 Contact Us For Availability

SLIDE, CONTROL (F.F.) WPL 61002294 Contact Us For Availability

SLIDE, CONTROL WPL 61002310 Contact Us For Availability

COVER, UPPER HINGE (WHT) WPL 61002076 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

GEAR, DAMPER BELT (REAR) WPL 61002292 Contact Us For Availability

PAN, CRISPER WPL 61002256 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

SEAL, DRAIN WPL 61001977 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

TRIM, FRZ. SHELF----NA WPL 61002501 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61002316 Contact Us For Availability

SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability

SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

SLEEVE, BRASS WPL 694311 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61004654 Contact Us For Availability

SCREW WPL 652751 Contact Us For Availability

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61002327 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61005272 Contact Us For Availability

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

23

KICKPLATE W/CLIPS (WHT) WPL 61002427 Contact Us For Availability

23

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

24

CLIP, KICKPLATE WPL 61001975 Contact Us For Availability

24

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

WHEEL ASSY. WPL 61001978 Contact Us For Availability

WHEEL ASSY. (FRT) WPL 61005216 Contact Us For Availability

BULB, LIGHT WPL 319561 Contact Us For Availability

26

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

26

WIRE HARNESS, FRZ. WPL 61005033 Contact Us For Availability

28

LEG, LEVELING WPL 61002014 Contact Us For Availability

29

YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability

30

MANUAL, USE & CARE WPL 61004711 Contact Us For Availability

31

MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability

NI

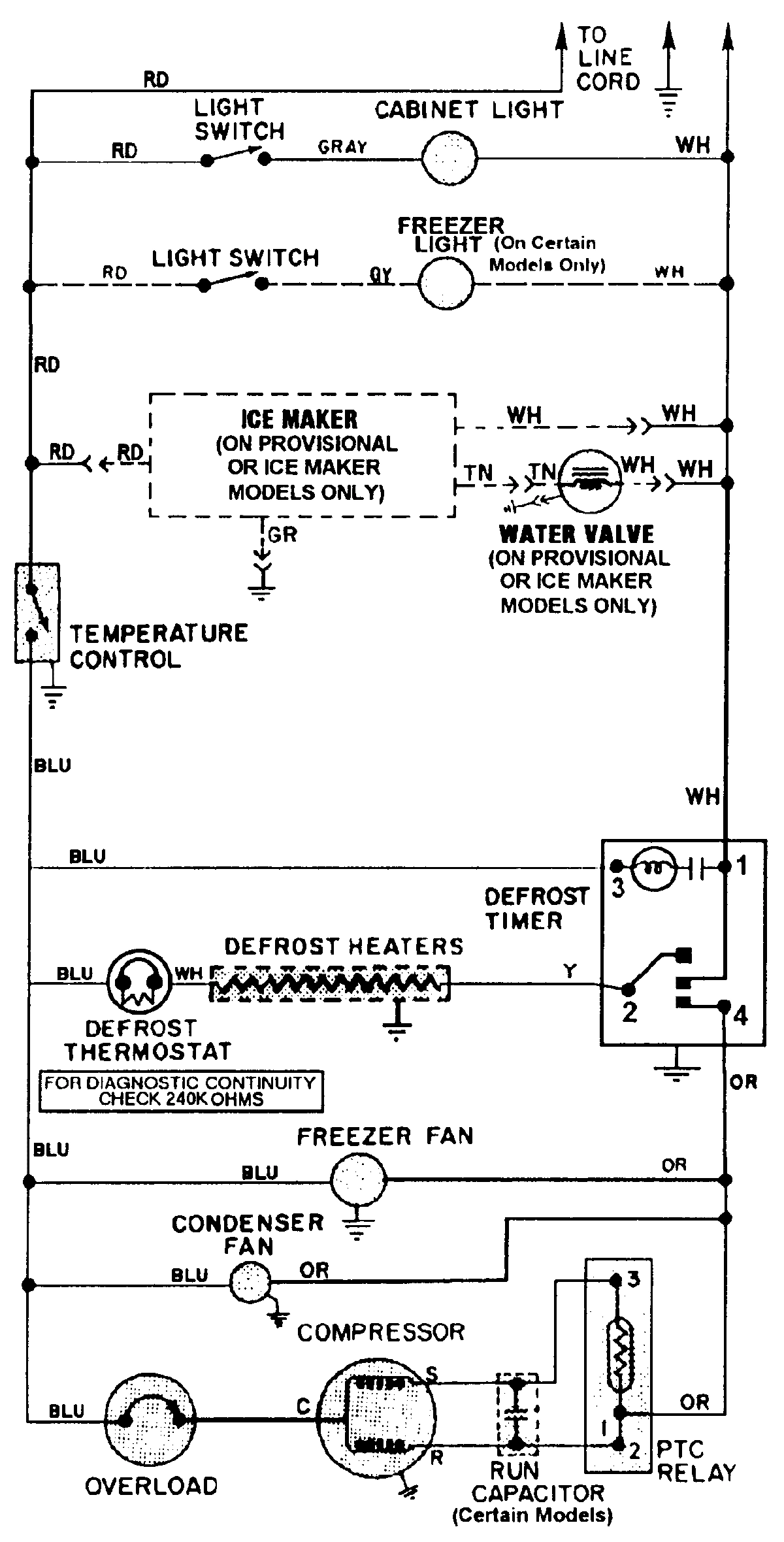

WIRING INFORMATION WPL 15002127 Contact Us For Availability
