Model Whirlpool MTB2455ERB REFRIGERATOR – Common Parts &amp; Diagrams

1

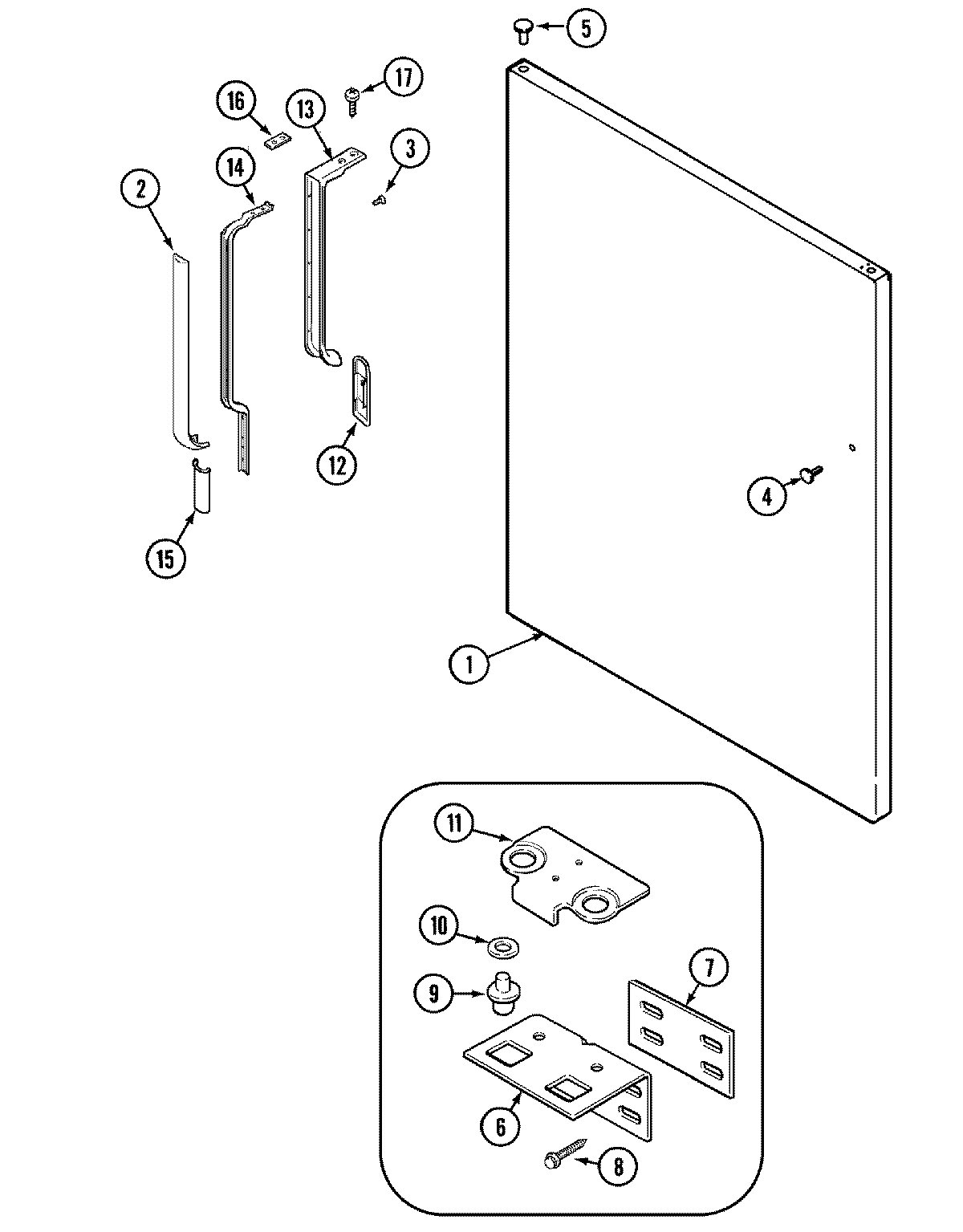

PANEL, F.F. DOOR (BLK) WPL 61002825 Contact Us For Availability

1

LABEL, DUAL ENERGY GUIDE WPL 61003514 Contact Us For Availability

1

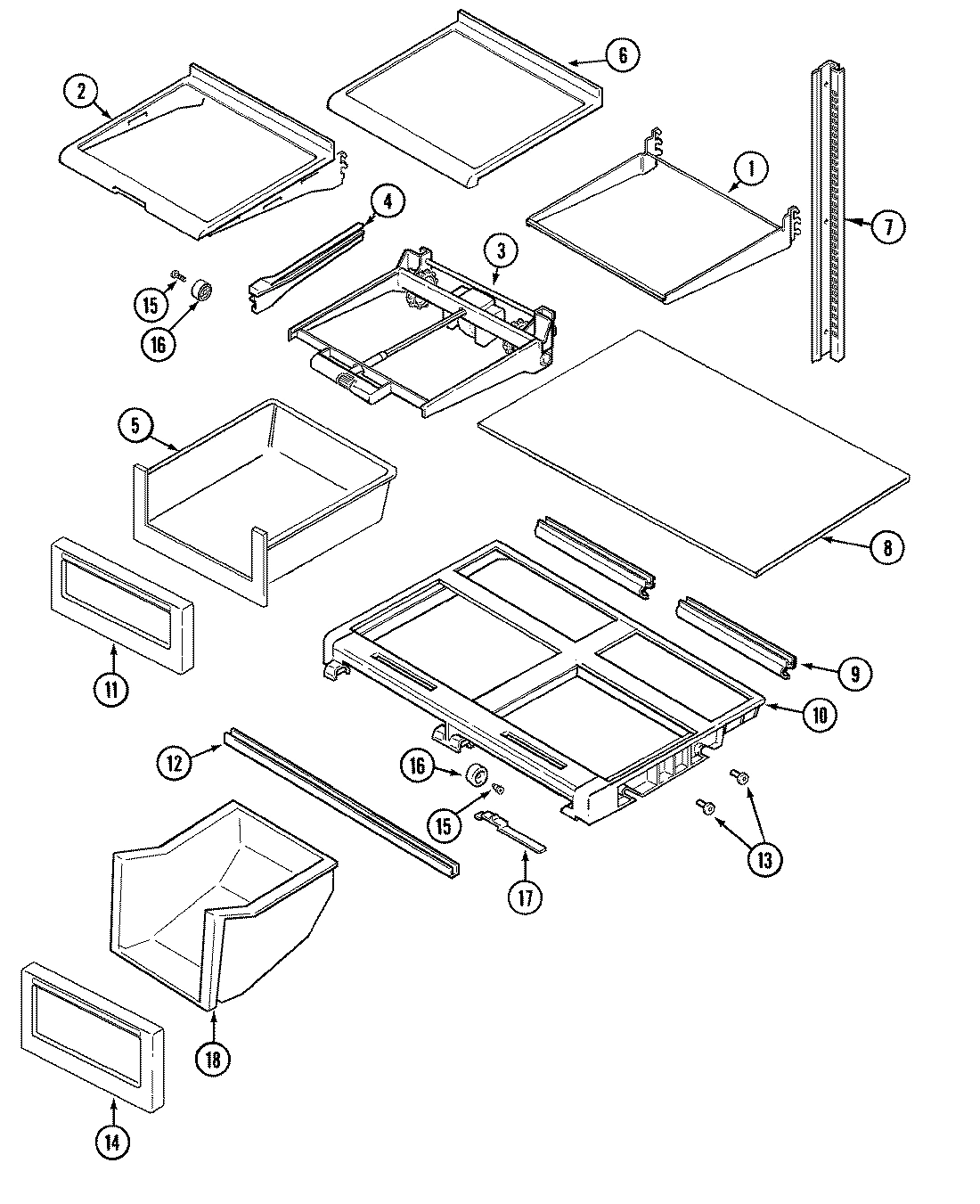

FRAME, SPILLPROOF SHELF WPL 61002708 Contact Us For Availability

1

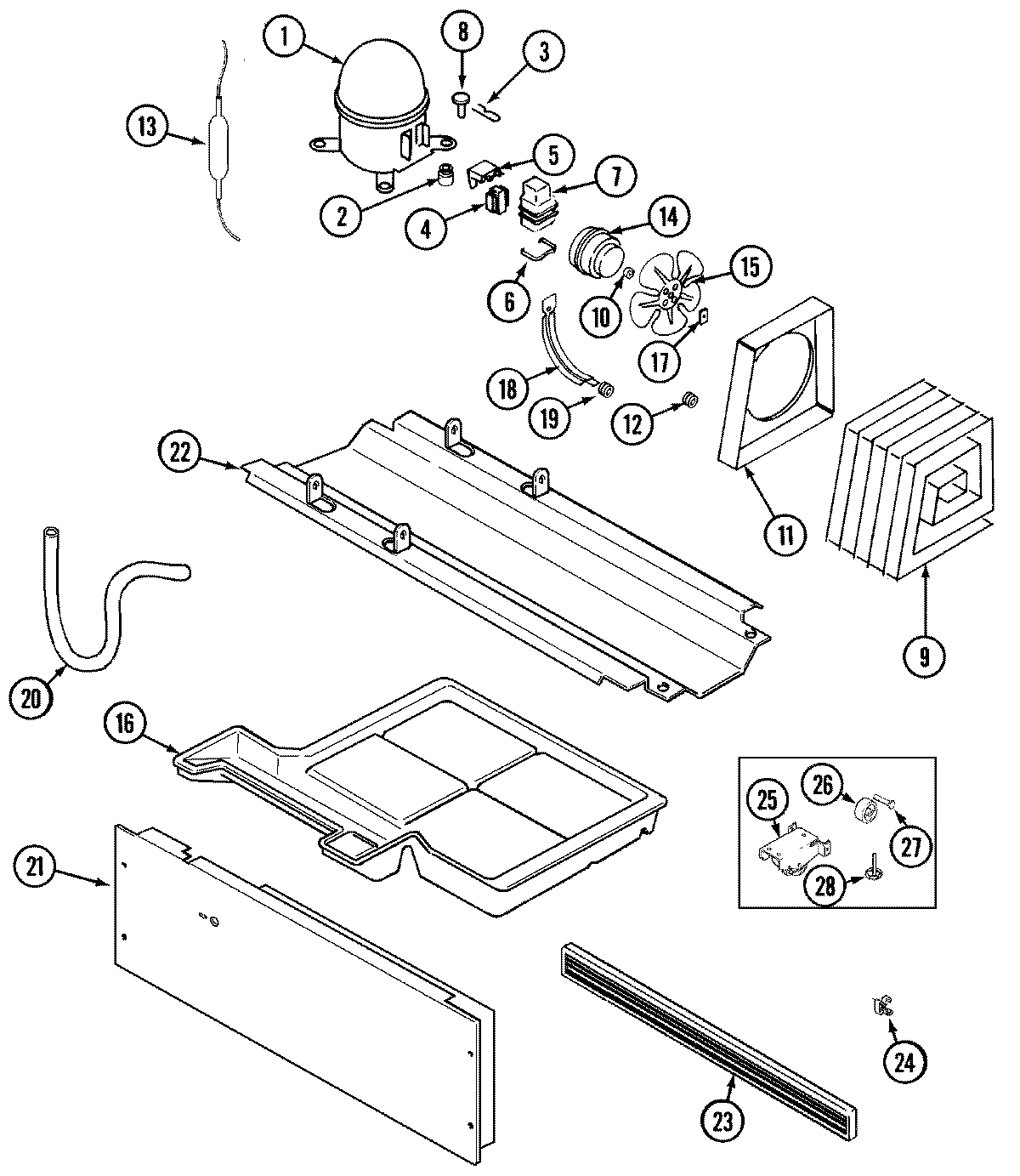

COMPRESSOR (R134A) 115V. WPL 12001374 Contact Us For Availability

1

KIT, COMPRESSOR (R134A) WPL 12001814 Contact Us For Availability

1

WIRE HARNESS, COMP(W/PWR.CORD) WPL 61002012 Contact Us For Availability

1

SCREW WPL 652755 Contact Us For Availability

1

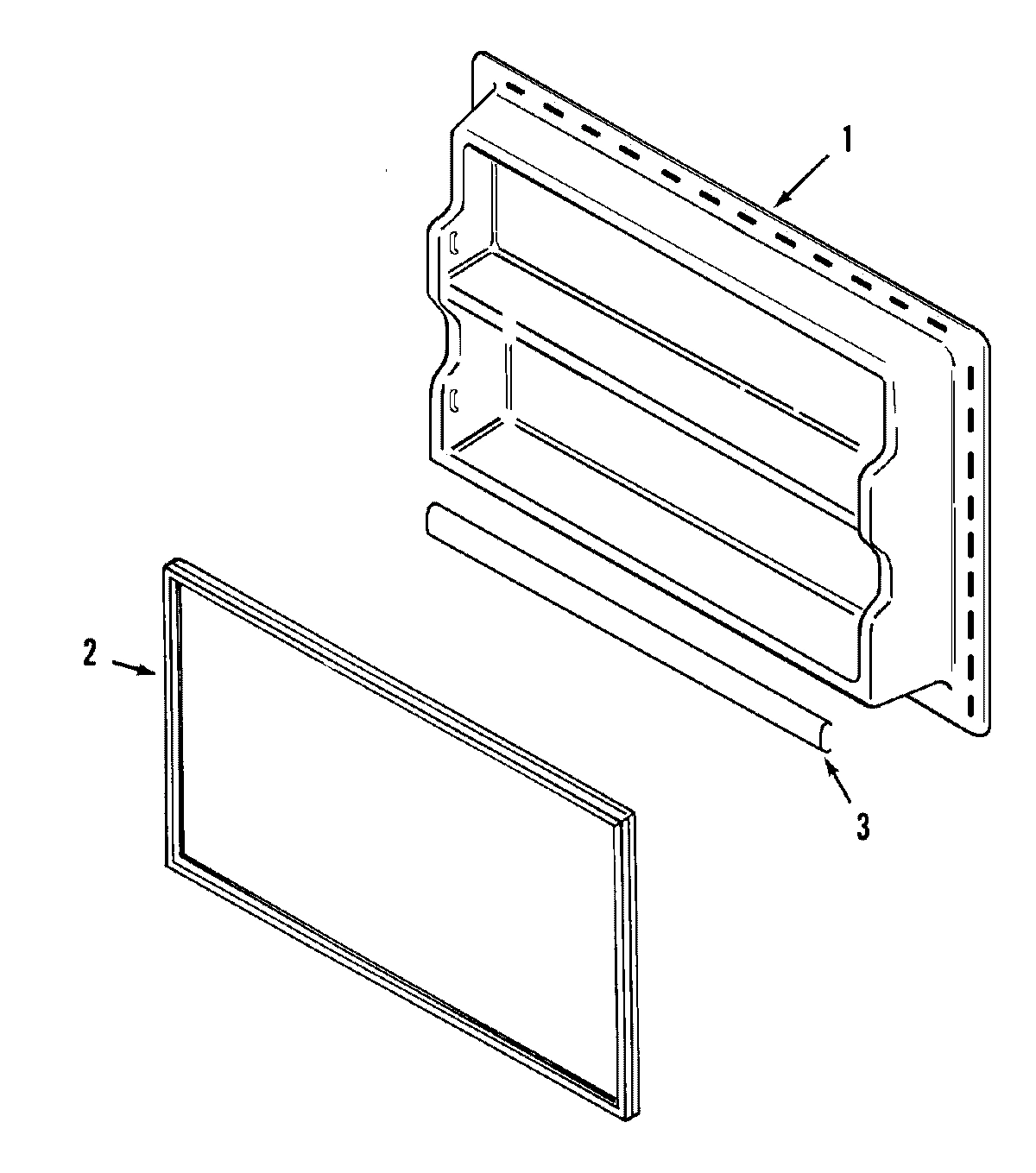

LINER, FRZ. DOOR WPL 61002781 Contact Us For Availability

1

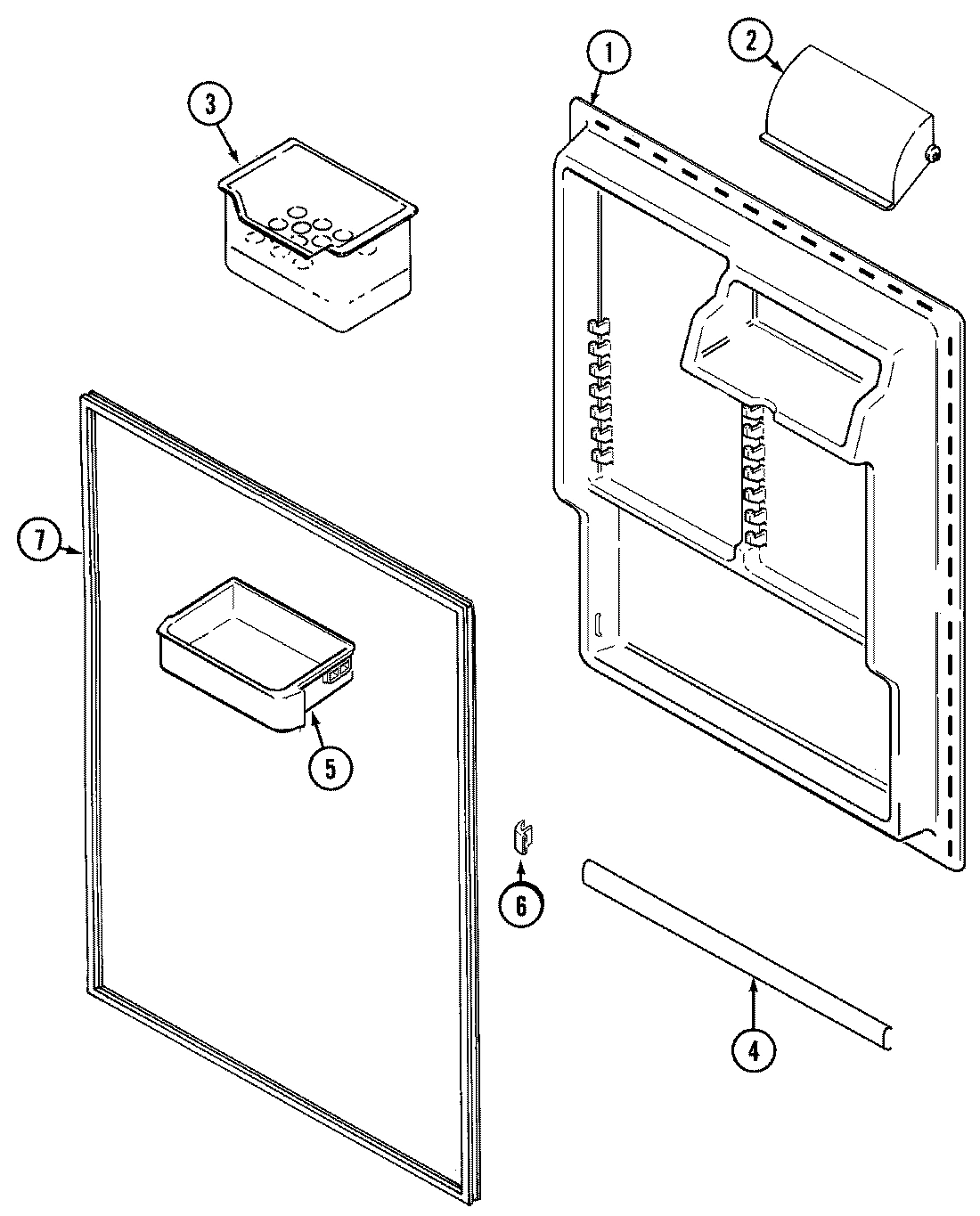

LINER, F.F. DOOR WPL 61002762 Contact Us For Availability

1

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

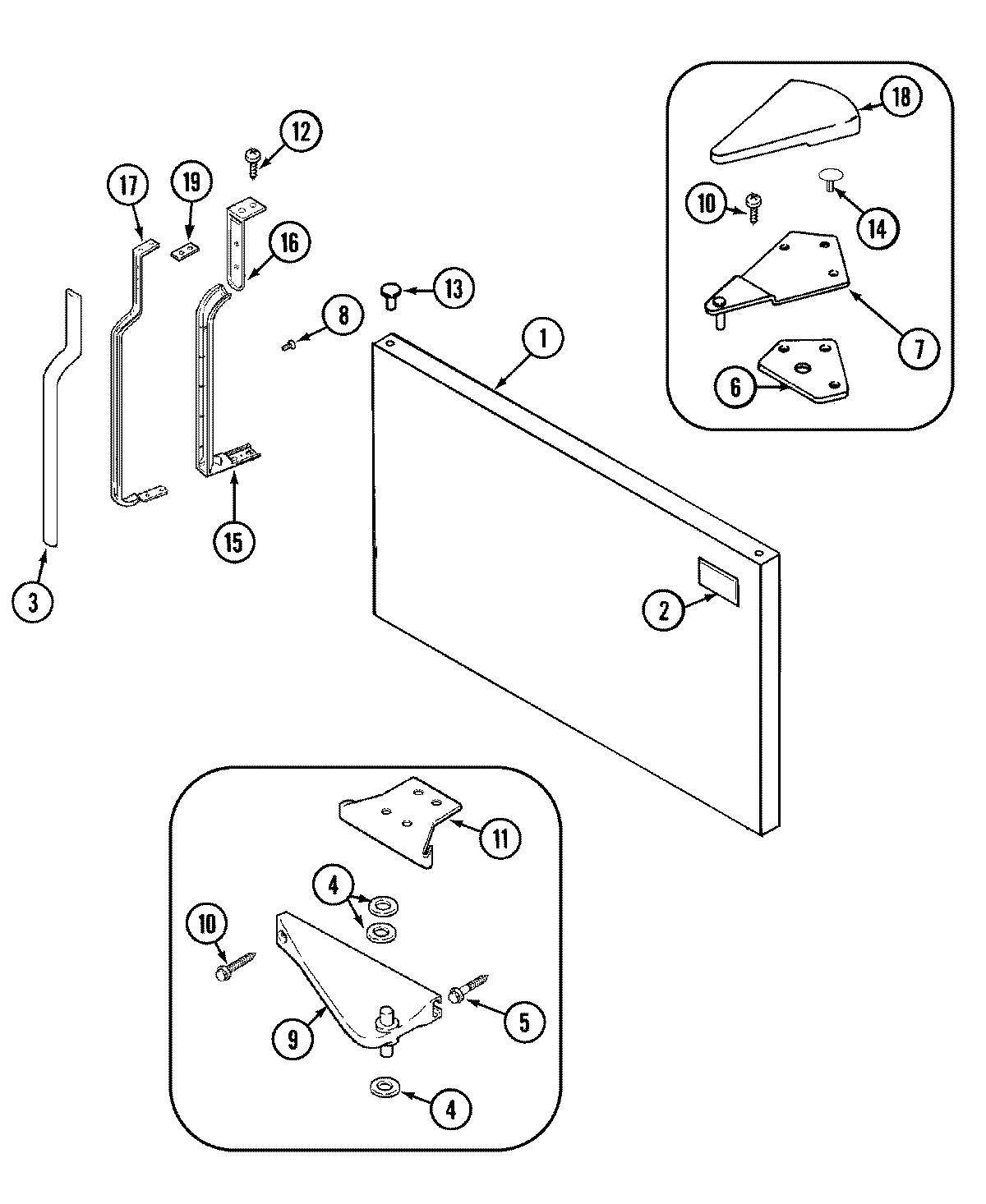

PANEL, FRZ. DOOR (BLK) WPL 61002837 Contact Us For Availability

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

2

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

2

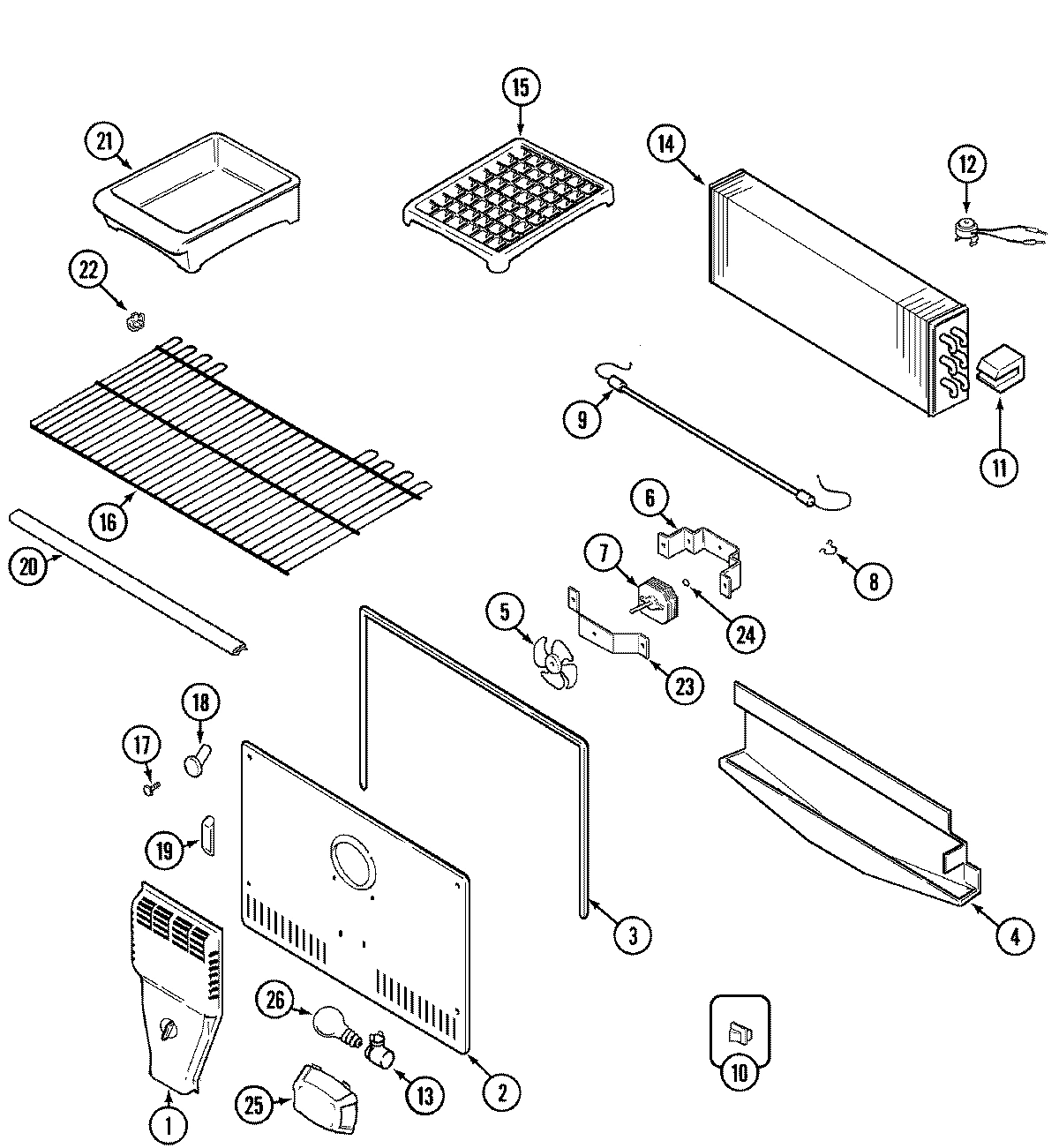

COVER, EVAPORATOR WPL 61002318 Contact Us For Availability

2

INSERT, F.F. HANDLE (BLK) WPL 61002457 Contact Us For Availability

2

SHELF, MEAT WPL 61004692 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

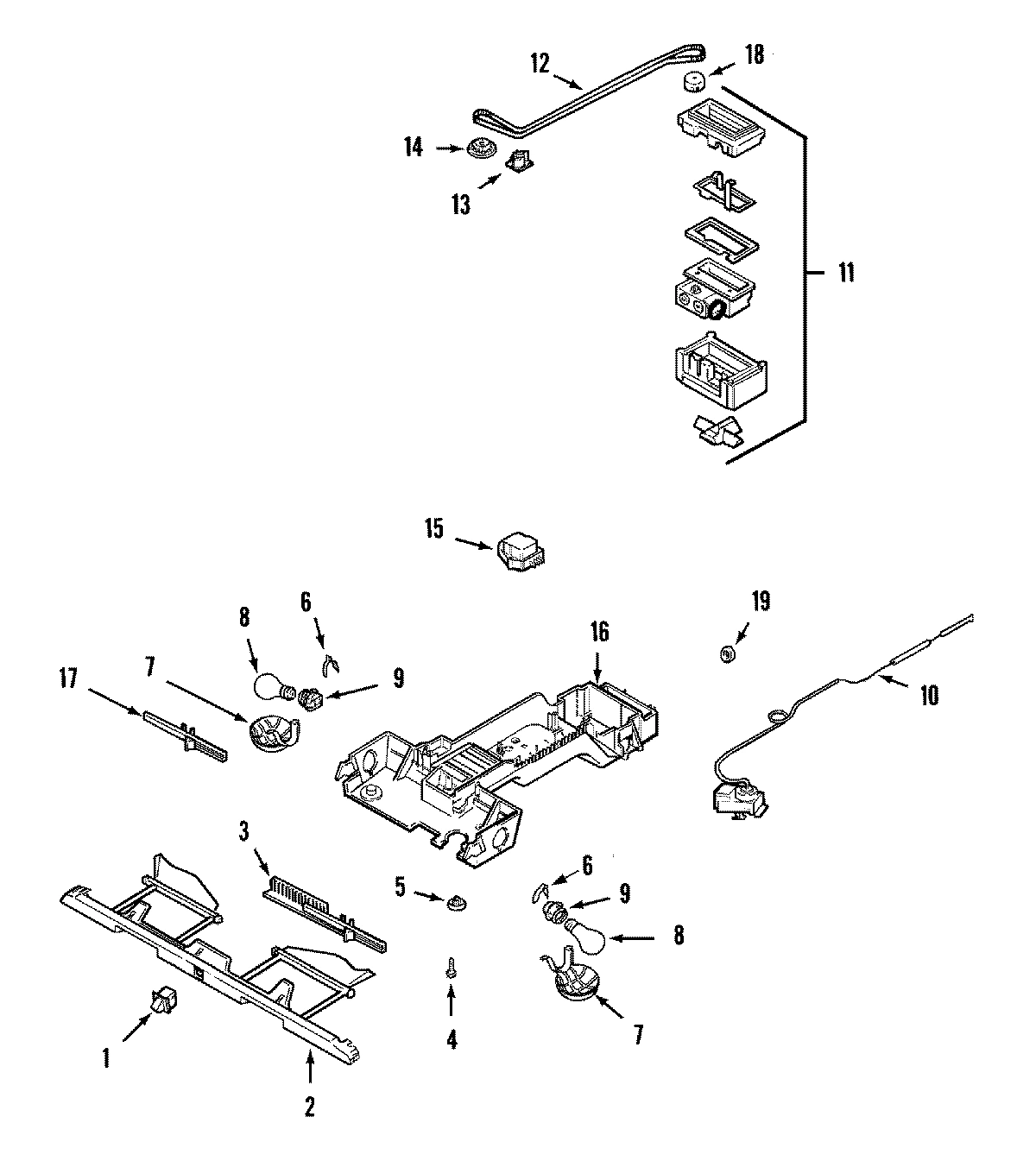

PANEL, CONTROL WPL 61002568 Contact Us For Availability

2

SEAL, FRZ. DOOR (BLK) WPL 61004018 Contact Us For Availability

2

DOOR, DAIRY WPL 61002639 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

NAMEPLATE (BLK) WPL 61004649 Contact Us For Availability

3

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

3

SEAL, EVAPORAT0R COVER WPL 61004624 Contact Us For Availability

3

GLIDE, SHELF WPL 61004480 Contact Us For Availability

3

SHELF ASSY., ADJUSTABLE WPL 61004729 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

SLIDE, CONTROL (FRZ.) WPL 61002295 Contact Us For Availability

3

TRIM, DOOR SHELF WPL 61002610 Contact Us For Availability

3

TRAY, EGG WPL 672152 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

INSERT, HANDLE (BLK) WPL 61004695 Contact Us For Availability

4

WP10097204 Whirlpool Start Relay Backorder WPL WP10097204 $90.53

4

WP61002231 Whirlpool Refrigerator Washer Hing Backorder WPL WP61002231 $7.55

4

WP67002191 Whirlpool Refrigerator Crisper Mea Backorder WPL WP67002191 $19.51

4

BARRIER, FOIL WPL 61004832 Contact Us For Availability

4

TRAY, DRIP WPL 61004861 Contact Us For Availability

4

PLUG BUTTON, HANDLE HOLE (BLK) WPL 676785 Contact Us For Availability

4

RAIL, MEAT PAN (LT) WPL 61002304 Contact Us For Availability

4

RELAY, START WPL 61005250 Contact Us For Availability

4

SCREW WPL 61004485 Contact Us For Availability

4

TRIM, DOOR SHELF (26 1/4``) WPL 61002780 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

5

WP2183456 Whirlpool Refrigerator Overload Backorder WPL WP2183456 $98.21

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

5

PAN, MEAT WPL 61002656 Contact Us For Availability

5

OVERLOAD WPL 61002037 Contact Us For Availability

5

GEAR, CONTROL (F.F.) WPL 61002288 Contact Us For Availability

5

SHELF, PICK-OFF WPL 61004694 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

SCREW WPL 951061 Contact Us For Availability

5

SCREW WPL 61002025 Contact Us For Availability

6

WP61002112 Whirlpool Refrigerator Shelf Retai In Stock WPL WP61002112 $10.19

6

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

6

HINGE, LOWER (BLK) WPL 61002361 Contact Us For Availability

6

SHELF, SPILLPROOF WPL 61002745 Contact Us For Availability

6

SHELF, ELEVATOR WPL 61004730 Contact Us For Availability

6

CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability

6

CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

7

WP61002138 Whirlpool Refrigerator Terminal Co Backorder WPL WP61002138 $6.66

7

WP61004017 Whirlpool Refrigerator Seal Backorder WPL WP61004017 $238.65

7

WP61004888 Whirlpool Refrigerator Evaporator In Stock WPL WP61004888 $93.05

7

SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability

7

SCREW WPL 40003728 Contact Us For Availability

7

RAIL, SHELF SUPPORT (CTR) WPL 61004705 Contact Us For Availability

7

RAIL, SHELF SUPPORT (LT/RT) WPL 61004706 Contact Us For Availability

7

COVER, TERMINAL WPL 665891 Contact Us For Availability

7

GUARD, LIGHT WPL 61002286 Contact Us For Availability

7

PAN, ICE WPL 61001886 Contact Us For Availability

7

HINGE, UPPER WPL 61004896 Contact Us For Availability

8

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

8

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $10.86

8

WP61002623 Whirlpool Crisper Glass Shelf Backorder WPL WP61002623 $146.25

8

CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability

8

SCREW WPL 6527544 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

GROMMET, WATER ENTRY WPL 61001888 Contact Us For Availability

9

WP61001925 Whirlpool Refrigerator Lower Pin Backorder WPL WP61001925 $19.46

9

WP61002046 Whirlpool Defrost Heater Backorder WPL WP61002046 $148.09

9

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

9

SEAL, CRISPER SHELF (REAR) WPL 61002574 Contact Us For Availability

9

CONDENSER WPL 61002811 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

HINGE, CENTER (BLK) WPL 61002373 Contact Us For Availability

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $4.82

WP61002043 Whirlpool Refrigerator Control Backorder WPL WP61002043 $159.23

SWITCH, LIGHT WPL 669871 Contact Us For Availability

SHELF, CRISPER WPL 61004708 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SCREW WPL 6527581 Contact Us For Availability

SCREW WPL 4000211 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability

SCREW WPL 61001876 Contact Us For Availability

STOP, DOOR WPL 61001969 Contact Us For Availability

FRONT, MEAT PAN WPL 61002676 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

DAMPER/INSULATION KIT WPL 61002092 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability

STOP, DOOR (BLK) WPL 61004547 Contact Us For Availability

WP61005254 Whirlpool Refrigerator Thermostat In Stock WPL WP61005254 $78.61

BASE, EXTENSION WPL 61002148 Contact Us For Availability

SCREW WPL 61002924 Contact Us For Availability

RAIL, CRISPER SUPPORT WPL 61004645 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

BELT, DAMPER WPL 61002650 Contact Us For Availability

ARM, SENSOR WPL 61005173 Contact Us For Availability

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

PLUG BUTTON, HINGE CUP (BLK) WPL 61002360 Contact Us For Availability

SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

TENSIONER, BELT WPL 61002289 Contact Us For Availability

COVER, ICE MAKER WPL 61004594 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

EVAP/HEAT EXCH. ASSY. 21 & 24` WPL 12001398 Contact Us For Availability

FRAME, HANDLE WPL 61002151 Contact Us For Availability

FRONT, CRISPER PAN (RT) WPL 61002578 Contact Us For Availability

FRONT, CRISPER PAN (LT) WPL 61002579 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

GEAR, DAMPER BELT (FRT) WPL 61002291 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

PLUG BUTTON, HINGE (BLK) WPL 61002374 Contact Us For Availability

WP61002140 Whirlpool Ice Cube Tray Backorder WPL WP61002140 $11.04

WP61002308 Whirlpool Refrigerator Screw Backorder WPL WP61002308 $5.02

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $95.51

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

PLUG BUTTON, HANDLE MTG. (BLK) WPL 61002443 Contact Us For Availability

HANDLE (BLK) WPL 61002451 Contact Us For Availability

TRIM, HANDLE EXT. (BLK) WPL 61004648 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682333 Contact Us For Availability

SHELF, FRZ. WPL 61002775 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

ROLLER WPL 61002307 Contact Us For Availability

PAN, DRAIN WPL 61002649 Contact Us For Availability

SHIELD, HEAT (LT) WPL 61002296 Contact Us For Availability

SHIELD, HEAT (RT) WPL 61002297 Contact Us For Availability

HOUSING, CONTROL WPL 61004691 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

BASE, EXTENSION WPL 61002338 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

PLUG BUTTON, ICE MAKER WPL 61005015 Contact Us For Availability

SLIDE, CONTROL WPL 61002310 Contact Us For Availability

SLIDE, CONTROL (F.F.) WPL 61002294 Contact Us For Availability

FRAME, HANDLE WPL 61002335 Contact Us For Availability

CAP, FILL TUBE WPL 61002026 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

GEAR, DAMPER BELT (REAR) WPL 61002292 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

COVER, UPPER HINGE (BLK) WPL 61002375 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

SEAL, DRAIN WPL 61001977 Contact Us For Availability

CAP, I/M WIRE HARNESS WPL 61002027 Contact Us For Availability

SHIM, HANDLE WPL 679341 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

TRIM, FRZ. SHELF WPL 61002678 Contact Us For Availability

TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61002316 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

PAN, ICE WPL 61002177 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61005061 Contact Us For Availability

SCREW WPL 652751 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

SUPPORT, FRZ. SHELF (FRT) WPL 61002142 Contact Us For Availability

SUPPORT, FRZ. SHELF (REAR) WPL 61002143 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61003371 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61005268 Contact Us For Availability

23

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

23

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

23

KICKPLATE W/CLIPS (BLK) WPL 61002576 Contact Us For Availability

24

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

24

CLIP, KICKPLATE WPL 61001975 Contact Us For Availability

25

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

25

WHEEL ASSY. WPL 61001978 Contact Us For Availability

25

WHEEL ASSY. (FRT) WPL 61005216 Contact Us For Availability

26

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

26

BULB, LIGHT WPL 319561 Contact Us For Availability

27

WIRE HARNESS, FRZ. WPL 61003004 Contact Us For Availability

28

LEG, LEVELING WPL 61002014 Contact Us For Availability

29

MANUAL, USE & CARE WPL 61004711 Contact Us For Availability

30

MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability

NI

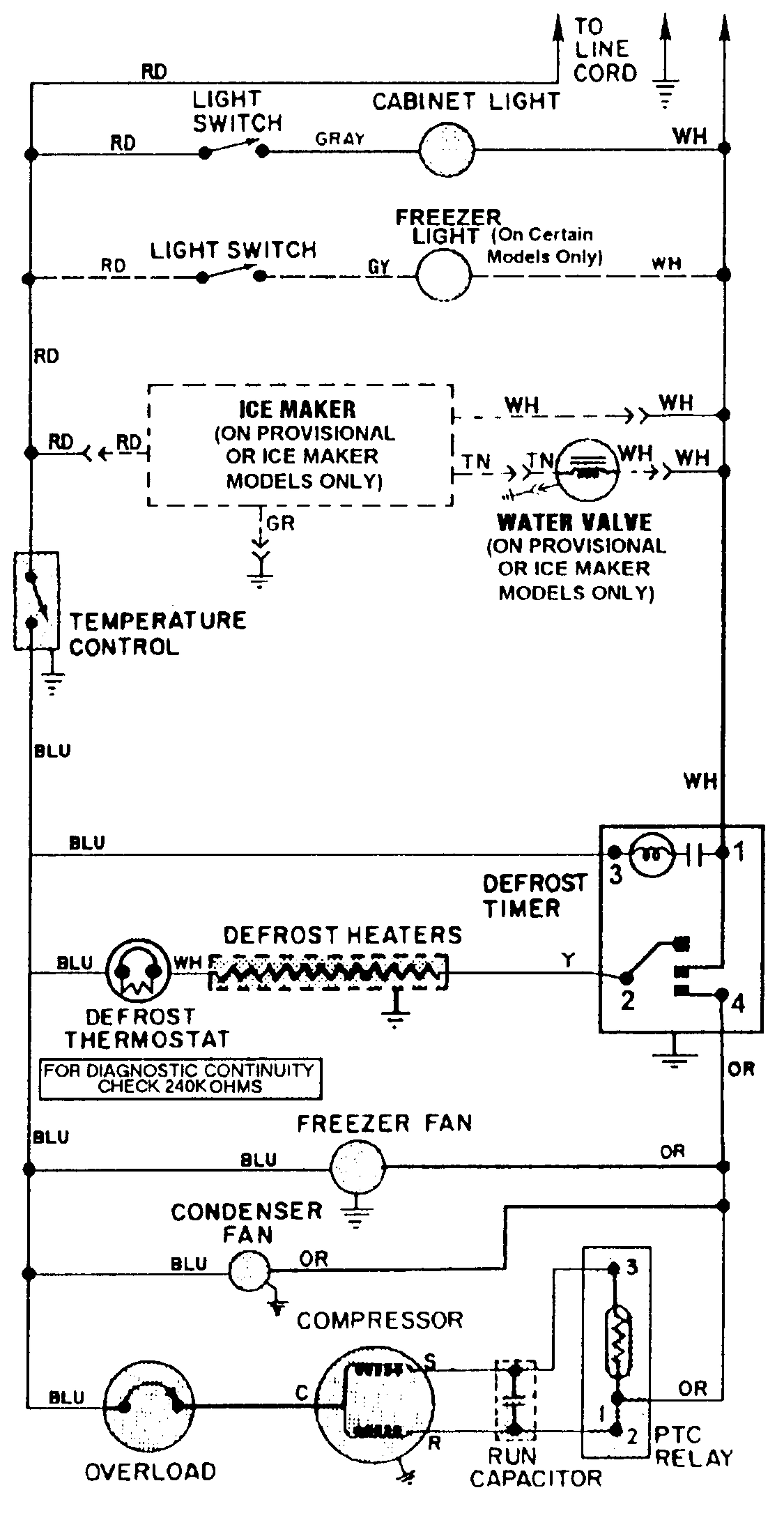

WIRING INFORMATION WPL 15002140 Contact Us For Availability
