Model Maytag MES5752BAS16 ELECTRIC RANGE – Common Parts & Diagrams

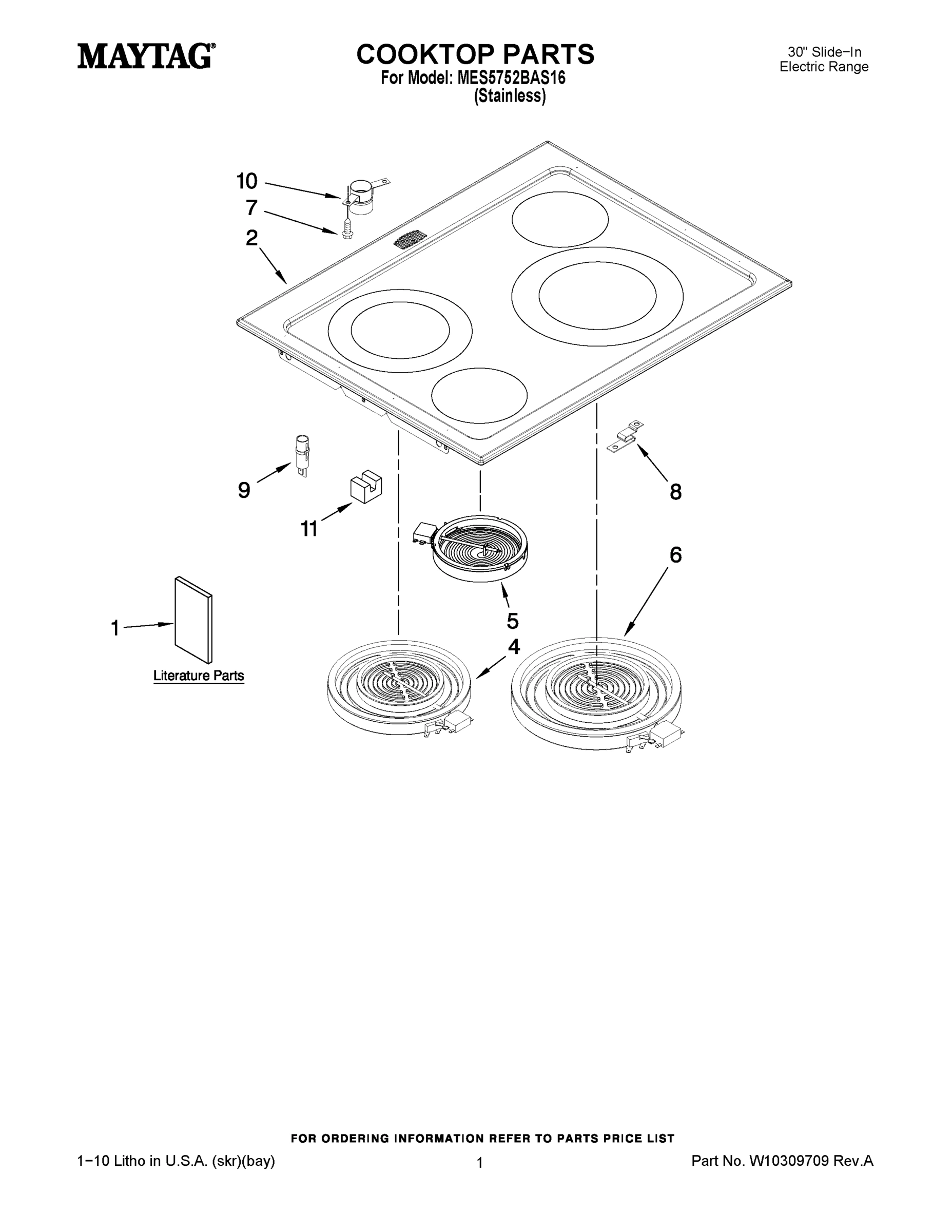

01 - COOKTOP PARTS

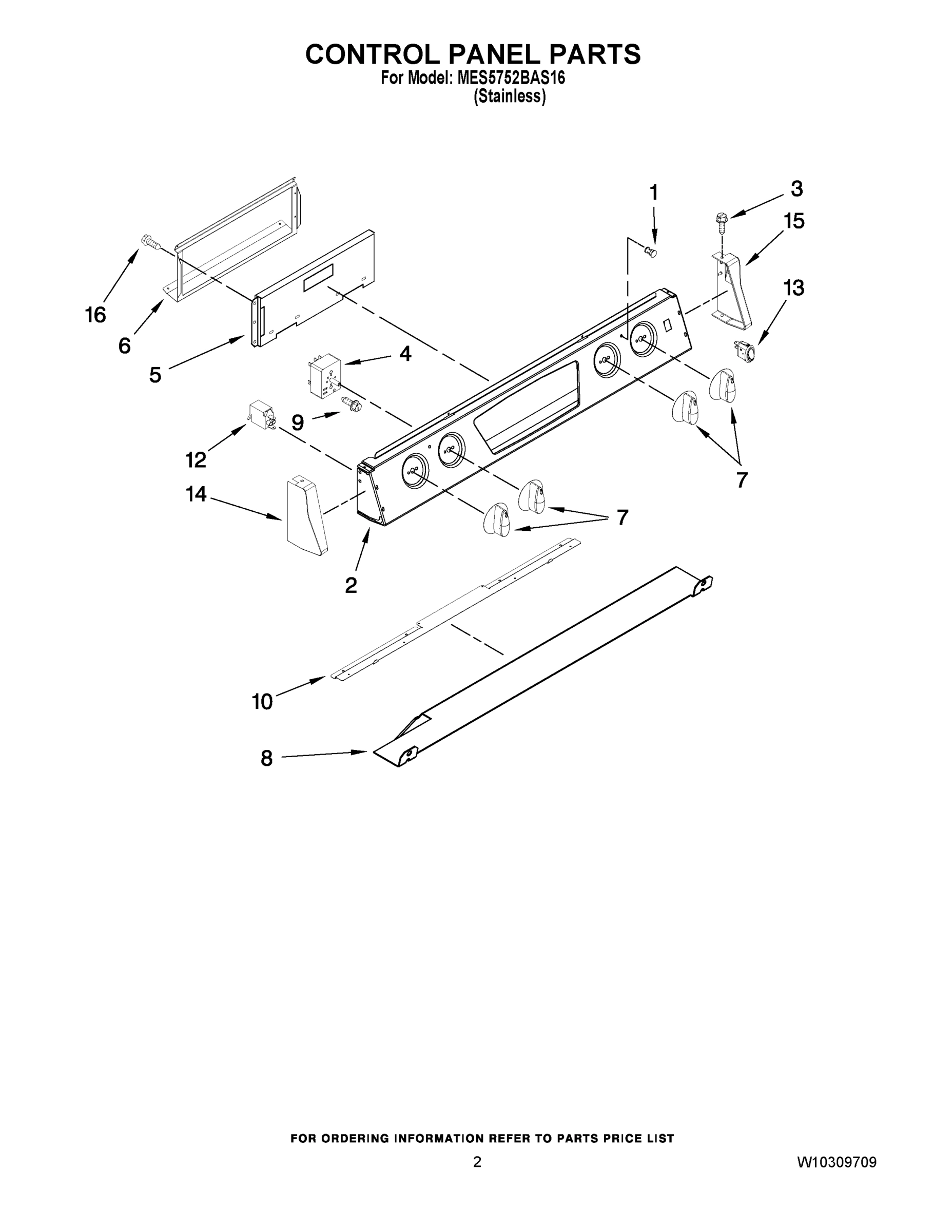

02 - CONTROL PANEL PARTS

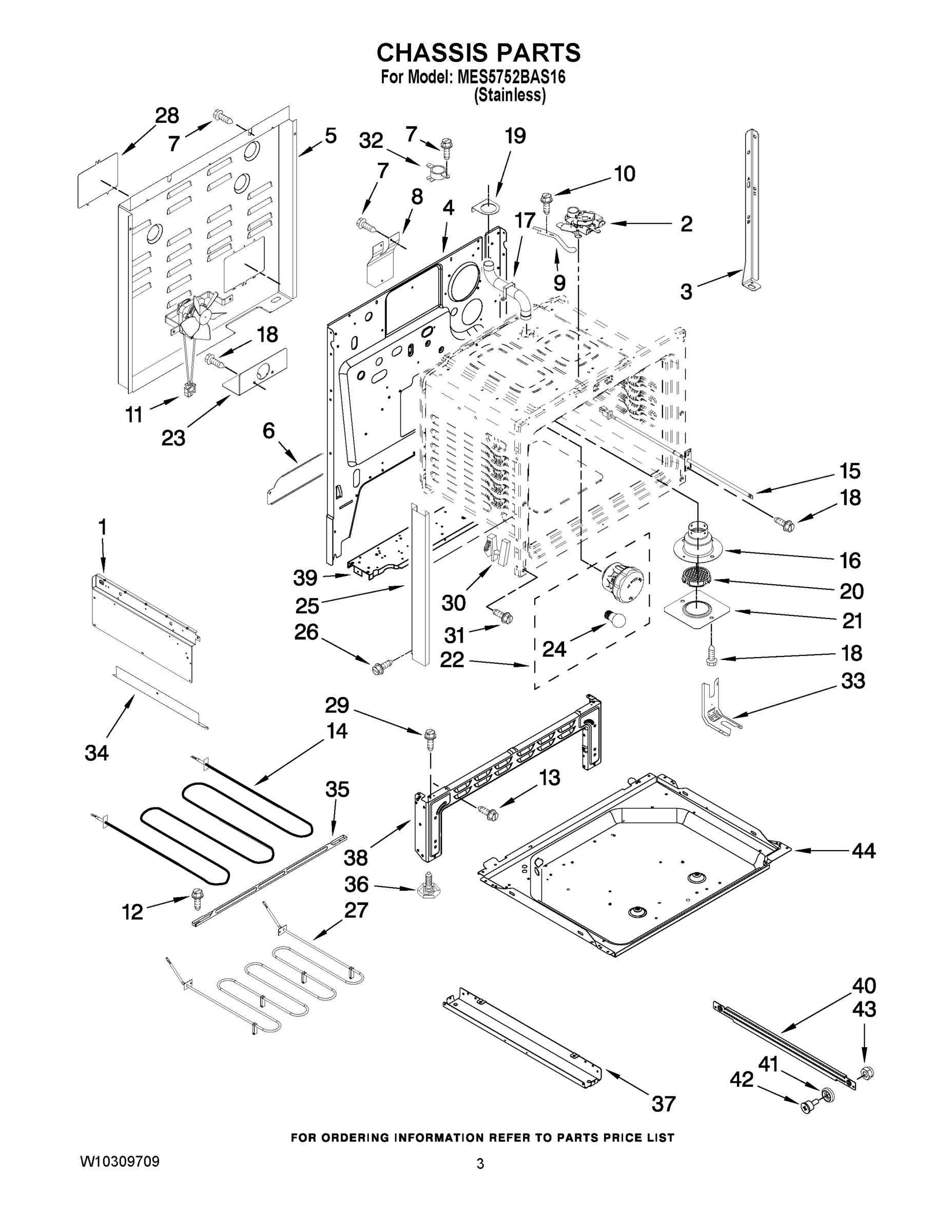

03 - CHASSIS PARTS

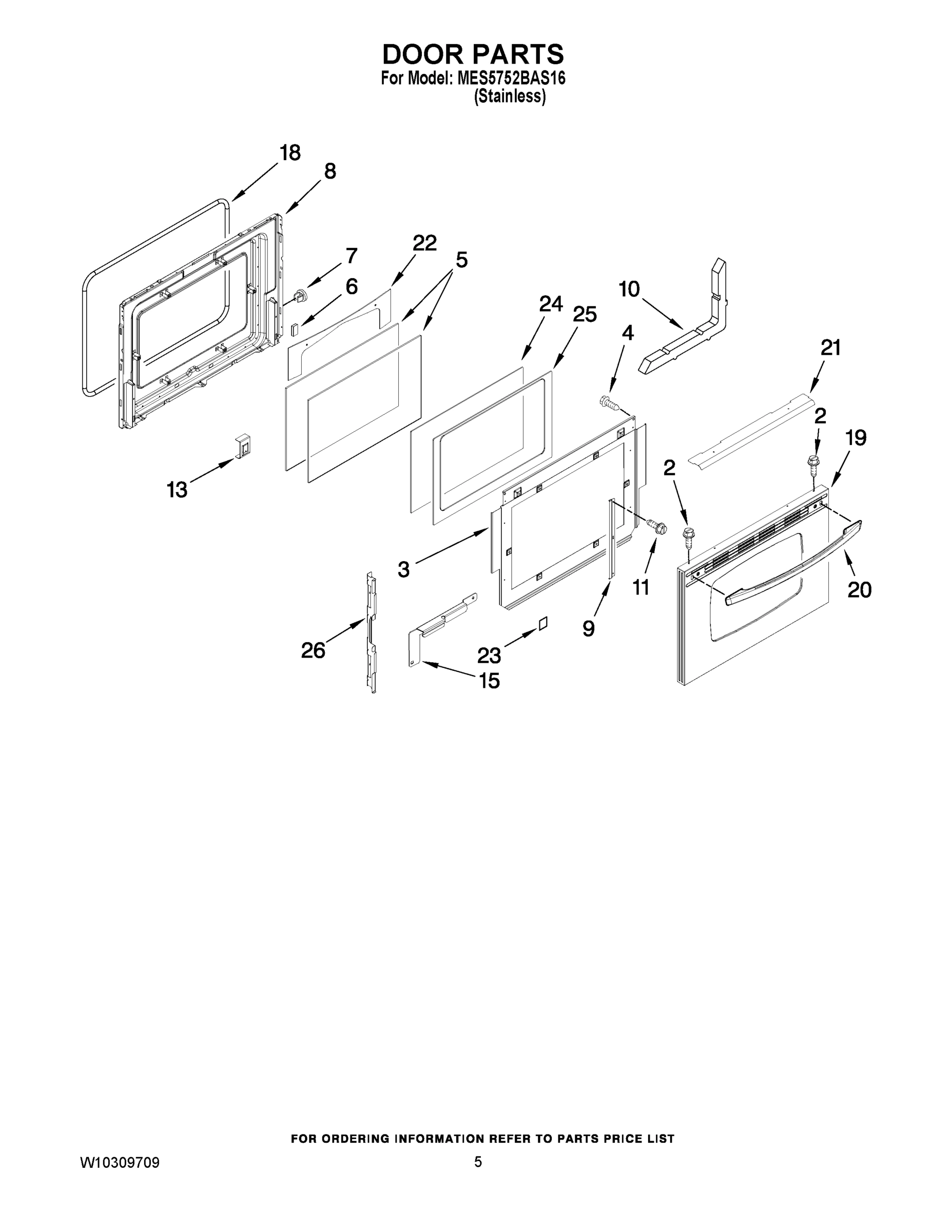

04 - DOOR PARTS

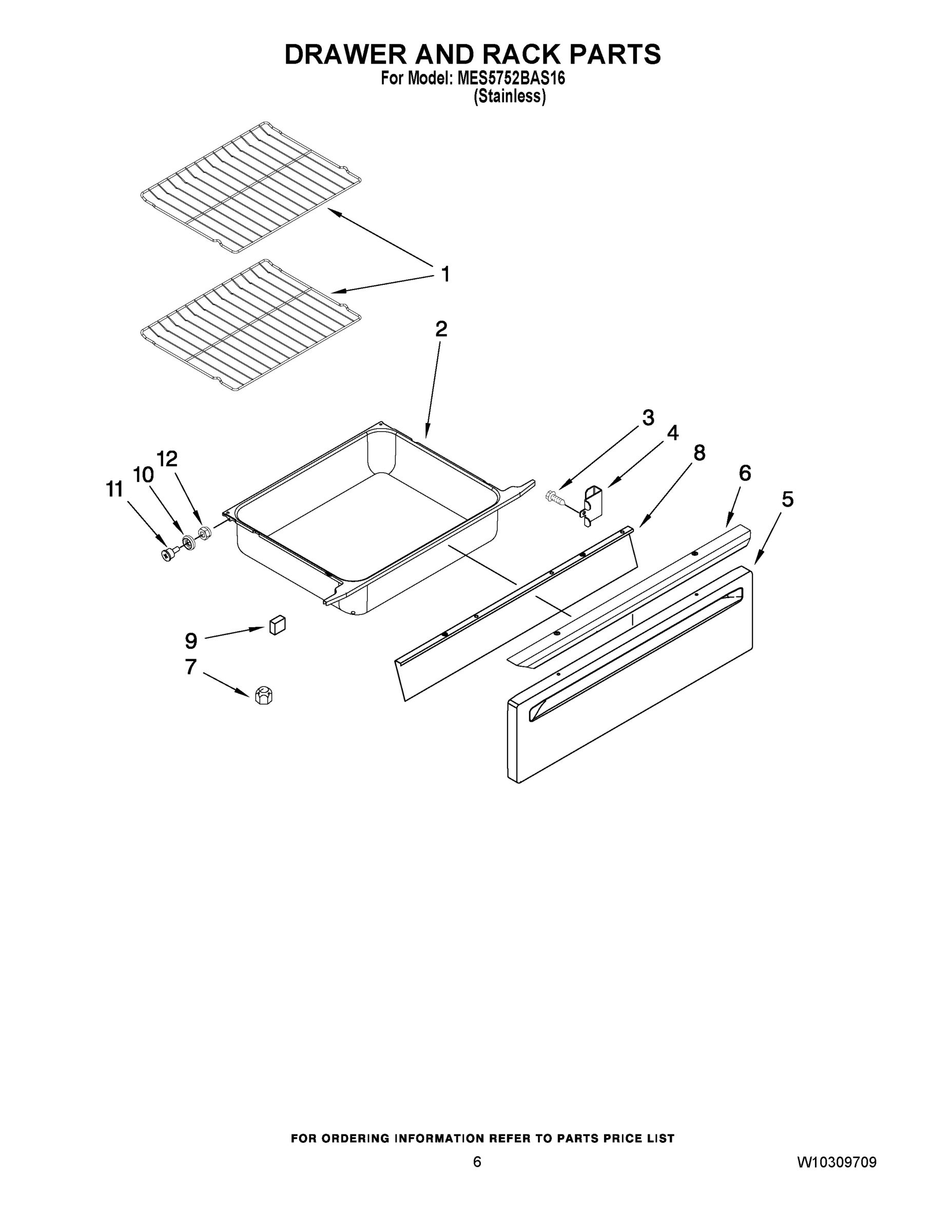

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MES5752BAS16 ELECTRIC RANGE
1
MAY 8119P153-60 MAY 8119P153-60 Contact Us For Availability
1
TIPS, SAFE COOKING MAY 9762761 Contact Us For Availability
1
MAY 2618F201-51 MAY 2618F201-51 Contact Us For Availability
1
MAY 2618F206-51 MAY 2618F206-51 Contact Us For Availability
1
RACK, OVEN (2) MAY 7801P173-60 Contact Us For Availability
2
MAY 5706M558-50 MAY 5706M558-50 Contact Us For Availability
2
MAY 2614N148-50 MAY 2614N148-50 Contact Us For Availability
2
MAY 8002P093-60 MAY 8002P093-60 Contact Us For Availability
2
SCREW, HANDLE (2) MAY 7101P675-60 Contact Us For Availability
2
DRAWER, STORAGE MAY 3405F033-80 Contact Us For Availability
3
MAY 3807F732-51 MAY 3807F732-51 Contact Us For Availability
3
BAFFEL, RETAINER MAY 3601F373-51 Contact Us For Availability
4
ELEMENT, (LR) MAY 7406P366-60 Contact Us For Availability
4
SWITCH, INFINTE (6`` (LF,RR)) MAY 7403P373-60 Contact Us For Availability
4
BACK, MAIN MAY 3804F313-51 Contact Us For Availability
4
MAY 3801F887-51 MAY 3801F887-51 Contact Us For Availability
5
ELEMENT, (LF, RR) MAY 8523698 Contact Us For Availability
5
CONTROL W/OVERLAY (BLACK) MAY 5701M877-60 Contact Us For Availability
5
COVER, MAIN WIRE MAY 4005F810-51 Contact Us For Availability
5
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
5
PANEL, DRAWER (STAINLESS) MAY W10253205 Contact Us For Availability
6
ELEMENT, (RF) MAY 7406P357-60 Contact Us For Availability
6
MAY 3801F895-51 MAY 3801F895-51 Contact Us For Availability
6
MAY 3826F066-51 MAY 3826F066-51 Contact Us For Availability
6
HANDLE, DRAWER MAY W10180296 Contact Us For Availability
7
KNOB, CONTROL (BLACK) MAY 7737P232-60 Contact Us For Availability
7
NUT, SNAP (4) MAY 7103P141-60 Contact Us For Availability
8
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
8
MAY 3604F421-51 MAY 3604F421-51 Contact Us For Availability
8
MAY 7003P101-60 MAY 7003P101-60 Contact Us For Availability
8
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
8
MAY 2404F030-51 MAY 2404F030-51 Contact Us For Availability
9
MAY 7407P193-60 MAY 7407P193-60 Contact Us For Availability
9
LEVER LATCH (BLACK) MAY 8009P031-60 Contact Us For Availability
9
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
9
Bracket, Glass (2) MAY 3801F886-51 Contact Us For Availability
10
MAY W10233479 MAY W10233479 Contact Us For Availability
10
MAY 3807F601-51 MAY 3807F601-51 Contact Us For Availability
10
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
10
ROLLER DRAWER (2) MAY 8014P022-60 Contact Us For Availability
10
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
11
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
11
BLOCK, SUPPORT MAY 8255P412-60 Contact Us For Availability
11
MAY 7427P094-60 MAY 7427P094-60 Contact Us For Availability
11
SHAFT, ROLLER (2) MAY 7118P032-60 Contact Us For Availability
12
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
12
MAY 7101P626-60 MAY 7101P626-60 Contact Us For Availability
13
SWITCH, ROCKER (BLACK) MAY 7403P985-60 Contact Us For Availability
13
CLIP, DOOR GLASS MAY 7112P034-60 Contact Us For Availability
14
CAP, END (LEFT) (BLACK) MAY 7726P401-60 Contact Us For Availability
14
MAY 7406P218-60 MAY 7406P218-60 Contact Us For Availability
15
CAP, END (RIGHT) (BLACK) MAY 7726P400-60 Contact Us For Availability
15
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
15
MAY 3804F307-51 MAY 3804F307-51 Contact Us For Availability
15
MAY 3804F308-51 MAY 3804F308-51 Contact Us For Availability
15
RETAINER, GLASS (LOWER) MAY 3804F317-80 Contact Us For Availability
16
MAY 7101P394-60 MAY 7101P394-60 Contact Us For Availability
16
MAY 8026P096-60 MAY 8026P096-60 Contact Us For Availability
17
MAY 8026P085-60 MAY 8026P085-60 Contact Us For Availability
18
SEAL, DOOR MAY W10162384 Contact Us For Availability
19
MAY 3605F345-51 MAY 3605F345-51 Contact Us For Availability
19
PANEL, OUTER DOOR (STAINLESS) MAY 7760P186-60 Contact Us For Availability
20
SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
20
HANDLE, DOOR (STAINLESS) MAY 7701P526-60 Contact Us For Availability
21
MAY 3605F344-45 MAY 3605F344-45 Contact Us For Availability
21
MAY 3604F418-51 MAY 3604F418-51 Contact Us For Availability
22
MAY 7407P182-60 MAY 7407P182-60 Contact Us For Availability
22
INSULATION, FOIL MAY 7002P463-60 Contact Us For Availability
23
BRACKET,PWR SUPPLY MAY W10190166 Contact Us For Availability
23
SPACER, RUBBER MAY 8010P152-60 Contact Us For Availability
24
GLASS, INNER COATED MAY 7902P768-60 Contact Us For Availability
25
TRIM, SIDE (BLACK (2)) MAY 3608F138-70 Contact Us For Availability
25
MAY 7902P752-60 MAY 7902P752-60 Contact Us For Availability
26
RETAINER, GLASS SUPPORT MAY 3804F293-45 Contact Us For Availability
27
MAY 7406P439-60 MAY 7406P439-60 Contact Us For Availability
28
COVER, TERMINAL MAY 4005F612-51 Contact Us For Availability
29
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
30
HINGE (2) MAY 7106P141-60 Contact Us For Availability
31
SCREW, HINGE (4) MAY 7101P336-60 Contact Us For Availability
32
SWITCH, HI-LIMIT MAY 7450P034-60 Contact Us For Availability
33
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
34
MAY 3826F064-51 MAY 3826F064-51 Contact Us For Availability
35
SUPPORT, ELEMENT MAY 3807F494-45 Contact Us For Availability
36
LEG, LEVELING MAY 7101P660-60 Contact Us For Availability
37
MAY 4020W035-80 MAY 4020W035-80 Contact Us For Availability
38
PEDESTAL, FRONT MAY W10271711 Contact Us For Availability
39
SUPPORT MAY 3807F640-51 Contact Us For Availability
40
RUNNER, DRAWER (2) MAY W10182835 Contact Us For Availability
43
NUT, LOCK (2) MAY 7103P190-60 Contact Us For Availability
44
MAY 3804F231-51 MAY 3804F231-51 Contact Us For Availability
NI
MAY 3804F292-51 MAY 3804F292-51 Contact Us For Availability
NI
MAY 7002P445-60 MAY 7002P445-60 Contact Us For Availability
NI
MAY 7002P456-60 MAY 7002P456-60 Contact Us For Availability
NI
MAY 7002P471-60 MAY 7002P471-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P540-60 MAY 5171P540-60 Contact Us For Availability
NI
MAY 5171P551-60 MAY 5171P551-60 Contact Us For Availability
NI
U3, HARNESS (RT) MAY 5171P553-60 Contact Us For Availability
NI
COIL,HARNESS (LT) MAY 5171P562-60 Contact Us For Availability
NI
MAY 5171P933-60 MAY 5171P933-60 Contact Us For Availability
NI
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
× ![]()
