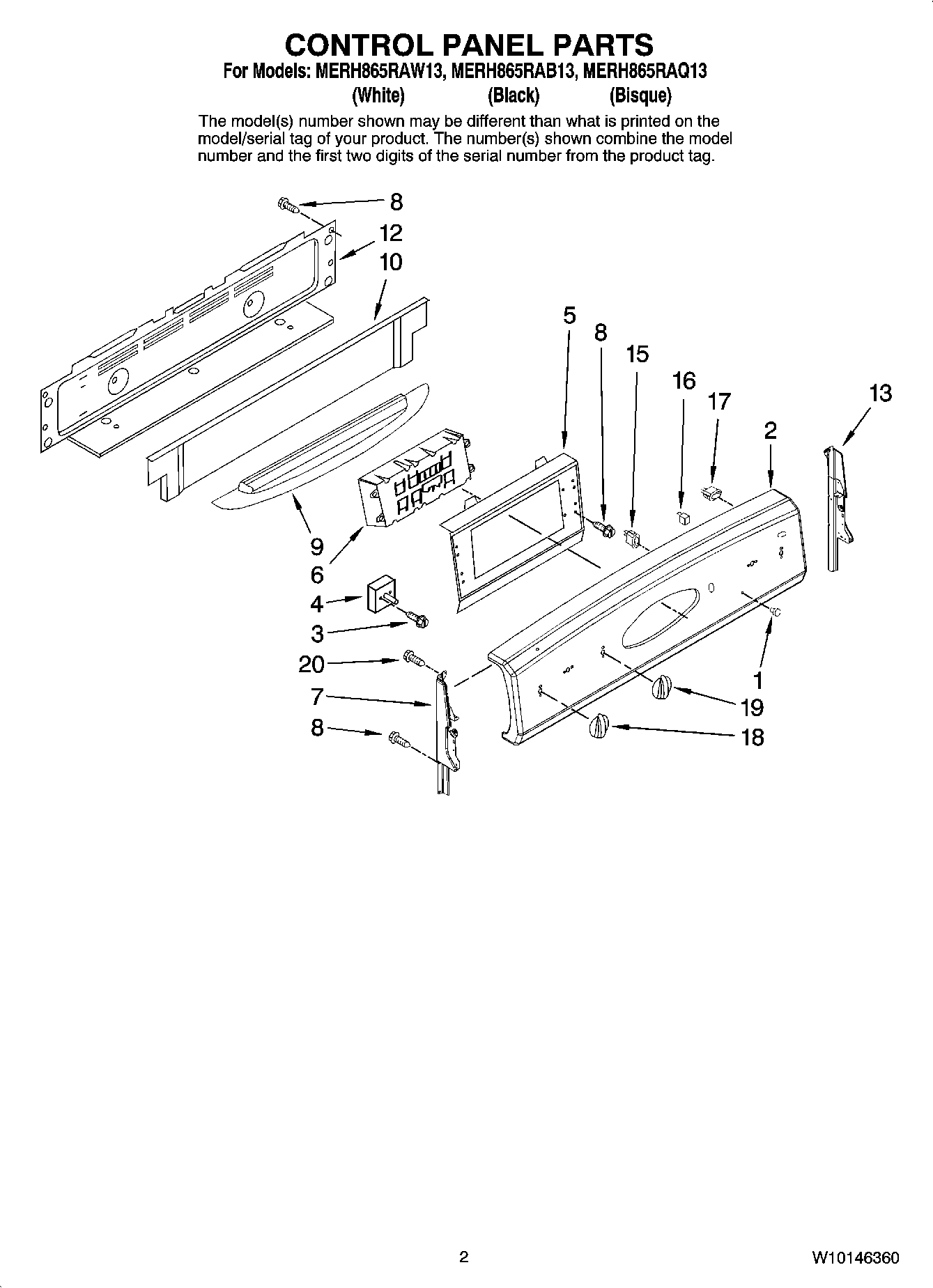

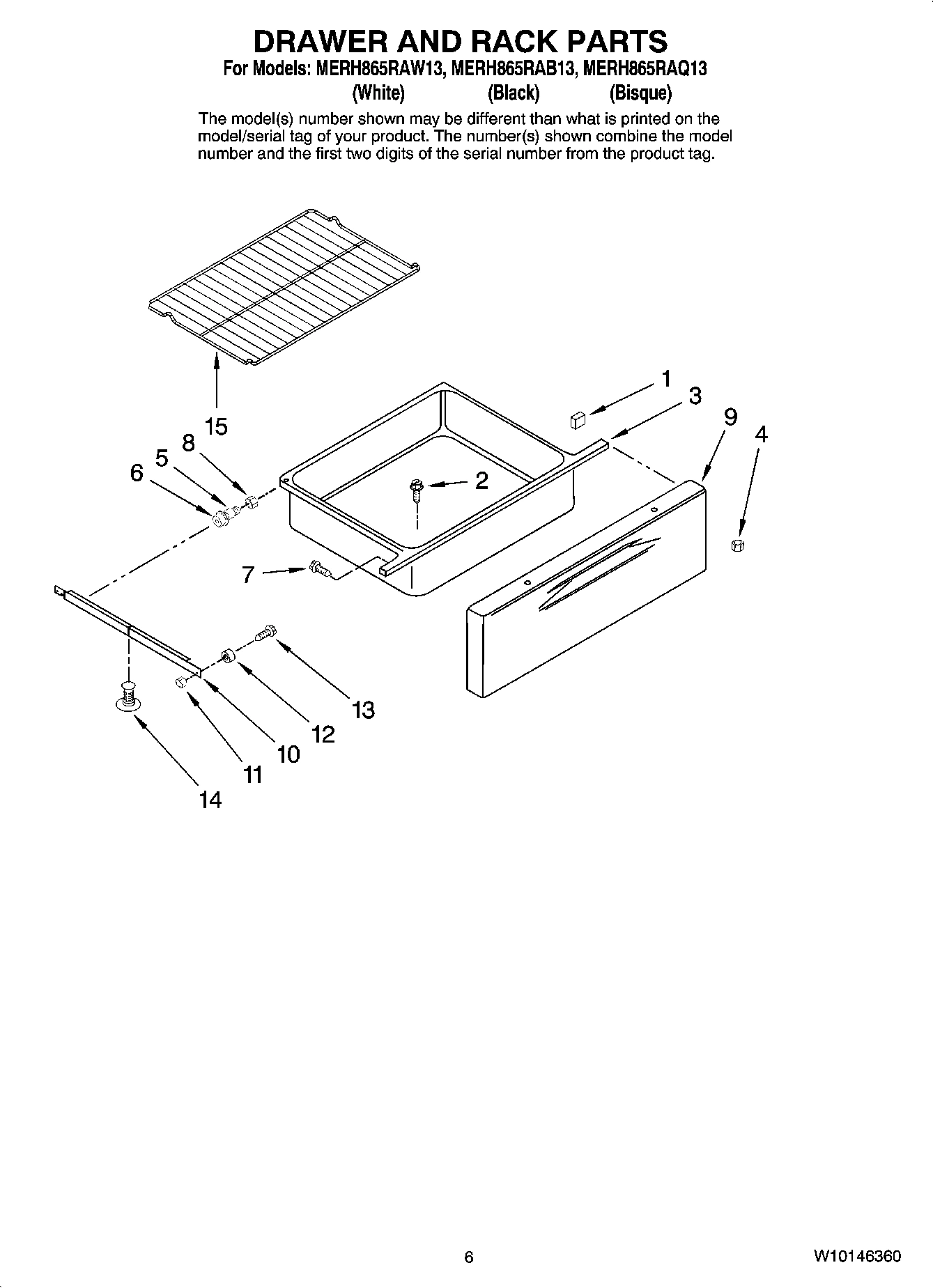

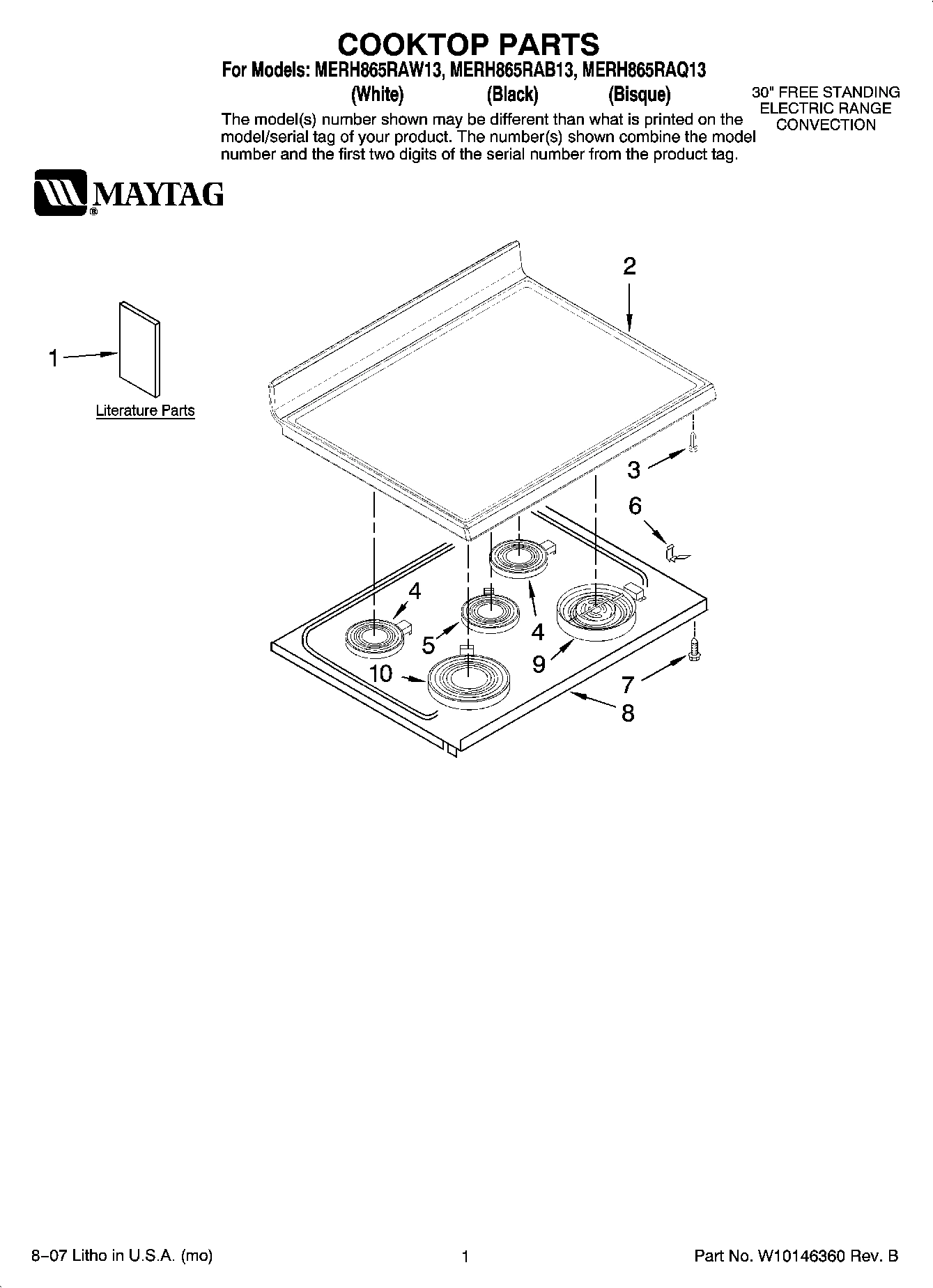

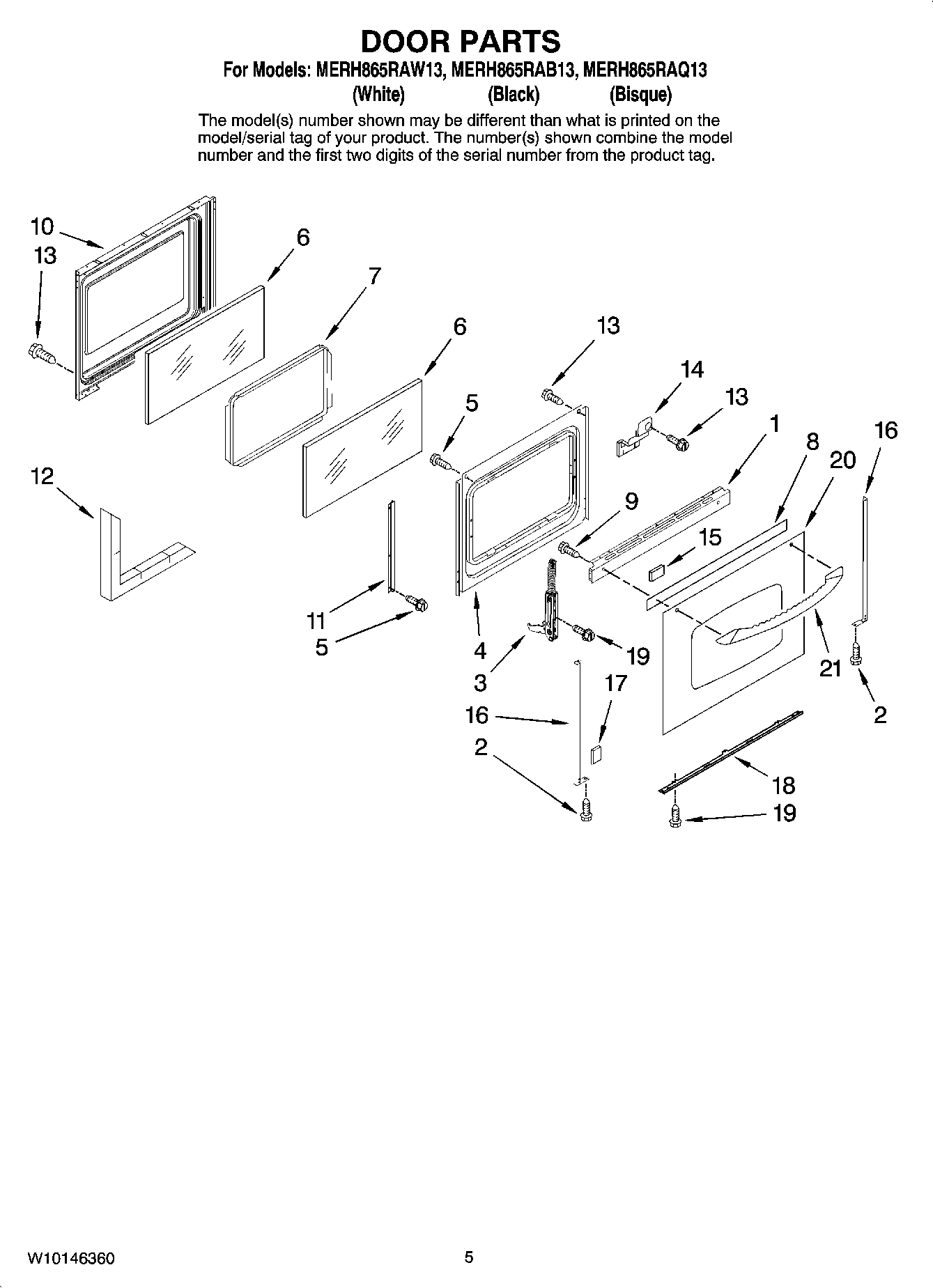

Model Maytag MERH865RAB13 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

Panel, Side (Bisque) MAY 74008708 Contact Us For Availability

1

MAY 74008709 MAY 74008709 Contact Us For Availability

1

MAY 74008710 MAY 74008710 Contact Us For Availability

1

Trim, Door Top (Black) MAY 74008931 Contact Us For Availability

1

Trim, Door Top (White) MAY 74008932 Contact Us For Availability

1

Trim, Door Top (Bisque) MAY 74008933 Contact Us For Availability

1

MAY 8270P098-60 MAY 8270P098-60 Contact Us For Availability

2

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $4.82

2

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $9.16

2

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

2

MAY 71001394 MAY 71001394 Contact Us For Availability

3

74008761 Whirlpool Spacer Snap-In Backorder WPL 74008761 $5.46

3

74010546 Whirlpool Range Oven Door Hinge In Stock WPL 74010546 $57.64

3

MAY 74008701 MAY 74008701 Contact Us For Availability

3

DRAWER, STORAGE MAY 74008333 Contact Us For Availability

4

WP74008940 Whirlpool Infinite Switch In Stock WPL WP74008940 $126.99

4

WP7403P238-60 Whirlpool Infinite Switch Small In Stock WPL WP7403P238-60 $29.99

4

WP7403P239-60 Whirlpool Oven Switch In Stock WPL WP7403P239-60 $24.99

4

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $2.67

4

MAY 8002P104-60 MAY 8002P104-60 Contact Us For Availability

4

MAY 3601F380-51 MAY 3601F380-51 Contact Us For Availability

5

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

5

MAY 4002P347-51 MAY 4002P347-51 Contact Us For Availability

6

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $108.99

6

MAY 74009651 MAY 74009651 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

7

BOTTOM, WIRE COVER MAY 74008762 Contact Us For Availability

7

MAY 74003644 MAY 74003644 Contact Us For Availability

8

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $4.67

8

MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability

8

MAY 8270P090-60 MAY 8270P090-60 Contact Us For Availability

9

WP74006515 Whirlpool Washer Screw In Stock WPL WP74006515 $4.99

9

Element 2700W (RF) MAY 74009082 Contact Us For Availability

9

MAY 74008759 MAY 74008759 Contact Us For Availability

9

Panel, Drawer (White) MAY 74008755 Contact Us For Availability

9

Panel, Drawer (Bisque) MAY 74008756 Contact Us For Availability

9

Panel, Drawer (Black) MAY 74008885 Contact Us For Availability

MAY 74009444 MAY 74009444 Contact Us For Availability

Cover, Wire (LWR) MAY 31955101 Contact Us For Availability

MAY 74008926 MAY 74008926 Contact Us For Availability

Runner, Drawer MAY 74008687 Contact Us For Availability

11

74005230 Whirlpool Oven Lock Nut (8-32) Backorder WPL 74005230 $8.89

11

MAY 74008340 MAY 74008340 Contact Us For Availability

11

Bracket, Glass (2) MAY 74011458 Contact Us For Availability

WP7103P027-60 Whirlpool Nut In Stock WPL WP7103P027-60 $4.99

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $7.99

COVER, REAR WIRE MAY 74010935 Contact Us For Availability

Insulation,Door MAY 74003647 Contact Us For Availability

WPW10245259 Whirlpool Terminal Block In Stock WPL WPW10245259 $16.92

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $4.99

MAY 74005231 MAY 74005231 Contact Us For Availability

End Cap (Right Black) MAY 74009022 Contact Us For Availability

End Cap (Right White) MAY 74009077 Contact Us For Availability

End Cap (Right Bisque) MAY 74009078 Contact Us For Availability

MAY 3605F146-51 MAY 3605F146-51 Contact Us For Availability

MAY 74009412 MAY 74009412 Contact Us For Availability

MAY 74009413 MAY 74009413 Contact Us For Availability

MAY 74008688 MAY 74008688 Contact Us For Availability

74008703 Whirlpool Door Switch Backorder WPL 74008703 $96.08

7403P984-60 Whirlpool RO Switch Backorder WPL 7403P984-60 $11.97

7403P985-60 Whirlpool Rocker Switch (Black) Backorder WPL 7403P985-60 $62.18

WP74004224 Whirlpool Tape Backorder WPL WP74004224 $7.62

WP74008763 Whirlpool Range Rack Backorder WPL WP74008763 $127.43

WP74010226 Whirlpool RO Switch Backorder WPL WP74010226 $66.30

WP74004153 Whirlpool Indicator Light In Stock WPL WP74004153 $5.99

MAY 74008706 MAY 74008706 Contact Us For Availability

MAY 74010560 MAY 74010560 Contact Us For Availability

MAY 74010561 MAY 74010561 Contact Us For Availability

Trim, Door Side (Bisque) MAY 74010562 Contact Us For Availability

17

WP74009014 Whirlpool Double Tape Backorder WPL WP74009014 $4.82

17

MAY 74009025 MAY 74009025 Contact Us For Availability

17

MAY 74008704 MAY 74008704 Contact Us For Availability

74008707 Whirlpool Range Bumper Backorder WPL 74008707 $6.45

Knob (4) (White/Chrome) MAY 74009188 Contact Us For Availability

Knob (4) (Bisque/Chrome) MAY 74009189 Contact Us For Availability

MAY 74008745 MAY 74008745 Contact Us For Availability

MAY 74008757 MAY 74008757 Contact Us For Availability

Trim, Door Bottom (Bisque) MAY 74008758 Contact Us For Availability

74008835 Whirlpool Clip Retainer Backorder WPL 74008835 $7.22

MAY 74011358 MAY 74011358 Contact Us For Availability

MAY W10144686 MAY W10144686 Contact Us For Availability

MAY W10144687 MAY W10144687 Contact Us For Availability

SCREW,(10-24X5/16) MAY 7101P282-60 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $12.99

Screw (2) (White) MAY 74010929 Contact Us For Availability

Screw (2) (Bisque) MAY 74010930 Contact Us For Availability

Glass, Door (White) MAY 74008853 Contact Us For Availability

Glass, Door (Bisque) MAY 74008854 Contact Us For Availability

Glass, Door (Black (Order Item 15 When Replac MAY 74009018 Contact Us For Availability

74011777 Whirlpool Range Oven Door Handle In Stock WPL 74011777 $142.58

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.99

WP74011675 Whirlpool Door Handle In Stock WPL WP74011675 $115.99

MAY 74011779 MAY 74011779 Contact Us For Availability

22

WP7101P485-60 Whirlpool Anchor Tip Backorder WPL WP7101P485-60 $20.30

23

MAY 74008689 MAY 74008689 Contact Us For Availability

25

MAY 7406P493-60 MAY 7406P493-60 Contact Us For Availability

26

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.99

27

MAY 74008691 MAY 74008691 Contact Us For Availability

28

MAY 74011299 MAY 74011299 Contact Us For Availability

30

Screw, Shoulder(6) MAY 74008798 Contact Us For Availability

31

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $43.99

32

MAY 74008690 MAY 74008690 Contact Us For Availability

33

WP74010551 Whirlpool Receiver In Stock WPL WP74010551 $7.90

34

WP74011278 Whirlpool Light Backorder WPL WP74011278 $73.17

35

MAY 74011187 MAY 74011187 Contact Us For Availability

36

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

37

MAY 74008705 MAY 74008705 Contact Us For Availability

38

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

39

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

40

Support, Ov BTM MAY 74008694 Contact Us For Availability

41

WPW10276482 Whirlpool Bake Element In Stock WPL WPW10276482 $126.45

42

Support, Oven MAY 74008695 Contact Us For Availability

43

WPW10211368 Whirlpool Range Bottom In Stock WPL WPW10211368 $242.99

44

Fan Assy, Convect MAY 74011168 Contact Us For Availability

46

Plate, Convection MAY 74005783 Contact Us For Availability

47

MAY 7002P494-60 MAY 7002P494-60 Contact Us For Availability

48

74008715 Whirlpool Thermal Limiter Switch In Stock WPL 74008715 $139.01

49

Screw (2) MAY 7101P336-60 Contact Us For Availability

MAY 74008700 MAY 74008700 Contact Us For Availability

MAY 3804F316-51 MAY 3804F316-51 Contact Us For Availability

MAY 7002P492-60 MAY 7002P492-60 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability

MAY 240132 MAY 240132 Contact Us For Availability

MAY 241430 MAY 241430 Contact Us For Availability

Touch-Up Self-Clean(1/2 Pt) MAY 242756 Contact Us For Availability

Wire, Blue 14 Ga. 150 c MAY 242821 Contact Us For Availability

Wire, Brown 14 Ga. 150 c MAY 242822 Contact Us For Availability

Wire, Green 14 Ga. 150 c MAY 242823 Contact Us For Availability

Wire, Orange 14 Ga. 150 c MAY 242824 Contact Us For Availability

Wire, Red 14 Ga. 150 c MAY 242825 Contact Us For Availability

Wire, Yellow 14 Ga. 150 c MAY 242827 Contact Us For Availability

Wire, Black 12 Ga. 150 c MAY 242828 Contact Us For Availability

Wire, Brown 14 Ga. 200 c MAY 242830 Contact Us For Availability

Wire, Red 14 Ga. 200 c MAY 242831 Contact Us For Availability

WIRE MAY 253886 Contact Us For Availability

MAY 261514 MAY 261514 Contact Us For Availability

MAY 261582 MAY 261582 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability

MAY 3191048 MAY 3191048 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability

MAY 4392899 MAY 4392899 Contact Us For Availability

MAY 4392900 MAY 4392900 Contact Us For Availability

MAY 4392901 MAY 4392901 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability

Harness, Wire (Cooktop Left) MAY 5171P864-60 Contact Us For Availability

MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability

MAY 74006811 MAY 74006811 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability

MAY 799832 MAY 799832 Contact Us For Availability

MAY W10129432 MAY W10129432 Contact Us For Availability

Harness, Wire (Cooktop Right) MAY W10129620 Contact Us For Availability

MAY W10129624 MAY W10129624 Contact Us For Availability
