Model Maytag MERH865RAB1 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

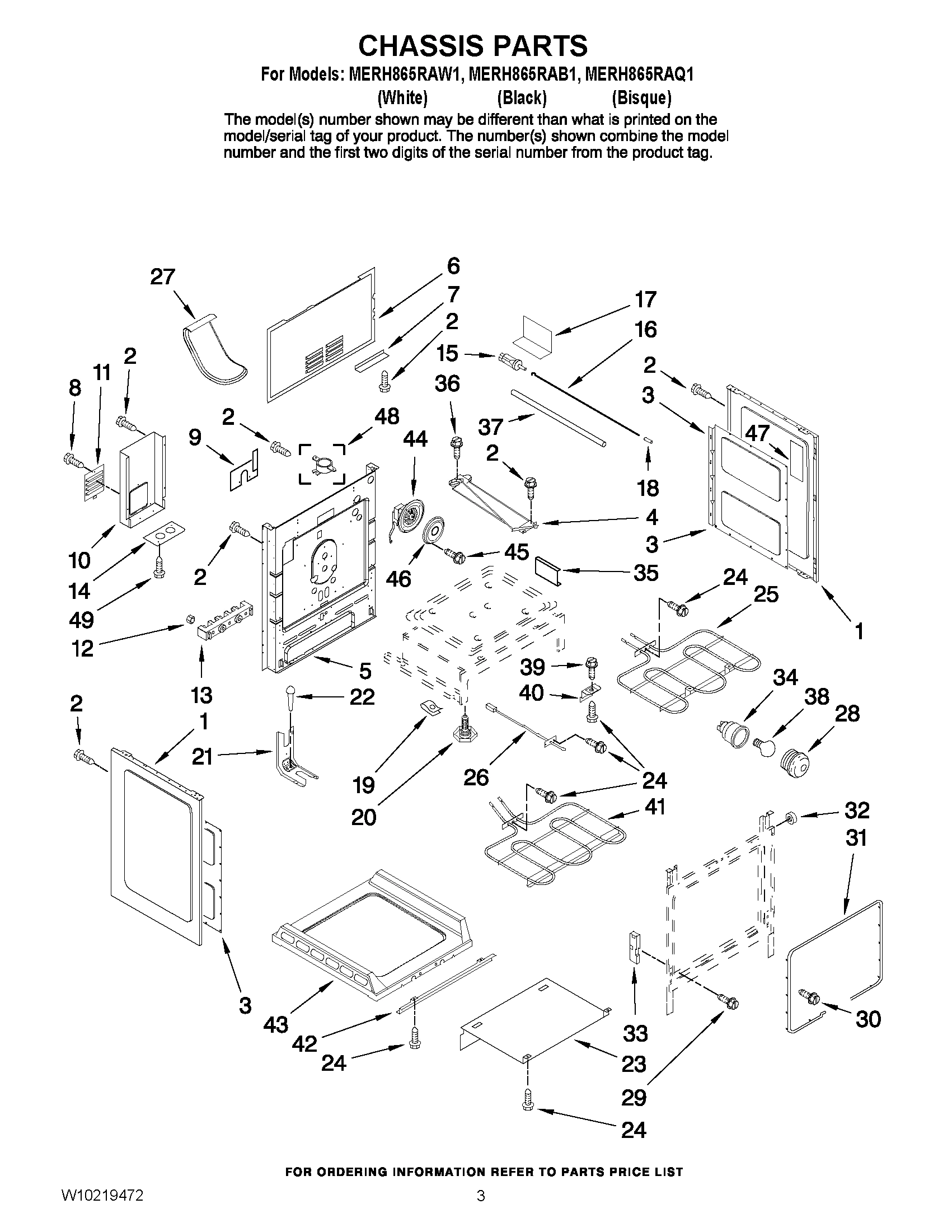

03 - CHASSIS PARTS

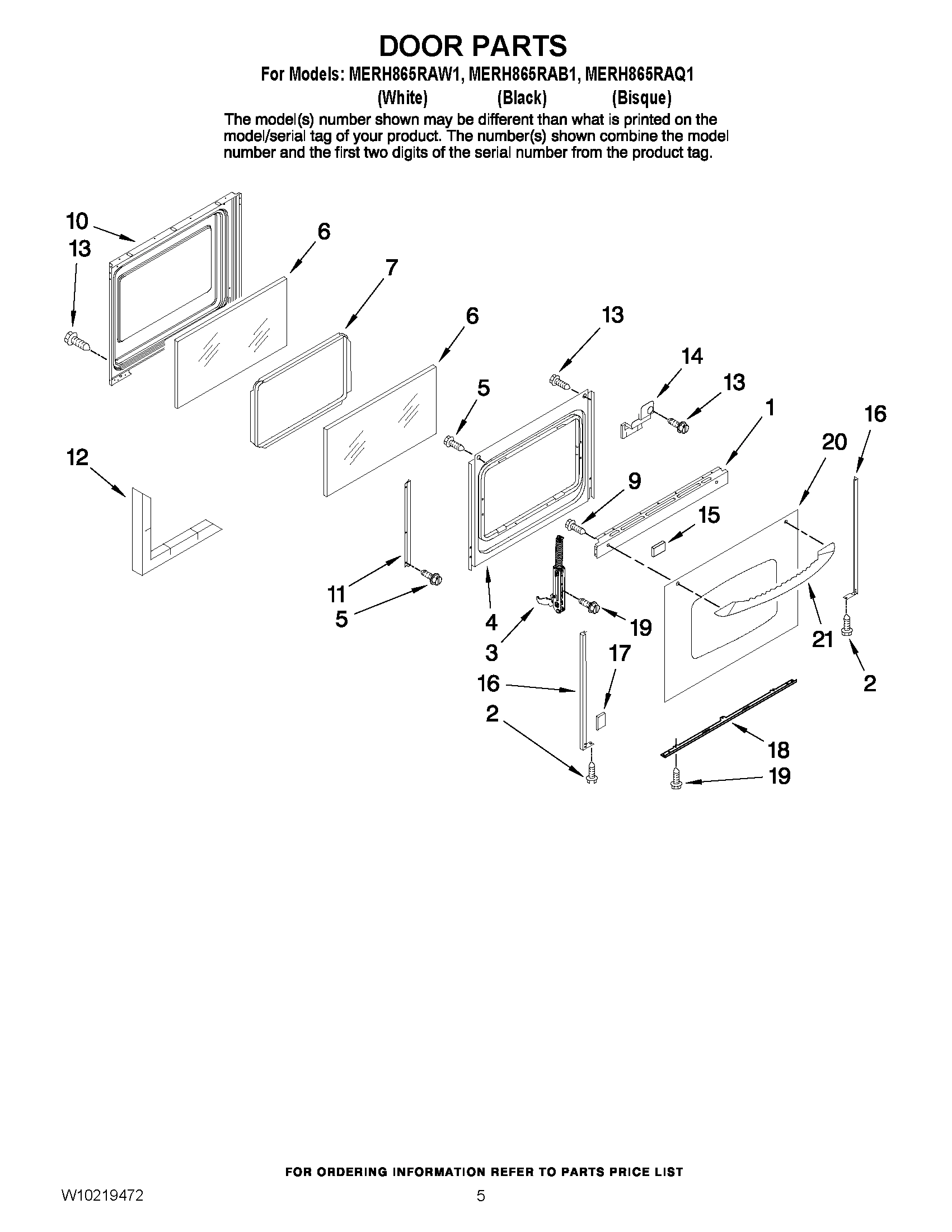

04 - DOOR PARTS

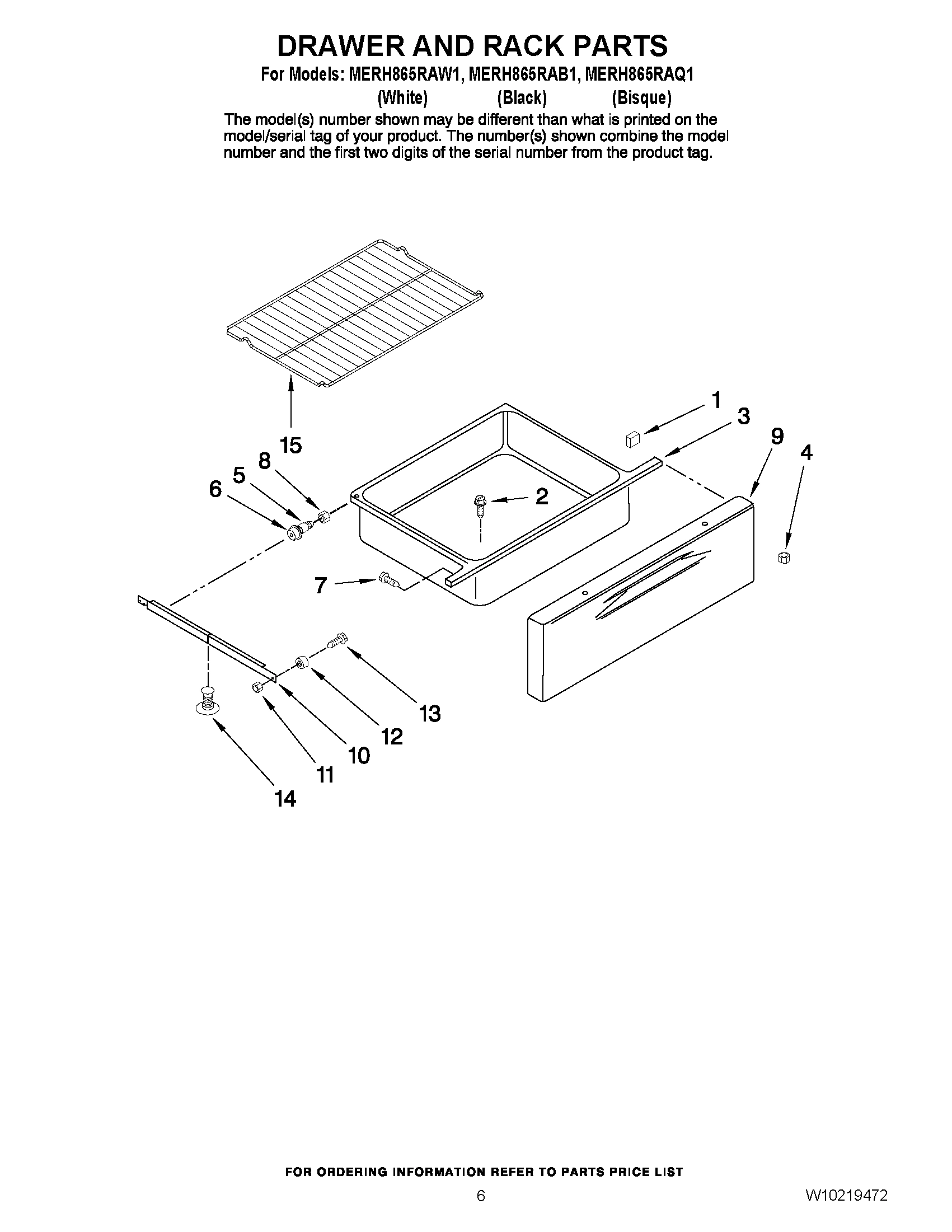

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MERH865RAB1 ELECTRIC RANGE
1
MAY 8101P506-60 MAY 8101P506-60 Contact Us For Availability
1
MAY 8113P687-60 MAY 8113P687-60 Contact Us For Availability
1
MAY 8119P442-60 MAY 8119P442-60 Contact Us For Availability
1
Brochure, Safe Tip MAY 9762761 Contact Us For Availability
1
Lens MAY 3196068 Contact Us For Availability
1
Panel, Side (Bisque) MAY 2618F172-57 Contact Us For Availability
1
MAY 2618F172-58 MAY 2618F172-58 Contact Us For Availability
1
MAY 2618F172-69 MAY 2618F172-69 Contact Us For Availability
1
MAY 3608F110-70 MAY 3608F110-70 Contact Us For Availability
1
MAY 3608F140-71 MAY 3608F140-71 Contact Us For Availability
1
MAY 3608F140-78 MAY 3608F140-78 Contact Us For Availability
1
Tape, Double Sided MAY W10208308 Contact Us For Availability
2
MAY W10217621 MAY W10217621 Contact Us For Availability
2
MAY W10217628 MAY W10217628 Contact Us For Availability
2
MAY W10217636 MAY W10217636 Contact Us For Availability
2
MAY 2602D363-09 MAY 2602D363-09 Contact Us For Availability
2
MAY 2602D363-81 MAY 2602D363-81 Contact Us For Availability
2
MAY 2602D363-88 MAY 2602D363-88 Contact Us For Availability
2
MAY 4159450 MAY 4159450 Contact Us For Availability
2
Screw, Handle (Black) MAY 7101P633-60 Contact Us For Availability
2
SCREW, HANDLE (BISQUE) MAY 7101P637-60 Contact Us For Availability
2
Screw, Handle (White) MAY 98008544 Contact Us For Availability
2
MAY 3196175 MAY 3196175 Contact Us For Availability
3
MAY 8010P149-60 MAY 8010P149-60 Contact Us For Availability
3
Screw, Switch (10) MAY 3400882 Contact Us For Availability
3
MAY 7106P124-60 MAY 7106P124-60 Contact Us For Availability
3
MAY 3405F037-80 MAY 3405F037-80 Contact Us For Availability
4
Element LR/RR (2) MAY 7406P365-60 Contact Us For Availability
4
Switch, Infinte (8`` (LF) (1)) MAY 7403P373-60 Contact Us For Availability
4
MAY 7403P877-60 MAY 7403P877-60 Contact Us For Availability
4
MAY 7450P094-60 MAY 7450P094-60 Contact Us For Availability
4
MAY 3601F380-51 MAY 3601F380-51 Contact Us For Availability
4
MAY 8002P104-60 MAY 8002P104-60 Contact Us For Availability
5
Element, Warm MAY 9762851 Contact Us For Availability
5
MAY 3801F844-51 MAY 3801F844-51 Contact Us For Availability
5
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
6
MAY 7803P087-60 MAY 7803P087-60 Contact Us For Availability
6
Control W/Overlay (Bisque) MAY W10141422 Contact Us For Availability
6
MAY W10141425 MAY W10141425 Contact Us For Availability
6
MAY W10141433 MAY W10141433 Contact Us For Availability
6
MAY 4005F754-51 MAY 4005F754-51 Contact Us For Availability
6
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
7
MAY 3196165 MAY 3196165 Contact Us For Availability
7
MAY 3807F703-70 MAY 3807F703-70 Contact Us For Availability
7
MAY 3807F703-71 MAY 3807F703-71 Contact Us For Availability
7
End Cap, Left (Bisque) MAY 3807F703-78 Contact Us For Availability
8
MAY 4011F497-51 MAY 4011F497-51 Contact Us For Availability
9
Element 2700W (RF) MAY 7406P357-60 Contact Us For Availability
9
MAY 3604F382-09 MAY 3604F382-09 Contact Us For Availability
9
MAY 3604F382-81 MAY 3604F382-81 Contact Us For Availability
9
Shield, Heat Visor (Bisque) MAY 3604F382-88 Contact Us For Availability
9
MAY 7003P145-60 MAY 7003P145-60 Contact Us For Availability
9
Screw, Mounting MAY 7101P681-60 Contact Us For Availability
9
MAY W10163038 MAY W10163038 Contact Us For Availability
9
MAY W10163040 MAY W10163040 Contact Us For Availability
9
MAY W10163401 MAY W10163401 Contact Us For Availability
10
Element 2500W (LF) MAY 7406P366-60 Contact Us For Availability
10
MAY 3604F381-19 MAY 3604F381-19 Contact Us For Availability
10
MAY 4005P703-51 MAY 4005P703-51 Contact Us For Availability
10
MAY 2402W297-19 MAY 2402W297-19 Contact Us For Availability
10
MAY 3406P034-51 MAY 3406P034-51 Contact Us For Availability
11
MAY 4005P704-51 MAY 4005P704-51 Contact Us For Availability
11
Bracket, Glass (2) MAY 3801F886-51 Contact Us For Availability
11
MAY 7103P190-60 MAY 7103P190-60 Contact Us For Availability
12
MAY 4005F803-51 MAY 4005F803-51 Contact Us For Availability
12
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
12
MAY 8014P022-60 MAY 8014P022-60 Contact Us For Availability
13
MAY 3807F702-70 MAY 3807F702-70 Contact Us For Availability
13
MAY 3807F702-71 MAY 3807F702-71 Contact Us For Availability
13
End Cap, Right (Bisque) MAY 3807F702-78 Contact Us For Availability
13
Screw (8) MAY 3196178 Contact Us For Availability
13
MAY 7118P032-60 MAY 7118P032-60 Contact Us For Availability
14
Plate, Conduit MAY 4005P712-51 Contact Us For Availability
14
MAY 3801P857-45 MAY 3801P857-45 Contact Us For Availability
14
MAY 3801P858-45 MAY 3801P858-45 Contact Us For Availability
14
MAY 8038P037-60 MAY 8038P037-60 Contact Us For Availability
15
MAY 7403P756-60 MAY 7403P756-60 Contact Us For Availability
15
MAY 7403P757-60 MAY 7403P757-60 Contact Us For Availability
15
MAY 7403P758-60 MAY 7403P758-60 Contact Us For Availability
15
Rack, Oven MAY W10179196 Contact Us For Availability
15
MAY 7403P804-60 MAY 7403P804-60 Contact Us For Availability
15
Tape (White) MAY W10208309 Contact Us For Availability
16
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
16
ROD, DOOR SWITCH MAY 7809P043-60 Contact Us For Availability
16
MAY 3608F126-70 MAY 3608F126-70 Contact Us For Availability
16
MAY 3608F126-71 MAY 3608F126-71 Contact Us For Availability
16
Trim, Door Side (Bisque) MAY 3608F126-78 Contact Us For Availability
17
MAY 7403P926-60 MAY 7403P926-60 Contact Us For Availability
17
MAY 7403P984-60 MAY 7403P984-60 Contact Us For Availability
17
MAY 7403P985-60 MAY 7403P985-60 Contact Us For Availability
17
MAY 7003P146-60 MAY 7003P146-60 Contact Us For Availability
17
MAY 8270P193-60 MAY 8270P193-60 Contact Us For Availability
18
Knob (4) (Black/Chrome) MAY 7737P350-60 Contact Us For Availability
18
Knob (4) (Bisque/Chrome) MAY 7737P352-60 Contact Us For Availability
18
MAY 8003P035-60 MAY 8003P035-60 Contact Us For Availability
18
MAY 3608F092-70 MAY 3608F092-70 Contact Us For Availability
18
MAY 3608F092-71 MAY 3608F092-71 Contact Us For Availability
18
TRIM, DOOR BOTTOM (BISQUE) MAY 3608F092-78 Contact Us For Availability
19
Knob, Warm (1) (White/Chrome) MAY 7737P351-60 Contact Us For Availability
19
MAY 7737P355-60 MAY 7737P355-60 Contact Us For Availability
19
MAY 7737P390-60 MAY 7737P390-60 Contact Us For Availability
19
MAY 7101P508-60 MAY 7101P508-60 Contact Us For Availability
19
SCREW,(10-24X5/16) MAY 7101P282-60 Contact Us For Availability
20
Screw (2) (White) MAY 7101P663-60 Contact Us For Availability
20
Screw (2) (Bisque) MAY 7101P664-60 Contact Us For Availability
20
Leg, Leveling MAY 7101P507-60 Contact Us For Availability
20
GLASS, DOOR (WHITE) MAY 7902P781-60 Contact Us For Availability
20
MAY 7902P782-60 MAY 7902P782-60 Contact Us For Availability
20
MAY 7902P791-60 MAY 7902P791-60 Contact Us For Availability
21
MAY 7701P522-60 MAY 7701P522-60 Contact Us For Availability
21
MAY 7701P523-60 MAY 7701P523-60 Contact Us For Availability
21
MAY 7701P524-60 MAY 7701P524-60 Contact Us For Availability
23
MAY 3604F371-51 MAY 3604F371-51 Contact Us For Availability
25
MAY 7406P493-60 MAY 7406P493-60 Contact Us For Availability
26
Sensor, Oven MAY 7430P042-60 Contact Us For Availability
27
MAY 8026P081-60 MAY 8026P081-60 Contact Us For Availability
28
Lens, Bulb MAY 3196173 Contact Us For Availability
31
Gasket MAY W10162385 Contact Us For Availability
32
MAY 8010P148-60 MAY 8010P148-60 Contact Us For Availability
33
MAY 7106P125-60 MAY 7106P125-60 Contact Us For Availability
36
Screw (Black) (2) MAY 7101P375-60 Contact Us For Availability
37
MAY 8018P019-60 MAY 8018P019-60 Contact Us For Availability
38
Bulb, Oven MAY 7407P181-60 Contact Us For Availability
39
MAY 7101P618-60 MAY 7101P618-60 Contact Us For Availability
40
MAY 3801P822-45 MAY 3801P822-45 Contact Us For Availability
41
MAY 7406P451-60 MAY 7406P451-60 Contact Us For Availability
42
MAY 3807P680-45 MAY 3807P680-45 Contact Us For Availability
43
MAY 2205F053-19 MAY 2205F053-19 Contact Us For Availability
44
Fan Assy, Convect MAY 7427P099-60 Contact Us For Availability
45
MAY 3196154 MAY 3196154 Contact Us For Availability
46
MAY 3605F305-19 MAY 3605F305-19 Contact Us For Availability
47
MAY 7002P494-60 MAY 7002P494-60 Contact Us For Availability
48
Switch, Thermal MAY 7403P857-60 Contact Us For Availability
NI
MAY 3804F316-51 MAY 3804F316-51 Contact Us For Availability
NI
MAY 7002P362-60 MAY 7002P362-60 Contact Us For Availability
NI
MAY 7002P492-60 MAY 7002P492-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P861-60 MAY 5171P861-60 Contact Us For Availability
NI
Harness, Wire (Cooktop Left) MAY 5171P864-60 Contact Us For Availability
NI
MAY 5171P927-60 MAY 5171P927-60 Contact Us For Availability
NI
MAY 5171P928-60 MAY 5171P928-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
Clip, Wire MAY 8019P013-60 Contact Us For Availability
× ![]()
