Model Whirlpool MER8772WW1 ELECTRIC RANGE – Common Parts & Diagrams
03 - CONTROL PANEL PARTS

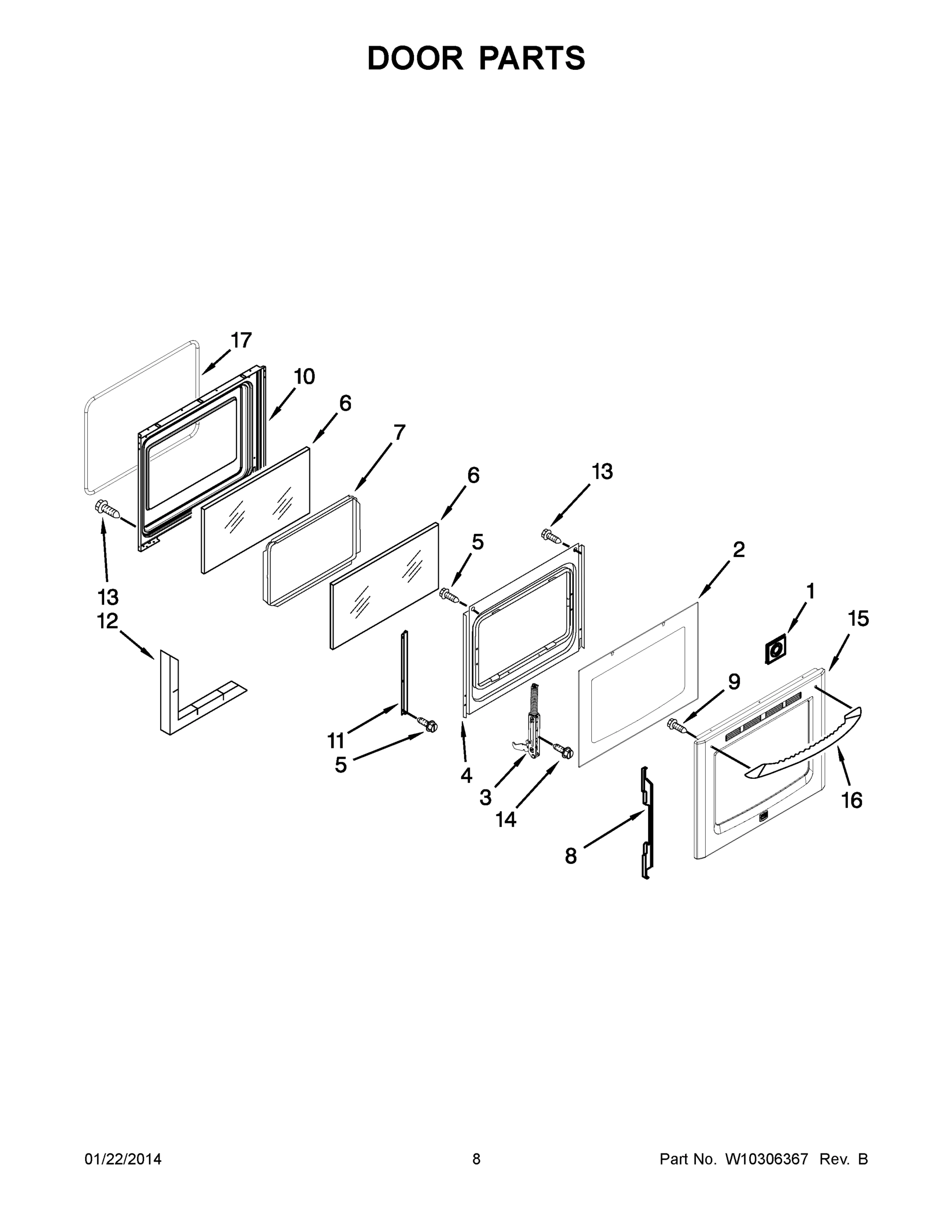

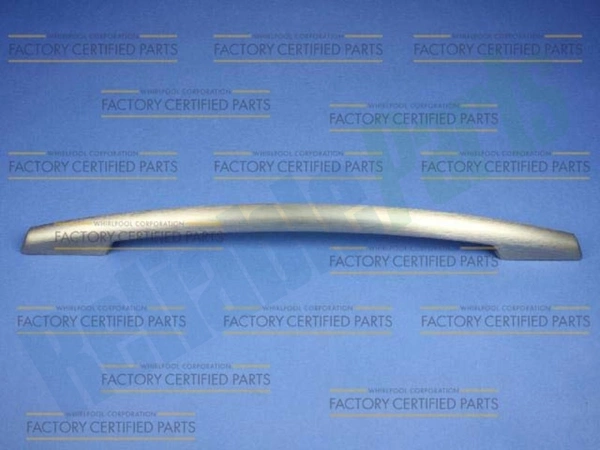

05 - DOOR PARTS
07 - OPTIONAL PARTS

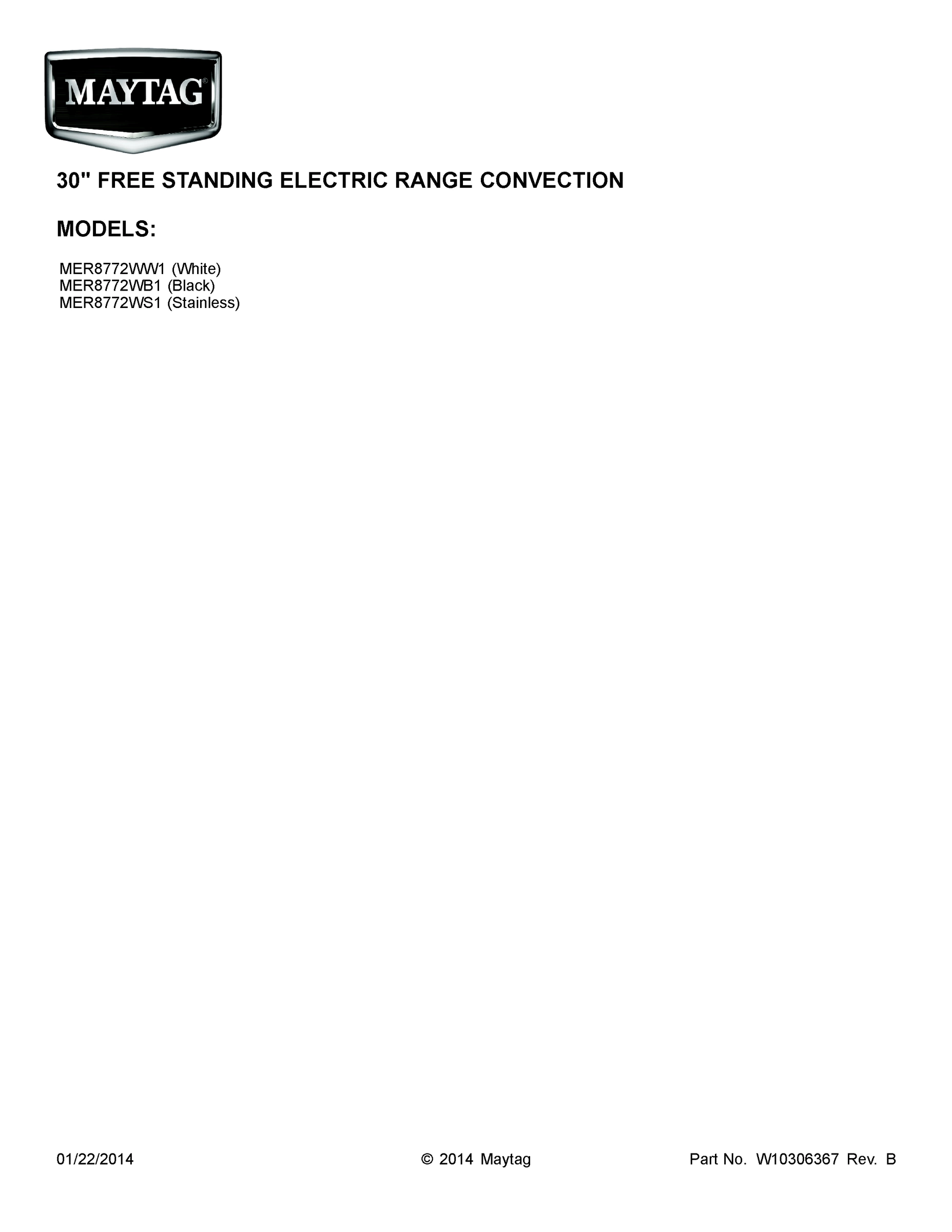

01 - COVER SHEET

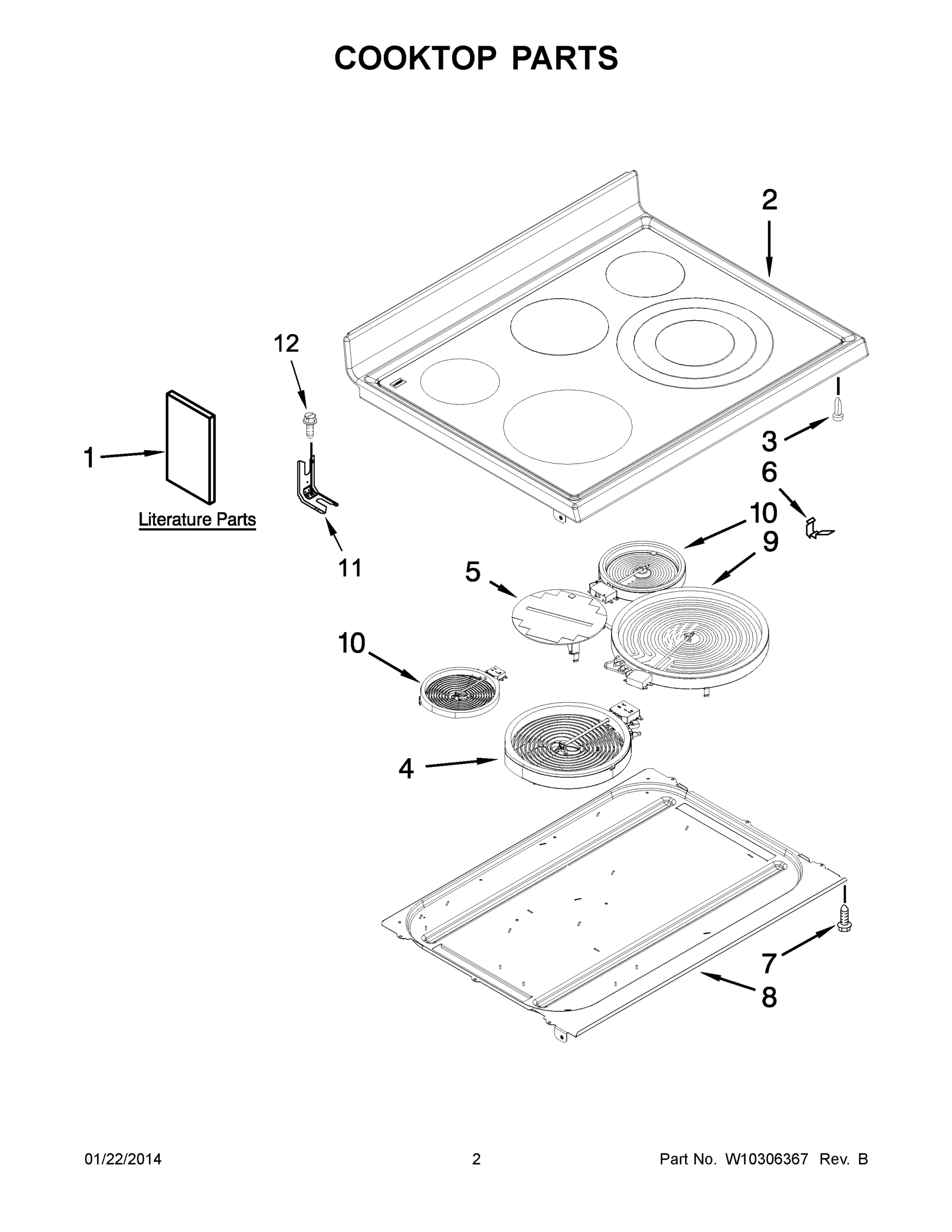

02 - COOKTOP PARTS

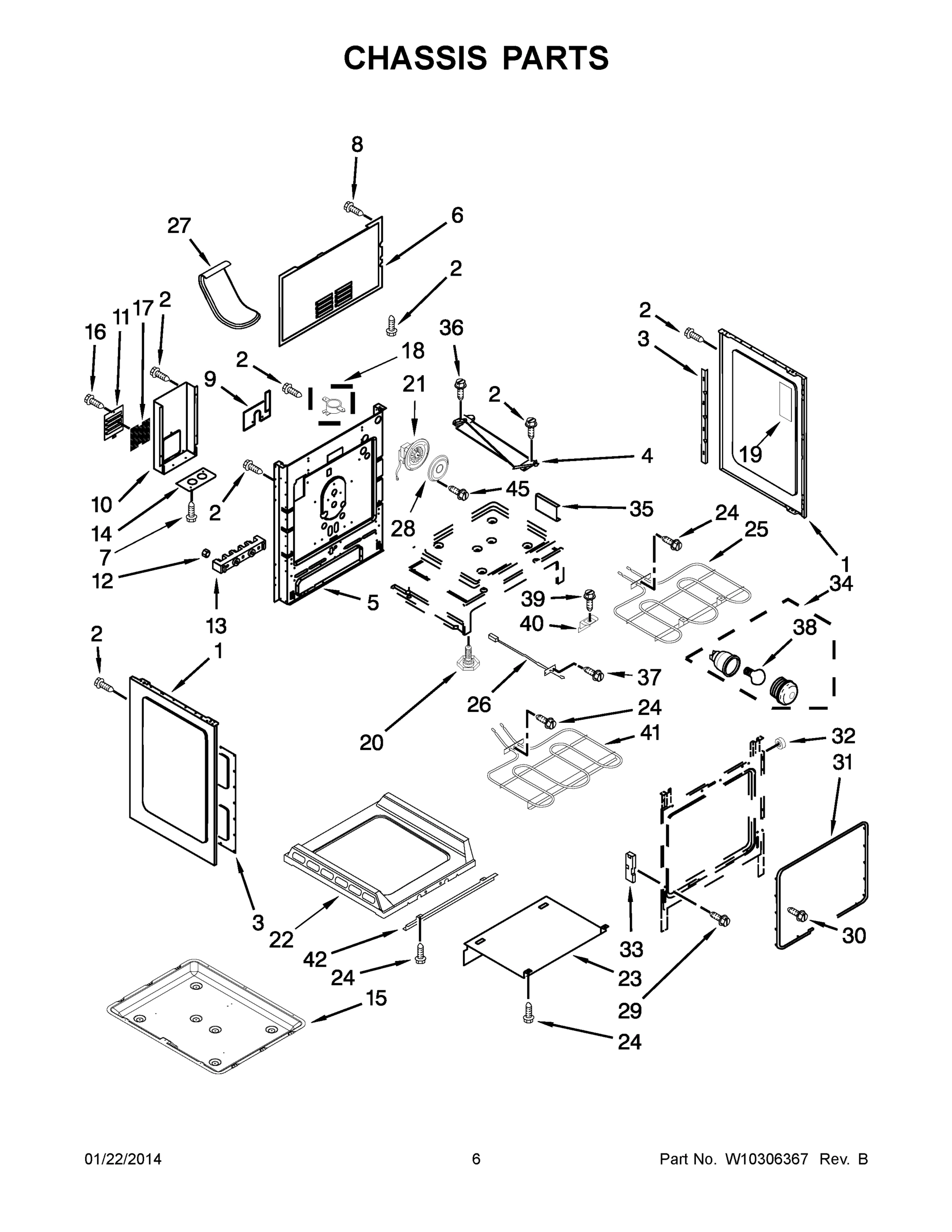

04 - CHASSIS PARTS

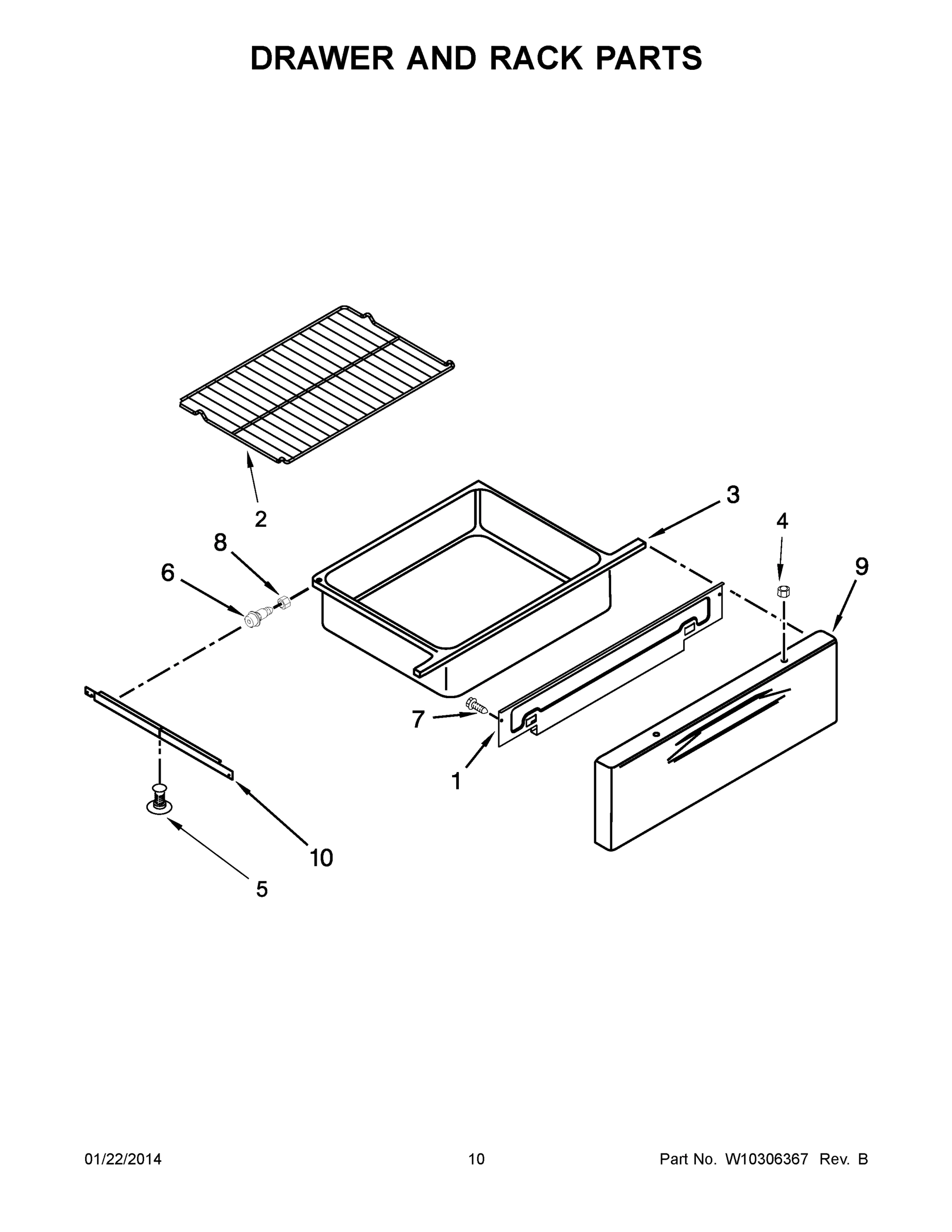

06 - DRAWER AND RACK PARTS
Common parts from model Whirlpool MER8772WW1 ELECTRIC RANGE
1
PANEL, BACKGUARD (STAINLESS) WPL W10097310 Contact Us For Availability
1
PANEL, BACKGUARD (BLACK) WPL W10097280 Contact Us For Availability
1
PANEL, BACKGUARD (WHITE) WPL W10097270 Contact Us For Availability
1
TIPS, SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
USE & CARE GUIDE WPL W10239459 Contact Us For Availability
1
WIRING DIAGRAM WPL W10239462 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10258095 Contact Us For Availability
1
Panel, Side (White) WPL 2618F17258 Contact Us For Availability
1
Panel, Side (Black) WPL 2618F17269 Contact Us For Availability
1
PLATE, DRAWER PANEL MOUNTING WPL 3605P33751 Contact Us For Availability
2
COOKTOP (WHITE) WPL W10225470 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10225471 Contact Us For Availability
3
Spacer, Snap-In WPL 8010P14960 Contact Us For Availability
3
Retainer, Insulation WPL 3601F38051 Contact Us For Availability
3
DRAWER, STORAGE WPL 3405F03780 Contact Us For Availability
4
LATCH, DOOR LOCK WPL W10275451 Contact Us For Availability
4
Nut, Lock WPL 7103P19060 Contact Us For Availability
5
OVERLAY, ACTIVE WPL W10207496 Contact Us For Availability
5
BACK, MAIN WPL W10205618 Contact Us For Availability
5
Drawer, Stop WPL 8038P03760 Contact Us For Availability
6
CONTROL WPL W10157248 Contact Us For Availability
6
Spring, Element WPL 7803P08760 Contact Us For Availability
6
COVER, WIRE WPL W10243046 Contact Us For Availability
6
Shaft, Roller WPL 7118P03260 Contact Us For Availability
7
SCREW WPL 7101P33660 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL W10170717 Contact Us For Availability
8
Nut, Lock WPL 7103P08260 Contact Us For Availability
9
SCREW WPL W10241367 Contact Us For Availability
9
INSULATION, POWER CORD WPL 7003P14560 Contact Us For Availability
9
PANEL, DRAWER (WHITE) WPL W10181695 Contact Us For Availability
9
PANEL, DRAWER (BLACK) WPL W10181696 Contact Us For Availability
9
PANEL, DRAWER (STAINLESS) WPL W10181698 Contact Us For Availability
10
COVER, TERMINAL BLOCK WPL W10243045 Contact Us For Availability
10
RAIL, DRAWER WPL 3406P03451 Contact Us For Availability
11
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
11
COVER, ACCESS PLATE WPL 4005P70451 Contact Us For Availability
12
SCREW, ANTI TIP WPL 7101P48560 Contact Us For Availability
13
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
14
PLATE, CONDUIT WPL 3605P14651 Contact Us For Availability
15
PAN, BAKE BURNER WPL 3401F08445 Contact Us For Availability
17
SCREEN, ACCESS WPL W10260573 Contact Us For Availability
18
SWITCH, LIMITER WPL 7403P85760 Contact Us For Availability
19
RETAINER, INSULATION WPL 3804F30051 Contact Us For Availability
20
FOOT, LEVELER WPL 7101P50760 Contact Us For Availability
21
FAN, ASSEMBLY WPL 7427P09960 Contact Us For Availability
23
Shield, Heat WPL 3604F37151 Contact Us For Availability
25
Element, Broil WPL 7406P49360 Contact Us For Availability
27
Vent, Oven WPL 8026P08160 Contact Us For Availability
28
COVER, FAN WPL 3605F30519 Contact Us For Availability
29
Screw WPL 7101P28260 Contact Us For Availability
32
Spacer, Side Panel WPL 8010P14860 Contact Us For Availability
33
Hinge, Receiver WPL 7106P12560 Contact Us For Availability
35
BRACKET, OVEN SUPPORT WPL 3801P79851 Contact Us For Availability
39
Screw WPL 7101P61860 Contact Us For Availability
40
BRACKET, OVEN SUPPORT WPL 3801P82245 Contact Us For Availability
41
Element, Bake WPL 7406P45160 Contact Us For Availability
42
Support, Oven Bottom WPL 3807P68045 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) WPL 799344 Contact Us For Availability
NI
Retainer, Insulation WPL 3804F31651 Contact Us For Availability
NI
STRAP, INSULATION WPL 4820F01459 Contact Us For Availability
NI
INSULATION, BOTTOM WPL 7002P36160 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P36260 Contact Us For Availability
NI
INSULATION, SIDE PANEL WPL W10182346 Contact Us For Availability
NI
INSULATION, BACK WPL W10243056 Contact Us For Availability
× ![]()
