Model Whirlpool MER8770WW1 ELECTRIC RANGE – Common Parts & Diagrams

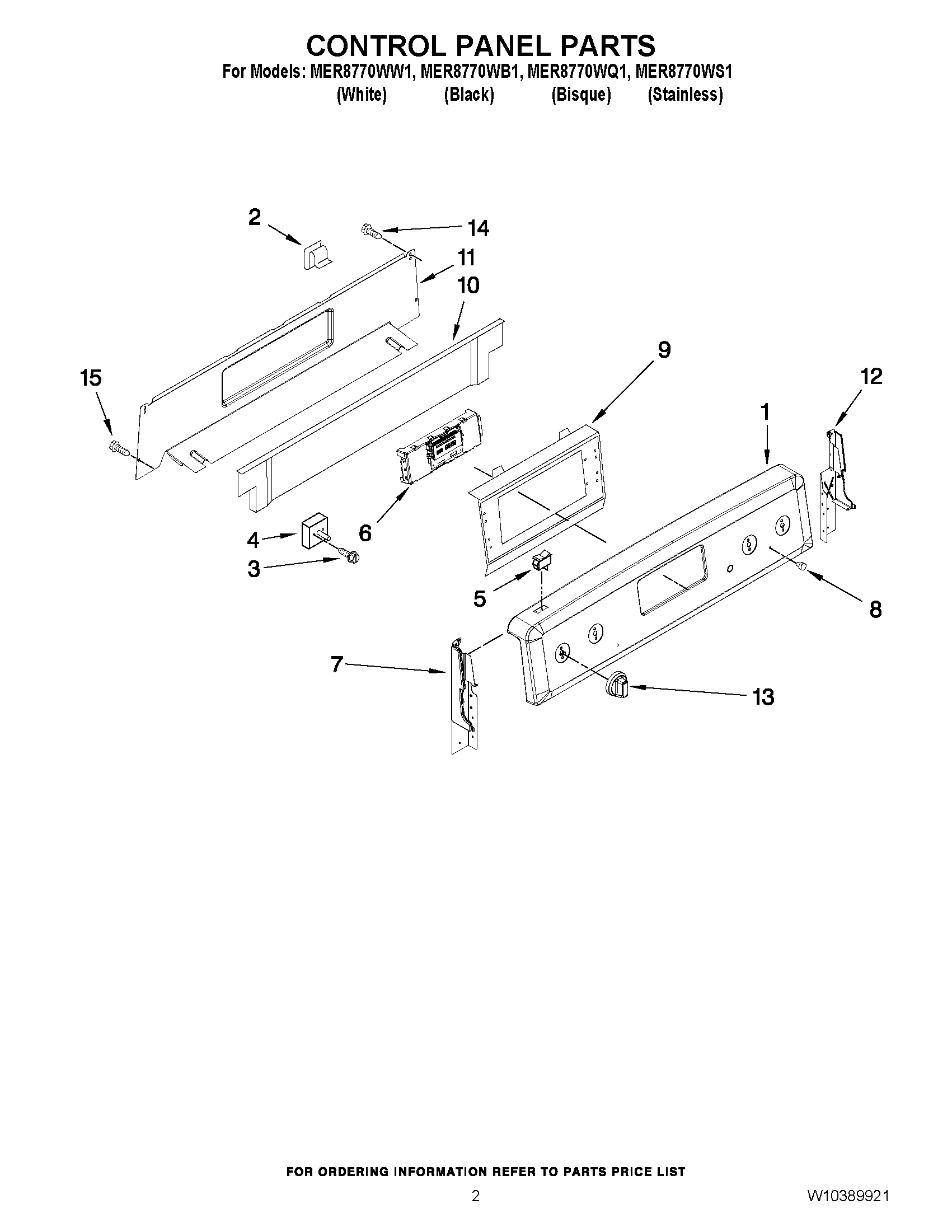

02 - CONTROL PANEL PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

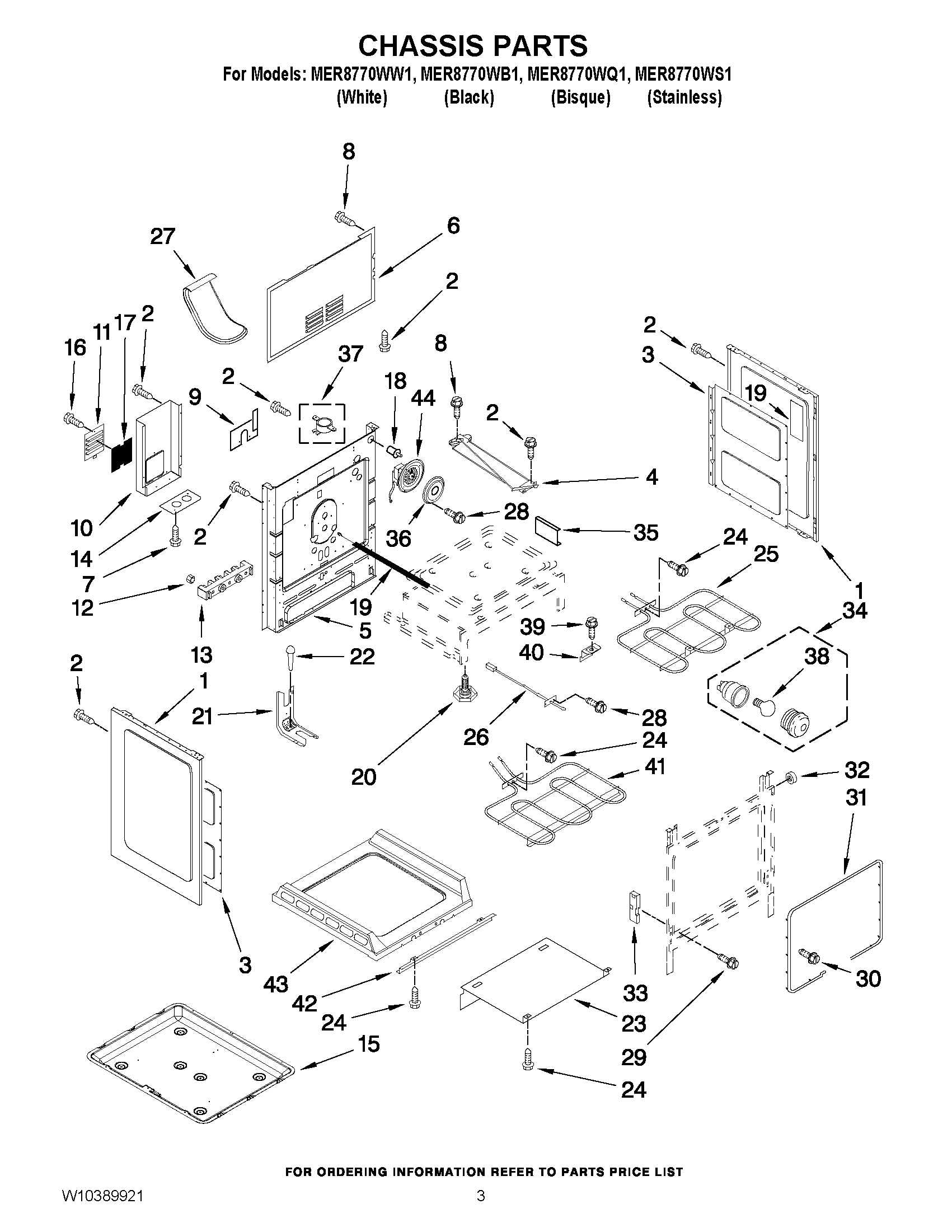

03 - CHASSIS PARTS

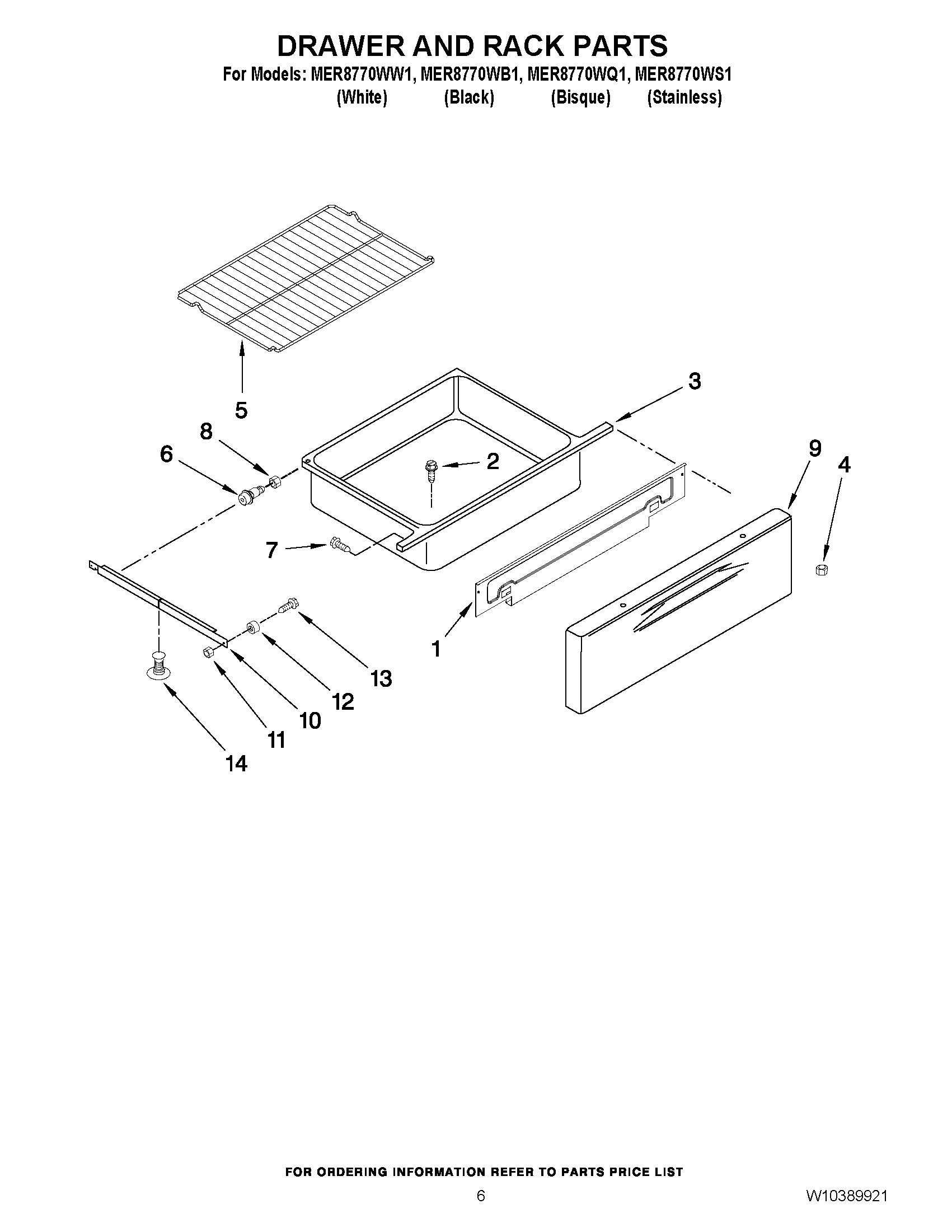

05 - DRAWER AND RACK PARTS

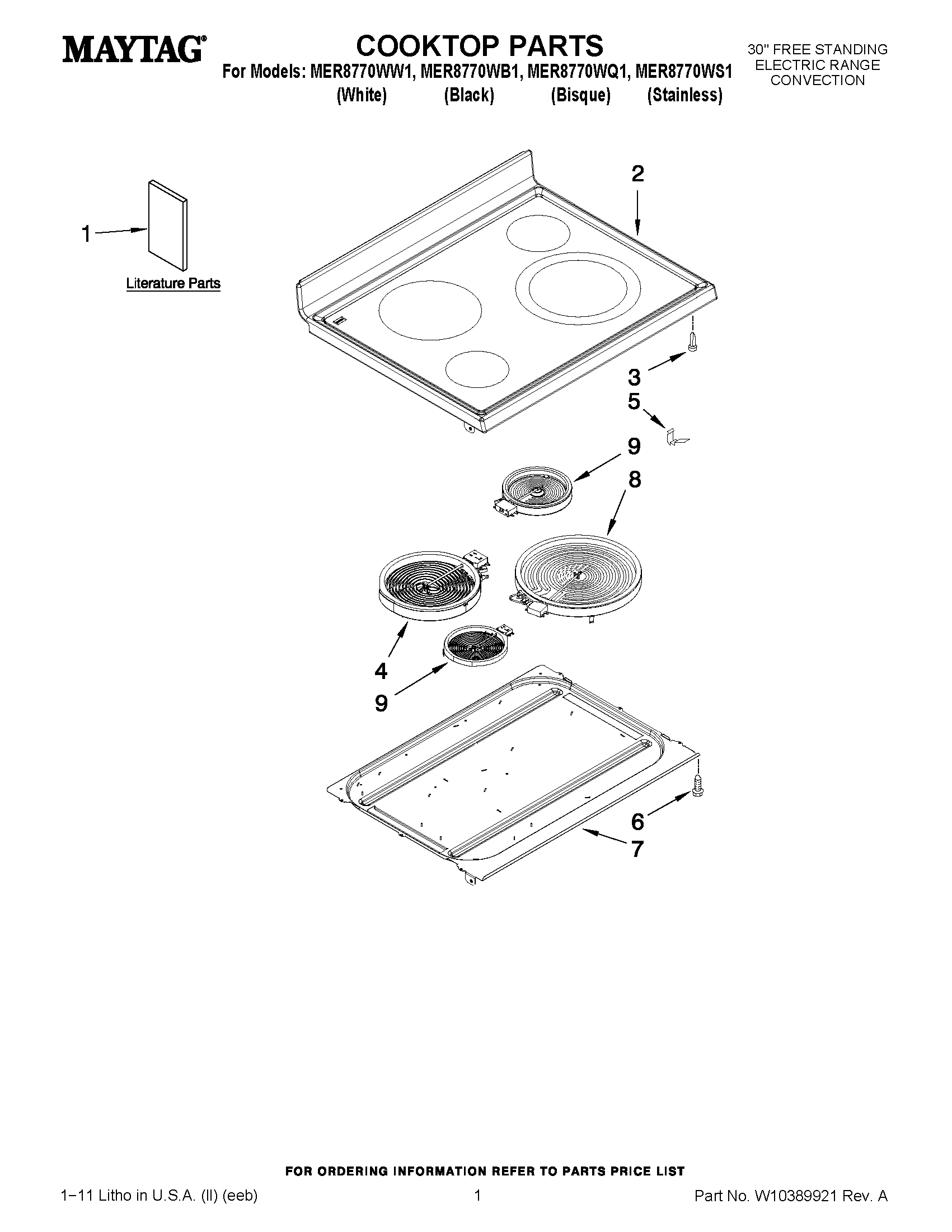

01 - COOKTOP PARTS

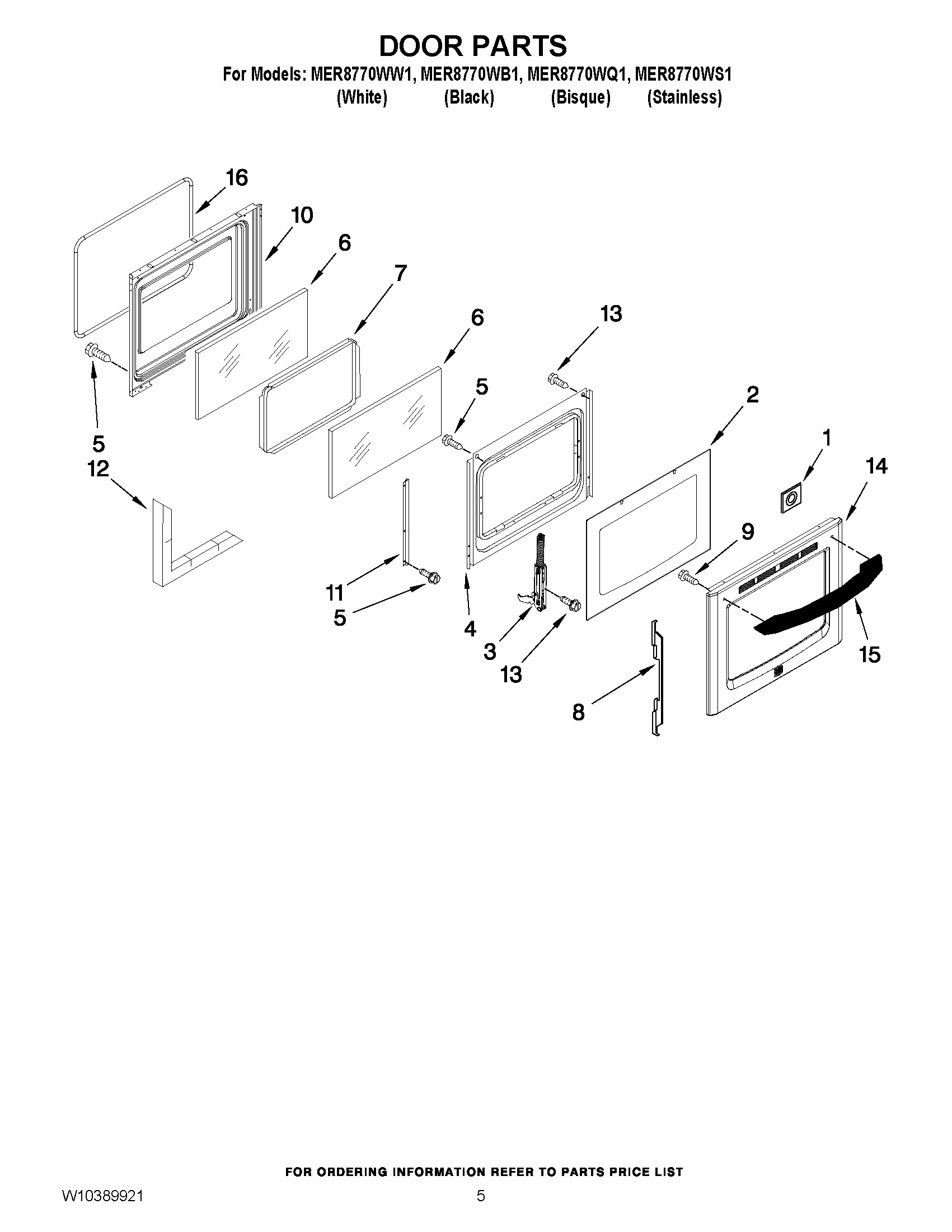

04 - DOOR PARTS
Common parts from model Whirlpool MER8770WW1 ELECTRIC RANGE
1
Panel, Side (Bisque) WPL 2618F17257 Contact Us For Availability
1
Panel, Side (White) WPL 2618F17258 Contact Us For Availability
1
Panel, Side (Black) WPL 2618F17269 Contact Us For Availability
1
PLATE, PANEL MTG. WPL 3605P33751 Contact Us For Availability
1
Brochure, Safe Tip WPL 9762761 Contact Us For Availability
1
USE & CARE GUIDE WPL W10239458 Contact Us For Availability
1
WIRING DIAGRAM WPL W10249695 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10258095 Contact Us For Availability
1
Spacer, Handle WPL 3823F01745 Contact Us For Availability
2
COOKTOP (WHITE) WPL W10225473 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10225474 Contact Us For Availability
2
DOOR, GLASS OVEN WPL W10181725 Contact Us For Availability
3
DRAWER, STORAGE WPL 3405F03780 Contact Us For Availability
3
Spacer, Snap-In WPL 8010P14960 Contact Us For Availability
3
Hinge, Door WPL 7106P12460 Contact Us For Availability
4
Baffel, Retainer WPL 3601F38051 Contact Us For Availability
4
Latch Assembly WPL 8002P10460 Contact Us For Availability
5
SWITCH, ROCKER (WHITE) WPL 3149360 Contact Us For Availability
5
MAIN BACK WPL W10205618 Contact Us For Availability
5
Spring, Element WPL 7803P08760 Contact Us For Availability
6
COVER, MAIN WIRE WPL W10243046 Contact Us For Availability
6
Glass, Inner WPL 7902P43660 Contact Us For Availability
7
SCREW WPL 7101P33660 Contact Us For Availability
7
BOTTOM, BURNER BOX WPL W10170717 Contact Us For Availability
8
NUT WPL 7103P08260 Contact Us For Availability
8
BRACKET, GLASS WPL 3801P91851 Contact Us For Availability
9
SCREW, MOUNTING WPL W10241367 Contact Us For Availability
9
Insulator, Cord WPL 7003P14560 Contact Us For Availability
9
PANEL, DRAWER (WHITE) WPL W10181695 Contact Us For Availability
9
PANEL, DRAWER (BLACK) WPL W10181696 Contact Us For Availability
9
PANEL, DRAWER (BISQUE) WPL W10181697 Contact Us For Availability
9
PANEL, DRAWER (STAINLESS STEEL) WPL W10181698 Contact Us For Availability
10
COVER, WIRE (LWR) WPL W10243045 Contact Us For Availability
10
Runner, Drawer WPL 3406P03451 Contact Us For Availability
10
Lining, Door WPL 2402W29719 Contact Us For Availability
11
Panel, Access WPL 4005P70451 Contact Us For Availability
11
Nut, Lock WPL 7103P19060 Contact Us For Availability
11
Bracket, Glass WPL 3801F88651 Contact Us For Availability
12
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
12
Insulation, Door WPL 7002P24660 Contact Us For Availability
13
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
13
Shaft, Roller WPL 7118P03260 Contact Us For Availability
14
PLATE, CONDUIT WPL 3605P14651 Contact Us For Availability
14
Stop, Drawer WPL 8038P03760 Contact Us For Availability
14
GLASS, DOOR (STAINLESS STEEL) WPL W10097300 Contact Us For Availability
14
GLASS, DOOR (WHITE) WPL W10172590 Contact Us For Availability
14
GLASS, DOOR (BISQUE) WPL W10172591 Contact Us For Availability
14
GLASS, DOOR (BLACK) WPL W10214541 Contact Us For Availability
15
HANDLE, DOOR (BISQUE) WPL W10171749 Contact Us For Availability
15
PAN, BAKE WPL 3401F08445 Contact Us For Availability
16
GASKET, DOOR WPL W10290904 Contact Us For Availability
17
SCREEN, ACCESS WPL W10260573 Contact Us For Availability
18
SWITCH, DOOR WPL 9758161 Contact Us For Availability
19
ROD, REAR DOOR WPL W10106438 Contact Us For Availability
20
Leg, Leveling WPL 7101P50760 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
22
SCREW, ANTI TIP WPL 7101P48560 Contact Us For Availability
23
Shield, Heat WPL 3604F37151 Contact Us For Availability
25
Element, Broil WPL 7406P49360 Contact Us For Availability
27
Vent, Oven WPL 8026P08160 Contact Us For Availability
29
Screw WPL 7101P28260 Contact Us For Availability
32
Spacer, Side Pnl. WPL 8010P14860 Contact Us For Availability
33
Receiver, Hinge WPL 7106P12560 Contact Us For Availability
35
Bracket, Oven WPL 3801P79851 Contact Us For Availability
36
Plate, Convection WPL 3605F30519 Contact Us For Availability
37
SWITCH, TERMINAL WPL 7403P85760 Contact Us For Availability
39
Screw, Shoulder WPL 7101P61860 Contact Us For Availability
40
Support, Ov BTM WPL 3801P82245 Contact Us For Availability
41
Element, Bake WPL 7406P45160 Contact Us For Availability
42
Support, Oven WPL 3807P68045 Contact Us For Availability
44
Fan Assy, Convect WPL 7427P09960 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
HARNESS, WIRE (CERAN) WPL W10237626 Contact Us For Availability
NI
Retainer, Insulation WPL 3804F31651 Contact Us For Availability
NI
STRAP, INSULATION WPL 4820F01459 Contact Us For Availability
NI
INSULATION, BOTTOM WPL 7002P36160 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P36260 Contact Us For Availability
NI
Insulation, Side WPL W10182346 Contact Us For Availability
NI
INSULATION, BACK WPL W10243056 Contact Us For Availability
× ![]()
