Model Whirlpool MER5752BAS17 ELECTRIC RANGE – Common Parts & Diagrams
04 - DOOR PARTS

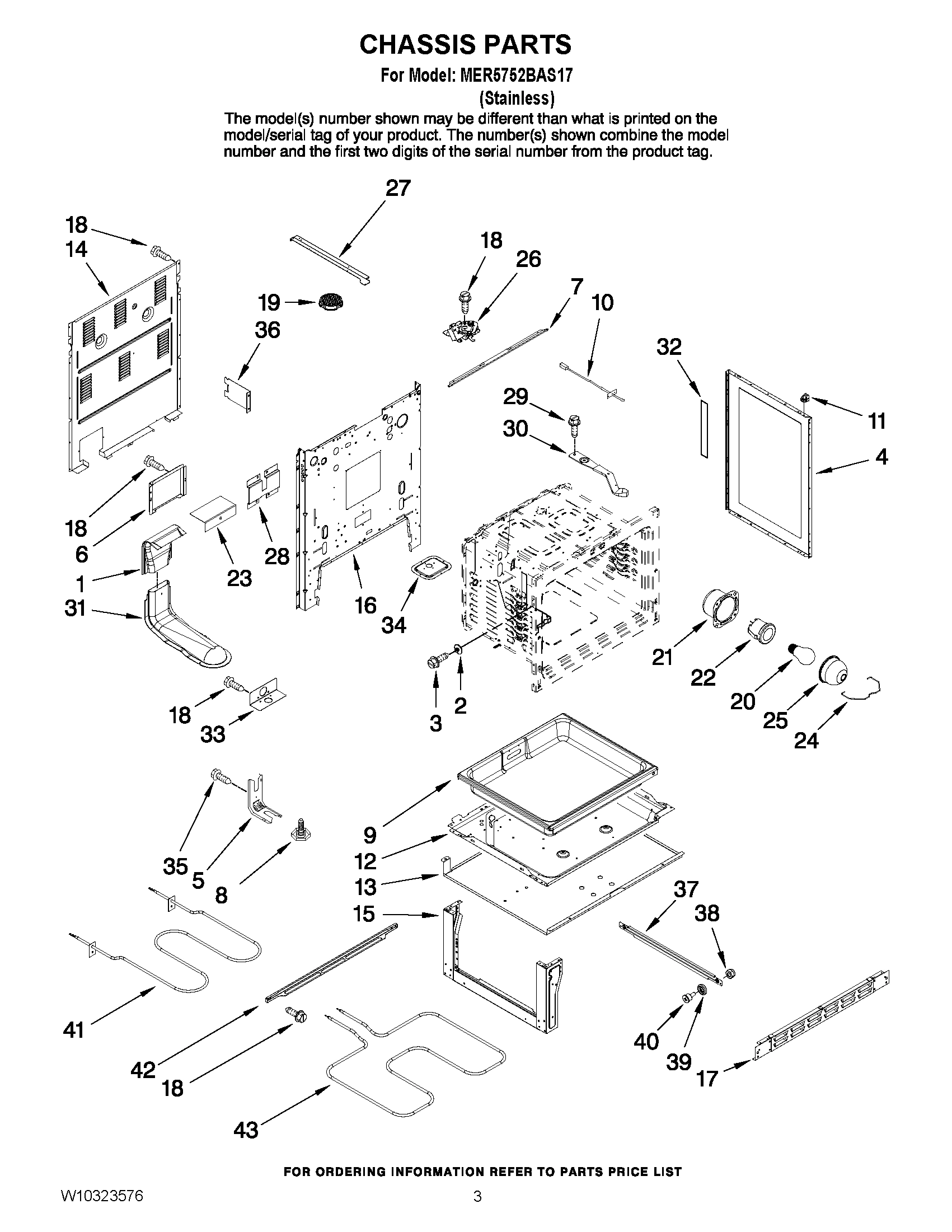

03 - CHASSIS PARTS

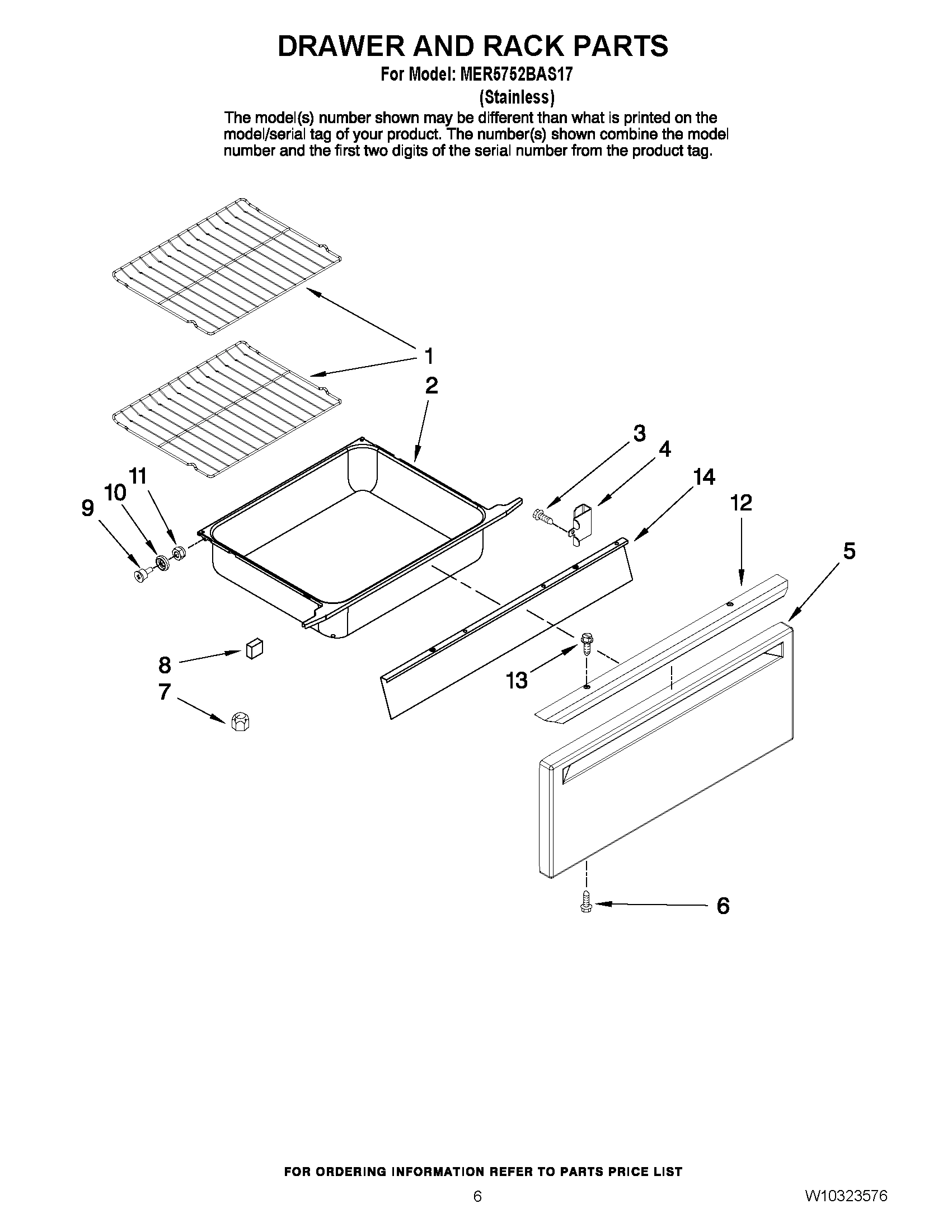

05 - DRAWER AND RACK PARTS

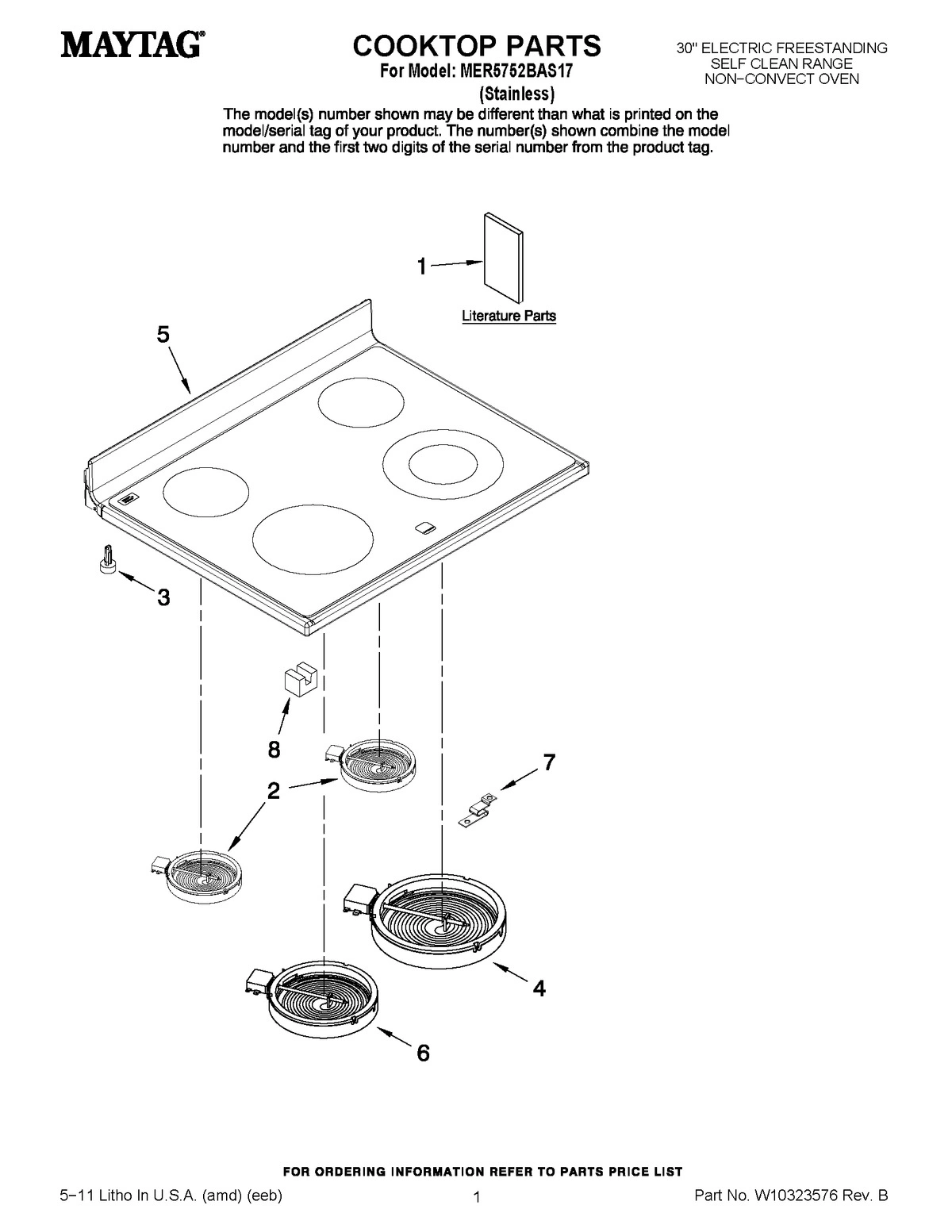

01 - COOKTOP PARTS

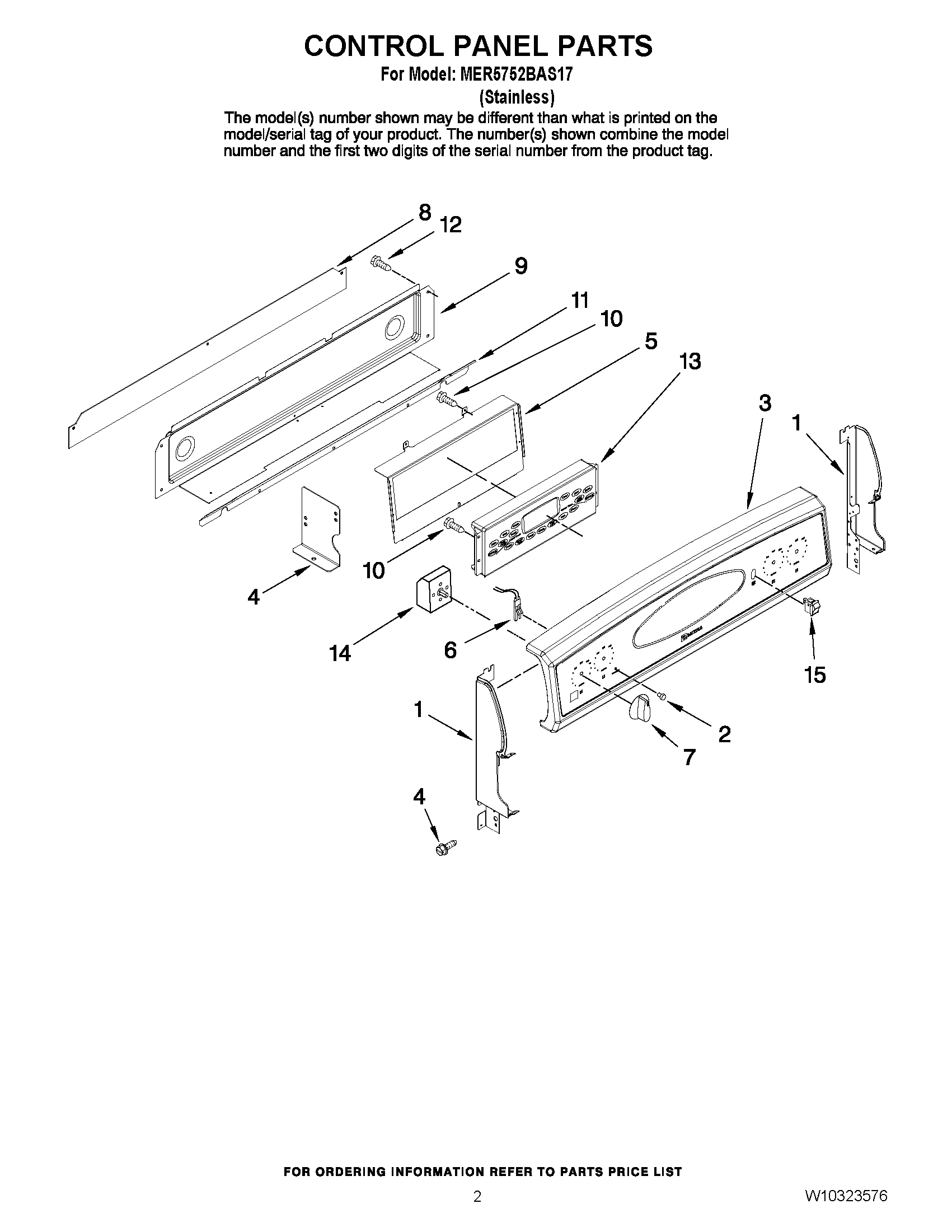

02 - CONTROL PANEL PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool MER5752BAS17 ELECTRIC RANGE
1
Rack, Oven WPL 7801P05460 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P55660 Contact Us For Availability
1
OWNERS MANUAL WPL 8113P73060 Contact Us For Availability
1
WIRING DIAGRAM WPL 8119P05160 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING WPL 9762761 Contact Us For Availability
1
Support, Backguard (Right) WPL 3807F73370 Contact Us For Availability
1
Support, Backguard (Left) WPL 3807F73470 Contact Us For Availability
2
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
2
DRAWER, STORAGE WPL 3405F03380 Contact Us For Availability
2
Element (RR,LR) WPL 7406P36560 Contact Us For Availability
2
Lens, Indicator WPL 7730P01160 Contact Us For Availability
3
SCREW, SHOULDER WPL 7101P60460 Contact Us For Availability
3
SCREW WPL 7101P07260 Contact Us For Availability
3
Glide, Main Top WPL 8016P02260 Contact Us For Availability
3
PANEL, BACKGUARD WPL 2602D28009 Contact Us For Availability
4
Panel, Side WPL 2618F19470 Contact Us For Availability
4
BRACKET, DRAWER WPL 3801F88751 Contact Us For Availability
4
ELEMENT, (RF) WPL 7406P35760 Contact Us For Availability
4
BRACKET, VENT EXT. WPL 3801F93051 Contact Us For Availability
5
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
5
PANEL, DRAWER WPL W10174859 Contact Us For Availability
5
COOKTOP WPL 2002W21209 Contact Us For Availability
5
Bracket, Control WPL 3801F84451 Contact Us For Availability
6
Cover, Access WPL 4005F74751 Contact Us For Availability
6
ELEMENT (LF) WPL 7406P38760 Contact Us For Availability
6
Light, Indicator WPL 7407P13660 Contact Us For Availability
7
Bracket, Cooktop WPL 3801F92480 Contact Us For Availability
7
NUT, LOCK WPL 7103P13960 Contact Us For Availability
7
SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability
7
KNOBS WPL 7737P35060 Contact Us For Availability
8
FOOT, LEVELER WPL 7101P50760 Contact Us For Availability
8
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
8
Block, Element Support WPL 8255P41260 Contact Us For Availability
8
Shield, Sight WPL 3604F38751 Contact Us For Availability
9
BOTTOM,DUTCH OVEN WPL 2205F06119 Contact Us For Availability
9
Cover, Rear Wire WPL 4005F80351 Contact Us For Availability
10
Sensor, Oven WPL 7430P04260 Contact Us For Availability
10
ROLLER, DRAWER WPL 7118P03260 Contact Us For Availability
10
Screw WPL 7101P63360 Contact Us For Availability
11
Spacer, Top (Left) WPL 8010P08760 Contact Us For Availability
11
Spacer, Top (Right) WPL 8010P08860 Contact Us For Availability
11
Nut, Lock WPL 7103P08260 Contact Us For Availability
11
Shield, Wire WPL 3604F40551 Contact Us For Availability
12
HANDLE, DRAWER WPL W10180296 Contact Us For Availability
12
RETAINER,INS BTM WPL 3804F23151 Contact Us For Availability
12
Screw WPL 7101P50060 Contact Us For Availability
13
SHIELD,WARMNG DWR WPL 3604F32645 Contact Us For Availability
13
SCREW WPL 7101P63860 Contact Us For Availability
13
CONTROL W/OVERLAY WPL 5701M76060 Contact Us For Availability
14
COVER, MAIN WIRE WPL W10177234 Contact Us For Availability
14
LINING, DRAWER WPL 2404F03051 Contact Us For Availability
14
Switch, Infinite (RF) WPL 7403P37260 Contact Us For Availability
14
SWITCH, INFINITE (RR) WPL 7403P37360 Contact Us For Availability
14
SWITCH, INFINITE (LR) WPL 7403P87760 Contact Us For Availability
14
SWITCH, INFINITE (LF) WPL 7450P01760 Contact Us For Availability
15
PEDESTAL, SIDE WPL 4020L02680 Contact Us For Availability
15
SWITCH, ROCKER WPL 7403P75660 Contact Us For Availability
16
BACK, MAIN WPL W10177185 Contact Us For Availability
17
PEDESTAL, FRONT WPL 4020F02180 Contact Us For Availability
18
SCREW WPL 7101P37660 Contact Us For Availability
19
Screen, Smoke WPL 8034P00860 Contact Us For Availability
20
BULB-OVEN WPL 7407P10360 Contact Us For Availability
21
HOUSING, BULB WPL 4001F10945 Contact Us For Availability
22
RECEPTICLE, BULB WPL 7408P04460 Contact Us For Availability
23
SHIELD, ELEMENT WPL 8036P02660 Contact Us For Availability
24
RETAINER,OVEN LAMP WPL 7804P00160 Contact Us For Availability
25
LENS, BULB WPL 7724P10260 Contact Us For Availability
26
LATCH, DOOR LOCK WPL 8002P08660 Contact Us For Availability
27
BOTTOM, BURNER BOX (RIGHT) WPL 4011F45851 Contact Us For Availability
27
BOTTOM, BURNER BOX (LEFT) WPL 4011F45951 Contact Us For Availability
28
INSUL, HEAT SHIELD WPL 7003P10460 Contact Us For Availability
29
SCREW WPL 7101P23060 Contact Us For Availability
30
LEVER,LOCK ARM WPL 8009P06560 Contact Us For Availability
31
VENT, BOX WPL 4006W12945 Contact Us For Availability
32
TAPE, FOIL 3`` WPL W10250527 Contact Us For Availability
34
PLATE,VENT COVER WPL 3605F35445 Contact Us For Availability
35
Screw WPL 7101P48560 Contact Us For Availability
36
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
37
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
38
Nut, Lock WPL 7103P19060 Contact Us For Availability
39
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
42
SUPPORT,BROIL ELEM WPL 3807F49445 Contact Us For Availability
43
ELEMENT, BAKE WPL 7406P43860 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P39860 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P46060 Contact Us For Availability
NI
HARNESS, MAIN WPL 5171P34460 Contact Us For Availability
NI
HARNESS, INF.SW. (LEFT) WPL 5171P35660 Contact Us For Availability
NI
HARNESS, INF.SW. (RIGHT) WPL 5171P35760 Contact Us For Availability
NI
HARNESS, WIRE CERAN TOP WPL 5171P62260 Contact Us For Availability
NI
HARNESS, DOOR LOCK WPL 5195P08260 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799340 Contact Us For Availability
NI
Kit, Porcelain Repair (White) WPL 799832 Contact Us For Availability
× ![]()
