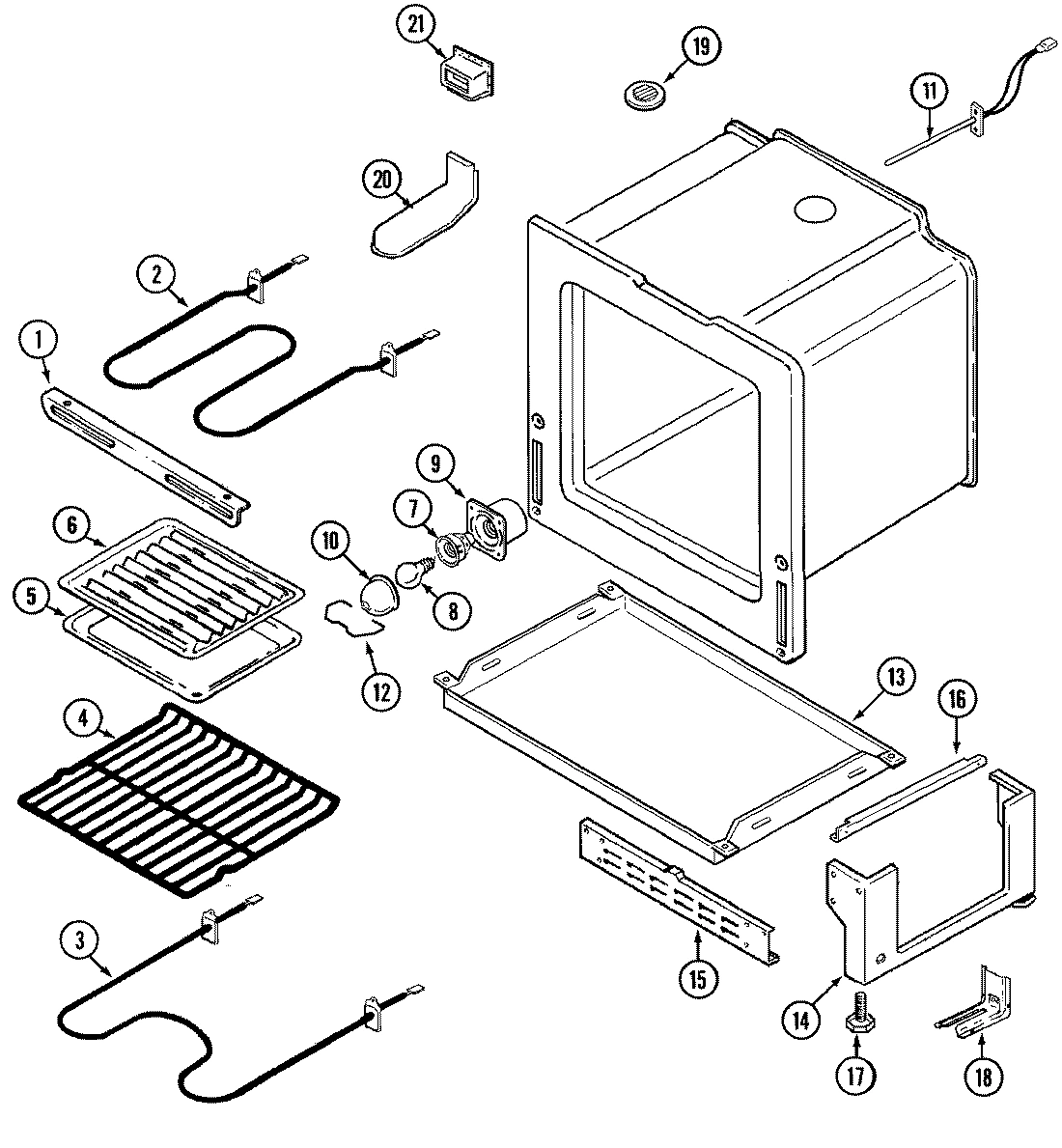

Model Whirlpool MER5710AAQ ELECTRIC RANGE – Common Parts &amp; Diagrams

1

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $4.82

1

PANEL, CONTROL (BSQ) WPL 74005177 Contact Us For Availability

1

PANEL, DOOR (BSQ) WPL 74005378 Contact Us For Availability

1

BACK, MAIN WPL 74001772 Contact Us For Availability

2

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $5.02

2

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

2

WP74005058 Whirlpool Spacer Assembly Backorder WPL WP74005058 $4.82

2

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

2

CLOCK W/OVERLAY (BSQ) WPL 74005169 Contact Us For Availability

2

PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability

2

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

3

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

3

BRACKET, CLOCK WPL 74003627 Contact Us For Availability

3

SCREW (8ABX3/8) BSQ WPL 74004985 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

4

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

4

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

PAD, SPONGE (NON ABRASIVE) WPL 20001100 Contact Us For Availability

4

GASKET, VENT WPL 74003285 Contact Us For Availability

4

TOP, MAIN (ALM GLASS/BSQ TRM) WPL 74005178 Contact Us For Availability

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

5

74008765 Whirlpool Range Oven Rocker Switch B Backorder WPL 74008765 $64.51

5

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

5

GASKET, WINDOW WPL 790058 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

6

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

6

RETAINER, GLASS WPL 74003048 Contact Us For Availability

6

LIGHT, INDICATOR (4-POS) WPL 74003589 Contact Us For Availability

6

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

7

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

HANDLE, DOOR (BSQ) WPL 74005054 Contact Us For Availability

7

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

8

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

8

BULB-OVEN WPL 7407P10360 Contact Us For Availability

8

BRACKET, CONTROL PANEL (RT) WPL 74005392 Contact Us For Availability

8

BRACKET, CONTROL PANEL (LT) WPL 74005393 Contact Us For Availability

8

GLASS, INNER WPL 74003320 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

9

HOUSING, BULB WPL 74003388 Contact Us For Availability

9

END CAP, CNTRL PANEL (RT-BSQ) WPL 74004979 Contact Us For Availability

9

END CAP, CNTRL PANEL (LT-BSQ) WPL 74004980 Contact Us For Availability

9

SCREW (6ABX1/2 3/16) WPL 74004982 Contact Us For Availability

9

LIMITER WPL 74004494 Contact Us For Availability

9

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

EXTENSION, CONTROL PANEL WPL 74004551 Contact Us For Availability

EXTENSION, CONTROL PANEL WPL 74006376 Contact Us For Availability

SCREW, LEVER WPL 7101P23060 Contact Us For Availability

LEVER, LATCH (BRN) WPL 74003006 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability

SCREW WPL 7101P35660 Contact Us For Availability

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability

LATCH, DOOR WPL 74003380 Contact Us For Availability

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

KNOB, SWITCH (BSQ) WPL 74005143 Contact Us For Availability

BAFFLE, DOOR WPL 74001843 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

INSULATION, DOOR WPL 74001842 Contact Us For Availability

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability

HARNESS, SENSOR/LOCK WPL 74003468 Contact Us For Availability

LINING, OVEN DOOR WPL 74004972 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

MANUAL, USE & CARE WPL 74005214 Contact Us For Availability

GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability

INSERT, CLEANING INSTRUCTIONS WPL 74005576 Contact Us For Availability

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

PANEL, DRAWER (BSQ) WPL 74005055 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

17

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

17

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

17

SCREW WPL 7101P11260 Contact Us For Availability

18

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

18

SCREW WPL 7101P35260 Contact Us For Availability

18

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

19

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.82

19

WP74011140 Whirlpool Range Hinge In Stock WPL WP74011140 $102.61

19

SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability

INSULATOR, SWITCH WPL 74004031 Contact Us For Availability

21

EXTENSION, VENT ASSEMBLY WPL 74004534 Contact Us For Availability

21

NUT, LOCK WPL 7103P13960 Contact Us For Availability

21

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

22

GLASS, DOOR (BSQ) WPL 74005377 Contact Us For Availability

22

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

23

STRAP, INSULATION WPL 74003385 Contact Us For Availability

NI

WIRING INFORMATION WPL 15002276 Contact Us For Availability
