Model Whirlpool MEP5775BAB ELECTRIC RANGE – Common Parts & Diagrams
04 - OVEN/BASE

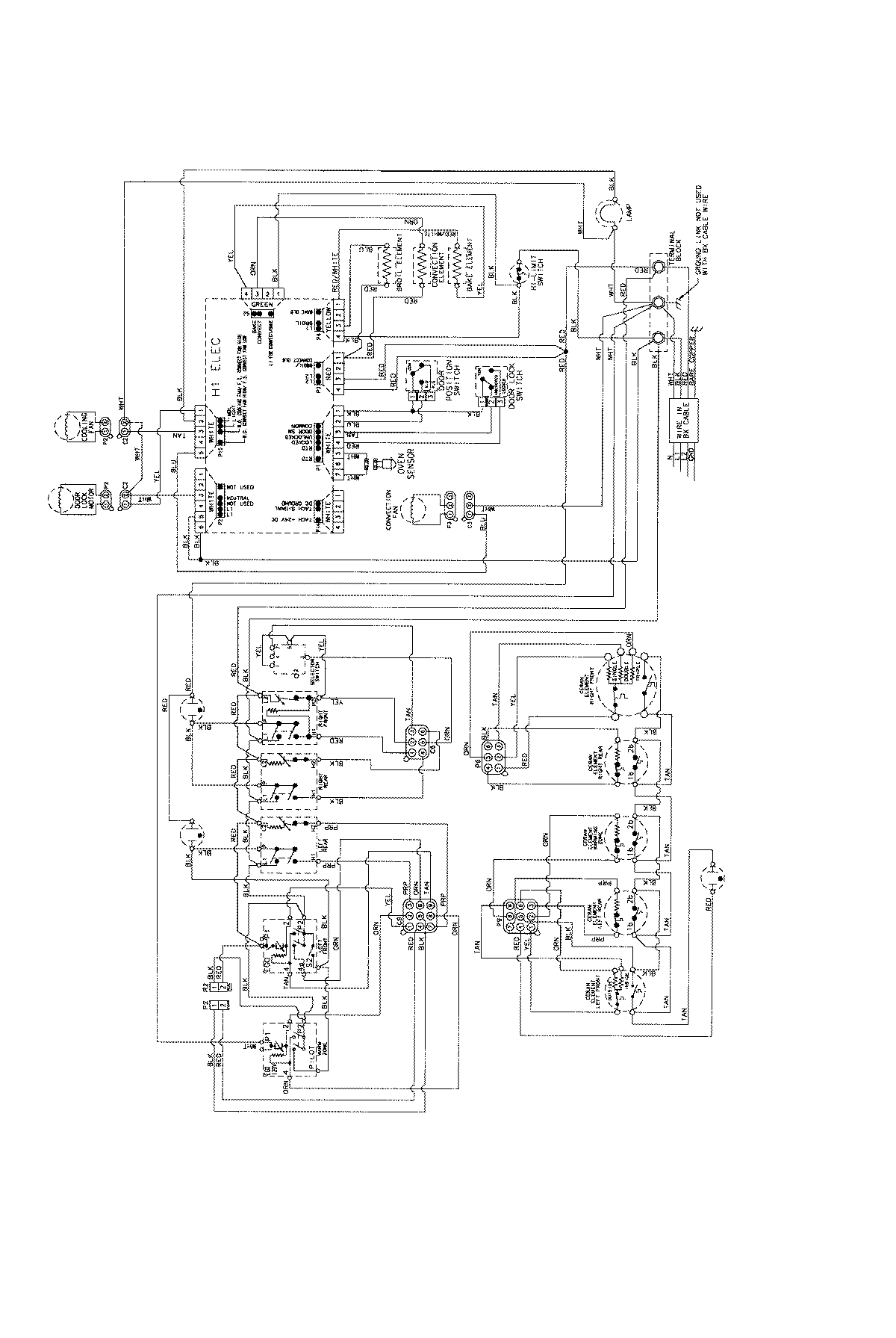

06 - WIRING INFORMATION

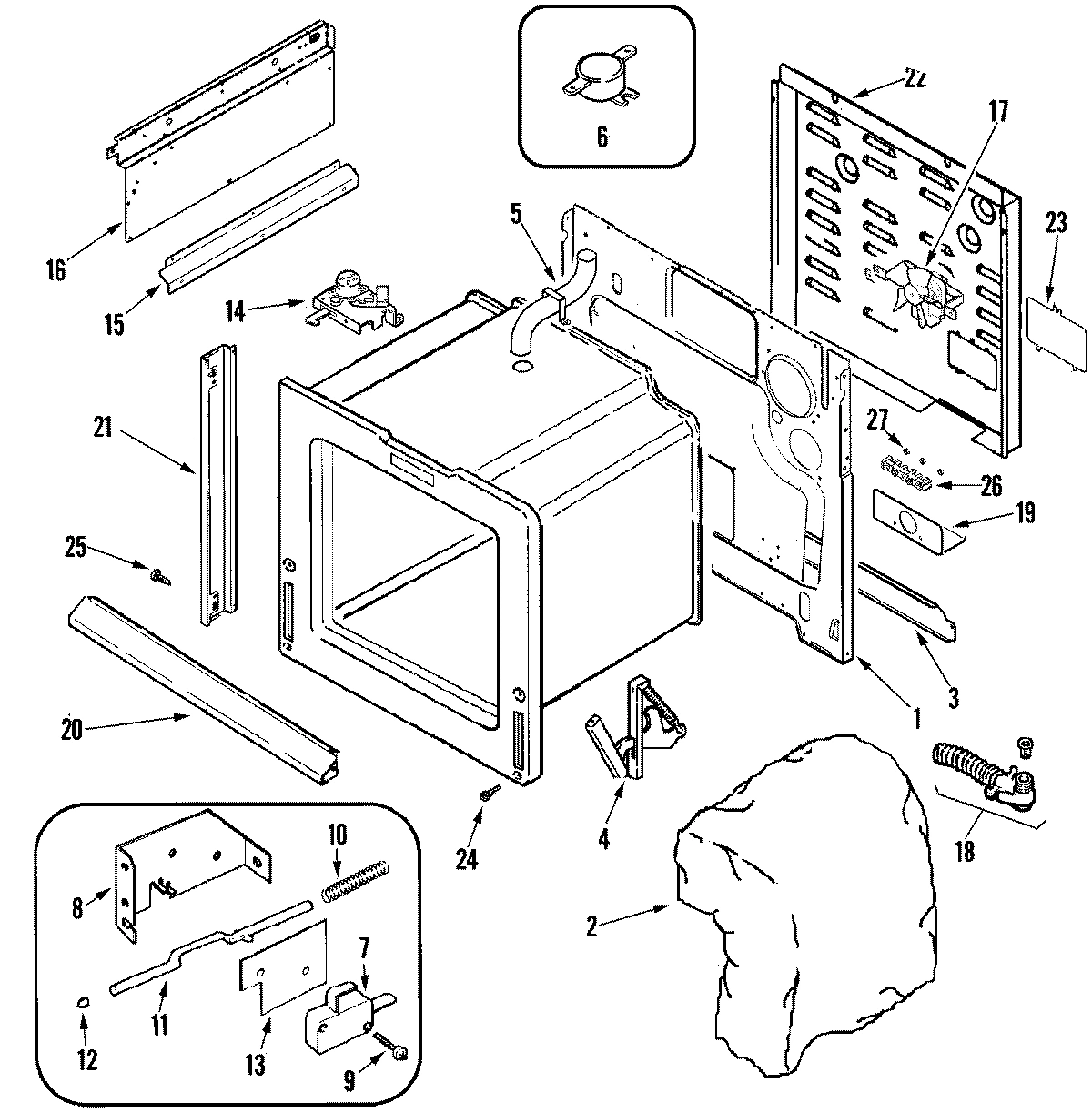

01 - BODY

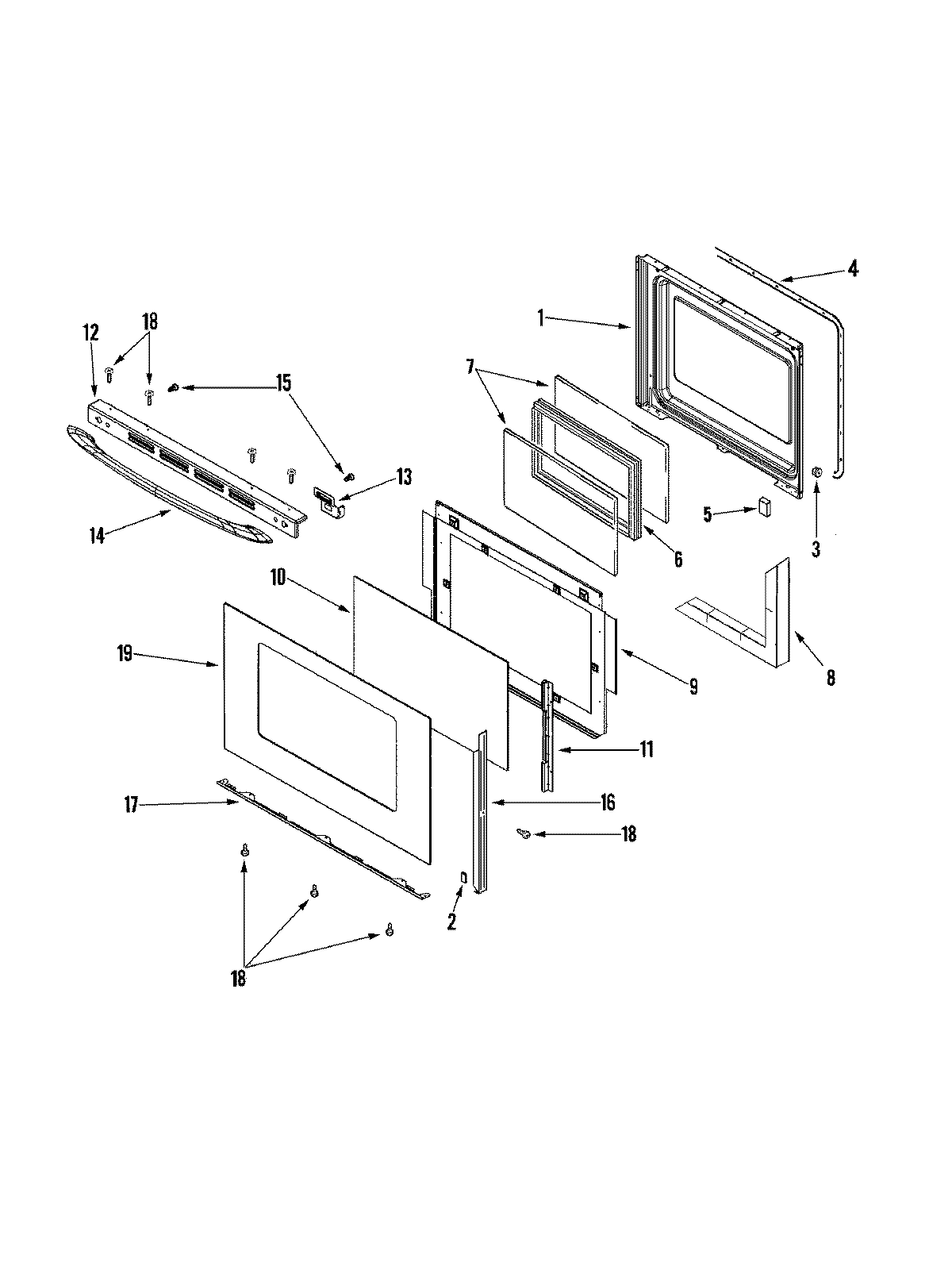

03 - DOOR
05 - SUPPLEMENTAL INFORMATION

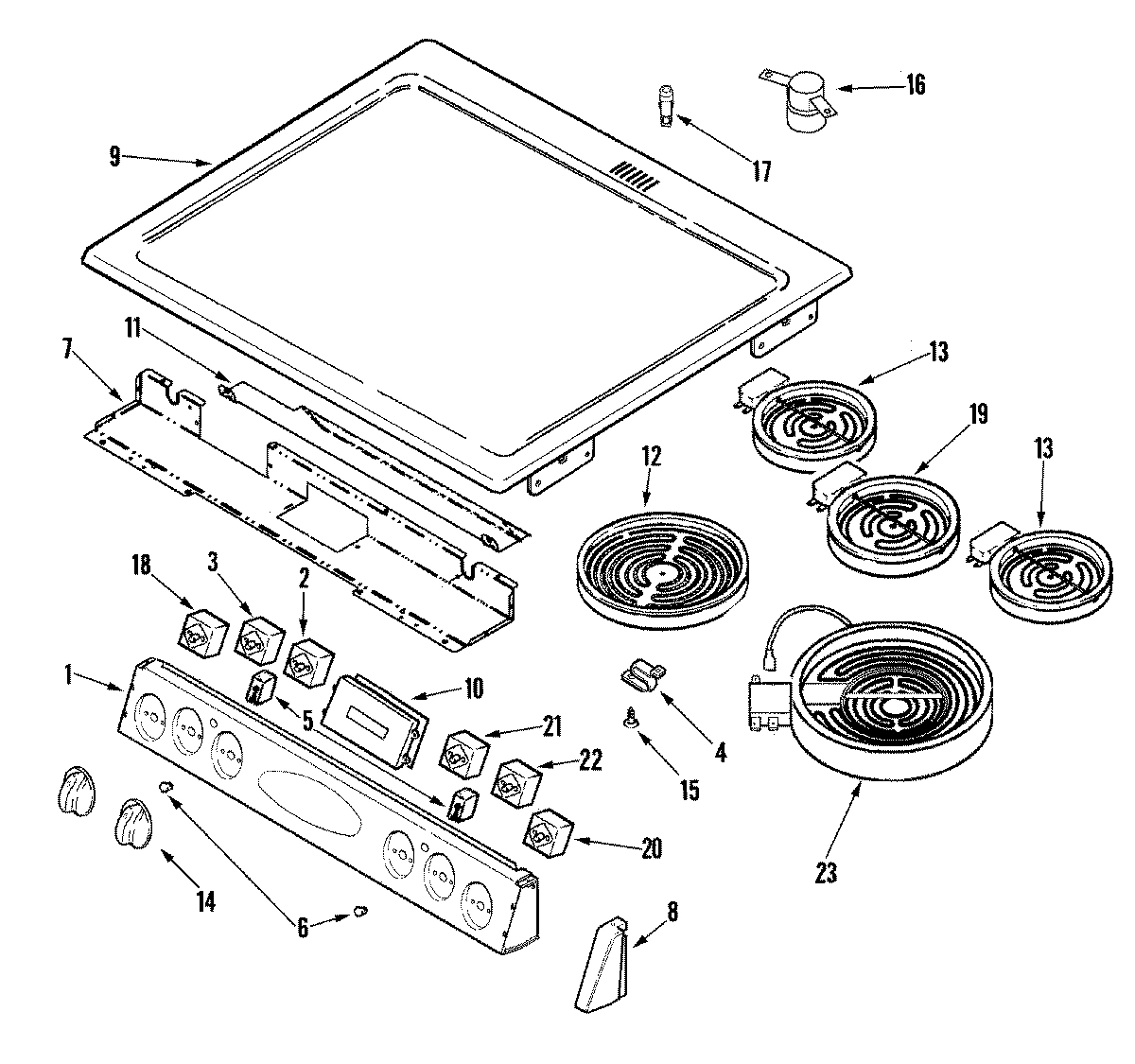

02 - CONTROL PANEL/TOP ASY
Common parts from model Whirlpool MEP5775BAB ELECTRIC RANGE
1
RETAINER, REAR WPL 74011203 Contact Us For Availability
1
LINING, DOOR WPL 74003642 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8113P50060 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8113P56160 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8113P77160 Contact Us For Availability
1
PANEL, CONTROL (BLK) WPL 74011075 Contact Us For Availability
2
INSULATION, WRAPPER WPL 74010813 Contact Us For Availability
2
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
2
HARNESS, MAIN WPL 74011205 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
3
EXTENSION, MAIN BACK WPL 74010815 Contact Us For Availability
3
HARNESS, SWITCH (RT) WPL 74011090 Contact Us For Availability
4
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
4
HARNESS, SENSOR/LATCH WPL 74010849 Contact Us For Availability
4
SUPPORT, ELEMENT WPL 74007845 Contact Us For Availability
5
TUBE, VENT WPL 74010816 Contact Us For Availability
5
HOLDER, VENT TUBE WPL 74010817 Contact Us For Availability
5
HARNESS, SWITCH (LT) WPL 74010851 Contact Us For Availability
6
FRAME, GLASS WPL 74003644 Contact Us For Availability
6
HARNESS, TOP WPL 74011092 Contact Us For Availability
6
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
7
SUPPORT, CONTROL PANEL WPL 74010826 Contact Us For Availability
8
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
8
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
8
KIT, EXTRUSION FILLER (BLK) WPL K71FILLB Contact Us For Availability
8
CAP, END (BLK-RT) WPL 74010834 Contact Us For Availability
8
CAP, END (BLK-LT) WPL 74010835 Contact Us For Availability
9
SCREW----NA WPL 22002368 Contact Us For Availability
9
BAFFLE, OVEN DOOR WPL 74009502 Contact Us For Availability
9
TOP ASSEMBLY (BLK) WPL 74010664 Contact Us For Availability
10
GLASS W/TAPE ASSY WPL 74004857 Contact Us For Availability
10
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
10
CLOCK/OVERLAY (BLK) WPL 74010675 Contact Us For Availability
11
ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability
11
RETAINER, GLASS WPL 74003650 Contact Us For Availability
11
SHIELD, CONTROL WPL 74010846 Contact Us For Availability
12
SCREW WPL 7101P35260 Contact Us For Availability
12
BUMPER, ROD WPL 74001631 Contact Us For Availability
12
TRIM, DOOR TOP (BLK) WPL 74009689 Contact Us For Availability
13
INSULATOR WPL 74008264 Contact Us For Availability
14
INSERT, HALF RACK 30`` WPL 74009587 Contact Us For Availability
15
EXTENSION, HEAT SHEILD WPL 74010820 Contact Us For Availability
16
PANEL, SHIELD (LT) WPL 74010821 Contact Us For Availability
16
KIT, DOOR TRIM (BLK) WPL 12002359 Contact Us For Availability
16
TUBE, VENT (UPR) WPL 74005759 Contact Us For Availability
17
SUPPORT, GLASS (BLK) WPL 74009686 Contact Us For Availability
17
LIGHT, INDICATOR WPL Y706125 Contact Us For Availability
19
KIT, DOOR GLASS (BLK) WPL 12002395 Contact Us For Availability
19
ELEMENT, WARMING WPL 74008898 Contact Us For Availability
20
SHIELD, VENT (BLK) WPL 74001337 Contact Us For Availability
21
TRIM, SIDE (RT-BLK) WPL 74011199 Contact Us For Availability
21
TRIM, SIDE (LT-BLK) WPL 74011201 Contact Us For Availability
22
SWITCH, INFINITE WPL 74011070 Contact Us For Availability
23
COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability
24
SCREW WPL 7101P11260 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
27
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003732 Contact Us For Availability
× ![]()
