Model Frigidaire MEF356BFWC RANGE – Common Parts & Diagrams

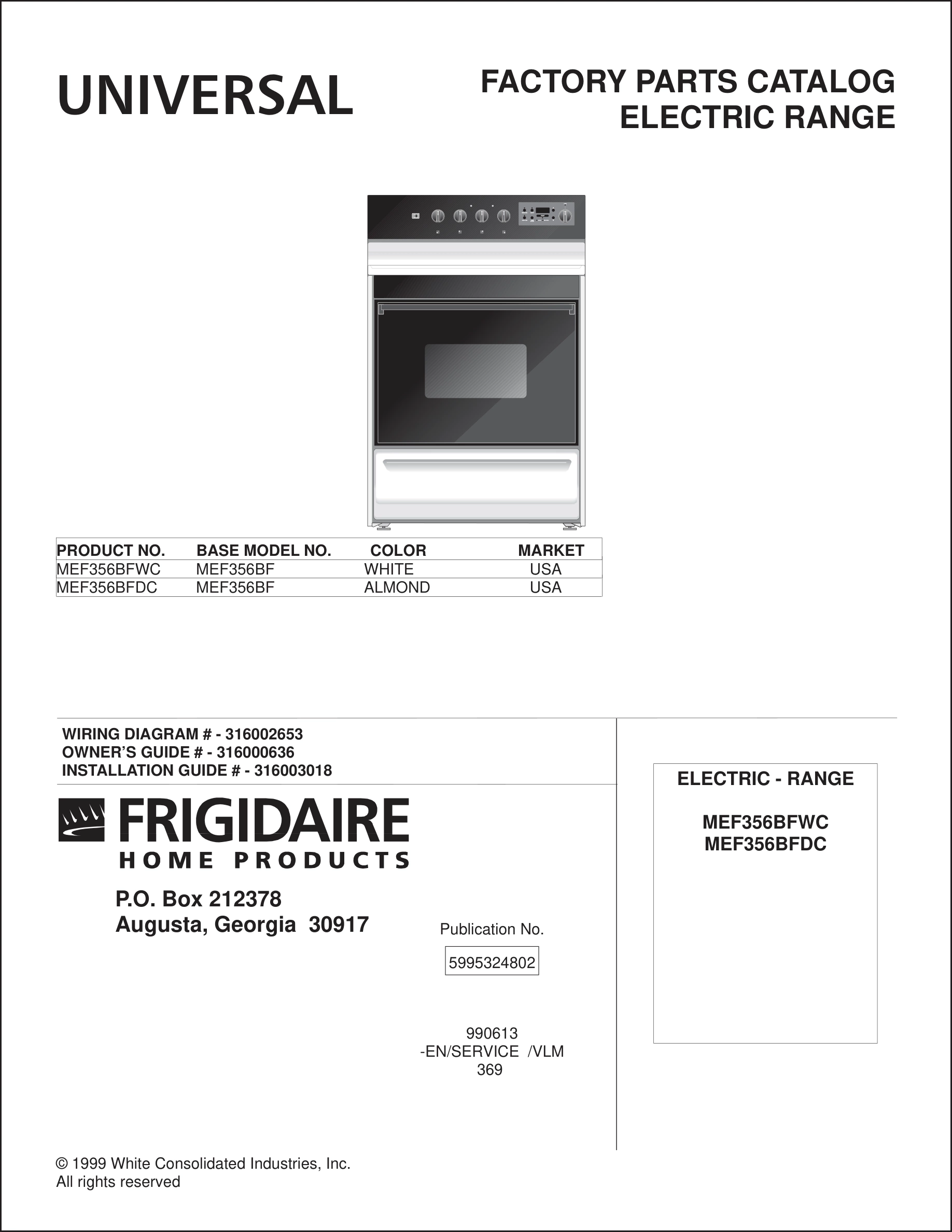

01 - COVER

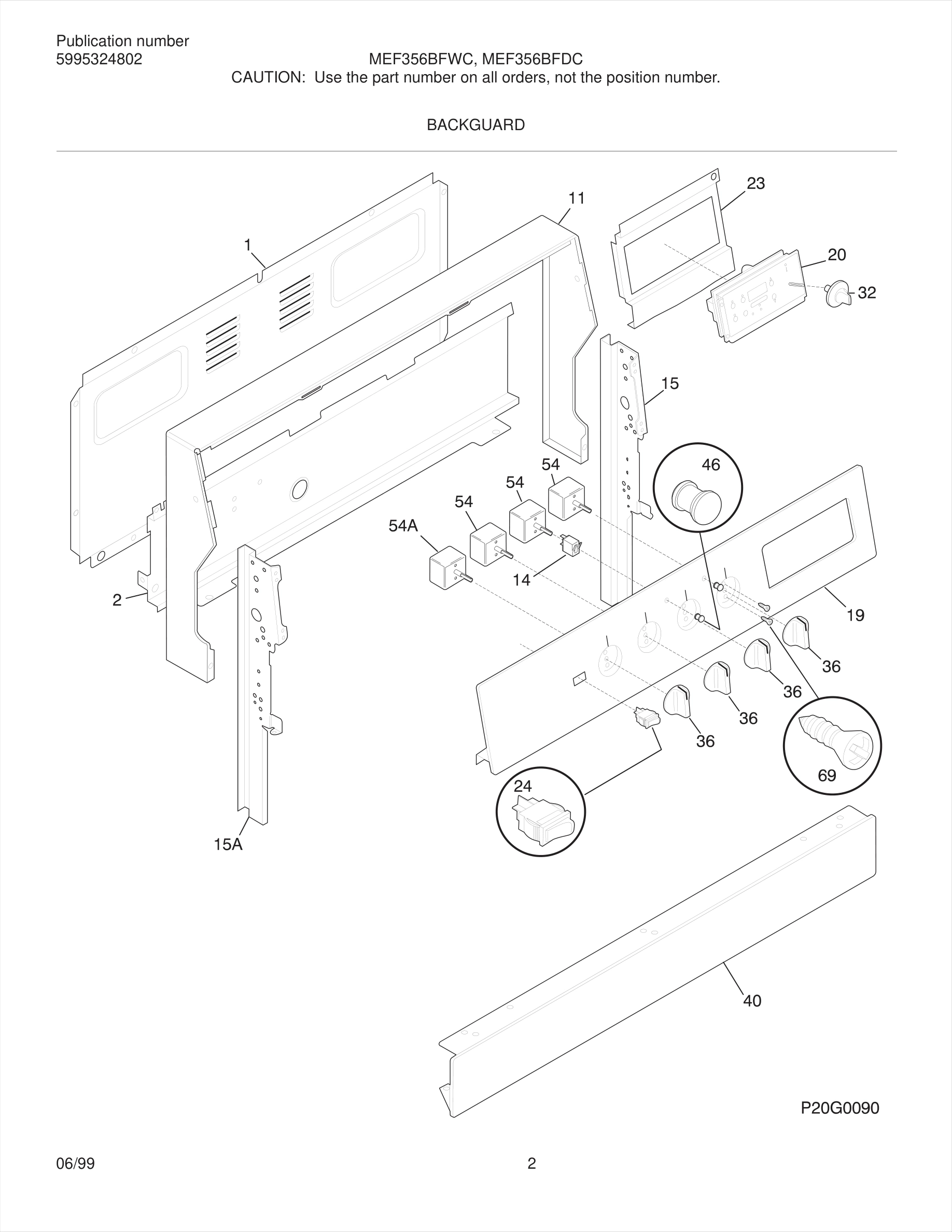

03 - BACKGUARD

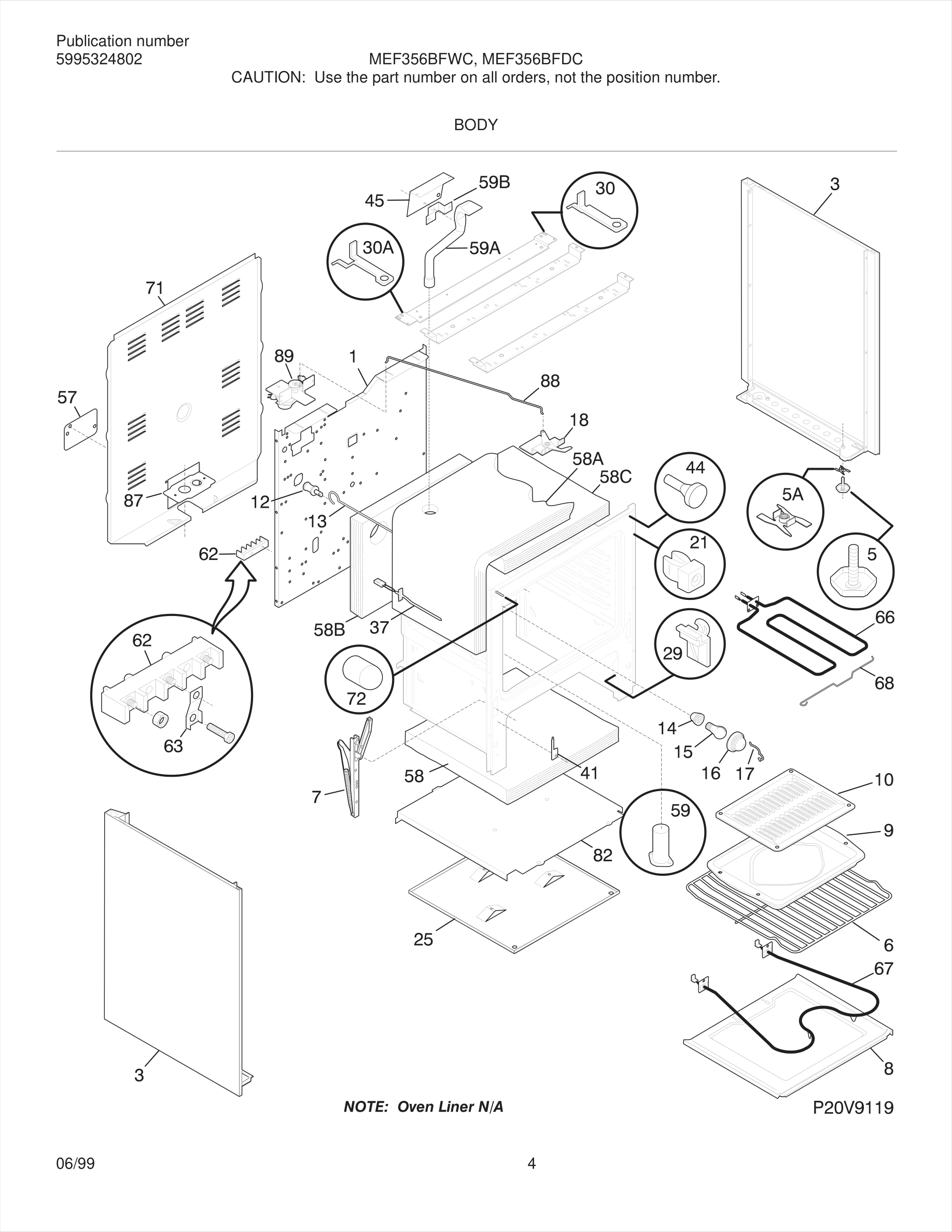

05 - BODY

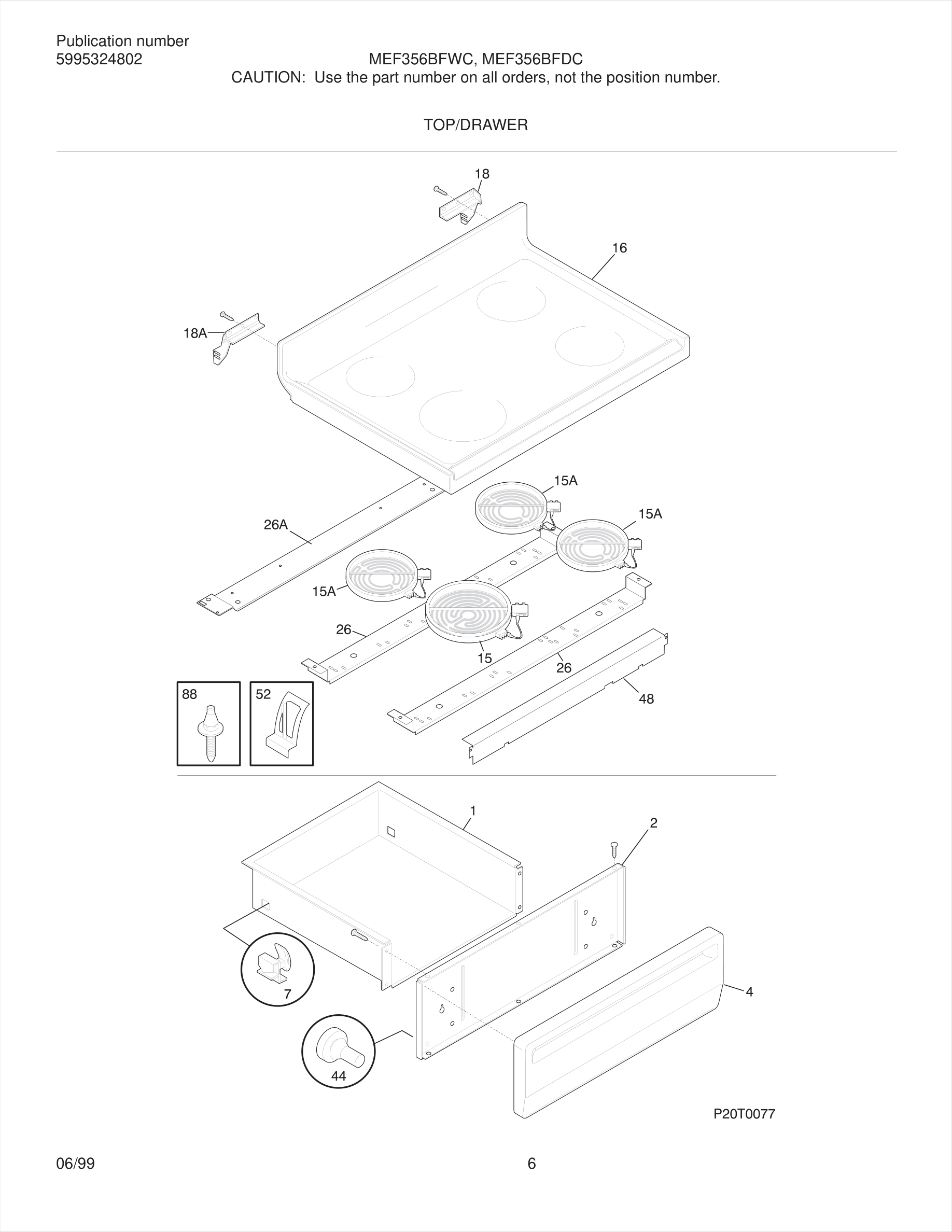

07 - TOP/DRAWER

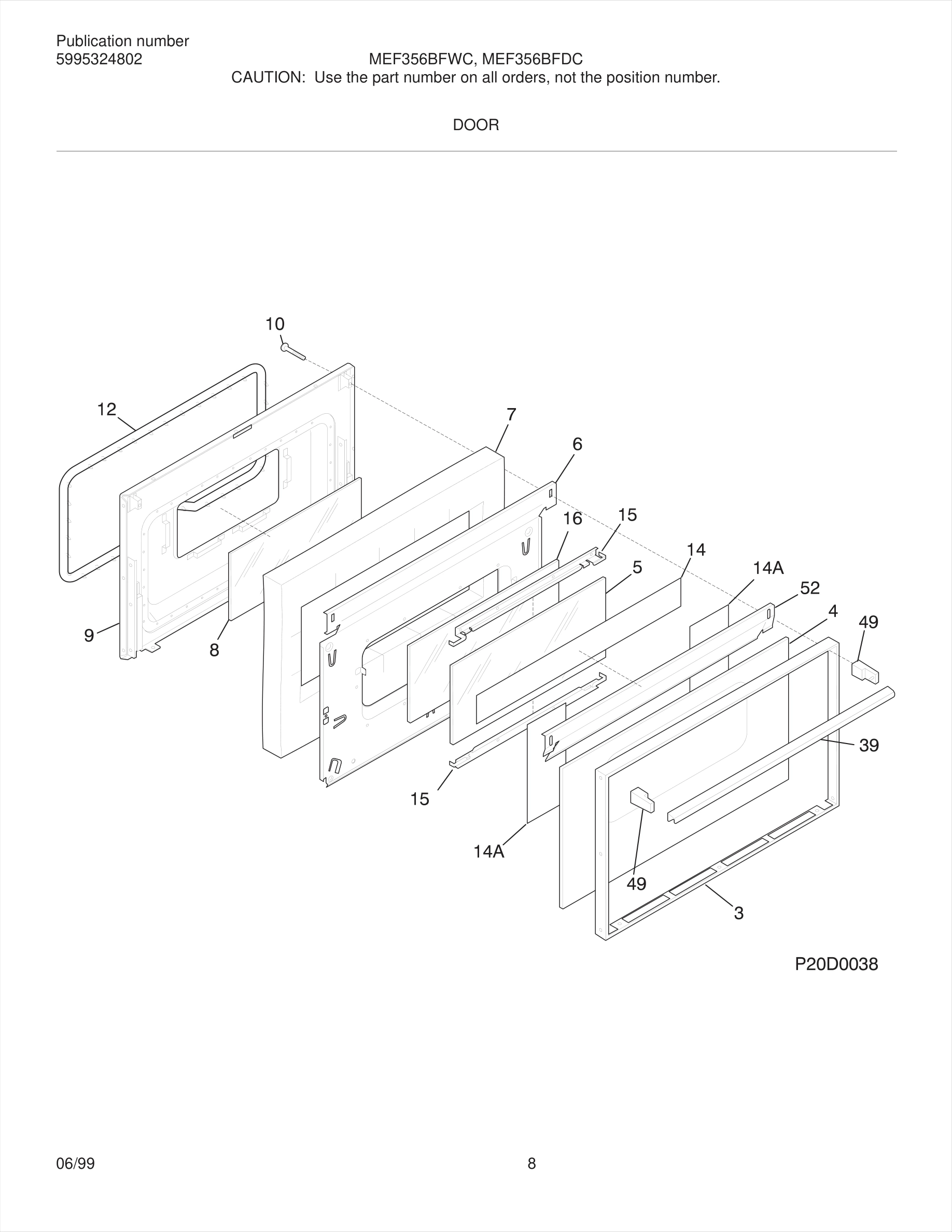

09 - DOOR

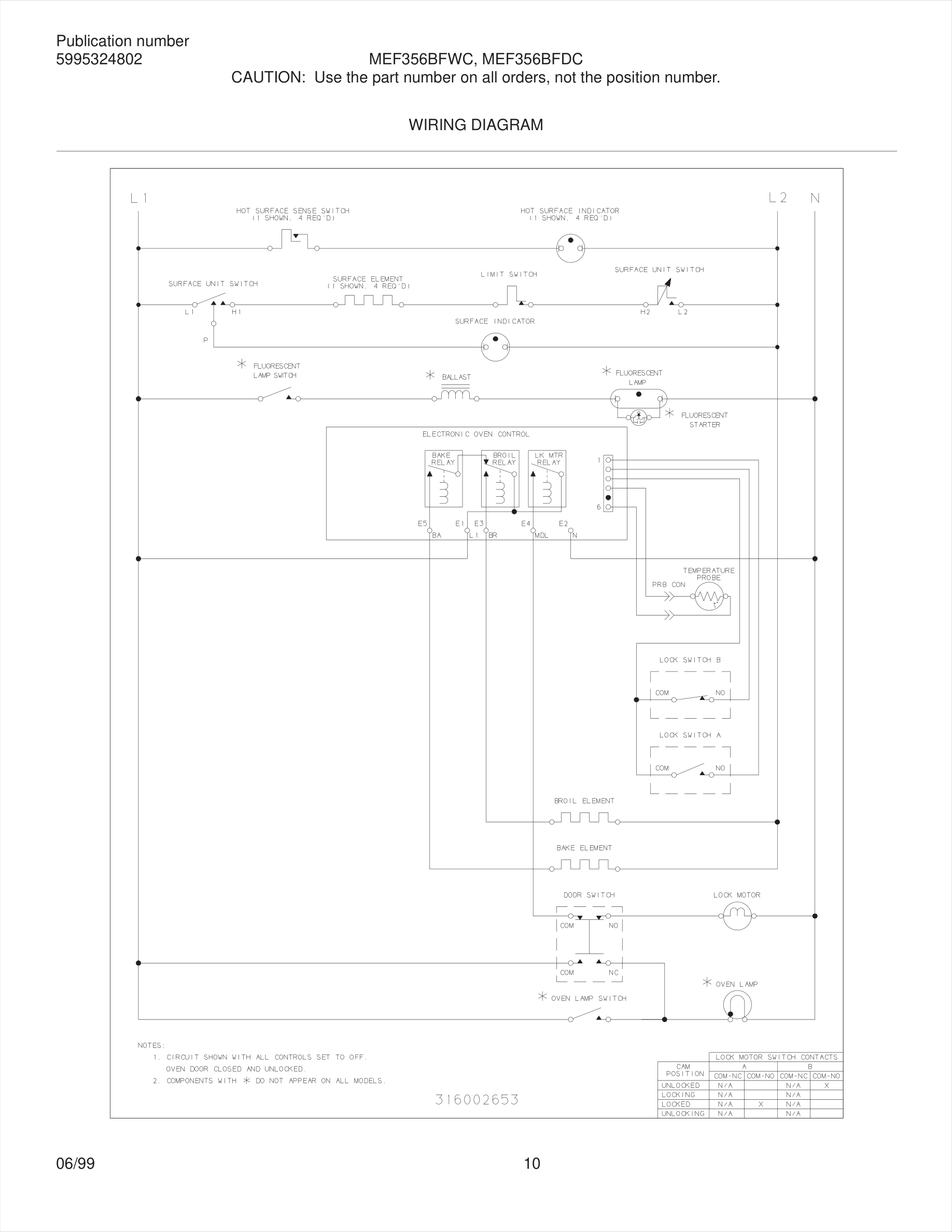

10 - WIRING DIAGRAM
Common parts from model Frigidaire MEF356BFWC RANGE
*
Screw,cup pt ,8-18 x 0.375 ,hinge , WCI 316021108 Contact Us For Availability
*
Screw, waf hd sdr , 10-32 x 5/16 , (2) WCI 5303280311 Contact Us For Availability
*
Rivet-pop,warning-plate WCI 3203618 Contact Us For Availability
*
Clip-wire,harness ,main top WCI 316045000 Contact Us For Availability
*
Spacer-drawer,(2) WCI 316089600 Contact Us For Availability
*
Cleaner-cooktop WCI 5309951550 Contact Us For Availability
*
Plate warning/caution WCI 316065301 Contact Us For Availability
*
Screw,cr pan hd sems ,8-32BP x 1.00 WCI 5303212671 Contact Us For Availability
1
Drawer-utility WCI 316011501 Contact Us For Availability
2
Shield-panel WCI 3131975 Contact Us For Availability
3
Trim-oven door,black WCI 316067802 Contact Us For Availability
4
Panel-drawer,white WCI 316084405 Contact Us For Availability
4
Glass-oven door,black ,outer WCI 316089000 Contact Us For Availability
5
Glass-oven door,airwash WCI 316088700 Contact Us For Availability
5
Screw-leveling WCI 5303203397 Contact Us For Availability
5*
Anti-tip Kit WCI 3934058 Contact Us For Availability
6
Shield-wool WCI 316088401 Contact Us For Availability
7
Hinge-oven door,(2) WCI 316007002 Contact Us For Availability
7
Insulation-door WCI 316076403 Contact Us For Availability
8
Glass-oven door,inner WCI 316088600 Contact Us For Availability
9
Liner-oven door WCI 316066610 Contact Us For Availability
10
Screw-handle mtg,wafer head ,10-24F x 3 WCI 5303281378 Contact Us For Availability
14
Reflector,aluminum foil WCI 5303208656 Contact Us For Availability
15
Bracket-glass mtg WCI 316081401 Contact Us For Availability
16
Main Top,white WCI 316098106 Contact Us For Availability
16
Glass-oven door,heat barrier WCI 316085700 Contact Us For Availability
18
Hinge-main top,RH WCI 5303273062 Contact Us For Availability
18A
Hinge-main top,LH WCI 5303273063 Contact Us For Availability
20#
Clock/Timer,trimline,dial 3 WCI 316101103 Contact Us For Availability
21
Spacer-bodyside, (8) WCI 3014099 Contact Us For Availability
26
Channel-support, element , (2) WCI 316099101 Contact Us For Availability
26A
Bracket-support, chassis WCI 316099201 Contact Us For Availability
32
Knob-thermostat WCI 316101301 Contact Us For Availability
36
Knob-control,(6) WCI 316015203 Contact Us For Availability
39
Handle-door,black ,oven WCI 316020204 Contact Us For Availability
41
Cover-hinge cutout WCI 3131570 Contact Us For Availability
45
Shield-wire, s/t vent WCI 316066100 Contact Us For Availability
48
Shield-wire,main top WCI 316100200 Contact Us For Availability
52
Clip-spring, element mtg,(8) WCI 316099400 Contact Us For Availability
52
Shield-oven door,black ,top WCI 316081303 Contact Us For Availability
57
Cover-access WCI 316081101 Contact Us For Availability
58A
Insulation, 2" ,oven wrapper WCI 316047708 Contact Us For Availability
58B
Insulation, 2" ,oven back WCI 316054200 Contact Us For Availability
58C
Insulation,oven top WCI 3131304 Contact Us For Availability
59
Tube-oven vent WCI 316073602 Contact Us For Availability
59*
Bracket-mounting,vent tube WCI 316040100 Contact Us For Availability
59A
Tube-oven vent,upper WCI 316023600 Contact Us For Availability
63
Plate-ground strap WCI 5301145190 Contact Us For Availability
71
Shield-rear wall WCI 316015805 Contact Us For Availability
72
Cover-light/switch rod WCI 5303285692 Contact Us For Availability
82
Shield-insulation WCI 5303289913 Contact Us For Availability
88
Rod-latch,auto WCI 316026400 Contact Us For Availability
89#
Motor-latch/lock WCI 316028101 Contact Us For Availability
× ![]()
