Model Electrolux MEF316WFSE RANGE – Common Parts & Diagrams

*92320
HARNESS
HARNESS WCI 316001558 Contact Us For Availability
View on Model
*92329
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
View on Model
*92334
ANTI-TIP KIT
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
View on Model
*92341
WCI 316089600
WCI 316089600 WCI 316089600 Contact Us For Availability
View on Model
*92342
SCREW, WAF HD SDR, 10-32 X 5/16, (2)
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
View on Model
*92345
SCREW,HEX WASHER HEAD, 8-18(AB) X 1/2
SCREW,HEX WASHER HEAD, 8-18(AB) X 1/2 WCI 08067785 Contact Us For Availability
View on Model

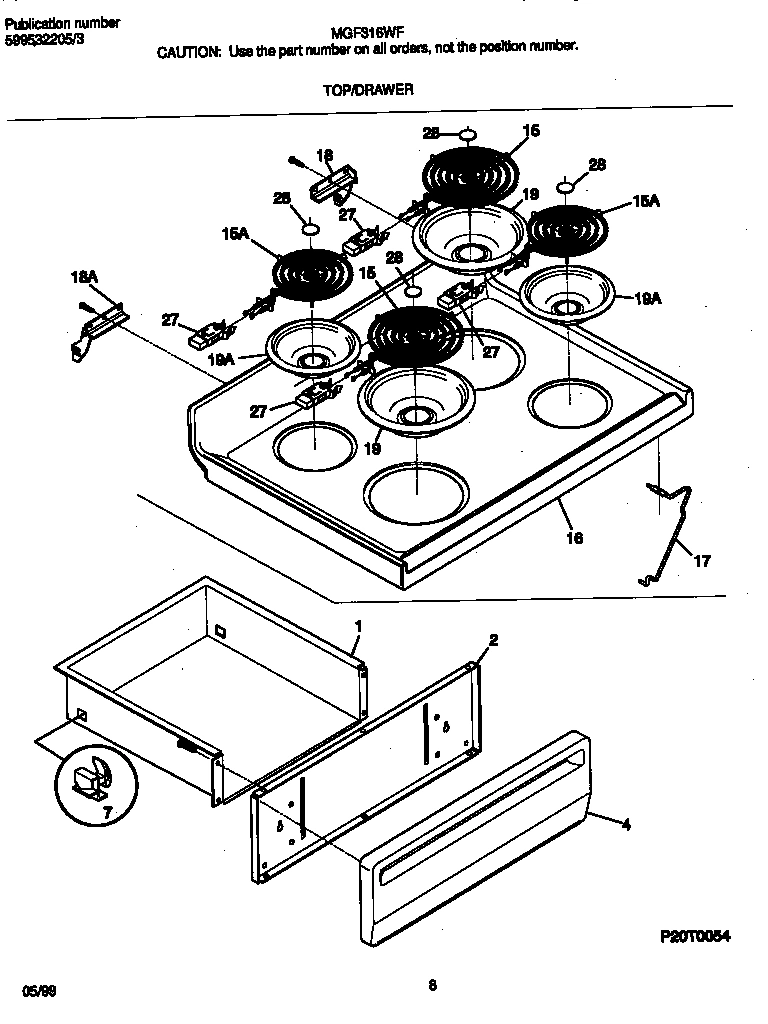

1
DRAWER-UTILITY
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
View on Model
2
WCI 3131975
WCI 3131975 WCI 3131975 Contact Us For Availability
View on Model
4
WCI 316084405
WCI 316084405 WCI 316084405 Contact Us For Availability
View on Model
4
WCI 316084406
WCI 316084406 WCI 316084406 Contact Us For Availability
View on Model
5
SCREW-LEVELING
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
View on Model
5
Glass,oven door ,white ,outer
Glass,oven door ,white ,outer WCI 316050300 Contact Us For Availability
View on Model
5
WCI 316050301
WCI 316050301 WCI 316050301 Contact Us For Availability
View on Model
6
WCI 316088403
WCI 316088403 WCI 316088403 Contact Us For Availability
View on Model
7
WCI 316076401
WCI 316076401 WCI 316076401 Contact Us For Availability
View on Model
8
WCI 316088600
WCI 316088600 WCI 316088600 Contact Us For Availability
View on Model
9
WCI 316066610
WCI 316066610 WCI 316066610 Contact Us For Availability
View on Model
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
View on Model
12
WCI 5303212745
WCI 5303212745 WCI 5303212745 Contact Us For Availability
View on Model
13
PANEL, OVEN DOOR, WHITE
PANEL, OVEN DOOR, WHITE WCI 3017081 Contact Us For Availability
View on Model
13
PANEL, OVEN DOOR, ALMOND
PANEL, OVEN DOOR, ALMOND WCI 3017096 Contact Us For Availability
View on Model
16
WCI 3013512
WCI 3013512 WCI 3013512 Contact Us For Availability
View on Model
16
WCI 5303013511
WCI 5303013511 WCI 5303013511 Contact Us For Availability
View on Model
17
WCI 316066900
WCI 316066900 WCI 316066900 Contact Us For Availability
View on Model
18
BRACKET-HINGE,MAIN TOP LH
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
View on Model
18
BRACKET-HINGE,MAIN TOP RH
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
View on Model
21
SPACER-BODYSIDE, (8)
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
View on Model
22
Retainer,glass ,(2) ,angle
Retainer,glass ,(2) ,angle WCI 5303272476 Contact Us For Availability
View on Model
28
MEDALLION, STAINLESS STEEL, SURF ELEM
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
View on Model
36
WCI 316123304
WCI 316123304 WCI 316123304 Contact Us For Availability
View on Model
39
HANDLE-DOOR, ALMOND , OVEN
HANDLE-DOOR, ALMOND , OVEN WCI 316020205 Contact Us For Availability
View on Model
41
WCI 3131570
WCI 3131570 WCI 3131570 Contact Us For Availability
View on Model
49
END CAP-HANDLE, WHITE , (2)
END CAP-HANDLE, WHITE , (2) WCI 316020101 Contact Us For Availability
View on Model
49
End Cap,handle ,almond ,(2)
End Cap,handle ,almond ,(2) WCI 316020103 Contact Us For Availability
View on Model
82
WCI 5303289913
WCI 5303289913 WCI 5303289913 Contact Us For Availability
View on Model
