Model Maytag MBL2255KES12 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS

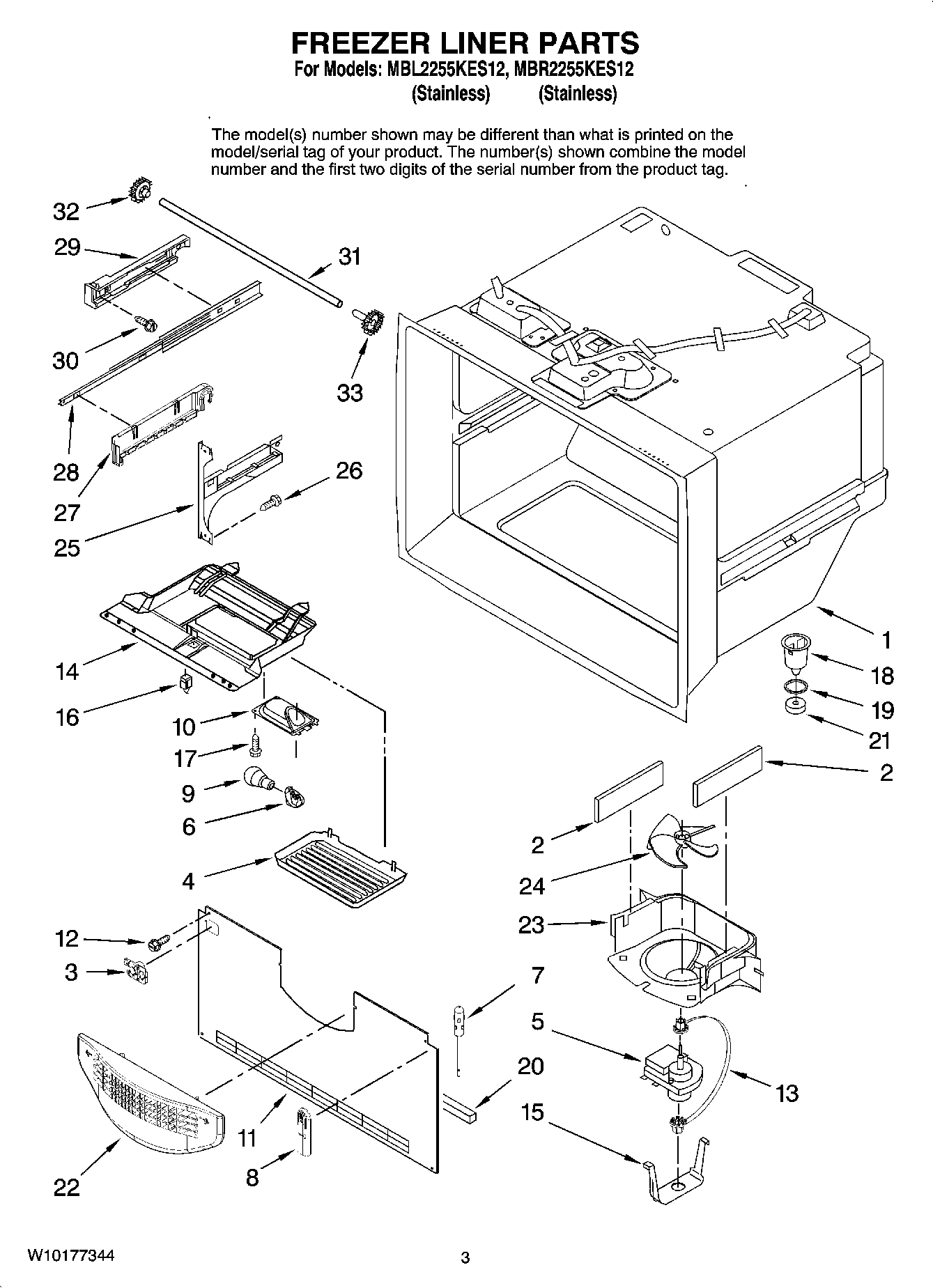

02 - FREEZER LINER PARTS

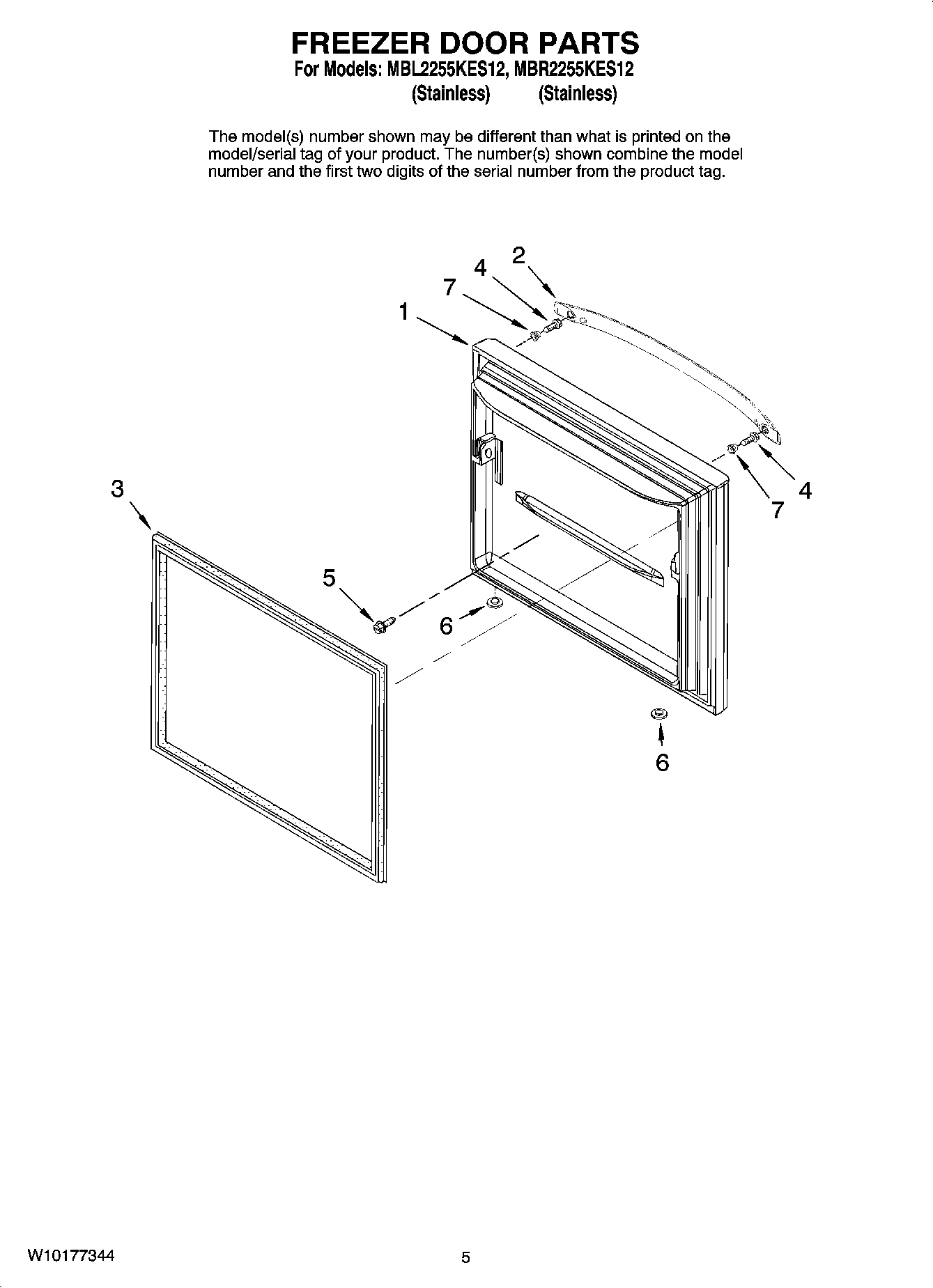

03 - FREEZER DOOR PARTS

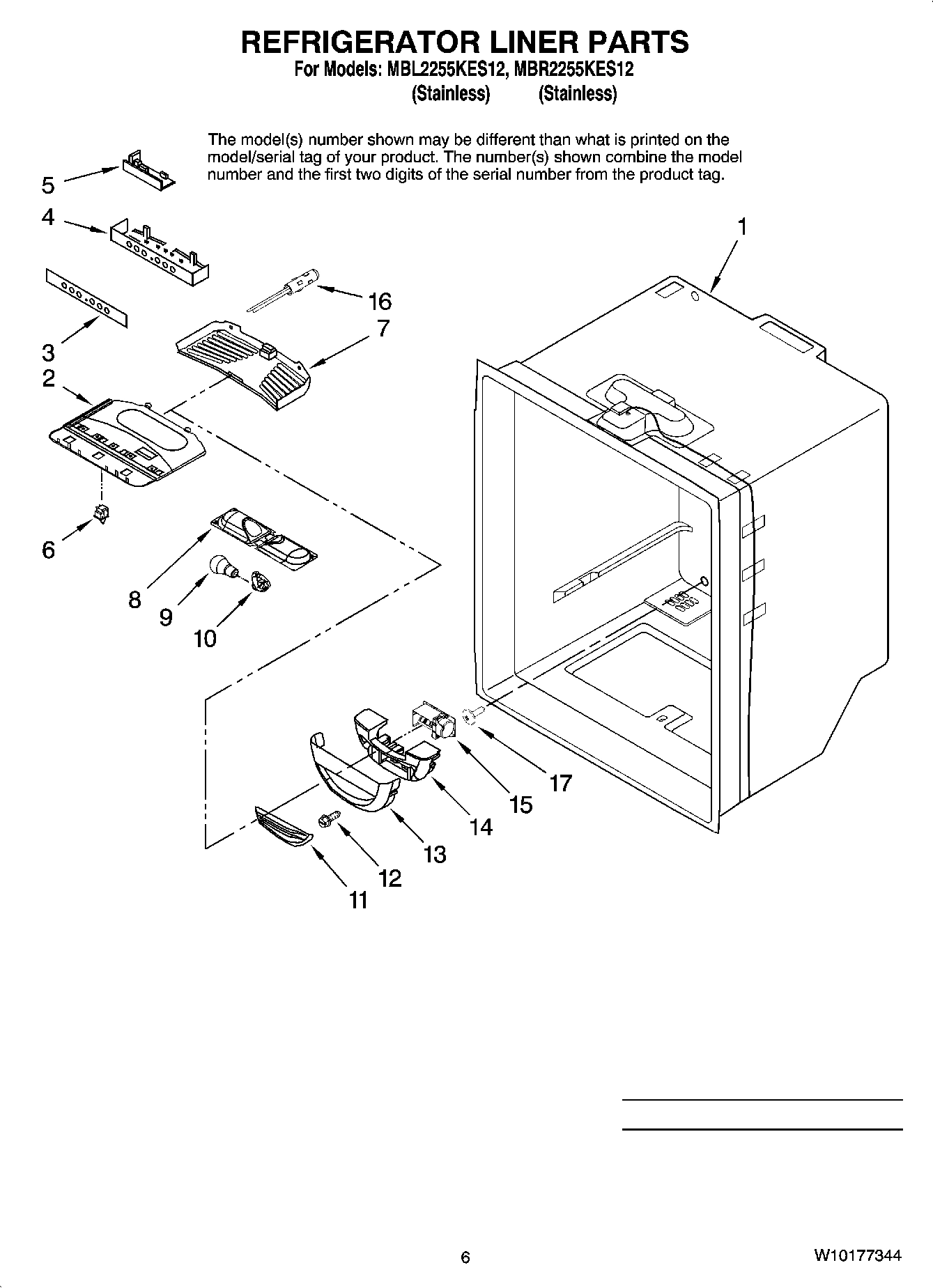

04 - REFRIGERATOR LINER PARTS

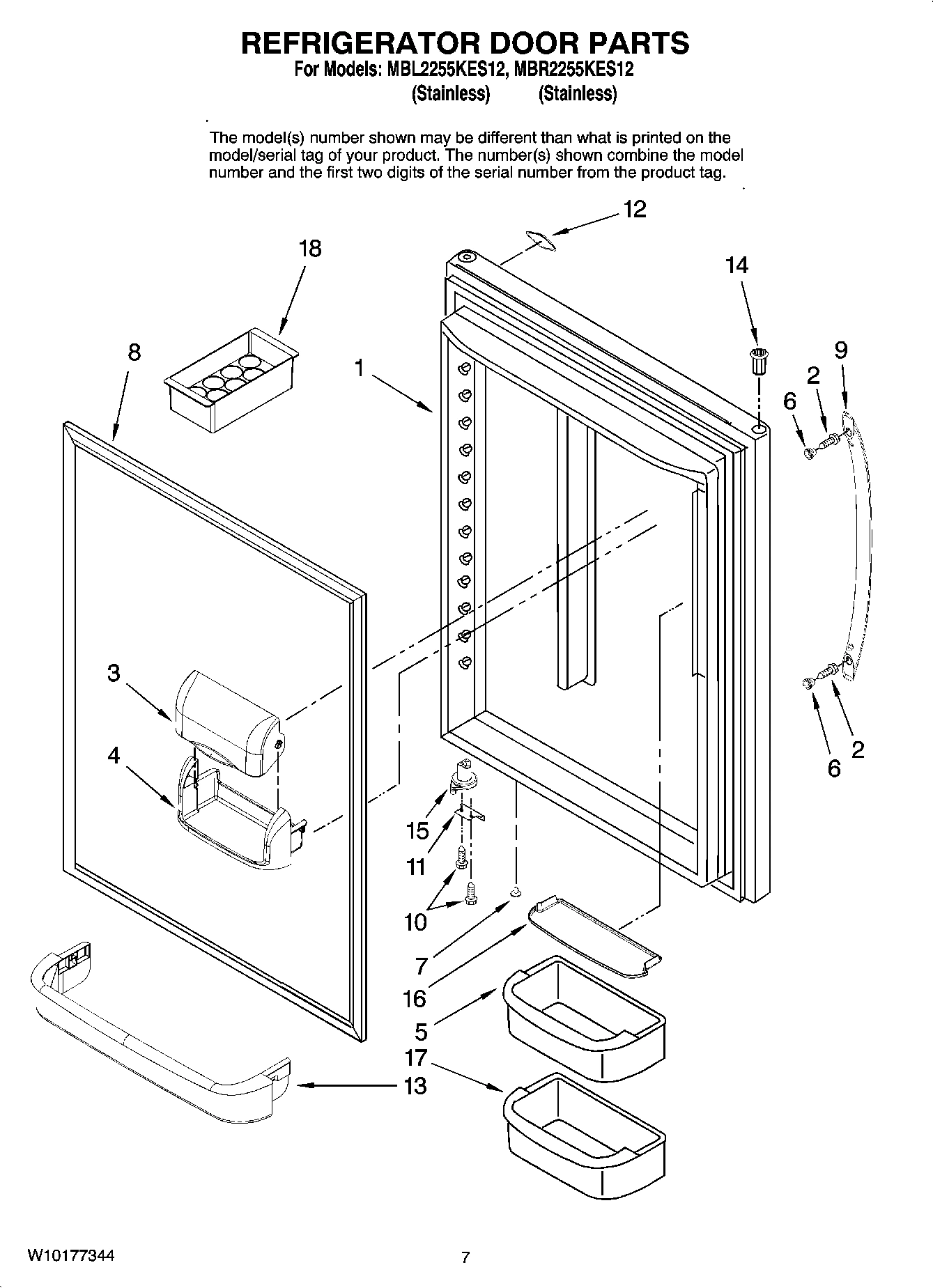

05 - REFRIGERATOR DOOR PARTS

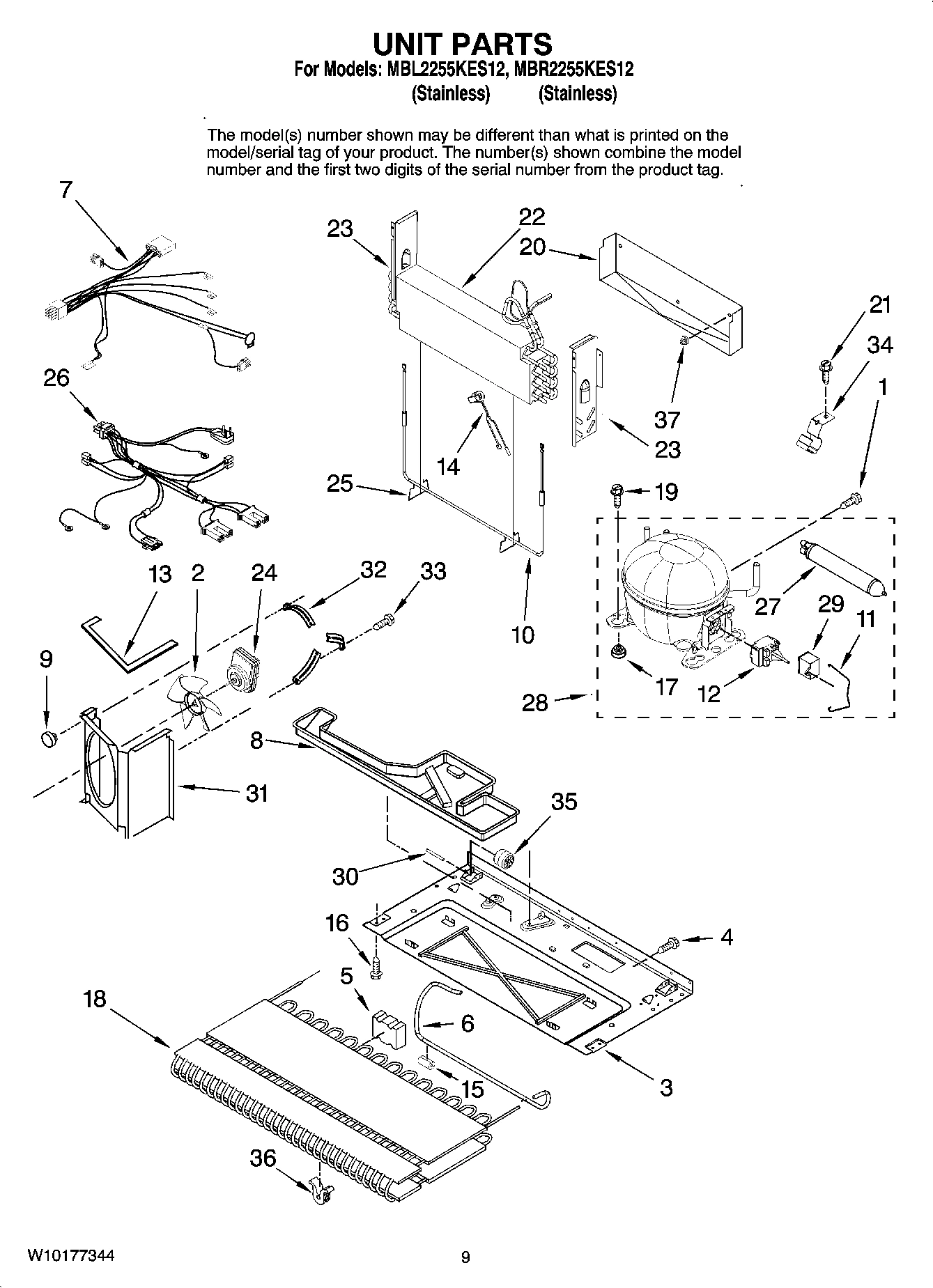

06 - UNIT PARTS

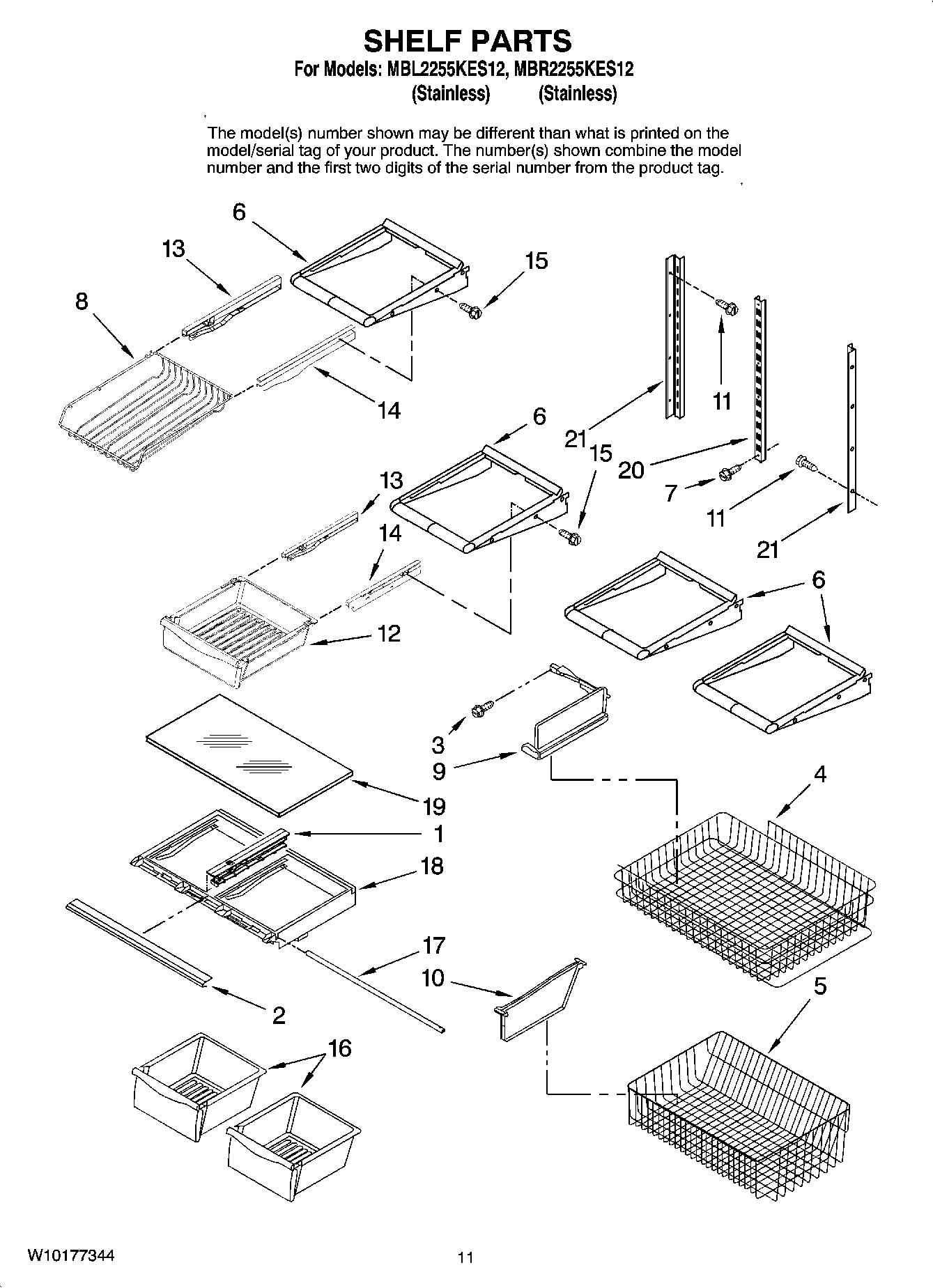

07 - SHELF PARTS

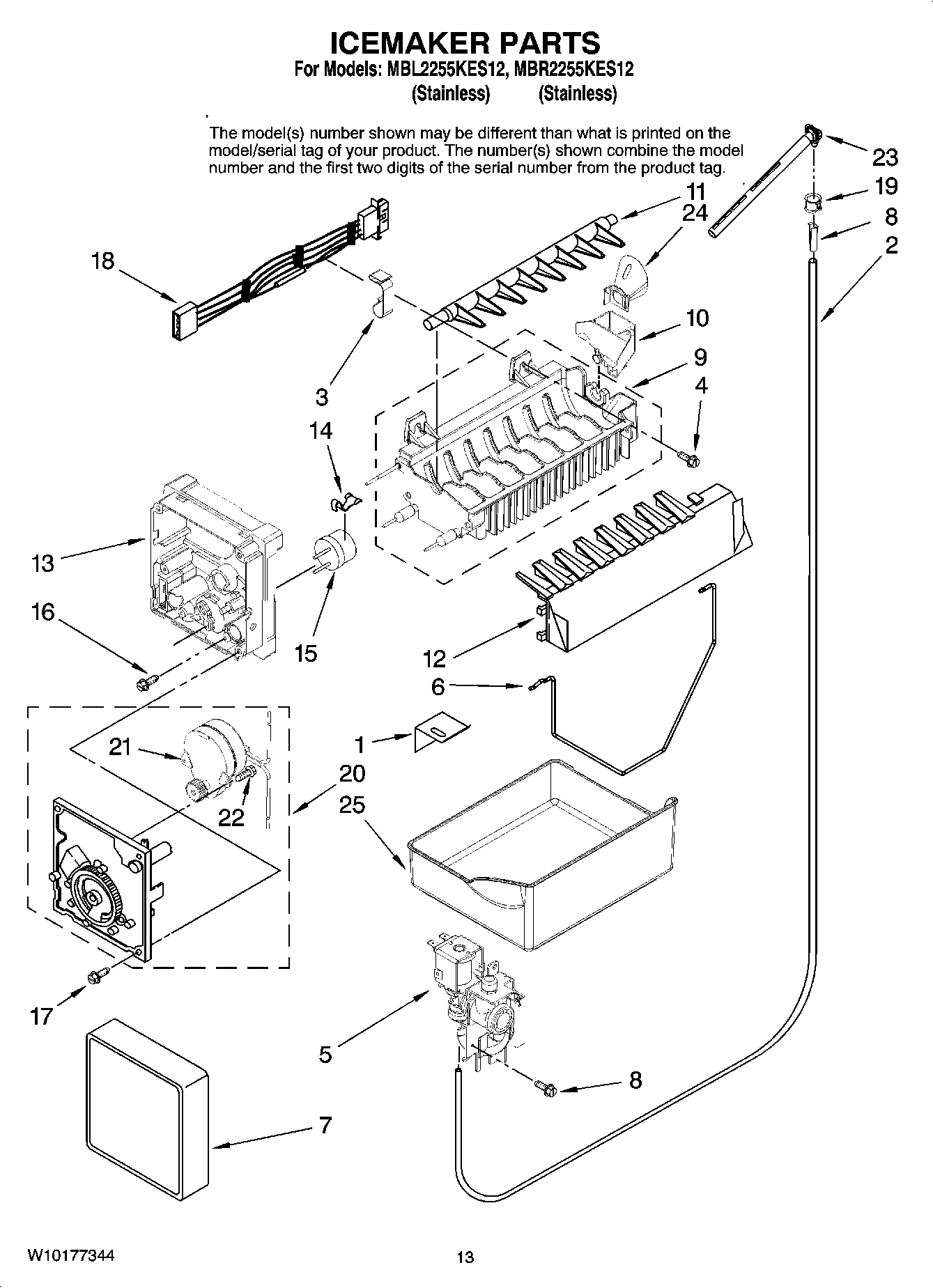

08 - ICEMAKER PARTS, OPTIONAL PARTS
Common parts from model Maytag MBL2255KES12 REFRIGERATOR
1
MAY W10165719 MAY W10165719 Contact Us For Availability
1
MAY W10175929 MAY W10175929 Contact Us For Availability
1
MAY W10175930 MAY W10175930 Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
2
MAY Y67003896 MAY Y67003896 Contact Us For Availability
2
MAY W10162928 MAY W10162928 Contact Us For Availability
2
Trim, Crisper MAY 12530646 Contact Us For Availability
2
MAY 67003729 MAY 67003729 Contact Us For Availability
3
Gasket, Door (Black) MAY W10130587 Contact Us For Availability
3
Overlay MAY 67004058 Contact Us For Availability
3
MAY 67005744 MAY 67005744 Contact Us For Availability
3
MAY 67006608 MAY 67006608 Contact Us For Availability
3
MAY 67003932 MAY 67003932 Contact Us For Availability
4
Screw MAY 67006425 Contact Us For Availability
4
MAY 489276 MAY 489276 Contact Us For Availability
5
MAY W10165748 MAY W10165748 Contact Us For Availability
5
MAY 67005491 MAY 67005491 Contact Us For Availability
5
MAY 67006024 MAY 67006024 Contact Us For Availability
6
MAY C3680310 MAY C3680310 Contact Us For Availability
6
MAY W10167036 MAY W10167036 Contact Us For Availability
6
Shelf (4) MAY 67004368 Contact Us For Availability
7
MAY W10119856 MAY W10119856 Contact Us For Availability
8
Gasket, Door (Black) MAY W10131327 Contact Us For Availability
8
MAY 67004713 MAY 67004713 Contact Us For Availability
8
MAY 67001289 MAY 67001289 Contact Us For Availability
8
Inert, Tube MAY A3223101 Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
9
Handle, Door (Stainless) MAY W10136871 Contact Us For Availability
9
DIVIDER, BASKET (UPPER) MAY 67004127 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
10
MAY 67001035 MAY 67001035 Contact Us For Availability
10
Socket, Light (2) MAY Y12570701 Contact Us For Availability
10
MAY 67006644 MAY 67006644 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
MAY W10136415 MAY W10136415 Contact Us For Availability
11
MAY 67006400 MAY 67006400 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
MAY 67006602 MAY 67006602 Contact Us For Availability
12
Start Device MAY W10136414 Contact Us For Availability
12
MAY 2182124 MAY 2182124 Contact Us For Availability
13
Retainer, Ref Door MAY 67001748 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
MAY 67006604 MAY 67006604 Contact Us For Availability
14
MAY W10165425 MAY W10165425 Contact Us For Availability
14
Retainer MAY 2315522 Contact Us For Availability
15
MAY W10127429 MAY W10127429 Contact Us For Availability
15
Thermostat (Order 542369 Cement Alumilastic) MAY 627985 Contact Us For Availability
16
MAY 67005653 MAY 67005653 Contact Us For Availability
16
Gripper (2) MAY 67003212 Contact Us For Availability
16
MAY 67006573 MAY 67006573 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
MAY 67006530 MAY 67006530 Contact Us For Availability
17
Plug Button White MAY M0310343 Contact Us For Availability
17
MAY W10169124 MAY W10169124 Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY D7753903 MAY D7753903 Contact Us For Availability
18
MAY 67215-2 MAY 67215-2 Contact Us For Availability
18
HARNESS, ICEMAKER MAY W10146389 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
Screw MAY 67006432 Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
20
MAY 67001776 MAY 67001776 Contact Us For Availability
20
MAY 67001080 MAY 67001080 Contact Us For Availability
20
Module Assembly (Includes Items 21& 22) MAY 626678 Contact Us For Availability
21
Gasket MAY B8381501 Contact Us For Availability
21
SCREW MAY 67006737 Contact Us For Availability
21
MAY 67001317 MAY 67001317 Contact Us For Availability
21
MAY 626684 MAY 626684 Contact Us For Availability
22
MAY W10175909 MAY W10175909 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
SHROUD, EVAP FAN MAY W10167023 Contact Us For Availability
23
MAY 67001083 MAY 67001083 Contact Us For Availability
23
MAY 67001084 MAY 67001084 Contact Us For Availability
23
MAY W10137519 MAY W10137519 Contact Us For Availability
24
MAY 67001066 MAY 67001066 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
24
MAY 67005603 MAY 67005603 Contact Us For Availability
25
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
25
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
26
Screw (8) MAY 67006473 Contact Us For Availability
26
MAY 13060301 MAY 13060301 Contact Us For Availability
27
Drier MAY 2317845 Contact Us For Availability
28
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
28
Compressor (Includes items 11,12,17,27,29) MAY W10130129 Contact Us For Availability
29
MAY W10128118 MAY W10128118 Contact Us For Availability
29
MAY W10128119 MAY W10128119 Contact Us For Availability
29
MAY 2264017 MAY 2264017 Contact Us For Availability
30
Screw (6) MAY 67006406 Contact Us For Availability
31
MAY 67004261 MAY 67004261 Contact Us For Availability
31
MAY W10158508 MAY W10158508 Contact Us For Availability
32
MAY 67004953 MAY 67004953 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
36
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
37
MAY 10623002 MAY 10623002 Contact Us For Availability
100
Complete Ice Maker MAY W10122519 Contact Us For Availability
NI
MAY 67006095 MAY 67006095 Contact Us For Availability
NI
HOUS-CNTRL MAY W10235660 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
