Model Maytag MAH9700AWM WASHER – Common Parts & Diagrams

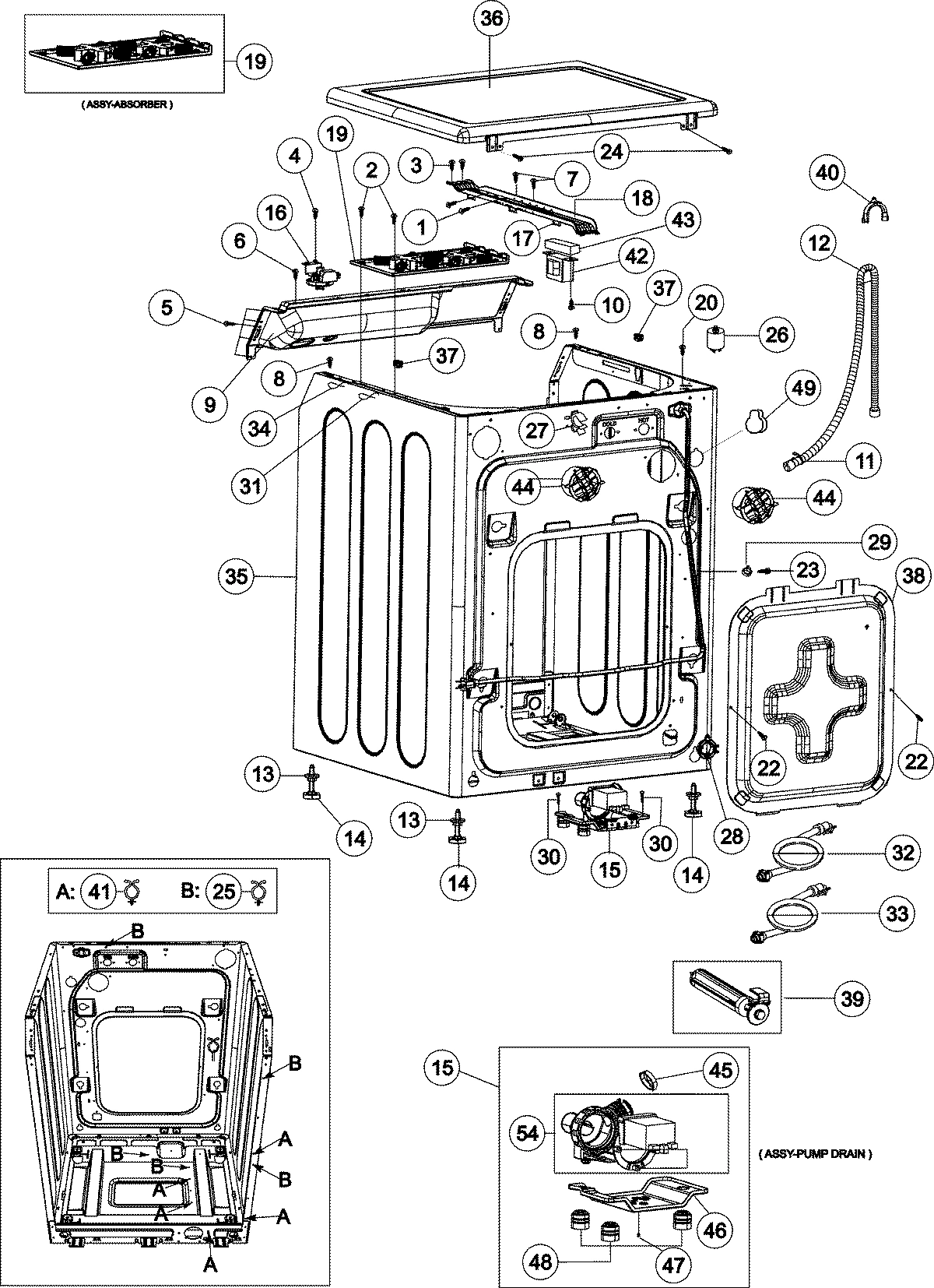

01 - CABINET

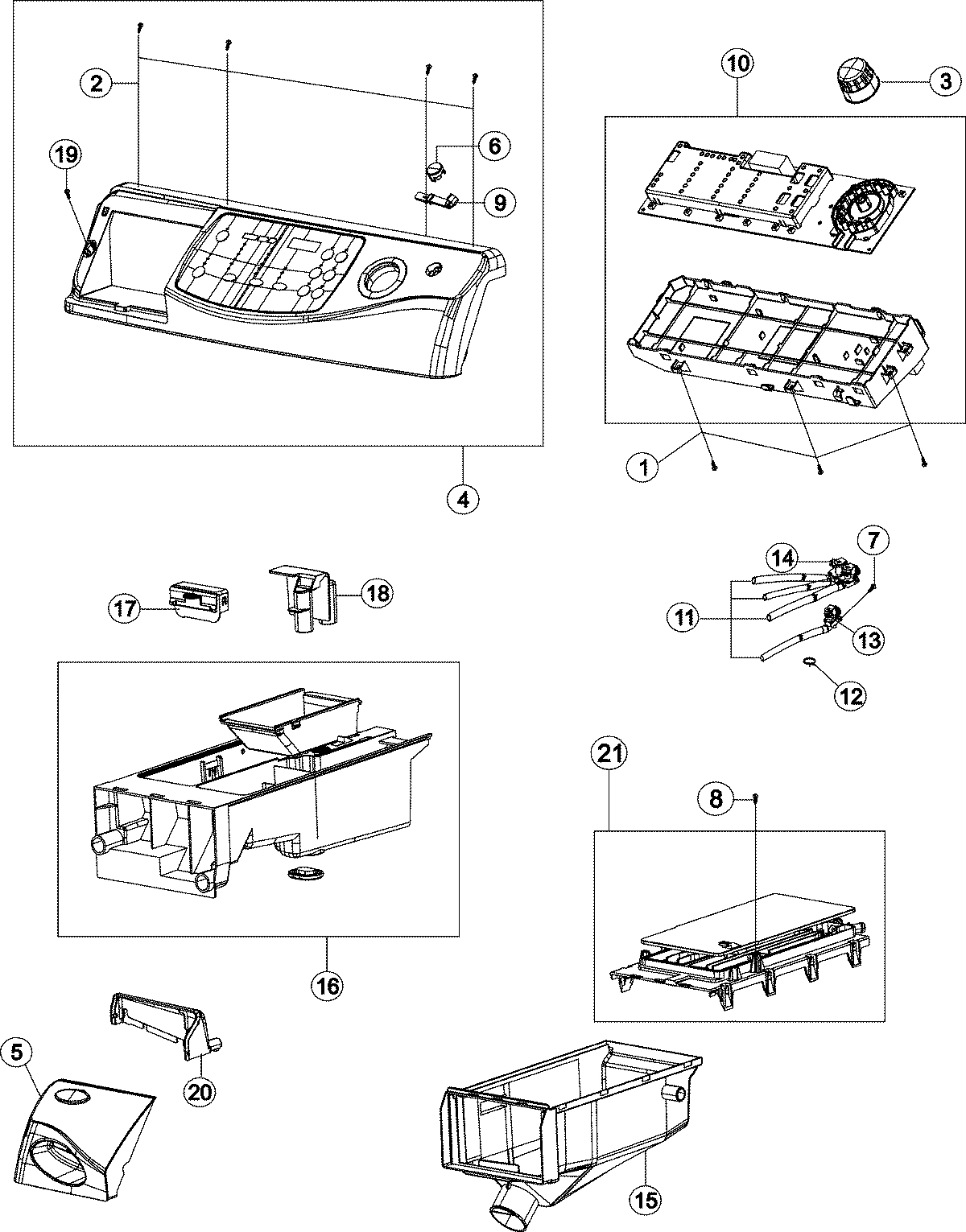

02 - CONTROL PANEL

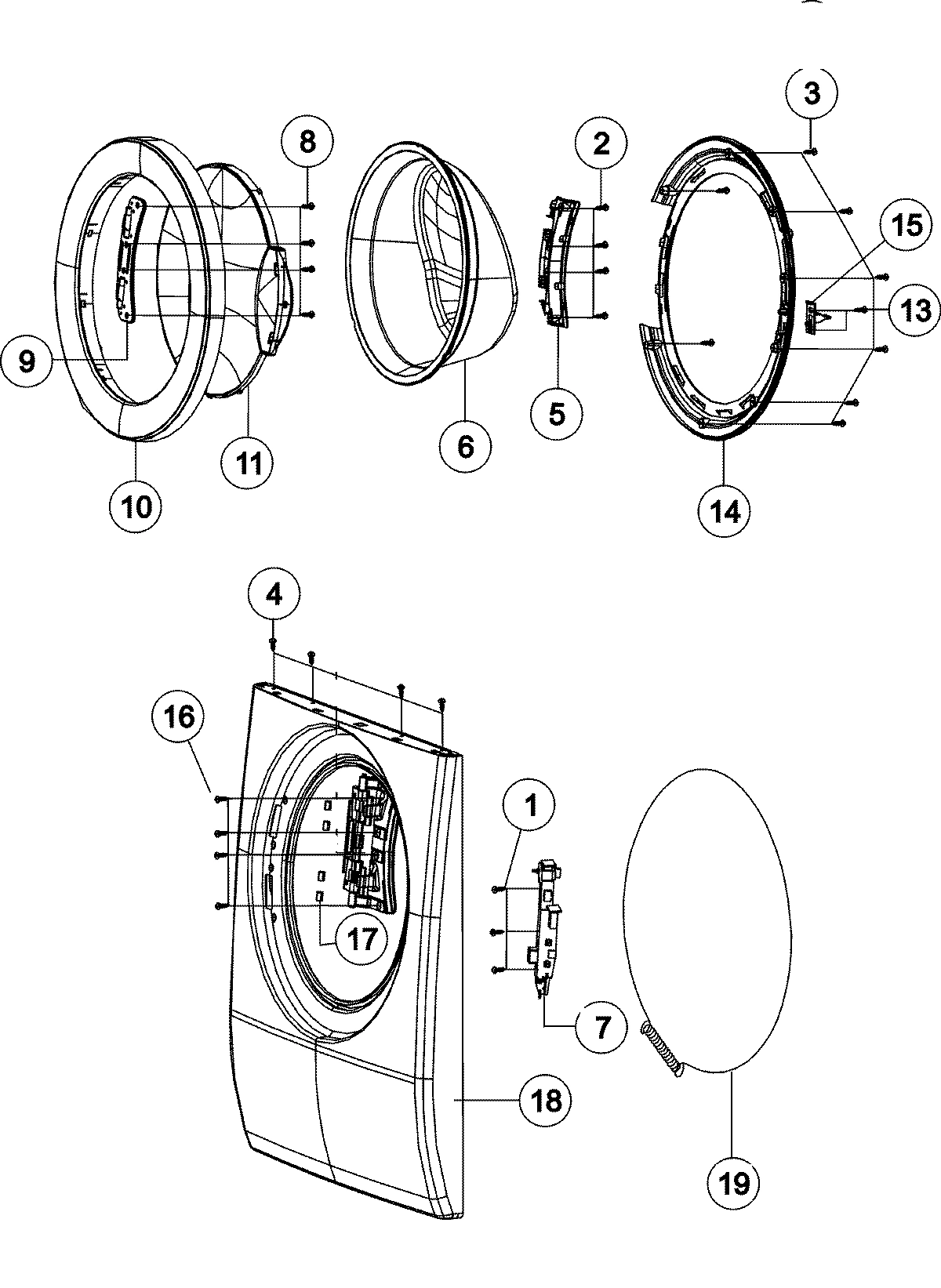

03 - DOOR
04 - SUPPLEMENTAL INFORMATION

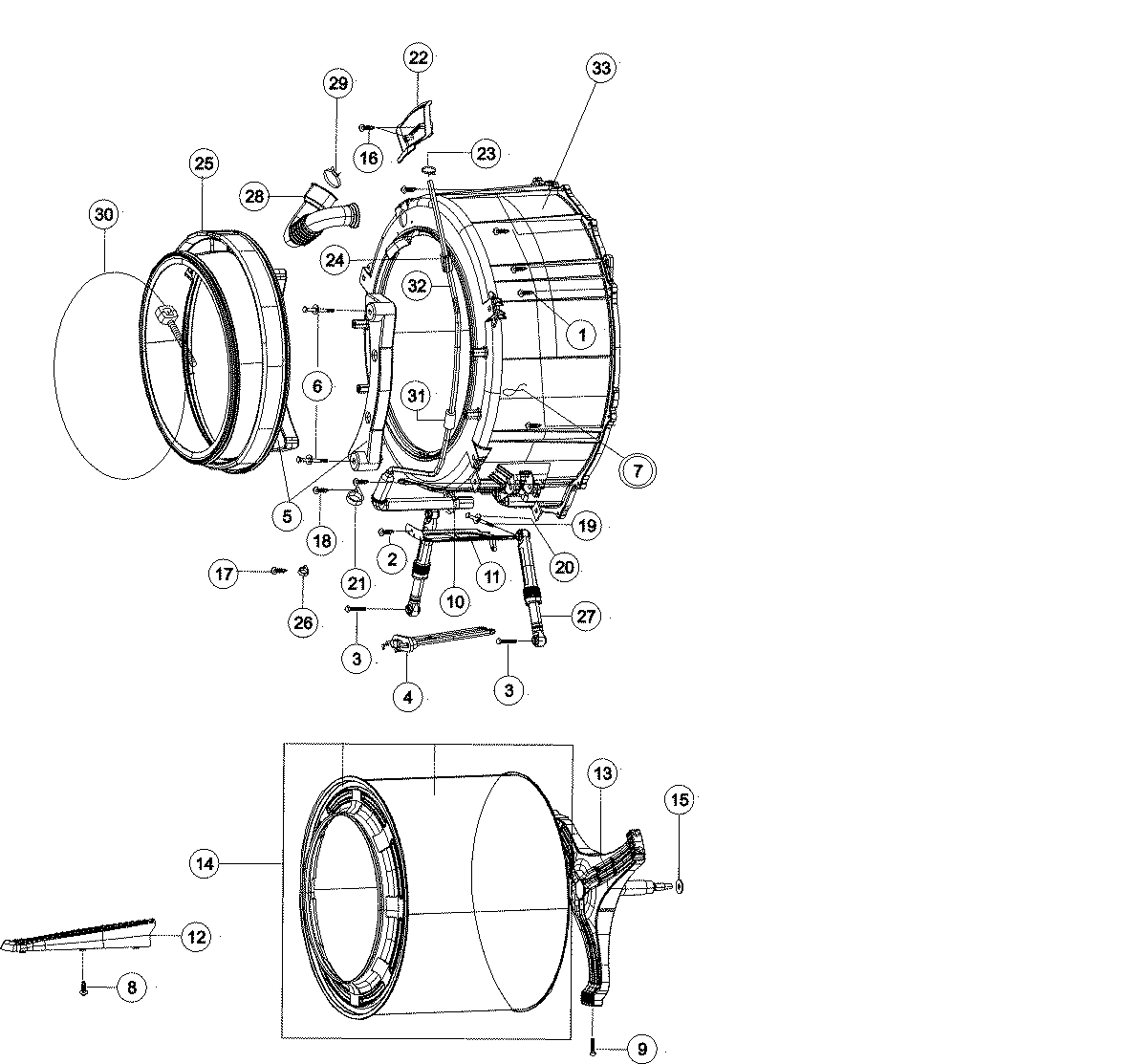

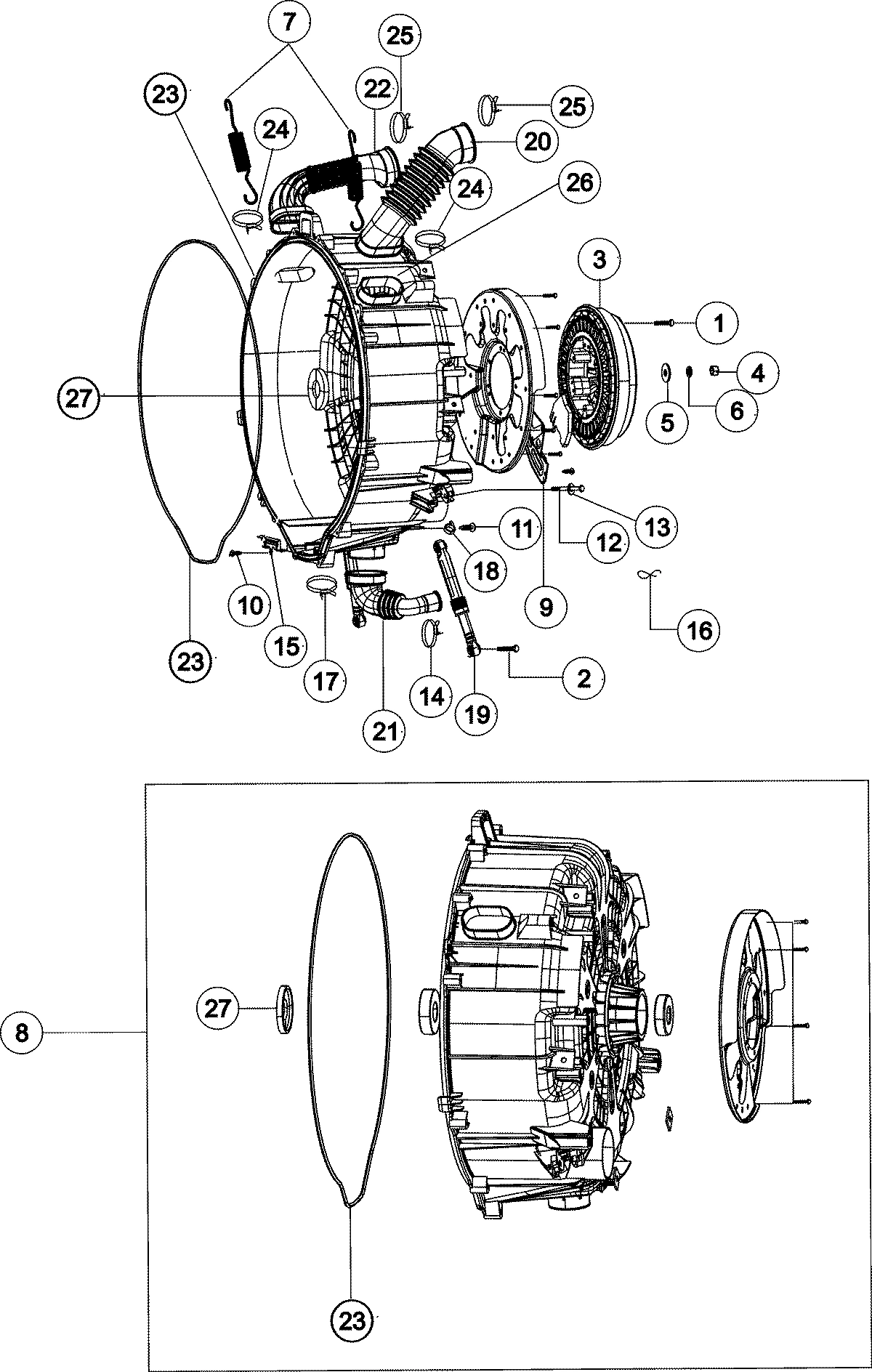

05 - TUB BACK
06 - TUB FRONT
Common parts from model Maytag MAH9700AWM WASHER
1
MAY 34001319 MAY 34001319 Contact Us For Availability
1
MAY 34001268 MAY 34001268 Contact Us For Availability
1
SCREW-TAPPING MAY 34001267 Contact Us For Availability
2
POWER CORD MAY 34001204 Contact Us For Availability
3
MAY 34001269 MAY 34001269 Contact Us For Availability
3
MAY 16026736 MAY 16026736 Contact Us For Availability
4
SCREW-TAPPING MAY 34001252 Contact Us For Availability
4
BOLT-SPANER MAY 34001223 Contact Us For Availability
4
NUT-HEX MAY 34001271 Contact Us For Availability
5
MAY 35001266 MAY 35001266 Contact Us For Availability
5
MAY 34001253 MAY 34001253 Contact Us For Availability
5
MAY 35001209 MAY 35001209 Contact Us For Availability
5
WEIGHT-BALANCER (F) MAY 34001276 Contact Us For Availability
6
DOOR-GLASS MAY 34001254 Contact Us For Availability
6
CAP-FIXER MAY 34001395 Contact Us For Availability
6
WASHER-SPRING MAY 34001273 Contact Us For Availability
6
ASSY-BOLT MAY 34001158 Contact Us For Availability
7
SPRING-HANGER MAY 34001274 Contact Us For Availability
7
MAY 34001134 MAY 34001134 Contact Us For Availability
7
WIRE TIE - VINYL MAY 34001229 Contact Us For Availability
8
MAY 34001316 MAY 34001316 Contact Us For Availability
8
MAY W10126689 MAY W10126689 Contact Us For Availability
9
BOLT-FLANGE MAY 34001277 Contact Us For Availability
9
MAY 34001279 MAY 34001279 Contact Us For Availability
9
MAY 34001255 MAY 34001255 Contact Us For Availability
9
MAY 34001313 MAY 34001313 Contact Us For Availability
10
MAY 34001497 MAY 34001497 Contact Us For Availability
10
PCB (MEMS) SENSOR DNO MAY 34001484 Contact Us For Availability
10
MAY 12002635 MAY 12002635 Contact Us For Availability
10
MAY 34001445 MAY 34001445 Contact Us For Availability
10
MAY 34001471 MAY 34001471 Contact Us For Availability
10
HARNESS, WIRE DNO MAY 34001485 Contact Us For Availability
10
MAY 34001492 MAY 34001492 Contact Us For Availability
10
MAY 34001392 MAY 34001392 Contact Us For Availability
10
CLAMPER HOSE MAY 34001315 Contact Us For Availability
11
MAY 34001257 MAY 34001257 Contact Us For Availability
11
MAY 34001249 MAY 34001249 Contact Us For Availability
11
MAY 34001314 MAY 34001314 Contact Us For Availability
12
ASSY-HOSE DRAIN MAY 34001095 Contact Us For Availability
12
MAY 34001287 MAY 34001287 Contact Us For Availability
12
MAY 34001264 MAY 34001264 Contact Us For Availability
12
CLAMP-HOSE MAY 34001208 Contact Us For Availability
13
NUT-HEXAGON FLANGE MAY 34001389 Contact Us For Availability
13
SCREW-TAPPING MAY 34001259 Contact Us For Availability
13
MAY 34001288 MAY 34001288 Contact Us For Availability
14
MAY 34001248 MAY 34001248 Contact Us For Availability
14
LEG-RUBBER MAY 34001341 Contact Us For Availability
14
MAY 34001461 MAY 34001461 Contact Us For Availability
14
MAY 34001285 MAY 34001285 Contact Us For Availability
14
MAY 34001312 MAY 34001312 Contact Us For Availability
15
MAY 34001290 MAY 34001290 Contact Us For Availability
15
MAY 34001311 MAY 34001311 Contact Us For Availability
16
ASSY-SENSOR PRESSURE MAY 34001324 Contact Us For Availability
16
ASSY-S. BODY DRAWER MAY 34001282 Contact Us For Availability
16
SCREW-TAPPING MAY 34001251 Contact Us For Availability
16
SCREW-MACHINE MAY 34001286 Contact Us For Availability
17
GUIDE-LIQUID MAY 34001239 Contact Us For Availability
17
MAY 34001262 MAY 34001262 Contact Us For Availability
17
CLAMPER-HOSE MAY 34001289 Contact Us For Availability
18
MAY 34001240 MAY 34001240 Contact Us For Availability
18
MAY 34001393 MAY 34001393 Contact Us For Availability
18
MAY 34001468 MAY 34001468 Contact Us For Availability
19
ASSY-WIRE DIAPHRAGM MAY 34001266 Contact Us For Availability
19
MAY 34001383 MAY 34001383 Contact Us For Availability
20
HOSE-O.F. MAY 34001293 Contact Us For Availability
20
MAY 34001384 MAY 34001384 Contact Us For Availability
20
WASHER-PLAIN MAY 34001272 Contact Us For Availability
21
CLAMPER HOSE MAY 34001299 Contact Us For Availability
22
HOSE-O.F. (1) MAY 34001295 Contact Us For Availability
22
GUIDE-WATER MAY 34001300 Contact Us For Availability
23
PACKING-TUB MAY 34001296 Contact Us For Availability
23
SPRING-CLAMP MAY 34001169 Contact Us For Availability
24
BAND-RING MAY 34001297 Contact Us For Availability
24
SPONGE-HOSE AIR MAY 34001301 Contact Us For Availability
25
BAND-RING MAY 34001298 Contact Us For Availability
26
MAY 34001291 MAY 34001291 Contact Us For Availability
26
MAY 34001310 MAY 34001310 Contact Us For Availability
27
CLAMPER HOSE MAY 34001331 Contact Us For Availability
28
MAY 34001500 MAY 34001500 Contact Us For Availability
29
BAND-RING MAY 34001305 Contact Us For Availability
30
BOLT-HEX MAY 34001388 Contact Us For Availability
30
ASSY-CLAMP DIAPHGRAM MAY 34001306 Contact Us For Availability
31
SPONGE-HARNESS MAY 34001307 Contact Us For Availability
32
MAY 34001089 MAY 34001089 Contact Us For Availability
33
MAY 34001309 MAY 34001309 Contact Us For Availability
× ![]()
