Model Maytag MAH8700AWW WASHER – Common Parts & Diagrams
01 - CABINET
02 - CONTROL PANEL, DISPENSER

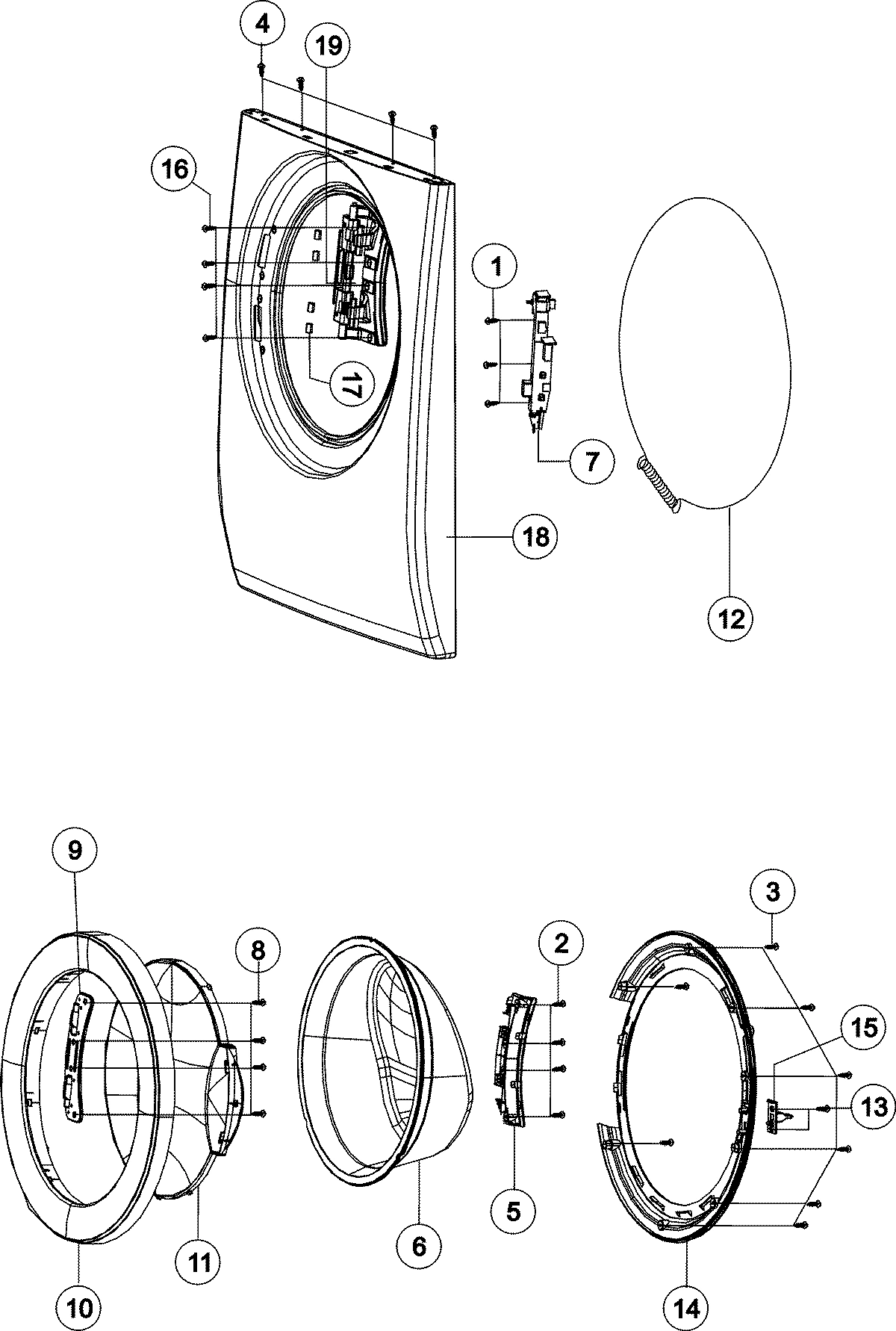

03 - DOOR
04 - SUPPLEMENTAL INFORMATION

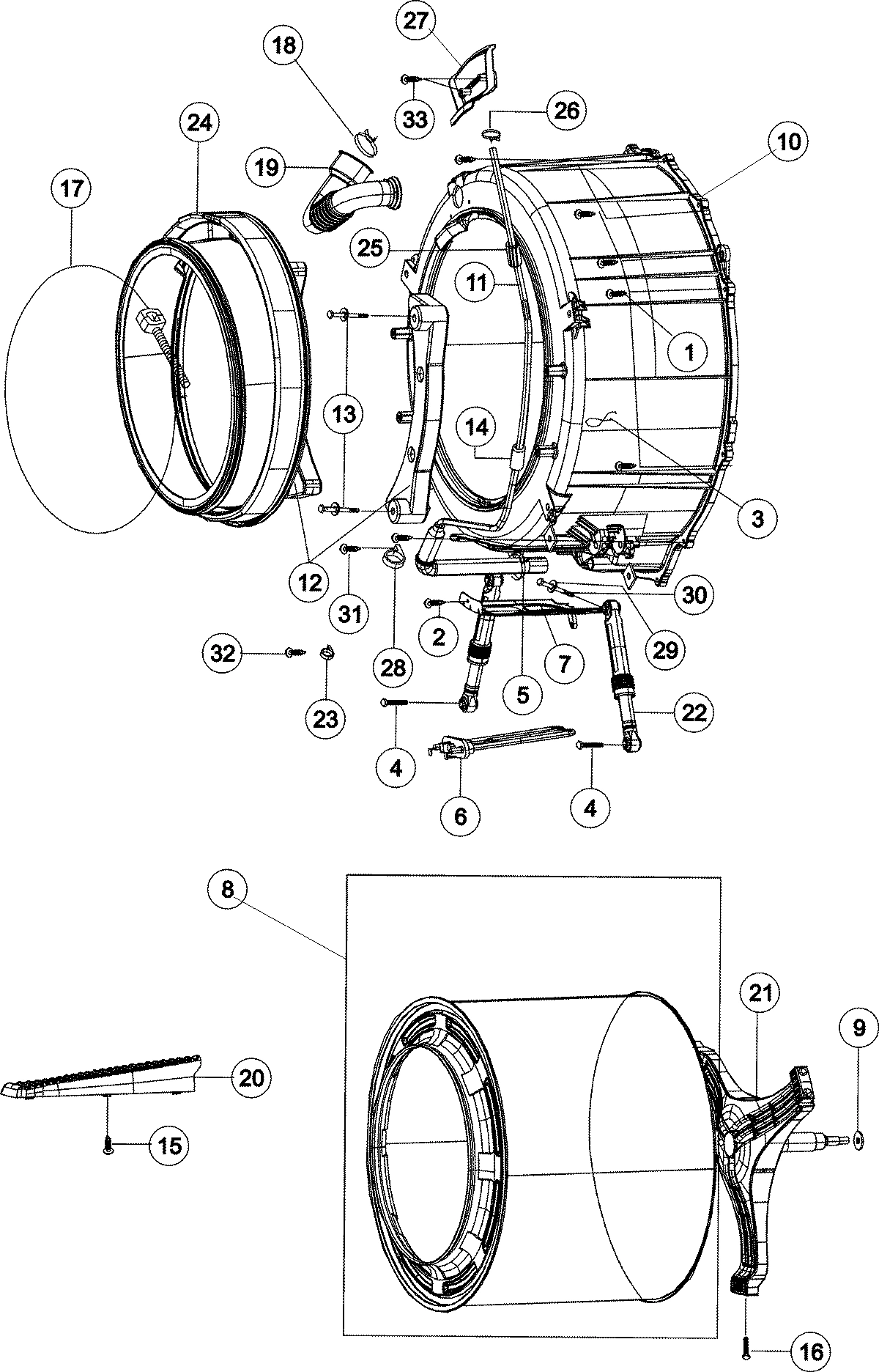

05 - TUB - FRONT

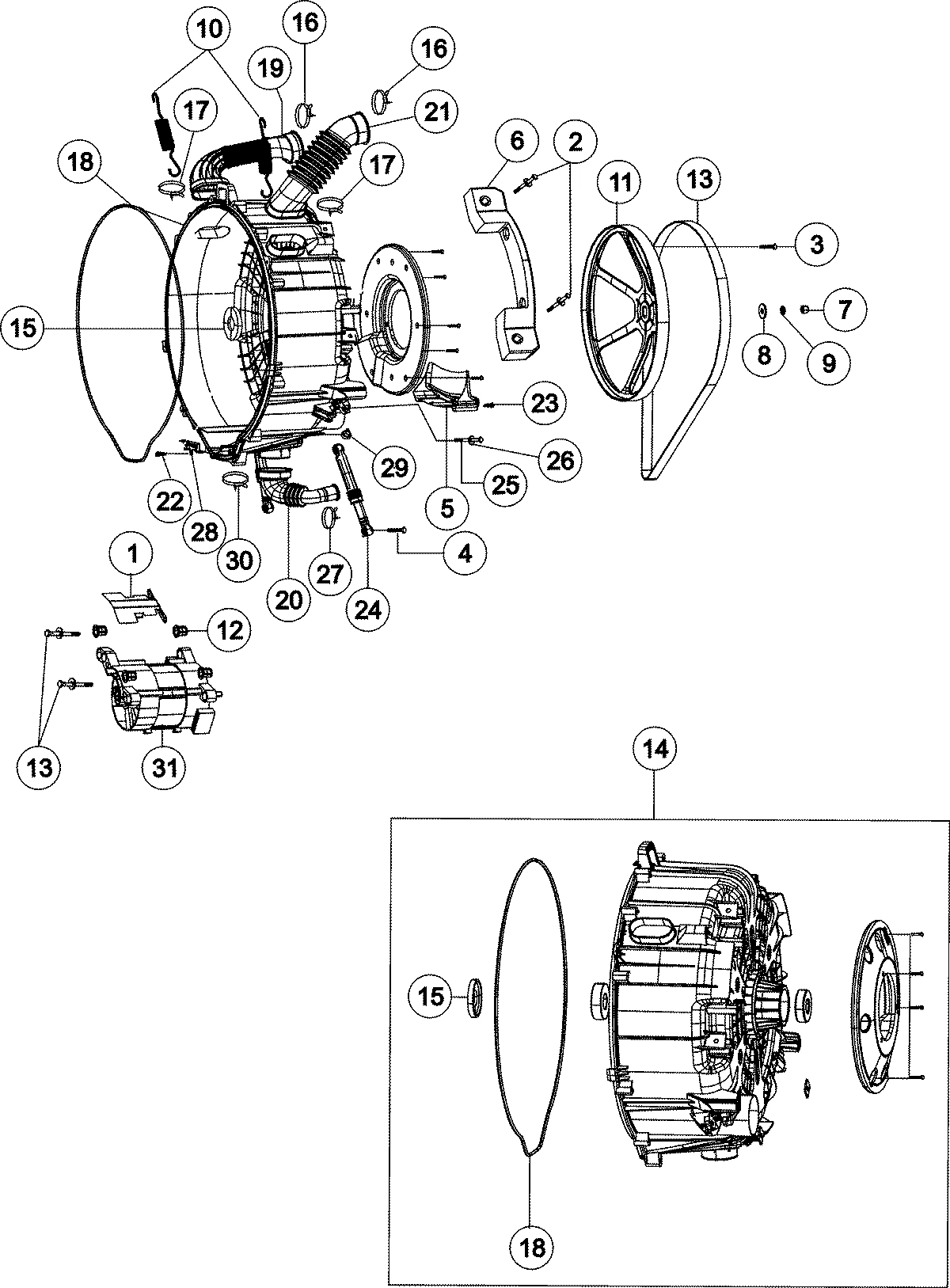

06 - TUB BACK
Common parts from model Maytag MAH8700AWW WASHER
1
MAY 34001416 MAY 34001416 Contact Us For Availability
1
SCREW-TAPPING MAY 34001267 Contact Us For Availability
1
COVER-MOTOR MAY 34001415 Contact Us For Availability
2
POWER CORD MAY 34001204 Contact Us For Availability
3
MAY 34001233 MAY 34001233 Contact Us For Availability
3
MAY 34001221 MAY 34001221 Contact Us For Availability
3
WIRE TIE - VINYL MAY 34001229 Contact Us For Availability
3
MAY 34001268 MAY 34001268 Contact Us For Availability
4
MAY 35001266 MAY 35001266 Contact Us For Availability
4
SCREW-TAPPING MAY 34001252 Contact Us For Availability
4
MAY 35001207 MAY 35001207 Contact Us For Availability
5
MAY 34001498 MAY 34001498 Contact Us For Availability
5
PCB (MEMS) SENSOR DNO MAY 34001484 Contact Us For Availability
5
MAY 34001253 MAY 34001253 Contact Us For Availability
5
MAY 16026126 MAY 16026126 Contact Us For Availability
5
CLAMPER HOSE MAY 34001315 Contact Us For Availability
5
MAY 34001414 MAY 34001414 Contact Us For Availability
6
DOOR-GLASS MAY 34001254 Contact Us For Availability
6
CAP-FIXER MAY 34001395 Contact Us For Availability
6
WEIGHT-BALANCER MAY 34001413 Contact Us For Availability
7
BOLT-SPANER MAY 34001223 Contact Us For Availability
7
MAY 34001314 MAY 34001314 Contact Us For Availability
7
NUT-HEX MAY 34001271 Contact Us For Availability
8
MAY 34001461 MAY 34001461 Contact Us For Availability
8
MAY W10126689 MAY W10126689 Contact Us For Availability
8
MAY 34001312 MAY 34001312 Contact Us For Availability
8
WASHER-PLAIN MAY 34001406 Contact Us For Availability
9
MAY 34001279 MAY 34001279 Contact Us For Availability
9
MAY 34001255 MAY 34001255 Contact Us For Availability
9
WASHER-WAVE MAY 34001409 Contact Us For Availability
9
WASHER-SPRING MAY 34001273 Contact Us For Availability
10
MAY 34001309 MAY 34001309 Contact Us For Availability
10
SPRING-HANGER MAY 34001274 Contact Us For Availability
10
MAY 34001283 MAY 34001283 Contact Us For Availability
10
MAY 34001256 MAY 34001256 Contact Us For Availability
11
MAY 34001257 MAY 34001257 Contact Us For Availability
11
SCREW-TAPTITE MAY 34001250 Contact Us For Availability
11
MAY 34001412 MAY 34001412 Contact Us For Availability
12
ASSY-WIRE DIAPHRAGM MAY 34001266 Contact Us For Availability
12
WEIGHT-BALANCER (F) MAY 34001276 Contact Us For Availability
12
BUSHING-MOTOR MAY 34001157 Contact Us For Availability
13
SCREW-TAPPING MAY 34001259 Contact Us For Availability
13
MAY 34001249 MAY 34001249 Contact Us For Availability
13
ASSY-BOLT MAY 34001158 Contact Us For Availability
13
BELT-TIMING GEAR MAY 34001411 Contact Us For Availability
14
MAY 34001458 MAY 34001458 Contact Us For Availability
14
CLAMP-HOSE MAY 34001208 Contact Us For Availability
14
MAY 34001285 MAY 34001285 Contact Us For Availability
14
SPONGE-HARNESS MAY 34001307 Contact Us For Availability
15
SEAL-OIL MAY 34001408 Contact Us For Availability
15
MAY 34001462 MAY 34001462 Contact Us For Availability
16
ASSY-SENSOR PRESSURE MAY 34001324 Contact Us For Availability
16
BOLT-FLANGE MAY 34001277 Contact Us For Availability
16
ASSY-S. BODY DRAWER MAY 34001282 Contact Us For Availability
16
SCREW-MACHINE MAY 34001286 Contact Us For Availability
16
BAND-RING MAY 34001298 Contact Us For Availability
17
ASSY-CLAMP DIAPHGRAM MAY 34001306 Contact Us For Availability
17
GUIDE-LIQUID MAY 34001239 Contact Us For Availability
17
MAY 34001262 MAY 34001262 Contact Us For Availability
17
BAND-RING MAY 34001297 Contact Us For Availability
18
PACKING-TUB MAY 34001296 Contact Us For Availability
18
MAY 34001240 MAY 34001240 Contact Us For Availability
18
MAY 34001263 MAY 34001263 Contact Us For Availability
18
MAY 34001467 MAY 34001467 Contact Us For Availability
18
BAND-RING MAY 34001305 Contact Us For Availability
19
MAY 34001248 MAY 34001248 Contact Us For Availability
19
MAY 34001264 MAY 34001264 Contact Us For Availability
20
MAY 34001287 MAY 34001287 Contact Us For Availability
21
ASSY-FRAME SHAFT MAY 34001407 Contact Us For Availability
21
HOSE-O.F. MAY 34001293 Contact Us For Availability
21
MAY 34001243 MAY 34001243 Contact Us For Availability
22
SCREW-TAPPING MAY 34001251 Contact Us For Availability
25
SPONGE-HOSE AIR MAY 34001301 Contact Us For Availability
26
SPRING-CLAMP MAY 34001169 Contact Us For Availability
26
WASHER-PLAIN MAY 34001272 Contact Us For Availability
27
CLAMPER HOSE MAY 34001331 Contact Us For Availability
27
GUIDE-WATER MAY 34001300 Contact Us For Availability
28
MAY 34001500 MAY 34001500 Contact Us For Availability
28
CLAMPER HOSE MAY 34001299 Contact Us For Availability
28
MAY 34001290 MAY 34001290 Contact Us For Availability
29
ASSY-HOSE DRAIN MAY 34001095 Contact Us For Availability
29
MAY 34001291 MAY 34001291 Contact Us For Availability
30
NUT-HEXAGON FLANGE MAY 34001389 Contact Us For Availability
30
CLAMPER-HOSE MAY 34001289 Contact Us For Availability
31
LEG-RUBBER MAY 34001341 Contact Us For Availability
31
MAY 34001405 MAY 34001405 Contact Us For Availability
32
MAY 34001089 MAY 34001089 Contact Us For Availability
38
BOLT-HEX MAY 34001388 Contact Us For Availability
× ![]()
