Model Whirlpool LW2503L WASHER – Common Parts & Diagrams
08 - Page 6

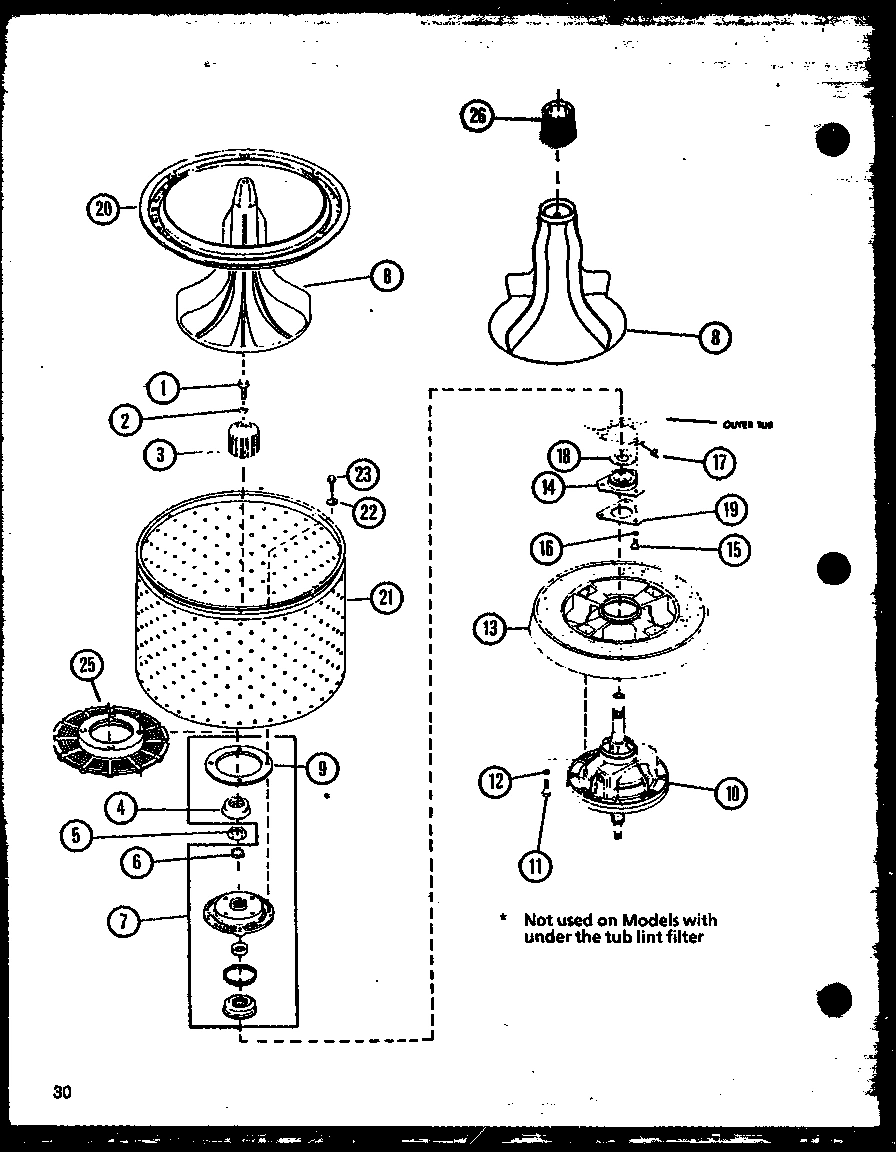

05 - Page 14

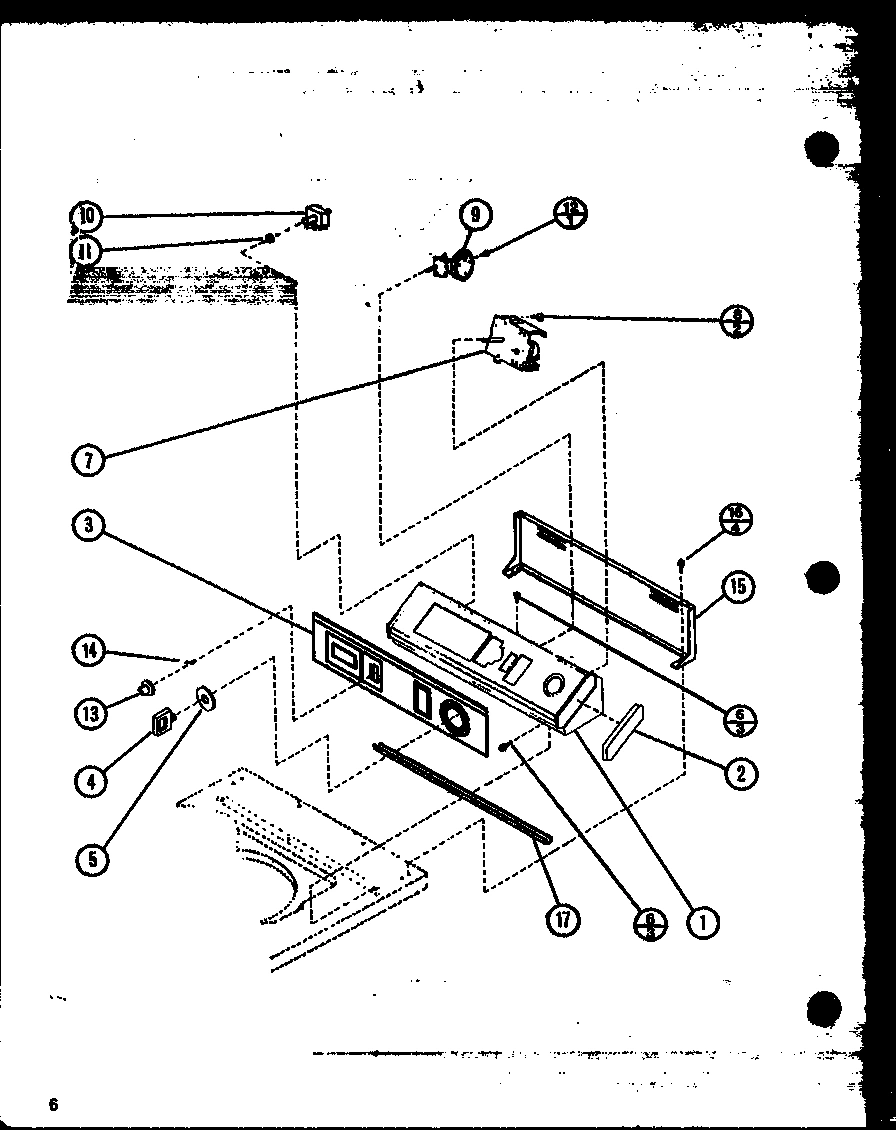

07 - Page 2

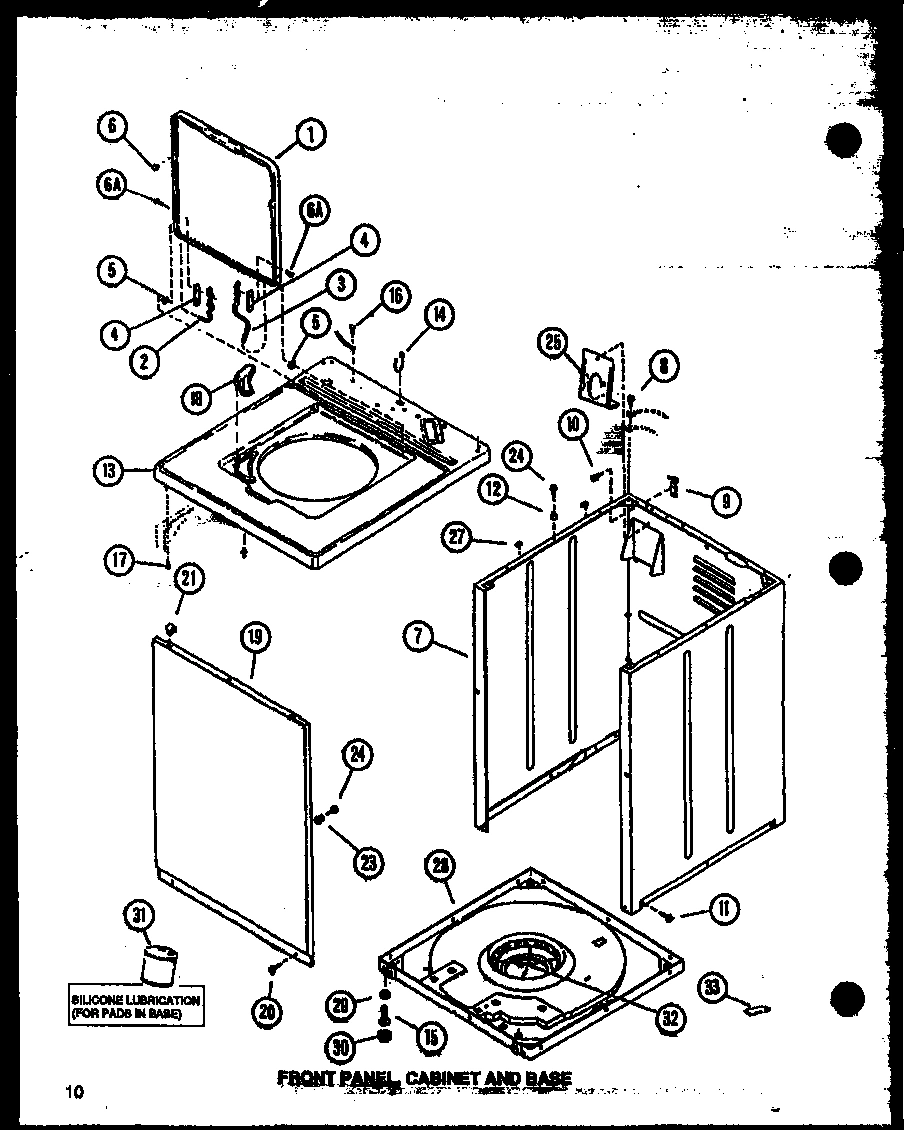

01 - FRONT PANEL

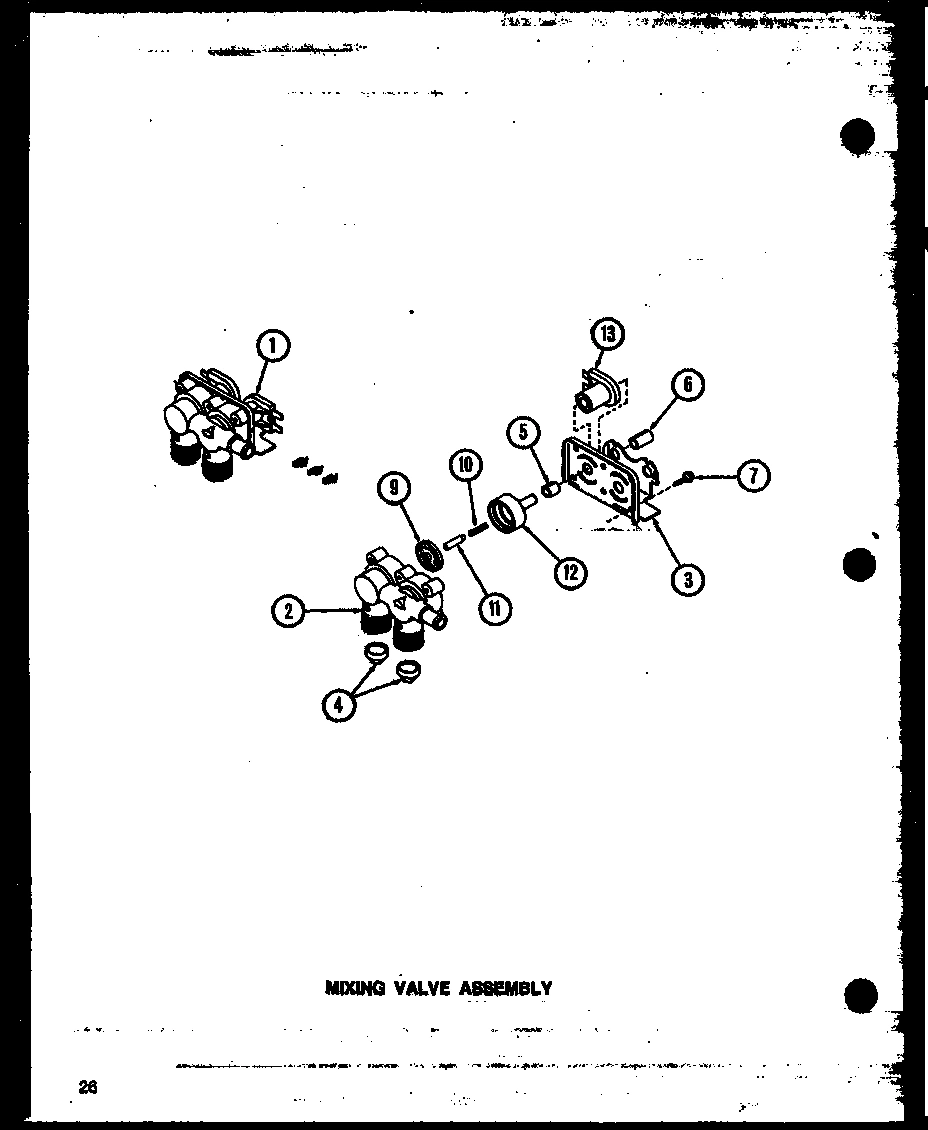

03 - MIXING VALVE ASSY

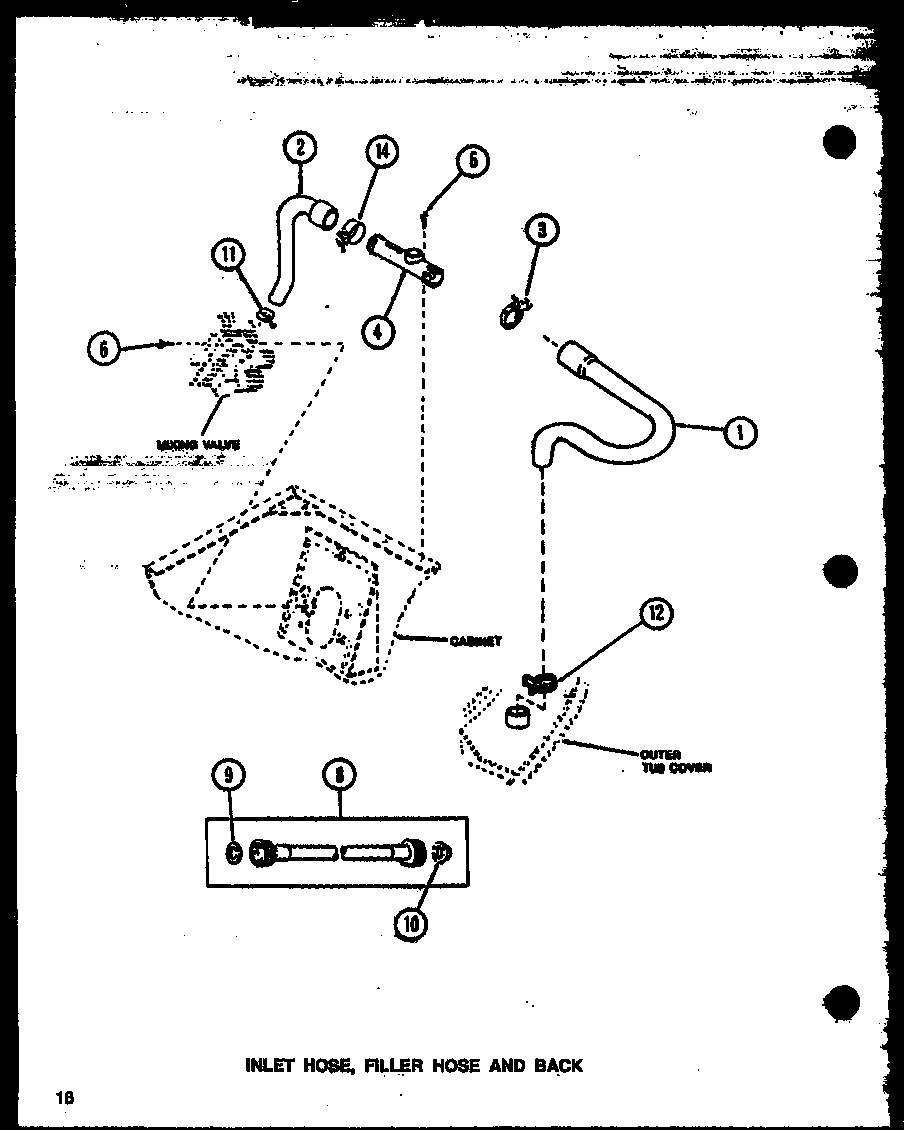

02 - INLET HOSE

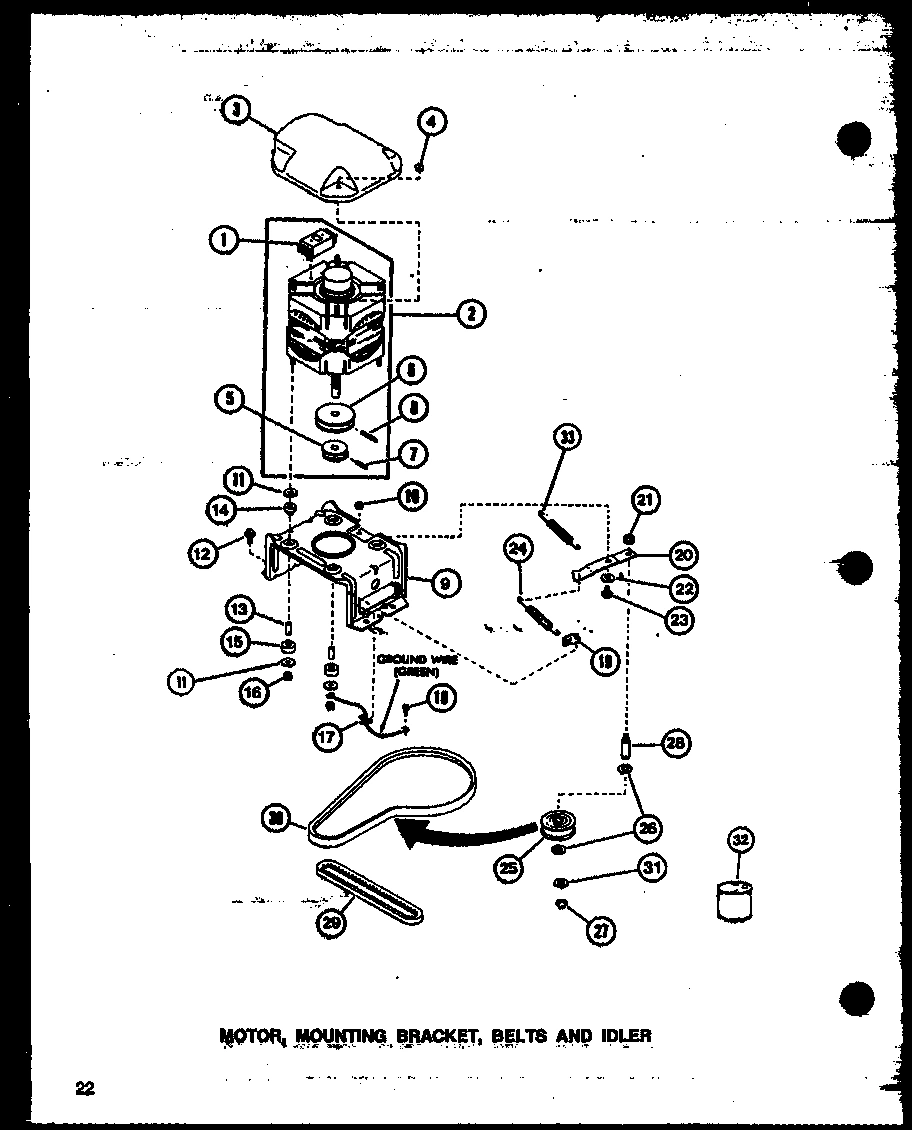

04 - MOTOR

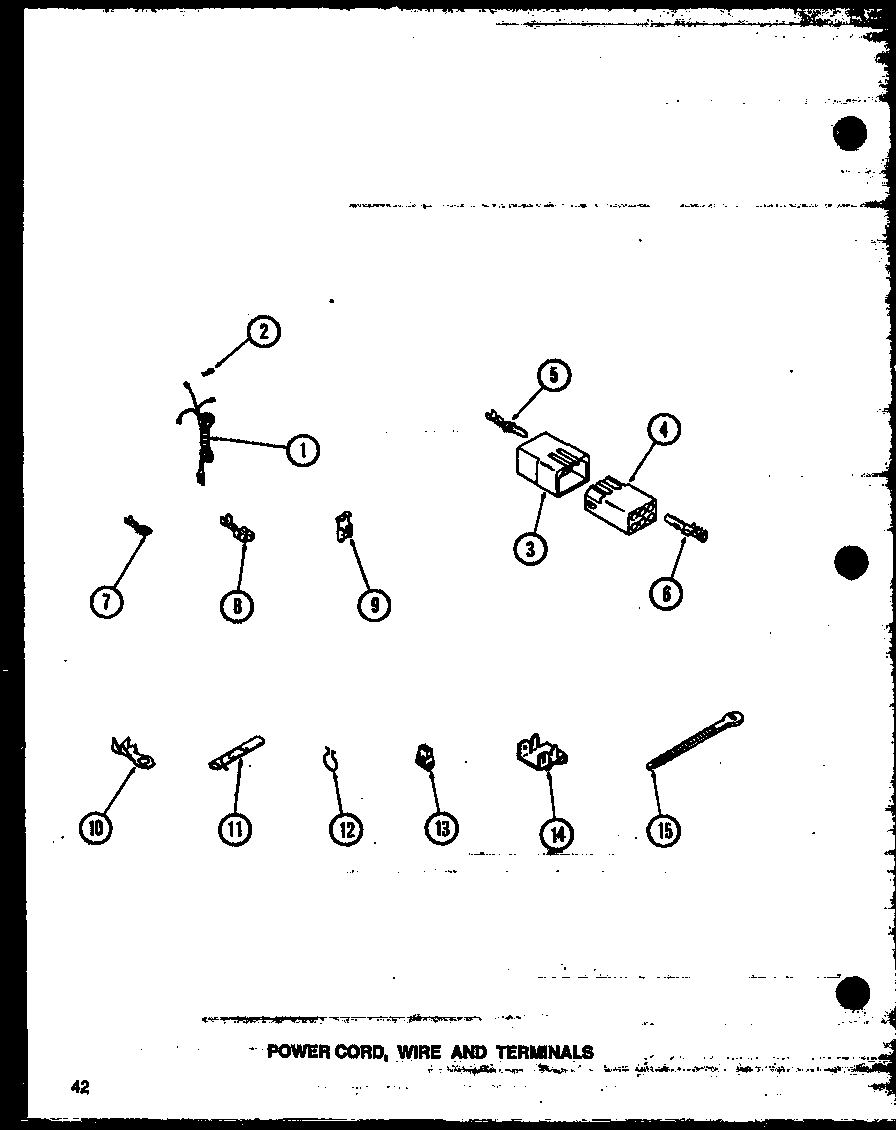

09 - POWER CORD

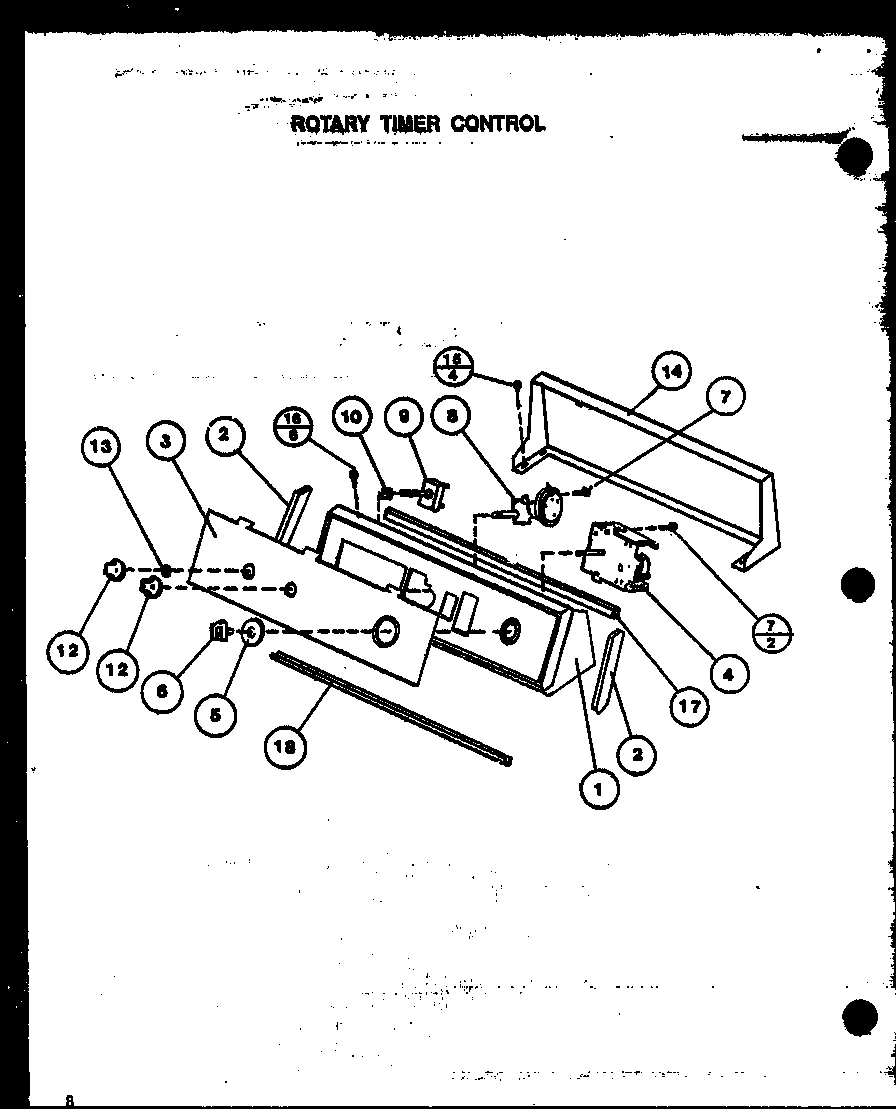

10 - PUMP ASSY

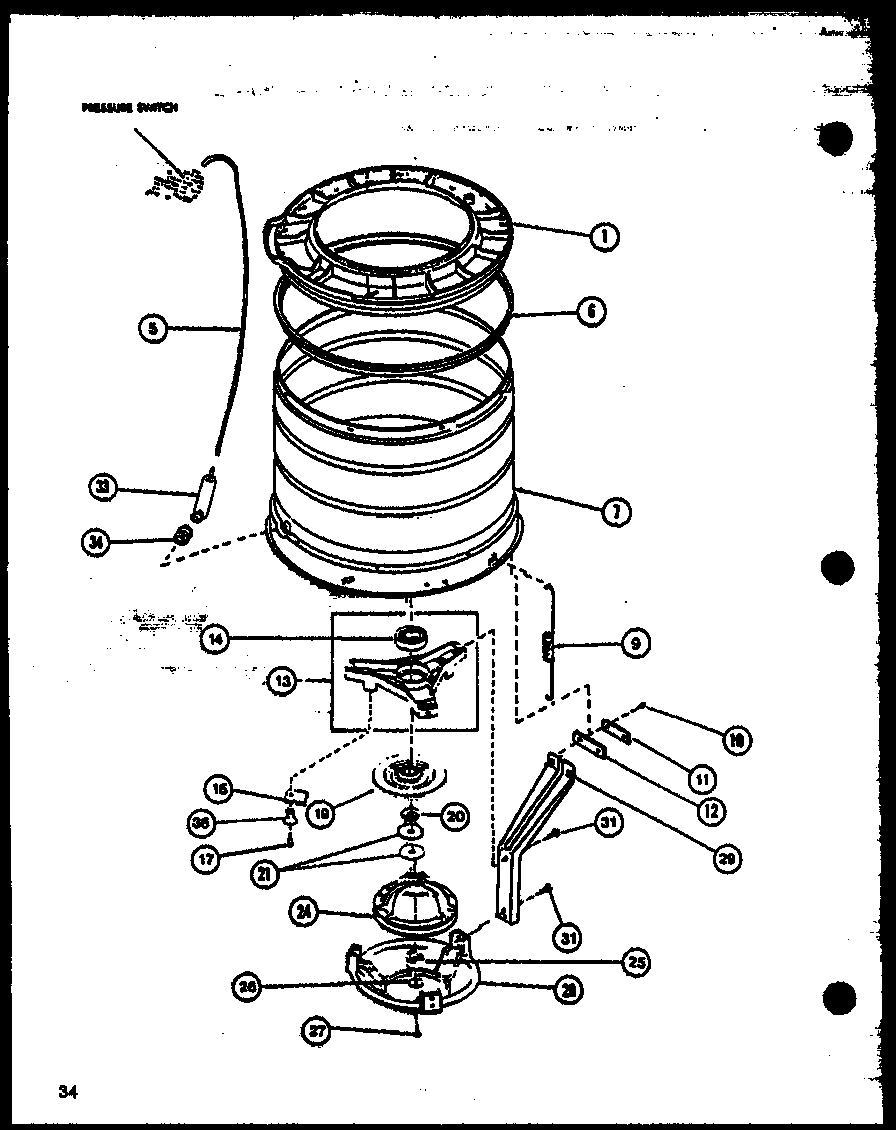

06 - Page 16
Common parts from model Whirlpool LW2503L WASHER
1
SWITCH WPL 33445 Contact Us For Availability
1
SHOULDER SCREW WPL 34288 Contact Us For Availability
1
ASSY,HOOD & MTG PLATE- WPL 33102 Contact Us For Availability
1
LID,W/INSTRUCTIONS WPL 33541HP Contact Us For Availability
1
LOADING DOOR, ALMOND WPL 33541L Contact Us For Availability
1
LID,W/INSTRUCTIONS WPL 33541WP Contact Us For Availability
1
VALVE,MIXING WPL 33930 Contact Us For Availability
1
HOSE,WATER INLET WPL 33186 Contact Us For Availability
1
SWITCH,MOTOR WPL 24140 Contact Us For Availability
1
SWITCH,MOTOR WPL Y24149 Contact Us For Availability
1
POWER CORD AND PLUG WPL 22660 Contact Us For Availability
1
COVER,OUTER TUB WPL 33184P Contact Us For Availability
2
O-RING WPL 34289 Contact Us For Availability
2
CAP,END-L.H.-BLK W/SLV WPL 32863 Contact Us For Availability
2
CAP,END-R.H.-BLK W/SLV WPL 32864 Contact Us For Availability
2
HINGE WPL 34326 Contact Us For Availability
2
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
2
BODY,VALVE WPL Y24159 Contact Us For Availability
2
HOSE,MIXING VALVE WPL 27183 Contact Us For Availability
2
MOTOR ASSEMBLY, ONE SPEED WPL 27658 Contact Us For Availability
3
LEVER,UNBALANCED LOAD WPL 33442 Contact Us For Availability
3
DRIVE BELL WPL 34504 Contact Us For Availability
3
PANEL,GRAPHIC-AMANA WPL 33965 Contact Us For Availability
3
HINGE,LID-RIGHT WPL 34325 Contact Us For Availability
3
MOUNTING BRACKET WPL Y24158 Contact Us For Availability
3
SHIELD,MOTOR WPL 27136 Contact Us For Availability
3
PLUG,6 CIRCUIT WPL 23041 Contact Us For Availability
3
PANEL,GRAPHIC-AMANA WPL 33967 Contact Us For Availability
4
SPRING WPL 33443 Contact Us For Availability
4
HUB AND TRANSMISSION TUBE SEAL WPL 34184 Contact Us For Availability
4
TERMINAL WPL 33583 Contact Us For Availability
4
BACK FLOW PREVENTER WPL 27118 Contact Us For Availability
4
LOCKNUT WPL 27201 Contact Us For Availability
4
RECEPTACLE,6 CIRCUIT WPL 26708 Contact Us For Availability
4
TIMER,2 CYCLE WPL 31238 Contact Us For Availability
5
SWITCH HOLDER WPL 33440 Contact Us For Availability
5
LOCKNUT WPL Y29220 Contact Us For Availability
5
ASSY,TIMER SKIRT&RING- WPL 32996 Contact Us For Availability
5
BUSHING WPL 33446 Contact Us For Availability
5
SLEEVE,SHORT WPL 24129 Contact Us For Availability
5
PULLEY,MOTOR WPL Y27104 Contact Us For Availability
5
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
5
ASSY,TIMER SKIRT&RING- WPL 32995 Contact Us For Availability
5
PRESSURE HOSE WPL 29213 Contact Us For Availability
6
SPLINED INSERT WPL WP40008301 No Longer Available
6
CLIP,HOLDER-SWITCH WPL 33433 Contact Us For Availability
6
TIMER KNOB WPL 32622 Contact Us For Availability
6
BUMPER WPL 32507 Contact Us For Availability
6
SCREW,8-18 X 3/8 TAPPI WPL 56392 Contact Us For Availability
6
SLEEVE,LONG WPL 24128 Contact Us For Availability
6
PULLEY,MOTOR WPL 27171 Contact Us For Availability
6
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
6
GASKET,TUB COVER SMALL WPL 32857 Contact Us For Availability
7
ARM,ACTUATOR WPL 33441 Contact Us For Availability
7
HUB & SEAL KIT WPL 495P3 Contact Us For Availability
7
TIMER,3 CYCLE WPL 31239 Contact Us For Availability
7
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
7
REPL BY 34475HP WPL 31669HP Contact Us For Availability
7
CABINET, ALMOND WPL 31669LP Contact Us For Availability
7
CABINET, WHITE WPL 31669WP Contact Us For Availability
7
SCREW WPL 25817C Contact Us For Availability
7
PIN,ROLL WPL 10416 Contact Us For Availability
7
TERMINAL,SPADE-3/16 FE WPL 00112 Contact Us For Availability
7
OUTER TUB WPL 33178 Contact Us For Availability
8
AGITATOR WPL 33174 Contact Us For Availability
8
SWITCH,PRESSURE-ROTARY WPL 31266 Contact Us For Availability
8
PIN,ROLL WPL 23750 Contact Us For Availability
8
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
9
GASKET WPL 27125 Contact Us For Availability
9
SWITCH,TEMPERATURE WPL 21300 Contact Us For Availability
9
HINGE,HOLD-DOWN LUG WPL Y27103 Contact Us For Availability
9
DIAPHRAGM WPL 24134 Contact Us For Availability
9
WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability
9
BRACKET,MOTOR MOUNT WPL 28791 Contact Us For Availability
9
TERMINAL,FLAG-1/4 FEMA WPL Y00120 Contact Us For Availability
9
SWITCH,WATER TEMPERATU WPL 28118 Contact Us For Availability
9
SPRING,LEG WPL 27239 Contact Us For Availability
10
TRANSMISSION ASSEMBLY WPL 33227 Contact Us For Availability
10
SPRING WPL 24131 Contact Us For Availability
10
TERMINAL,RING-1/4 STUD WPL Y00113 Contact Us For Availability
10
NUT WPL 57584 Contact Us For Availability
10
SCREW AND LOCKWASHER WPL 27205 Contact Us For Availability
11
CAP SCREW WPL 27200 Contact Us For Availability
11
NUT WPL Q6163 Contact Us For Availability
11
ARMATURE WPL 24132 Contact Us For Availability
11
WASHER WPL 03888 Contact Us For Availability
11
CONNECTOR TWO 1/4 INCH MALE WPL 21091 Contact Us For Availability
11
PLATE,LEG .063 WPL 27926 Contact Us For Availability
12
LOCKWASHER,1/4 EXT SHK WPL 02431 Contact Us For Availability
12
ASSY,KNOB-ROTARY-BLACK WPL 32866 Contact Us For Availability
12
LOCATER, PANEL WPL 56079 Contact Us For Availability
12
GUIDE,ARMATURE WPL 24130 Contact Us For Availability
12
HOSE CLAMP WPL 29210 Contact Us For Availability
12
CLIP,WIRE WPL 51291 Contact Us For Availability
12
PLATE,LEG .032 WPL 27927 Contact Us For Availability
13
BALANCE RING WPL 27143 Contact Us For Availability
13
RETAINER WPL 10519 Contact Us For Availability
13
ASSY, TOP-DOMESTIC W/BLEACH WPL 33451HP Contact Us For Availability
13
CABINET TOP, ALMOND WPL 33451L Contact Us For Availability
13
REPL BY 34902WP WPL 33451WP Contact Us For Availability
13
SOLENOID,MIXING VALVE WPL 33930A Contact Us For Availability
13
SPACER,MOTOR WPL 27181 Contact Us For Availability
13
INSULATOR,BLUE WPL 70210 Contact Us For Availability
13
BEARING HOUSING ASSEMBLY WPL 28913 Contact Us For Availability
14
CONTROL HOOD REAR PANEL WPL 33619 Contact Us For Availability
14
STRAIN RELIEF WPL 21903 Contact Us For Availability
14
CLAMP HOSE WPL 27152 Contact Us For Availability
14
MOUNTING,RUBBER WPL 01952A Contact Us For Availability
14
GROUND CLIP WPL Y00161 Contact Us For Availability
15
SCREW WPL 01355 Contact Us For Availability
15
WASHER,LOWER MOTOR MOU WPL 01953 Contact Us For Availability
15
WIRE TIE WPL 55881 Contact Us For Availability
15
BRAKE PAD KIT WPL 348P3 Contact Us For Availability
16
LOCKWASHER,5/16 EXT SH WPL 02834 Contact Us For Availability
16
SCREW,No.8ABX3/4 POZIDRI WPL 31752 Contact Us For Availability
16
NUT,HEX 10-32 LOCK WPL 23604 Contact Us For Availability
17
NUT,RETAINER 5/16-18 WPL 27222 Contact Us For Availability
17
SCREW,10-24 SHOULDER WPL 26547 Contact Us For Availability
18
FLINGER WPL 27187 Contact Us For Availability
18
USE 34776 WPL 33516 Contact Us For Availability
18
HEX HEAD SCREW WPL 26592 Contact Us For Availability
18
TRIM,BOTTOM-AMANA WPL 32874 Contact Us For Availability
19
WASHER,BEARING HOUSING WPL 27166 Contact Us For Availability
19
PANEL,FRONT WPL 32708H Contact Us For Availability
19
PANEL,FRONT WPL 32708LP Contact Us For Availability
19
FRONT PANEL, WHITE WPL 32708W Contact Us For Availability
19
CLIP,SPRING WPL 28849 Contact Us For Availability
19
BRAKE WPL 31961P Contact Us For Availability
20
CLOTHES GUARD WPL 32989 Contact Us For Availability
20
IDLER LEVER WPL 31054 Contact Us For Availability
20
SPRING,CONICAL WPL 33435 Contact Us For Availability
21
WASHTUB, STAINLESS STEEL WPL 33245 Contact Us For Availability
21
WASHER WPL 27015 Contact Us For Availability
22
GASKET WPL 28094 Contact Us For Availability
22
WASHER WPL 81392 Contact Us For Availability
23
LOCATOR,PANEL WPL 28102 Contact Us For Availability
23
SHOULDER BOLT WPL 27229 Contact Us For Availability
24
PULLEY ASSEMBLY WPL 30260 Contact Us For Availability
25
LINT FILTER WPL 32998 Contact Us For Availability
25
BRACKET,MIXING VALVE M WPL 32837 Contact Us For Availability
25
WHEEL,IDLER WPL 28800 Contact Us For Availability
25
HELIX WPL 27018 Contact Us For Availability
26
FABRIC SOFTENER DISPENSER WPL 34155 Contact Us For Availability
26
WASHER,FELT WPL Y29443 Contact Us For Availability
26
WASHER WPL 26509 Contact Us For Availability
27
PAD, BUMPER WPL Y56128 Contact Us For Availability
27
SCREW WPL 27220 Contact Us For Availability
28
ASSY,BASE-COMPLETE-G90 WPL 31653P Contact Us For Availability
28
SHAFT,IDLER WPL 28802 Contact Us For Availability
28
DOME,PIVOT WPL 27124 Contact Us For Availability
29
BELT,PUMP WPL 27155 Contact Us For Availability
29
LEG,SUPPORT WPL 27090 Contact Us For Availability
30
RUBBER FOOT WPL 34318 Contact Us For Availability
31
SCREW WPL 30016 Contact Us For Availability
32
KIT,SNUBBER PAD WPL 434P3 Contact Us For Availability
32
LUBE,HI TEMPERATURE-56 WPL 20605 Contact Us For Availability
33
ADHESIVE,3M-1300-5 OZ. WPL 22506P Contact Us For Availability
33
SPRING,IDLER LEVER HEL WPL 30620 Contact Us For Availability
33
PRESSURE BULB WPL 30907 Contact Us For Availability
34
GROMMET WPL 29175 Contact Us For Availability
36
SLEEVE,ANTI-ROTATION WPL 29993 Contact Us For Availability
NI
ASSY,MOTOR HARNESS-1SP WPL 28132 Contact Us For Availability
NI
BASE WIRE HARNESS WPL 33675 Contact Us For Availability
NI
ASSY,WIRING HARNESS-MI WPL 33828 Contact Us For Availability
NI
LUBRICANT WPL 03200P Contact Us For Availability
× ![]()
