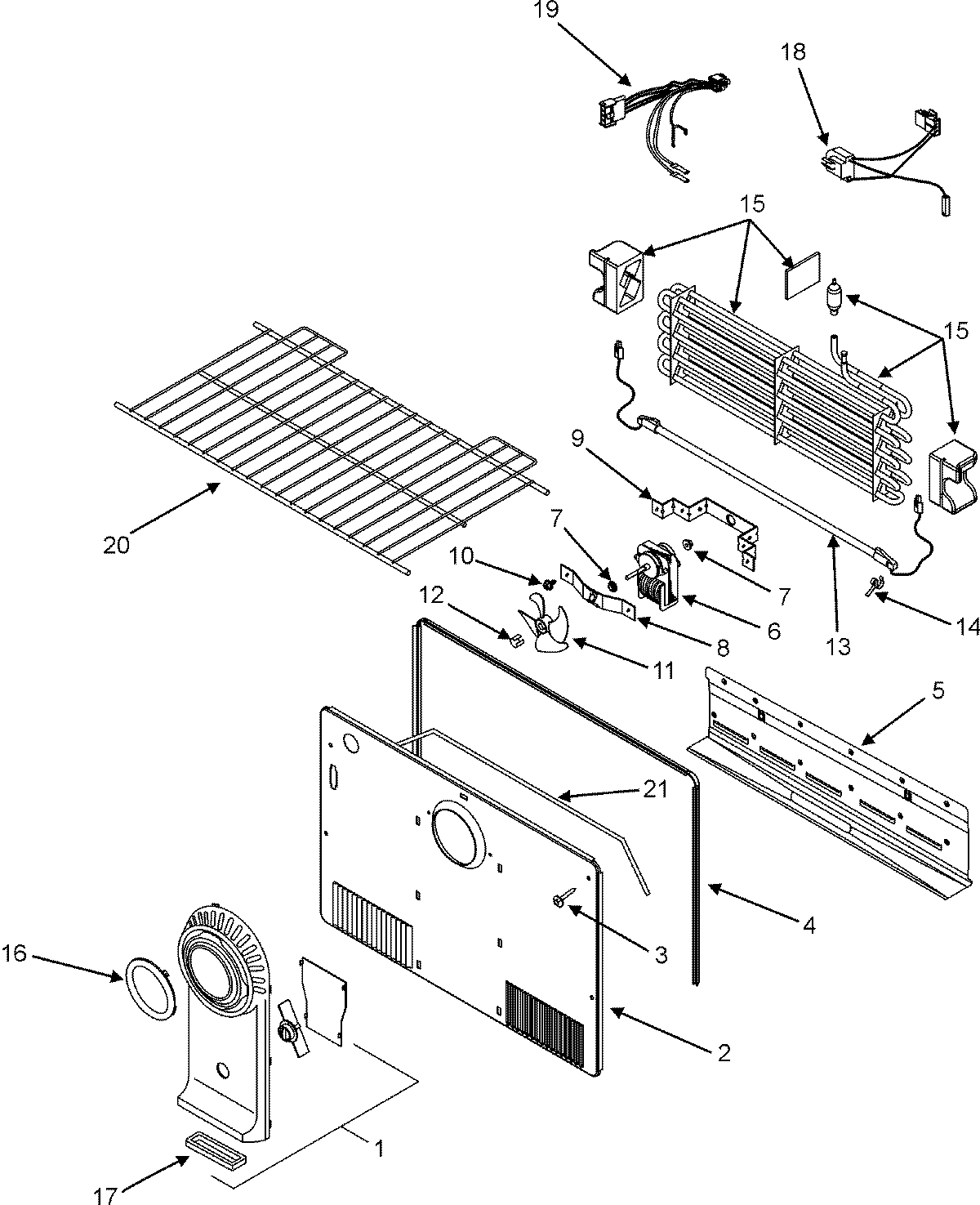

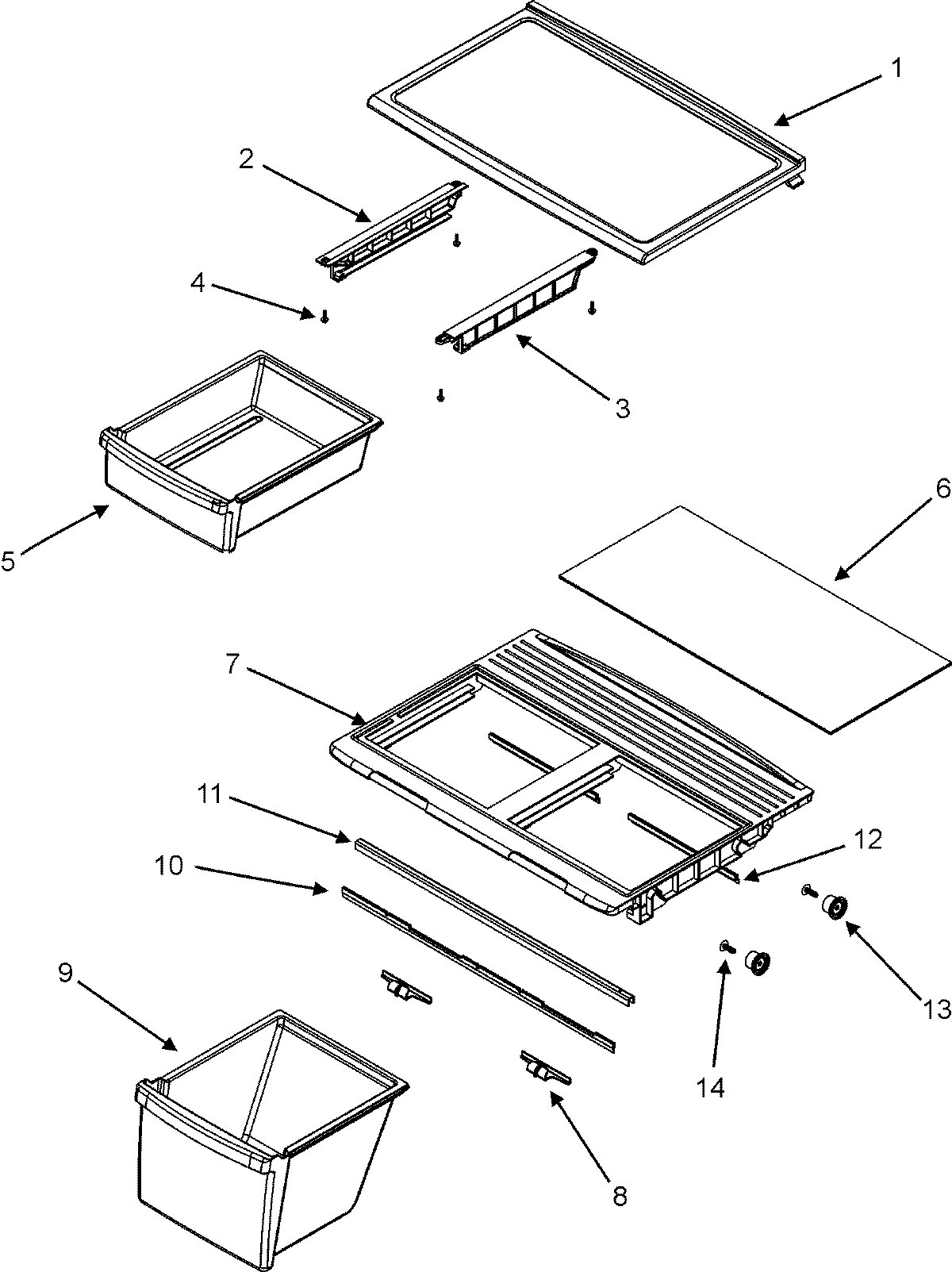

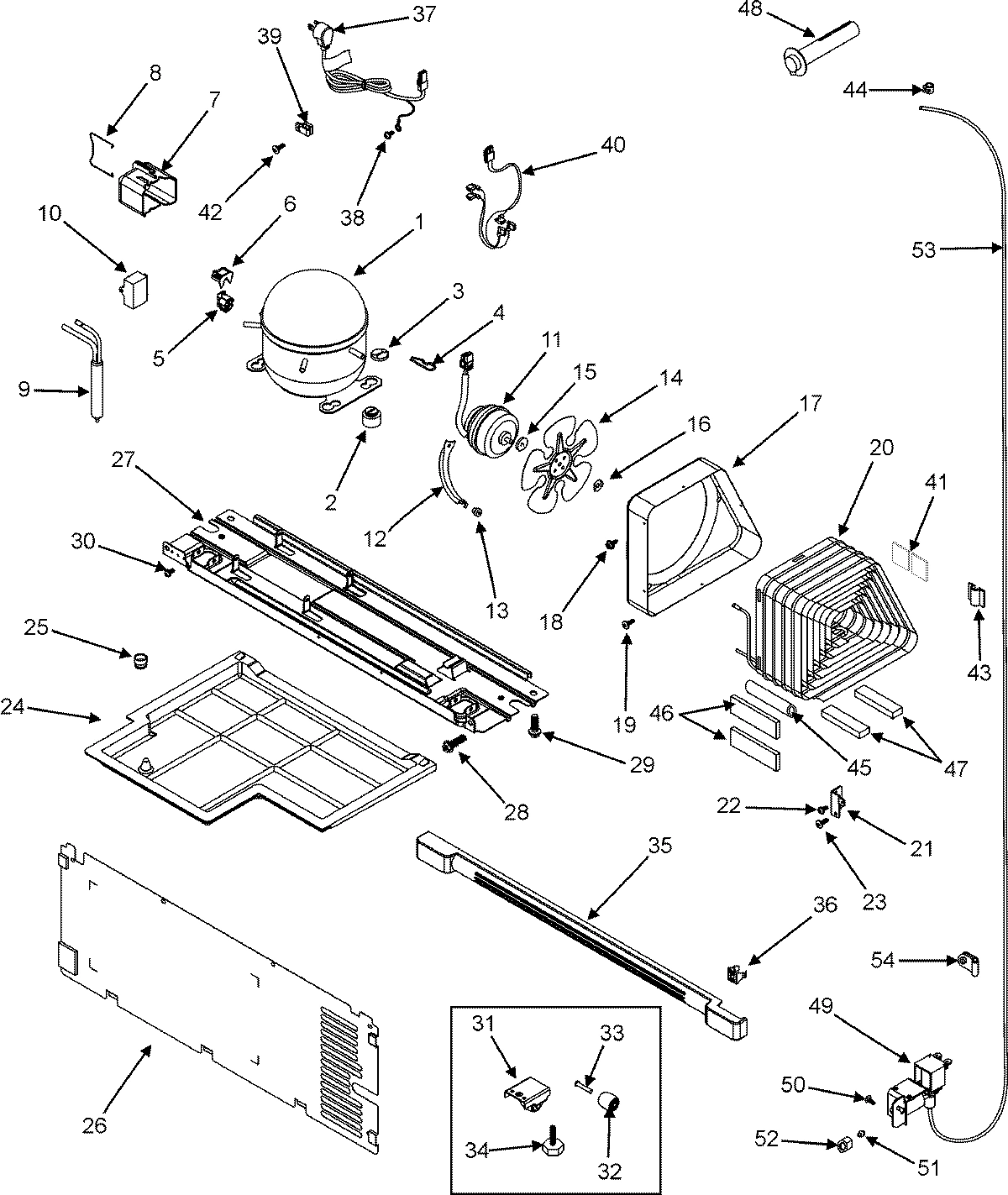

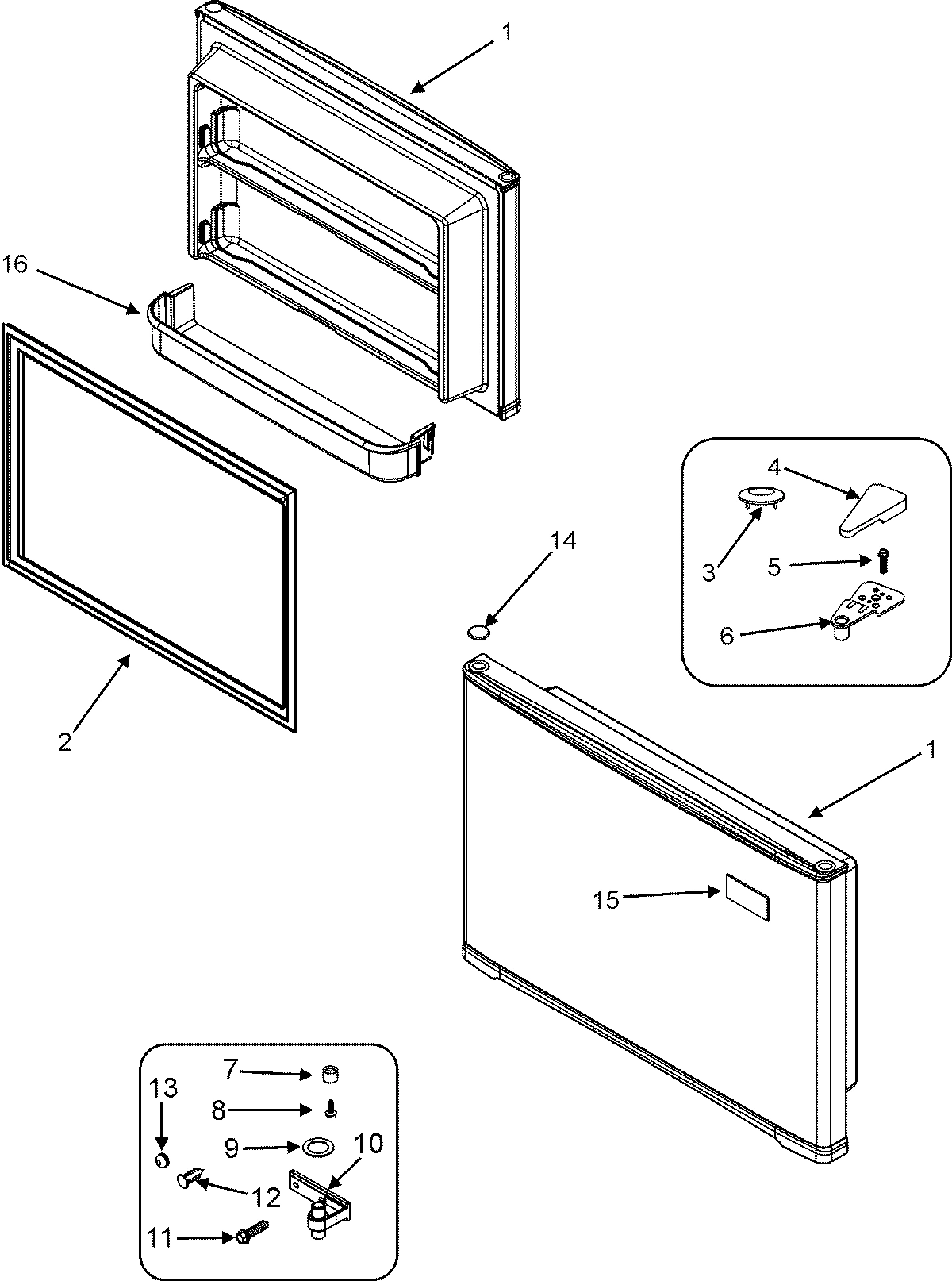

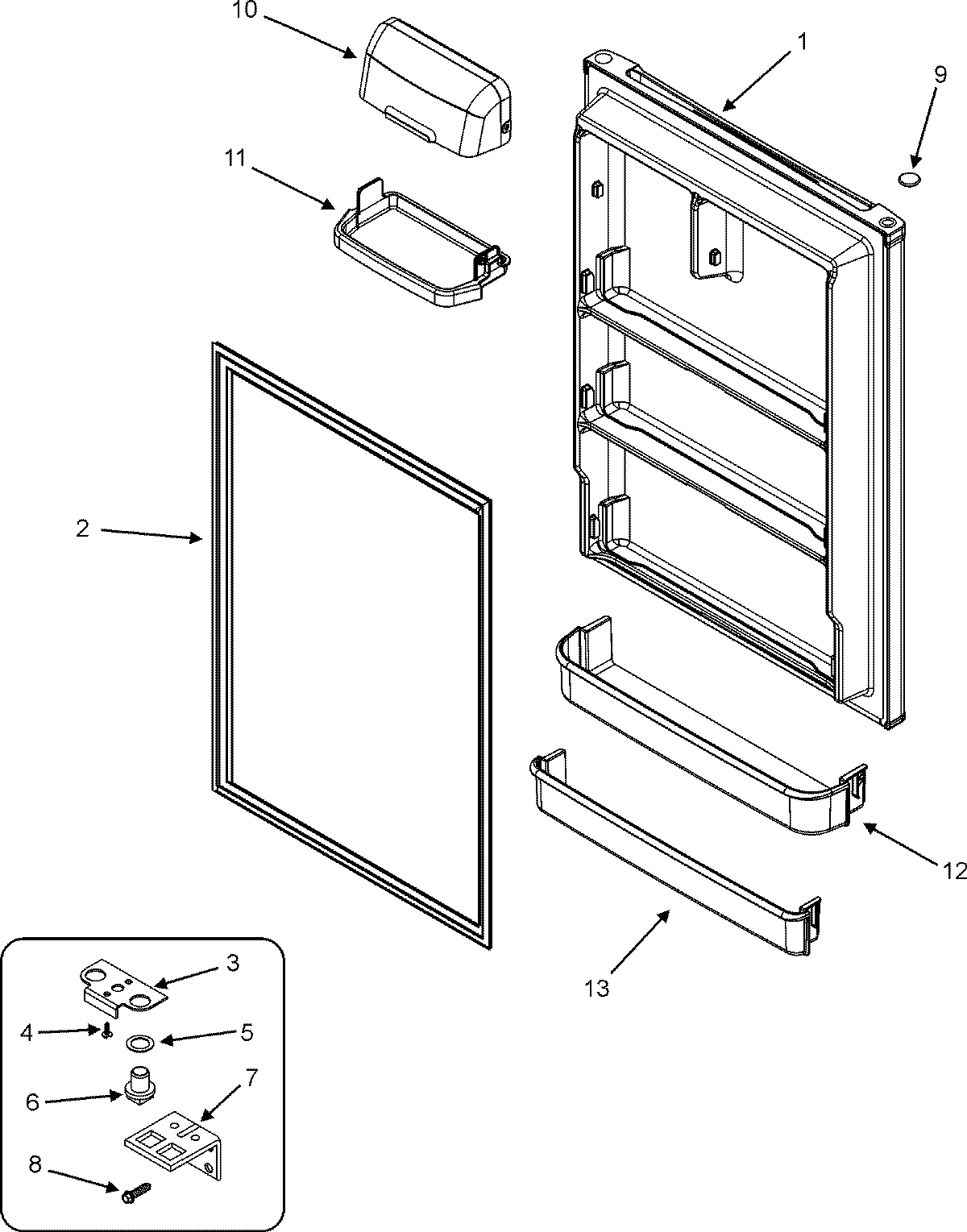

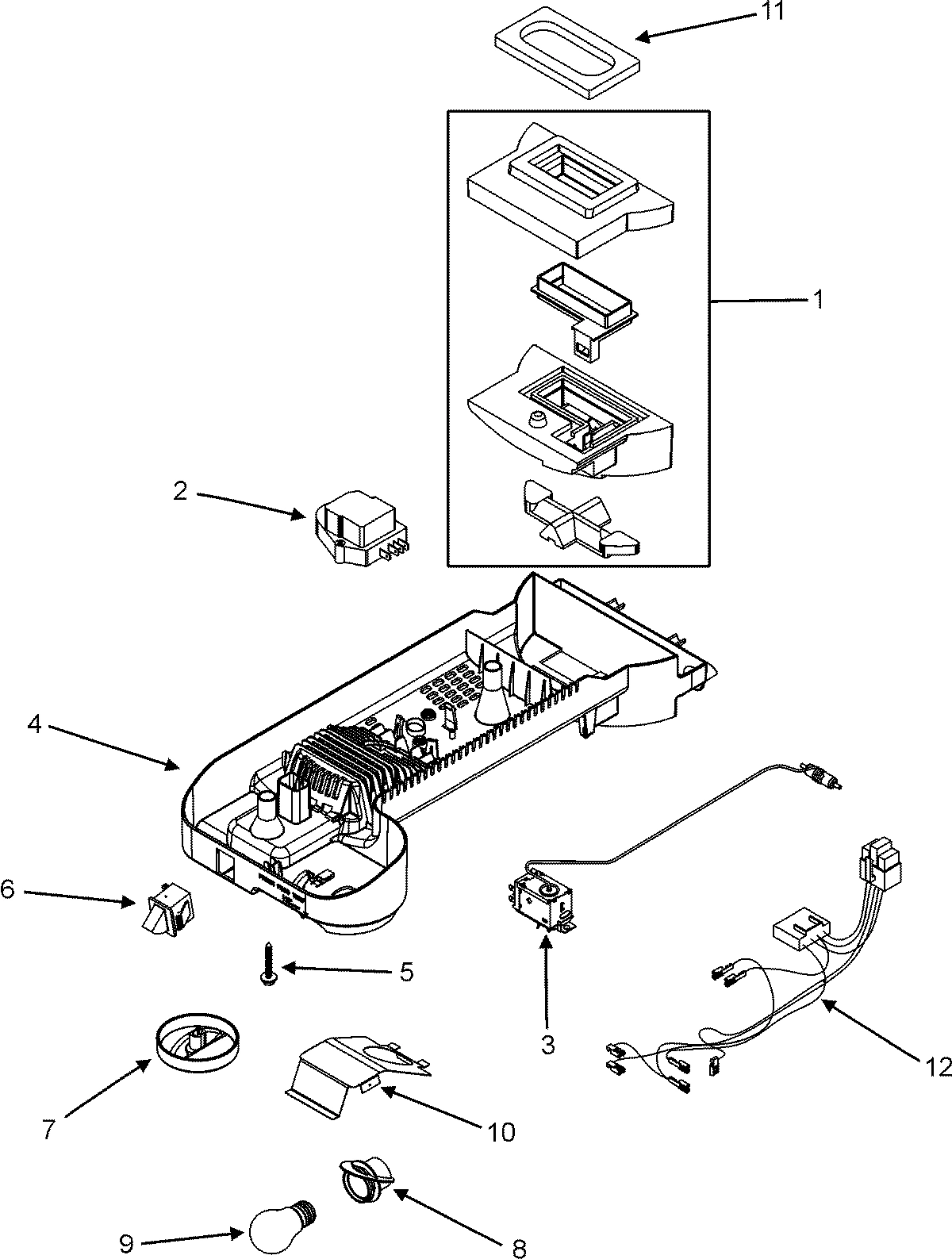

Model Whirlpool LTF1812ARZ REFRIGERATOR – Common Parts &amp; Diagrams

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

SHELF, FULL WPL 63001482 Contact Us For Availability

1

DAMPER/INSULATION ASSY. WPL 63001352 Contact Us For Availability

1

DOOR ASSY., FREEZER (SLV) WPL 63001878 Contact Us For Availability

1

TUNNEL ASSY., AIR WPL 63001382 Contact Us For Availability

1

DOOR ASSY., FRESH FOOD (SLV) WPL 63001877 Contact Us For Availability

1

MANUAL, USE & CARE WPL 3013913000 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

RAIL, DELI PAN (LT) WPL 63001534 Contact Us For Availability

2

SCREW WPL 4050071 Contact Us For Availability

2

TIMER, DEFROST WPL 63001353 Contact Us For Availability

2

SEAL, FRZ. DOOR (BLK) WPL 63001463 Contact Us For Availability

2

COVER, EVAPORATOR WPL 63001383 Contact Us For Availability

2

SEAL, F.F. DOOR (BLK) WPL 63001469 Contact Us For Availability

2

SVC MAN, TOP MT WPL 16023446 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 63001006 Contact Us For Availability

3

2256637 Whirlpool Refrigerator Screw Backorder WPL 2256637 $8.39

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

RAIL, DELI PAN (RT) WPL 63001535 Contact Us For Availability

3

CONTROL ASSY., TEMPERATURE WPL 63001358 Contact Us For Availability

3

SCREW WPL 6527581 Contact Us For Availability

3

CAP, HINGE (BLK) WPL 63001229 Contact Us For Availability

3

STOP, DOOR WPL 63001394 Contact Us For Availability

3

LABEL, ENERGY GUIDE WPL 63001439 Contact Us For Availability

3

WASHER, COMPRESSOR WPL 63001007 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

SCREW WPL 63001318 Contact Us For Availability

4

HOUSING, CONTROL WPL 63001354 Contact Us For Availability

4

COVER, UPPER HINGE (BLK) WPL 63001455 Contact Us For Availability

4

SEAL, EVAPORATOR COVER WPL 63001385 Contact Us For Availability

4

SCREW WPL 63001255 Contact Us For Availability

4

TECH SHT,TOP MT WPL 16023494 Contact Us For Availability

4

SPRING, COMPRESSOR WPL 63001008 Contact Us For Availability

5

RELAY, PTC WPL 63001003 Contact Us For Availability

5

THERMOSTAT WPL 950921 Contact Us For Availability

5

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

5

PAN, DELI WPL 63001872 Contact Us For Availability

5

SCREW WPL 63001231 Contact Us For Availability

5

WASHER, HINGE WPL 63001079 Contact Us For Availability

5

TRAY, DRIP WPL 63001386 Contact Us For Availability

6

W11291138 Whirlpool Refrigerator Door Switch In Stock WPL W11291138 $25.73

6

OVERLOAD WPL 63001004 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

GLASS, CRISPER SHELF WPL 63001374 Contact Us For Availability

6

HINGE, UPPER WPL 63001408 Contact Us For Availability

6

MOTOR, EVAPORATOR FAN WPL 63001057 Contact Us For Availability

6

PIN, LOWER HINGE WPL 63001089 Contact Us For Availability

7

PAN, ICE WPL 61001886 Contact Us For Availability

7

SHELF, CRISPER WPL 63001375 Contact Us For Availability

7

KNOB, TEMPERATURE CONTROL WPL 63001355 Contact Us For Availability

7

STOP, DOOR (BLK) WPL 63001456 Contact Us For Availability

7

BUSHING, EVAPORATOR FAN WPL 63001058 Contact Us For Availability

7

HINGE,LOWER !! WPL 63001128 Contact Us For Availability

7

COVER, RELAY WPL 63001013 Contact Us For Availability

8

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

8

SLIDE, CONTROL WPL 63001376 Contact Us For Availability

8

RECEPTACLE, BULB WPL 63001356 Contact Us For Availability

8

RETAINER, EVAPORATOR FAN WPL 63001062 Contact Us For Availability

8

SCREW WPL 63001226 Contact Us For Availability

8

CLIP, RELAY COVER WPL 63001014 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.61

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

PAN, CRISPER WPL 63001870 Contact Us For Availability

9

CAP, BUSHING (BLK) WPL 63001225 Contact Us For Availability

9

BRACKET, EVAPORATOR FAN WPL 63001063 Contact Us For Availability

9

DRIER WPL 139001 Contact Us For Availability

CAPACITOR, RUN WPL 63001005 Contact Us For Availability

ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability

SEAL, CRISPER SHELF (FRT) WPL 63001379 Contact Us For Availability

PLATE, BULB WPL 63001357 Contact Us For Availability

HINGE, CENTER (BLK) WPL 63001457 Contact Us For Availability

DOOR, DAIRY WPL 63001397 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability

RAIL, CRISPER SUPPORT WPL 63001380 Contact Us For Availability

SEAL, DAMPER ASSY. WPL 63001360 Contact Us For Availability

SCREW WPL 63001234 Contact Us For Availability

BLADE, EVAPORATOR FAN WPL 63001060 Contact Us For Availability

SHELF, DAIRY COMPT. WPL 63001398 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 63001575 Contact Us For Availability

CLIP, FAN BLADE WPL 63001813 Contact Us For Availability

ARM, SENSOR WPL 61005173 Contact Us For Availability

CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability

SEAL, CRISPER SHELF (REAR) WPL 63001381 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 63001359 Contact Us For Availability

CAP, CENTER HINGE (BLK) WPL 63001458 Contact Us For Availability

SHELF, BOTTLE PICK OFF WPL 63001400 Contact Us For Availability

BRACKET, FAN MOTOR WPL 63001020 Contact Us For Availability

SCREW WPL 63001092 Contact Us For Availability

COVER, ICE MAKER WPL 61005374 Contact Us For Availability

SUPPORT, CRISPER SHELF WPL 63001045 Contact Us For Availability

CAP, HINGE (BLK) WPL 63001235 Contact Us For Availability

HEATER, DEFROST WPL 63001387 Contact Us For Availability

SHELF, PICK OFF WPL 63001401 Contact Us For Availability

GROMMET, BRACKET WPL 63001017 Contact Us For Availability

14

CLIP, DEFROST HEATER WPL 63001050 Contact Us For Availability

14

BLADE, CONDENSER FAN WPL 63001018 Contact Us For Availability

15

NAMEPLATE (ADMIRAL-BLK) WPL 63001785 Contact Us For Availability

15

KIT, EVAPORATOR WPL 12002519 Contact Us For Availability

15

GROMMET, FAN MOTOR WPL 63001576 Contact Us For Availability

16

SHELF, PICK OFF WPL 63001419 Contact Us For Availability

16

COVER, FAN WPL 63001428 Contact Us For Availability

16

CLIP, FAN BLADE WPL 63001577 Contact Us For Availability

17

SEAL WPL 63001429 Contact Us For Availability

17

SHROUD, CONDENSER WPL 63001015 Contact Us For Availability

18

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

18

THERMOSTAT, DEFROST (3 WIRE) WPL 63001599 Contact Us For Availability

19

WIRE HARNESS, FRZ. WPL 63001059 Contact Us For Availability

19

SCREW WPL 63001093 Contact Us For Availability

20

SHELF, FRZ. WPL 63001389 Contact Us For Availability

20

CONDENSER WPL 63001245 Contact Us For Availability

21

SEAL, EVAPORATOR COVER WPL 63001384 Contact Us For Availability

21

BRACKET, VALVE WPL 63001023 Contact Us For Availability

24

PAN, DRAIN WPL 63001347 Contact Us For Availability

25

CAP, DRAIN WPL 63001022 Contact Us For Availability

26

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

26

COVER, MACHINE COMPARTMENT WPL 63001348 Contact Us For Availability

27

SEE NOTE (BASE PAN NOT AVAILABLE) WPL Y00000000 Contact Us For Availability

28

BOLT WPL 63001251 Contact Us For Availability

29

BOLT WPL 63001252 Contact Us For Availability

31

SCREW WPL 56001210 Contact Us For Availability

31

WHEEL ASSY. (FRT) WPL 63001100 Contact Us For Availability

32

WHEEL (REAR) WPL 63001001 Contact Us For Availability

33

PIN, WHEEL WPL 63001002 Contact Us For Availability

34

LEG, LEVELING WPL 63001025 Contact Us For Availability

35

KICKPLATE ASSY. (BLK) WPL 63001444 Contact Us For Availability

36

CLIP, KICKPLATE WPL 63001351 Contact Us For Availability

37

CORD, POWER WPL 63001420 Contact Us For Availability

38

SCREW WPL 63001091 Contact Us For Availability

39

CLIP, POWER CORD WPL 63001346 Contact Us For Availability

40

WIRE HARNESS, COMPRESSOR WPL 63001012 Contact Us For Availability

41

SEAL WPL 63001427 Contact Us For Availability

42

SCREW WPL 63001276 Contact Us For Availability

43

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

44

CLAMP, SPRING WPL 603334 Contact Us For Availability

45

SEAL WPL 63001424 Contact Us For Availability

46

SEAL WPL 63001425 Contact Us For Availability

47

SEAL WPL 63001426 Contact Us For Availability

48

GROMMET, FILL TUBE WPL 61005940 Contact Us For Availability

49

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $95.51

50

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

51

SLEEVE, BRASS WPL 694311 Contact Us For Availability

52

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

53

TUBING WPL 6757926 Contact Us For Availability

54

CLAMP, TUBING WPL 535168 Contact Us For Availability

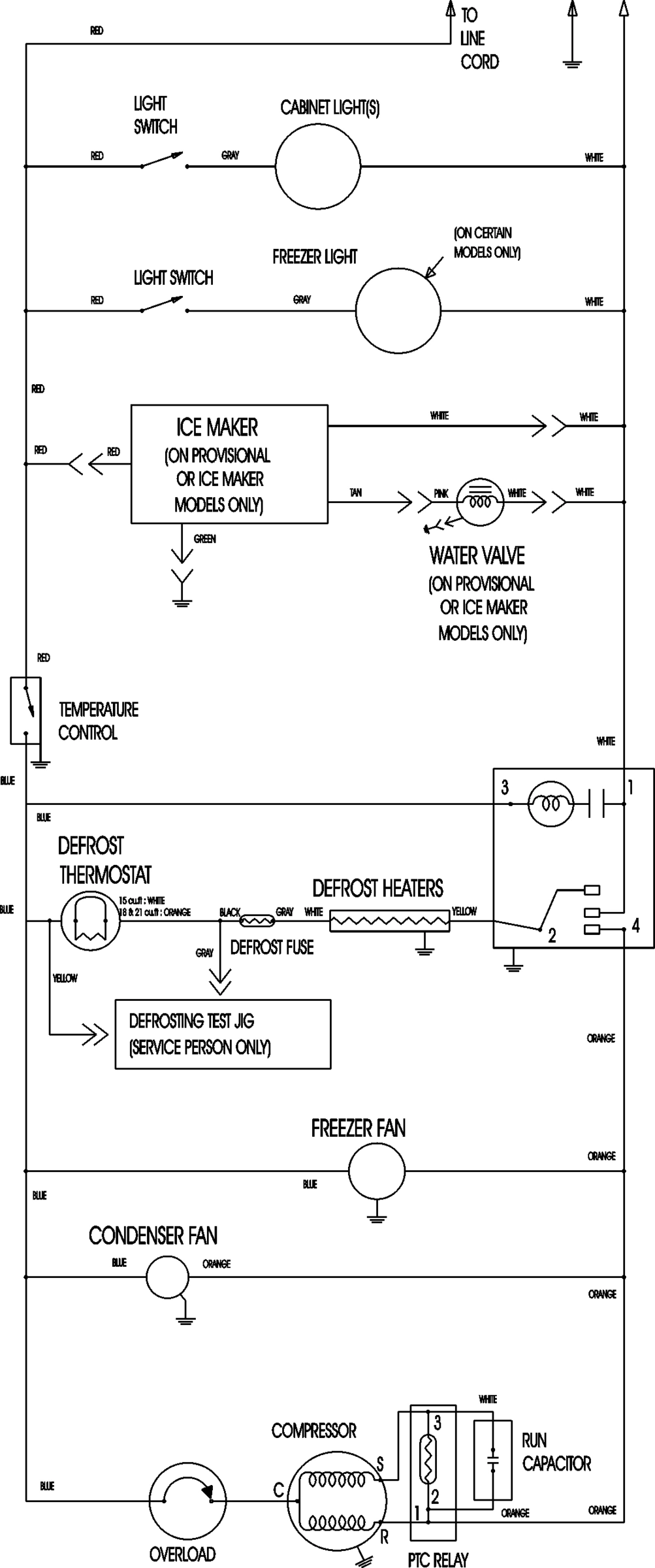

NI

WIRING INFORMATION WPL 15003630 Contact Us For Availability
