Model LG LRSC26960TT – Common Parts & Diagrams
Diagram 0

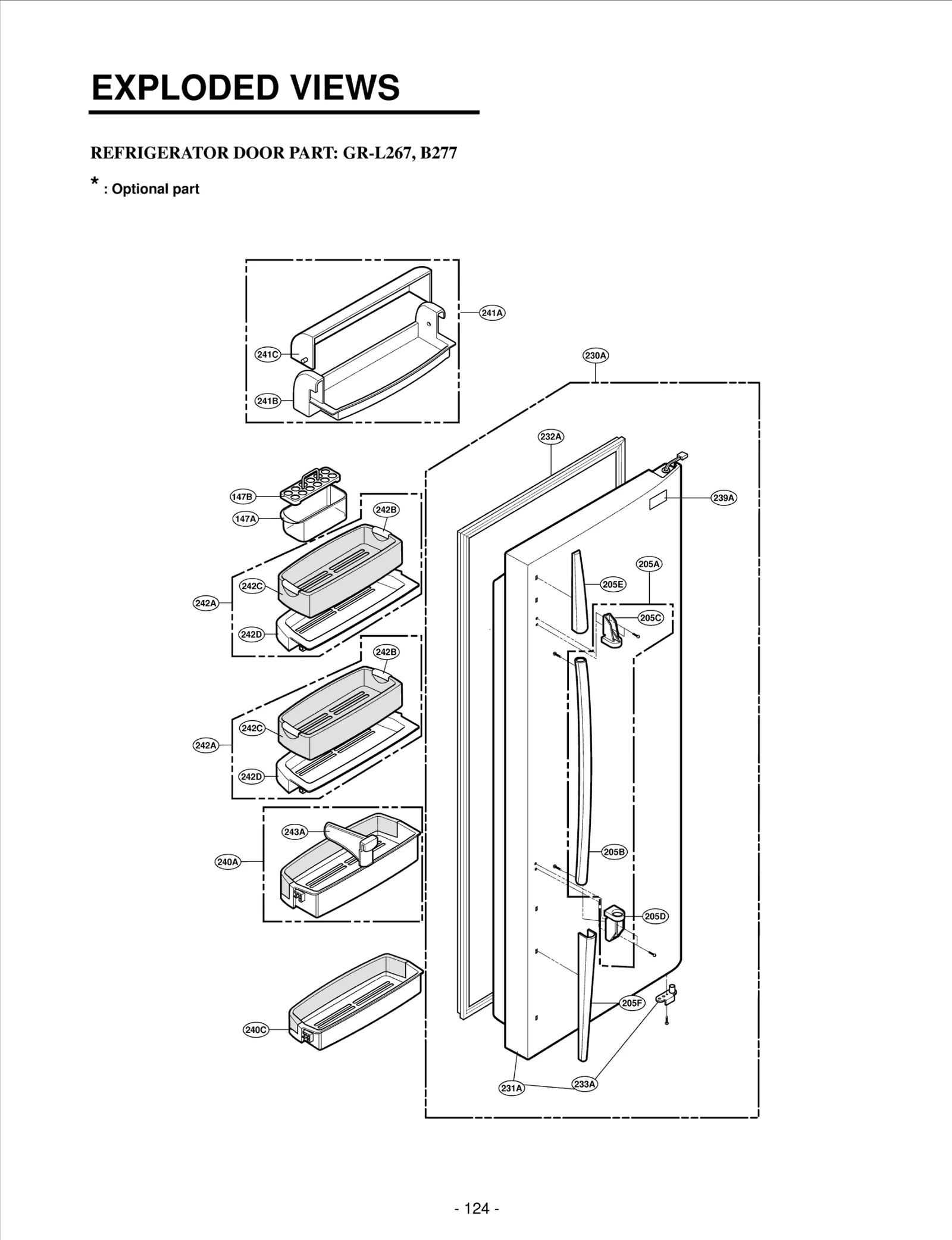

Diagram 1
Diagram 2

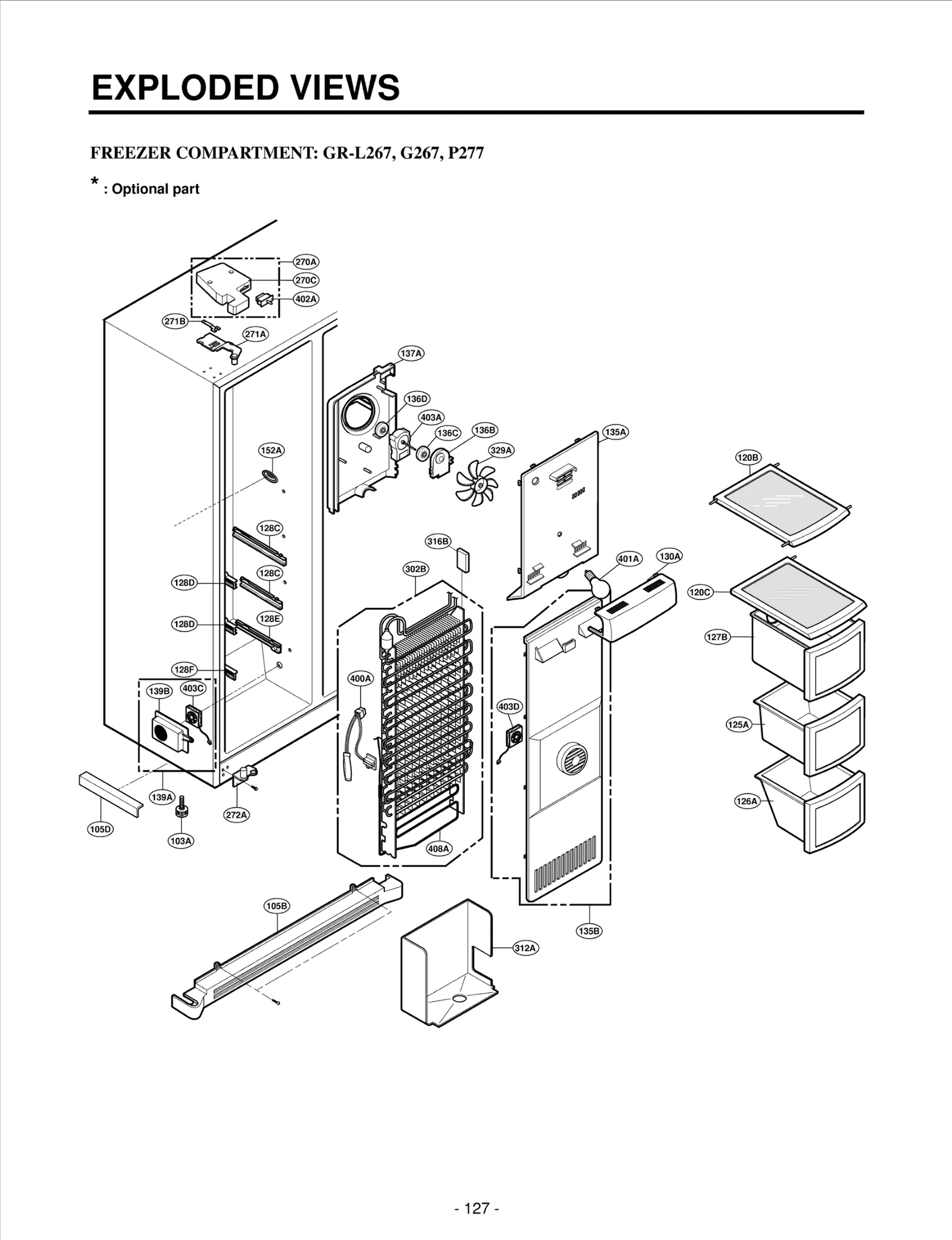

Diagram 3

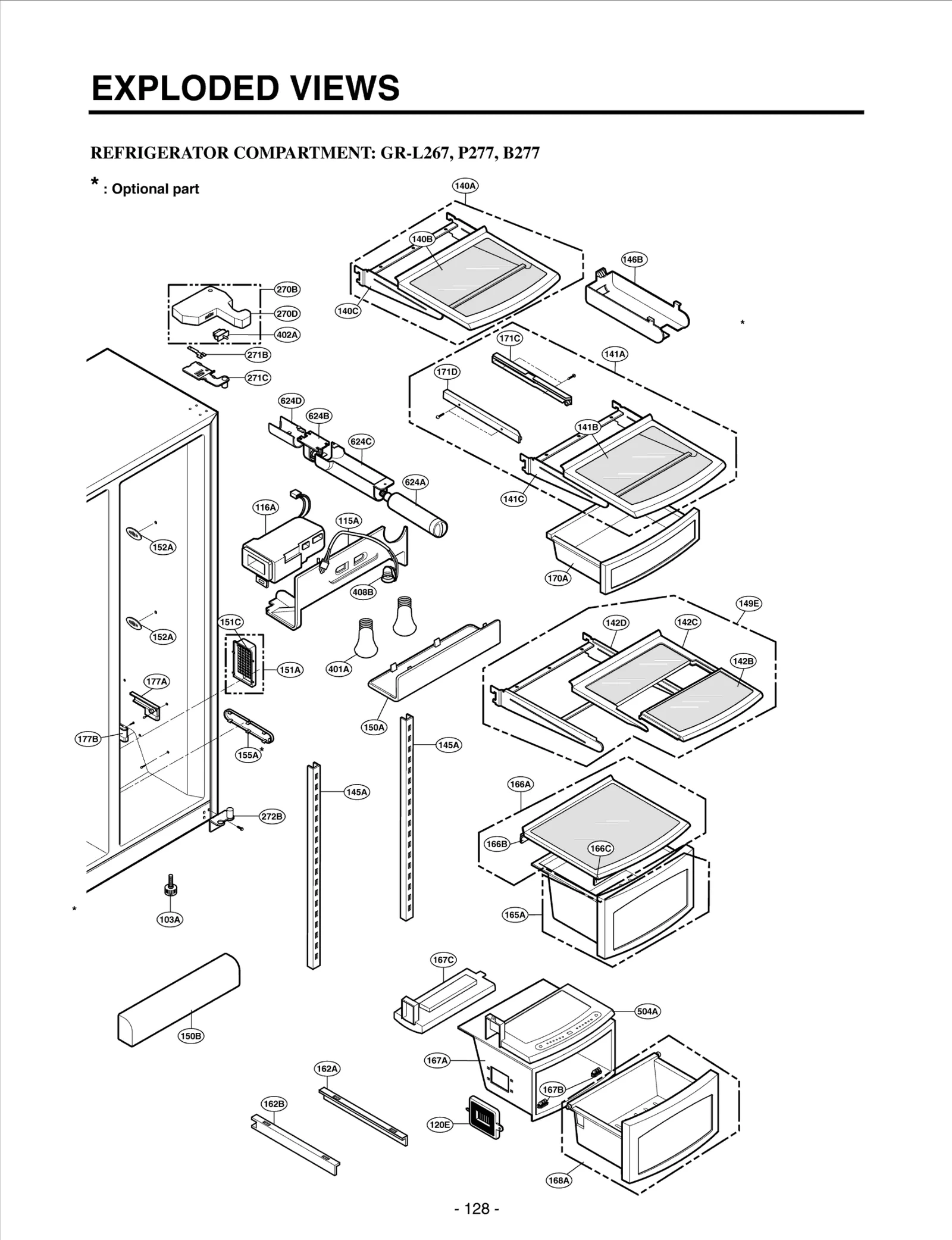

Diagram 4

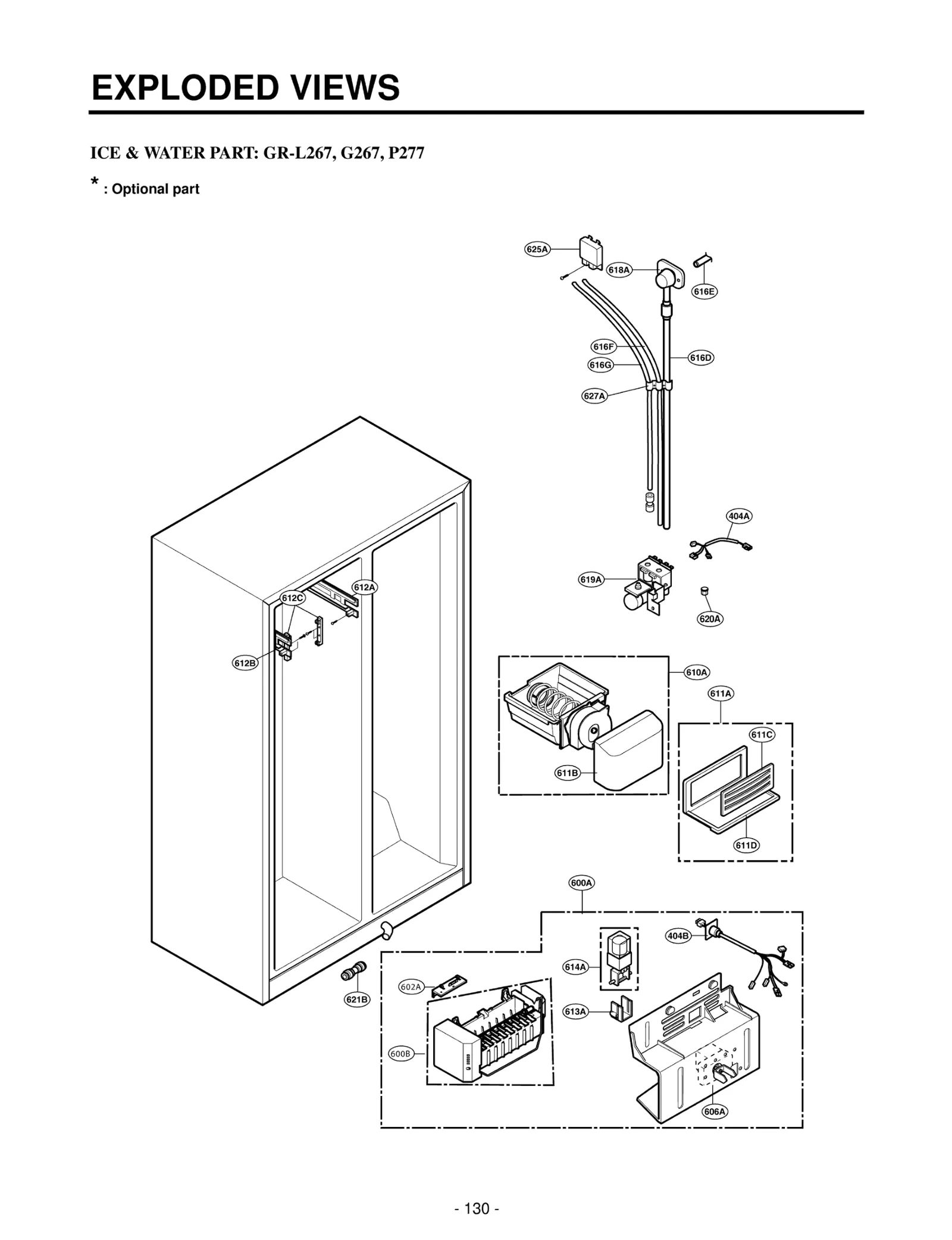

Diagram 5

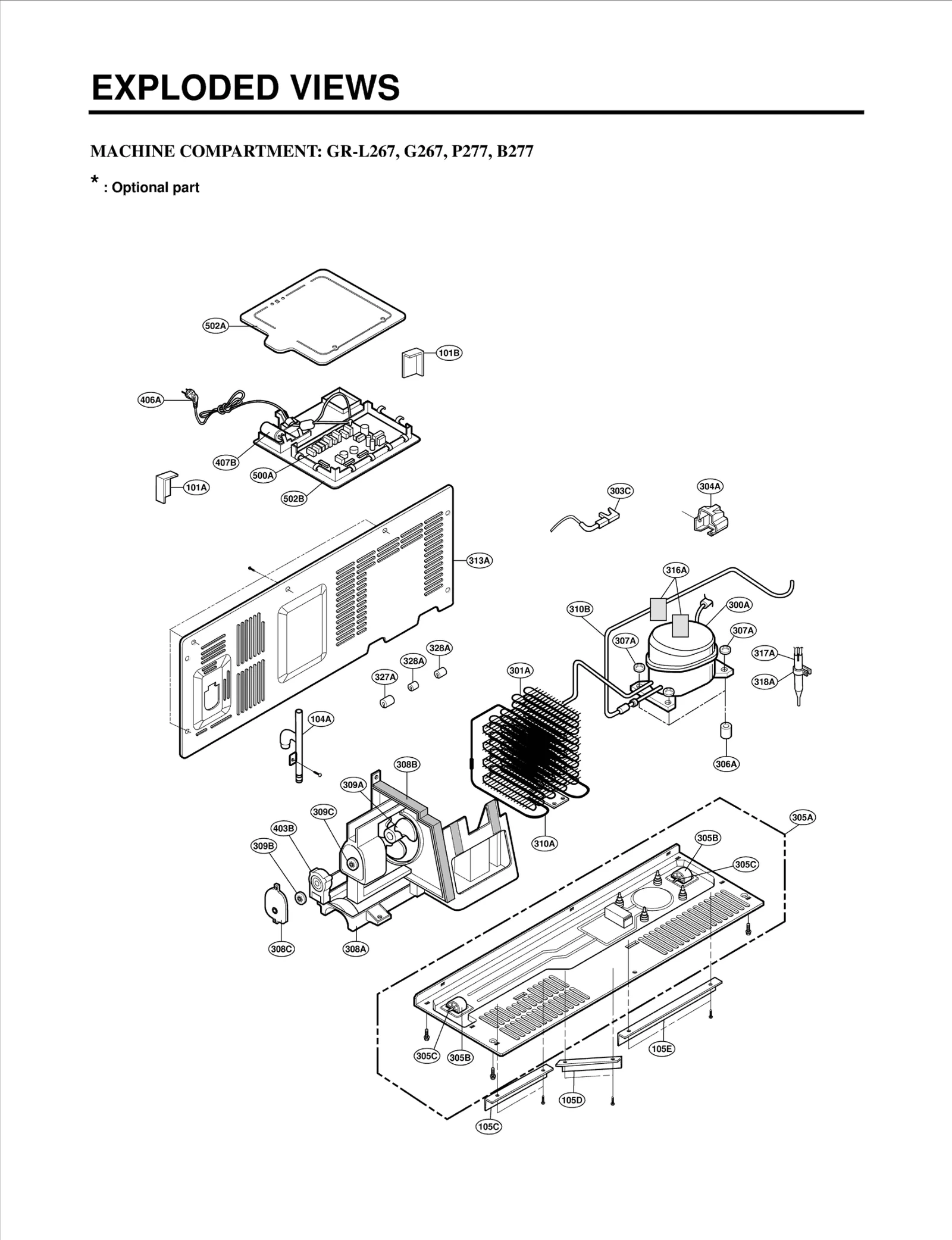

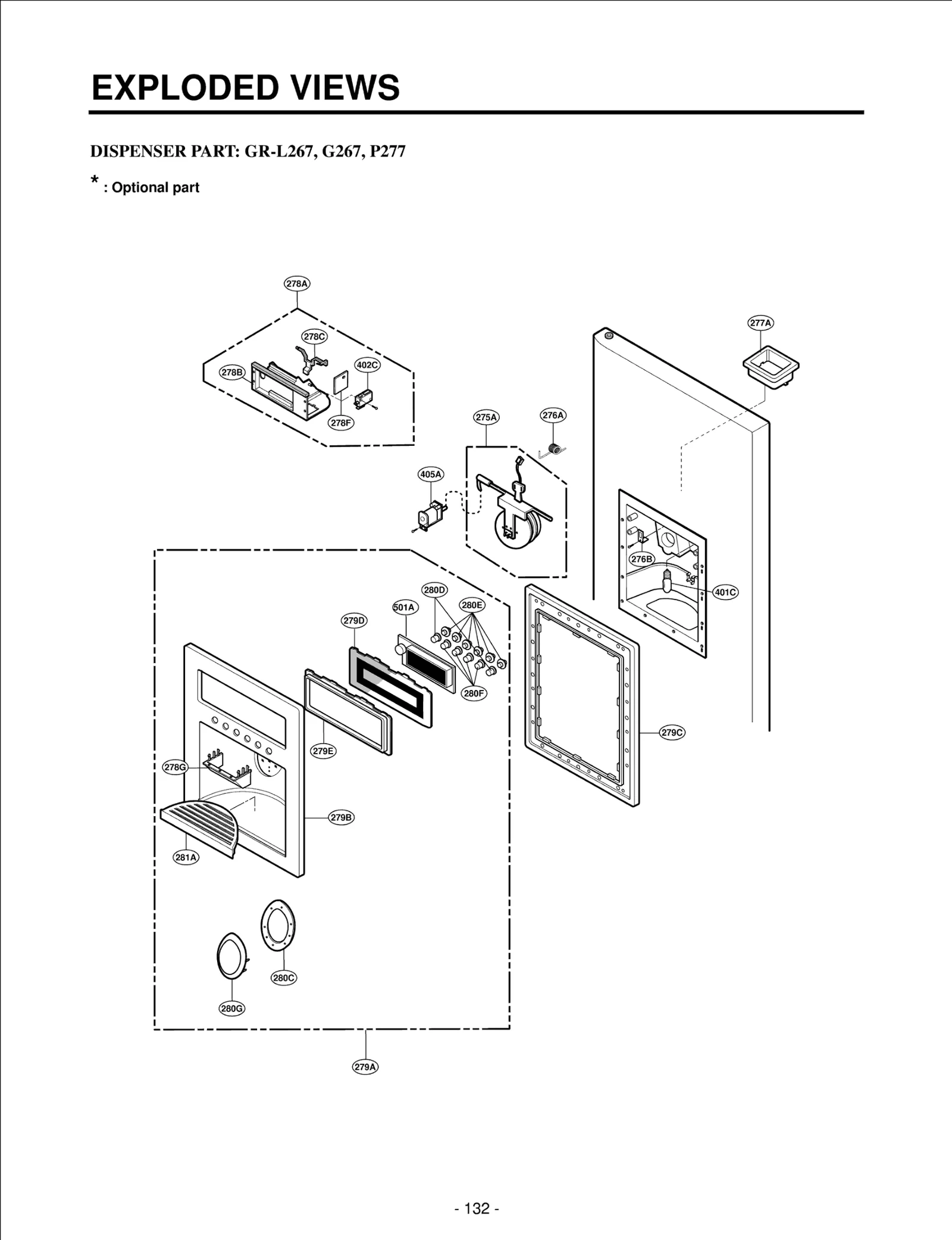

Diagram 6
Diagram 7
Common parts from model LG LRSC26960TT
101B
HANDLE,BACK LGE 3650JA3041X Contact Us For Availability
105B
Cover Assembly,Lower LGE 3551JA1062Q Contact Us For Availability
105C
SKIRT,LOWER LGE 5070JA3002F Contact Us For Availability
105D
SKIRT,LOWER LGE 5070JA3002G Contact Us For Availability
105E
SKIRT,LOWER LGE 5070JA3002J Contact Us For Availability
121A
TRAY,PIZZA LGE 3390JA1193A Contact Us For Availability
128G
GUIDE ASSEMBLY,RAIL LEFT LGE 4975JA1017A Contact Us For Availability
137B
SHROUD ASSEMBLY,F LGE 4999JA2025A Contact Us For Availability
145A
HOLDER,SHELF LGE 4930JA2023B Contact Us For Availability
146B
CAN,SERVER LGE 5044JA1001A Contact Us For Availability
149E
SHELF ASSEMBLY,R LGE 5027JA1060A Contact Us For Availability
150A
COVER,LAMP LGE 3550JA1297A Contact Us For Availability
150B
COVER,LAMP LGE 3550JA1208A Contact Us For Availability
151A
COVER ASSEMBLY,DEODORIZER LGE 3551JA2053E Contact Us For Availability
152A
COVER,SENSOR LGE 3550JA2035D Contact Us For Availability
155A
COVER,DUCT LGE 3550JA2182A Contact Us For Availability
165A
TRAY ASSEMBLY,VEGETABLE LGE 3391JA1082A Contact Us For Availability
166A
Cover Assembly,Tray LGE 3551JA1063C Contact Us For Availability
166B
GASKET,COVER TRAY LGE 4986JA3015A Contact Us For Availability
166C
Cover Assembly,Tray LGE 3551JA1064E Contact Us For Availability
167A
CASE ASSEMBLY,MAGIC ROOM LGE 3111JA1033C Contact Us For Availability
167C
COVER ASSEMBLY,THERMO LGE 3551JA1068E Contact Us For Availability
168A
TRAY ASSEMBLY,MAGIC ROOM LGE 3391JA1084A Contact Us For Availability
170A
TRAY ASSEMBLY,SNACK LGE 3391JA1079A Contact Us For Availability
171C
GUIDE ASSY,RAIL LGE 4975JA1012A Contact Us For Availability
171D
GUIDE ASSY,RAIL LGE 4975JA1012B Contact Us For Availability
205B
HANDLE,F LGE 3650JA1164B Contact Us For Availability
205C
HANDLE,PIECE LGE 3650JA2100D Contact Us For Availability
205E
HANDLE,DECO LGE 3650JA2098B Contact Us For Availability
205F
HANDLE,DECO LGE 3650JA1177B Contact Us For Availability
240A
BASKET ASSEMBLY,DOOR LGE 5005JA1020A Contact Us For Availability
240C
BASKET ASSEMBLY,DOOR LGE 5005JA1021A Contact Us For Availability
270B
COVER ASSEMBLY,HINGE LGE 3551JA1084E Contact Us For Availability
270C
COVER,HINGE LGE 3550JA1299F Contact Us For Availability
270D
COVER,HINGE LGE 3550JA1299E Contact Us For Availability
271C
HINGE ASSEMBLY,U LGE 4775JA2084A Contact Us For Availability
272B
Bracket Assembly,Hinge LGE 4811JA1050C Contact Us For Availability
277A
COVER LGE 3550JA2067A Contact Us For Availability
278A
NLA-12-13-06 LGE 3017JA2004K Contact Us For Availability
278B
FRAME,FUNNEL LGE 3210JA0006S Contact Us For Availability
278C
LEVER,DISPENSER LGE 4510JA2022A Contact Us For Availability
278D
FUNNEL LGE 3016JA2002B Contact Us For Availability
278F
SHEET (MECH),DUCT LGE 3858JA3005C Contact Us For Availability
278J
Funnel Assembly LGE ADW32476311 Contact Us For Availability
279A
FRAME ASSEMBLY,DISPLAY LGE 3211JA1042C Contact Us For Availability
279B
COVER,DISPENSER LGE 3550JD1085B Contact Us For Availability
279C
DECO,DISPENSER LGE 3806JA0019D Contact Us For Availability
279D
FRAME,DISPLAY LGE 3210JA2005B Contact Us For Availability
279E
DECO,FRAME DSP LGE 3806JA2045D Contact Us For Availability
280C
HOLDER,BUTTON LGE 4930JA2059B Contact Us For Availability
280D
BUTTON,DECO LGE 5020JA3027C Contact Us For Availability
280F
BUTTON,DECO LGE 5020JA3027A Contact Us For Availability
280G
LEVER,DISPENSER LGE 4510JA2017B Contact Us For Availability
300A
COMPRESSOR,SET ASSEMBLY LGE 2521CLA8101 Contact Us For Availability
301A
CONDENSER ASSY,WIRE LGE 5403JA1024A Contact Us For Availability
303C
O.L.P LGE 6750C-0002Z Contact Us For Availability
305A
COMP BASE ASSEMBLY,STD LGE 3103JA1036B Contact Us For Availability
305B
ROLLER LGE 4580JA3024A Contact Us For Availability
306A
STAND,COMP LGE 5028JA3002A Contact Us For Availability
308A
TRAY,DRIP LGE 3390JA1109A Contact Us For Availability
308B
GUIDE,FAN LGE 4974JA1053A Contact Us For Availability
308C
COVER,MOTOR LGE 3550JA2147A Contact Us For Availability
310A
PIPE ASSEMBLY,JOINT LGE 5201JA1067C Contact Us For Availability
313A
COVER ASSEMBLY,BACK-M/C LGE 3551JA1071A Contact Us For Availability
318A
Holder,Drier LGE 4930JA3034B Contact Us For Availability
401A
LAMP,[INCANDESCENT] LGE 6912JB2004M Contact Us For Availability
403D
MOTOR ASSEMBLY,FAN LGE 4681JB2005B Contact Us For Availability
404B
HARNESS,JOINT LGE 6877JB1272A Contact Us For Availability
405A
SOLENOID ASSY LGE 6421JB2002D Contact Us For Availability
406A
POWER CORD ASSEMBLY LGE 6411JB1033C Contact Us For Availability
407B
CAPACITOR,DRAWING LGE 0CZZJB2013A Contact Us For Availability
408A
HEATER,SHEATH LGE 5300JB1102D Contact Us For Availability
408B
Drawing,Assembly LGE 6621JK2002E Contact Us For Availability
500B
PWB(PCB) ASSEMBLY,SUB LGE 6871JB1058E Contact Us For Availability
501A
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871JB1232D Contact Us For Availability
502A
Cover,PCB LGE 3550JA1395C Contact Us For Availability
502B
CASE,PWB LGE 3110JA1071A Contact Us For Availability
504A
COVER ASSEMBLY,TRAY LGE 3551JA1066A Contact Us For Availability
600A
MOTOR ASSEMBLY,DISPENSER LGE 4681JA1005J Contact Us For Availability
600B
ICE MAKER ASSEMBLY LGE 5989JA0002G Contact Us For Availability
602A
Bracket,Ice Maker LGE 4810JA2078A Contact Us For Availability
606A
Motor, AC Auger LGE EAU33481404 Contact Us For Availability
606A
MOTOR ASSEMBLY,GEARED LGE 4681JB1026K Contact Us For Availability
610A
BANK ASSEMBLY,ICE LGE 5075JA1029B Contact Us For Availability
611B
COVER,BANK ICE LGE 3550JD1086A Contact Us For Availability
611C
GUIDE,AIR LGE 4974JD1003B Contact Us For Availability
611D
SHELF,F LGE 5026JA1195A Contact Us For Availability
612A
GUIDE,RAIL LGE 4974JA1063A Contact Us For Availability
612B
GUIDE,RAIL LGE 4974JA1064A Contact Us For Availability
612C
SUPPORTER,G/M LGE 4980JA2071A Contact Us For Availability
614A
SOLENOID ASSY,MAIN LGE 6421JA3001D Contact Us For Availability
614A
Solenoid Assembly LGE EBE60661303 Contact Us For Availability
616D
TUBE,PE LGE 5210JA3005F Contact Us For Availability
621B
CONNECTOR (MECH),TUBE LGE 4932JA3012C Contact Us For Availability
624B
FILTER(MECH),HEAD LGE 5230JA2003A Contact Us For Availability
624C
COVER,FILTER LGE 3550JD1087B Contact Us For Availability
625A
COVER,TUBE LGE 3550JA2184A Contact Us For Availability
627A
HOLDER,PIPE LGE 4930JA3081A Contact Us For Availability
OM
MANUAL,OWNERS LGE 3828JD8587G Contact Us For Availability
PD
PACKING,UNDER DOOR LGE 3920JC3025D Contact Us For Availability
PD
PACKING,UNDER DOOR LGE 3920JC3026A Contact Us For Availability
SM
Manual,Service LGE 3828JD8589G Contact Us For Availability
× ![]()
