LG LMX25985SB Parts List | Reliable Parts

103A

3650JA2113P LG Rear Handle Backorder LGE 3650JA2113P $7.08

View on Model

105A

5251JA3003D LG Drain Tube Assembly In Stock LGE 5251JA3003D $10.63

View on Model

106A

AFC72909201 LG Leg Assembly Adjust Backorder LGE AFC72909201 $26.61

View on Model

152B

MCK39131501 LG Sensor Cover Backorder LGE MCK39131501 $13.94

View on Model

158A

MCK38019301 LG Lamp Cover Backorder LGE MCK38019301 $34.08

View on Model

207B

COVER,HINGE LGE 3550JJ1097F Contact Us For Availability

View on Model

212D

Handle Assembly,Freezer LGE AED37133118 Contact Us For Availability

View on Model

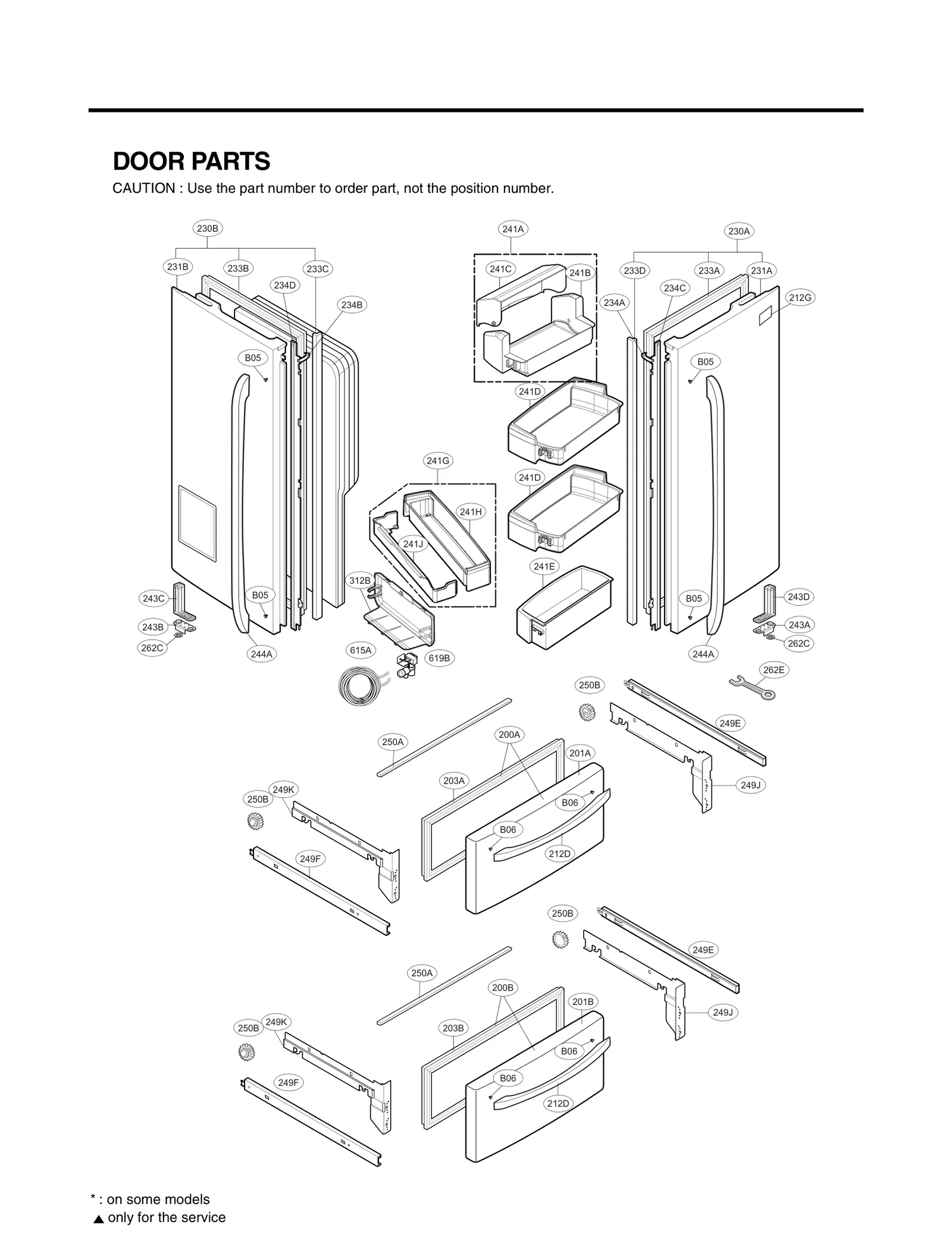

233A

Gasket Assembly,Door LGE 4987JJ2002Q Contact Us For Availability

View on Model

233B

Gasket Assembly,Door LGE 4987JJ2002R Contact Us For Availability

View on Model

233C

MCK59045801 LG Refrigerator Frame Cover Backorder LGE MCK59045801 $20.63

View on Model

233D

MCK59045802 LG Refrigerator Shelf Frame Cover Backorder LGE MCK59045802 $20.63

View on Model

234A

CAM,SHAFT (right) LGE 4430JJ2004A Contact Us For Availability

View on Model

234B

CAM,SHAFT (left) LGE 4430JJ2004B Contact Us For Availability

View on Model

234C

HOLDER ASSEMBLY,GASKET LGE 4931JJ2002C Contact Us For Availability

View on Model

234D

HOLDER ASSEMBLY,GASKET LGE 4931JJ2002D Contact Us For Availability

View on Model

241A

Basket Assembly,Door LGE AAP33686302 Contact Us For Availability

View on Model

241C

Basket,Window LGE MAN38143001 Contact Us For Availability

View on Model

241G

Basket Assembly,Door LGE AAP33726606 Contact Us For Availability

View on Model

243C

AEH36821908 LG Refrigerator Center Door Hinge Backorder LGE AEH36821908 $84.03

View on Model

249A

ACJ50677703 LG Connector Assembly Backorder LGE ACJ50677703 $145.59

View on Model

249B

Connector Assembly LGE ACJ50677704 Contact Us For Availability

View on Model

249E

MGT42902801 LG Slide Rail Assembly Backorder LGE MGT42902801 $109.26

View on Model

249F

MGT42902802 LG Slide Rail Backorder LGE MGT42902802 $109.26

View on Model

249J

MCD42341602 LG Refrigerator Rail Connector Backorder LGE MCD42341602 $56.99

View on Model

250B

4470JA2007A LG Refrigerator Ice Gear In Stock LGE 4470JA2007A $7.08

View on Model

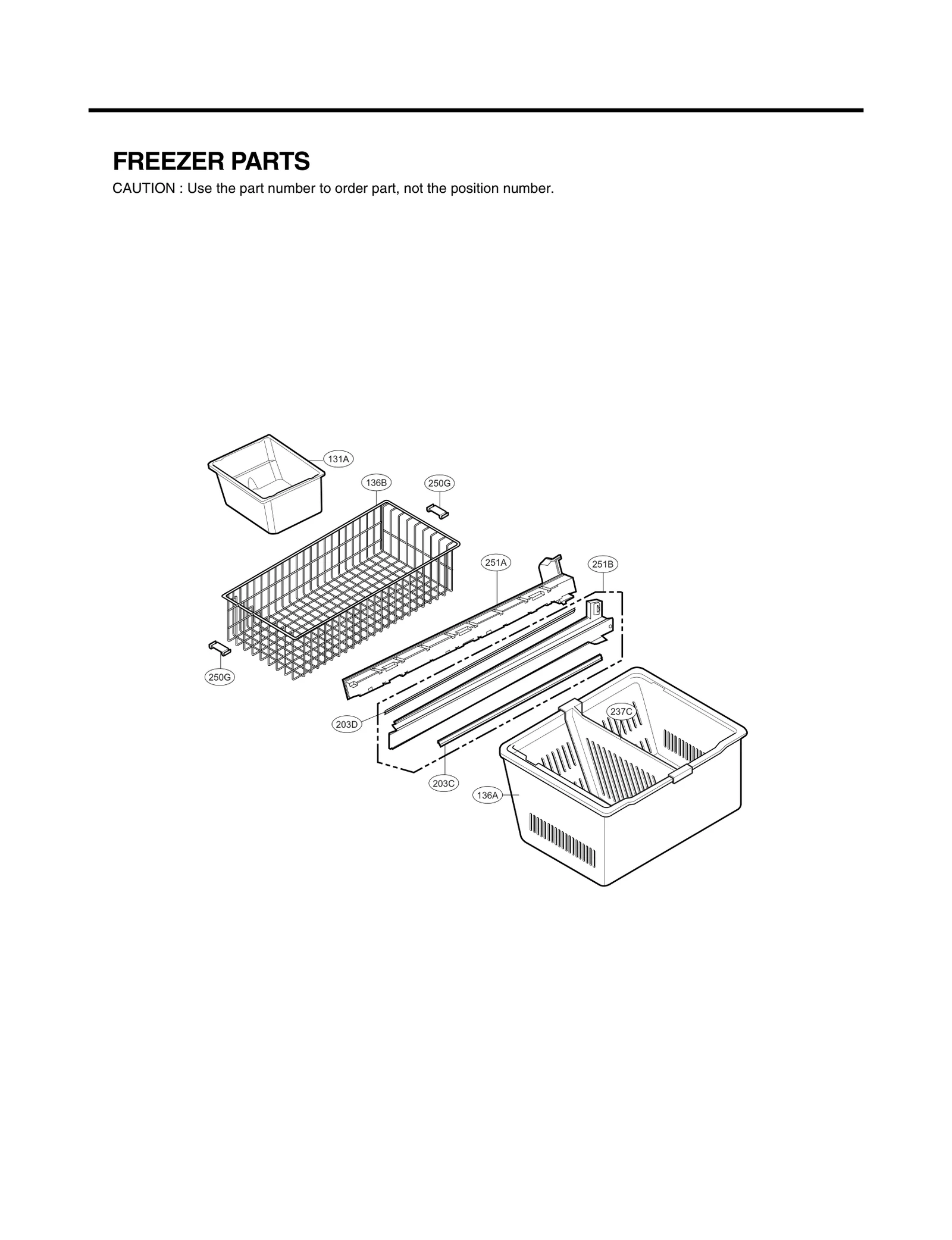

251A

ACQ36979201 LG Cover Front Assembly Backorder LGE ACQ36979201 $47.25

View on Model

262C

MGZ42997101 LG Ring Backorder LGE MGZ42997101 $7.08

View on Model

262E

MHU38218907 LG Refrigerator Spanner Backorder LGE MHU38218907 $16.85

View on Model

271B

AEH60614102 LG Upper Hinge Assembly Backorder LGE AEH60614102 $34.08

View on Model

271D

AEH60614101 LG Upper Hinge Assembly Backorder LGE AEH60614101 $34.08

View on Model

275A

Cap Assembly,Duct LGE ABN72909901 Contact Us For Availability

View on Model

276A

4970JA3011C LG Refrigerator Lever Spring In Stock LGE 4970JA3011C $7.08

View on Model

276B

4930JA3043A LG Refrigerator Holder Lever Backorder LGE 4930JA3043A $7.08

View on Model

278D

MDR42967401 LG Funnel Backorder LGE MDR42967401 $7.08

View on Model

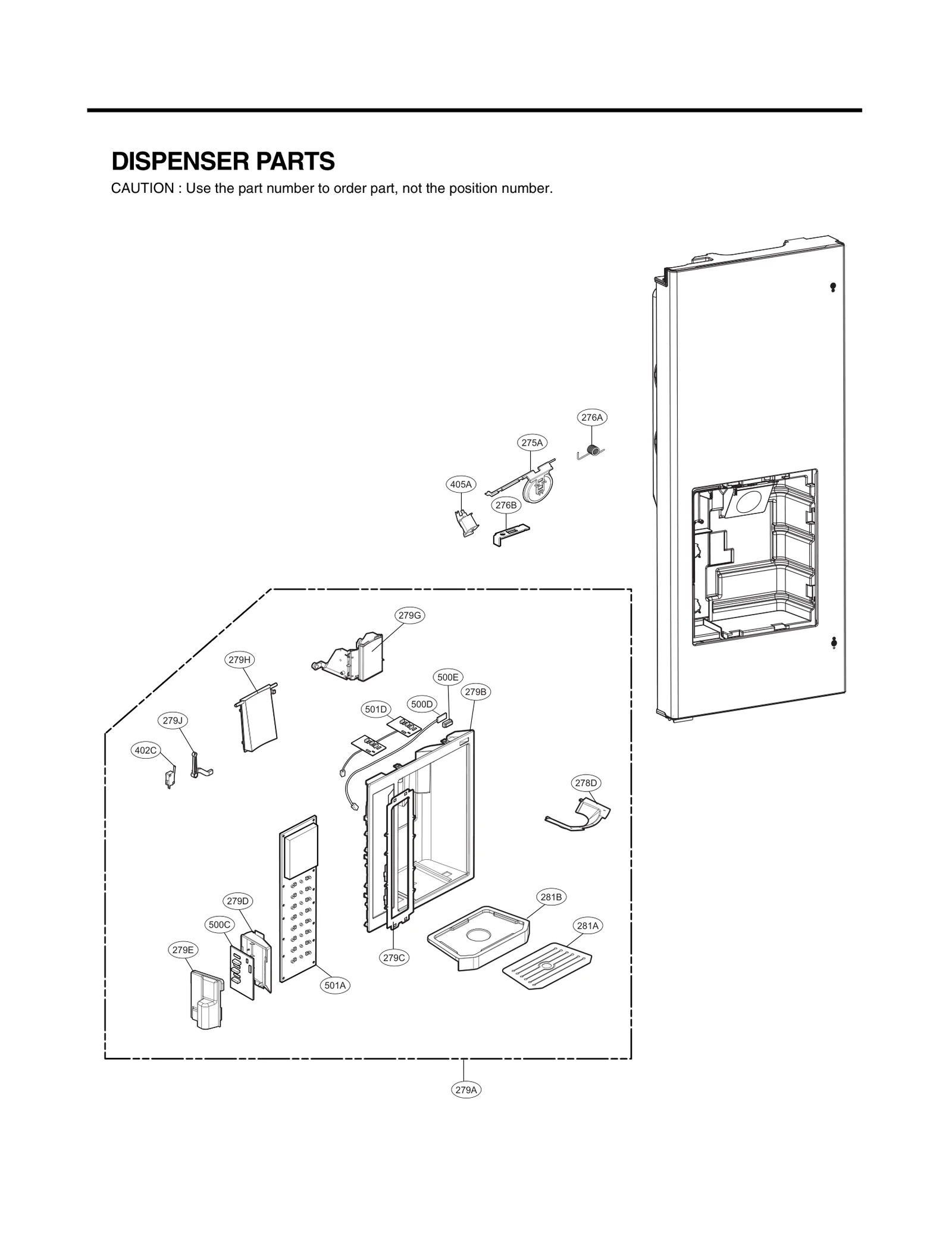

279A

Cover Assembly,Display LGE ACQ36821615 Contact Us For Availability

View on Model

279E

MCK38209801 LG PCB Cover Backorder LGE MCK38209801 $54.00

View on Model

279G

Button Assembly LGE ABH37000106 Contact Us For Availability

View on Model

279H

Button,Lever LGE MBG42906805 Contact Us For Availability

View on Model

279J

Button,Lever LGE MBG38252601 Contact Us For Availability

View on Model

281A

MCR42340703 LG Drain Decor Backorder LGE MCR42340703 $29.64

View on Model

281B

Tray,Drain LGE MJS42875203 Contact Us For Availability

View on Model

300A

TCA37091210 LG Compressor Set Assembly In Stock LGE TCA37091210 $361.61

View on Model

303A

Thermistor Assembly,PTC LGE EBG31940241 Contact Us For Availability

View on Model

303B

EBG62325702 LG Refrigerator Thermistor Start Backorder LGE EBG62325702 $125.59

View on Model

303C

Overload Protect LGE 6750C-0004U Contact Us For Availability

View on Model

304A

3550C-0042C LG Relay Cover Backorder LGE 3550C-0042C $16.85

View on Model

310B

4J00977P LG Compressor Sealing Pipe In Stock LGE 4J00977P $7.08

View on Model

313A

COVER ASSEMBLY,BACK-M/C LGE 3551JJ2018A Contact Us For Availability

View on Model

314A

4620JA3015A LG Refrigerator Compressor Stoppe Backorder LGE 4620JA3015A $7.08

View on Model

315B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $20.63

View on Model

315C

1PZZJA3013B LG Common Pin In Stock LGE 1PZZJA3013B $7.08

View on Model

316A

5072JA3003F LG Refrigerator Damper Backorder LGE 5072JA3003F $7.08

View on Model

316B

5072JA3003G LG Noise Damper Backorder LGE 5072JA3003G $6.14

View on Model

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $80.39

View on Model

318A

4930JA3034A LG Dryer Holder Backorder LGE 4930JA3034A $7.08

View on Model

329A

5901JA1021A LG Refrigerator Fan Blade In Stock LGE 5901JA1021A $12.37

View on Model

400A

6615JB2005H LG Refrigerator Defrost Sensor Co In Stock LGE 6615JB2005H $22.43

View on Model

402C

6600JB3001E LG Micro Switch Backorder LGE 6600JB3001E $16.85

View on Model

404A

4681JB1027C LG Evaporator Fan Motor In Stock LGE 4681JB1027C $108.91

View on Model

405A

6421JB2002L LG Reversing Valve Solenoid Backorder LGE 6421JB2002L $36.58

View on Model

405A

6421JB2002P LG Solenoid Reversing Valve Backorder LGE 6421JB2002P $26.63

View on Model

405C

5040JA2009B LG Refrigerator Damper Support Mo Backorder LGE 5040JA2009B $7.08

View on Model

405F

5040JA2004B LG Refrigerator Motor Rubber Grom Backorder LGE 5040JA2004B $7.08

View on Model

406B

6600JB1010K LG Refrigerator Push Button Door Backorder LGE 6600JB1010K $17.93

View on Model

406D

Holder Assembly,Gasket LGE 4931JA3006A Contact Us For Availability

View on Model

407B

4810JJ0003B LG Motor Bracket Backorder LGE 4810JJ0003B $20.63

View on Model

408A

5300JK1005D LG Refrigerator Freezer Defrost H Backorder LGE 5300JK1005D $102.25

View on Model

409D

EAV43060808 LG Refrigerator LED Assembly Backorder LGE EAV43060808 $151.69

View on Model

409E

EAV43060807 LG Refrigerator LED Assembly Backorder LGE EAV43060807 $125.59

View on Model

410G

0CZZJB2014S LG Refrigerator Capacitor Backorder LGE 0CZZJB2014S $28.25

View on Model

411A

Power Cord Assembly LGE 6411JB1042L Contact Us For Availability

View on Model

420A

4681JB1029D LG Refrigerator Condenser Fan Mot In Stock LGE 4681JB1029D $119.17

View on Model

500A

PCB Assembly,Main LGE EBR41956417 Contact Us For Availability

View on Model

500C

PCB Assembly,Sub LGE 6871JB2061C Contact Us For Availability

View on Model

500D

PCB Assembly,Timer/Key LGE EBR36498901 Contact Us For Availability

View on Model

500E

ABH34641202 LG Button Assembly Backorder LGE ABH34641202 $29.64

View on Model

501A

PCB Assembly,Display LGE EBR42479207 Contact Us For Availability

View on Model

501D

PCB Assembly,Display LGE 6871JB2074D Contact Us For Availability

View on Model

600A

AEQ36756901 LG Refrigerator Ice Maker Kit Ass In Stock LGE AEQ36756901 $233.09

View on Model

600B

6500JB1008A LG Temperature Sensor Backorder LGE 6500JB1008A $20.63

View on Model

603B

4930JA3091A LG Refrigerator Water Line Connec Backorder LGE 4930JA3091A $7.08

View on Model

603C

4004JA3002A LG Refrigerator Ice Maker Water S Backorder LGE 4004JA3002A $16.85

View on Model

606A

EAU33895304 LG Auger Motor AC Backorder LGE EAU33895304 $171.02

View on Model

610A

3550JA2247A LG Refrigerator Sensor Cover Backorder LGE 3550JA2247A $7.08

View on Model

610D

6500JB2001B LG Refrigerator Humidity Sensor T In Stock LGE 6500JB2001B $29.27

View on Model

611A

Bucket Assembly,Ice LGE 5075JA1044K Contact Us For Availability

View on Model

612A

Motor,AC LGE 4681JA1006K Contact Us For Availability

View on Model

612A

Motor, AC Dispenser LGE EAU60943411 Contact Us For Availability

View on Model

614A

Solenoid Assembly LGE EBE60661303 Contact Us For Availability

View on Model

614A

Solenoid Assembly LGE 6421JA3001N Contact Us For Availability

View on Model

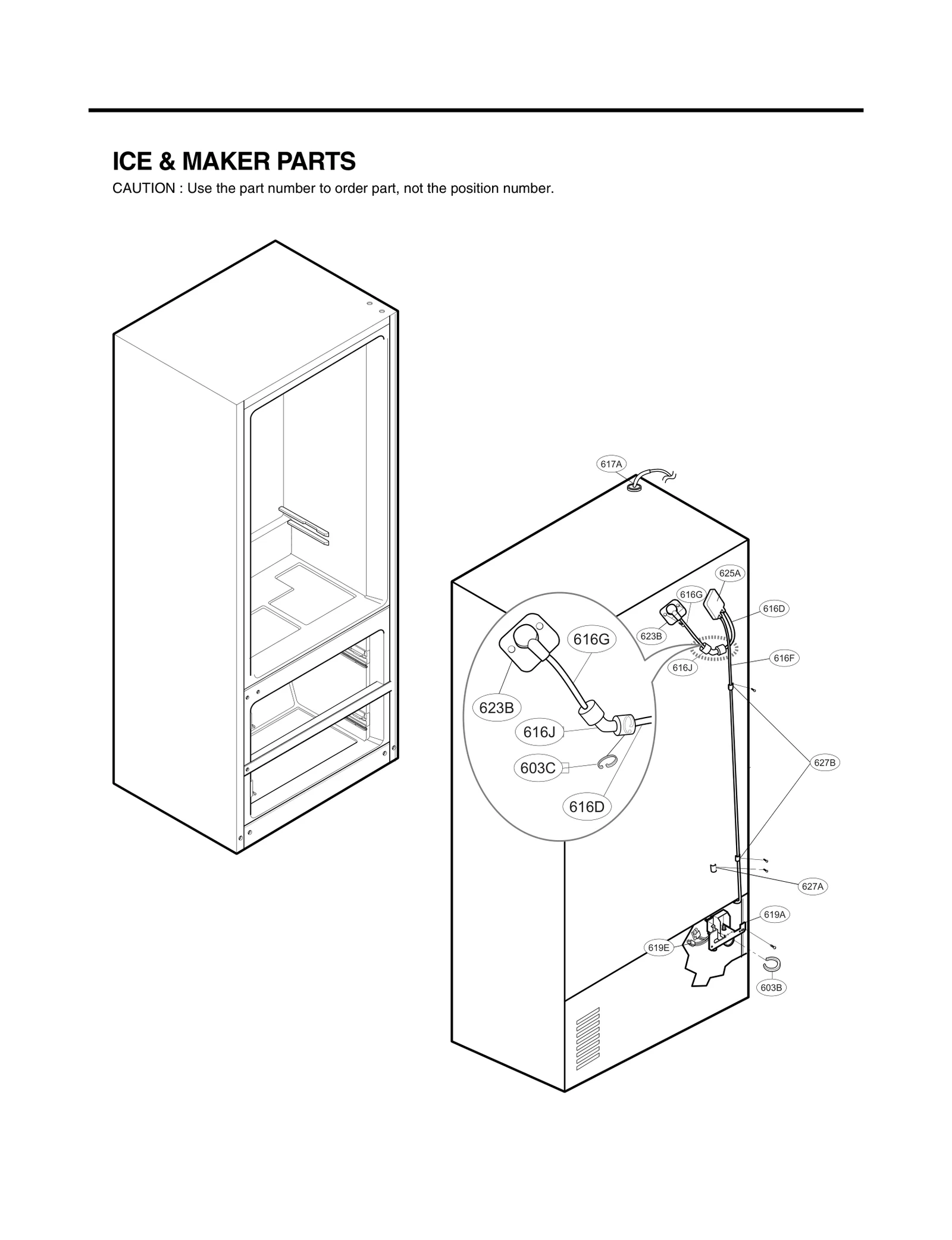

616D

MJU39256423 LG Tube Plastic In Stock LGE MJU39256423 $7.08

View on Model

616F

MJU62070602 LG Refrigerator Plastic Water Tub In Stock LGE MJU62070602 $9.87

View on Model

616G

AJR56656501 LG Refrigerator Ice and Water Tub Backorder LGE AJR56656501 $26.61

View on Model

616H

MCD38280801 LG Tube Connector Backorder LGE MCD38280801 $17.93

View on Model

616J

4932JA3009A LG Refrigerator Elbow Tube Union Backorder LGE 4932JA3009A $16.85

View on Model

617A

AJR56656503 LG Refrigerator Ice Water Line Tu In Stock LGE AJR56656503 $29.27

View on Model

619A

MJX41178908 LG Refrigerator Water Inlet Fill In Stock LGE MJX41178908 $47.97

View on Model

619B

5221JB2010G LG Water Valve Assembly Backorder LGE 5221JB2010G $201.93

View on Model

619E

Drawing,Assembly LGE 6877JB3036V Contact Us For Availability

View on Model

623B

5006JJ2009A LG Cap Cover Backorder LGE 5006JJ2009A $7.08

View on Model

624A

5231JA2006F LG Refrigerator Water Filter Cart In Stock LGE 5231JA2006F $54.45

View on Model

624C

Cover,Filter LGE 3550JD1128C Contact Us For Availability

View on Model

624D

FILTER(MECH),HEAD LGE 5230JA2003A Contact Us For Availability

View on Model

625A

3550JA2184B LG Refrigerator Tube Cover Backorder LGE 3550JA2184B $11.24

View on Model

627A

4930JA3054A LG Pipe Holder Backorder LGE 4930JA3054A $7.08

View on Model

627B

MEG42758601 LG Pipe Holder Backorder LGE MEG42758601 $7.08

View on Model

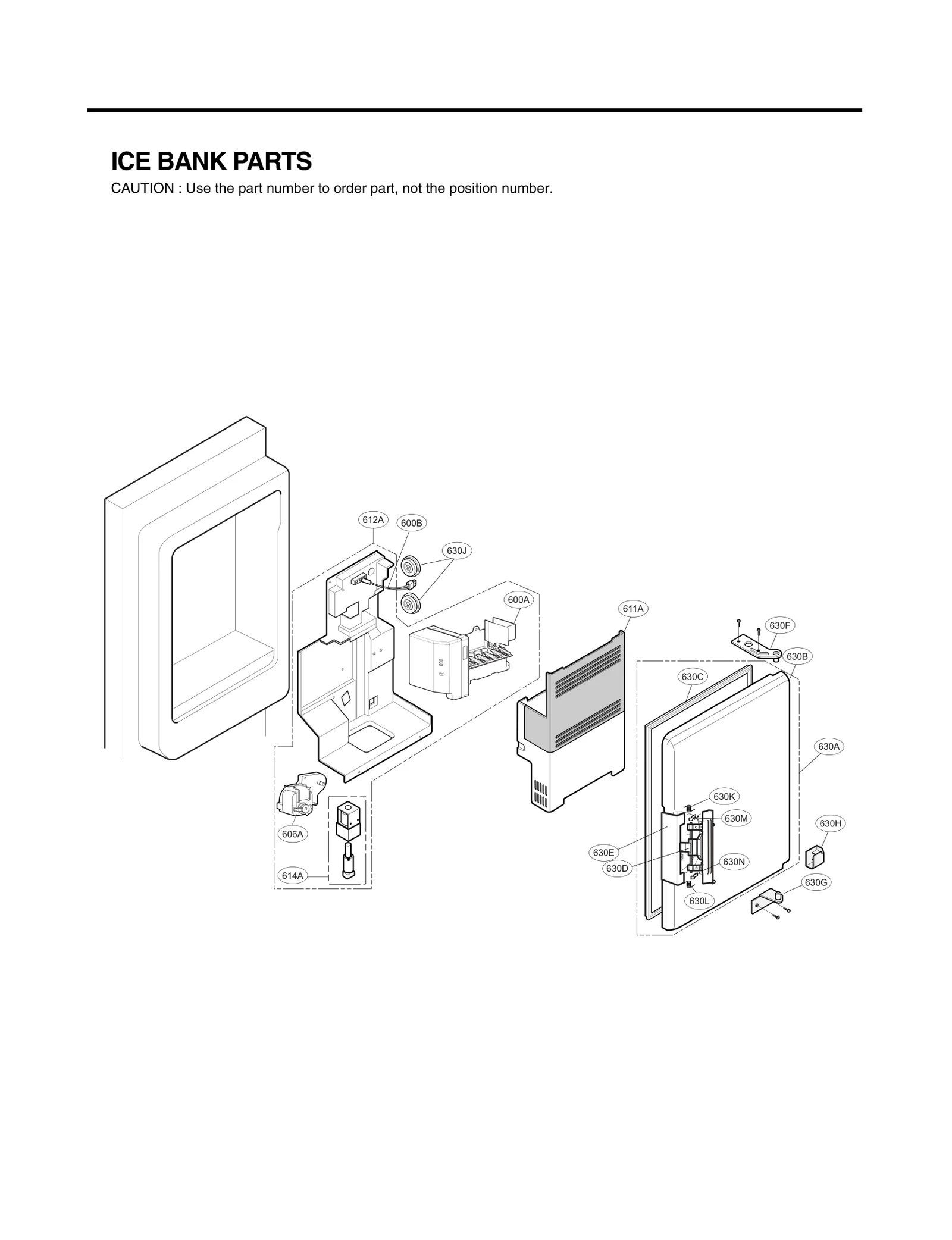

630A

Door Assembly,Freeze Room LGE ADC33751110 Contact Us For Availability

View on Model

630B

Door Foam Assembly LGE ADD33178704 Contact Us For Availability

View on Model

630C

Gasket Assembly,Door LGE 4987JA2012B Contact Us For Availability

View on Model

630D

Handle,Home Bar LGE MEB49049001 Contact Us For Availability

View on Model

630E

Decor,Handle LGE MCR42600501 Contact Us For Availability

View on Model

630F

Hinge Assembly,Upper LGE 4775JA2101A Contact Us For Availability

View on Model

630G

Hinge Assembly,Lower LGE 4775JA2102A Contact Us For Availability

View on Model

630H

MCK38202501 LG Home Bar Cover Backorder LGE MCK38202501 $6.14

View on Model

630J

Gasket Assembly,Door LGE 4987JA3025H Contact Us For Availability

View on Model

630K

Spring LGE 4970JA3044A Contact Us For Availability

View on Model

630L

Spring LGE 4970JA3045A Contact Us For Availability

View on Model

630M

Clamp LGE 4860JA3010A Contact Us For Availability

View on Model

630N

Clamp LGE 4860JA3010B Contact Us For Availability

View on Model

B01

4000W4A003A LG Refrigerator Customized Screw Backorder LGE 4000W4A003A $6.53

View on Model

B03

1STZJA3004F LG Customized Screw In Stock LGE 1STZJA3004F $7.54

View on Model

B06

MJB63190001 LG Refrigerator Handle Stopper Sc In Stock LGE MJB63190001 $7.78

View on Model

S02

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $7.08

View on Model

S03

4J01424B LG Customized Screw Backorder LGE 4J01424B $7.08

View on Model

S08

1SBZJA3004L LG Customized Screw Backorder LGE 1SBZJA3004L $7.08

View on Model

Model LG LMX25985SB – Common Parts & Diagrams

Common parts from model LG LMX25985SB
