Model LG LMV-1975ST Microwave – Common Parts & Diagrams
Diagram 0

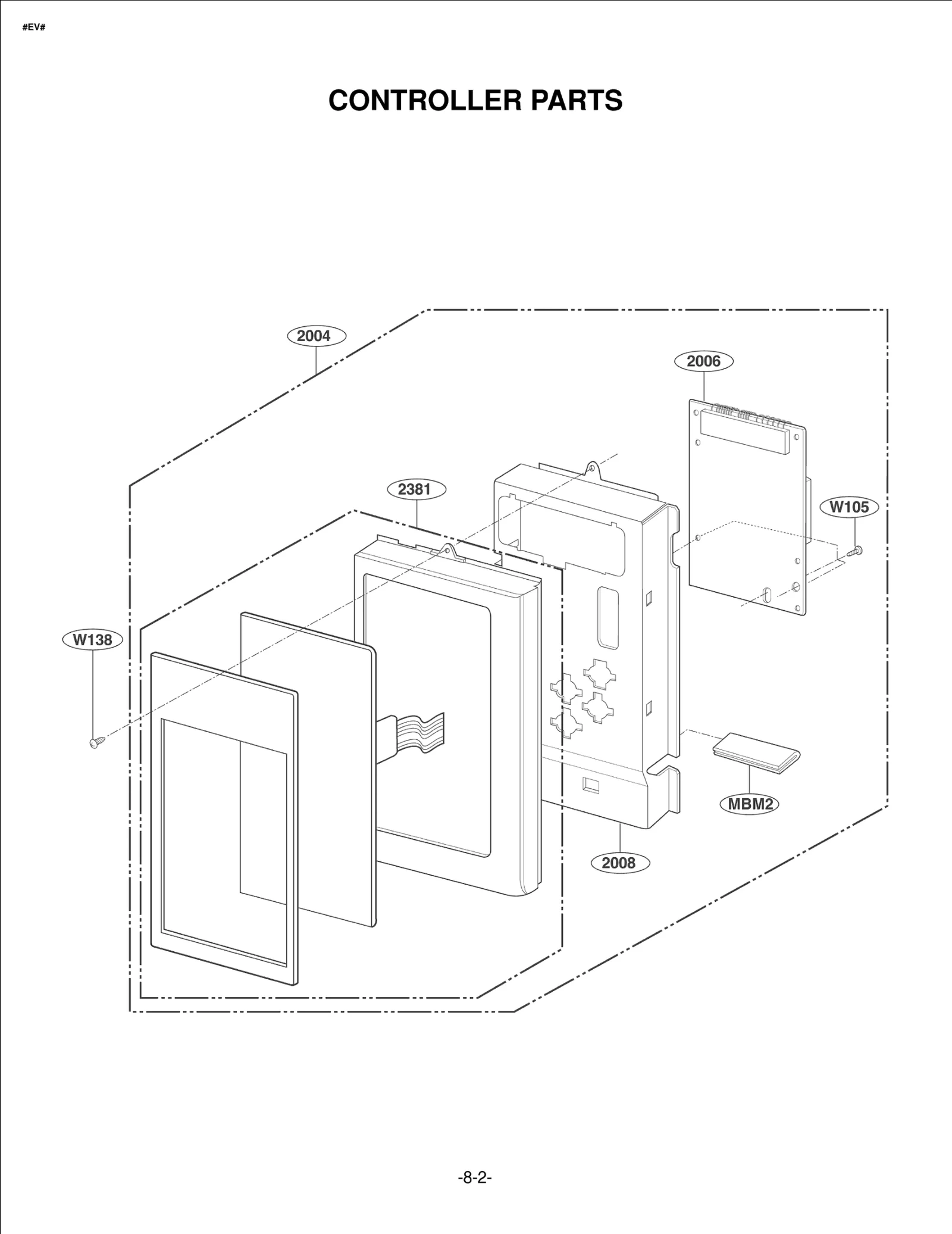

Diagram 1

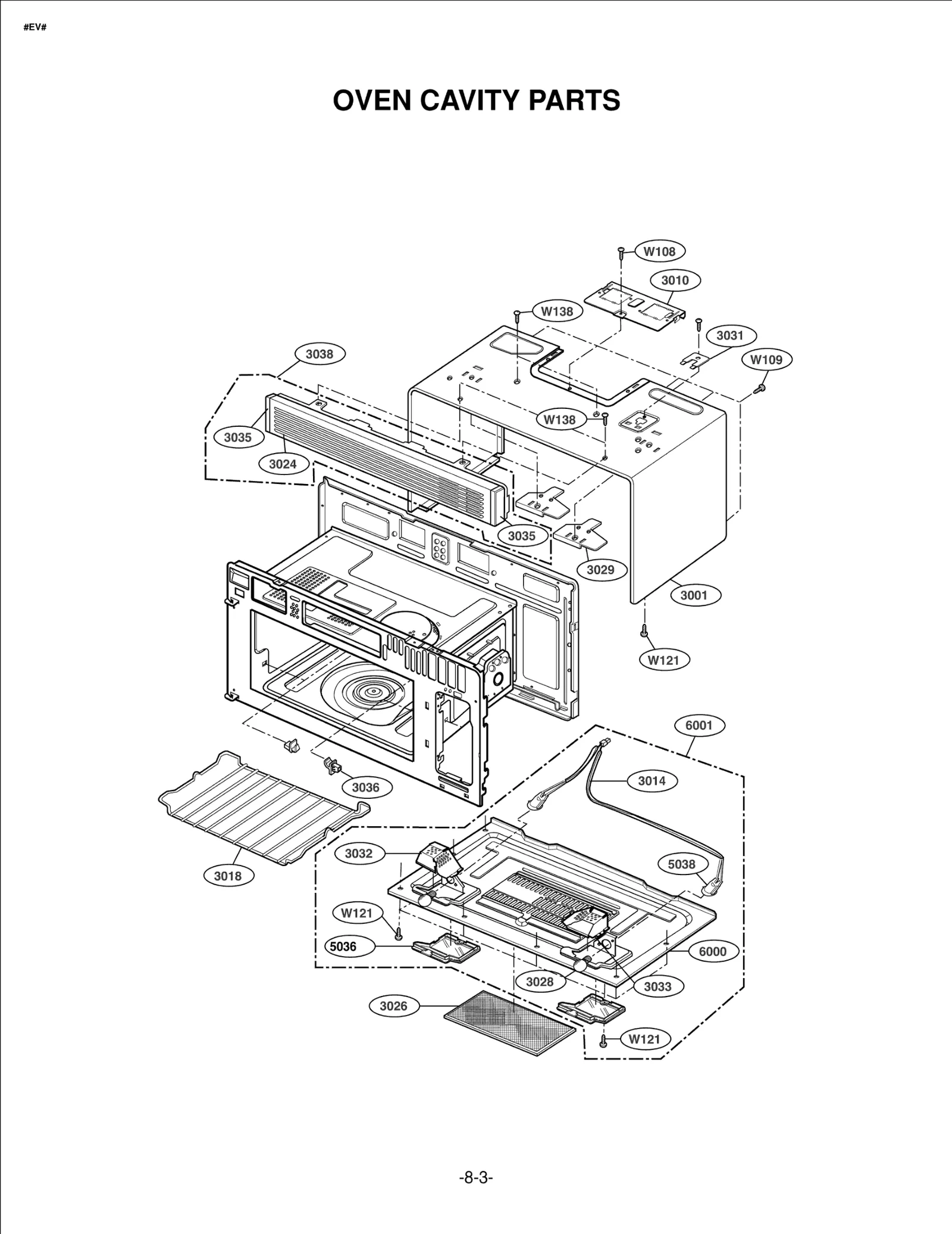

Diagram 2

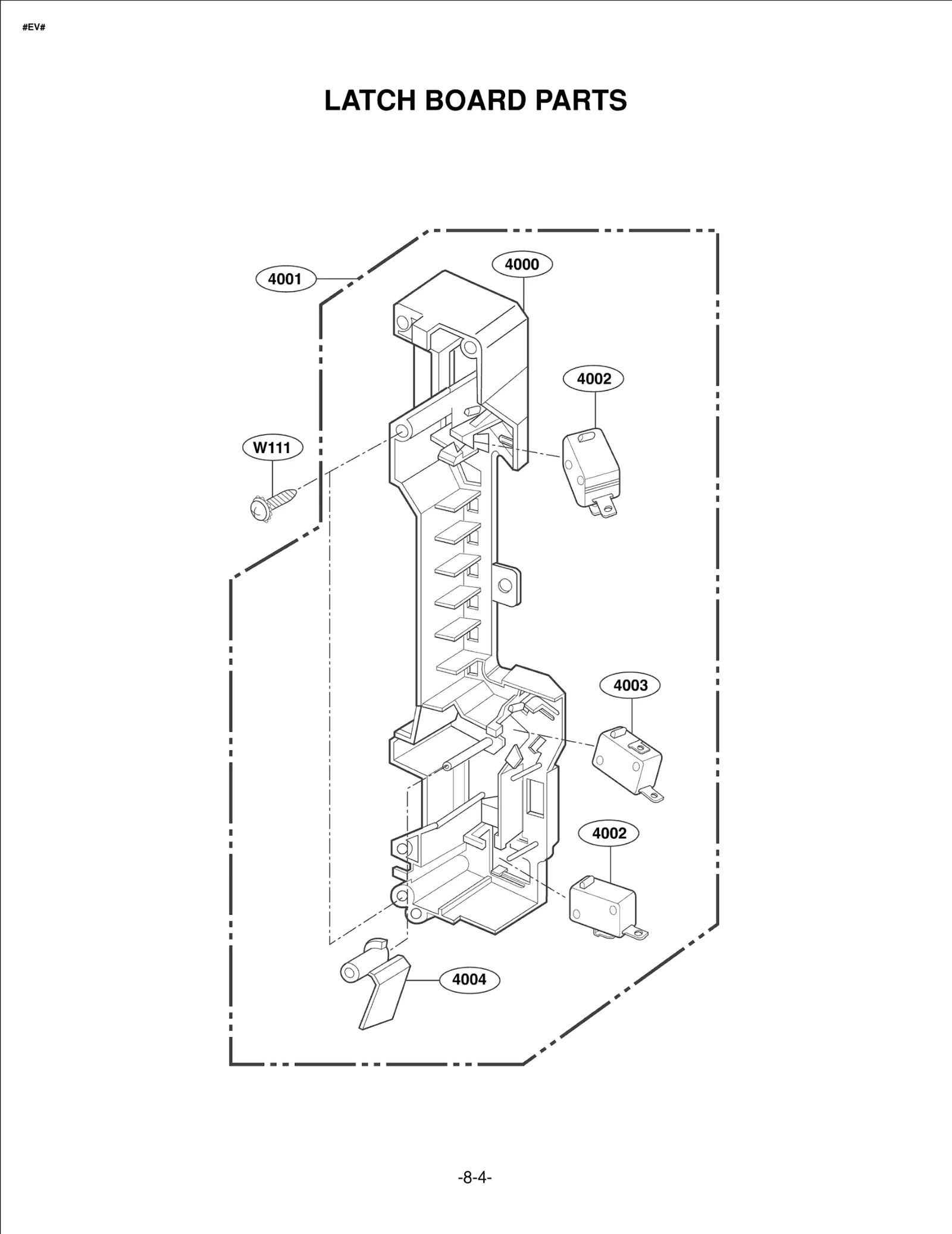

Diagram 3

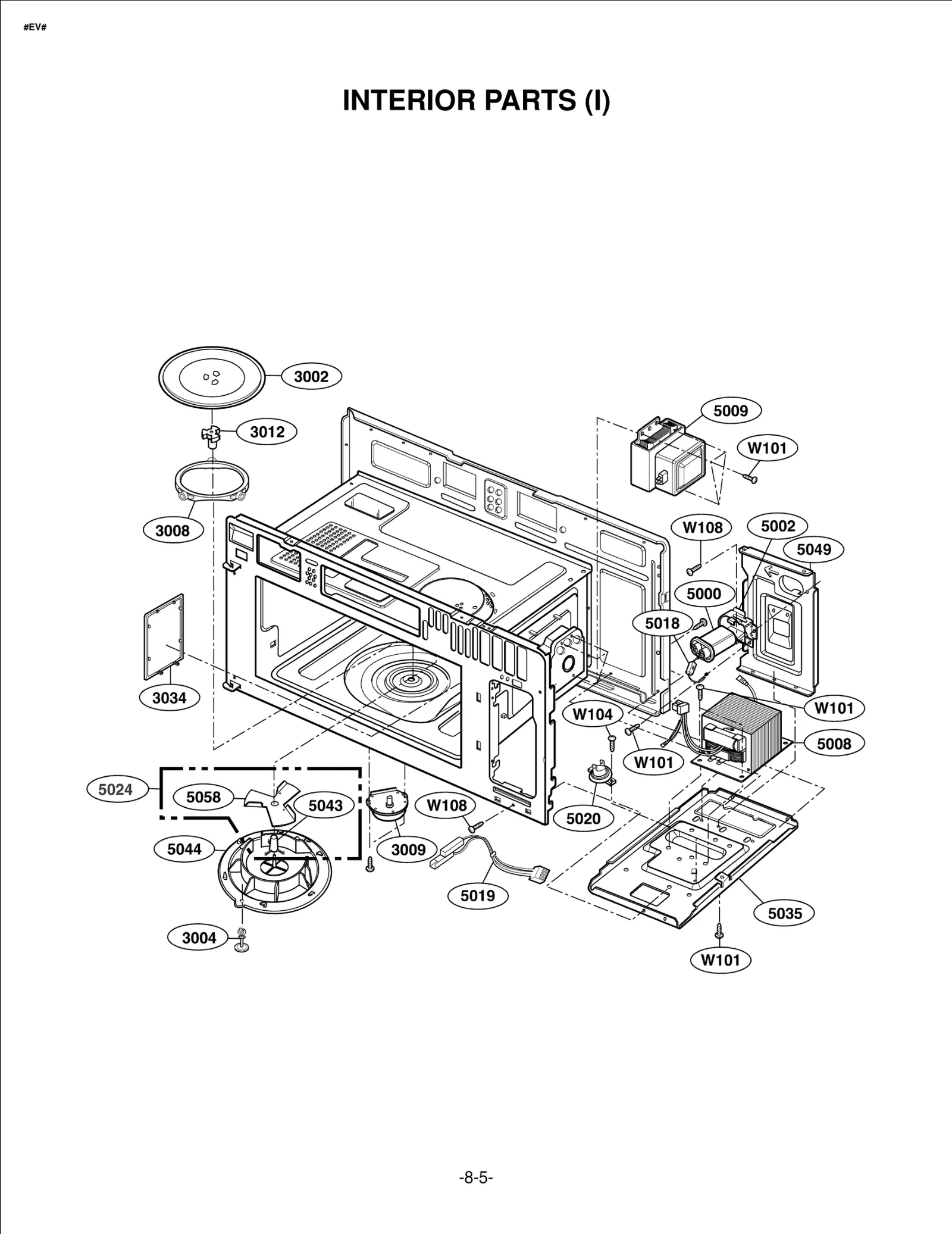

Diagram 4

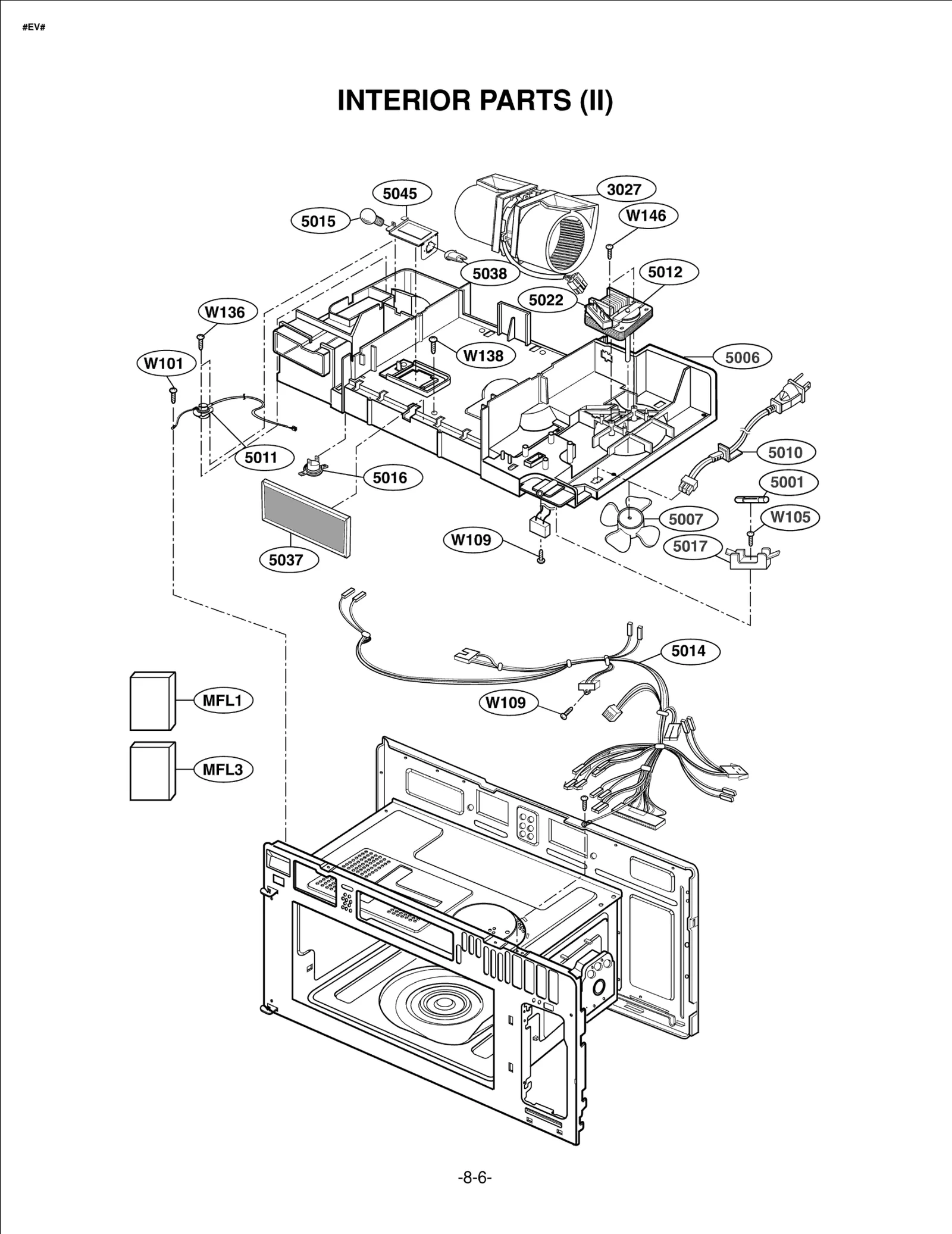

Diagram 5

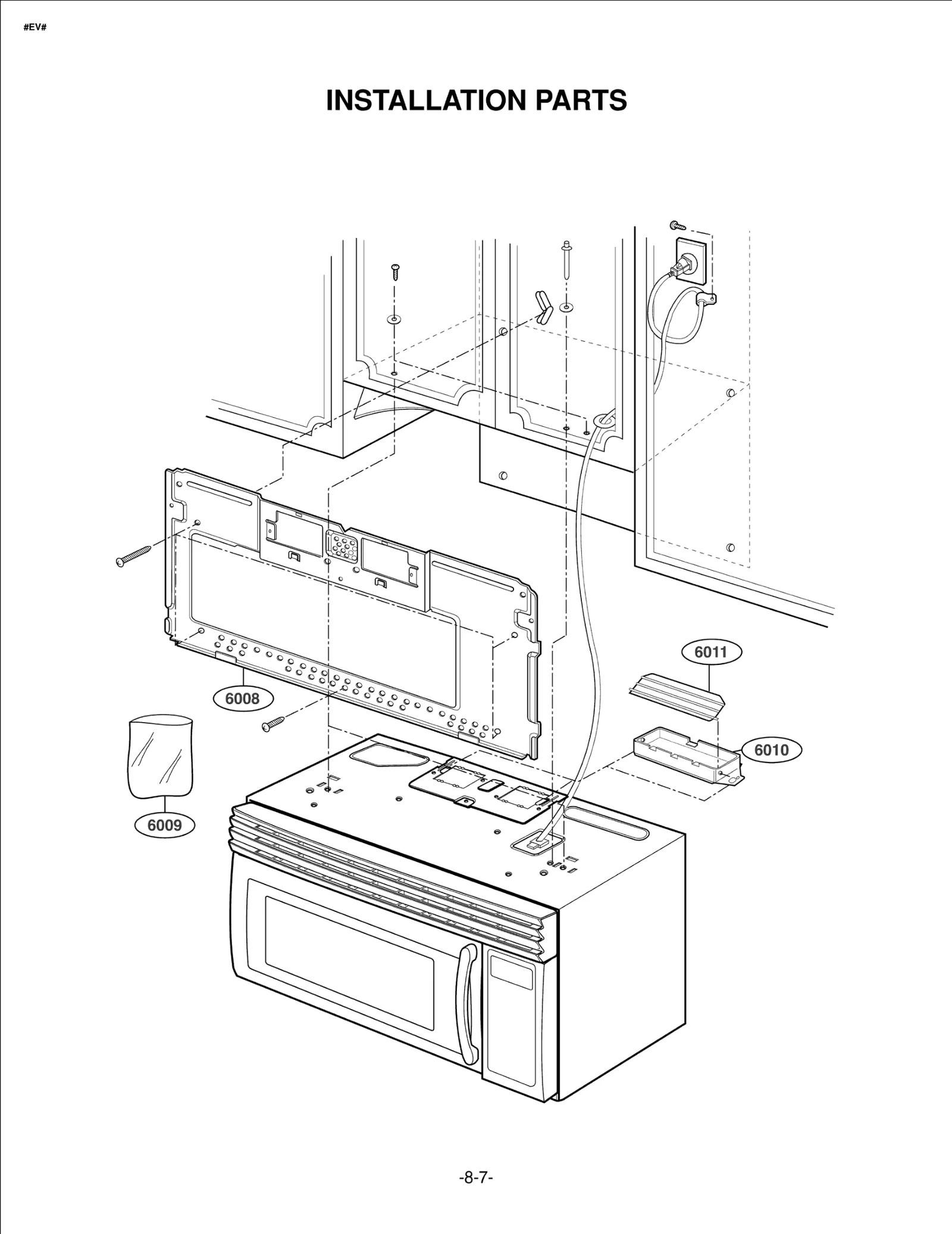

Diagram 6
Diagram 7
Common parts from model LG LMV-1975ST Microwave
1002
SEAL TAPE LGE 3536WRA001T Contact Us For Availability
1004
CHOKE COVER LGE 3552W0A001B Contact Us For Availability
2006
PWB(PCB) ASSEMBLY,SUB LGE 6871W2S245F Contact Us For Availability
3002
TRAY,[GLASS] LGE 3390W1G014A Contact Us For Availability
3009
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S011D Contact Us For Availability
3026
FILTER(MECH) LGE 5230W2A004A Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
4003
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5002
BRACKET,[CAPACITOR] LGE 4810W3C006A Contact Us For Availability
5007
PROPELLER LGE 2B72125A Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D052D Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D035A Contact Us For Availability
5009
MAGNETRON LGE 6324W1A001A Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A014N Contact Us For Availability
5010
POWER CORD ASSY A-Z SJT,AWG16/ LGE 6411W2A002E Contact Us For Availability
5011
SENSOR ASSY LGE 6501W1A006C Contact Us For Availability
5014
LEAD WIRE ASSY LGE 6877W1A349A Contact Us For Availability
5015
BULB, LIGHT LGE 3B70067E Contact Us For Availability
5016
THERMOSTAT,BIMETAL LGE 6930W1A002D Contact Us For Availability
5016
THERMOSTAT (110/0 PW-2N VERT) LGE 6930WRT003C Contact Us For Availability
5017
FUSE HOLDER LGE 4930W3B025B Contact Us For Availability
5018
DIODE ASSY DIODE+CAB LGE 6021W3B001K Contact Us For Availability
5019
LEAD WIRE ASSY LGE 6877W2S002E Contact Us For Availability
5022
FUSE ASSY THERMAL T109 MOLDI LGE 3B72974C Contact Us For Availability
5024
Fan Assembly LGE 5893W3A002A Contact Us For Availability
5035
PLATE,[BOTTOM PLATE] LGE 3300W1B001A Contact Us For Availability
5036
COVER,[LAMP COVER] LGE 3550W2L001A Contact Us For Availability
5038
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
5044
COVER,[STIRRER FAN COVER] LGE 3550W1S001A Contact Us For Availability
5045
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
5049
GUIDE,[AIR GUIDE] LGE 5238W1A003A Contact Us For Availability
5058
STIRRER FAN LGE 5892W3A006A Contact Us For Availability
6008
PLATE,[MOUNTING PLATE] LGE 3300W0M003A Contact Us For Availability
6009
MOUNTING KIT (OTR) LGE 2B72771A Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
35026G
SHELF LGE 5026W1A053A Contact Us For Availability
268711
PWB(PCB) ASSY,[MAIN] LGE 6871W2S245A Contact Us For Availability
MAY1
Box LGE 3890W3Y315K Contact Us For Availability
MBM3
TEMPLATE LGE 4922W5A015A Contact Us For Availability
MFL1
MANUAL,[OWNERS]MWO LGE 3828W5A2049 Contact Us For Availability
MFL3
MANUAL,[INSTALLATION] LGE 3828W5U0145 Contact Us For Availability
× ![]()
