Model Whirlpool LIT9782476 30" Electric Range Ceran Cooktop Self Clean – Common Parts & Diagrams

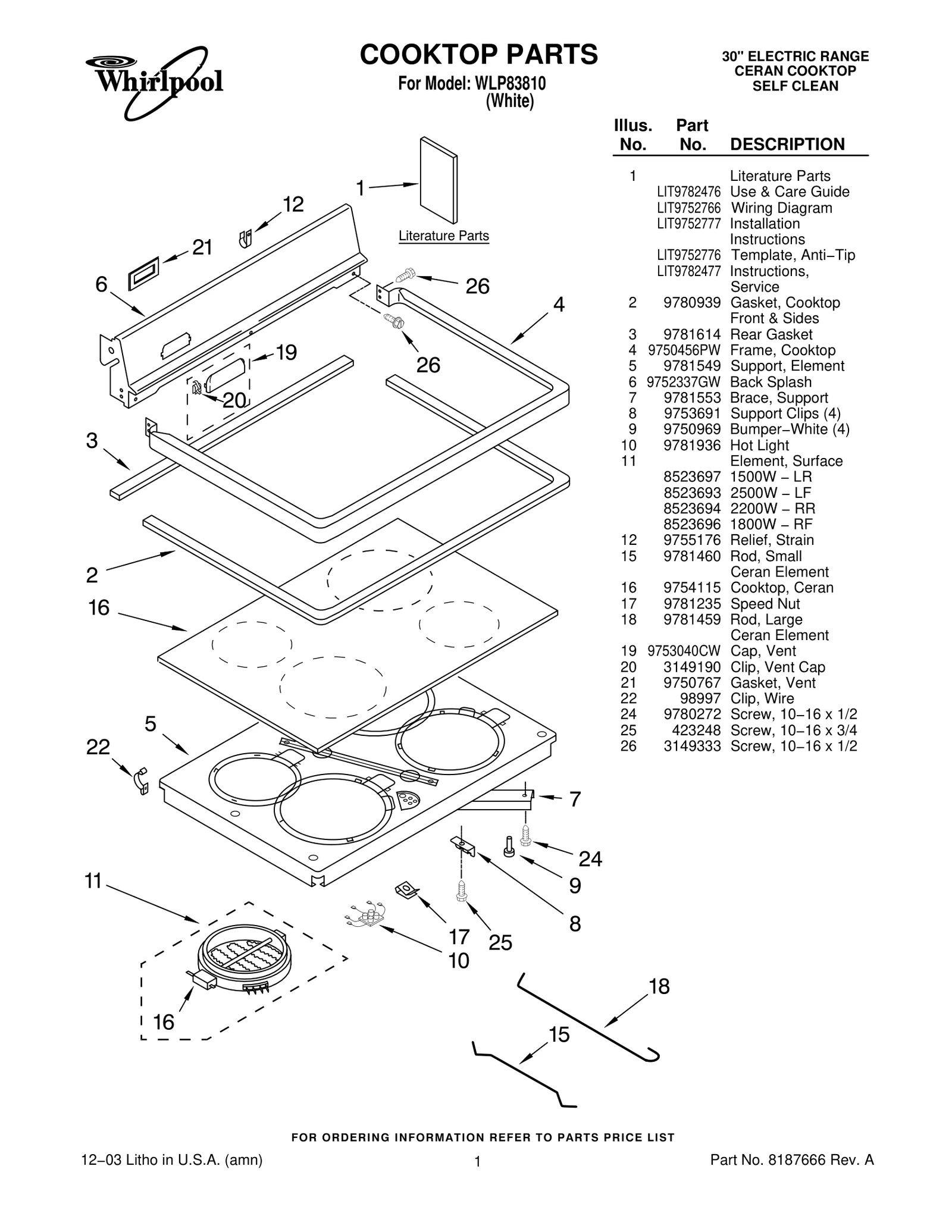

COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
COOKTOP PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN PARTS
OVEN PARTS
OVEN PARTS
OVEN PARTS
OVEN PARTS
Common parts from model Whirlpool LIT9782476 30" Electric Range Ceran Cooktop Self Clean
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Breaker, 15Amp WPL 3191073 Contact Us For Availability
1
Lamp Cover — White WPL 9755520PW Contact Us For Availability
1
Lamp Cover — Biscuit WPL 9755520PC Contact Us For Availability
1
Lamp Cover — White WPL 9755481PW Contact Us For Availability
1
Lamp Cover — Biscuit WPL 9755481PC Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Element, Broil WPL 9780993 Contact Us For Availability
2
Element, Bake WPL 9750213 Contact Us For Availability
2
Console−Glass WPL 9755574 Contact Us For Availability
2
Console−Glass — White WPL 9753353 Contact Us For Availability
2
Console−Glass — Biscuit WPL 9755506 Contact Us For Availability
2
Console−Glass WPL 9781946 Contact Us For Availability
2
Console−Glass WPL 9753361 Contact Us For Availability
2
Trim, Door−Left — White WPL 9782003PW Contact Us For Availability
2
Trim, Door−Left — Biscuit WPL 9782003PC Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Chassis, Front WPL 9750477GM Contact Us For Availability
2
Screw, Elements 8−32 x 3/8 WPL 9781509 Contact Us For Availability
3
Breaker, 15 Amp WPL 3191072 Contact Us For Availability
3
Trim, Door−Right — White WPL 9782004PW Contact Us For Availability
3
Trim, Door−Right — Biscuit WPL 9782004PC Contact Us For Availability
3
Insulation, Wrap WPL 9754000 Contact Us For Availability
3
Insulation, Wrap WPL 9754001 Contact Us For Availability
4
End Cap — White Left WPL 9752422FW Contact Us For Availability
4
End Cap — White Right WPL 9752423FW Contact Us For Availability
4
End Cap — Biscuit Left WPL 9752422FC Contact Us For Availability
4
End Cap — Biscuit Right WPL 9752423FC Contact Us For Availability
4
End Cap — Biscuit Left WPL 9752422PC Contact Us For Availability
4
End Cap — Biscuit Right WPL 9752423PC Contact Us For Availability
4
Trim, Door Bottom — White WPL 9781209PW Contact Us For Availability
4
Trim, Door Bottom — Biscuit WPL 9781209PC Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Insulation, Rear WPL 9754010 Contact Us For Availability
4
Light Socket 5 420104GM Grill, Broiler WPL 9750962 Contact Us For Availability
5
Button, Plug (2) WPL 9780577 Contact Us For Availability
5
Glass, Door Front — White WPL 9781635PW Contact Us For Availability
5
Glass, Door Frnt 6 9753498GW Vent, Door WPL 9781781PW Contact Us For Availability
5
Glass, Door Front — Biscuit WPL 9781635PC Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
5
Oven Liner WPL 9781294GM Contact Us For Availability
6
Panel, Support WPL 9755512 Contact Us For Availability
6
Spacer WPL 9752854 Contact Us For Availability
6
Panel, Control WPL 9753904 Contact Us For Availability
6
Panel, Support WPL 9755513 Contact Us For Availability
6
Gasket, Door Vent WPL 9781659 Contact Us For Availability
6
Vent, Door — White WPL 9753498GW Contact Us For Availability
6
Vent, Door — Biscuit WPL 9753498GC Contact Us For Availability
6
Gasket Oven WPL 9755179 Contact Us For Availability
6
Gasket Oven WPL 9750691 Contact Us For Availability
7
Rack, Standard (2) WPL 9750498 Contact Us For Availability
7
Thermostat WPL 9750402 Contact Us For Availability
7
Thermostat WPL 9781315 Contact Us For Availability
7
Thermostat WPL 9781314 Contact Us For Availability
7
Oven, Side Panel WPL 9781907PW Contact Us For Availability
7
Oven, Side Panel — Biscuit WPL 9781907PC Contact Us For Availability
8
Knobs, Control (6) — Biscuit WPL 9752405FC Contact Us For Availability
8
Handle, Door — White WPL 9755321FW Contact Us For Availability
8
Handle, Door — Biscuit WPL 9755321FC Contact Us For Availability
8
Ballast WPL 9755437 Contact Us For Availability
8
Safety Therm. WPL 9781311 Contact Us For Availability
9
Light, Indicator (2) WPL 313102 Contact Us For Availability
9
Light, Indicator WPL 9780801 Contact Us For Availability
9
Light, Indicator WPL 9780802 Contact Us For Availability
9
Gasket, Door Glass (4) WPL 9781449 Contact Us For Availability
9
Shield, Insulation WPL 9780664 Contact Us For Availability
10
Door Switch WPL 9781580 Contact Us For Availability
10
Switch, Dual WPL 9755174 Contact Us For Availability
10
Lens − Red WPL 9780799 Contact Us For Availability
10
Hinge, Door R or L WPL 9782032 Contact Us For Availability
10
Thermostst, Safety WPL 3189942 Contact Us For Availability
11
Light Module (2) WPL 9780798 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
11
Burner Box WPL 9750479GM Contact Us For Availability
11
Washer (3) WPL 83205 Contact Us For Availability
12
Trim Strip — White WPL 9752441PW Contact Us For Availability
12
Trim Strip WPL 9752442PW Contact Us For Availability
12
Trim Strip — Biscuit WPL 9752441PC Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Frame, Window WPL 9781601 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Rack, Roasting WPL 9750827 Contact Us For Availability
13
Switch, Oven Light — White WPL 3191102FW Contact Us For Availability
13
Switch, Oven Light WPL 3191100FW Contact Us For Availability
13
Switch, Oven Light — Biscuit WPL 3191102FC Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Retainer Glass (4) WPL 9781613 Contact Us For Availability
13
Shield, Door WPL 9781588 Contact Us For Availability
13
Rod, Lock WPL 9750523 Contact Us For Availability
14
Outlet, Untimed — White WPL 9755406FW Contact Us For Availability
14
Outlet, Untimed — Biscuit WPL 9755406FC Contact Us For Availability
14
Panel, Rear WPL 9750150 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Timer WPL 9781717 Contact Us For Availability
15
Timer WPL 9781716 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Knob, Timer (6) — White WPL 9781954FW Contact Us For Availability
16
Seal, Window WPL 9755177 Contact Us For Availability
16
Knob, Timer (6) — Biscuit WPL 9781954FC Contact Us For Availability
16
Inner Glass, Door WPL 9781723 Contact Us For Availability
16
Seal, Window WPL 9755178 Contact Us For Availability
16
Spring, Door Lock WPL 9750833 Contact Us For Availability
17
Bracket (2) WPL 9753304 Contact Us For Availability
17
Bracket, Timer WPL 9781754 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Box, Outlet — White WPL 9755353PW Contact Us For Availability
18
Box, Outlet — Biscuit WPL 9755353PC Contact Us For Availability
18
Insulation, Door WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Infinite Switch — 1700W WPL 9750644 Contact Us For Availability
19
Screw (2) 10 x 1/2 WPL 9780272 Contact Us For Availability
19
Liner, Door WPL 9781599GM Contact Us For Availability
19
Receiver, Hinge WPL 9782005 Contact Us For Availability
20
Clip, Vent Cap WPL 3149190 Contact Us For Availability
20
Insert (2) — White WPL 9753076FW Contact Us For Availability
20
Switch, Selector WPL 9781313 Contact Us For Availability
20
Insert (2) — Biscuit WPL 9753076FC Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Bracket, Spring WPL 9750834 Contact Us For Availability
20
Block, Balance WPL 9782330 Contact Us For Availability
21
Lampholder (2) WPL 9755492 Contact Us For Availability
21
Outlet, Untimed WPL 9751480FW Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Starter Holder WPL 9750866 Contact Us For Availability
22
Hinge, Cktp.−Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.−Right WPL 9750416 Contact Us For Availability
23
Light, Flourescent WPL 9755491 Contact Us For Availability
23
Retainer, Door WPL 9750676 Contact Us For Availability
23
Oven Lock Assembly WPL 9755624 Contact Us For Availability
23
Oven Lock Assembly WPL 9750522 Contact Us For Availability
24
Seal, Light (2) WPL 9780800 Contact Us For Availability
24
Light, Pilot WPL 9780797 Contact Us For Availability
24
Front, Drawer — White WPL 9782108PW Contact Us For Availability
24
Front, Drawer — Biscuit WPL 9782108PC Contact Us For Availability
24
Bracket, Lock WPL 9750526 Contact Us For Availability
25
Starter, Light WPL 9755493 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Vent Tube WPL 9750391 Contact Us For Availability
25
Vent Tube WPL 9782380 Contact Us For Availability
26
Screw, 10−16 x 1/2 WPL 3149333 Contact Us For Availability
26
Switch, Selector WPL 9781312 Contact Us For Availability
26
Heat, Channel WPL 9750693 Contact Us For Availability
26
Solenoid (2) WPL 9750524 Contact Us For Availability
27
Switch, Interlock WPL 9782158 Contact Us For Availability
27
Switch, Interlock WPL 9750965 Contact Us For Availability
28
Clip, Spring (2) WPL 9753017 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
28
Plug, Button WPL 9780578 Contact Us For Availability
29
Insulation, Door WPL 9754007 Contact Us For Availability
29
Ballast WPL 9780881 Contact Us For Availability
30
Base, Console WPL 9752439 Contact Us For Availability
30
Screw, 10−16 x 1 WPL 98884 Contact Us For Availability
32
Screw,10−32 x 5/16 WPL 422222 Contact Us For Availability
32
Gasket, Vent WPL 9750767 Contact Us For Availability
33
Screw, 8−18 x 3/8 WPL 9780852 Contact Us For Availability
33
Wire Guard WPL 9780585 Contact Us For Availability
34
Cover, Vent WPL 9750393 Contact Us For Availability
35
Vent Back WPL 9750394 Contact Us For Availability
36
Washer, #10 WPL 424238 Contact Us For Availability
37
Screw, 4−40 x 1 WPL 9750887 Contact Us For Availability
38
Nut WPL 9750888 Contact Us For Availability
× ![]()
