Model Whirlpool LIT9782235 30" Electronic Range Freestanding – Common Parts & Diagrams

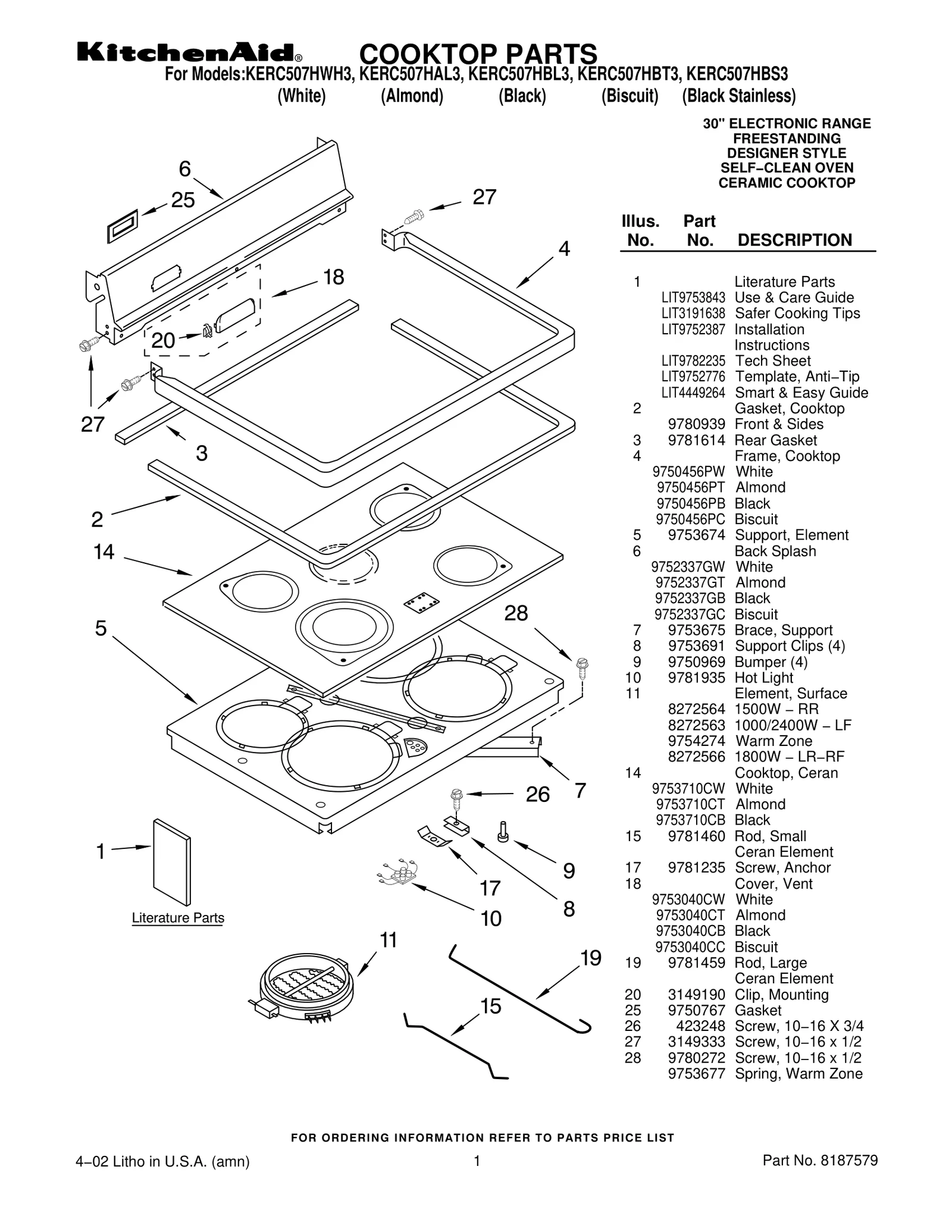

COOKTOP PARTS
COOKTOP PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
DOOR AND DRAWER PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
OVEN CHASSIS PARTS
REAR CHASSIS PARTS
OVEN PARTS
REAR CHASSIS PARTS
HIDDEN BAKE PARTS
Common parts from model Whirlpool LIT9782235 30" Electronic Range Freestanding
1
Element, Bake WPL 9752294 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Lamp Cover — White WPL 9753156PW Contact Us For Availability
1
Lamp Cover — Almond WPL 9753156PT Contact Us For Availability
1
Lamp Cover WPL 9753156PB Contact Us For Availability
1
Lamp Cover — Biscuit WPL 9753156PC Contact Us For Availability
1
Gasket, Glass WPL 9781659 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
2
Trim, Door−Left — Black WPL 9782003PB Contact Us For Availability
2
Trim, Door−Left — White WPL 9782003PW Contact Us For Availability
2
Trim, Door−Left — Almond WPL 9782003PT Contact Us For Availability
2
Trim, Door−Left — Biscuit WPL 9782003PC Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Box, Terminal WPL 9752344 Contact Us For Availability
2
Pan, Hidden Bake WPL 9782048 Contact Us For Availability
3
Trim, Door−Right — Black WPL 9782004PB Contact Us For Availability
3
Trim, Door−Right — Almond WPL 9782004PW Contact Us For Availability
3
Trim, Door−Right — Biscuit WPL 9782004PC Contact Us For Availability
3
Insulation, Wrap WPL 9754003 Contact Us For Availability
3
Rear Panel WPL 9750150 Contact Us For Availability
3
Cover, Hidden Bake WPL 9782049 Contact Us For Availability
4
End Cap — White WPL 9750367FW Contact Us For Availability
4
End Cap — Almond WPL 9750367FT Contact Us For Availability
4
(Right Hand) WPL 9750367FB Contact Us For Availability
4
End Cap — Biscuit WPL 9750367FC Contact Us For Availability
4
End Cap — White WPL 9750366FW Contact Us For Availability
4
End Cap — Almond WPL 9750366FT Contact Us For Availability
4
(Left Hand) WPL 9750366FB Contact Us For Availability
4
End Cap — Biscuit WPL 9750366FC Contact Us For Availability
4
Trim, Door Bottom — Black WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom — White WPL 9781209PW Contact Us For Availability
4
Trim, Door Bottom — Almond WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom — Biscuit WPL 9781209PC Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Cover, Terminal Box WPL 9752345 Contact Us For Availability
4
Insulation WPL 9754005 Contact Us For Availability
5
Glass, Door — Black WPL 9781627PB Contact Us For Availability
5
Switch, Rocker — White WPL 9753692FW Contact Us For Availability
5
Switch, Rocker — Almond WPL 9753692FT Contact Us For Availability
5
Switch, Rocker WPL 9753692FB Contact Us For Availability
5
Switch, Rocker — Biscuit WPL 9753692FC Contact Us For Availability
5
For Models:KERC507HWH3, KERC507HAL3, KERC507H WPL N/S Contact Us For Availability
5
Glass, Door — Black Stainless WPL 9754041 Contact Us For Availability
5
Glass, Door — White WPL 9781627PW Contact Us For Availability
5
Glass, Door — Almond WPL 9781627PT Contact Us For Availability
5
Glass, Door — Biscuit WPL 9781627PC Contact Us For Availability
5
Oven Liner WPL 9753744GM Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
5
Reatiner, Insulation WPL 9752735 Contact Us For Availability
6
Panel, Control — White WPL 9753726PW Contact Us For Availability
6
Panel, Control — Almond WPL 9753726PT Contact Us For Availability
6
Panel, Control — Black WPL 9753726PB Contact Us For Availability
6
Panel, Control — Biscuit WPL 9753726PC Contact Us For Availability
6
Panel, Control — Black Stainless WPL 9753726PS Contact Us For Availability
6
Panel, Control WPL 9754073PS Contact Us For Availability
6
Vent, Door WPL 9755588GB Contact Us For Availability
6
Vent, Door — White WPL 9753498GW Contact Us For Availability
6
Vent, Door — Almond WPL 9753498GT Contact Us For Availability
6
Vent, Door — Black WPL 9753498GB Contact Us For Availability
6
Vent, Door — Biscuit WPL 9753498GC Contact Us For Availability
6
Gasket Oven WPL 9755179 Contact Us For Availability
6
Oven Lock Assembly WPL 9752404 Contact Us For Availability
6
Plate, Reflector WPL 9782050 Contact Us For Availability
7
Screw, 8−18 x 3/8 WPL 9780852 Contact Us For Availability
7
Oven, Side L or R — Black WPL 9781907PB Contact Us For Availability
7
Oven, Side L or R — White WPL 9781907PW Contact Us For Availability
7
Oven, Side L or R — Almond WPL 9781907PT Contact Us For Availability
7
Oven, Side L or R — Biscuit WPL 9781907PC Contact Us For Availability
7
Shield WPL 9782051 Contact Us For Availability
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
Solenoid WPL 9752409 Contact Us For Availability
8
Knobs, Control (4) — Almond WPL 9750372FT Contact Us For Availability
8
Handle, Door WPL 9755597S Contact Us For Availability
8
Handle, Door — White WPL 9780523PW Contact Us For Availability
8
Handle, Door — Almond WPL 9780523PT Contact Us For Availability
8
Handle, Door — Black WPL 9780523PB Contact Us For Availability
8
Handle, Door — Biscuit WPL 9780523PC Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
9
Switch, Rocker — White WPL 9753261FW Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Button, Plug WPL 9780578 Contact Us For Availability
9
Screw, 10−32 x .31 WPL 422222 Contact Us For Availability
9
Baffle, Convection WPL 9751904GM Contact Us For Availability
10
Wire Guard WPL 9780585 Contact Us For Availability
10
Washer WPL 424238 Contact Us For Availability
10
Lock−Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
11
Light, Indicator WPL 9753422 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
12
Starter Holder WPL 9750866 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
12
Gasket WPL 305289 Contact Us For Availability
13
Receptacle, Light WPL 9782259 Contact Us For Availability
13
Shield Door WPL 9781586 Contact Us For Availability
13
Transformer, Light WPL 4451891 Contact Us For Availability
13
Screw, 4−40 x 1 WPL 9750887 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Nut (2) WPL 9750888 Contact Us For Availability
14
Spacer, Tubing WPL 3179672 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Oven Control Assembly — White WPL 9753667CW Contact Us For Availability
15
Oven Control Assembly — Almond WPL 9753667CT Contact Us For Availability
15
Oven Control Assembly — Black WPL 9753667CB Contact Us For Availability
15
Oven Control Assembly — Biscuit WPL 9753667CC Contact Us For Availability
15
Oven Control Assembly WPL 9782244CB Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Seal, Window WPL 9755177 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
16
Ballast, Lamp WPL 3191044 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
19
Hinge, Base L or R WPL 9782005 Contact Us For Availability
19
Screw, 10−16 x 1 WPL 98884 Contact Us For Availability
20
Clip, Mounting WPL 3149190 Contact Us For Availability
20
White, Almond, Black & Biscuit Models WPL 9780583 Contact Us For Availability
20
Drawer & Roller — Black Stainless WPL 9750257 Contact Us For Availability
20
Ground Strap WPL 3169573 Contact Us For Availability
20
Rack, Roasting WPL 9750827 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
21
Screw, 10−16 x 1 WPL 9751871 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
Screw, 10−16 x 1/2 WPL 9780272 Contact Us For Availability
22
Starter, Lamp WPL 9781118 Contact Us For Availability
22
Hinge, Cktp.−Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.−Right WPL 9750416 Contact Us For Availability
22
Single Position Device WPL 9752462 Contact Us For Availability
23
Retainer,Door WPL 9750676 Contact Us For Availability
23
Screw, 8−32 x 3/8 WPL 9780269 Contact Us For Availability
24
Front, Drawer — Black Stainless WPL 9782109PB Contact Us For Availability
24
Front, Drawer — White WPL 9782108PW Contact Us For Availability
24
Front, Drawer — Almond WPL 9782108PT Contact Us For Availability
24
Front, Drawer — Black WPL 9782108PB Contact Us For Availability
24
Front, Drawer — Biscuit WPL 9782108PC Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
25
Vent Tube WPL 9782380 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Screw, 8−32 x 3/8 WPL 9781509 Contact Us For Availability
26
Screw, 10−16 X 3/4 WPL 423248 Contact Us For Availability
26
Insulation, Control WPL 9754008 Contact Us For Availability
26
Steam Deflector WPL 9781771 Contact Us For Availability
26
Cover, Vent WPL 9750393 Contact Us For Availability
27
Screw, 10−16 x 1/2 WPL 3149333 Contact Us For Availability
27
Back, Vent WPL 9750394 Contact Us For Availability
28
Switch, Door−Light WPL 9781581 Contact Us For Availability
28
Spring, Warm Zone WPL 9753677 Contact Us For Availability
28
Retainer, Glass WPL 9781502 Contact Us For Availability
29
Vent Gasket WPL 9750767 Contact Us For Availability
30
Screw, 8−18 x 3/8 WPL 9780275 Contact Us For Availability
32
Cushion, Insert WPL 9753329 Contact Us For Availability
33
Insert, Stainless WPL 9754062 Contact Us For Availability
33
Insert, Stainless WPL 9753293 Contact Us For Availability
34
Trim, Glass Bottom WPL 9750613PB Contact Us For Availability
35
Trim, Glass Top WPL 9750614PB Contact Us For Availability
× ![]()
