Model Whirlpool LHW0050PQ4 COMPACT AUTOMATIC WASHER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Stack Kit WPL 8182452 Contact Us For Availability

ACCESSORIES WPL ARI117846A Contact Us For Availability

1

WP8182406 Whirlpool Frame Backorder WPL WP8182406 $223.47

1

Handle, Drawer WPL 8182371 Contact Us For Availability

1

Control Panel WPL 8182348 Contact Us For Availability

1

Energy Guide WPL 8182569 Contact Us For Availability

1

Wiring Diagram WPL 8183140 Contact Us For Availability

1

Use & Care Guide WPL 8580423 Contact Us For Availability

1

Grommet WPL 8182385 Contact Us For Availability

2

WP8182415 Whirlpool Water Pump In Stock WPL WP8182415 $284.99

2

Overlay WPL 8182729 Contact Us For Availability

2

Button WPL 8182725 Contact Us For Availability

2

RETAINER WPL 8182517 Contact Us For Availability

2

Cover, Filter WPL 8183143 Contact Us For Availability

3

8182737 Whirlpool Pulley Backorder WPL 8182737 $218.53

3

Housing WPL 8182350 Contact Us For Availability

3

Pin WPL 8182383 Contact Us For Availability

3

Housing, Filter WPL 8182416 Contact Us For Availability

3

Top WPL 8182719 Contact Us For Availability

4

8182730 Whirlpool Washer Spring In Stock WPL 8182730 $102.85

4

Filter WPL 8182417 Contact Us For Availability

4

Baffle WPL 8182444 Contact Us For Availability

4

Panel, Rear WPL 8183139 Contact Us For Availability

5

Control, PCB WPL 8182351 Contact Us For Availability

5

Drive Belt WPL 8182450 Contact Us For Availability

5

Housing, Dispenser WPL 8182367 Contact Us For Availability

5

Clamp, Hose WPL 8182325 Contact Us For Availability

5

Gasket WPL 8182418 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

6

Inner Frame WPL 8182414 Contact Us For Availability

6

Drawer, Detergent WPL 8182370 Contact Us For Availability

6

Washer WPL 8182419 Contact Us For Availability

7

Cap WPL 8182420 Contact Us For Availability

7

Inner Ring WPL 8182404 Contact Us For Availability

7

Clamp, Hose WPL 8182324 Contact Us For Availability

8

Door Gasket WPL 8182403 Contact Us For Availability

8

Cover, Drawer WPL 8182727 Contact Us For Availability

8

Screw WPL 8182440 Contact Us For Availability

8

Bottom Plate WPL 8183142 Contact Us For Availability

9

Outer Ring WPL 8182402 Contact Us For Availability

9

Hose WPL 8182422 Contact Us For Availability

9

Screw WPL 8182323 Contact Us For Availability

10

Dispenser WPL 8182378 Contact Us For Availability

10

Hinge (Not Serviced) WPL ARI117844A Contact Us For Availability

10

Hose, Drain WPL 8182423 Contact Us For Availability

11

Clip, Harness WPL 8182321 Contact Us For Availability

11

Clamp, Hose WPL 8182424 Contact Us For Availability

12

Washer WPL 8182457 Contact Us For Availability

12

Support, Harness WPL 8182322 Contact Us For Availability

13

8169479 Whirlpool Microwave Screw Backorder WPL 8169479 $4.82

13

Clip WPL 8182328 Contact Us For Availability

WP22002933 Whirlpool Screw In Stock WPL WP22002933 $4.55

Door Handle WPL 8182408 Contact Us For Availability

Knob (2) WPL 8182360 Contact Us For Availability

Control, Inverter (Motor) WPL 8183137 Contact Us For Availability

WP8182361 Whirlpool Spring Backorder WPL WP8182361 $68.55

Link WPL 8182379 Contact Us For Availability

Screw WPL W10119096 Contact Us For Availability

Bracket, Hose WPL 8182428 Contact Us For Availability

Push Button (3) WPL 8182362 Contact Us For Availability

Actautor (2) WPL 8182366 Contact Us For Availability

Cabinet (Not Serviced) WPL ARI117845A Contact Us For Availability

Clamp, Hose WPL 8182429 Contact Us For Availability

Switch, Cycle WPL 8182724 Contact Us For Availability

Bracket, Actuator WPL 8182365 Contact Us For Availability

Bracket, Pressure Switch WPL W10119095 Contact Us For Availability

Support WPL 8182430 Contact Us For Availability

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $4.82

Arm WPL 8182364 Contact Us For Availability

Switch, Spin Speed WPL 8182723 Contact Us For Availability

Clamp WPL W10119097 Contact Us For Availability

8182397 Whirlpool Fill Hose Backorder WPL 8182397 $179.96

8182409 Whirlpool Hose Backorder WPL 8182409 $89.21

Hose, Fill (Cold) WPL 8182389 Contact Us For Availability

Foot, Leveling WPL 8182334 Contact Us For Availability

20

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

20

Washer WPL 8182390 Contact Us For Availability

20

Nut WPL 8182337 Contact Us For Availability

WP8182395 Whirlpool PB Switch Backorder WPL WP8182395 $89.17

Electronic Control WPL 8183136 Contact Us For Availability

Water Valve (Cold) WPL 8182387 Contact Us For Availability

Water Valve (Hot) WPL 8182398 Contact Us For Availability

22

Connector WPL W10119091 Contact Us For Availability

22

Bracket, Control WPL 8182342 Contact Us For Availability

23

8182388 Whirlpool Washer Water Level Switch Backorder WPL 8182388 $200.29

24

Clamp, Hose (8) WPL 8182374 Contact Us For Availability

26

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $7.72

26

Power Cord WPL 8183135 Contact Us For Availability

27

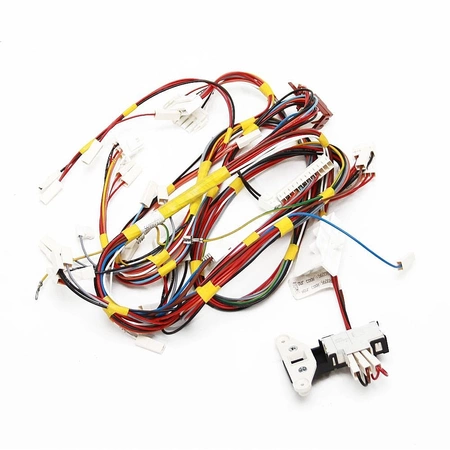

8183138 Whirlpool Wire Harness Backorder WPL 8183138 $290.92

27

WP8182399 Whirlpool Hose Backorder WPL WP8182399 $99.71

28

Microswitch, Door WPL 8182690 Contact Us For Availability

29

Bracket WPL 8182718 Contact Us For Availability

29

Spring WPL 8182726 Contact Us For Availability

30

8182401 Whirlpool Screw Backorder WPL 8182401 $8.98
