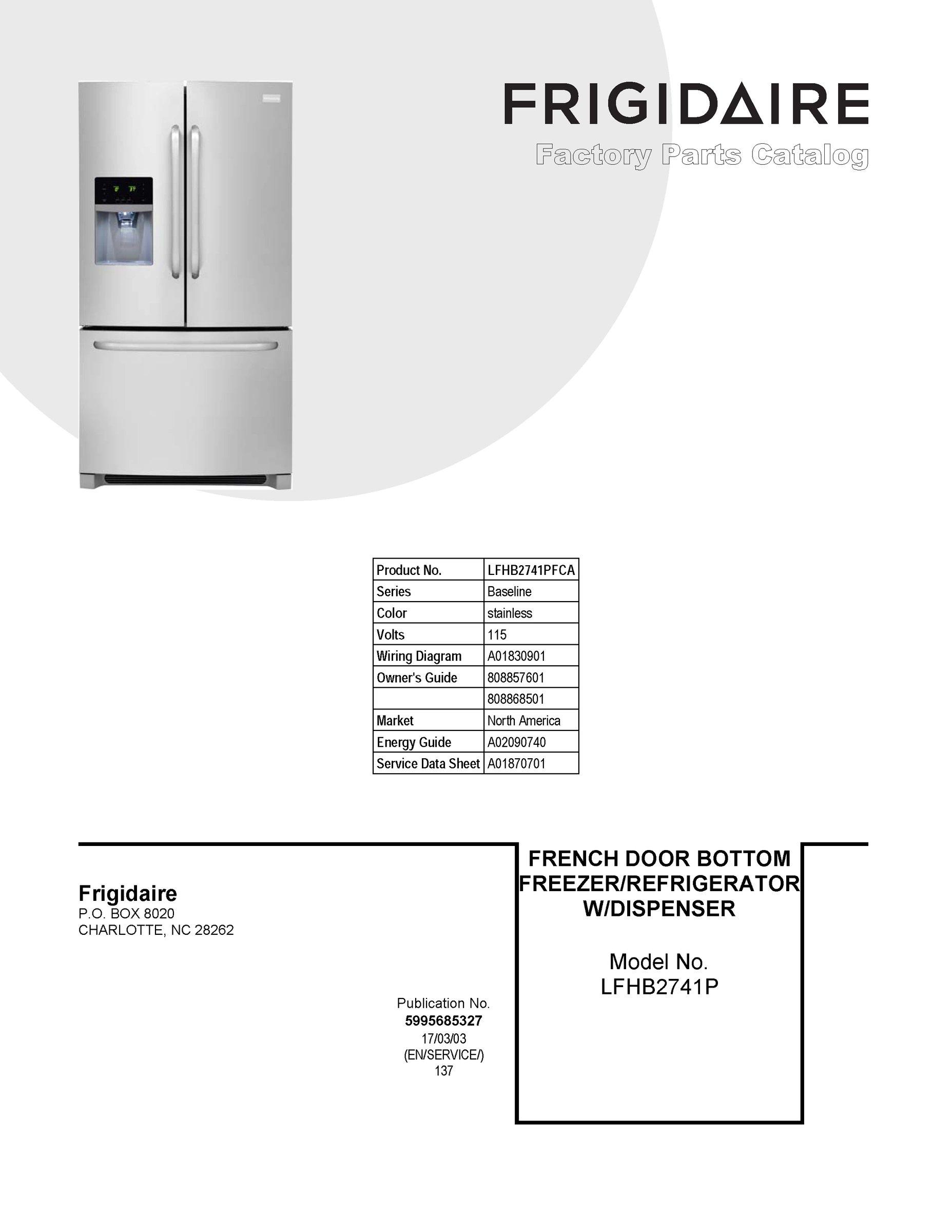

Model Electrolux LFHB2741PFCA REFRIGERATOR, FRENCH DOOR, W/DISPENSER, SERIES, BA – Common Parts &amp; Diagrams

1

241862903 Frigidaire Refrigerator Condenser In Stock WCI 241862903 $102.58

1

242093006 Frigidaire Refrigerator Ice Contain In Stock WCI 242093006 $173.37

1

5304503130 Frigidaire Refrigerator Cover Backorder WCI 5304503130 $56.37

1

5304537408 Frigidaire Gasket In Stock WCI 5304537408 $60.30

2

241778315 Frigidaire Door Gasket In Stock WCI 241778315 $71.15

2

243297613 Frigidaire Refrigerator Ice Maker In Stock WCI 243297613 $58.27

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $25.94

4A

242176404 Frigidaire Refrigerator Trim Backorder WCI 242176404 $51.05

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $45.43

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $39.85

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $16.59

8

242270106 Frigidaire Refrigerator Module In Stock WCI 242270106 $142.22

9

241518301 Frigidaire Refrigerator Bushing Backorder WCI 241518301 $52.12

10

241829001 Frigidaire Refrigerator Bar Drive In Stock WCI 241829001 $46.44

10

COVER-AIR DUCT WCI 242072002 No Longer Available

10A

241860402 Frigidaire Refrigerator Evaporator In Stock WCI 241860402 $97.49

11

DOOR-FRZR, STAINLESS, COMPLETE ASSY WCI 241987936 Contact Us For Availability

11

DOOR-REFR, STAINLESS, W/DISP WCI 242185635 Contact Us For Availability

12

242016301 Frigidaire Refrigerator Nameplate In Stock WCI 242016301 $3.31

12

INSULATION-AIR DUCT WCI 242072401 Contact Us For Availability

13

241868401 Frigidaire Refrigerator Door Stop Backorder WCI 241868401 $14.42

13

809069220 Frigidaire Evaporator Fan Motor In Stock WCI 809069220 $95.73

13A

241868402 Frigidaire Refrigerator Door Stop Backorder WCI 241868402 $14.42

14

242060202 Frigidaire Refrigerator Light Switc In Stock WCI 242060202 $31.61

14

5303918410 Frigidaire Refrigerator Defrost He In Stock WCI 5303918410 $90.44

15

5303918569 Frigidaire Refrigerator Evaporator In Stock WCI 5303918569 $119.29

15

5304517886 Frigidaire Refrigerator Light In Stock WCI 5304517886 $53.49

15

DOOR-REFR, STAINLESS WCI 242185634 Contact Us For Availability

16

242072101 Frigidaire Refrigerator Cover Backorder WCI 242072101 $37.70

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $48.23

16AB

240590403 Frigidaire Refrigerator Light Socke Backorder WCI 240590403 $19.43

17

241791201 Frigidaire Refrigerator Drain Troug Backorder WCI 241791201 $85.42

17

241928201 Frigidaire Refrigerator Air Duct Ga In Stock WCI 241928201 $13.88

241816602 Frigidaire Refrigerator Auger Motor In Stock WCI 241816602 $84.28

241860101 Frigidaire Refrigerator Gasket Backorder WCI 241860101 $13.86

242090501 Frigidaire Stainless Steel Door Han Backorder WCI 242090501 $149.20

HANDLE-DOOR, STAINLESS, W/SET SCREWS WCI 242059301 Contact Us For Availability

19

242072601 Frigidaire Refrigerator Support Backorder WCI 242072601 $34.93

20

242072201 Frigidaire Refrigerator Cover In Stock WCI 242072201 $72.15

20

242095702 Frigidaire Refrigerator Air Handler In Stock WCI 242095702 $70.43

20

808137001 Frigidaire Refrigerator Thermistor In Stock WCI 808137001 $36.00

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $8.31

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $12.20

242017501 Frigidaire Refrigerator Screw Backorder WCI 242017501 $12.18

5303918810 Frigidaire Refrigerator French Doo In Stock WCI 5303918810 $45.49

5304521781 Frigidaire Refrigerator Thermostat In Stock WCI 5304521781 $40.75

22

CAM, UPPER HINGE, RH WCI 242075601 Contact Us For Availability

22A

242075602 Frigidaire Refrigerator Cam Assembl Backorder WCI 242075602 $18.27

22C

241760401 Frigidaire Refrigerator Bearing Backorder WCI 241760401 $14.94

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $33.26

23

242176503 Frigidaire Refrigerator Sump In Stock WCI 242176503 $80.90

23

5303918567 Frigidaire Refrigerator Evaporator Backorder WCI 5303918567 $242.25

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $9.44

242068717 Frigidaire Refrigerator Shelf Backorder WCI 242068717 $133.12

242094802 Frigidaire Defrost Heater In Stock WCI 242094802 $80.73

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $14.18

24A

240383412 Frigidaire Refrigerator Screw In Stock WCI 240383412 $8.94

24B

242068703 Frigidaire Refrigerator Shelf Backorder WCI 242068703 $161.97

25

241949502 Frigidaire Refrigerator Clip Backorder WCI 241949502 $14.94

25

242037702 Frigidaire Refrigerator Spring Clip Backorder WCI 242037702 $6.63

26

241801801 Frigidaire Crisper Pan In Stock WCI 241801801 $144.38

26

241920609 Frigidaire Side-by-Side Defrost Pan Backorder WCI 241920609 $102.72

27

241752703 Frigidaire Refrigerator Retainer Backorder WCI 241752703 $40.48

29

5303918411 Frigidaire Refrigerator Compressor Backorder WCI 5303918411 $764.56

30

241577505 Frigidaire Refrigerator Inverter In Stock WCI 241577505 $247.16

30

241778701 Frigidaire Refrigerator Anti-Tip Br In Stock WCI 241778701 $19.43

33

HOUSING-EVAPORATOR WCI 242094401 Contact Us For Availability

34

241868301 Frigidaire Refrigerator Washer Asse In Stock WCI 241868301 $24.38

36

241868201 Frigidaire Refrigerator Spacer Backorder WCI 241868201 $38.80

36A

241868202 Frigidaire Refrigerator Spacer Backorder WCI 241868202 $17.18

37

242161206 Frigidaire Refrigerator Cabinet Cor Backorder WCI 242161206 $7.74

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $51.82

38A

241761302 Frigidaire Refrigerator Upper Hinge In Stock WCI 241761302 $50.46

38CA

5304527929 Frigidaire Control Board Dispenser In Stock WCI 5304527929 $263.94

40B

241862405 Frigidaire Refrigerator Upper Hinge Backorder WCI 241862405 $77.97

41

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $10.50

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $11.07

42

242067901 Frigidaire Refrigerator Roller Supp Backorder WCI 242067901 $17.73

42A

242067801 Frigidaire Refrigerator Door Suppor In Stock WCI 242067801 $34.37

43

241641502 Frigidaire Refrigerator Screw Backorder WCI 241641502 $6.61

47B

242082303 Frigidaire Refrigerator Glass Backorder WCI 242082303 $79.29

48

242071401 Frigidaire Refrigerator White Door Backorder WCI 242071401 $68.49

48

242122101 Frigidaire Refrigerator Channel She Backorder WCI 242122101 $62.69

49

242079701 Frigidaire Refrigerator Door Bin In Stock WCI 242079701 $79.01

49

242122202 Frigidaire Refrigerator Channel Backorder WCI 242122202 $52.68

49

5304525892 Frigidaire Refrigerator Freezer Ba Backorder WCI 5304525892 $138.58

49A

242071301 Frigidaire Refrigerator Clear Door In Stock WCI 242071301 $74.40

49A

242122001 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122001 $34.37

49A

BASKET-FRZR, UPPER WCI 241780810 Contact Us For Availability

49B

242011701 Frigidaire Bin Shelf Door Backorder WCI 242011701 $38.26

49B

242122301 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122301 $61.01

49C

242079901 Frigidaire Refrigerator Door Bin In Stock WCI 242079901 $68.49

50

5304501271 Frigidaire Shelf Clip In Stock WCI 5304501271 $12.18

50

5304502780 Frigidaire Refrigerator Main Power In Stock WCI 5304502780 $230.18

51

242095501 Frigidaire Refrigerator Anti-Twist Backorder WCI 242095501 $16.07

51

242197901 Frigidaire Refrigerator Slide Backorder WCI 242197901 $104.85

51

5303918727 Frigidaire Refrigerator Slide Asse Backorder WCI 5303918727 $184.13

51A

241894229 Frigidaire Refrigerator Assembly Sl Backorder WCI 241894229 $109.26

52

5303918726 Frigidaire Refrigerator Assembly S Backorder WCI 5303918726 $184.72

52A

241894230 Frigidaire Refrigerator Slide Assem In Stock WCI 241894230 $114.26

53A

5303918801 Frigidaire Refrigerator Retainer S Backorder WCI 5303918801 $9.42

54

SUPPORT, HOUSING, MAIN BOARD WCI 807854301 Contact Us For Availability

55

242253002 Frigidaire Refrigerator Water Valve In Stock WCI 242253002 $162.16

58

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $7.74

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $6.09

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $35.48

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $9.44

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $106.33

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $24.62

62

PAN-DELI WCI 242096801 Contact Us For Availability

63

216396900 Frigidaire Dryer Adjustable Levelin In Stock WCI 216396900 $31.26

65

808456301 Frigidaire Refrigerator Cover Backorder WCI 808456301 $58.98

68

242095002 Frigidaire Refrigerator Cover In Stock WCI 242095002 $70.61

72

242054804 Frigidaire Refrigerator Kickplate G Backorder WCI 242054804 $61.94

73

242075701 Frigidaire Refrigerator Lower Hinge Backorder WCI 242075701 $16.64

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $20.80

81

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $10.55

81

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.76

82

240335202 Frigidaire Refrigerator Roller Backorder WCI 240335202 $16.64

82

241779401 Frigidaire Refrigerator Flipper Hin In Stock WCI 241779401 $25.09

82

5304503705 Frigidaire Refrigerator Divider Backorder WCI 5304503705 $92.62

83

241812202 Frigidaire Refrigerator Magnet Backorder WCI 241812202 $56.55

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $28.21

84

241830904 Frigidaire Refrigerator Drain Tube In Stock WCI 241830904 $18.29

84

808274201 Frigidaire Door Guide Assembly Backorder WCI 808274201 $26.62

84A

242190501 Frigidaire Refrigerator Mullion Ass Backorder WCI 242190501 $20.51

85

241778811 Frigidaire Refrigerator Flipper Mul In Stock WCI 241778811 $189.45

85

242130901 Frigidaire Refrigerator Divider Backorder WCI 242130901 $67.13

85A

242139301 Frigidaire Refrigerator Support Bea Backorder WCI 242139301 $57.69

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $49.36

86

241779802 Frigidaire Door Hinge Mullion Flipp In Stock WCI 241779802 $37.90

86

5304507340 Frigidaire Refrigerator Trim Backorder WCI 5304507340 $34.93

87

TUBE-CONNECTOR, SUCTION WCI 5304502967 Contact Us For Availability

89

5304509676 Frigidaire Refrigerator Bracket In Stock WCI 5304509676 $56.58

89

5304520905 Frigidaire Assembly Cover Refriger Backorder WCI 5304520905 $55.17

89

TUBE-PROCESS WCI 215346900 Contact Us For Availability

90

240597220 Frigidaire Sensor In Stock WCI 240597220 $10.37

90

BAR-TIMING WCI 242136901 Contact Us For Availability

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $10.53

93

241835505 Frigidaire Refrigerator Light Switc In Stock WCI 241835505 $52.84

96

241860601 Frigidaire Refrigerator Evaporator Backorder WCI 241860601 $93.44

100

242157601 Frigidaire Refrigerator Cover Backorder WCI 242157601 $8.85

101

242157801 Frigidaire Refrigerator Cover Backorder WCI 242157801 $17.75

102

242157501 Frigidaire Refrigerator Cover Backorder WCI 242157501 $17.75

107A

241971601 Frigidaire Refrigerator Light Shiel Backorder WCI 241971601 $26.06

107B

241971202 Frigidaire Refrigerator Light Shiel Backorder WCI 241971202 $26.60

108A

WCI 241971801 WCI 241971801 Contact Us For Availability

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $59.84

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $14.45

122

241860117 Frigidaire Gasket Backorder WCI 241860117 $8.35

123

242135301 Frigidaire Refrigerator Evaporator Backorder WCI 242135301 $6.09

124

242006903 Frigidaire Refrigerator Air Duct Backorder WCI 242006903 $46.59

125

242071201 Frigidaire Refrigerator Cover Backorder WCI 242071201 $89.84

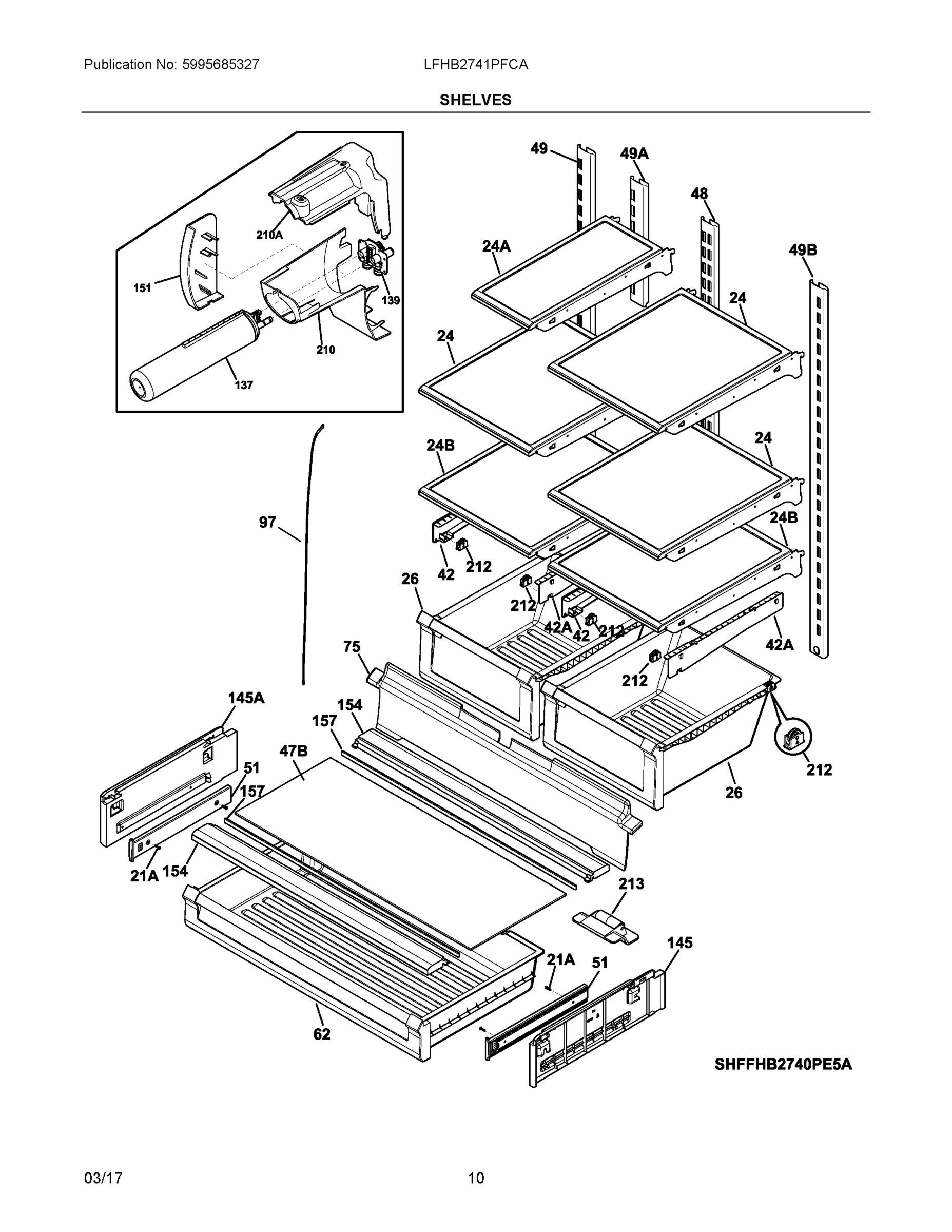

139

BASE-WATER FILTER In Stock WCI 242009604 $24.68

145

242200003 Frigidaire Refrigerator Right Deli Backorder WCI 242200003 $57.12

145A

242200004 Frigidaire Refrigerator Left Hand D Backorder WCI 242200004 $60.43

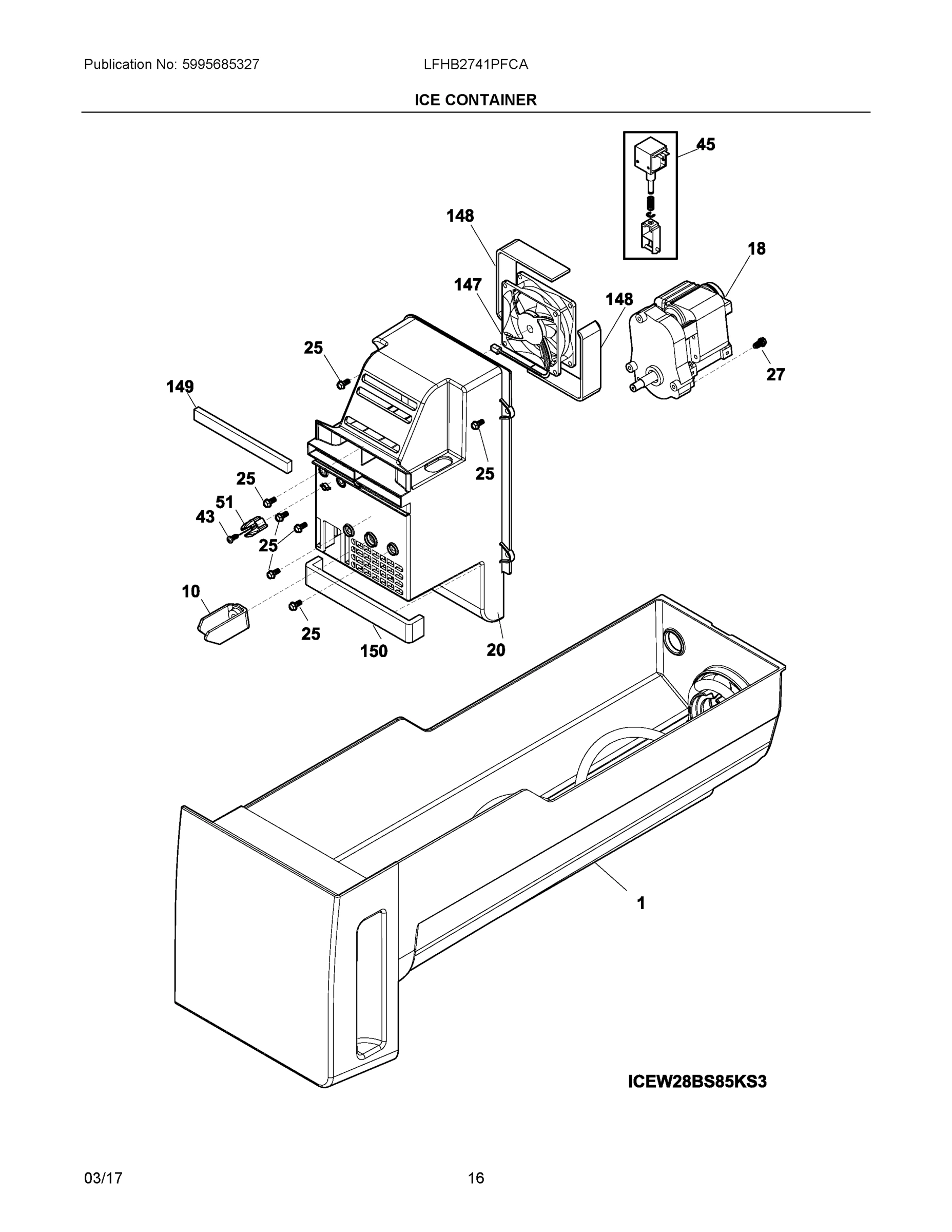

147

5304493604 Frigidaire Refrigerator Gasket & F In Stock WCI 5304493604 $69.01

148

242095406 Frigidaire Refrigerator Gasket In Stock WCI 242095406 $13.90

149

5303918784 Frigidaire Refrigerator Air Handle In Stock WCI 5303918784 $82.20

151

242069701 Frigidaire Refrigerator Water Filte Backorder WCI 242069701 $46.34

154

SUPPORT WCI 242082401 Contact Us For Availability

157

BEAM SUPPORT WCI 241872201 No Longer Available

209

242291001 Frigidaire Refrigerator Housing Backorder WCI 242291001 $14.97

210

241779101 Frigidaire Refrigerator Magnet In Stock WCI 241779101 $24.38

210

241983816 Frigidaire Refrigerator Water Filte Backorder WCI 241983816 $57.71

210A

241998303 Frigidaire Refrigerator Water Filte In Stock WCI 241998303 $9.97

211

241979601 Frigidaire Refrigerator Bumper Backorder WCI 241979601 $17.73

212

242236801 Frigidaire Refrigerator Roller Asse In Stock WCI 242236801 $16.07

213

242010901 Frigidaire Refrigerator Assembly Ro Backorder WCI 242010901 $38.83

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $14.99

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $13.29

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $3.33

241503901 Frigidaire Refrigerator P-1 Tube Ad In Stock WCI 241503901 $40.10

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $47.68

242146401 Frigidaire Refrigerator Screw In Stock WCI 242146401 $11.16

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $11.09

5304521784 Frigidaire Refrigerator Harness Backorder WCI 5304521784 $44.92

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $11.07

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $23.27

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $9.98

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $10.53

241842301 Frigidaire Refrigerator Thermistor Backorder WCI 241842301 $26.60

241844403 Frigidaire Refrigerator Tube Backorder WCI 241844403 $18.27

241860111 Frigidaire Refrigerator Evaporator Backorder WCI 241860111 $9.40

241953908 Frigidaire Refrigerator Screw Backorder WCI 241953908 $3.33

242004802 Frigidaire Refrigerator Foam Strip Backorder WCI 242004802 $4.41

242011101 Frigidaire Refrigerator Pin Lock Backorder WCI 242011101 $11.09

242015001 Frigidaire Refrigerator Screw Backorder WCI 242015001 $12.75

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $75.41

242068601 Frigidaire Refrigerator Bumper Backorder WCI 242068601 $10.53

242096001 Frigidaire Refrigerator Insulation Backorder WCI 242096001 $14.42

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $11.64

5304501541 Frigidaire Refrigerator Gasket Backorder WCI 5304501541 $12.75

5304521649 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521649 $74.28

807999001 Frigidaire Refrigerator Harness Backorder WCI 807999001 $113.13

808165201 Frigidaire Refrigerator Harness Backorder WCI 808165201 $139.73

HARNESS-WIRING, AIR HANDLER WCI 242095806 Contact Us For Availability

WCI 241510802 WCI 241510802 Contact Us For Availability

NIAA

241860104 Frigidaire Refrigerator Coil Cover Backorder WCI 241860104 $23.30

NIAA

242039701 Frigidaire Refrigerator Screw Backorder WCI 242039701 $10.53

NIAB

241860105 Frigidaire Refrigerator Coil Cover Backorder WCI 241860105 $13.29

NIB

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $9.96

NIB

5304520993 Frigidaire Refrigerator Mullion Ha Backorder WCI 5304520993 $30.70

NIB

WCI 242061606 WCI 242061606 Contact Us For Availability

NIBA

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $13.86

NIC

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $13.38

NIC

241964707 Frigidaire Refrigerator Water Tube In Stock WCI 241964707 $14.40

NIC

242072501 Frigidaire Refrigerator Insulation Backorder WCI 242072501 $14.40

NID

241965906 Frigidaire Refrigerator Water Tube Backorder WCI 241965906 $18.84

NIF

242200102 Frigidaire Refrigerator Clip Backorder WCI 242200102 $8.31

NIG

242220204 Frigidaire Water Inlet Tube In Stock WCI 242220204 $39.80
