Model Whirlpool LDE7400ACM ELECTRIC DRYER – Common Parts & Diagrams

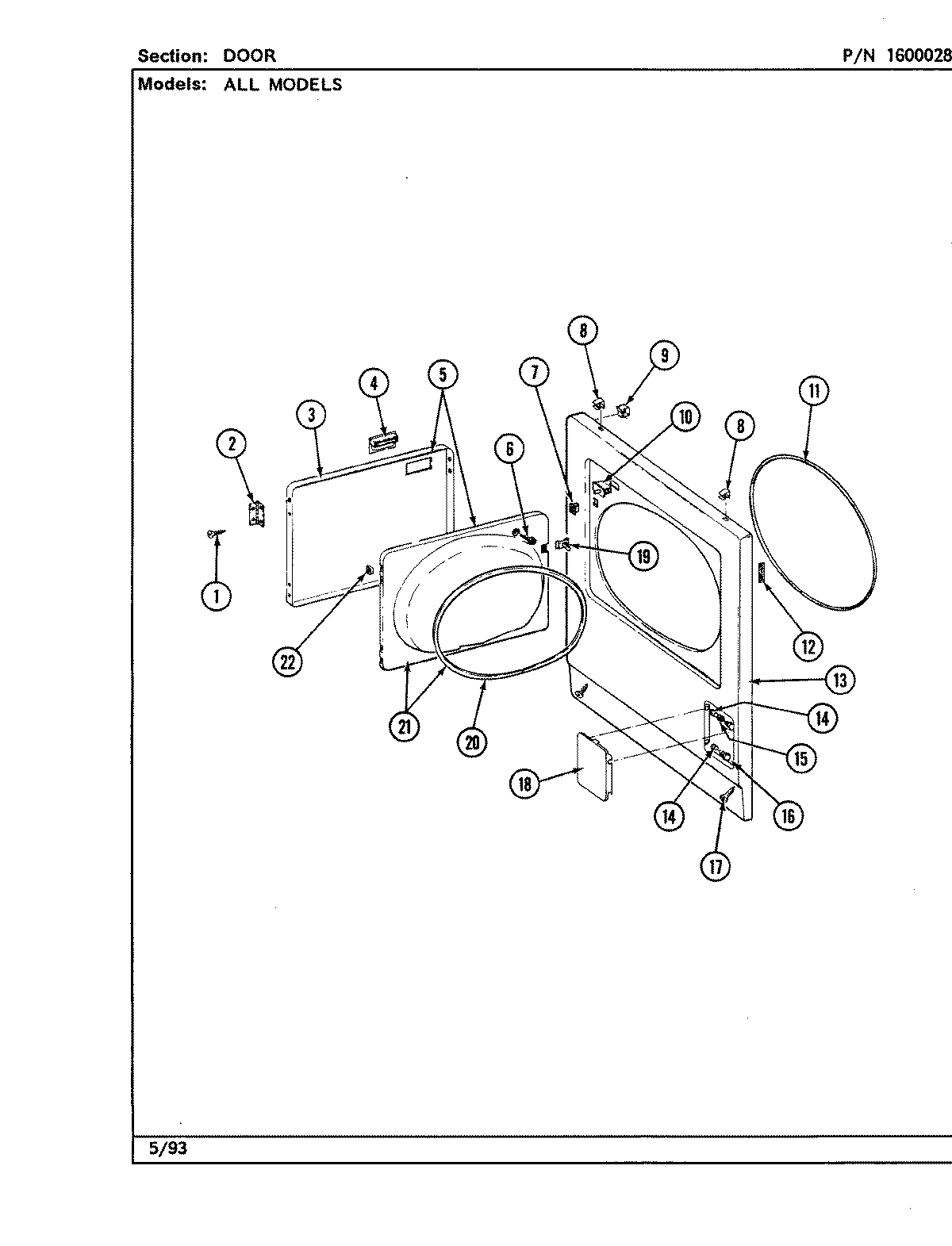

03 - DOOR

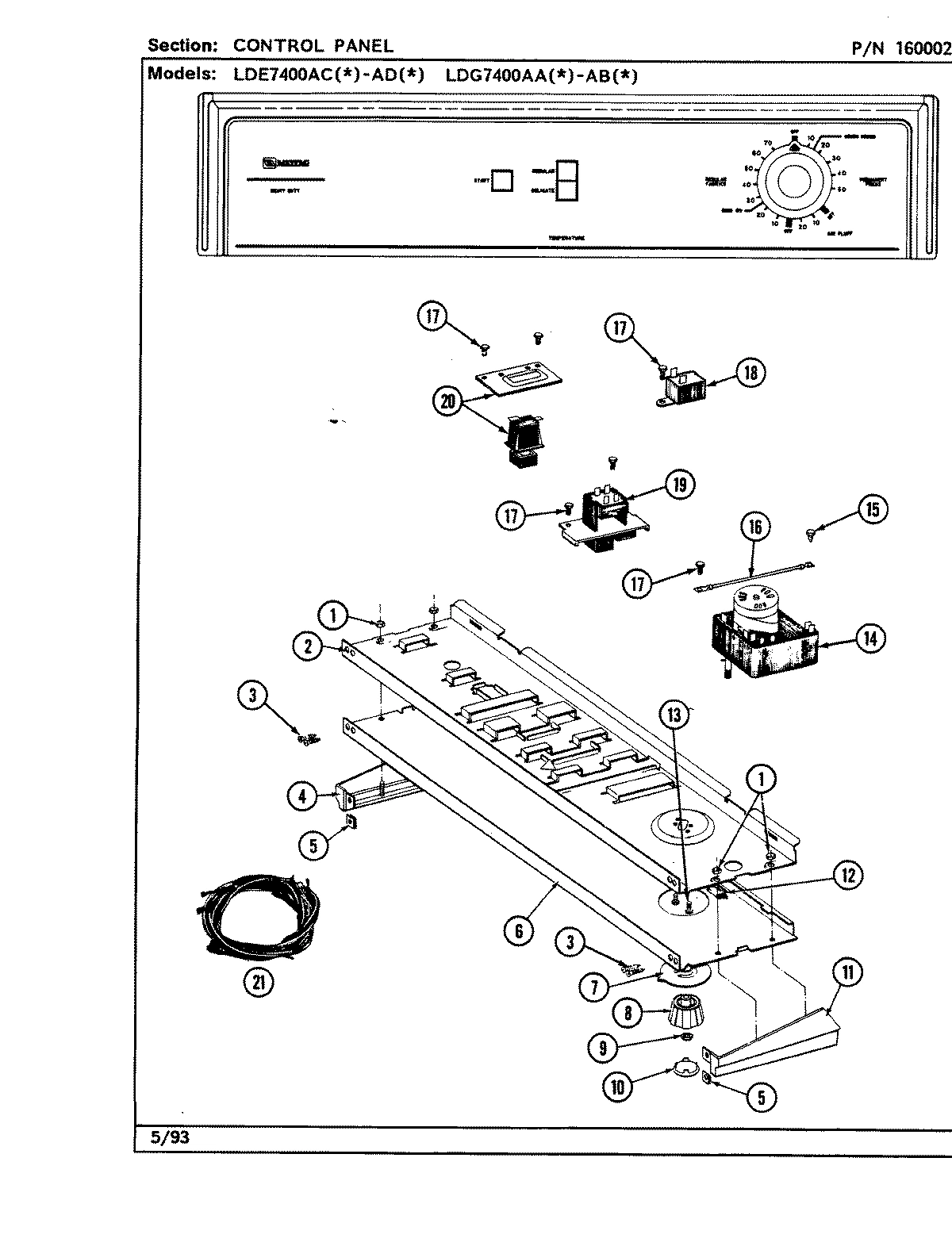

02 - CONTROL PANEL

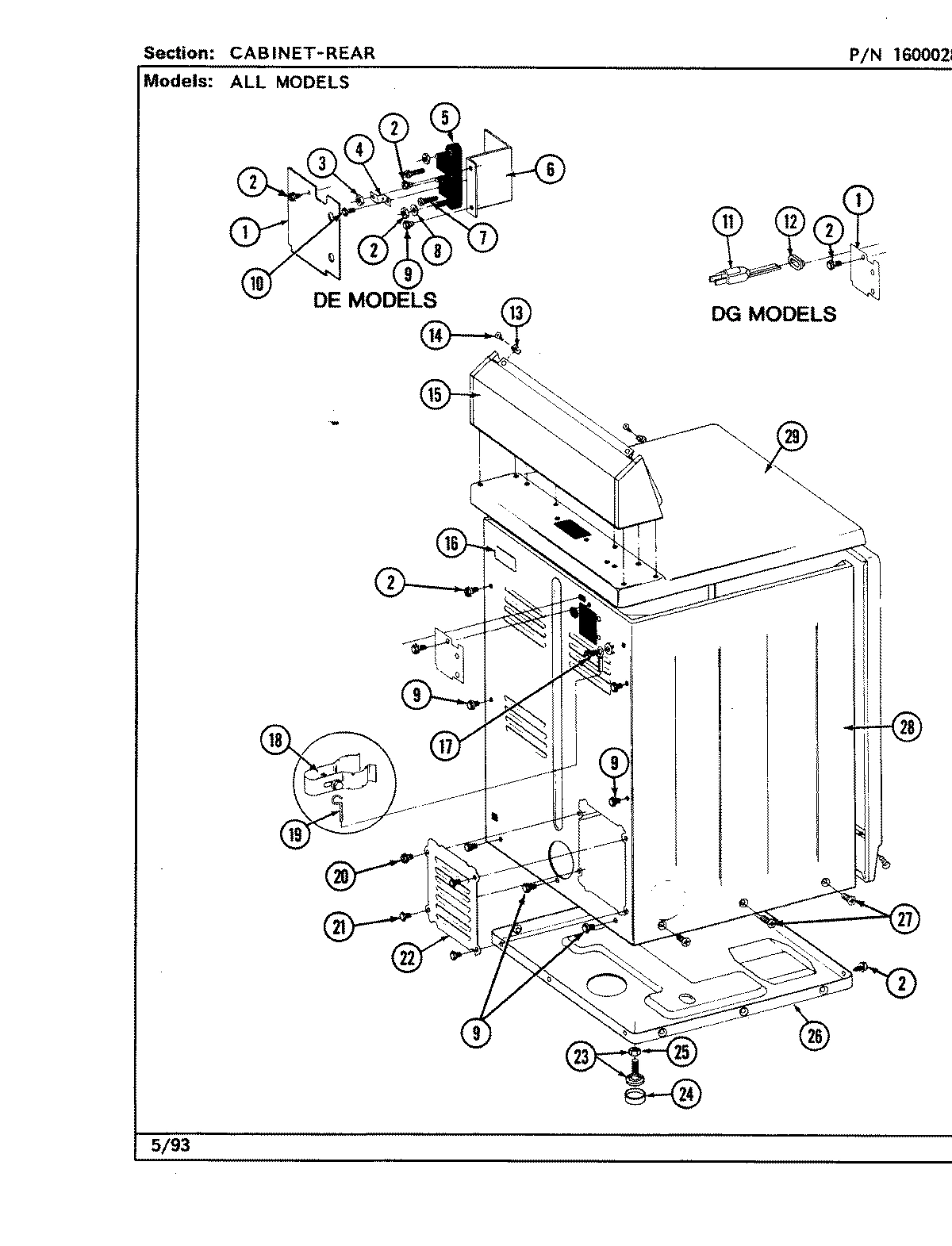

01 - CABINET-REAR
Common parts from model Whirlpool LDE7400ACM ELECTRIC DRYER
1
PALNUT, END CAP WPL 214872 Contact Us For Availability
1
COVER, TERMINAL WPL Y312905 Contact Us For Availability
2
HINGE WPL 307099 Contact Us For Availability
2
BACK UP PLATE WPL 314184 Contact Us For Availability
2
SCREW----NA WPL Y313561 Contact Us For Availability
4
END CAP LH WPL 207215 Contact Us For Availability
4
STRAP, GROUND WPL Y312184 Contact Us For Availability
5
FASTENER, END CAP WPL 214894 Contact Us For Availability
5
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
6
CONTROL PANEL WPL 307316 Contact Us For Availability
6
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
7
DIAL SKIRT WPL 315042 Contact Us For Availability
8
KNOB, TIMER WPL 315041 Contact Us For Availability
9
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
9
SCREW WPL Y310632 Contact Us For Availability
10
CAP, KNOB WPL 215821 Contact Us For Availability
11
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
11
END CAP RH WPL 207216 Contact Us For Availability
12
TWIN FASTENER WPL Y313907 Contact Us For Availability
12
PAD, CONTROL PANEL WPL 214897 Contact Us For Availability
13
FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability
14
BUSHING FOR ACCESS STUD WPL 312301 Contact Us For Availability
14
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
14
TIMER WPL 308222 Contact Us For Availability
15
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
16
SCREW WPL 212949 Contact Us For Availability
16
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
16
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
17
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
18
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
19
2 BUTTON SWITCH WPL 207365 Contact Us For Availability
20
DOOR SEAL WPL 314935 Contact Us For Availability
20
SWITCH PUSH TO START WPL 307305 Contact Us For Availability
21
DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability
21
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
21
MANUAL, USE & CARE WPL 315076 Contact Us For Availability
21
MANUAL, USE & CARE WPL 315090 Contact Us For Availability
22
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
22
LABEL, INSTRUCTION CANADA WPL 315441 Contact Us For Availability
22
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
22
COVER, ACCESS WPL Y312951 Contact Us For Availability
23
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
26
BASE ASSY. WPL Y303361 Contact Us For Availability
27
CAP FOR TIMER KNOB WPL 213077 Contact Us For Availability
× ![]()
