Model Whirlpool LCR5244AW0 AUTOMATIC WASHER – Common Parts & Diagrams

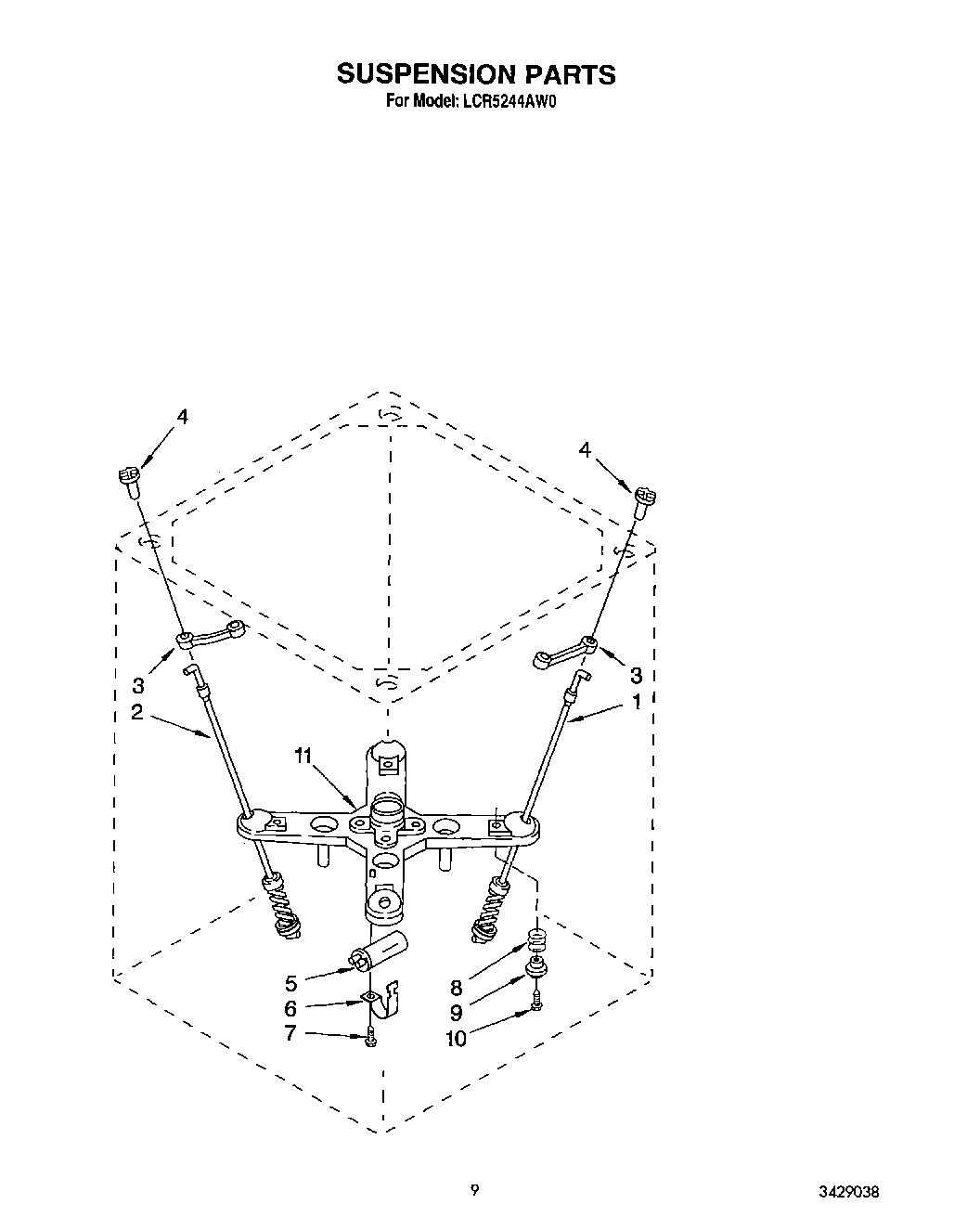

07 - SUSPENSION

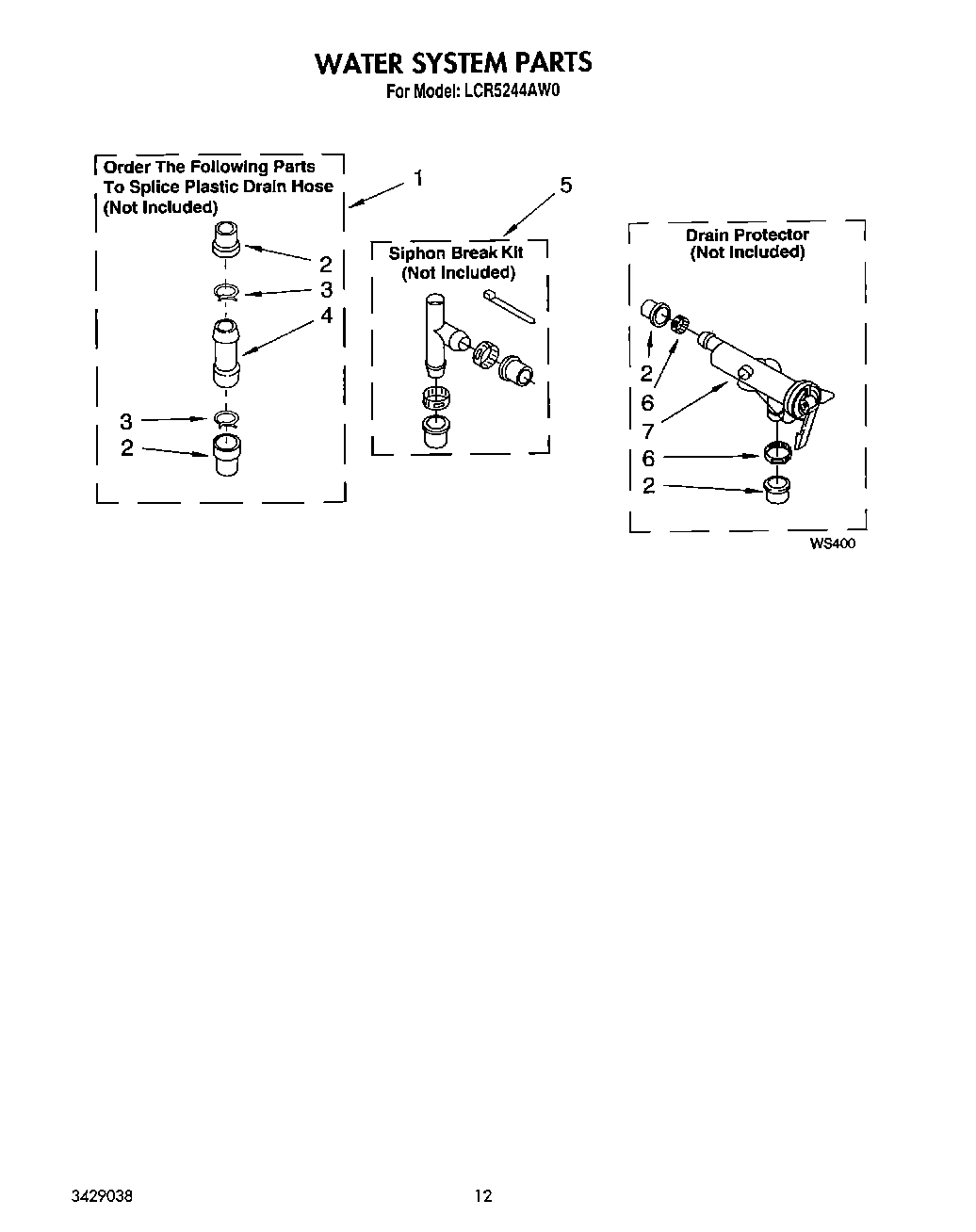

09 - WATER SYSTEM

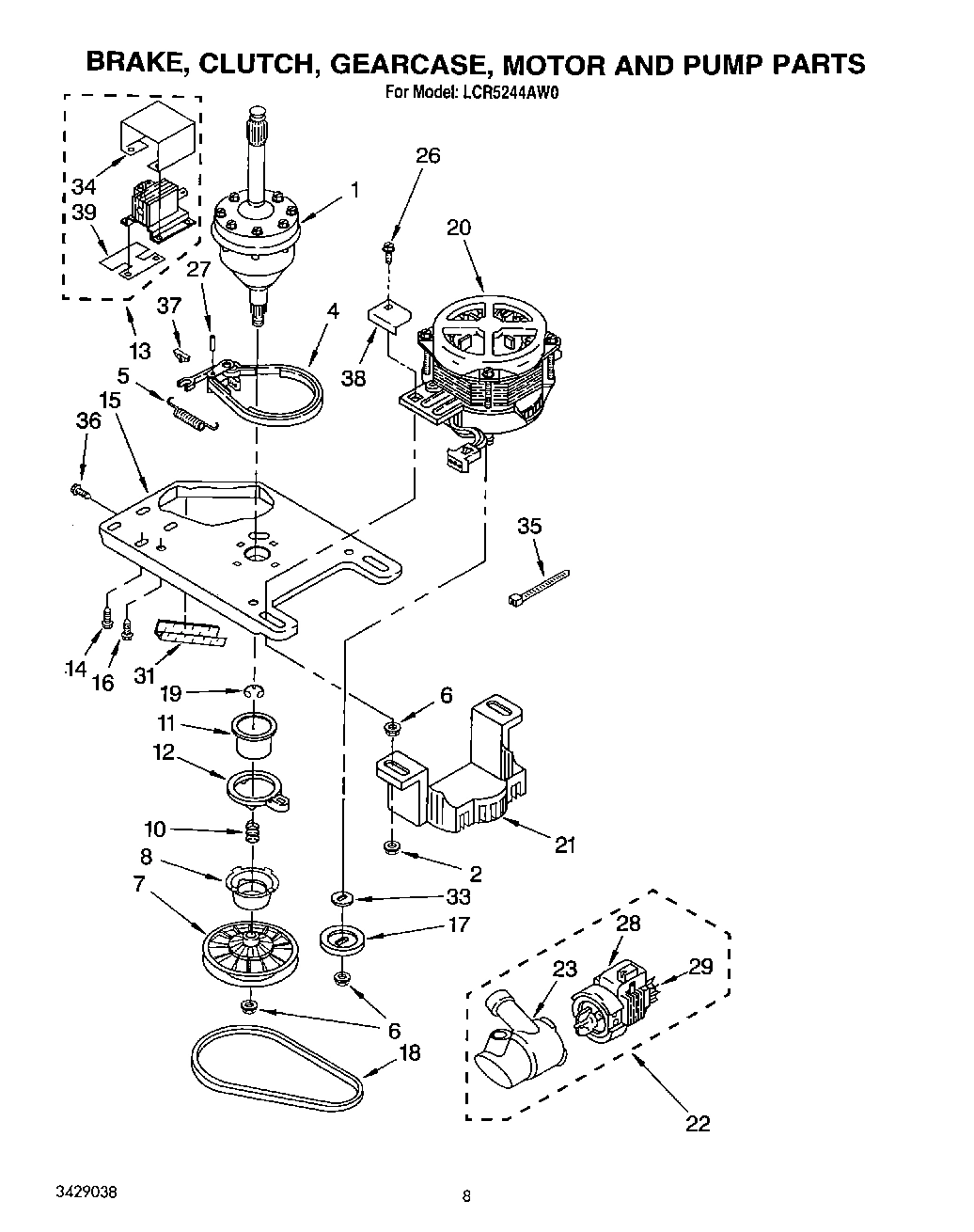

06 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

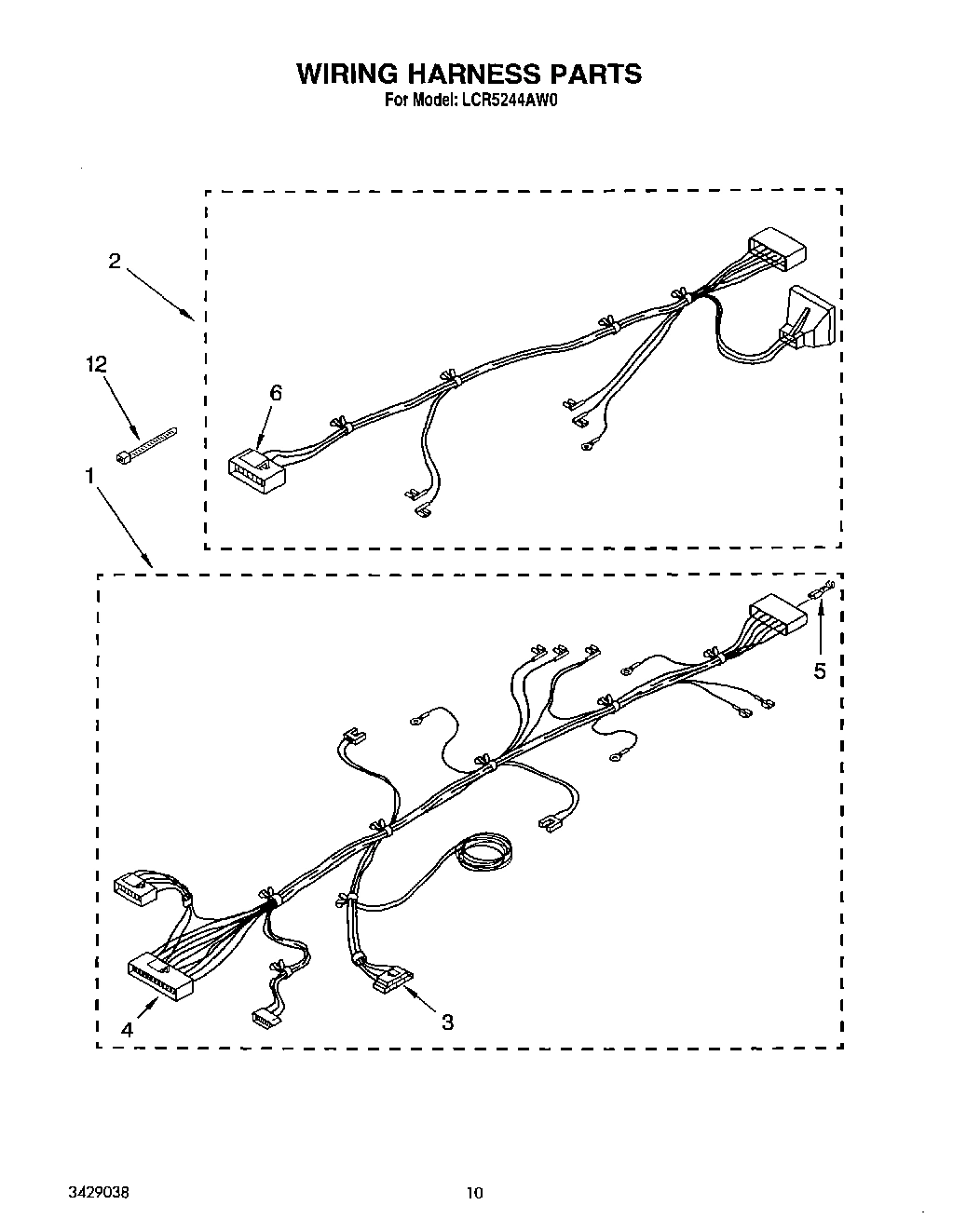

08 - WIRING HARNESS

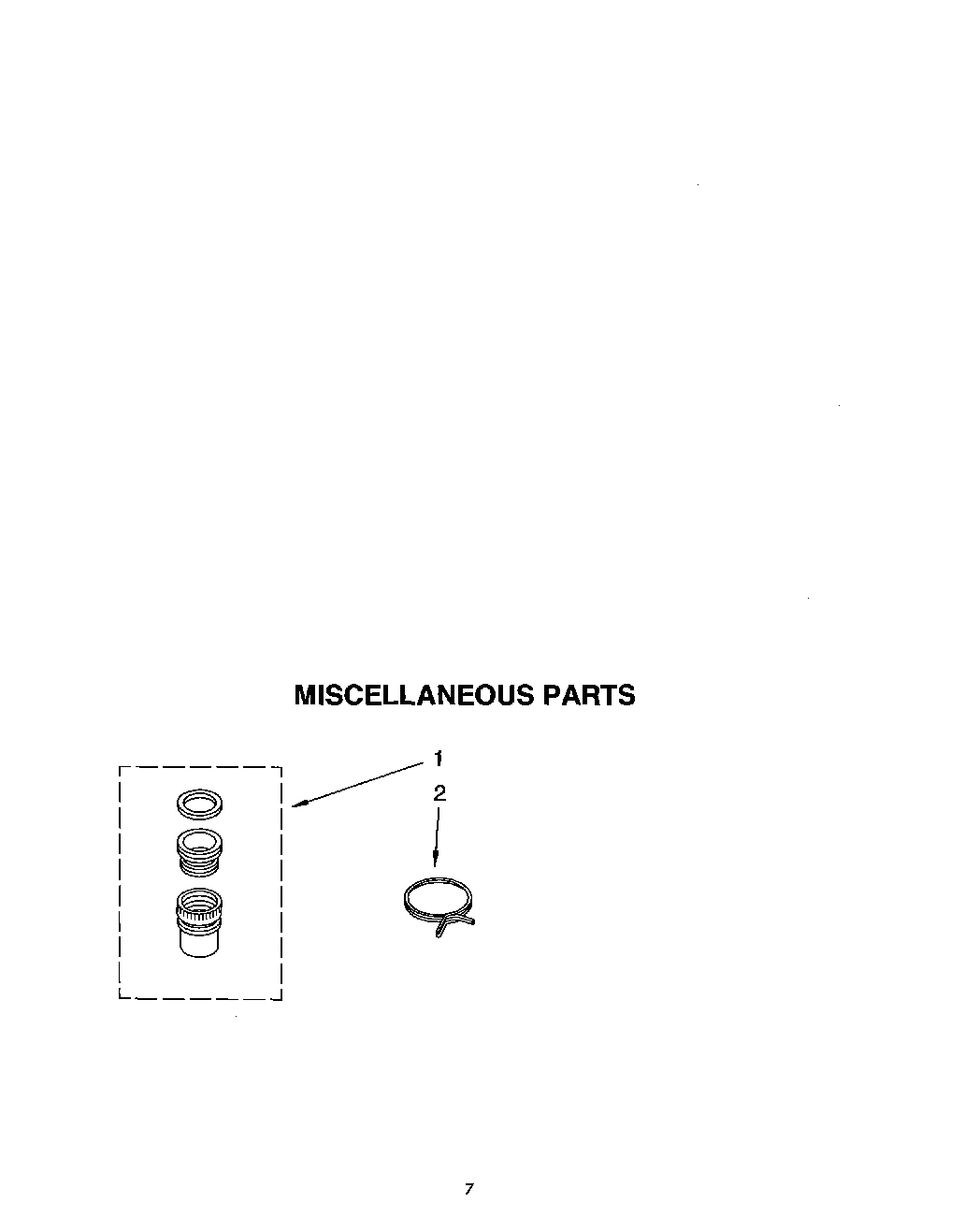

05 - MISCELLANEOUS

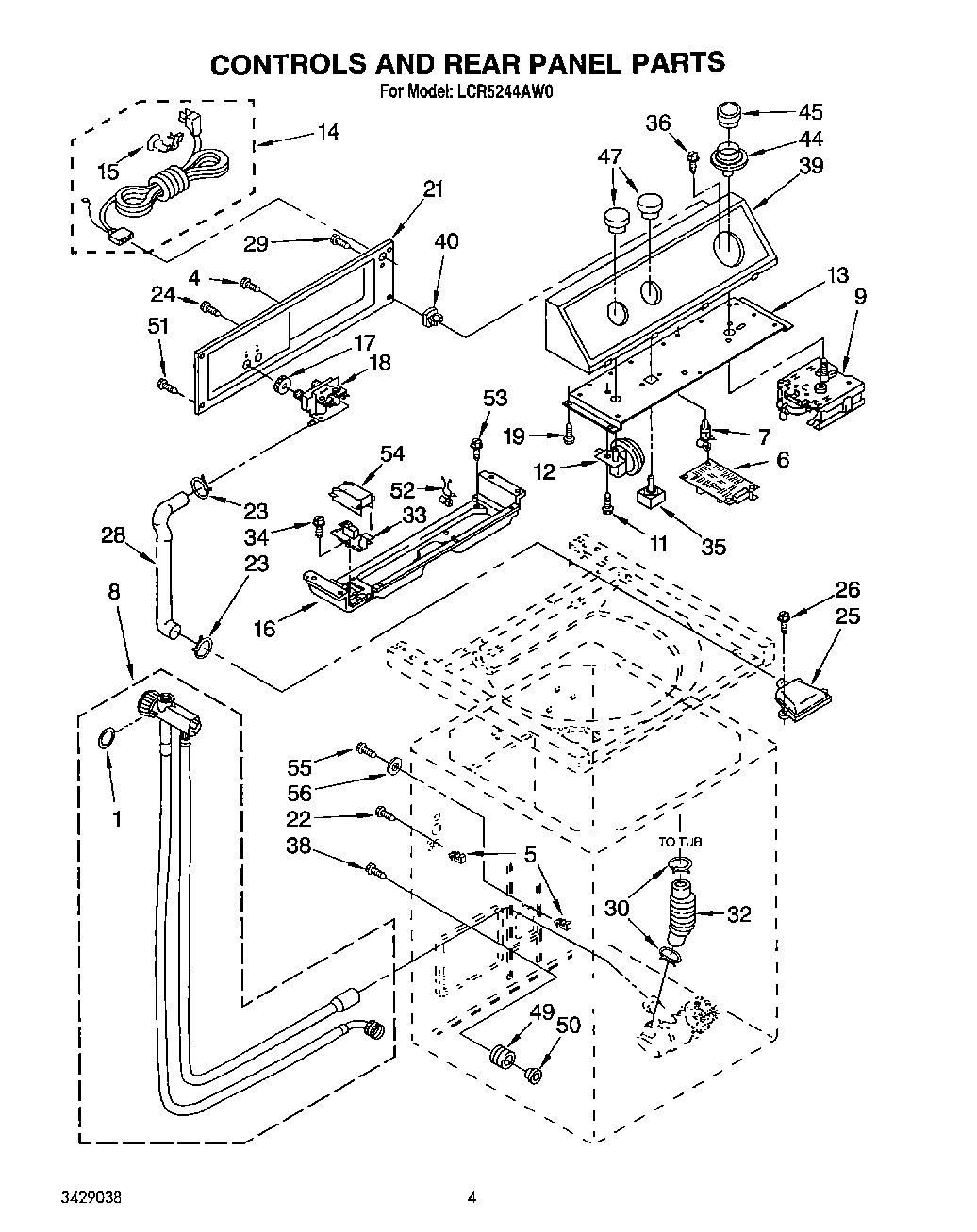

03 - CONTROLS AND REAR PANEL

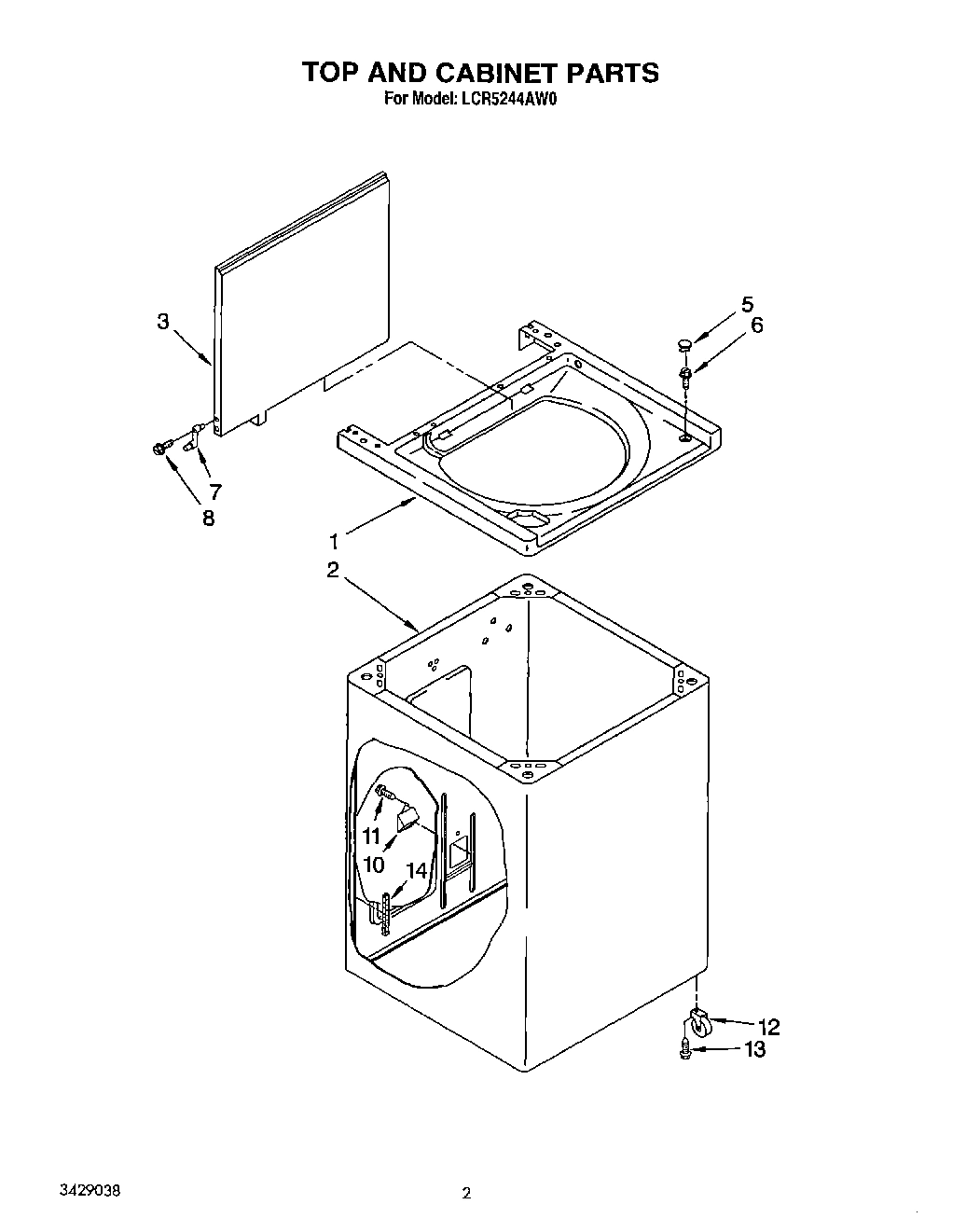

02 - TOP AND CABINET, LIT/OPTIONAL

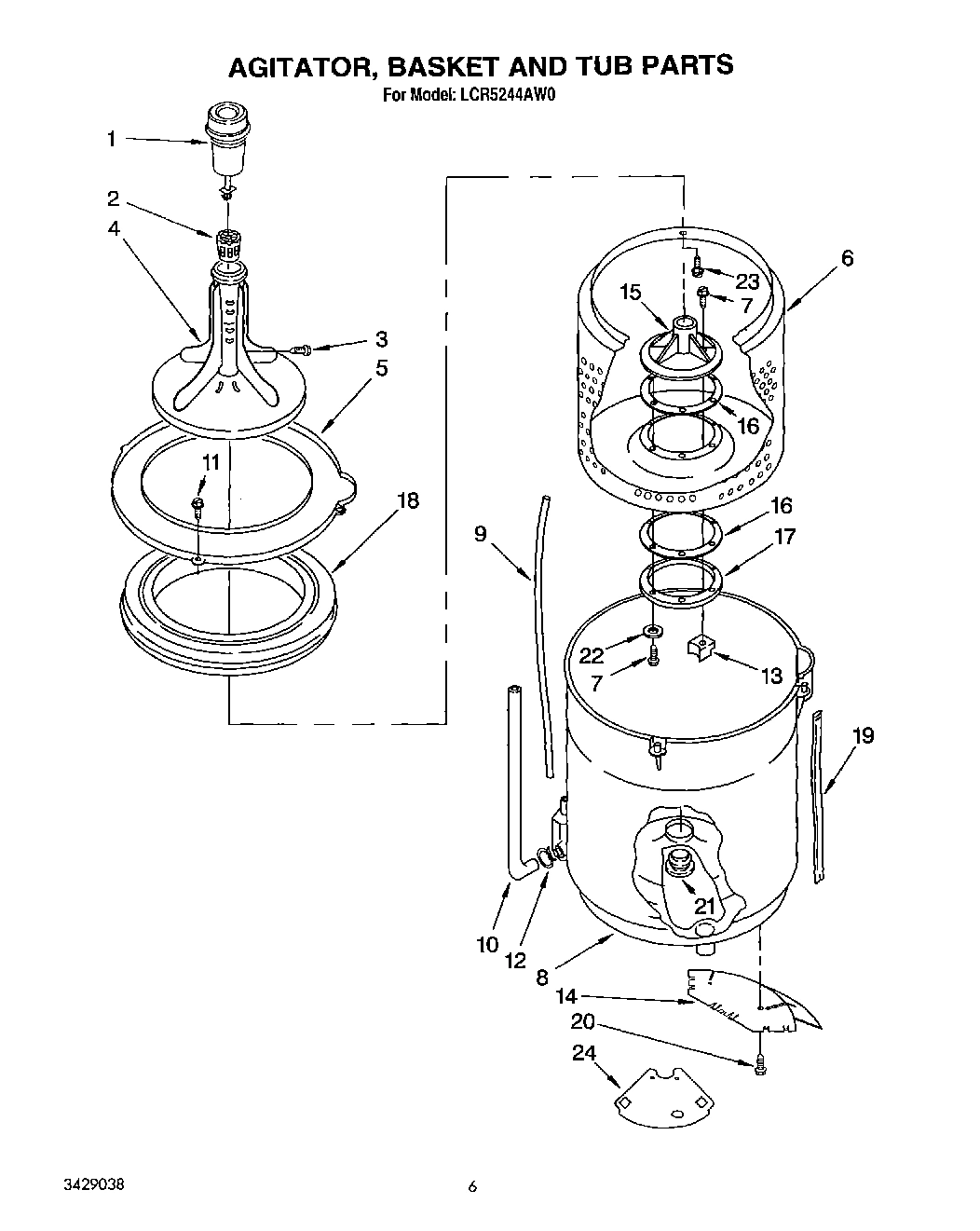

04 - AGITATOR, BASKET AND TUB
Common parts from model Whirlpool LCR5244AW0 AUTOMATIC WASHER
Wall Mount WPL 345994 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
Dryer Stack Stand WPL 695570 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Guide, Use and Care WPL LIT3429026 Contact Us For Availability
List, Repair Parts WPL LIT3429038 Contact Us For Availability
Sheet, Installation Instructions WPL LIT3429274 Contact Us For Availability
Energy Guide WPL LIT3429481 Contact Us For Availability
Label, Wiring Diagram WPL LIT3430302 Contact Us For Availability
1
Seal WPL 711696 Contact Us For Availability
1
Harness, Wiring (Upper) WPL 3430080 Contact Us For Availability
1
Top (White) WPL 3428550 Contact Us For Availability
1
Top (Almond) WPL 3428551 Contact Us For Availability
2
Harness, Wiring (Lower) WPL 3429819 Contact Us For Availability
2
Cabinet (White) WPL 3429969 Contact Us For Availability
2
Cabinet (Almond) WPL 3429970 Contact Us For Availability
2
Filter WPL 3428391 Contact Us For Availability
3
Connector, Temp. Switch WPL 3347243 Contact Us For Availability
3
Lid (White) WPL 3430198 Contact Us For Availability
3
Lid (Almond) WPL 3430199 Contact Us For Availability
4
Block, Timer Disconnect (White) WPL 3369366 Contact Us For Availability
4
Agitator WPL 3428392 Contact Us For Availability
5
Capacitor WPL 3429938 Contact Us For Availability
5
Spring, Brake WPL 3428342 Contact Us For Availability
5
Terminal, Female WPL 3369365 Contact Us For Availability
5
Clip, Harness WPL 3428879 Contact Us For Availability
5
Bumper, Lid (White) WPL 3428720 Contact Us For Availability
5
Bumper, Lid (Almond) WPL 3429565 Contact Us For Availability
5
Tub Ring WPL 3429902 Contact Us For Availability
6
Nut, Washer Locking WPL 3428083 Contact Us For Availability
6
Block, Disconnect (Motor) (Uses Terminal No.3 WPL 311150 Contact Us For Availability
6
Board, Control WPL 3428401 Contact Us For Availability
6
Screw, Top To Cabinet (2) WPL 3429941 Contact Us For Availability
6
Basket WPL 3428186 Contact Us For Availability
7
Pulley, Splutch WPL 3428359 Contact Us For Availability
7
Stand Off, Small (2) WPL 3428718 Contact Us For Availability
7
Stand Off, Large (2) WPL 3430082 Contact Us For Availability
7
Hinge, Lid (2) WPL 3428543 Contact Us For Availability
7
Screw WPL 3428430 Contact Us For Availability
8
Cam, Splutch WPL 3428378 Contact Us For Availability
8
Screw, Lid Hinge Mounting (2) WPL 3430073 Contact Us For Availability
8
Tub WPL 3428517 Contact Us For Availability
9
Timer, Control (60 Hz.) WPL 3430177 Contact Us For Availability
10
Spring, Splutch WPL 3428381 Contact Us For Availability
10
Cover, Pump WPL 3428525 Contact Us For Availability
10
Hose, Bleach WPL 3430156 Contact Us For Availability
11
Slider, Splutch WPL 3428380 Contact Us For Availability
12
Cam Ring, Splutch WPL 3428379 Contact Us For Availability
12
Switch, Water Level WPL 3429610 Contact Us For Availability
12
Caster (4) WPL 3429406 Contact Us For Availability
13
Solenoid (Includes In-Line Fuse) WPL 3430204 Contact Us For Availability
13
Screw WPL 3429189 Contact Us For Availability
13
Bracket, Control WPL 3428848 Contact Us For Availability
13
Saddle Block WPL 3428429 Contact Us For Availability
14
Protector, Edge WPL 3429705 Contact Us For Availability
14
Cord, Power WPL 3429399 Contact Us For Availability
14
Shield, Tub/Motor WPL 3428814 Contact Us For Availability
15
Plate, Motor Mount WPL 3430205 Contact Us For Availability
15
Strain Relief, Power Cord WPL 63848 Contact Us For Availability
15
Hub, Drive WPL 3430098 Contact Us For Availability
16
Bolt, Motor Plate (4) WPL 3429405 Contact Us For Availability
16
Pan, Console WPL 3428370 Contact Us For Availability
16
Gasket, Hub (2) WPL 3428179 Contact Us For Availability
17
Pulley, Motor WPL 3428683 Contact Us For Availability
17
Clamp, Ring WPL 3428395 Contact Us For Availability
18
Drive Belt WPL 3428097 Contact Us For Availability
18
Valve, Water Mixing WPL 3430029 Contact Us For Availability
18
Balance Ring WPL 3428181 Contact Us For Availability
19
Ring, Snap WPL 3429530 Contact Us For Availability
19
Hose, Tub Overflow WPL 3430093 Contact Us For Availability
20
Motor, Main Drive (Includes Items 33, 17, & 6 WPL 3934034 Contact Us For Availability
21
Shield, Pulley WPL 3429190 Contact Us For Availability
21
Cover, Console Rear WPL 3428365 Contact Us For Availability
22
Pump (Complete) WPL 3430119 Contact Us For Availability
22
Washer WPL 3429750 Contact Us For Availability
23
Housing, Pump WPL 3430120 Contact Us For Availability
23
Screw, Balance Ring (4) WPL 3428014 Contact Us For Availability
24
Shield, Tub/Solenoid WPL 3430303 Contact Us For Availability
25
Water Inlet (Upper) WPL 3429917 Contact Us For Availability
25
Water Inlet (Lower) WPL 3429918 Contact Us For Availability
26
Screw, Water Inlet Mtg. (2) WPL 3934040 Contact Us For Availability
26
Bolt, Motor Mounting (2) WPL 3429371 Contact Us For Availability
27
Pin, Brake Band WPL 3428385 Contact Us For Availability
28
Pump WPL 3430089 Contact Us For Availability
28
Hose, Valve To Water Inlet WPL 3430030 Contact Us For Availability
29
Blade, Fan WPL 3429939 Contact Us For Availability
32
Hose, Pump To Tub WPL 3429900 Contact Us For Availability
33
Washer, Pulley WPL 3428377 Contact Us For Availability
33
Switch, Lid WPL 3429738 Contact Us For Availability
34
Solenoid Shield, Top WPL 3430305 Contact Us For Availability
35
Switch, Water Temperature WPL 3429541 Contact Us For Availability
37
Lock, Solenoid WPL 3429416 Contact Us For Availability
38
Shield, Motor Connector WPL 3430197 Contact Us For Availability
38
Screw, Pump Mtg. (2) WPL 3428934 Contact Us For Availability
39
Solenoid Shield, Bottom WPL 3430307 Contact Us For Availability
39
Panel, Console (Includes Inlay) (White) WPL 3430210 Contact Us For Availability
39
Panel, Console (Includes Inlay) (Almond) WPL 3430211 Contact Us For Availability
44
Blade, Timer Knob WPL 3388185 Contact Us For Availability
45
Knob, Timer WPL 3392698 Contact Us For Availability
47
Knob, Control WPL 3430129 Contact Us For Availability
49
Grommet, Pump (3) WPL 3428526 Contact Us For Availability
50
Spacer, Pump (3) WPL 3428933 Contact Us For Availability
51
Screw WPL 3429942 Contact Us For Availability
52
Clip, Coil (2) WPL 3429534 Contact Us For Availability
54
Shield, Lid Switch WPL 3429706 Contact Us For Availability
56
Washer WPL 3429923 Contact Us For Availability
× ![]()
