Model Whirlpool LCE4332PQ0 COMPACT AUTOMATIC WASHER – Common Parts & Diagrams

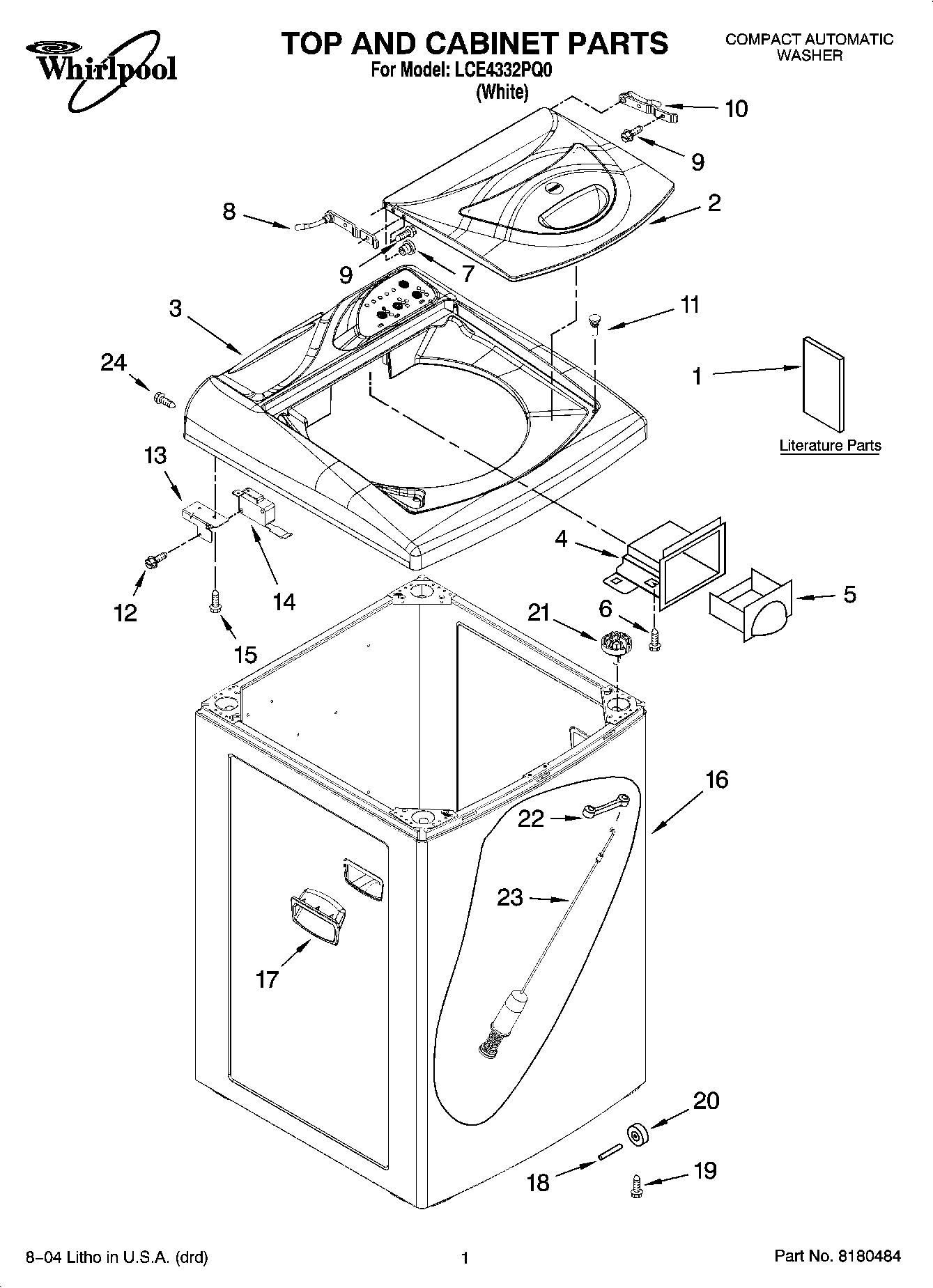

01 - TOP AND CABINET PARTS

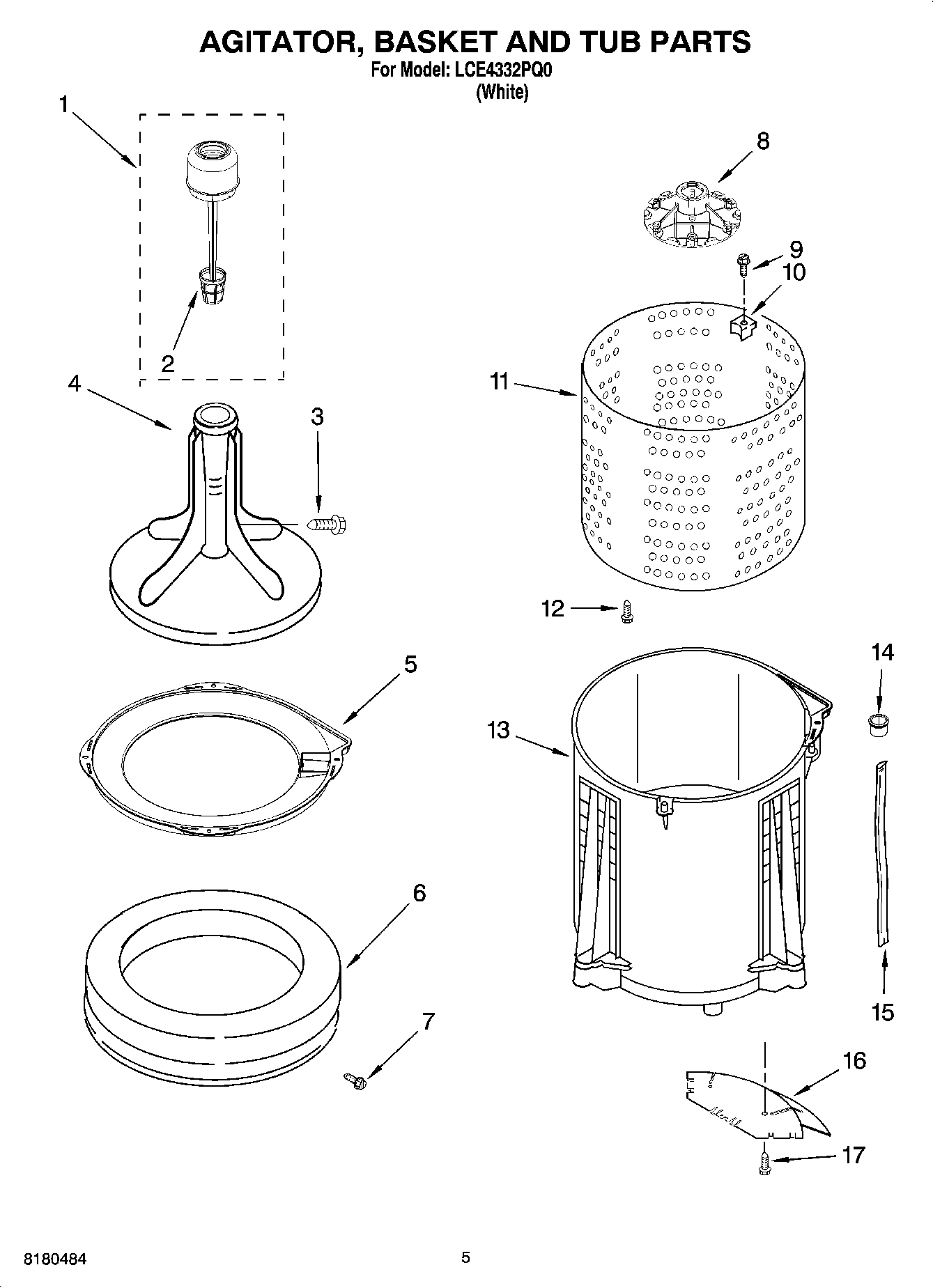

03 - AGITATOR, BASKET AND TUB PARTS

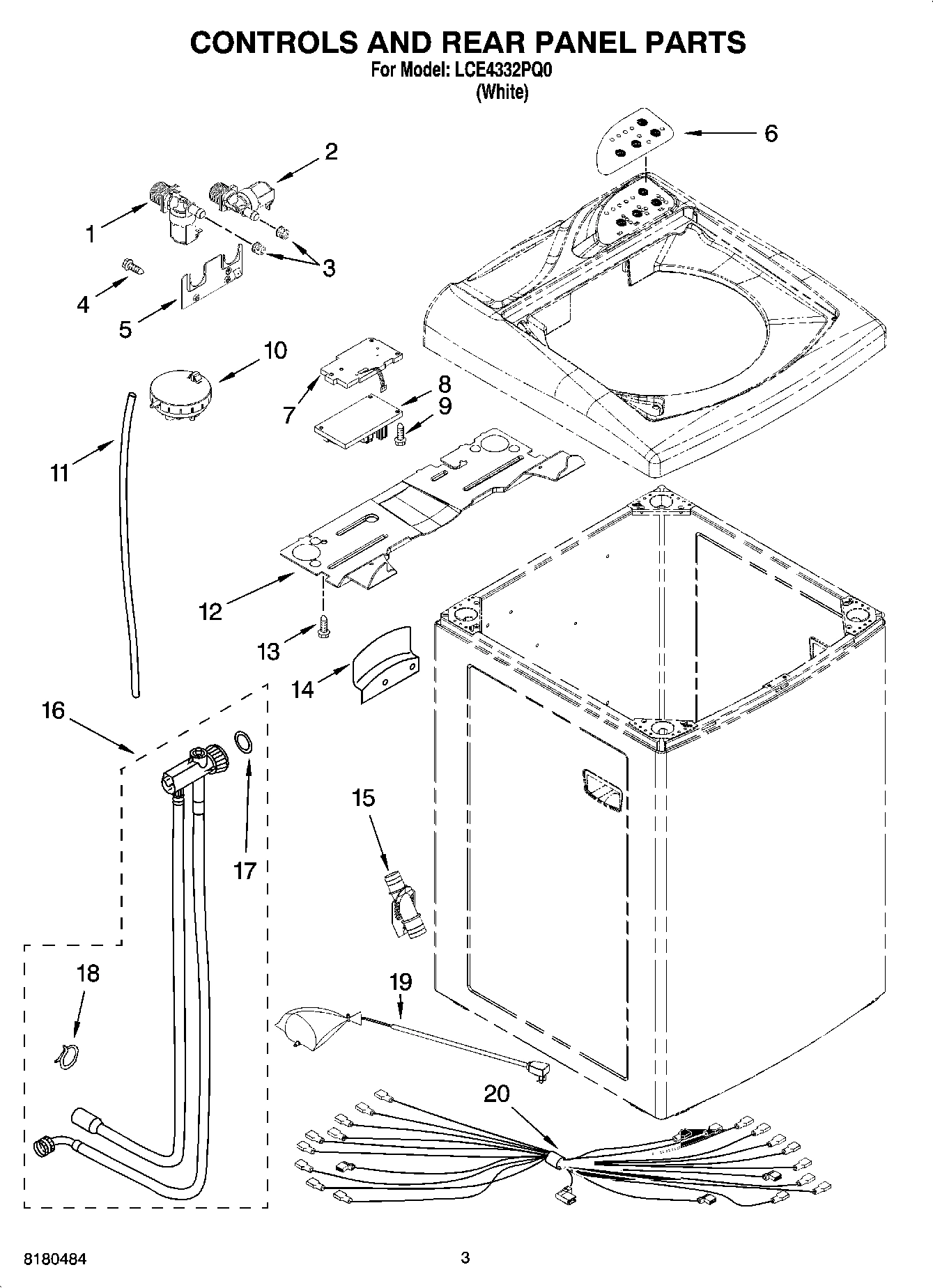

02 - CONTROLS AND REAR PANEL PARTS

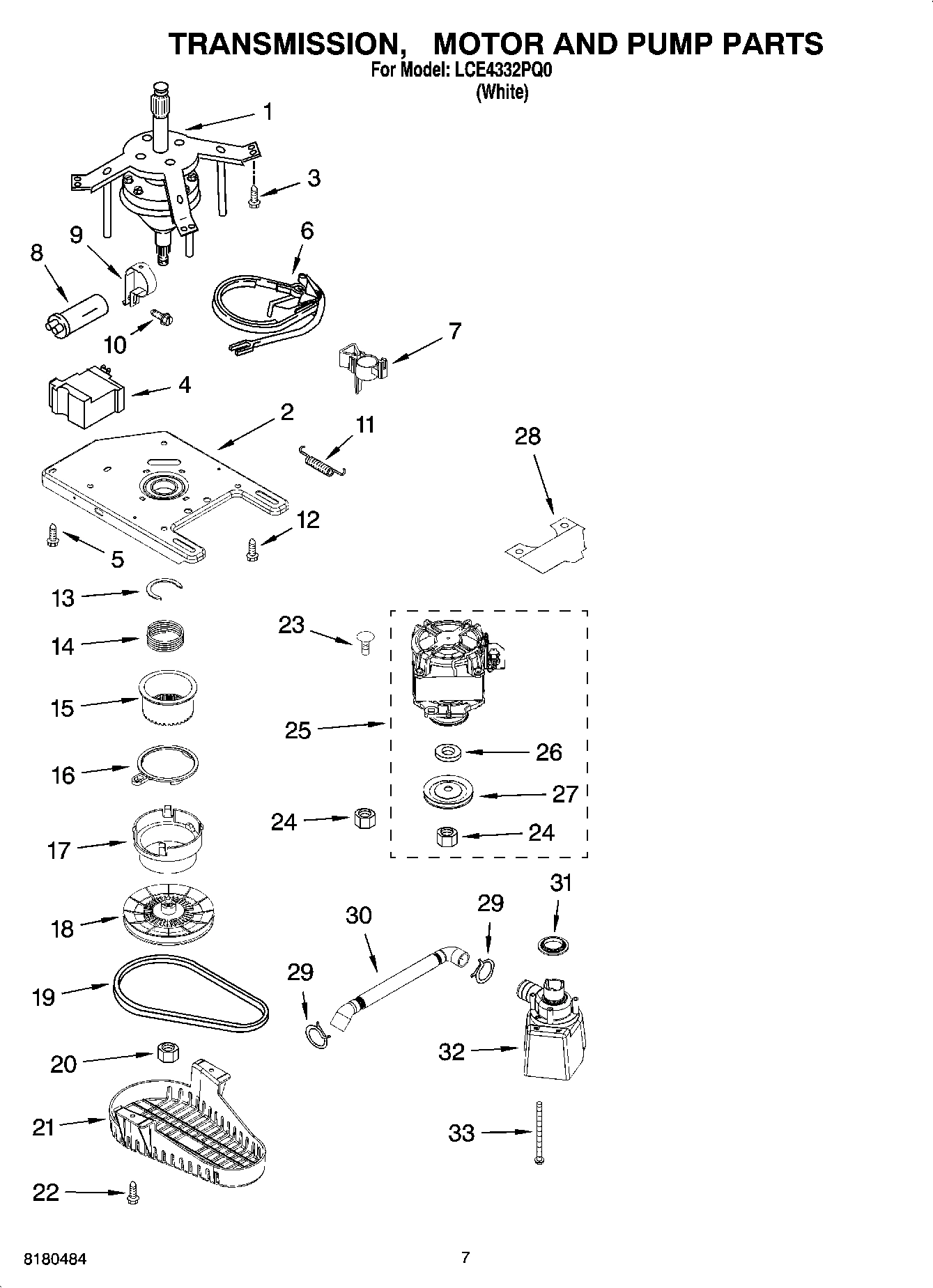

04 - TRANSMISSION, MOTOR AND PUMP PARTS

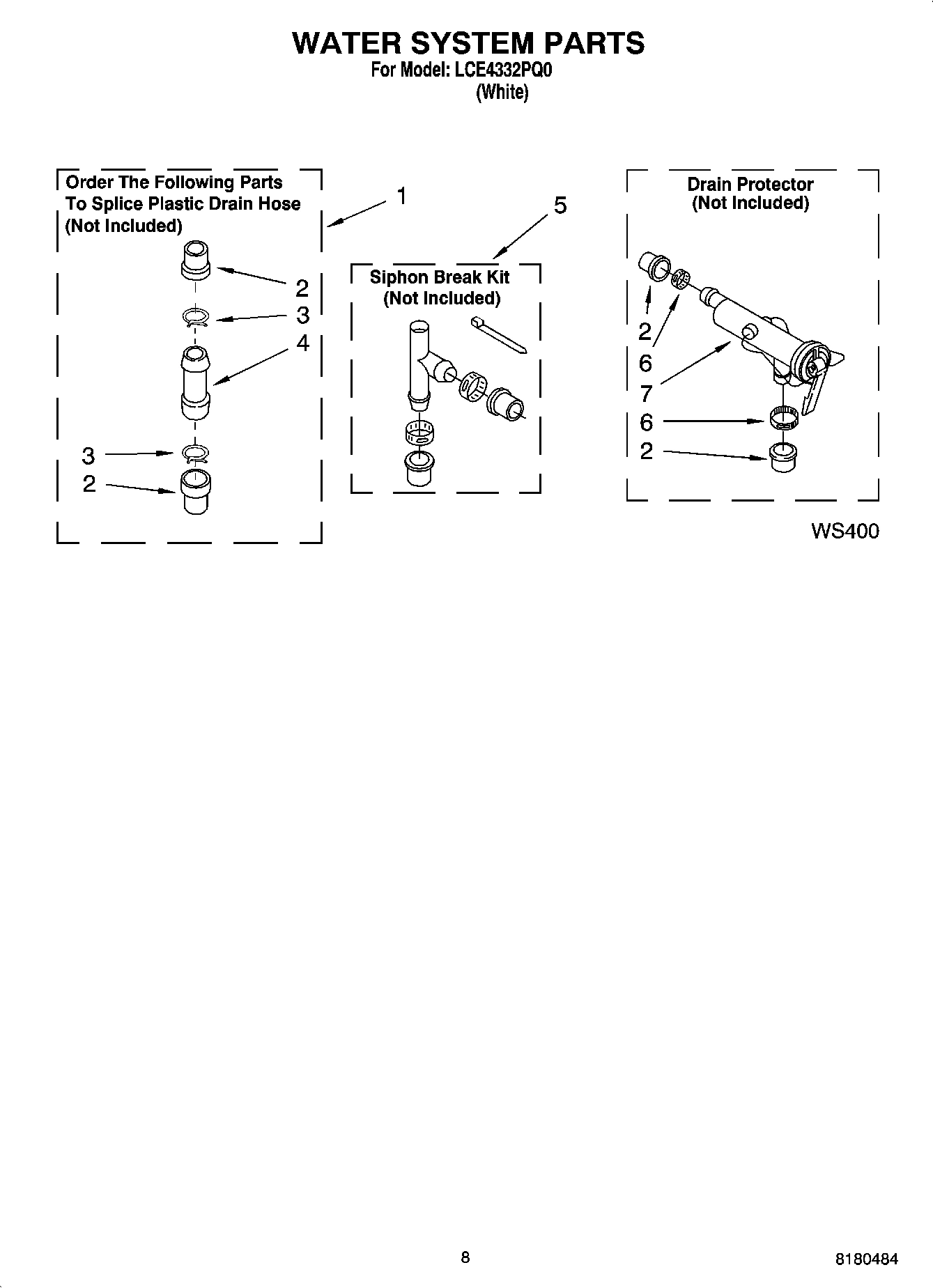

05 - WATER SYSTEM PARTS, MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool LCE4332PQ0 COMPACT AUTOMATIC WASHER
Stationary To Portable WPL 285768 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Portable To Fixed WPL 4396746 Contact Us For Availability
COUPLING WPL ARI156726A Contact Us For Availability
CONVERSION KIT WPL ARI156727A Contact Us For Availability
DRYER STACK STAND WPL ARI156728A Contact Us For Availability
1
Inlet Valve (Hot) WPL 326032994 Contact Us For Availability
1
Gearcase & Tub Support Asm WPL 326042225 Contact Us For Availability
2
Motor Plate & Bearing Assembly WPL 326042919 Contact Us For Availability
2
Inlet Valve (Cold) WPL 326032997 Contact Us For Availability
3
Seal, Inlet Valve (2) WPL 326033919 Contact Us For Availability
3
Screw, Tub Support (5) WPL 326016091 Contact Us For Availability
4
Brake Actuator WPL 326042226 Contact Us For Availability
4
Housing, Dispenser WPL 326033918 Contact Us For Availability
4
Screw (2) WPL 326018823 Contact Us For Availability
5
Screw, Brake Actuator (2) WPL 8182292 Contact Us For Availability
5
Bracket, Inlet Valve WPL 326027101 Contact Us For Availability
5
Clamp, Hose WPL 661581 Contact Us For Availability
6
Overlay WPL 326033923 Contact Us For Availability
6
Miscellaneous Parts Bag Miscellaneous parts m WPL 3428855 Contact Us For Availability
7
Support, Brake Band WPL 326016785 Contact Us For Availability
7
Interface Board WPL 326034590 Contact Us For Availability
7
Drain Protector (Not Included) WPL 367031 Contact Us For Availability
8
Control, Electronic WPL 326032998 Contact Us For Availability
9
Screw (6) WPL 326041720 Contact Us For Availability
9
Clamp, Capacitor WPL 326036955 Contact Us For Availability
10
Switch, Water Level WPL 326034589 Contact Us For Availability
12
Shield, Controls WPL 326034866 Contact Us For Availability
12
Screw, Gearcase to Motor Plate (4) WPL 8182299 Contact Us For Availability
13
Clip WPL 8182268 Contact Us For Availability
14
Switch, Lid WPL 326033879 Contact Us For Availability
14
Bracket, Hose Storage WPL 326034862 Contact Us For Availability
15
Connector, Drain Hose WPL 326034647 Contact Us For Availability
15
Bag, Tub Overflow WPL 326036377 Contact Us For Availability
15
Slider, Splutch WPL 8182263 Contact Us For Availability
16
Cam Ring, Splutch WPL 8182265 Contact Us For Availability
16
Shield, Tub/Motor WPL 326033906 Contact Us For Availability
17
Cam, Splutch WPL 8182266 Contact Us For Availability
18
Pulley, Splutch WPL 8182264 Contact Us For Availability
19
Drive Belt WPL 8182226 Contact Us For Availability
20
NUT WPL 8182297 Contact Us For Availability
21
Shield, Pulley WPL 326044746 Contact Us For Availability
22
Strap, Snubber WPL 326000047 Contact Us For Availability
22
Screw (2) WPL 8182295 Contact Us For Availability
23
Bolt, Motor Mounting (2) WPL 8182304 Contact Us For Availability
25
Motor, Main Drive WPL 326032993 Contact Us For Availability
26
WASHER WPL 8182305 Contact Us For Availability
27
Pulley, Motor WPL 8182281 Contact Us For Availability
28
Shield, Motor WPL 326033905 Contact Us For Availability
30
Hose, Pump to Tub WPL 326036549 Contact Us For Availability
31
Seal, Pump to Tub WPL 326031821 Contact Us For Availability
32
Pump (Complete) WPL 326032991 Contact Us For Availability
33
Screw, Pump (3) WPL 326029005 Contact Us For Availability
× ![]()
