Model Maytag LBR1415AGW ELECTRIC RANGE – Common Parts & Diagrams

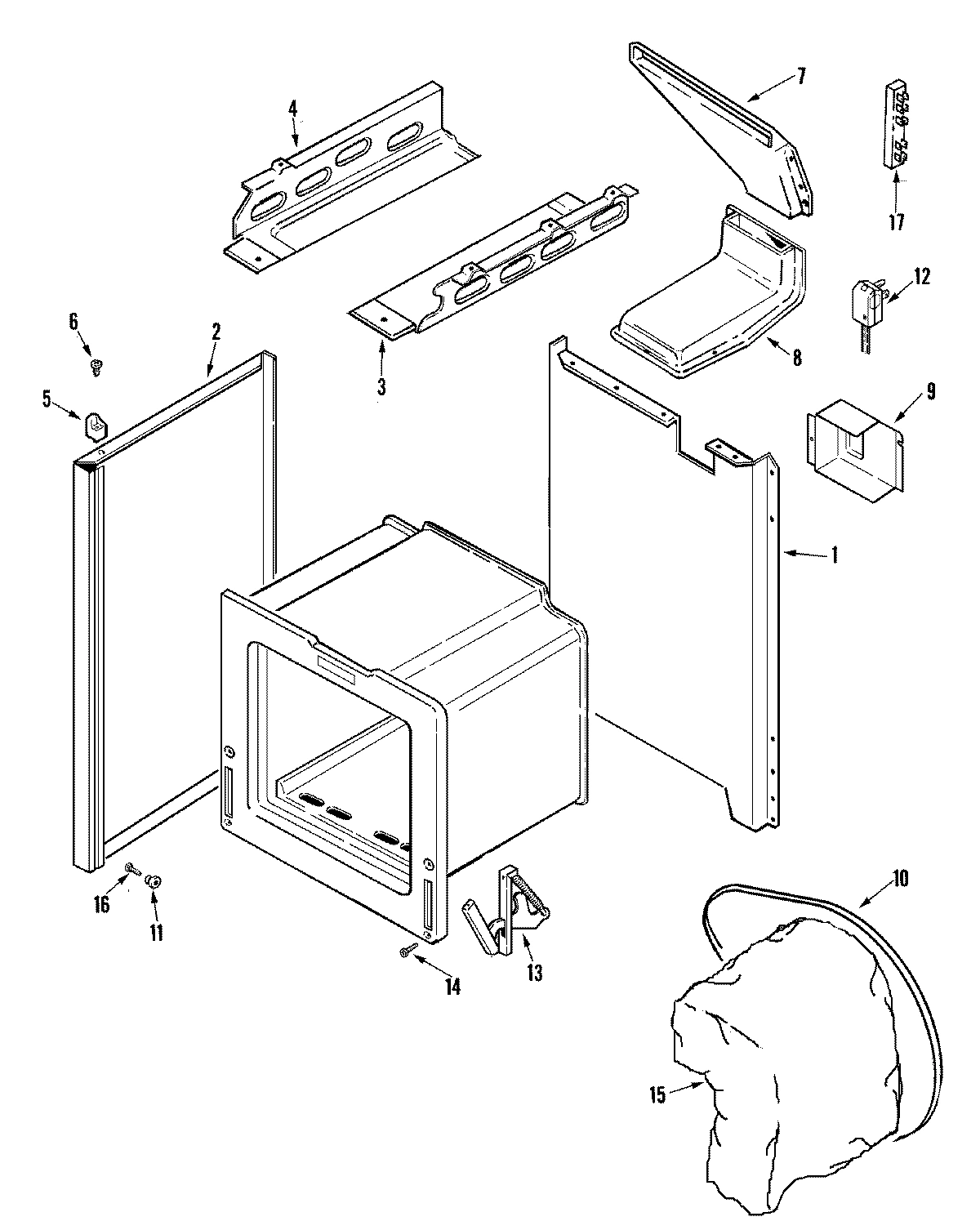

01 - BODY
02 - CONTROL PANEL/TOP ASSEMBLY
03 - DOOR/DRAWER

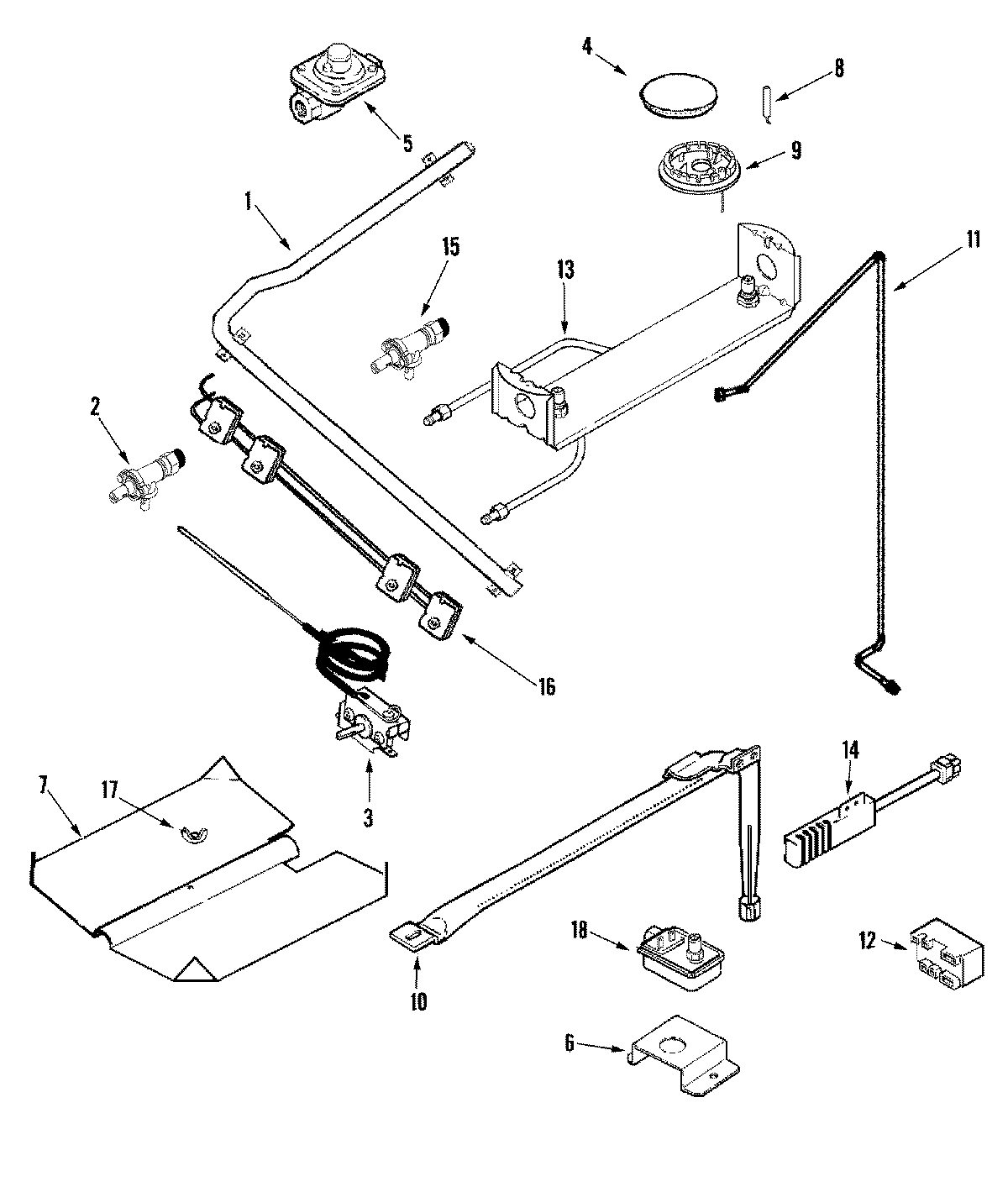

04 - GAS CONTROLS

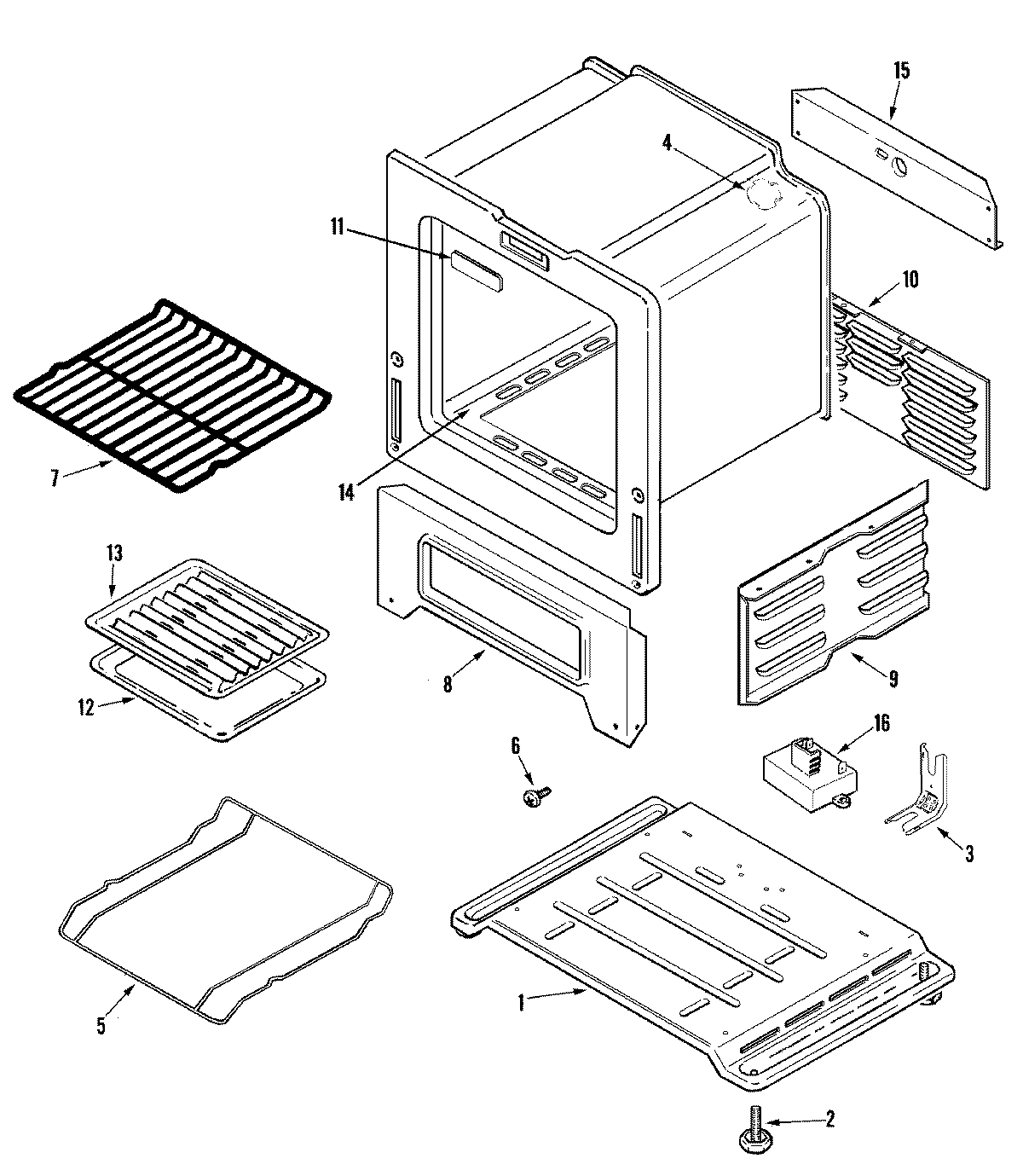

05 - OVEN/BASE
06 - SUPPLEMENTAL INFORMATION
07 - WIRING INFORMATION
Common parts from model Maytag LBR1415AGW ELECTRIC RANGE
1
MAY 7101P147-60 MAY 7101P147-60 Contact Us For Availability
1
MAY 74009779 MAY 74009779 Contact Us For Availability
1
MAY 74006288 MAY 74006288 Contact Us For Availability
1
MAY 74009886 MAY 74009886 Contact Us For Availability
1
MAY 74010140 MAY 74010140 Contact Us For Availability
1
MAY 8113P514-60 MAY 8113P514-60 Contact Us For Availability
1
MAY 8113P560-60 MAY 8113P560-60 Contact Us For Availability
2
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
2
MAY 74009797 MAY 74009797 Contact Us For Availability
2
MAY 74002458 MAY 74002458 Contact Us For Availability
2
MAY 74009462 MAY 74009462 Contact Us For Availability
2
MAY 74009770 MAY 74009770 Contact Us For Availability
2
MAY 8113P517-60 MAY 8113P517-60 Contact Us For Availability
3
MAY 74002002 MAY 74002002 Contact Us For Availability
3
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
3
MAY 74011251 MAY 74011251 Contact Us For Availability
4
MAY 74010337 MAY 74010337 Contact Us For Availability
4
MAY 74010725 MAY 74010725 Contact Us For Availability
4
MAY 74010733 MAY 74010733 Contact Us For Availability
4
MAY 74007534 MAY 74007534 Contact Us For Availability
4
MAY 74002380 MAY 74002380 Contact Us For Availability
4
MAY 74007262 MAY 74007262 Contact Us For Availability
5
MAY 74010212 MAY 74010212 Contact Us For Availability
5
MAY 74010713 MAY 74010713 Contact Us For Availability
5
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
5
MAY 74007524 MAY 74007524 Contact Us For Availability
5
MAY 74002381 MAY 74002381 Contact Us For Availability
5
MAY 74010727 MAY 74010727 Contact Us For Availability
6
MAY 74005051 MAY 74005051 Contact Us For Availability
6
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
6
MAY 74006786 MAY 74006786 Contact Us For Availability
7
MAY 74005097 MAY 74005097 Contact Us For Availability
7
MAY 74002393 MAY 74002393 Contact Us For Availability
7
MAY 74009330 MAY 74009330 Contact Us For Availability
8
MAY 74009780 MAY 74009780 Contact Us For Availability
8
MAY 7101P209-60 MAY 7101P209-60 Contact Us For Availability
8
MAY 74002461 MAY 74002461 Contact Us For Availability
8
MAY 74002327 MAY 74002327 Contact Us For Availability
8
MAY 16023522 MAY 16023522 Contact Us For Availability
9
MAY 74004827 MAY 74004827 Contact Us For Availability
9
MAY 74002462 MAY 74002462 Contact Us For Availability
9
MAY 7101P343-60 MAY 7101P343-60 Contact Us For Availability
9
MAY 74007527 MAY 74007527 Contact Us For Availability
9
MAY 74007528 MAY 74007528 Contact Us For Availability
9
MAY 74002374 MAY 74002374 Contact Us For Availability
9
MAY 74002375 MAY 74002375 Contact Us For Availability
10
MAY 74002434 MAY 74002434 Contact Us For Availability
10
MAY 74009978 MAY 74009978 Contact Us For Availability
10
MAY 74002464 MAY 74002464 Contact Us For Availability
10
MAY 74002379 MAY 74002379 Contact Us For Availability
11
MAY 7201P017-60 MAY 7201P017-60 Contact Us For Availability
11
MAY 74006417 MAY 74006417 Contact Us For Availability
11
MAY 74007476 MAY 74007476 Contact Us For Availability
11
MAY 74009799 MAY 74009799 Contact Us For Availability
11
PLUG, LOCK SLOT MAY 74003406 Contact Us For Availability
12
MAY 71001394 MAY 71001394 Contact Us For Availability
12
MAY 74006536 MAY 74006536 Contact Us For Availability
12
MAY 74009943 MAY 74009943 Contact Us For Availability
12
MAY 74001729 MAY 74001729 Contact Us For Availability
12
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
12
MAY 74004285 MAY 74004285 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
13
MAY 74010710 MAY 74010710 Contact Us For Availability
13
MAY 74007088 MAY 74007088 Contact Us For Availability
13
MAY 74010791 MAY 74010791 Contact Us For Availability
13
MAY 74010792 MAY 74010792 Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
14
MAY 74010441 MAY 74010441 Contact Us For Availability
14
MAY 74007553 MAY 74007553 Contact Us For Availability
14
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
14
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
14
MAY 74002377 MAY 74002377 Contact Us For Availability
15
MAY 74002370 MAY 74002370 Contact Us For Availability
15
MAY 74002634 MAY 74002634 Contact Us For Availability
15
MAY 74001814 MAY 74001814 Contact Us For Availability
15
MAY 71003231 MAY 71003231 Contact Us For Availability
15
MAY 74009460 MAY 74009460 Contact Us For Availability
15
MAY 74010139 MAY 74010139 Contact Us For Availability
16
MAY 74011235 MAY 74011235 Contact Us For Availability
16
MAY 74001663 MAY 74001663 Contact Us For Availability
17
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
17
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
17
NUT, WING MAY 7103P030-60 Contact Us For Availability
18
MAY 74009897 MAY 74009897 Contact Us For Availability
18
MAY 74010466 MAY 74010466 Contact Us For Availability
19
MAY 12002704 MAY 12002704 Contact Us For Availability
NI
MAY 15003748 MAY 15003748 Contact Us For Availability
× ![]()
