Model Whirlpool LA2000H ELECTRIC DRYER – Common Parts & Diagrams
05 - TRANSMISSION & RELATED PARTS (REV. G-L)
07 - TUB (REV. E-F)

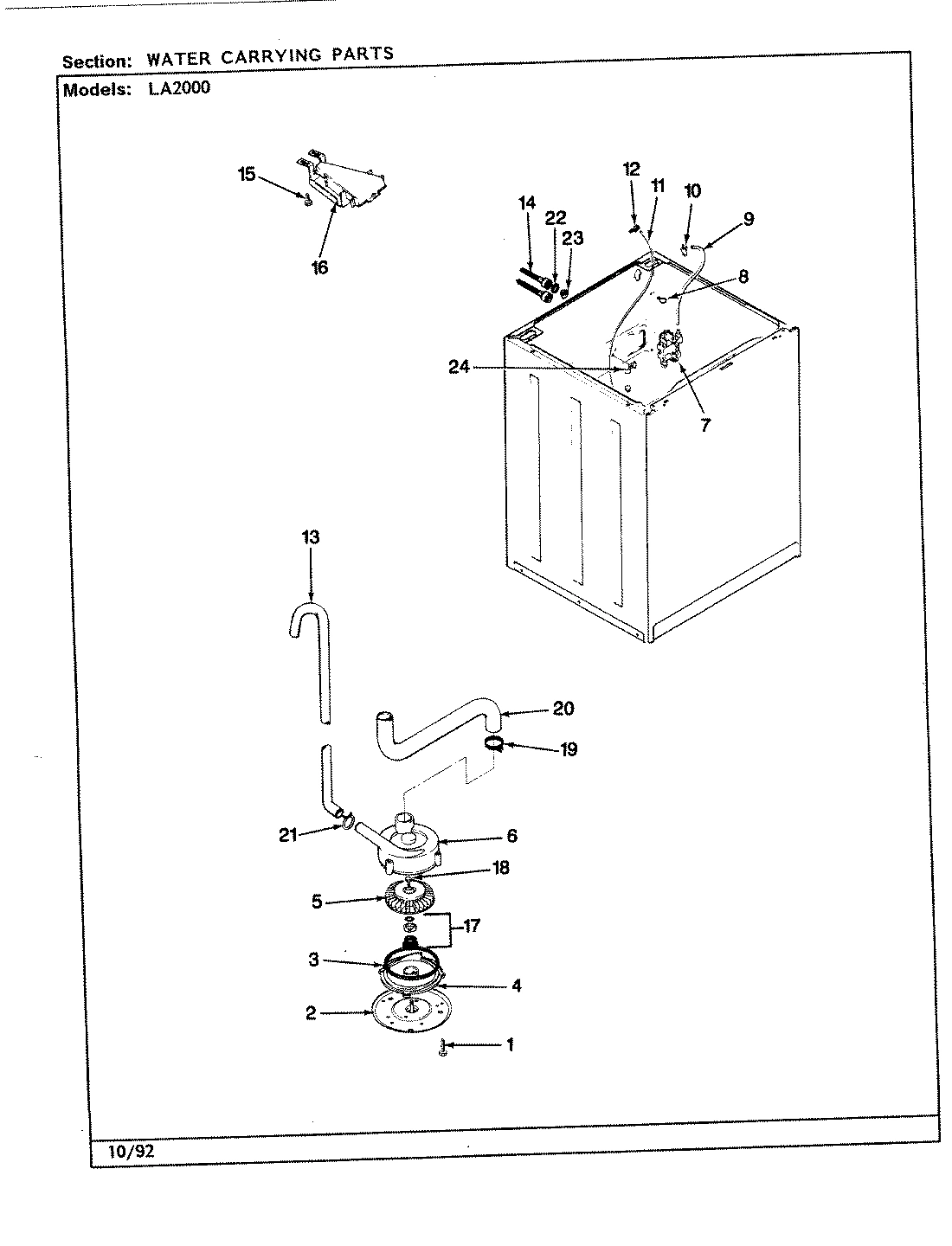

10 - WATER CARRYING (REV. G-L)
06 - TRANSMISSION (REV. E-F)

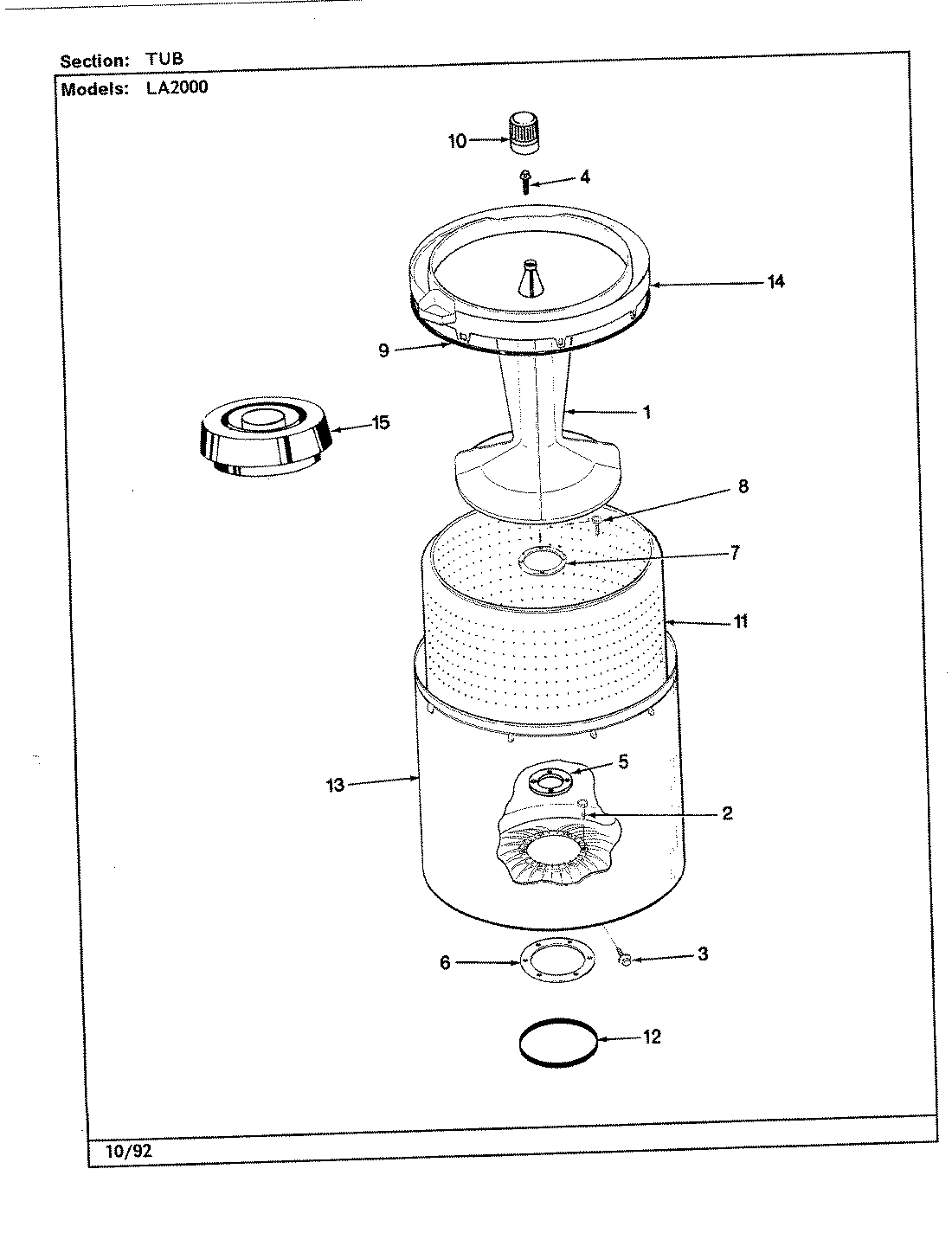

08 - TUB (REV. G-L)
01 - BASE & DRIVE (REV. E-F)
03 - CONTROL PANEL (REV. E-F)

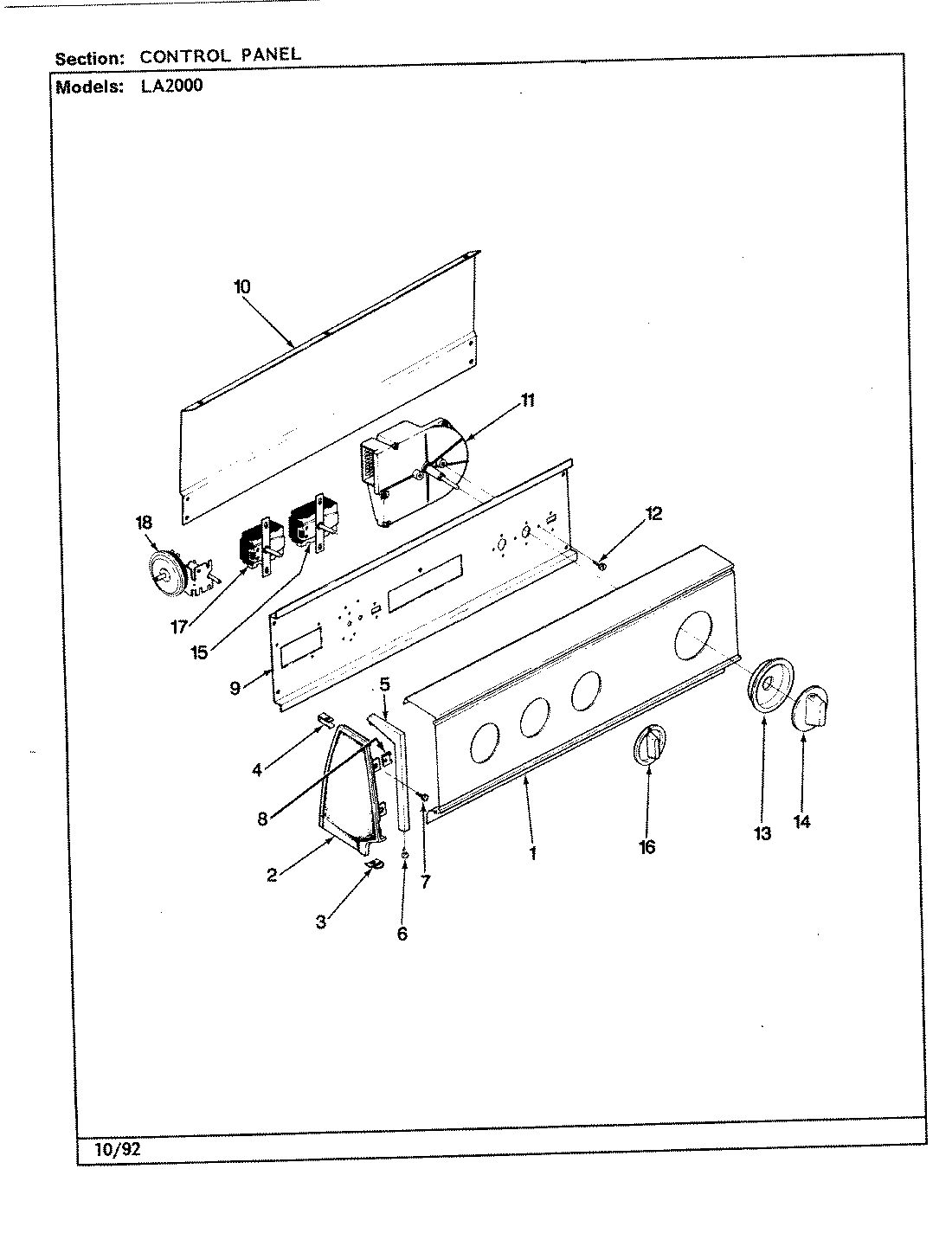

04 - CONTROL PANEL (REV. G-L)

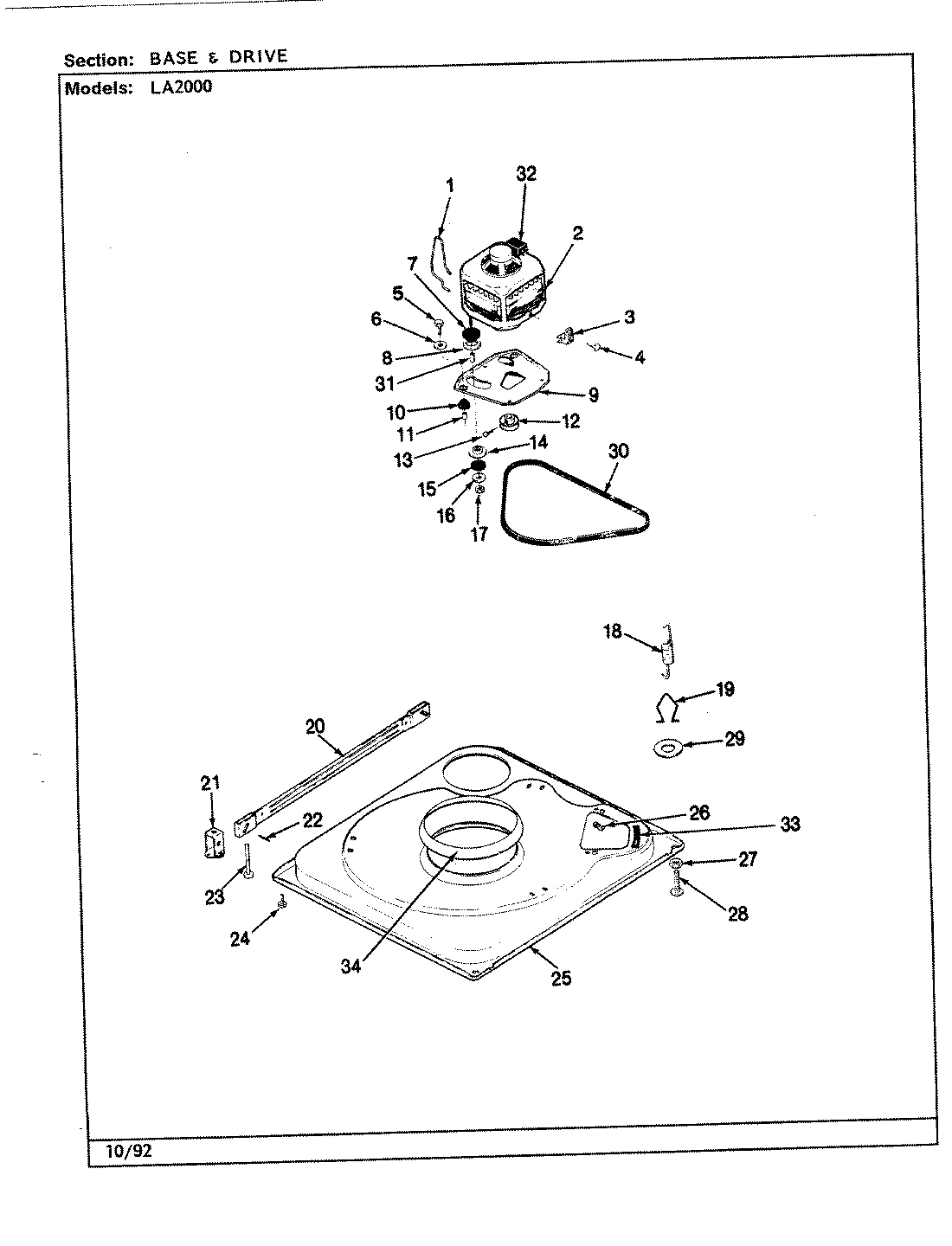

02 - BASE & DRIVE (REV. G-L)
09 - WATER CARRYING & PUMP ASSY. (REV. E-F)
Common parts from model Whirlpool LA2000H ELECTRIC DRYER
1
TRANSMISSION REPLACEMENT KIT WPL LA2175 Contact Us For Availability
1
AGITATOR WPL 352456 Contact Us For Availability
1
SCREW WPL 257405 Contact Us For Availability
1
REINFORCMT COVR WPL 339893 Contact Us For Availability
1
TRANSMISSION REPLACEMENT KIT WPL LA2001 Contact Us For Availability
1
AGITATOR WPL 352717 Contact Us For Availability
1
AGITATOR WPL 353580 Contact Us For Availability
1
SPRING, MOTOR PIVOT WPL 350235 Contact Us For Availability
1
SCREW WPL 257793 Contact Us For Availability
1
PANEL, CONTROL WPL 352589 Contact Us For Availability
2
BEARING, CENTERPOST WPL 352835 Contact Us For Availability
2
PLUG, OIL FILL WPL 352621 Contact Us For Availability
2
SCREW, SHOULDER TYPE WPL 352062 Contact Us For Availability
2
PLATE & PULLEY ASSY. WPL 336035 Contact Us For Availability
2
OIL FILL PLUG WPL 339373 Contact Us For Availability
2
SCREW SHOULDER WPL 257947 Contact Us For Availability
2
MOTOR KIT WPL LA2002 Contact Us For Availability
2
CAP, END (RT) WPL 352487 Contact Us For Availability
2
CAP, END (LT) WPL 352488 Contact Us For Availability
3
CENTERPOST WPL 352792 Contact Us For Availability
3
SCREW WPL 257914 Contact Us For Availability
3
GASKET WPL 336032 Contact Us For Availability
3
BOLT WPL 257916 Contact Us For Availability
3
SCREW WPL 257953 Contact Us For Availability
3
SLIDE, FOOT WPL 339945 Contact Us For Availability
3
SCREW WPL 257697 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
PLATE, REINFORCEMENT WPL 349487 Contact Us For Availability
4
CENTERPOST ASSY. WPL 352983 Contact Us For Availability
4
COVER, TRANSMISSION WPL 352620 Contact Us For Availability
4
CAP WPL 336241 Contact Us For Availability
4
BASE, PUMP WPL 352058 Contact Us For Availability
4
TRANSM CVR KIT WPL 334286N Contact Us For Availability
4
SCREW, AGITATOR RETENTION WPL 257948 Contact Us For Availability
4
SCREW PURCHASE WPL 257418 Contact Us For Availability
4
SCREW WPL 257435 Contact Us For Availability
4
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
5
SEAL, CENTERPOST BOTTOM WPL 352906 Contact Us For Availability
5
IMPELLER WPL 352057 Contact Us For Availability
5
COUNTER WEIGHT WPL 352130 Contact Us For Availability
5
COUNTERWEIGHT WPL 352642 Contact Us For Availability
5
GASKET WPL 352980 Contact Us For Availability
5
GASKET, BASKET TO CENTERPOST WPL 353685 Contact Us For Availability
5
SCREW WPL 257833 Contact Us For Availability
5
TRIM, END CAP (RT) WPL 530277 Contact Us For Availability
5
TRIM, END CAP (LT) WPL 530278 Contact Us For Availability
6
NUT, SPIN TUBE WPL 352791 Contact Us For Availability
6
GASKET, TRANSMISSION HOUSING WPL 351030 Contact Us For Availability
6
HOUSING, PUMP WPL 352056 Contact Us For Availability
6
PUMP ASSY (COMPLETE) WPL 352099 Contact Us For Availability
6
RESTRICTOR, FLOW WPL 352344 Contact Us For Availability
6
GASKET, TUB/HSG (SEAL) WPL 352979 Contact Us For Availability
6
GASKET, TUB TO HOUSING WPL 353686 Contact Us For Availability
6
WASHER WPL 257834 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
7
``O`` RING, BASKET DRIVE HUB WPL 257938 Contact Us For Availability
7
REINF PLATE WPL 338799 Contact Us For Availability
7
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
7
VALVE, WATER MIXING (60HZ) WPL 352376 Contact Us For Availability
7
DRIVE HUB & BRG WPL 338763 Contact Us For Availability
7
DRIVE TUBE ASSY WPL 352654 Contact Us For Availability
7
GASKET & REINF. PLATE ASSY WPL 353014 Contact Us For Availability
7
ISOLATOR, MOTOR WPL 339946 Contact Us For Availability
8
BASKET DRIVE HUB ASSY WPL 352715 Contact Us For Availability
8
HUB, BASKET DRIVE WPL 353647 Contact Us For Availability
8
RING, RETAINING (CLUTCH ASSY.) WPL 257847 Contact Us For Availability
8
SCREW WPL 257783 Contact Us For Availability
8
WASHER WPL 339944 Contact Us For Availability
8
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
9
TUB SEAL/HUB ASSY (HT TRANS) WPL 352974 Contact Us For Availability
9
WASHER, FLAT WPL 257416 Contact Us For Availability
9
SEAL, TUB TOP WPL 352328 Contact Us For Availability
9
HOSE, FLUME/DIVERTER (RUBBER) WPL 352378 Contact Us For Availability
9
SCREW WPL 253083 Contact Us For Availability
9
PLATE, MOTOR WPL 352810 Contact Us For Availability
10
HOUSING, BEARING & SEAL WPL 352716 Contact Us For Availability
10
SPRING WPL 336114 Contact Us For Availability
10
RUBBER WASHER WPL 257330 Contact Us For Availability
10
CLAMP WPL 257867 Contact Us For Availability
10
RETAINING RING WPL 257853 Contact Us For Availability
10
CAP, AGITATOR WPL 352733 Contact Us For Availability
10
DBL.PIVOT SLIDE WPL 339947 Contact Us For Availability
10
SCREW, SEMS WPL 253457 Contact Us For Availability
10
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
11
BEARING & SEAL HOUSING ASSY. WPL 352972 Contact Us For Availability
11
PINION, DRIVE WPL 352001 Contact Us For Availability
11
BASKET WHITE WPL 352508 Contact Us For Availability
11
PAD, PRESSURE SWITCH HOSE WPL 352261 Contact Us For Availability
11
HOSE, PRESSURE SWITCH WPL 352322 Contact Us For Availability
11
BASKET ASSY WPL 353016 Contact Us For Availability
11
SPACER WPL 257831 Contact Us For Availability
11
TIMER WPL 352211 Contact Us For Availability
12
SEAL, TUB/HOUSING WPL 352978 Contact Us For Availability
12
RING, RETAINING (AG. SHAFT) WPL 257949 Contact Us For Availability
12
SPRING WPL 333195 Contact Us For Availability
12
TUB SUPPORT WPL 352529 Contact Us For Availability
12
PULLEY, MOTOR (60HZ) WPL 352124 Contact Us For Availability
12
SCREW WPL 250205 Contact Us For Availability
13
TUB WPL 352038 Contact Us For Availability
13
DRAIN HOSE WPL 352896 Contact Us For Availability
13
DRIVE SHAFT & HUB ASSY WPL 352116 Contact Us For Availability
13
CLUTCH ASSY KIT WPL LA2005 Contact Us For Availability
13
TUB ASSY WPL 352952 Contact Us For Availability
13
TUB ASSEMBLY (PLASTIC) WPL 353700 Contact Us For Availability
13
SET SCREW WPL 257117 Contact Us For Availability
13
SKIRT & RING ASSY WPL 352254 Contact Us For Availability
13
RUBBER HOSE WPL 339436 Contact Us For Availability
14
WASHER, FLAT WPL 257051 Contact Us For Availability
14
TOP, TUB WPL 352034 Contact Us For Availability
14
SHIELD, TUB TOP WPL 352262 Contact Us For Availability
14
HOSE, 5` INLET WPL 337046 Contact Us For Availability
14
HOSE, INLET WPL 350873 Contact Us For Availability
14
THRUST WASHER WPL 257091 Contact Us For Availability
14
TOP, TUB WPL 353578 Contact Us For Availability
14
MOTOR SLIDE WPL 339943 Contact Us For Availability
14
TIMER KNOB WPL 352486 Contact Us For Availability
15
GEAR, CRANK WPL 352631 Contact Us For Availability
15
SCREW WPL 253092 Contact Us For Availability
15
CRANK GEAR WPL 352043 Contact Us For Availability
15
DISPENSER, RINSE WPL 352550 Contact Us For Availability
15
WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability
15
TEMP SWITCH WPL 350114 Contact Us For Availability
16
COVER, REINFORCEMENT WPL 352981 Contact Us For Availability
16
WASHER, STEEL WPL 257274 Contact Us For Availability
16
WASHER, STEEL W/TABS WPL 352070 Contact Us For Availability
16
STEEL WASHER WPL 257921 Contact Us For Availability
16
FLUME, WATER INLET WPL 352051 Contact Us For Availability
16
THRUST WASHER WPL 352462 Contact Us For Availability
16
WASHER, FLAT WPL 257047 Contact Us For Availability
16
KNOB, SELECTOR (BLK) WPL 352185 Contact Us For Availability
17
CORK WASHER WPL 257922 Contact Us For Availability
17
SEAL, SEAT & ``O`` RING WPL 350707 Contact Us For Availability
17
NUT, MOTOR PLATE ASY TO MOTOR WPL 257325 Contact Us For Availability
17
SWITCH, ROTARY SPEED WPL 352193 Contact Us For Availability
18
GEAR, CLUSTER WPL 352527 Contact Us For Availability
18
SCREW WPL 257894 Contact Us For Availability
18
CLUSTER GEAR WPL 352013 Contact Us For Availability
18
SPRING, SUSPENSION WPL 352681 Contact Us For Availability
18
PRESSURE SWITCH WPL 352145 Contact Us For Availability
18
MANUAL, USE & CARE WPL 352604 Contact Us For Availability
18
SWITCH, PRESSURE WPL 353283 Contact Us For Availability
18
SPRING, SUSPENSION WPL 353658 Contact Us For Availability
19
SCREW, COVER TO TRANS. HOUSING WPL 257926 Contact Us For Availability
19
CLAMP, HOSE WPL 256068 Contact Us For Availability
19
CORBIN CLAMP WPL 256069 Contact Us For Availability
19
TRANSMISSION HOUSING ASSY WPL 352012 Contact Us For Availability
19
TRANSMISSION HOUSING WPL 352640 Contact Us For Availability
19
HOOK, SUSPENSION SPRING WPL 352976 Contact Us For Availability
20
TRANSMISSION COVER ASSY. WPL 352971 Contact Us For Availability
20
SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability
20
SUSPENSION HOUSING WPL 352015 Contact Us For Availability
20
HOSE TUB TO PUMP WPL 352982 Contact Us For Availability
20
HOSE, TUB TO PUMP WPL 353584 Contact Us For Availability
20
BAR, STABILIZER (WITH GUIDE) WPL 352049 Contact Us For Availability
20
HOSE, SUMP TO PUMP WPL 352131 Contact Us For Availability
21
COUNTERWEIGHT WPL 352903 Contact Us For Availability
21
SCREW 5/16-18X3/4 WPL 257930 Contact Us For Availability
21
CLAMP, DISCHARGE HOSE WPL 257080 Contact Us For Availability
21
HOUSING & BEARING ASSY WPL 352111 Contact Us For Availability
21
BRACE, TUB WPL 352531 Contact Us For Availability
21
BRACKET, STABILIZER WPL 352046 Contact Us For Availability
22
WASHER WPL 257048 Contact Us For Availability
22
LINKAGE ASM WPL 350628 Contact Us For Availability
22
LINKAGE ASSY WPL 352637 Contact Us For Availability
22
HOOK SUSPENSION SPRING WPL 352682 Contact Us For Availability
22
PIN, STABILIZER WPL 352052 Contact Us For Availability
23
FOOT, SELF STABILIZER WPL 352050 Contact Us For Availability
23
STRAINER, HOSE WPL 337313 Contact Us For Availability
23
HOUSING, W/O BEARING & SEAL WPL 352059 Contact Us For Availability
24
BEARING, SPIN WPL 352205 Contact Us For Availability
24
DRIVE TUBE ASSY WPL 352708 Contact Us For Availability
24
DRIVE TUBE ASSY. WPL 353702 Contact Us For Availability
24
CLAMP WPL 336099 Contact Us For Availability
24
CLAMP, PRESSURE SWITCH HOSE WPL 257796 Contact Us For Availability
24
MOTOR WPL 352030 Contact Us For Availability
24
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
25
LINKAGE ASSY WPL 353036 Contact Us For Availability
25
LINKAGE ASSY. WPL 353804 Contact Us For Availability
25
RETAINING RING WPL 257849 Contact Us For Availability
25
BASE, WASHER WPL 352815 Contact Us For Availability
26
CLUTCH ASSY. WPL LA2176 Contact Us For Availability
26
RETAINER, BRAKE SPRING WPL 352017 Contact Us For Availability
26
TUB SEAL ASM WPL 337224N Contact Us For Availability
26
SPEEDNUT WPL 257838 Contact Us For Availability
27
SCREW, SUSP HSG TO LWR BRG ASY WPL 257895 Contact Us For Availability
27
BASKET HUB ASM WPL 339987 Contact Us For Availability
27
HEX NUT WPL 257915 Contact Us For Availability
28
WASHER, FLAT WPL 257415 Contact Us For Availability
28
SPRING, BRAKE WPL 352112 Contact Us For Availability
28
GASKET, TUB TO HOUSING WPL 352061 Contact Us For Availability
28
FOOT, FRONT WPL 350772 Contact Us For Availability
28
PAD, FRONT FOOT WPL 350837 Contact Us For Availability
29
BRAKE ROTER & LINING ASSY WPL 352113 Contact Us For Availability
29
WASHER, SUSPENSION HOOK WPL Y257951 Contact Us For Availability
30
STATOR, BRAKE WPL 352018 Contact Us For Availability
30
LOCKNUT ASSY WPL 339507 Contact Us For Availability
30
BELT, DRIVE PULLEY WPL 352320 Contact Us For Availability
31
SET SCREW WPL 257120 Contact Us For Availability
31
SCREW WPL 257359 Contact Us For Availability
31
SPACER WPL 257830 Contact Us For Availability
32
DRIVE SHAFT & HUB ASSY. WPL 352692 Contact Us For Availability
32
SPACER-BEARING WPL 352016 Contact Us For Availability
32
SWITCH, MOTOR WPL 339765 Contact Us For Availability
33
GASKET WPL 338718 Contact Us For Availability
33
WASHER WPL 257909 Contact Us For Availability
33
PAD, MOTOR PLATE WPL 352065 Contact Us For Availability
34
WASHER, NYLON WPL 352817 Contact Us For Availability
34
SNUBBER WPL 352357 Contact Us For Availability
34
WASHER WPL 352318 Contact Us For Availability
35
BEARING, AGITATOR WPL 336790 Contact Us For Availability
35
THRUST BEARING WPL 352078 Contact Us For Availability
36
RING, RETAINING WPL 257933 Contact Us For Availability
36
CENTERPOST KIT WPL 334283N Contact Us For Availability
36
WASHER WPL 352081 Contact Us For Availability
37
DRIVE PULLEY WPL 352683 Contact Us For Availability
37
SEAL ASSEMBLY WPL 337806N Contact Us For Availability
38
DRIVE BLOCK ASM WPL 339729 Contact Us For Availability
39
HOUSING, TRANSMISSION WPL 352812 Contact Us For Availability
39
CAM, LOWER WPL 352439 Contact Us For Availability
39
SET SCREW WPL 257378 Contact Us For Availability
40
WASHER,1.25ODX.530IDX.062 WPL 352082 Contact Us For Availability
40
STUD WPL 336817 Contact Us For Availability
41
BEARING ASSY. (LOWER) WPL 352730 Contact Us For Availability
41
TRANSMISSION HSG ASSY W/LWR BR WPL 352973 Contact Us For Availability
41
RING, RETAINING WPL 257854 Contact Us For Availability
41
SEAL, TUB TO HOUSING WPL 352060 Contact Us For Availability
42
TUB SUPPORT WPL 352732 Contact Us For Availability
42
SUPPORT, TUB WPL 353724 Contact Us For Availability
43
WPL 352798 WPL 352798 Contact Us For Availability
43
RETAINING RING WPL 257848 Contact Us For Availability
45
``O`` RING, DRIVE TUBE WPL 257722 Contact Us For Availability
45
WPL 353698 WPL 353698 Contact Us For Availability
45
PAD, FOOT WPL 352039 Contact Us For Availability
46
CAP, DUST WPL 352007 Contact Us For Availability
46
FLAT WASHER WPL 257316 Contact Us For Availability
48
WPL 352025 WPL 352025 Contact Us For Availability
50
WPL 352948 WPL 352948 Contact Us For Availability
53
WPL 257900 WPL 257900 Contact Us For Availability
56
FLAT WASHER WPL 257413 Contact Us For Availability
60
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
61
WPL 352132 WPL 352132 Contact Us For Availability
61
WPL 257362 WPL 257362 Contact Us For Availability
× ![]()
Login and Registration Form
