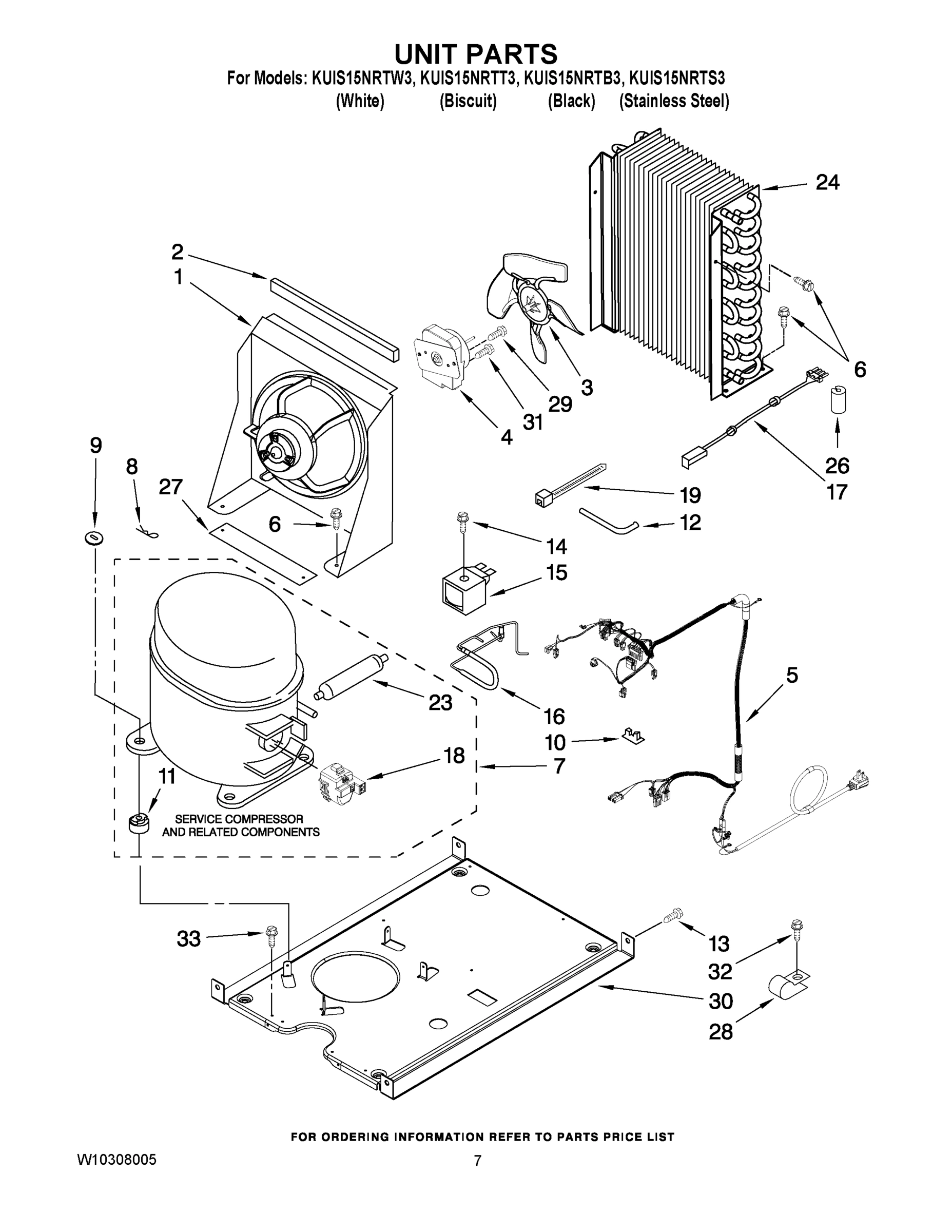

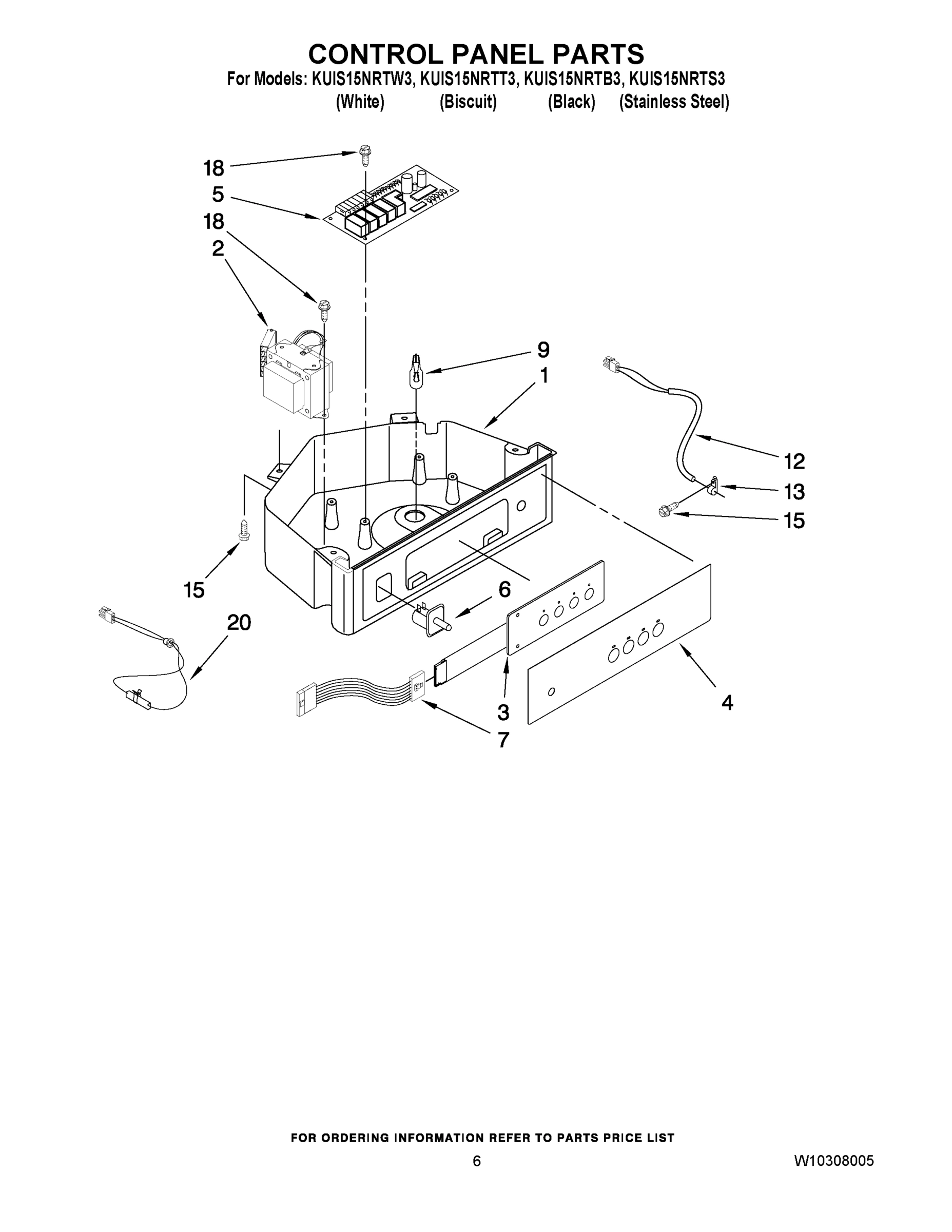

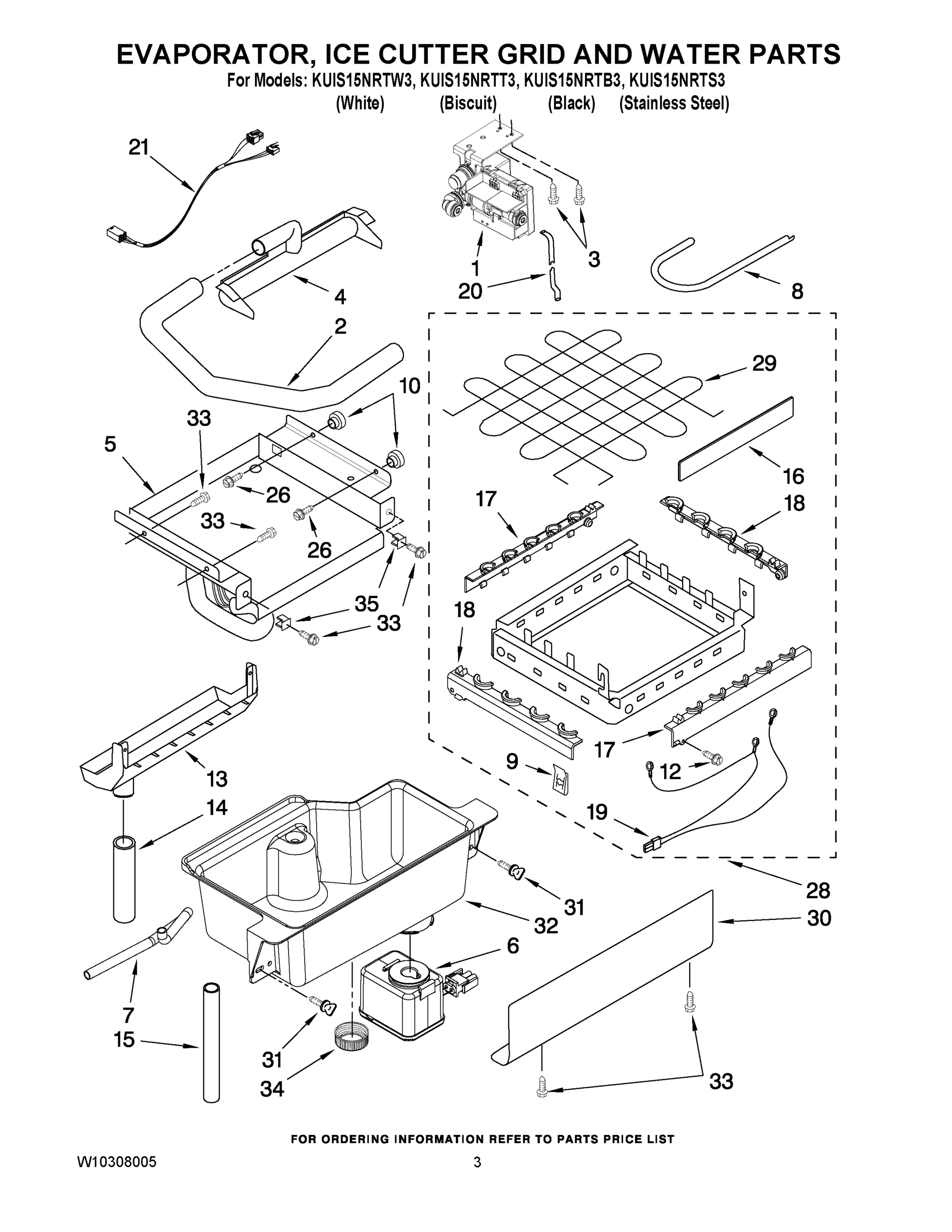

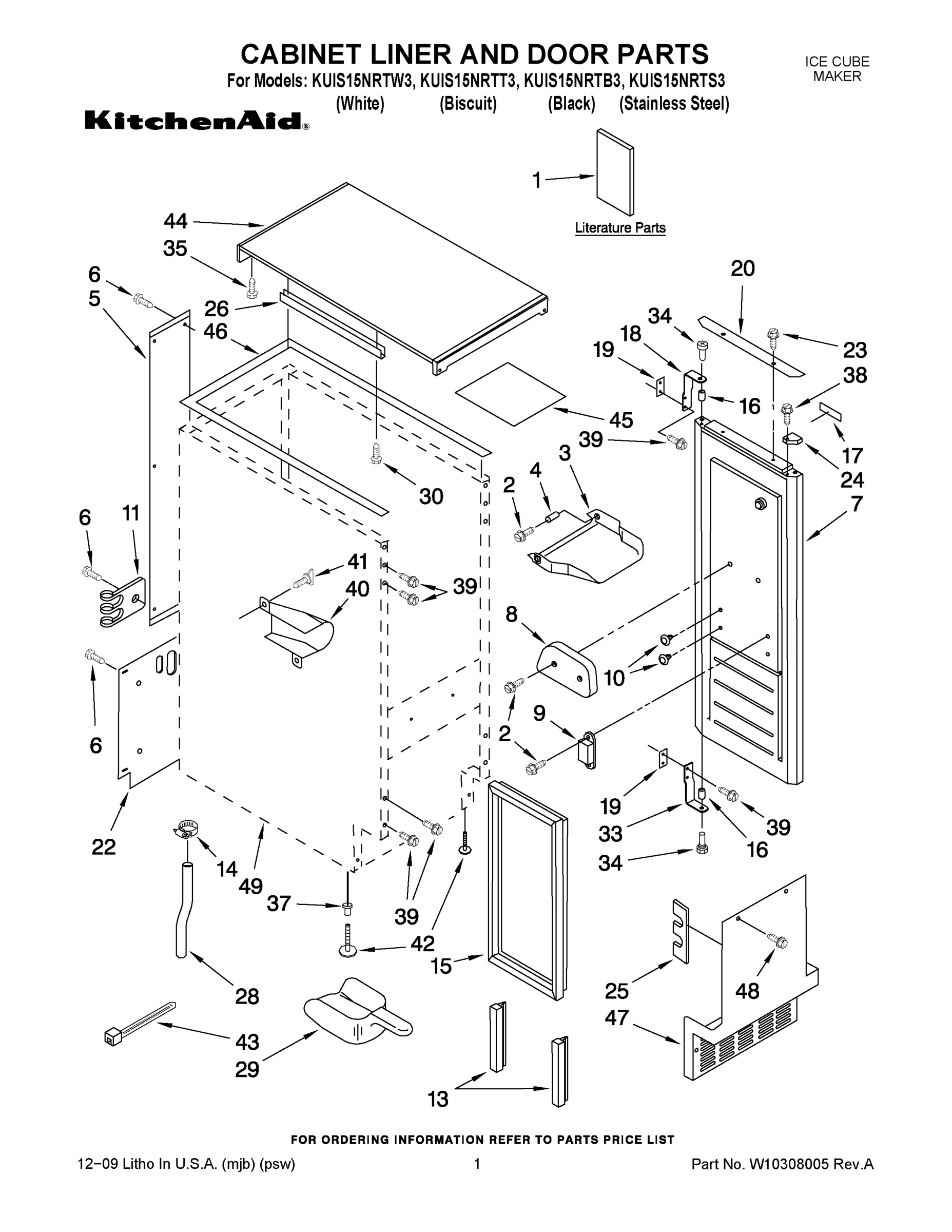

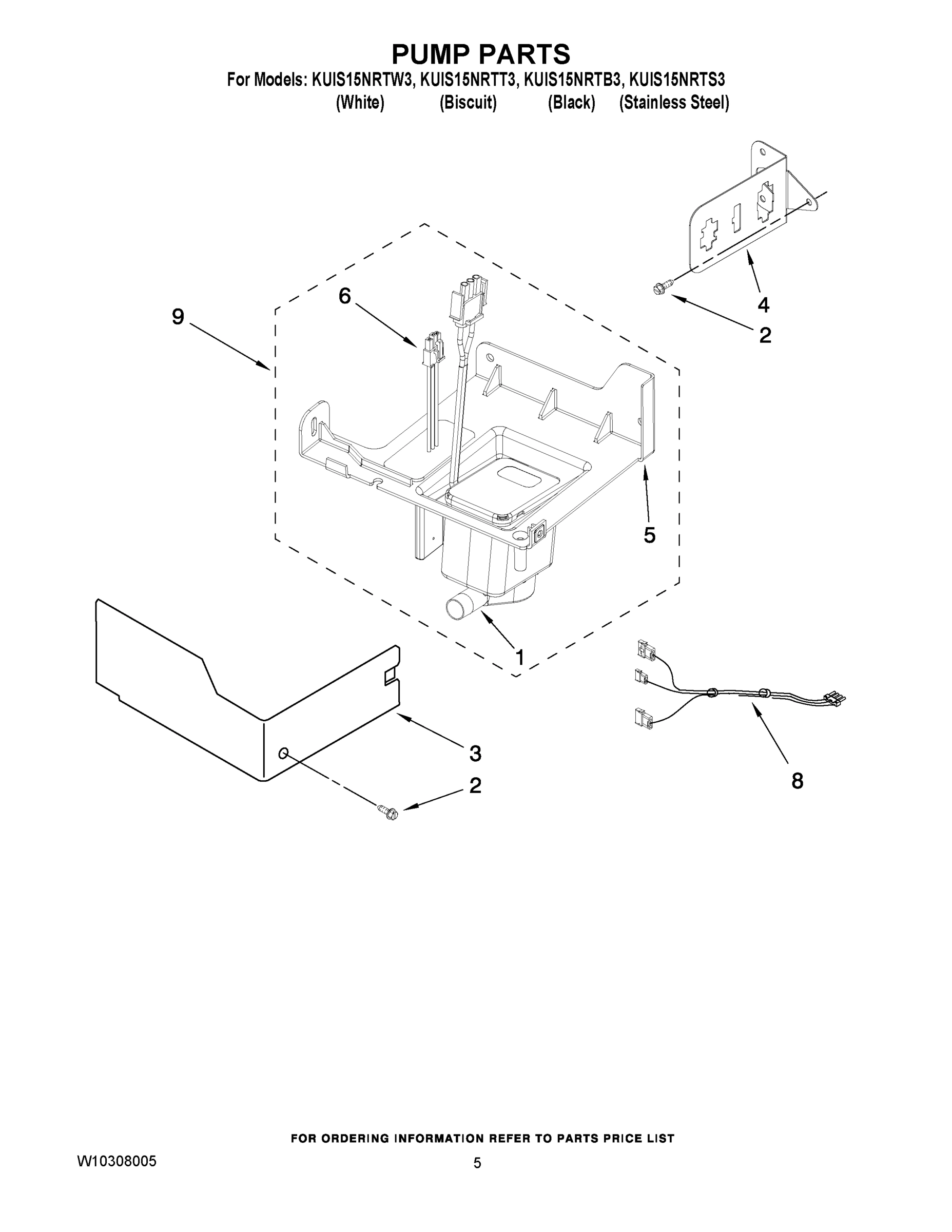

Model Whirlpool KUIS15NRTT3 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

W11566405 Whirlpool Refrigerator Pump In Stock WPL W11566405 $86.99

2

WP2310139 Whirlpool Refrigerator Transformer Backorder WPL WP2310139 $218.99

3

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $61.51

3

WP2188935 Whirlpool Refrigerator Fan Blade In Stock WPL WP2188935 $56.99

3

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

3

ASSEMBLY, SWITCH (ALSO ORDER No.4) WPL 2304122 Contact Us For Availability

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $6.97

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $49.99

5

W11204894 Whirlpool Refrigerator Bracket Backorder WPL W11204894 $45.11

5

WPW10218037 Whirlpool Refrigerator Evaporator In Stock WPL WPW10218037 $468.58

5

WPW10226156-includeCORE Whirlpool WPW10226156 Backorder WPL WPW10226156-includeCORE $332.69

6

W11566407 Whirlpool Pump In Stock WPL W11566407 $86.74

6

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

7

Wire Assy-Active Overlay Jumper WPL 2187585 Contact Us For Availability

7

TUBE, RESERVOIR PUMP WPL 2313851 Contact Us For Availability

8

WP2310092 Whirlpool Refrigerator Pump Harness In Stock WPL WP2310092 $105.99

8

WPW10418868 Whirlpool Refrigerator Water Tube In Stock WPL WPW10418868 $47.30

9

488660 Whirlpool Refrigerator Nut Backorder WPL 488660 $8.39

9

A201441 Whirlpool Refrigerator Shim Backorder WPL A201441 $5.85

9

Pump Assembly WPL 2313702 Contact Us For Availability

10

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $6.88

10

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

12

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $4.82

12

WPW10503764 Whirlpool Refrigerator Thermistor In Stock WPL WPW10503764 $84.86

13

2217367 Whirlpool Refrigerator Door Gasket Backorder WPL 2217367 $59.85

13

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $117.74

14

WP2185626 Whirlpool Refrigerator Hose Backorder WPL WP2185626 $71.89

14

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $7.20

15

WP2217294 Whirlpool Refrigerator Door Gasket Backorder WPL WP2217294 $172.67

15

WP2313890 Whirlpool Overflow Hose Backorder WPL WP2313890 $50.03

15

WPW10206473 Whirlpool Refrigerator Coil Solen Backorder WPL WPW10206473 $130.99

16

2185640 Whirlpool Refrigerator Sleeve Backorder WPL 2185640 $31.24

16

2313604 Whirlpool Refrigerator Guide Backorder WPL 2313604 $34.38

WP2187629 Whirlpool Refrigerator Wire Jumper Backorder WPL WP2187629 $90.20

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $50.14

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $47.62

Nameplate (Grey) WPL W10046610 Contact Us For Availability

BRACKET, REAR WPL 2313603 Contact Us For Availability

BRACKET, FRONT WPL W10136175 Contact Us For Availability

18

8201791 Whirlpool Air Conditioner Spacer Backorder WPL 8201791 $17.09

18

WPW10136197 Whirlpool Refrigerator Start Devi In Stock WPL WPW10136197 $124.99

19

2185681 Whirlpool Refrigerator Harness Backorder WPL 2185681 $89.54

WP2313635 Whirlpool Refrigerator Thermistor In Stock WPL WP2313635 $73.99

WPW10217922 Whirlpool Tube In Stock WPL WPW10217922 $96.99

Handle, Door (White) WPL 2208492W Contact Us For Availability

Handle, Door (Black) WPL 2208492B Contact Us For Availability

21

WP2310169 Whirlpool Refrigerator Harness Backorder WPL WP2310169 $88.98

24

WP2313624 Whirlpool Refrigerator Condenser In Stock WPL WP2313624 $222.46

25

W10532250 Whirlpool Refrigerator Foam Pad Backorder WPL W10532250 $6.96

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $10.19

26

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

26

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $4.82

28

WP2185989 Whirlpool Refrigerator Tube Backorder WPL WP2185989 $73.93

28

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $235.99

29

4387020 Whirlpool Refrigerator Grid In Stock WPL 4387020 $40.99

29

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.51

30

2185570 Whirlpool Refrigerator Panel Backorder WPL 2185570 $68.79

31

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $5.99

31

Thumbscrew WPL 8281228 Contact Us For Availability

32

WP2324334 Whirlpool Refrigerator Water Pan In Stock WPL WP2324334 $108.66

33

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $4.82

34

2185712 Whirlpool Refrigerator Hinge Pin Backorder WPL 2185712 $33.58

34

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $19.99

35

WP3400909 Whirlpool Refrigerator Nut In Stock WPL WP3400909 $4.82

40

2185927 Whirlpool Refrigerator Holder Backorder WPL 2185927 $57.91

42

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $57.34

43

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

44

Top (Black) WPL 2929700B Contact Us For Availability

44

Top (Biscuit) WPL 2929700T Contact Us For Availability

44

Top (White) WPL 2929700W Contact Us For Availability

45

2185690 Whirlpool Shield Assembly Backorder WPL 2185690 $9.71

46

W11624957 Whirlpool Refrigerator Top Gasket Backorder WPL W11624957 $85.13

47

WP2185571B Whirlpool Refrigerator Grille Backorder WPL WP2185571B $154.78

47

WP2185571W Whirlpool Refrigerator Grille Backorder WPL WP2185571W $87.48

47

Grill, Front (Biscuit) WPL 2185571T Contact Us For Availability

48

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

49

CABINET & LINER (NOT SERVICED) WPL NP Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
